(2011-2013) Ford Fiesta fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Fiesta (2011-2013) fuse assignment
Ford Fiesta Year of production: 2011, 2012, 2013
Where Are the Fuse Boxes Located on the Ford Fiesta?
The 2011–2013 Ford Fiesta uses two main fuse box locations: one under the hood and one inside the cabin. This straightforward two-box layout is typical of Ford’s compact car lineup and makes troubleshooting relatively simple once you know where to look.
1. Engine Compartment Fuse Box
The main engine bay fuse box is located near the back of the engine compartment, close to the battery on the driver’s side.
How to access it:
- Open the hood and locate the black plastic cover near the battery.
- Unclip the retaining tabs along the edges of the cover, most Fiesta models use simple snap-lock clips that don’t require tools.
- Lift the cover straight up to reveal the fuses and relays inside.
This fuse box protects higher-amperage components such as the headlights, engine cooling fan, horn, and starter relay. Since it’s exposed to engine heat and road moisture, make sure the cover is properly reseated after inspection to prevent corrosion or water intrusion.
2. Interior Fuse Panel (Instrument Panel Fuse Box)
The cabin fuse box is located inside the car, typically on the driver’s side, tucked behind a small panel to the left of the steering wheel near the door.
How to access it:
- Turn the steering wheel fully to the left (if needed) for easier access to the panel.
- Locate the small access cover near the end of the dashboard, close to the door hinge.
- Gently pull the cover free, it’s usually secured with simple plastic clips that release with light pressure.
- Once removed, you’ll see the fuse layout along with a couple of small relays.
This panel handles interior circuits such as the radio, power windows, dashboard lights, wipers, and central locking system. It’s the fuse box you’ll likely need most often for everyday electrical troubleshooting.
How to Identify the Right Fuse or Relay
Both fuse boxes include a printed diagram, usually located on the inside of the cover or printed directly on a label near the fuse block, showing each fuse and relay’s number, amperage rating, and function.
When troubleshooting:
- Identify the malfunctioning component (e.g., “radio” or “rear wiper”) and match it to its corresponding number on the diagram.
- Confirm the amperage rating printed on the old fuse matches the replacement before installing a new one.
- For relays, use the diagram to confirm the correct slot, since several relays in the box may look identical despite controlling different systems.
If the printed diagram is missing or difficult to read, refer to your owner’s manual for a detailed fuse box diagram specific to your Fiesta’s trim level, as slight variations can exist between base models and higher trims with additional electrical features.
Safety Precautions Before Checking Fuses or Relays
- Turn off the ignition and remove the key before touching any fuse or relay.
- For more involved electrical work, disconnect the negative battery terminal to prevent accidental short circuits.
- Use the fuse puller tool, often built into the fuse box cover, rather than metal tools like screwdrivers, which can cause sparking.
- Never replace a fuse with one of a higher amperage rating than specified, as this can overload the circuit and create a fire hazard.
- If a replacement fuse blows immediately, stop and inspect the circuit for an underlying short rather than continuing to swap fuses.
Checking and Replacing Fuses in Ford Fiesta
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Location of Fuse Boxes

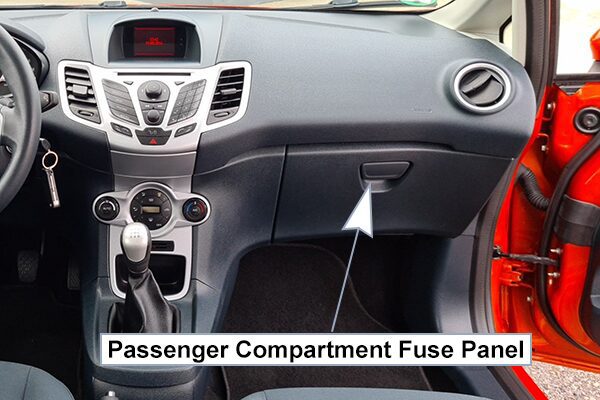

Passenger Compartment Fuse Panel:
The fuse panel is located behind the glove box. Open the glove box, press the sides inward and swing the glove box down.

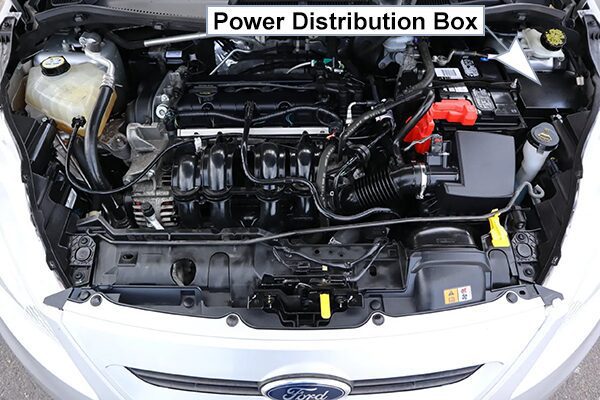

Power Distribution Box:
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2011

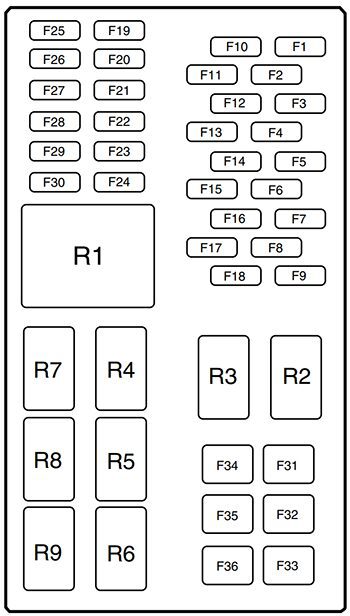

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2011)
| № | A | Protected circuits |
|---|---|---|
| F1 | 15A | Ignition switch, Keyless entry ignition relay, Keyless entry accessory relay |
| F2 | 10A | Electronic mirror, A/C clutch, Engine compartment fuse panel |
| F3 | 7.5A | Instmment cluster |
| F4 | 7.5A | Passenger airbag deactivation indicator, Occupant classification system |
| F5 | 15A | Diagnostic connector |
| F6 | 10A | Backup lamp |
| F7 | 7.5A | Instrument panel display, Intelligent access (IA) antenna, Manual climate Controls |
| F8 | – | Not used |
| F9 | 20A | Keyless vehicle module |
| F10 | 15A | Radio, SYNC module |
| F11 | 20A | Front wipers, Body control module (BCM) |
| F12 | 20A | Tire pressure monitoring system (TPMS) |
| F13 | 15A | Rear wiper, BCM |
| F14 | 20A | IA module |
| F15 | 15A | Washer pump |
| F16 | 15A | Global positioning system (GPS) module |
| F17 | 7.5A | Heated seat relay |
| F18 | 10A | Stop lamps, Turn signals |
| F19 | 7.5A | Radio, Instrument cluster |
| F20 | 10A | Airbag module |
| F21 | 10A | BCM, Climate control, Passive anti-theft system transceiver, Electronic power steering module, Instmment cluster, Engine compartment fuse panel |
| F22 | 7.5A | Accelerator pedal position sensor, Powertrain control module (PCM), Gear shifter, Anti-lock brake system (ABS) ignition feed |
| F23 | 10A | Transmission control unit ignition feed, TPMS ignition feed |
| F24 | 7.5A | Front dome lamp, Moon roof switch |
| F25 | 7.5A | Exterior mirrors |
| F26 | 7.5A | TPMS |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | – | Not used |
| F30 | – | Not used |
| F31 | 30A | Driver and rear power window switches |
| F32 | 20A | Passenger compartment fuse panel battery saver relay |
| F33 | 20A | Power points |
| F34 | 30A | Driver and passenger power window switches |
| F35 | 20A | Moon roof |
| F36 | – | Not used |
| R1 | – | Ignition relay |
| R2 | – | Left rear stop/turn lamp relay |
| R3 | – | Right rear stop/turn lamp relay |
| R4 | – | Driver heated seat relay |
| R5 | – | Passenger heated seat relay |
| R6 | – | IA module – accessory relay |
| R7 | – | IA module – ignition relay |
| R8 | – | Battery saver relay |
| R9 | – | Not used |

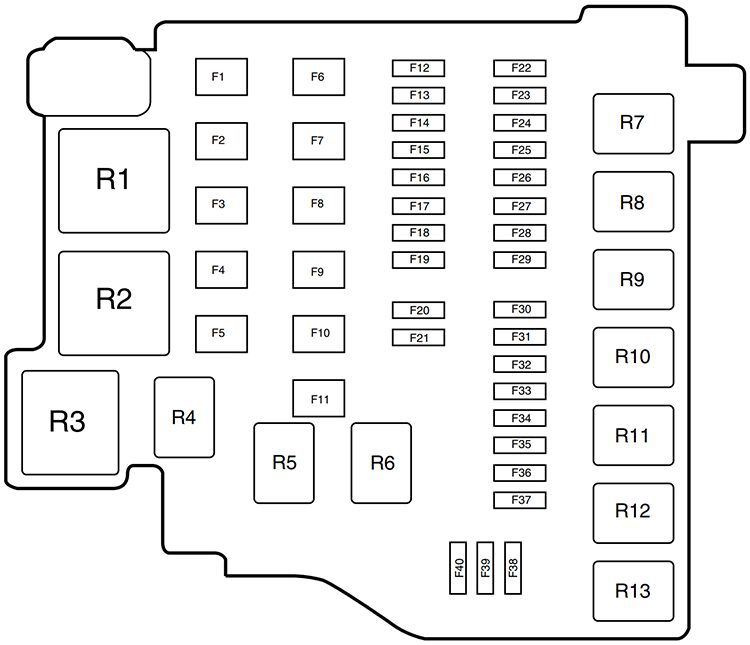

Power Distribution Box
List of fuses in the power distribution box (2011)
| № | A | Protected circuits |
|---|---|---|
| F1 | 40A* | Anti-lock brake system (ABS) pump |
| F2 | 50A* | Transmission control module (TCM) |
| F3 | 40A* | Engine cooling fan relay |
| F4 | 40A* | Heater blower relay, Climate Controls |
| F5 | 60A* | Passenger compartment fuse panel |
| F6 | 30A* | Body control module (BCM) – door locks |
| F7 | 60A* | Passenger compartment fuse panel |
| F8 | 30A* | Fuel pump |
| F9 | 20A* | ABS module valve |
| F10 | – | Not used |
| F11 | 30A* | Starter inhibit relay, Starter motor |
| F12 | 10A** | Left headlamp (high beam) |
| F13 | 10A** | Right headlamp (high beam) |
| F14 | 10A** | Left headlamp (low beam) |
| F15 | 10A** | Right headlamp (low beam) |
| F16 | 15A** | A/C clutch relay, Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister purge |
| F17 | 15A** | Heated exhaust gas oxygen sensor, Catalyst module sensor |
| F18 | 15A** | Ignition coil |
| F19 | – | Not used |
| F20 | – | Not used |
| F21 | – | Not used |
| F22 | 15A** | BCM – exterior lighting |
| F23 | 7.5A** | Low beam relay |
| F24 | 15A** | BCM – turn signals |
| F25 | 15A** | Low beam relay, Daytime running lights |
| F26 | 7.5A** | Power mirror switch, Driver window switch |
| F27 | 7.5A** | TCM, PCM, Natural vacuum leak detection |
| F28 | – | Not used |
| F29 | 10A** | A/C clutch solenoid and relay |
| F30 | – | Not used |
| F31 | 20A** | Low beam relay |
| F32 | 20A** | BCM – battery saver, horn |
| F33 | 30A** | BCM – rear window defroster |
| F34 | – | Not used |
| F35 | – | Not used |
| F36 | – | Not used |
| F37 | – | Not used |
| F38 | – | Not used |
| F39 | – | Not used |
| F40 | – | Not used |
| R1 | – | Not used |
| R2 | – | Not used |
| R3 | – | Not used |
| R4 | – | High beam relay |
| R5 | – | PCM relay |
| R6 | – | Daytime running lamp |
| R7 | – | Engine cooling fan relay |
| R8 | – | Starter inhibit relay |
| R9 | – | A/C clutch relay |
| R10 | – | Reverse light relay |
| R11 | – | Coil pack relay |
| R12 | – | Low beam relay |
| R13 | – | Heater blower relay |
| *Cartridge fuses **Mini fuses | ||
2012
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| № | A | Protected circuits |
|---|---|---|
| F1 | 15A | Ignition switch, Keyless entry ignition relay, Keyless entry accessory relay |
| F2 | 10A | Electronic mirror, A/C clutch, Engine compartment fuse panel |
| F3 | 7.5A | Instrument cluster |
| F4 | 7.5A | Passenger airbag deactivation indicator, Occupant classification system |
| F5 | 15A | Diagnostic connector |
| F6 | 10A | Backup lamp |
| F7 | 7.5A | Instrument panel display, Intelligent access (IA) antenna, Manual climate Controls |
| F8 | 7.5A | Front dome lamp, Moon roof switch |
| F9 | 20A | Keyless vehicle module |
| F10 | 15A | Radio, SYNC module, Global positioning system (GPS) module |
| F11 | 20A | Front wipers, Body control module (BCM) |
| F12 | 20A | Tire pressure monitoring system (TPMS) |
| F13 | 15A | Rear wiper, BCM |
| F14 | 20A | IA module |
| F15 | 15A | Wiper switch |
| F16 | 7.5A | Power mirror switch, Driver window switch |
| F17 | 7.5A | Heated seats (early build) |
| 15A | Heated seats (late build) | |
| F18 | 10A | Stop lamps, Turn signals |
| F19 | 7.5A | Instrument cluster |
| F20 | 10A | Airbag module |
| F21 | 10A | BCM, Climate control, Passive anti-theft system transceiver, Electronic power steering module, Instrument cluster, Engine compartment fuse panel |
| F22 | 7.5A | Accelerator pedal position sensor, Powertrain control module (PCM), Gear shifter, Anti-lock brake system (ABS) ignition feed |
| F23 | 10A | Transmission control unit ignition feed, TPMS ignition feed |
| F24 | – | Not used |
| F25 | 7.5A | Exterior mirrors |
| F26 | 7.5A | TPMS |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | – | Not used |
| F30 | – | Not used |
| F31 | 30A | Driver and rear power window switches |
| F32 | 20A | Passenger compartment fuse panel battery saver relay |
| F33 | 20A | Power points |
| F34 | 30A | Driver and passenger power window switches |
| F35 | 20A | Moon roof |
| F36 | – | Not used |
| R1 | – | Ignition relay |
| R2 | – | Left rear stop/turn lamp relay |
| R3 | – | Right rear stop/turn lamp relay |
| R4 | – | Driver heated seat relay |
| R5 | – | Passenger heated seat relay |
| R6 | – | IA module – accessory relay |
| R7 | – | IA module – ignition relay |
| R8 | – | Battery saver relay, Rear power points |
| R9 | Not used |

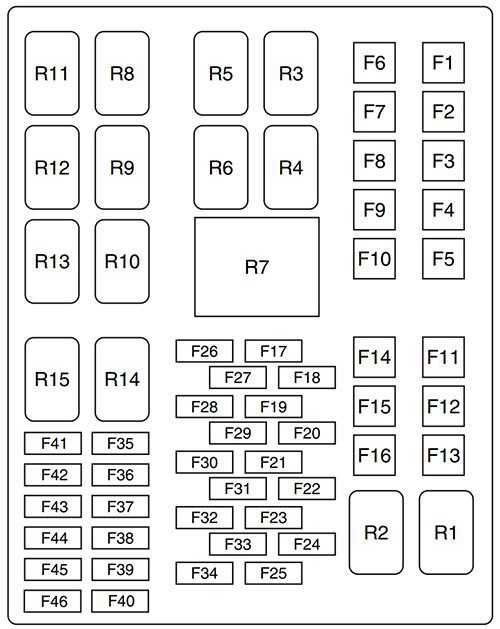

Power Distribution Box
List of fuses in the power distribution box (2012)
| № | A | Protected circuits |
|---|---|---|
| F1 | 40A* | Anti-lock brake system (ABS) pump |
| F2 | 50A* | Transmission control module (TCM) |
| F3 | 40A* | Engine cooling fan relay and motor |
| F4 | 40A* | Heater blower relay and motor |
| F5 | 60A* | Passenger compartment fuse panel |
| F6 | 30A* | Body control module (BCM) – door locks |
| F7 | 60A* | Passenger compartment fuse panel |
| F8 | 40A* | Powertrain control module (PCM), Power distribution box |
| F9 | 20A* | ABS module valve |
| F10 | 30A* | Starter inhibit relay, Starter motor |
| F11 | 30A* | Electronic fuel pump relay, Fuel tank, Ignition coil |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | 20A** | High beam relay |
| F18 | – | Not used |
| F19 | 20A** | Low beam relay |
| F20 | 15A** | Heated exhaust gas oxygen sensor, Catalyst module sensor |
| F21 | 7.5A** | Low and High beams coil relay control |
| F22 | 15A** | Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister purge |
| F23 | 15A** | Daytime running lights |
| F24 | – | Not used |
| F25 | 15A** | BCM – exterior lighting |
| F26 | 20A** | BCM – battery saver, horn |
| F27 | – | Not used |
| F28 | 15A** | BCM – turn signals |
| F29 | – | Not used |
| F30 | 10A** | A/C clutch solenoid and relay |
| F31 | – | Not used |
| F32 | 7.5A** | TCM, PCM |
| F33 | 15A** | Ignition coil |
| F34 | 30A** | BCM – rear window defroster |
| F35 | 10A** | Left headlamp (low beam) |
| F36 | 10A** | Right headlamp (low beam) |
| F37 | 10A** | Left headlamp (high beam) |
| F38 | 10A** | Right headlamp (high beam) |
| F39 | 2A** | Natural vacuum leak detection |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| R1 | – | Not used |
| R2 | – | Not used |
| R3 | – | PCM relay |
| R4 | – | Heater blower relay |
| R5 | – | Engine cooling fan relay |
| R6 | – | A/C clutch relay |
| R7 | – | Not used |
| R8 | – | Daytime running lamp |
| R9 | – | Starter inhibit relay |
| R10 | – | High beam relay |
| R11 | – | Low beam relay |
| R12 | – | Reverse lamp relay |
| R13 | – | Not used |
| R14 | – | Not used |
| R15 | – | Not used |
| *Cartridge fuses **Mini fuses | ||
2013
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| № | A | Protected components |
|---|---|---|
| F1 | 15A | Ignition switch, Keyless entry ignition and accessory relays |
| F2 | 10A | Electronic mirror, Air conditioning clutch, Engine compartment fuse panel |
| F3 | 7.5A | Instrument cluster |
| F4 | 7.5A | Passenger airbag deactivation indicator, Occupant classification system |
| F5 | 15A | Diagnostic connector |
| F6 | 10A | Backup lamp |
| F7 | 7.5A | Instmment panel display, Intelligent access antenna, Manual climate Controls |
| F8 | 7.5A | Front dome lamp, Moonroof |
| F9 | 20A | Keyless vehicle module |
| F10 | 15A | Radio, SYNC module, Global positioning system module |
| F11 | 20A | Body control module – front wipers |
| F12 | 20A | Tire pressure monitoring system |
| F13 | 15A | Body control module – rear wiper |
| F14 | 20A | Intelligent access module |
| F15 | 15A | Wiper switch |
| F16 | 7.5A | Power mirror switch, Driver window switch |
| F17 | 15A | Heated seats |
| F18 | 10A | Stop lamps, Turn signals |
| F19 | 7.5A | Instrument cluster |
| F20 | 10A | Airbag module |
| F21 | 10A | Body control module – ignition switch, Climate control, Passive anti-theft system transceiver, Electronic power steering module, Instrument cluster, Engine compartment fuse panel |
| F22 | 7.5A | Accelerator pedal position sensor, Powertrain control module, Gear shifter, Anti-lock brake system ignition feed |
| F23 | 10A | Transmission control unit ignition feed, Tire pressure monitoring system ignition feed |
| F24 | – | Not used |
| F25 | 7.5A | Exterior mirrors |
| F26 | 7.5A | Tire pressure monitoring system |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | – | Not used |
| F30 | – | Not used |
| F31 | 30A | Rear power window switches |
| F32 | 20A | Rear power point |
| F33 | 20A | Power points |
| F34 | 30A | Front power window switches |
| F35 | 20A | Moonroof |
| F36 | – | Not used |
| R1 | – | Ignition relay |
| R2 | – | Left rear stop/turn lamp relay (4-door only) |
| R3 | – | Right rear stop/turn lamp relay (4-door only) |
| R4 | – | Driver heated seat relay |
| R5 | – | Passenger heated seat relay |
| R6 | – | Intelligent access module – accessory relay |
| R7 | – | Intelligent access module – ignition relay |
| R8 | – | Battery saver relay, Rear powerpoints |
| R9 | – | Not used |
Power Distribution Box
List of fuses in the power distribution box (2013)
| № | A | Protected components |
|---|---|---|
| F1 | 40A* | Anti-lock brake system pump |
| F2 | 50A* | Transmission control module |
| F3 | 40A* | Engine cooling fan relay and motor |
| F4 | 40A* | Heater blower relay and motor |
| F5 | 60A* | Passenger compartment fuse panel |
| F6 | 30A* | Body control module – door locks |
| F7 | 60A* | Passenger compartment fuse panel (ignition relay) |
| F8 | 40A* | Powertrain control module, Power distribution box |
| F9 | 20A* | Anti-lock brake system module valve |
| F10 | 30A* | Starter inhibit relay, Starter motor |
| F11 | 30A* | Electronic fuel pump relay, Fuel tank, Ignition coil |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | 20A** | High beam relay |
| F18 | – | Not used |
| F19 | 20A** | Low beam relay |
| F20 | 15A** | Heated exhaust gas oxygen sensor, Catalyst module sensor |
| F21 | 7.5A** | Low and High beams coil relay control |
| F22 | 15A** | Mass air flow sensor, Powertrain control module, Fuel injectors, Vehicle speed sensor, Variable camshaft timing, Canister purge |
| F23 | 15A** | Daytime running lights |
| F24 | – | Not used |
| F25 | 15A** | Body control module – exterior lighting |
| F26 | 20A** | Body control module – battery saver, horn |
| F27 | – | Not used |
| F28 | 15A** | Body control module – turn signals |
| F29 | – | Not used |
| F30 | 10A** | A/C clutch solenoid and relay |
| F31 | – | Not used |
| F32 | 7.5A** | Transmission control module, Powertrain control module |
| F33 | 15A** | Ignition coil |
| F34 | 30A** | Body control module – rear window defroster |
| F35 | 10A** | Left headlamp flow beam) |
| F36 | 10A** | Right headlamp (low beam) |
| F37 | 10A** | Left headlamp (high beam) |
| F38 | 10A** | Right headlamp (high beam) |
| F39 | 2A** | Natural vacuum leak detection |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| R1 | – | Not used |
| R2 | – | Not used |
| R3 | – | Powertrain control module relay |
| R4 | – | Heater blower relay |
| R5 | – | Engine cooling fan relay |
| R6 | – | Air condition clutch relay |
| R7 | – | Not used |
| R8 | – | Daytime running lamp |
| R9 | – | Starter inhibit relay |
| R10 | – | High beam relay |
| R11 | – | Low beam relay |
| R12 | – | Reverse lamp relay (automatic transmission only) |
| R13 | – | Coil pack relay (México only) |
| R14 | – | Not used |
| R15 | – | Not used |
| *Cartridge fuses **Mini fuses | ||
Conclusion
Knowing the fuse box and relay locations on your 2011–2013 Ford Fiesta makes it much easier to handle minor electrical issues without unnecessary guesswork. With just two main fuse box locations; one under the hood and one inside the cabin, this compact car is relatively simple to troubleshoot once you’re familiar with the layout.
Always handle fuses and relays with care, confirm amperage ratings before replacing any component, and use the printed diagram to correctly identify each fuse or relay. If an electrical issue persists after replacing a fuse, or if you’re unsure about diagnosing the problem yourself, consulting a qualified mechanic or Ford dealership technician is the safest way to avoid further electrical complications.
