The Ford Expedition (2009-2014) comes in two body styles: the standard-length model and the extended-length Expedition EL (also known as Max in some regions). These SUVs are built for versatility, offering ample cargo space and seating for up to eight passengers. The vehicle’s design accommodates multiple electrical components, including fuse boxes and relays essential for its electrical system.
The primary fuse box, also known as the power distribution box, is located under the hood on the driver’s side. It houses high-amperage fuses and relays for major systems such as the fuel pump, cooling fan, and power windows. A second fuse panel is positioned inside the passenger compartment, typically under the dashboard on the right side, controlling interior features like lights and audio systems.
Proper maintenance of the fuse boxes and relays ensures smooth vehicle operation by preventing electrical failures.
MUST READ: DYI – How to Check Car Fuses?
(2009-2014) Ford Expedition fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Expedition 2009-2014 fuse assignment
Ford Expedition Year of production: 2009, 2010, 2011, 2012, 2013, 2014

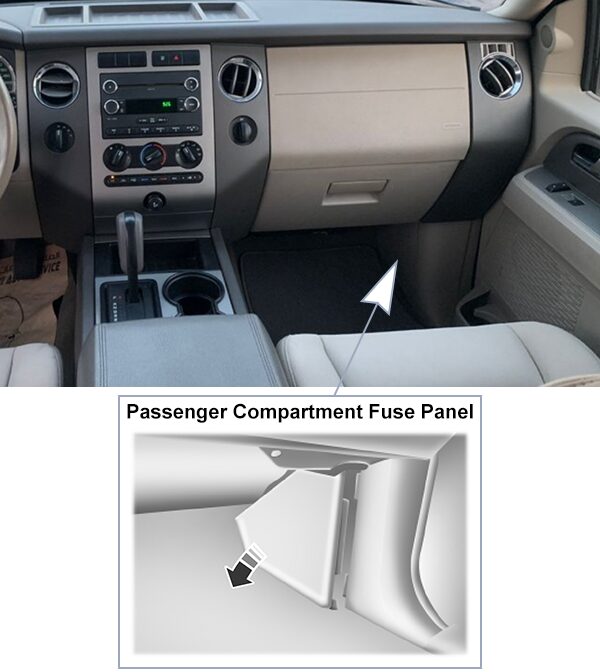

Passenger Compartment Fuse Panel:
The fuse panel is located under the right-hand side of the instrument panel. To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off. To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

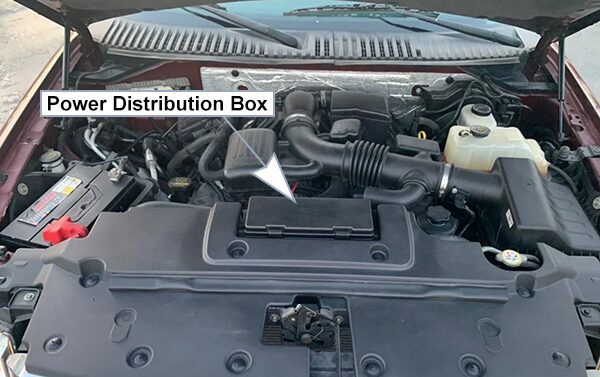

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2009

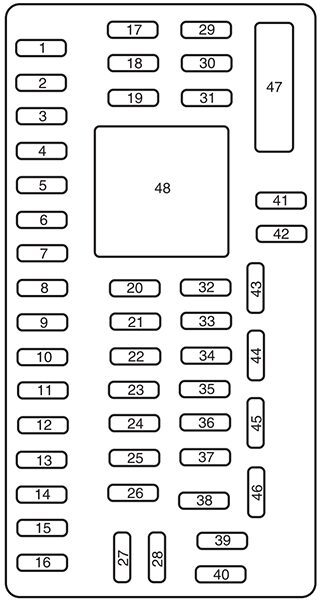

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2009)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Smart window #1 |
| 2 | 15A | Driver side memory module |
| 3 | 15A | FES, Audio rear seat Controls, SDARS, SYNC |
| 4 | 30A | Smart window #2 |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), SPDJB |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirror switch, Driver seat memory switch |
| 13 | 5A | Not used (Spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps, Cornering lamps |
| 22 | 15A | Park lamps relay |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instrument panei cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instmment panei cluster |
| 30 | 5A | Not used (Spare) |
| 31 | 10A | Not used (Spare) |
| 32 | 10A | Restraints control module |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Not used (Spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Navigation system amplifier |
| 41 | 15A | Power Windows, Power vents, Power moon roof, Auto dimming rear view mirror |
| 42 | 10A | Not used (Spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |

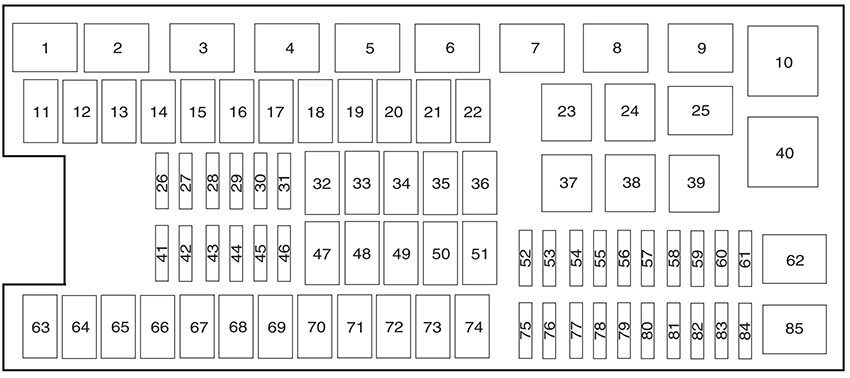

Power Distribution Box
List of fuses in the power distribution box (2009)
| № | A | Protected Circuits |
|---|---|---|
| 1 | – | Powertrain Control Module power relay |
| 2 | – | Starter relay |
| 3 | – | Not used |
| 4 | – | Trailer tow relay |
| 5 | – | Fuel pump relay |
| 6 | – | Trailer tow park lamp relay |
| 7 | – | Heated backlite/Mirror relay |
| 8 | – | Not used |
| 9 | – | Run/Start (R/S) relay |
| 10 | – | Rear air suspension (RAS) relay |
| 11 | 40A** | Power running board motors |
| 12 | 40A** | Run/Start relay |
| 13 | 30A** | Starter relay |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | Not used |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | 60A** | Rear air suspension relay feed |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | Trailer tow battery charge |
| 22 | 30A** | Passenger power seat |
| 23 | – | A/G clutch relay |
| 24 | – | Not used |
| 25 | – | Not used |
| 26 | 15A* | Transmission Control Module (TCM) power |
| 27 | 20A* | 4×4 |
| 28 | 25A* | Trailer tow park lamp relay feed |
| 29 | 20A* | Back up lamps, Integrated wheel end solenoid |
| 30 | 10A* | A/C clutch |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay feed |
| 33 | – | Not used |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | Powertrain Control Module (PCM) relay |
| 36 | 30A** | Power liftgate |
| 37 | – | Trailer tow left hand stop/turn relay |
| 38 | – | Trailer tow right hand stop/turn relay |
| 39 | – | Back up lamps relay |
| 40 | – | Blower motor relay |
| 41 | 10A* | TCM/PCM keep alive power |
| 42 | – | Not used |
| 43 | 15A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 25A* | Trailer tow stop turn relay feed |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | 30A** | Rear air suspension module |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor |
| 51 | 40A** | Heated backlite/mirror relay |
| 52 | 10A* | Anti-lock Brake System (ABS) R/S feed |
| 53 | 10A* | Rear air suspension module R/S feed |
| 54 | 5A* | TCM R/S power |
| 55 | 5A* | Fuel pump relay R/S feed |
| 56 | 30A* | SPJB R/S feed |
| 57 | 10A* | Blower motor R/S feed |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | One-touch Start diode |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | 30A** | Moon roof |
| 65 | 20A** | Auxiliary power point |
| 66 | 20A** | Auxiliary power point |
| 67 | 40A** | Climate controlled seats |
| 68 | 60A** | ABS valves |
| 69 | 60A** | ABS pump |
| 70 | 40A** | Left-hand and right-hand third row power fold seat |
| 71 | 20A** | Auxiliary power point |
| 72 | 20A** | Auxiliary power point |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat/DSM |
| 75 | 20A* | PCM – voltage power 1 |
| 76 | 20A* | PCM – voltage power 2 |
| 77 | 15A* | Voltage power 4, Ignition coils |
| 78 | – | Not used |
| 79 | 20A* | PCM – voltage power 3 |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
2010
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2010)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Smart window #1 |
| 2 | 15A | Driver side memory module |
| 3 | 15A | Family entertainment system, Audio rear seat Controls, Satellite radio, SYNC |
| 4 | 30A | Smart window #2 |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake shift interlock (BSI), Passenger compartment fuse panei |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Switch backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirrors, Driver seat memory switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control, Global positioning satellite module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instrument panei cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panei cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Airbag module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera |
| 36 | 5A | Passive anti-theft system |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio |
| 40 | 20A | Navigation system |
| 41 | 15A | Power Windows, Power vents, Power moon roof, Auto dimming rear view mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2010)
| № | A | Protected Circuits |
|---|---|---|
| 1 | – | Powertrain control module (PCM) relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Trailer tow battery charge relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic fan 1 relay |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic fan 3 relay |
| 9 | – | Run/Start (R/S) relay |
| 10 | – | Rear air suspension (RAS) relay |
| 11 | 40A** | Power running board |
| 12 | 40A** | R/S relay |
| 13 | 30A ** | Starter relay |
| 14 | 40A** | Electronic fan |
| 15 | – | Not used |
| 16 | 40A** | Electronic fan |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | 60A** | RAS relay feed |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | Trailer tow battery charge |
| 22 | 30A** | Passenger power seat |
| 23 | – | A/C clutch relay |
| 24 | – | Trailer tow park lamp relay |
| 25 | – | Not used |
| 26 | 15A* | Transmission control module (TCM) keep-alive power |
| 27 | 20A* | 4×4 |
| 28 | 2 5A* | Trailer tow park lamp relay |
| 29 | 20A* | Backup lamps, Integrated wheel end solenoid |
| 30 | 10A* | A/C clutch relay |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay |
| 33 | – | Not used |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | PCM relay |
| 36 | 30A** | Power liftgate |
| 37 | – | Trailer tow left hand stop/turn relay |
| 38 | – | Trailer tow right hand stop/turn relay |
| 39 | – | Backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10A* | PCM keep-alive power |
| 42 | – | Not used |
| 43 | 5A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 25A* | Trailer tow stop/turn lamps relay |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | 30A** | RAS module |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor |
| 51 | 40A** | Rear window defroster/heated mirror relay |
| 52 | 10A* | Anti-lock brake system (ABS) R/S feed |
| 53 | 10A* | RAS module |
| 54 | 5A* | TCM R/S feed |
| 55 | 5A* | Fuel pump relay coil R/S feed |
| 56 | 30A* | Passenger compartment fuse panel R/S feed |
| 57 | 10A* | Blower motor R/S feed |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | One-touch start diode |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | 25A** | Electronic fan |
| 64 | 30A** | Moon roof |
| 65 | 20A** | Auxiliary power point 2 |
| 66 | 20A** | Auxiliary power point 3 |
| 67 | 40A** | Climate controlled seats |
| 68 | 60A** | ABS valves |
| 69 | 60A** | ABS pump |
| 70 | 40A** | Third row power fold seat |
| 71 | 20A** | Auxiliary power point/cigar lighter |
| 72 | 20A** | Auxiliary power point 4 |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 20A* | Vehicle power 1 – PCM |
| 76 | 20A* | Vehicle power 2 – PCM |
| 77 | 15A* | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 20A* | Vehicle power 3 – PCM |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
2011
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Driver window |
| 2 | 15A | Driver side memory module |
| 3 | 15A | Audio rear seat Controls, Satellite radio, SYNC |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake shift interlock (BSI), Smart fuse panel logic power |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Switch backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirrors, Driver seat memory switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control, Global positioning satellite module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Airbag module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera, 2nd row heated seats |
| 36 | 5A | Passive anti-theft system |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio |
| 40 | 20A | Navigation amplifier |
| 41 | 15A | Power Windows, Power vents, Power moon roof, Auto dimming rear view mirror, 110V AC power point |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | – | Powertrain control module (PCM) relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Trailer tow (TT) battery charge relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic fan 1 relay |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic fan 3 relay |
| 9 | – | Run/Start (R/S) relay |
| 10 | – | Rear air suspension (RAS) relay |
| 11 | 40A** | Power running board |
| 12 | 40A** | R/S relay |
| 13 | 30A ** | Starter relay |
| 14 | 40A** | Electronic fan |
| 15 | – | Not used |
| 16 | 40A** | Electronic fan |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | 60A** | RAS relay feed |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | TT battery charge relay |
| 22 | 30A** | Passenger power seat |
| 23 | – | A/C clutch relay |
| 24 | – | TT park lamp relay |
| 25 | – | Not used |
| 26 | 15A* | Transmission control module (TCM) keep-alive power |
| 27 | 20A* | 4×4 |
| 28 | 25A* | Trailer tow park lamp relay |
| 29 | 20A* | Backup lamps, Integrated wheel end solenoid |
| 30 | 10A* | A/C clutch relay |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay |
| 33 | 40A** | 110V AC power point |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | PCM relay |
| 36 | 30A** | Power liftgate |
| 37 | – | TT left hand stop/turn relay |
| 38 | – | TT right hand stop/turn relay |
| 39 | – | Backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10A* | PCM keep-alive power |
| 42 | – | Not used |
| 43 | 5A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 2 5A* | TT stop/turn lamps relay |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | 30A** | RAS module |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor relay |
| 51 | 40A** | Rear window defroster/heated mirror relay |
| 52 | 10A* | Anti-lock brake system (ABS) R/S feed |
| 53 | 10A* | RAS module |
| 54 | 5A* | TCM R/S feed |
| 55 | 5A* | Fuel pump relay coil R/S feed |
| 56 | 30A* | Passenger compartment fuse panel R/S feed |
| 57 | 10A* | Blower motor relay coil |
| 58 | 15A* | TT backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | One-touch start diode |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | 25A** | Electronic fan |
| 64 | 30A** | Moon roof |
| 65 | 20A** | Auxiliary power point (instrument panel) |
| 66 | 20A** | Auxiliary power point (rear of center console) |
| 67 | 40A** | Front row climate controlled seats |
| 68 | 60A** | ABS valves |
| 69 | 60A** | ABS pump |
| 70 | 40A** | Third row power fold seat |
| 71 | 20A** | Auxiliary power point/cigar lighter |
| 72 | 20A** | Auxiliary power point (right rear quarter panel) |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 20A* | Vehicle power 1 – PCM |
| 76 | 20A* | Vehicle power 2 – PCM |
| 77 | 15A* | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 20A* | Vehicle power 3 – PCM |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
2012
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Driver window |
| 2 | 15A | Driver side memory module |
| 3 | 15A | Audio rear seat Controls, Satellite radio, SYNC |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake shift interlock (BSI), Smart fuse panel logic power |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Switch backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirrors, Driver seat memory switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control, Global positioning satellite module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Airbag module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera, 2nd row heated seats |
| 36 | 5A | Passive anti-theft system |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio |
| 40 | 20A | Navigation amplifier |
| 41 | 15A | Power Windows, Power vents, Power moon roof, Auto dimming rear view mirror, 110V AC power point |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2012)
| № | A | Protected Circuits |
|---|---|---|
| 1 | – | Powertrain control module relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Trailer tow battery charge relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic fan 1 relay |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic fan 3 relay |
| 9 | – | Run/start relay |
| 10 | – | Rear air suspension relay |
| 11 | 40A** | Power running board |
| 12 | 40A** | Run/start relay |
| 13 | 30A ** | Starter relay |
| 14 | 40A** | Electronic fan |
| 15 | – | Not used |
| 16 | 40A** | Electronic fan |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | 60A** | Rear air suspension relay feed |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | Trailer tow battery charge relay |
| 22 | 30A** | Passenger power seat |
| 23 | – | A/C clutch relay |
| 24 | – | Trailer tow park lamp relay |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 20A* | 4×4 |
| 28 | 2 5A* | Trailer tow park lamp relay |
| 29 | 20A* | Backup lamps, Integrated wheel end solenoid |
| 30 | 10A* | A/C clutch relay |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay |
| 33 | 40A** | 110 volt AC power point |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | Powertrain control module relay |
| 36 | 30A** | Power liftgate |
| 37 | – | Trailer tow left hand stop/turn relay |
| 38 | – | Trailer tow right hand stop/turn relay |
| 39 | – | Backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10A* | Powertrain control module keep-alive power |
| 42 | – | Not used |
| 43 | 5A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 25A* | Trailer tow stop/turn lamps relay |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | 30A** | Rear air suspension module |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor relay |
| 51 | 40A** | Rear window defroster/heated mirror relay |
| 52 | 10A* | Anti-lock brake system run/start feed |
| 53 | 10A* | Rear air suspension module |
| 54 | – | Not used |
| 55 | 5A* | Fuel pump relay coil run/start feed |
| 56 | 30A* | Passenger compartment fuse panel R/S feed |
| 57 | 10A* | Blower motor relay coil |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | Not used |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | 25A** | Electronic fan |
| 64 | 30A** | Moon roof |
| 65 | 20A** | Auxiliary power point (instmment panel) |
| 66 | 20A** | Auxiliary power point (rear of center console) |
| 67 | 40A** | Front row climate controlled seats |
| 68 | 60A** | Anti-lock brake system valves |
| 69 | 60A** | Anti-lock brake system pump |
| 70 | 30A** | Third row power fold seat |
| 71 | 20A** | Auxiliary power point/cigar lighter |
| 72 | 20A** | Auxiliary power point (right rear quarter panel) |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 20A* | Vehicle power 1 – powertrain control module |
| 76 | 20A* | Vehicle power 2 – powertrain control module |
| 77 | 15A* | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 20A* | Vehicle power 3 – powertrain control module |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
2013
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| № | A | Protected circuits |
|---|---|---|
| 1 | 30A | Driver window |
| 2 | 15A | Driver side memory module |
| 3 | 15A | Audio rear seat Controls, Satellite radio, SYNC |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake shift interlock, Smart fuse panel logic power |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Switch backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirrors, Driver seat memory switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control, Global positioning satellite module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps, Glove box, Visor |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Airbag module |
| 33 | 10A | Trailer brake logic |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera, 2nd row heated seats |
| 36 | 5A | Passive anti-theft system |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio |
| 40 | 20A | Navigation amplifier |
| 41 | 15A | Power Windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110 volt AC power point |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moonroof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2013)
| № | A | Protected circuits |
|---|---|---|
| 1 | – | Powertrain control module relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Trailer tow battery charge relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic fan 1 relay |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic fan 3 relay |
| 9 | – | Run/start relay |
| 10 | – | Rear air suspension relay |
| 11 | 40A** | Power running board |
| 12 | 40A** | Run/start relay |
| 13 | 30A ** | Starter relay |
| 14 | 40A** | Electronic fan |
| 15 | – | Not used |
| 16 | 40A** | Electronic fan |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | 60A** | Rear air suspension relay feed |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | Trailer tow battery charge relay |
| 22 | 30A** | Passenger power seat |
| 23 | – | A/C clutch relay |
| 24 | – | Trailer tow park lamp relay |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 20A* | 4×4 |
| 28 | 25A* | Trailer tow park lamp relay |
| 29 | 20A* | Backup lamps, Integrated wheel end solenoid |
| 30 | 10A* | A/C clutch relay |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay |
| 33 | 40A** | 110 volt AC power point |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | Powertrain control module relay |
| 36 | 30A** | Power liftgate |
| 37 | – | Trailer tow left hand stop/turn relay |
| 38 | – | Trailer tow right hand stop/turn relay |
| 39 | – | Backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10A* | Powertrain control module keep-alive power |
| 42 | – | Not used |
| 43 | 5A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 25A* | Trailer tow stop/turn lamps relay |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | 30A** | Rear air suspension module |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor relay |
| 51 | 40A** | Rear window defroster/heated mirror relay |
| 52 | 10A* | Anti-lock brake system run/start feed |
| 53 | 10A* | Rear air suspension module |
| 54 | – | Not used |
| 55 | 5A* | Fuel pump relay coil run/start feed |
| 56 | 30A* | Passenger compartment fuse panel R/S feed |
| 57 | 10A* | Blower motor relay coil |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | Not used |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | 25A** | Electronic fan |
| 64 | 30A** | Moon roof |
| 65 | 20A** | Auxiliary power point (instrument panel) |
| 66 | 20A** | Auxiliary power point (rear of center console) |
| 67 | 40A** | Front row climate controlled seats |
| 68 | 60A** | Anti-lock brake system valves |
| 69 | 60A** | Anti-lock brake system pump |
| 70 | 30A** | Third row power fold seat |
| 71 | 20A** | Auxiliary power point/cigar lighter |
| 72 | 20A** | Auxiliary power point (right rear quarter panel) |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 20A* | Vehicle power 1 – powertrain control module |
| 76 | 20A* | Vehicle power 2 – powertrain control module |
| 77 | 15A* | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 20A* | Vehicle power 3 – powertrain control module |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
2014
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2014)
| № | A | Protected circuits |
|---|---|---|
| 1 | 30A | Driver window |
| 2 | 15A | Driver side memory module |
| 3 | 15A | Audio rear seat Controls, Satellite radio, SYNC |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake shift interlock, Smart fuse panel logic power |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Switch backlighting, Puddle lamps |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirrors, Driver seat memory switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control, Global positioning satellite module |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks, Liftgate release, Liftglass release |
| 18 | 20A | Second row heated seats |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps, Glove box, Visor |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Airbag module |
| 33 | 10A | Trailer brake logic |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera, 2nd row heated seats |
| 36 | 5A | Passive anti-theft system |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio |
| 40 | 20A | Navigation amplifier |
| 41 | 15A | Power Windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110 volt AC power point |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Rain sensor |
| 44 | 10A | Trailer tow battery charge relay coil |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moonroof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2014)
| № | A | Protected circuits |
|---|---|---|
| 1 | – | Powertrain control module relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Trailer tow battery charge relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic fan 1 relay |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic fan 3 relay |
| 9 | – | Run/start relay |
| 10 | – | Not used |
| 11 | 40A** | Power running board |
| 12 | 40A** | Run/start relay |
| 13 | 30A ** | Starter relay |
| 14 | 40A** | Electronic fan |
| 15 | – | Not used |
| 16 | 40A** | Electronic fan |
| 17 | – | Not used |
| 18 | 30A** | Trailer brake |
| 19 | – | Not used |
| 20 | 20A** | 4×4 module |
| 21 | 30A** | Trailer tow battery charge relay |
| 22 | 30A** | Passenger power seat |
| 23 | – | Air conditioner clutch relay |
| 24 | – | Trailer tow park lamp relay |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 20A* | 4×4 |
| 28 | 25A* | Trailer tow park lamp relay |
| 29 | 20A* | Backup lamps, Integrated wheel end solenoid |
| 30 | 10A* | Air conditioner clutch relay |
| 31 | – | Not used |
| 32 | 40A** | Blower motor relay |
| 33 | 40A** | 110-volt AC power point |
| 34 | 30A** | Auxiliary blower motor |
| 35 | 30A** | Powertrain control module relay |
| 36 | 30A** | Power liftgate |
| 37 | – | Trailer tow left hand stop/turn relay |
| 38 | – | Trailer tow right hand stop/turn relay |
| 39 | – | Backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10A* | Powertrain control module keep-alive power |
| 42 | – | Not used |
| 43 | 5A* | Brake on/off switch |
| 44 | 20A* | Fuel pump relay |
| 45 | 25A* | Trailer tow stop/turn lamps relay |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 30A** | Front wiper motor relay |
| 51 | 40A** | Rear window defroster and heated mirror relay |
| 52 | 10A* | Anti-lock brake system run/start feed |
| 53 | – | Not used |
| 54 | – | Not used |
| 55 | 5A* | Fuel pump relay coil run/start feed |
| 56 | 30A* | Passenger compartment fuse panel run/start feed |
| 57 | 10A* | Blower motor relay coil |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | – | Not used |
| 61 | – | Fuel pump diode |
| 62 | – | Not used |
| 63 | 25A** | Electronic fan |
| 64 | 30A** | Moonroof |
| 65 | 20A** | Auxiliary power point (instrument panel) |
| 66 | 20A** | Auxiliary power point (rear of center console) |
| 67 | 40A** | Front row climate controlled seats |
| 68 | 60A** | Anti-lock brake system valves |
| 69 | 60A** | Anti-lock brake system pump |
| 70 | 30A** | Third row power fold seat |
| 71 | 20A** | Auxiliary power point/cigar lighter |
| 72 | 20A** | Auxiliary power point (right rear quarter panel) |
| 73 | – | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 20A* | Vehicle power 1 – powertrain control module |
| 76 | 20A* | Vehicle power 2 – powertrain control module |
| 77 | 15A* | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 20A* | Vehicle power 3 – powertrain control module |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
| * Mini Fuses ** Cartridge Fuses | ||
Conclusion
Understanding the location and function of fuse boxes and relays in the Ford Expedition (2009-2014) helps diagnose and fix electrical issues efficiently.
