Learn about Ford F-250 / F-350 / F-450 / F-550 (2011-2016) fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
Every Ford Super Duty truck relies on a network of fuses and relays to keep its electrical system running smoothly. These small but critical components protect your truck’s wiring, lights, power windows, radio, and countless other electrical accessories from short circuits and power surges. Without them, a single electrical fault could cause serious damage throughout the vehicle.
If you own a 2011–2016 Ford F-250, F-350, F-450, or F-550, understanding where your fuse boxes and relays are located can save you time, money, and frustration. Whether you’re dealing with a dead radio, malfunctioning headlights, or a power outlet that suddenly stopped working, the fuse box is usually the first place to check. Knowing exactly where to look—and how to safely access these components—makes troubleshooting far easier.
This guide walks you through the fuse box and relay locations on your Ford Super Duty, along with safety tips and practical advice for identifying and replacing fuses correctly.
MUST READ: DYI – How to Check Car Fuses?
(2011-2016) Ford F-250 / F-350 / F-450 / F-550 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford F-250 / F-350 / F-450 / F-550 (2011-2016) fuse assignment
Ford F-250 / F-350 / F-450 / F-550 Year of production: 2011, 2012, 2013, 2014, 2015, 2016
Where Are the Fuse Boxes Located on the Ford Super Duty?
The 2011–2016 Ford F-250, F-350, F-450, and F-550 trucks are equipped with two main fuse box locations: one under the hood and one inside the cabin. Some configurations, especially those with upfitter packages, may include additional relay panels, but the two primary boxes handle the vast majority of the truck’s electrical protection.
1. Engine Compartment Fuse Box (Power Distribution Box)
The primary fuse box is located in the engine bay, positioned near the back corner of the engine compartment, close to the battery. This is often referred to as the Power Distribution Box (PDB).
How to access it:
- Open the hood and locate the black plastic cover near the firewall, typically on the driver’s side or passenger’s side depending on cab configuration.
- Unclip or unscrew the retaining tabs holding the cover in place (some models use push-pin clips, others use screw fasteners).
- Lift the cover straight up to reveal the fuses and relays inside.
This fuse box handles high-amperage components such as the engine cooling fan, headlights, horn, starter relay, and battery-related circuits. Because it’s exposed to heat and moisture, always check that the cover is fully sealed after inspection to prevent corrosion.
2. Instrument Panel Fuse Box (Cabin Fuse Box)
The second major fuse box location is inside the cabin, mounted under the dashboard on the driver’s side.
How to access it:
- Sit in the driver’s seat and locate the panel to the left of the steering column, near the door.
- Depending on trim level, you may need to remove a small plastic access panel or kick panel cover. This is usually held by simple clips and can be pulled off by hand or gently pried with a trim tool.
- Once removed, you’ll see rows of small fuses and a few mini-relays.
This fuse box protects interior electronics like the radio, power windows, dashboard lights, wipers, and climate control system. It’s the one you’ll likely visit most often for troubleshooting everyday electrical issues.
3. Auxiliary Relay Box (If Equipped)
Trucks equipped with upfitter switches, snow plow packages, or heavy-duty trailer tow packages may have an additional relay box mounted near the main engine bay fuse box or along the frame rail near the battery. This box typically houses relays for auxiliary equipment and trailer brake controllers.
If your truck has extra switches on the dashboard for aftermarket equipment, check your owner’s manual or the main under-hood fuse box cover label—it often indicates whether an auxiliary box is present and where it’s mounted.
How to Identify the Right Fuse or Relay
Every fuse box cover includes a printed diagram on the inside of the lid, listing each fuse and relay by number along with its corresponding function. When troubleshooting:
- Match the fuse number from the diagram to its physical location in the box.
- Use the diagram to confirm the amperage rating before replacing any fuse.
- For relays, diagrams typically show the relay’s function (e.g., fuel pump, A/C compressor, horn) and slot position.
If you don’t have access to the printed diagram, referring to your owner’s manual or a verified fuse box diagram for your specific model year and trim is recommended, since amperage ratings and layouts can vary slightly across configurations (especially between F-250, F-350, F-450, and F-550 trims with different electrical packages).
Safety Precautions Before Checking Fuses or Relays
Before opening any fuse box, follow these basic safety steps:
- Turn off the ignition completely before removing any fuse or relay.
- For more involved electrical work, disconnect the negative battery terminal to avoid accidental shorts.
- Use a fuse puller (usually included in the fuse box) rather than metal tools, which can cause sparks or damage the fuse socket.
- Never replace a fuse with one of a higher amperage rating than specified—this can lead to overheating or fire risk.
- If a new fuse blows immediately after replacement, stop and inspect the circuit for an underlying short rather than continuing to replace fuses.
Checking and Replacing Fuses in Ford F-250 / F-350 / F-450 / F-550
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components. To remove a fuse use the fuse puller tool provided on the fuse panel cover.
Location of Fuse Boxes

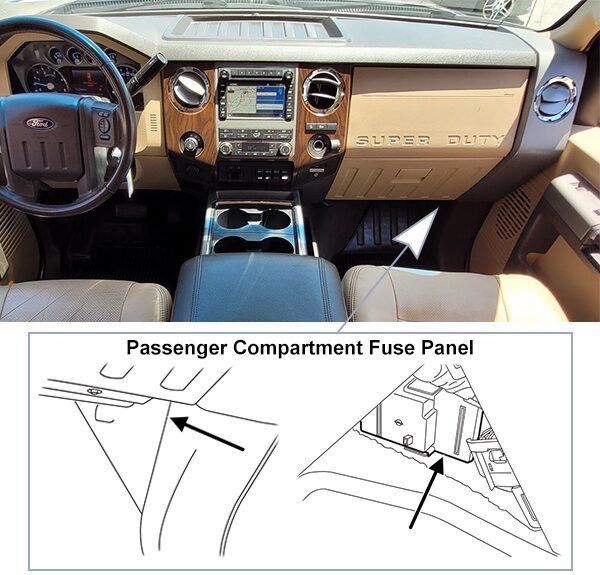

Passenger Compartment Fuse Panel:
The fuse panel is located in the passenger’s footwell. Remove the panel cover to access the fuses. To remove the fuse panel cover, pull the panel toward you. When the clips of the panel disengage, let the panel fall easily.

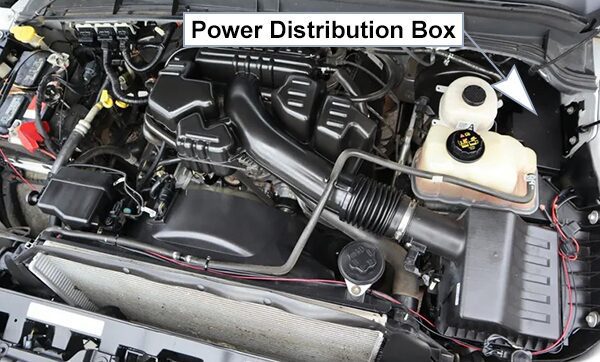

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
UPFITTER CONTROLS (IF EQUIPPED):
Your vehicle may be equipped with the Upfitter option package which will provide four switches, mounted in the center of the instrument panel, labeled AUX 1, AUX 2, AUX 3 and AUX 4. These switches will only operate while the ignition is in the on position, whether the engine is running or not. It is, however, recommended that the engine remain running to maintain battery charge when using the Upfitter switches for extended duration or higher current draws. (This is even more important for vehicles with diesel engines since the glow plugs are also draining battery power when the ignition key is in the on position.) When switched on by the operator they provide 8 amps, 12 amps or 20 amps of electrical battery power for a variety of personal or commercial uses. If your vehicle is equipped with this option, there will also be a relay box located on the driver side end of the instrument panel. See your authorized dealer for service.

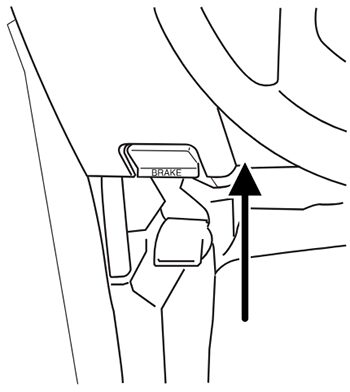

Relay box
There will also be one power lead for each switch found as a blunt-cut and sealed wire located below the instrument panel and to the left of the steering column.
Fuse Box Diagrams
2011

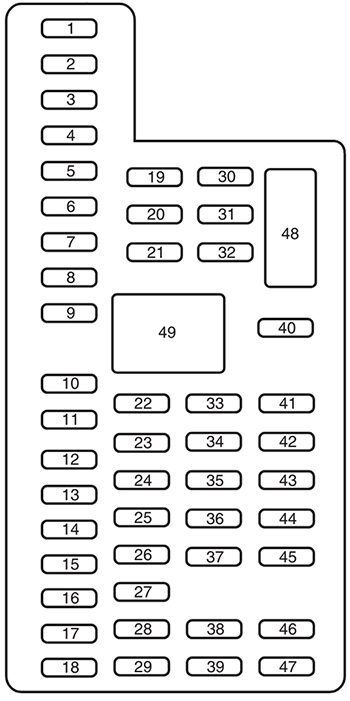

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Upfitter relay #4 |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Telescoping mirror switch, Interior lights, Hood lamp |
| 5 | 20A | Moon roof |
| 6 | 5A | Driver seat module |
| 7 | 7.5A | Driver seat switch, Driver lumbar motor |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Upfitter relay #3 |
| 10 | 10A | Run/accessory relay, Customer access feed |
| 11 | 10A | Instmment cluster |
| 12 | 15A | Interior lighting, Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps, Right trailer tow (TT) stop turn relay |
| 14 | 15A | Left turn signals and brake lamps, Left TT stop turn relay |
| 15 | 15A | High-mounted stop lamps, Backup lamps, TT backup relay |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Keypad illumination, Passive anti-theft indicator (PATS), Powertrain control module (PCM), Brake shift interlock |
| 19 | 20A | Subwoofer |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Steering wheel control module, Diagnostic connector, Satellite radio module, Power fold mirror relay, Remote keyless entry |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Amplifier |
| 28 | 15A | Ignition switch |
| 29 | 20A | SYNC, GPS module, Radio faceplate |
| 30 | 15A | Parking lamp relay, TT parking lamp relay |
| 31 | 5A | Trailer brake controller (brake signal), Customer access |
| 32 | 15A | Moon roof, Auto dimming mirrors, Power invertor, Driver and passenger door lock switch illumination |
| 33 | 10A | Restraint control module |
| 34 | 10A | Not used (spare) |
| 35 | 5A | Select shift switch, Reverse park aid module, Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | PTC heater |
| 38 | 10A | Radio faceplate |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors), Roof marker lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Upfitter switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps, Fog lamp indicator (in switch) |
| 48 | 30A Circuit Breaker | Power Windows switch, Power rear sliding window switch |
| 49 | Relay | Delayed accessory |

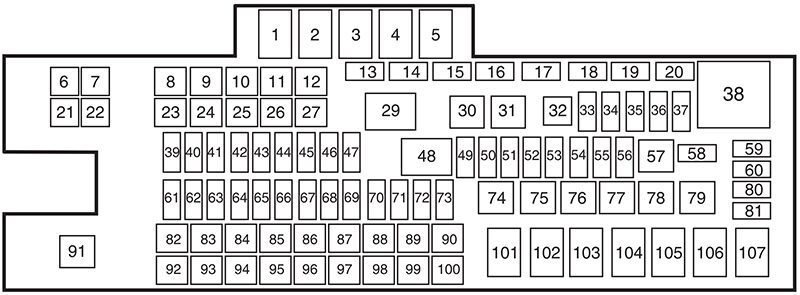

Power Distribution Box
List of fuses in the power distribution box (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Rear window defroster |
| 6 | – | Not used |
| 7 | 50A* | Rear window defroster |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | – | Not used |
| 11 | – | Not used |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 25A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power (VPWR) 1 |
| 34 | 15A** | VPWR 2 (diesel engine) |
| 20A** | VPWR 2 (gas engine) | |
| 35 | 10A** | VPWR 3 |
| 36 | 15A** | VPWR 4 (diesel engine) |
| 20A** | VPWR 4 (gas engine) | |
| 37 | 10A** | VPWR 5 (diesel engine) |
| 38 | Relay | Powertrain control module (PCM) (diesel engine), Electronic control module (ECM) (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module (TCM) keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | PCM/ECM/TCM run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system (ABS) run/start |
| 55 | 10A** | Rear window defroster coil, Battery charge coil |
| 56 | 20A** | Passenger compartment fuse panei run/start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Cannister vent (gas engine) |
| 72 | 10A** | PCM/ECM relay coil feed keep-alive power |
| 73 | – | Not used |
| 74 | Relay | Trailer tow left-hand stop/turn |
| 75 | Relay | Trailer tow right-hand stop/turn |
| 76 | Relay | Backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 25A* | ABS coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | – | Not used |
| 89 | 40A* | Starter motor |
| 90 | 25A* | Trailer tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 2 5A* | Upfitter #1 |
| 95 | 2 5A* | Upfitter #2 |
| 96 | 50A* | ABS pump |
| 97 | 40A* | Invertor |
| 98 | – | Not used |
| 99 | – | Not used |
| 100 | 25A* | Trailer tow turn signals |
| 101 | Relay | Starter |
| 102 | Relay | Trailer tow battery charge |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| * Cartridge fuses ** Mini fuses | ||
UPFITTER CONTROLS (IF EQUIPPED)
| Switch | Circuit number | Wire color | Fuse |
|---|---|---|---|
| AUX 1 | CAC05 | Yellow | 25A |
| AUX 2 | CAC06 | Green with Brown Trace | 25A |
| AUX 3 | CAC07 | Violet with Green Trace | 10A |
| AUX 4 | CAC08 | Brown | 15A |
2012
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Upfitter relay #4 |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Interior lights, Hood lamp |
| 5 | 20A | Moon roof |
| 6 | 5A | Driver seat module |
| 7 | 7.5A | Driver seat switch, Driver lumbar motor |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Upfitter relay #3 |
| 10 | 10A | Run/accessory relay, Customer access feed |
| 11 | 10A | Instrument cluster |
| 12 | 15A | Interior lighting, Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps, Right trailer tow (TT) stop turn relay |
| 14 | 15A | Left turn signals and brake lamps, Left TT stop turn relay |
| 15 | 15A | High-mounted stop lamps, Backup lamps, TT backup relay |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Keypad illumination, Passive anti-theft indicator (PATS), Powertrain control module (PCM), Brake shift interlock |
| 19 | 20A | Subwoofer |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Steering wheel control module, Diagnostic connector, Power fold mirror relay, Remote keyless entry |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Amplifier |
| 28 | 15A | Ignition switch |
| 29 | 20A | SYNC, GPS module, Radio faceplate |
| 30 | 15A | Parking lamp relay, TT parking lamp relay |
| 31 | 5A | Trailer brake controller (brake signal), Customer access |
| 32 | 15A | Moon roof, Telescoping mirror switch, Auto dimming mirrors, Power invertor, Driver and passenger door lock switch illumination |
| 33 | 10A | Restraint control module |
| 34 | 10A | Not used (spare) |
| 35 | 5A | Select shift switch, Reverse park aid module, Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | PTC heater |
| 38 | 10A | Radio faceplate |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors), Roof marker lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Upfitter switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps, Fog lamp indicator (in switch) |
| 48 | 30A Circuit Breaker | Power Windows switch, Power rear sliding window switch |
| 49 | Relay | Delayed accessory |
Power Distribution Box
List of fuses in the power distribution box (2012)
| № | A | Protected Circuits |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Rear window defroster |
| 6 | – | Not used |
| 7 | 50A* | Rear window defroster |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | – | Not used |
| 11 | – | Not used |
| 12 | – | Not used |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 2 5A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power (VPWR) 1 |
| 34 | 15A** | VPWR 2 (diesel engine) |
| 20A** | VPWR 2 (gas engine) | |
| 35 | 10A** | VPWR 3 |
| 36 | 15A** | VPWR 4 (diesel engine) |
| 20A** | VPWR 4 (gas engine) | |
| 37 | 10A** | VPWR 5 (diesel engine) |
| 38 | Relay | Powertrain control module (PCM) (diesel engine), Electronic control module (ECM) (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module (TCM) keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | PCM/ECM/TCM run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system (ABS) run/start |
| 55 | 10A** | Rear window defroster coil, Battery charge coil |
| 56 | 20A** | Passenger compartment fuse panei run/start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Cannister vent (gas engine) |
| 72 | 10A** | PCM/ECM relay coil feed keep-alive power |
| 73 | – | Not used |
| 74 | Relay | Trailer tow left-hand stop/turn |
| 75 | Relay | Trailer tow right-hand stop/turn |
| 76 | Relay | Backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 2 5A* | ABS coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | – | Not used |
| 89 | 40A* | Starter motor |
| 90 | 2 5A* | Trailer tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 25A* | Upfitter #1 |
| 95 | 25A* | Upfitter #2 |
| 96 | 50A* | ABS pump |
| 97 | 40A* | Invertor |
| 98 | – | Not used |
| 99 | – | Not used |
| 100 | 25A* | Trailer tow turn signals |
| 101 | Relay | Starter |
| 102 | Relay | Trailer tow battery charge |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| * Cartridge fuses ** Mini fuses | ||
UPFITTER CONTROLS (IF EQUIPPED)
| Switch | Circuit number | Wire color | Fuse |
|---|---|---|---|
| AUX 1 | CAC05 | Yellow | 25A |
| AUX 2 | CAC06 | Green with Brown Trace | 25A |
| AUX 3 | CAC07 | Violet with Green Trace | 10A |
| AUX 4 | CAC08 | Brown | 15A |
2013
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| № | A | Protected circuits |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Upfitter relay #4 |
| 3 | 30A | Smart window motor |
| 4 | 10A | Interior lights, Hood lamp |
| 5 | 20 A | Moonroof |
| 6 | 5A | Driver seat module |
| 7 | 7.5A | Driver seat switch, Driver lumbar motor |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Upfitter relay #3 |
| 10 | 10A | Run/accessory relay, Customer access feed |
| 11 | 10A | Instrument cluster |
| 12 | 15A | Interior lighting, Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps, Right trailer tow stop turn relay |
| 14 | 15A | Left turn signals and brake lamps, Left trailer tow stop turn relay |
| 15 | 15A | High-mounted stop lamps, Backup lamps, Trailer tow backup relay, Reverse signal interior mirror |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Keypad illumination, Passive anti-theft indicator, Powertrain control module, Brake shift interlock |
| 19 | 20A | Subwoofer, Amplifier |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Steering wheel control module, Diagnostic connector, Power fold mirror relay, Remote keyless entry, Electronic finish panei |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Not used (spare) |
| 28 | 15A | Ignition switch |
| 29 | 20A | SYNC, GPS module, Radio faceplate |
| 30 | 15A | Parking lamp relay, Trailer tow parking lamp relay |
| 31 | 5A | Trailer brake controller (brake signal), Customer access |
| 32 | 15A | Moonroof motor, Telescoping mirror switch, Auto dimming mirrors, Power inverter, Driver and passenger door lock switch illumination, Rear heated seat switch illumination |
| 33 | 10A | Restraint control module |
| 34 | 10A | Heated steering wheel module, Rear heated seats module |
| 35 | 5A | Select shift switch, Reverse park aid module, Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | PTC heater |
| 38 | 10A | AM/FM radio faceplate |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors), Roof marker lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Upfitter switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps, Fog lamp indicator (in switch) |
| 48 | 30A Circuit Breaker | Power Windows switch, Power rear sliding window switch |
| 49 | Relay | Delayed accessory |
Power Distribution Box
List of fuses in the power distribution box (2013)
| № | A | Protected circuits |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Rear window defroster, Heated mirrors |
| 6 | Not used | |
| 7 | 50A* | Rear window defroster, Heated mirrors |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | – | Not used |
| 11 | – | Not used |
| 12 | 30A* | Smart window motor |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 2 5A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power 1 |
| 34 | 15A** | Vehicle power 2 (diesel engine) |
| 20A** | Vehicle power 2 (gas engine) | |
| 35 | 10A** | Vehicle power 3 |
| 36 | 15A** | Vehicle power 4 (diesel engine) |
| 20A** | Vehicle power 4 (gas engine) | |
| 37 | 10A** | Vehicle power 5 (diesel engine) |
| 38 | Relay | Powertrain control module (diesel engine), Electronic control module (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | 20A** | Rear heated seats |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | Powertrain control module / Electronic control module / Transmission control module run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system run/start |
| 55 | 10A** | Rear window defroster coil, Battery charge coil |
| 56 | 20A** | Passenger compartment fuse panei run/start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Canister vent (gas engine) |
| 72 | 10A** | Powertrain control module / Electronic control module relay coil feed keep-alive power |
| 73 | – | Not used |
| 74 | Relay | Trailer tow left-hand stop/turn |
| 75 | Relay | Trailer tow right-hand stop/turn |
| 76 | Relay | Backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 2 5A* | Anti-lock brake system coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | 20A* | Auxiliary power point #6 |
| 89 | 40A* | Starter motor |
| 90 | 25A* | Trailer tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 25A* | Upfitter #1 |
| 95 | 25A* | Upfitter #2 |
| 96 | 50A* | Anti-lock brake system pump |
| 97 | 40A* | Inverter |
| 98 | – | Not used |
| 99 | 40A* | Instrument panei power inverter |
| 100 | 25A* | Trailer tow turn signals |
| 101 | Relay | Starter |
| 102 | Relay | Trailer tow battery charge |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| * Cartridge fuses ** Mini fuses | ||
UPFITTER CONTROLS (IF EQUIPPED)
| Switch | Circuit Number | Wire Color | Fuse Amp Rating |
|---|---|---|---|
| AUX 1 | CAC05 | Yellow | 25A |
| AUX 2 | CAC06 | Green with Brown Trace | 25A |
| AUX 3 | CAC07 | Yiolet with Green Trace | 10A |
| AUX 4 | CAC08 | Brown | 15A |
2014
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2014)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Auxiliary switch relay #4 |
| 3 | 30A | Passenger smart window motor |
| 4 | 10A | Interior lights, Hood lamp |
| 5 | 20A | Moonroof |
| 6 | 5A | Driver seat module |
| 7 | 7.5 A | Driver seat switch, Driver lumbar motor |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Auxiliary switch relay #3 |
| 10 | 10A | Run/accessory relay, Customer access feed |
| 11 | 10A | Instrument cluster |
| 12 | 15A | Interior lighting, Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps, Right trailer tow stop turn relay |
| 14 | 15A | Left turn signals and brake lamps, Left trailer tow stop turn relay |
| 15 | 15A | High-mounted stop lamps, Backup lamps, Trailer tow backup relay, Reverse signal interior mirror |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Keypad illumination, Passive anti-theft transceiver, Powertrain control module, Brake shift interlock |
| 19 | 20A | Subwoofer, Amplifier |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Steering wheel control module, Diagnostic connector, Power fold mirror relay, Remote keyless entry, Electronic finish panei |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Not used (spare) |
| 28 | 15A | Ignition switch |
| 29 | 20A | SYNC, GPS module, Radio faceplate |
| 30 | 15A | Parking lamp relay, Trailer tow parking lamp relay |
| 31 | 5A | Trailer brake controller (brake signal), Customer access |
| 32 | 15A | Moonroof motor, Telescoping mirror switch, Auto dimming mirrors, Power inverter, Driver and passenger door lock switch illumination, Rear heated seat switch illumination, Driver and passenger smart window motor, Passenger window switch |
| 33 | 10A | Restraint control module |
| 34 | 10A | Heated steering wheel module, Rear heated seats module |
| 35 | 5A | Select shift switch, Reverse park aid module, Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | Positive temperature coefficient heater |
| 38 | 10A | AM/FM radio faceplate |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors), Roof marker lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Auxiliary switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps, Fog lamp indicator (in switch) |
| 48 | 30A Circuit breaker | Power Windows switch, Power rear sliding window switch, Moonroof switch |
| 49 | Relay | Delayed accessory |
Power Distribution Box
List of fuses in the power distribution box (2014)
| № | A | Protected components |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Rear window defroster, Heated mirrors |
| 6 | – | Not used |
| 7 | 50A* | Rear window defroster, Heated mirrors |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | – | Not used |
| 11 | – | Not used |
| 12 | 30A* | Driver smart window motor |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 25A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power 1 |
| 34 | 15A** | Vehicle power 2 (diesel engine) |
| 20A** | Vehicle power 2 (gas engine) | |
| 35 | 10A** | Vehicle power 3 |
| 36 | 15A** | Vehicle power 4 (diesel engine) |
| 20A** | Vehicle power 4 (gas engine) | |
| 37 | 10A** | Vehicle power 5 (diesel engine) |
| 38 | Relay | Powertrain control module (diesel engine), Electronic control module (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | 20A** | Rear heated seats |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | Powertrain control module, Electronic control module, Transmission control module run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system run/start |
| 55 | 10A** | Rear window defroster coil, Battery charge coil |
| 56 | 20A** | Passenger compartment fuse panei run/ start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Canister vent (gas engine) |
| 72 | 10A** | Powertrain control module, Electronic control module relay coil feed keep-alive power |
| 73 | – | Not used |
| 74 | Relay | Trailer tow left-hand stop/turn |
| 75 | Relay | Trailer tow right-hand stop/turn |
| 76 | Relay | Trailer tow backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 25A* | Anti-lock brake system coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | 20A* | Auxiliary power point #6 |
| 89 | 40A* | Starter motor |
| 90 | 25A* | Trai ler tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 25A* | Auxiliary switch #1 |
| 95 | 2 5A* | Auxiliary switch #2 |
| 96 | 50A* | Anti-lock brake system pump |
| 97 | 40A* | Inverter |
| 98 | – | Not used |
| 99 | 40A* | Instrument panei power inverter |
| 100 | 25A* | Trailer tow turn signals |
| 101 | Relay | Starter |
| 102 | Relay | Trailer tow battery charge |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| *Cartridge fuses **Mini fuses | ||
2015
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2015)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Auxiliary switch relay #4 |
| 3 | 30A | Passenger smart window motor |
| 4 | 10A | Hood lamp Interior lights |
| 5 | 20A | Moonroof |
| 6 | 5A | Driver seat module |
| 7 | 7.5 A | Driver lumbar motor Driver seat switch |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Auxiliary switch relay #3 |
| 10 | 10A | Customer access feed Run/accessory relay |
| 11 | 10A | Instrument cluster |
| 12 | 15A | Interior lighting Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps |
| 14 | 15A | Left turn signals and brake lamps |
| 15 | 15A | Backup lamps, Trailer tow backup relay High-mounted stop lamps Reverse signal interior mirror |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Brake shift interlock Keypad illumination Passive anti-theft transceiver Powertrain control module |
| 19 | 20A | Amplifier Subwoofer |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Diagnostic connector Electronic finish panei Power fold mirror relay Remote keyless entry Steering wheel control module |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Not used (spare) |
| 28 | 15A | Ignition switch |
| 29 | 20A | GPS module Radio SYNC |
| 30 | 15A | Parking lamp relay Trailer tow parking lamp relay |
| 31 | 5A | Customer access Trailer brake controller (brake signal) |
| 32 | 15A | Auto dimming mirror Driver and passenger door lock switch illumination Driver and passenger smart window motor Moonroof motor Passenger window switch Power inverter Rear heated seat switch illumination Telescoping mirror switch |
| 33 | 10A | Restraint control module |
| 34 | 10A | Heated steering wheel module Rear heated seats module |
| 35 | 5A | Reverse park aid module Select shift switch Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | Positive temperature coefficient heater |
| 38 | 10A | AM/FM base radio |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors) Roof marker lamps |
| 41 | 7.5 A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Auxiliary switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps Fog lamp indicator (in switch) |
| 48 | 30A Circuit breaker | Power rear sliding window switch Power Windows switch Moonroof switch |
| 49 | Relay | Delayed accessory |
Power Distribution Box
List of fuses in the power distribution box (2015)
| № | A | Protected components |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Heated mirrors Rear window defroster |
| 6 | – | Not used |
| 7 | 50A* | Heated mirrors Rear window defroster |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | 40A* | Trailer tow |
| 11 | – | Not used |
| 12 | 30A* | Driver smart window motor |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 2 5A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power 1 |
| 34 | 15A** | Vehicle power 2 (diesel engine) |
| 20A** | Vehicle power 2 (gas engine) | |
| 35 | 10A** | Vehicle power 3 |
| 36 | 15A** | Vehicle power 4 (diesel engine) |
| 20A** | Vehicle power 4 (gas engine) | |
| 37 | 10A** | Vehicle power 5 (diesel engine) |
| 38 | Relay | Electronic control module (diesel engine) Powertrain control module (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | 20A** | Rear heated seats |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | Electronic control module Powertrain control module, Transmission control module run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system run/start |
| 55 | 10A** | Rear window defroster coil |
| 56 | 20A** | Passenger compartment fuse panei run/ start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Canister vent (gas engine) |
| 72 | 10A** | Electronic control module relay coil feed keep-alive power Powertrain control module |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Not used |
| 76 | Relay | Trailer tow backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 25A* | Anti-lock brake system coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | 20A* | Auxiliary power point #6 |
| 89 | 40A* | Starter motor |
| 90 | 25A* | Trai ler tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 25A* | Auxiliary switch #1 |
| 95 | 25A* | Auxiliary switch #2 |
| 96 | 50A* | Anti-lock brake system pump |
| 97 | 40A* | Inverter |
| 98 | – | Not used |
| 99 | 40A* | Instrument panei power inverter |
| 100 | – | Not used |
| 101 | Relay | Starter |
| 102 | – | Not used |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| *Cartridge fuses **Mini fuses | ||
2016
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2016)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Auxiliary switch relay #4 |
| 3 | 30A | Passenger smart window motor |
| 4 | 10A | Hood lamp Interior lights |
| 5 | 20A | Moonroof |
| 6 | 5A | Driver seat module |
| 7 | 7.5A | Driver lumbar motor Driver seat switch |
| 8 | 10A | Power mirror switch |
| 9 | 10A | Auxiliary switch relay #3 |
| 10 | 10A | Customer access feed Run/accessory relay |
| 11 | 10A | Instrument cluster |
| 12 | 15A | Interior lighting Lighted running board lamps |
| 13 | 15A | Right turn signals and brake lamps |
| 14 | 15A | Left turn signals and brake lamps |
| 15 | 15A | Backup lamps, Trailer tow backup relay High-mounted stop lamps Reverse signal interior mirror |
| 16 | 10A | Right low beam headlamp |
| 17 | 10A | Left low beam headlamp |
| 18 | 10A | Brake shift interlock Keypad illumination Passive anti-theft transceiver Powertrain control module |
| 19 | 20A | Amplifier Subwoofer |
| 20 | 20A | Power door locks |
| 21 | 10A | Brake on/off switch |
| 22 | 20A | Horn |
| 23 | 15A | Not used (spare) |
| 24 | 15A | Diagnostic connector Electronic finish panel Power fold mirror relay Remote keyless entry Steering wheel control module |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Steering wheel control module |
| 27 | 20A | Not used (spare) |
| 28 | 15A | Ignition switch |
| 29 | 20A | GPS module Radio SYNC |
| 30 | 15A | Parking lamp relay Trailer tow parking lamp relay |
| 31 | 5A | Customer access Trailer brake controller (brake signal) |
| 32 | 15A | Auto dimming mirror Driver and passenger door lock switch illumination Driver and passenger smart window motor Moonroof motor Passenger window switch Power inverter Rear heated seat switch illumination Telescoping mirror switch |
| 33 | 10A | Restraint control module |
| 34 | 10A | Heated steering wheel module Rear heated seats module |
| 35 | 5A | Reverse park aid module Select shift switch Trailer brake control module |
| 36 | 10A | Fuel tank select switch |
| 37 | 10A | Positive temperature coefficient heater |
| 38 | 10A | AM/FM base radio |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Parking lamps (in mirrors) Roof marker lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Wiper relay |
| 44 | 10A | Auxiliary switches |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | 15A | Fog lamps Fog lamp indicator (in switch) |
| 48 | 30A Circuit breaker | Power rear sliding window switch Power Windows switch Moonroof switch |
| 49 | Relay | Delayed accessory |
Power Distribution Box
List of fuses in the power distribution box (2016)
| № | A | Protected components |
|---|---|---|
| 1 | Relay | Blower motor |
| 2 | – | Not used |
| 3 | Relay | Urea heaters (diesel engine) |
| 4 | – | Not used |
| 5 | Relay | Heated mirrors Rear window defroster |
| 6 | – | Not used |
| 7 | 50A* | Heated mirrors Rear window defroster |
| 8 | 30A* | Passenger seat |
| 9 | 30A* | Driver seat |
| 10 | 40A* | Trailer tow |
| 11 | – | Not used |
| 12 | 30A* | Driver smart window motor |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | Diode | Fuel pump (diesel engine) |
| 16 | – | Not used |
| 17 | 15A** | Heated mirror |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | – | Not used |
| 21 | – | Not used |
| 22 | 30A* | Trailer tow electric brake |
| 23 | 40A* | Blower motor |
| 24 | – | Not used |
| 25 | 30A* | Wipers |
| 26 | 30A* | Trailer tow park lamps |
| 27 | 25A* | Urea heaters (diesel engine) |
| 28 | – | Buss bar |
| 29 | Relay | Trailer tow park lamps |
| 30 | Relay | A/C clutch |
| 31 | Relay | Wipers |
| 32 | – | Not used |
| 33 | 15A** | Vehicle power 1 |
| 34 | 15A** | Vehicle power 2 (diesel engine) |
| 20A** | Vehicle power 2 (gas engine) | |
| 35 | 10A** | Vehicle power 3 |
| 36 | 15A** | Vehicle power 4 (diesel engine) |
| 20A** | Vehicle power 4 (gas engine) | |
| 37 | 10A** | Vehicle power 5 (diesel engine) |
| 38 | Relay | Electronic control module (diesel engine) Powertrain control module (gas engine) |
| 39 | 10A** | 4×4 hub lock |
| 40 | 15A** | 4×4 electronic lock |
| 41 | – | Not used |
| 42 | 20A** | Rear heated seats |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 10A** | Run/start relay coil |
| 46 | 10A** | Transmission control module keep-alive power (diesel engine) |
| 47 | 10A** | A/C clutch feed |
| 48 | Relay | Run/start |
| 49 | 10A** | Rearview camera system |
| 50 | 10A** | Blower motor relay coil |
| 51 | – | Not used |
| 52 | 10A** | Electronic control module Powertrain control module, Transmission control module run/start |
| 53 | 10A** | 4×4 module |
| 54 | 10A** | Anti-lock brake system run/start |
| 55 | 10A** | Rear window defroster coil |
| 56 | 20A** | Passenger compartment fuse panei run/ start feed |
| 57 | Relay | Fuel pump |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20A** | Fuel pump |
| 67 | – | Not used |
| 68 | 10A** | Fuel pump relay coil |
| 69 | – | Not used |
| 70 | 10A** | Trailer tow backup lamp |
| 71 | 10A** | Canister vent (gas engine) |
| 72 | 10A** | Electronic control module relay coil feed keep-alive power Powertrain control module |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Not used |
| 76 | Relay | Trailer tow backup lamp |
| 77 | – | Not used |
| 78 | – | Not used |
| 79 | – | Not used |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 20A* | Auxiliary power point #2 |
| 83 | 20A* | Auxiliary power point #1 |
| 84 | 30A* | 4×4 shift motor |
| 85 | 30A* | Heated/cooled seats |
| 86 | 25A* | Anti-lock brake system coil feed |
| 87 | 20A* | Auxiliary power point #5 |
| 88 | 20A* | Auxiliary power point #6 |
| 89 | 40A* | Starter motor |
| 90 | 25A* | Trai ler tow battery charge |
| 91 | – | Not used |
| 92 | 20A* | Auxiliary power point #4 |
| 93 | 20A* | Auxiliary power point #3 |
| 94 | 25A* | Auxiliary switch #1 |
| 95 | 25A* | Auxiliary switch #2 |
| 96 | 50A* | Anti-lock brake system pump |
| 97 | 40A* | Inverter |
| 98 | – | Not used |
| 99 | 40A* | Instrument panei power inverter |
| 100 | – | Not used |
| 101 | Relay | Starter |
| 102 | – | Not used |
| 103 | – | Not used |
| 104 | – | Not used |
| 105 | – | Not used |
| 106 | – | Not used |
| 107 | – | Not used |
| *Cartridge fuses **Mini fuses | ||
Conclusion
Knowing the fuse box and relay locations on your 2011–2016 Ford F-250, F-350, F-450, or F-550 is essential for quick, effective troubleshooting. Whether you’re dealing with a blown fuse, a malfunctioning relay, or simply performing routine maintenance, understanding where to look and how to safely access each fuse box, puts you in control of minor electrical repairs.
Always handle fuses and relays carefully, double-check amperage ratings, and use the printed diagrams to confirm you’re working with the correct component. If an electrical issue persists after replacing a fuse, or if you’re uncertain about diagnosing the problem yourself, it’s best to consult a qualified mechanic or Ford dealership technician to avoid further electrical damage.
