(2013-2019) Ford Flex fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Flex (2013-2019) fuse assignment
Ford Flex Year of production: 2013, 2014, 2015, 2016, 2017, 2018, 2019
Where Are the Fuse Boxes Located on the Ford Flex?
The 2013–2019 Ford Flex uses two main fuse box locations: one under the hood and one inside the cabin. Depending on trim level and installed features, some models may also include a small auxiliary relay panel near the rear cargo area.
1. Engine Compartment Fuse Box (Power Distribution Box)
The primary fuse box is located in the engine bay, mounted near the battery on the driver’s side, close to the firewall.
How to access it:
- Open the hood and locate the black plastic cover near the battery.
- Release the retaining clips along the edges of the cover, most models use tool-free snap-lock tabs.
- Lift the cover straight up to expose the fuses and relays inside.
This fuse box protects high-amperage components such as the headlights, engine cooling fan, horn, and starter relay. Since this area is exposed to engine heat and road moisture, make sure the cover is fully reseated after inspection to prevent corrosion.
2. Interior Fuse Panel (Instrument Panel Fuse Box)
The cabin fuse box is located inside the vehicle, typically under the dashboard on the driver’s side, near the left kick panel area.
How to access it:
- Sit in the driver’s seat and locate the small access panel to the left of the steering column, near the door.
- Gently pull or unclip the cover, it’s usually secured with simple plastic retaining clips.
- Once removed, you’ll see the fuse layout along with several compact relays.
This panel controls interior circuits such as the SYNC infotainment system, power windows, power seats, dashboard lights, wipers, and central locking system.
3. Rear Cargo Area Auxiliary Relay Panel (If Equipped)
Given the Flex’s available features like a power liftgate, second-row power fold seats, and rear entertainment options, some trims include a small auxiliary relay panel located in the rear cargo area, often near the interior trim panel or beside the cargo light.
How to access it:
- Open the rear liftgate and check along the interior side panels near the cargo area for a small access cover or exposed relay bracket.
- Not all trims include this panel, refer to your owner’s manual to confirm whether your specific configuration has one.
This panel, when present, typically manages relays for the power liftgate motor and related rear convenience features.
How to Identify the Right Fuse or Relay
Both the engine bay and interior fuse boxes include a printed diagram, usually located on the inside of the fuse box cover, detailing each fuse and relay by number, amperage rating, and function.
When troubleshooting:
- Identify the malfunctioning component (e.g., “power liftgate” or “SYNC system”) and match it to its corresponding number on the diagram.
- Confirm the amperage rating on the old fuse matches the replacement before installing a new one.
- For relays, use the diagram to confirm the correct slot, since several relays in the box may look nearly identical despite controlling different systems.
If the printed diagram is missing or difficult to read, refer to your owner’s manual for a detailed fuse box diagram specific to your Flex’s trim level, as configurations can vary between base models and higher trims with features like all-wheel drive, panoramic sunroof, or upgraded audio systems.
Safety Precautions Before Checking Fuses or Relays
- Turn off the ignition and remove the key before touching any fuse or relay.
- For more involved electrical work, disconnect the negative battery terminal to prevent accidental short circuits.
- Use the fuse puller tool, often built into the fuse box cover, rather than metal tools like screwdrivers, which can cause sparking.
- Never replace a fuse with one of a higher amperage rating than specified, as this can overload the circuit and create a fire hazard.
- If a replacement fuse blows immediately, stop and inspect the circuit for an underlying short rather than continuing to swap fuses.
Checking and Replacing Fuses in Ford Flex
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Location of Fuse Boxes
Passenger Compartment Fuse Panel:

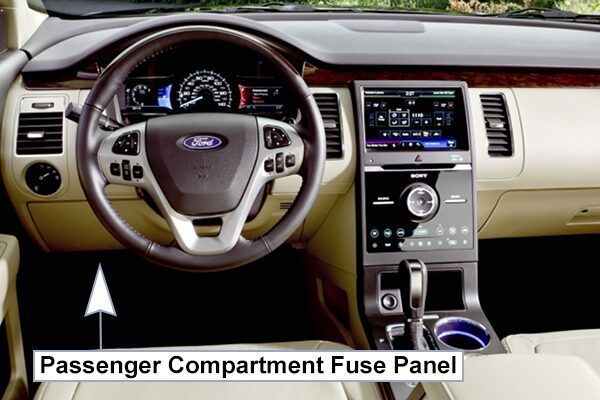

The fuse panel is located under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.
Power Distribution Box:

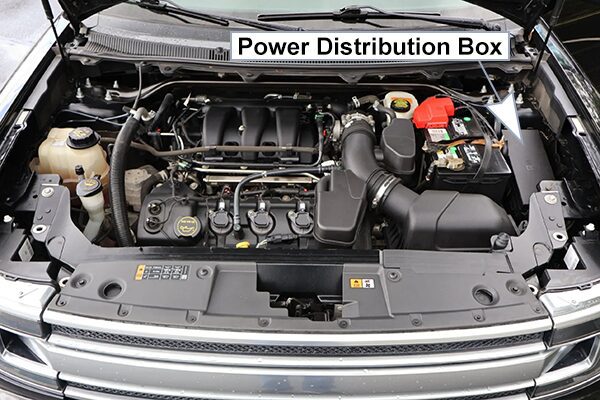

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2013

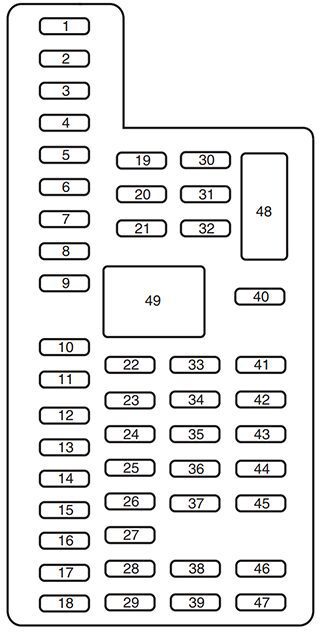

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Driver side front window |
| 2 | 15A | Memory seat, Second row seats |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Battery saver relay (interior demand lamps and seat power) |
| 5 | 20A | Smart amplifier |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Power mirror switch, Driver door module, Driver seat module, Keypad |
| 8 | 10A | Power liftgate |
| 9 | 10A | SYNC, Electronic finish panei, Radio transceiver module |
| 10 | 10A | Run/accessory relay, Front wiper motor relay |
| 11 | 10A | Intelligent access module, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Center high mounted stop lamp, Backup lamp |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Third row power seats, Start button run indicator, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Anti-theft system |
| 19 | 20A | Not used (spare) |
| 20 | 20A | Locks |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module, Instrument cluster |
| 24 | 15A | Datalink connector, Steering wheel control module |
| 25 | 15A | Liftgate release |
| 26 | 5A | Ignition switch, Push button start switch |
| 27 | 20A | Intelligent access module |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps, Trailer tow relay for park lamps, Front side markers |
| 31 | 5A | Trailer tow controller |
| 32 | 15A | Driver window switch and motor, Power lock switches, Moonroof, 110V AC power point, Interior rearview mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Blind spot monitor, 2nd row heated seats, Re verse sensing system, Rearview camera |
| 35 | 5A | Heads-up display, Climate control humidity sensor |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Refrigerator |
| 38 | 10A | Front passenger window switch |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, License plate lamps |
| 41 | 7.5A | Occupant classification system, Restraints control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamps, Fog lamp indicator, Front turn signals #2 |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power Windows |
| 49 | Delayed accessory relay | Body control module |

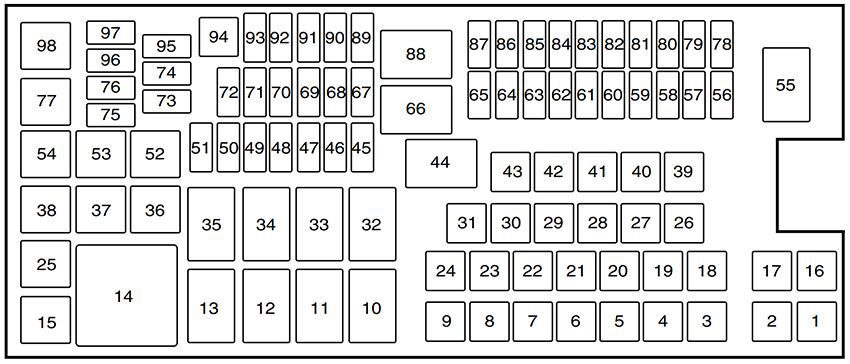

Power Distribution Box
List of fuses in the power distribution box (2013)
| № | A | Protected components |
|---|---|---|
| 1 | 40A** | Fan relay 2 |
| 2 | 40A** | Fan relay 1 |
| 3 | 30A** | Trailer brake control module |
| 4 | 30A** | Wipers, Washer pump |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moonroof |
| 9 | 20A** | 2nd row console power point |
| 10 | – | 3rd row power seats relay |
| 11 | – | Heated rear window relay |
| 12 | – | Trailer tow battery charge relay |
| 13 | – | Starter relay |
| 14 | – | Cooling fan #2 relay |
| 15 | – | Fuel relay |
| 16 | – | Not used |
| 17 | 30A** | 110V AC power point |
| 18 | 40A** | Front blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Inside bin power point |
| 21 | 20A** | Instrument panei power point / cigar lighter |
| 22 | 30A** | 3rd row seat module |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | 30A** | Trailer tow battery charge |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster, Heated mirrors |
| 27 | 20A** | Cargo power point |
| 28 | 30A** | Front heated/cooled seats |
| 29 | 20A** | Front heated seats |
| 30 | 20A** | Rear heated seats |
| 31 | 25A** | Electronic fan relay 3 |
| 32 | – | Auxiliary blower relay |
| 33 | – | Cooling fan #1 relay |
| 34 | – | Front blower relay |
| 35 | – | Cooling fan (series) relay |
| 36 | – | Not used |
| 37 | – | Trailer tow right-hand stop/turn lamps relay |
| 38 | – | Trailer tow reverse lamps relay |
| 39 | 30A** | Auxiliary blower motor |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | – | Windshield washer relay |
| 45 | 5A* | Rain sensor |
| 46 | 5A* | Canister vent solenoid (EcoBoost engines) |
| 47 | 15A* | Washer pump |
| 48 | 10A* | Front park lamps |
| 49 | – | Not used |
| 50 | 10A* | Heated mirrors |
| 51 | 5A* | Powertrain control module – Injector power monitor (non-EcoBoost engines) |
| 52 | – | Not used |
| 53 | – | Trailer tow left-hand stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wipers relay |
| 56 | 30A* | Fuel injectors, Fuel pump relay |
| 57 | 20A* | Left high-intensity discharge headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 10A* | Trailer tow back-up lamps |
| 61 | – | Not used |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | Trailer tow stop/turn lamps |
| 64 | 15A* | Rear wipers |
| 65 | – | Not used |
| 66 | – | Powertrain control module – vehicle power relay |
| 67 | 20A* | Vehicle power #2 – Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Vehicle power #4 (ignition coils) |
| 69 | 20A* | Vehicle power #1 (PCM) |
| 70 | 15A* | Vehicle power #3 (coil) – A/C clutch relay, Fan control relays, Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve (for turbo charger), All-wheel drive module, Positive crackcase ventilation heater |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Not used |
| 76 | – | Not used |
| 77 | – | Trailer tow park lamps relay |
| 78 | 20A* | Right high-intensity discharge headlamps |
| 79 | 10A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | Trailer tow park lamps |
| 85 | – | Not used |
| 86 | 5A* | Powertrain control module – keep-alive power, Powertrain control module relay, Canister vent solenoid (non-EcoBoost engines) |
| 87 | 5A* | Run/start |
| 88 | – | Run/start relay |
| 89 | 10A* | Anti-lock brake system module |
| 90 | 10A* | Powertrain control module run/start |
| 91 | 10A* | Adaptive cruise control |
| 92 | 5A* | Front blower relay coil, Power steering module |
| 93 | 5A* | Auxiliary blower, Rear defroster, Battery charge relays |
| 94 | 30A** | Body control module run/start |
| 95 | 5A* | Front passenger window switch |
| 96 | – | Not used |
| 97 | – | Not used |
| 98 | – | A/C clutch relay |
| *Mini Fuses **Cartridge Fuses | ||
2014
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2014)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Driver side front window |
| 2 | 15A | Memory seat, Second row seats |
| 3 | 30A | Not used (spare) |
| 4 | 10A | Battery saver relay (interior demand lamps and seat power) |
| 5 | 20A | Smart amplifier |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Power mirror switch, Driver door module, Driver seat module, Keypad |
| 8 | 10A | Power liftgate |
| 9 | 10A | SYNC, Electronic finish panei, Radio transceiver module |
| 10 | 10A | Run/accessory relay, Front wiper motor relay |
| 11 | 10A | Intelligent access module, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Center high mounted stop lamp, Backup lamp |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Third row power seats, Start button run indicator, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Anti-theft system |
| 19 | 20A | Not used (spare) |
| 20 | 20A | Locks |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module, Instrument cluster |
| 24 | 15A | Datalink connector, Steering wheel control module |
| 25 | 15A | Liftgate release |
| 26 | 5A | Ignition switch, Push button start switch |
| 27 | 20A | Intelligent access module |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps, Trailer tow relay for park lamps, Front side markers |
| 31 | 5A | Trailer tow controller |
| 32 | 15A | Driver window switch and motor, Power lock switches, Moonroof, 110V AC power point, Interior rearview mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Blind spot monitor, 2nd row heated seats, Re verse sensing system, Rearview camera |
| 35 | 5A | Heads-up display, Climate control humidity sensor |
| 36 | 10A | Not used (spare) |
| 37 | 10A | Refrigerator |
| 38 | 10A | Front passenger window switch |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, License plate lamps |
| 41 | 7.5A | Occupant classification system, Restraints control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamps, Fog lamp indicator, Front turn signals #2 |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power Windows |
| 49 | Delayed accessory relay | Body control module |
Power Distribution Box
List of fuses in the power distribution box (2014)
| № | A | Protected components |
|---|---|---|
| 1 | 40A** | Fan relay 2 |
| 2 | 40A** | Fan relay 1 |
| 3 | 30A** | Trailer brake control module |
| 4 | 30A** | Wipers, Washer pump |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moonroof |
| 9 | 20A** | 2nd row console power point |
| 10 | – | 3rd row power seats relay |
| 11 | – | Heated rear window relay |
| 12 | – | Trailer tow battery charge relay |
| 13 | – | Starter relay |
| 14 | – | Cooling fan #2 relay |
| 15 | – | Fuel relay |
| 16 | – | Not used |
| 17 | 30A** | 110V AC power point |
| 18 | 40A** | Front blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Inside bin power point |
| 21 | 20A** | Instrument panei power point / cigar lighter |
| 22 | 30A** | 3rd row seat module |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | 30A** | Trailer tow battery charge |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster, Heated mirrors |
| 27 | 20A** | Cargo power point |
| 28 | 30A** | Front heated/cooled seats |
| 29 | 20A** | Front heated seats |
| 30 | 20A** | Rear heated seats |
| 31 | 25A** | Electronic fan relay 3 |
| 32 | – | Auxiliary blower relay |
| 33 | – | Cooling fan #1 relay |
| 34 | – | Front blower relay |
| 35 | – | Cooling fan (series) relay |
| 36 | – | Not used |
| 37 | – | Trailer tow right-hand stop/turn lamps relay |
| 38 | – | Trailer tow reverse lamps relay |
| 39 | 30A** | Auxiliary blower motor |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | – | Windshield washer relay |
| 45 | 5A* | Rain sensor |
| 46 | 5A* | Canister vent solenoid (EcoBoost engines) |
| 47 | 15A* | Washer pump |
| 48 | 10A* | Front park lamps |
| 49 | – | Not used |
| 50 | 10A* | Heated mirrors |
| 51 | 5A* | Powertrain control module – Injector power monitor (non-EcoBoost engines) |
| 52 | – | Not used |
| 53 | – | Trailer tow left-hand stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wipers relay |
| 56 | 30A* | Fuel injectors, Fuel pump relay |
| 57 | 20A* | Left high-intensity discharge headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 10A* | Trailer tow back-up lamps |
| 61 | – | Not used |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | Trailer tow stop/turn lamps |
| 64 | 15A* | Rear wipers |
| 65 | – | Not used |
| 66 | – | Powertrain control module – vehicle power relay |
| 67 | 20A* | Vehicle power #2 – Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Vehicle power #4 (ignition coils) |
| 69 | 20A* | Vehicle power #1 (PCM) |
| 70 | 15A* | Vehicle power #3 (coil) – A/C clutch relay, Fan control relays, Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve (for turbo charger), All-wheel drive module, Positive crackcase ventilation heater |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Not used |
| 76 | – | Not used |
| 77 | – | Trailer tow park lamps relay |
| 78 | 20A* | Right high-intensity discharge headlamps |
| 79 | 10A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | Trailer tow park lamps |
| 85 | – | Not used |
| 86 | 5A* | Powertrain control module – keep-alive power, Powertrain control module relay, Canister vent solenoid (non-EcoBoost engines) |
| 87 | 5A* | Run/start |
| 88 | – | Run/start relay |
| 89 | 10A* | Anti-lock brake system module |
| 90 | 10A* | Powertrain control module run/start |
| 91 | 10A* | Adaptive cruise control |
| 92 | 5A* | Front blower relay coil, Power steering module |
| 93 | 5A* | Auxiliary blower, Rear defroster, Battery charge relays |
| 94 | 30A** | Body control module run/start |
| 95 | 5A* | Front passenger window switch |
| 96 | – | Not used |
| 97 | – | Not used |
| 98 | – | A/C clutch relay |
| *Mini Fuses **Cartridge Fuses | ||
2015
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2015)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Driver side front window |
| 2 | 15A | Memory seat, Second row seats |
| 3 | 30A | Passenger side front window |
| 4 | 10A | Battery saver relay (interior demand lamps and seat power) |
| 5 | 20A | Smart amplifier |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Power mirror switch, Driver door module, Driver seat module, Keypad |
| 8 | 10A | Power liftgate |
| 9 | 10A | SYNC, Electronic finish panei, Radio transceiver module |
| 10 | 10A | Run/accessory relay, Front wiper motor relay |
| 11 | 10A | Intelligent access module, Heads-up display |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Center high mounted stop lamp, Backup lamp |
| 16 | 10A | Low beam headlamps (right) |
| 17 | 10A | Low beam headlamps (left) |
| 18 | 10A | Third row power seats, Start button run indicator, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Anti-theft system |
| 19 | 20A | Not used (spare) |
| 20 | 20A | Locks |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module, Instrument cluster |
| 24 | 15A | Datalink connector, Steering wheel control module |
| 25 | 15A | Liftgate release |
| 26 | 5A | Ignition switch, Push button start switch |
| 27 | 20A | Intelligent access module |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps, Trailer tow relay for park lamps, Front side markers |
| 31 | 5A | Trailer tow controller |
| 32 | 15A | Driver window switch and motor, Power lock switches, Moonroof, 110V AC power point, Interior rearview mirror |
| 33 | 10A | Not used (spare) |
| 34 | 10A | Blind spot monitor, 2nd row heated seats, Reverse sensing system, Rearview camera |
| 35 | 5A | Heads-up display, Climate control humidity sensor |
| 36 | 10A | Heated steering wheel |
| 37 | 10A | Refrigerator |
| 38 | 10A | Front passenger window switch |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps, License plate lamps |
| 41 | 7.5A | Occupant classification system, Restraints control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamps, Fog lamp indicator, Front turn signals #2 |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power Windows |
| 49 | Delayed accessory relay | Body control module |
Power Distribution Box
List of fuses in the power distribution box (2015)
| № | A | Protected components |
|---|---|---|
| 1 | 40A** | Fan relay 2 |
| 2 | 40A** | Fan relay 1 |
| 3 | 30A** | Trailer brake control module |
| 4 | 30A** | Wipers, Washer pump |
| 5 | 50A** | Anti-lock brake system pump |
| 6 | – | Not used |
| 7 | 30A** | Power liftgate |
| 8 | 20A** | Moonroof |
| 9 | 20A** | 2nd row console power point |
| 10 | – | 3rd row power seats relay |
| 11 | – | Heated rear window relay |
| 12 | – | Trailer tow battery charge relay |
| 13 | – | Starter relay |
| 14 | – | Cooling fan #2 relay |
| 15 | – | Fuel relay |
| 16 | – | Not used |
| 17 | 30A** | 110V AC power point |
| 18 | 40A** | Front blower motor |
| 19 | 30A** | Starter motor |
| 20 | 20A** | Inside bin power point |
| 21 | 20A** | Instmment panei power point / cigar lighter |
| 22 | 30A** | 3rd row seat module |
| 23 | 30A** | Driver power seat, Memory module |
| 24 | 30A** | Trailer tow battery charge |
| 25 | – | Not used |
| 26 | 40A** | Rear window defroster, Heated mirrors |
| 27 | 20A** | Cargo power point |
| 28 | 30A** | Front heated/cooled seats |
| 29 | 20A** | Front heated seats |
| 30 | 20A** | Rear heated seats |
| 31 | 25A** | Electronic fan relay 3 |
| 32 | – | Auxiliary blower relay |
| 33 | – | Cooling fan #1 relay |
| 34 | Front blower relay | |
| 35 | – | Cooling fan (series) relay |
| 36 | – | Not used |
| 37 | – | Trailer tow right-hand stop/turn lamps relay |
| 38 | – | Trailer tow reverse lamps relay |
| 39 | 30A** | Auxiliary blower motor |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 30A** | Passenger power seat |
| 43 | 20A** | Anti-lock brake system valves |
| 44 | – | Windshield washer relay |
| 45 | 5A* | Rain sensor |
| 46 | 5A* | Canister vent solenoid (EcoBoost engines) |
| 47 | 15A* | Washer pump |
| 48 | 10A* | Front park lamps |
| 49 | – | Not used |
| 50 | 10A* | Heated mirrors |
| 51 | 5A* | Powertrain control module – Injector power monitor (non-EcoBoost engines) |
| 52 | – | Not used |
| 53 | – | Trailer tow left-hand stop/turn lamps relay |
| 54 | – | Not used |
| 55 | – | Wipers relay |
| 56 | 30A* | Fuel injectors, Fuel pump relay |
| 57 | 20A* | Left high-intensity discharge headlamps |
| 58 | 10A* | Alternator sensor |
| 59 | 10A* | Brake on/off switch |
| 60 | 10A* | Trailer tow back-up lamps |
| 61 | – | Not used |
| 62 | 10A* | A/C clutch |
| 63 | 15A* | Trailer tow stop/turn lamps |
| 64 | 15A* | Rear wipers |
| 65 | – | Not used |
| 66 | – | Powertrain control module – vehicle power relay |
| 67 | 20A* | Vehicle power #2 – Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A* | Vehicle power #4 (ignition coils) |
| 69 | 20A* | Vehicle power #1 (PCM) |
| 70 | 15A* | Vehicle power #3 (coil) – A/C clutch relay, Fan control relays, Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve (for turbo charger), All-wheel drive module, Positive crackcase ventilation heater |
| 71 | – | Not used |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | – | Not used |
| 75 | – | Not used |
| 76 | – | Not used |
| 77 | Trailer tow park lamps relay | |
| 78 | 20A* | Right high-intensity discharge headlamps |
| 79 | 10A* | Adaptive cruise control |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 15A* | Rear washer |
| 83 | – | Not used |
| 84 | 20A* | Trailer tow park lamps |
| 85 | – | Not used |
| 86 | 5A* | Powertrain control module – keep-alive power, Powertrain control module relay, Canister vent solenoid (non-EcoBoost engines) |
| 87 | 5A* | Run/start |
| 88 | – | Run/start relay |
| 89 | 10A* | Anti-lock brake system module |
| 90 | 10A* | Powertrain control module run/start |
| 91 | 10A* | Adaptive cruise control |
| 92 | 5A* | Front blower relay coil, Power steering module |
| 93 | 5A* | Auxiliary blower, Rear defroster, Battery charge relays |
| 94 | 30A** | Body control module run/start |
| 95 | 5A* | Front passenger window switch |
| 96 | – | Not used |
| 97 | – | Not used |
| 98 | – | A/C clutch relay |
| *Mini Fuses **Cartridge Fuses | ||
2016
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2016)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Passenger side rear window. |
| 2 | 15A | Memory seat. Second row seats. |
| 3 | 30A | Passenger side front window. |
| 4 | 10A | Demand lamps battery saver relay. |
| 5 | 20A | Audio amplifier Active noise control module. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5A | Driver seat module logic. Left front door zone module. Keypad. |
| 8 | 10A | Power liftgate. |
| 9 | 10A | SYNC module. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. Front wiper motor relay. |
| 11 | 10A | Intelligent access module logic. Heads-up display. |
| 12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
| 13 | 15A | Right-hand direction indicators. |
| 14 | 15A | Left-hand direction indicators. |
| 15 | 15A | Center high mounted stop lamp. Backup lamp. |
| 16 | 10A | Right low beam headlamp. |
| 17 | 10A | Left low beam headlamp. |
| 18 | 10A | Third row power seats. Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Anti-theft system. |
| 19 | 20A | Not used (spare). |
| 20 | 20A | Locks. |
| 21 | 10A | Not used (spare). |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic. Instrument cluster. |
| 24 | 15A | Steering wheel control module. Datalink. |
| 25 | 15A | Liftgate release. |
| 26 | 5A | Ignition switch. Push button ignition switch. |
| 27 | 20A | Intelligent access module power. |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. Trailer tow relay for park lamps. Front side markers. |
| 31 | 5A | Trailer tow brake controller. |
| 32 | 15A | Smart window motors. Master window and mirror switch. Lockswitch illumination. Moonroof. 110V AC power point. Interior rearview mirror. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Rear heated seat module. Blind spot monitor module. Rear video camera. Interior mirror. |
| 35 | 5A | Climate control humidity sensor. Heads-up display. |
| 35 | 10A | Heated steering wheel. |
| 37 | 10A | Refrigerator. |
| 38 | 10A | Front passenger window switch. |
| 39 | 15A | High beams. |
| 40 | 10A | Rear park lamps. License plate lamps. |
| 41 | 7.5A | Occupant classification sensor. Restraint control module. |
| 42 | 5A | Not used (spare). |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Fog lamp relay. Front direction indicators. |
| 48 | 30A Circuit breaker | Front passenger power window. Rear power Windows. |
| 49 | Relay | Delayed accessory relay. Body control module. |
Power Distribution Box
List of fuses in the power distribution box (2016)
| № | A | Protected components |
|---|---|---|
| 1 | 40A** | Fan relay 2. |
| 2 | 40A** | Fan relay 1. |
| 3 | 30A** | Trailer brake control module. |
| 4 | 30A** | Wipers. Washer pump. |
| 5 | 50A** | Anti-lock brake system pump. |
| 6 | 20A ** | Center console power point. |
| 7 | 30A** | Power liftgate. |
| 8 | 20A** | Moonroof. |
| 9 | 20A** | Second row console power point. |
| 10 | Relay | Third row power seats relay. |
| 11 | Relay | Heated rear window relay. |
| 12 | Relay | Trai ler tow battery charge relay. |
| 13 | Relay | Starter motor relay. |
| 14 | Relay | Cooling fan number 2 relay. |
| 15 | Relay | Fuel pump relay. |
| 16 | – | Not used. |
| 17 | 30A** | 11OV AC power point. |
| 18 | 40A** | Front blower motor relay. |
| 19 | 30A** | Starter relay. |
| 20 | 20A** | Storage bin power point. |
| 21 | 20A** | Instrument panei power point / cigar lighter. |
| 22 | 30A** | Third row seat module. |
| 23 | 30A** | Driver power seat. Memory module. |
| 24 | 30A** | Trai ler tow battery charge. |
| 25 | – | Not used. |
| 26 | 40A** | Rear window defroster. Heated mirrors. |
| 27 | 20A** | Cargo power point. |
| 28 | 30A** | Front climate controlled seats. |
| 29 | 20A** | Front heated seats. |
| 30 | 20A** | Rear heated seats. |
| 31 | 25A** | Electric fan relay 3. |
| 32 | Relay | Auxiliary blower motor relay. |
| 33 | Relay | Cooling fan #1 relay. |
| 34 | Relay | Front blower motor relay. |
| 35 | Relay | Cooling fan (series) relay. |
| 35 | – | Not used. |
| 37 | Relay | Trailer tow right-hand stop/turn lamps relay. |
| 38 | Relay | Trailer tow reverse lamps relay. |
| 39 | 30A** | Auxiliary blower motor. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 30A** | Passenger power seat. |
| 43 | 20A** | Anti-lock brake system valves. |
| 44 | Relay | Windshield washer relay. |
| 45 | 5A* | Rain sensor. |
| 45 | 5A* | Canister vent solenoid (EcoBoost engines). |
| 47 | 15A* | Washer pump. |
| 48 | 10A* | Front park lamps. |
| 49 | – | Not used. |
| 50 | 10A* | Heated mirrors. |
| 51 | 5A* | Powertrain control module – Injector power monitor (non-EcoBoost engines). |
| 52 | – | Not used. |
| 53 | Relay | Trailer tow left-hand stop/turn lamps relay. |
| 54 | – | Not used. |
| 55 | Relay | Wiper relay. |
| 56 | 30A* | Fuel injectors. Fuel pump relay. |
| 57 | 20A* | Left-hand high intensity discharge head-lamp. |
| 58 | 10A* | Alternator sensor. |
| 59 | 10A* | Brake on/off switch. |
| 60 | 10A* | Trailer tow back-up lamps. |
| 61 | – | Not used. |
| 62 | 10A* | A/C clutch relay. |
| 63 | 15A* | Trailer tow stop/turn lamps. |
| 64 | 15A* | Rear wipers. |
| 65 | – | Not used. |
| 66 | Relay | Powertrain control module – vehicle power relay. |
| 67 | 20A* | Vehicle power #2 – oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A* | Vehicle power #4 (ignition coils). |
| 69 | 20A* | Vehicle power 1 (powertrain control module). |
| 70 | 15A* | Vehicle power #3 (coil) – A/C clutch relay. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | – | Not used. |
| 74 | – | Not used. |
| 75 | – | Not used. |
| 75 | – | Not used. |
| 77 | Relay | Trailer tow park lamps relay. |
| 78 | 20A* | Right high-intensity discharge headlamp. |
| 79 | 10A* | Adaptive cruise control module. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | 15A* | Rear washer. |
| 83 | – | Not used. |
| 84 | 20A* | Trailer tow park lamps. |
| 85 | – | Not used. |
| 86 | 5A* | Powertrain control module. Keep alive power and relay. Powertrain control module relay. Canister vent solenoid (non-EcoBoost engines). |
| 87 | 5A* | Run/start relay. |
| 88 | Relay | Run/start relay. |
| 89 | 10A* | Anti-lock brake system module. |
| 90 | 10A* | Powertrain control module run/start. |
| 91 | 10A* | Adaptive cruise control module. |
| 92 | 5A* | Front blower relay coil. Power steering module. |
| 93 | 5A* | Auxiliary blower motor. Rear window defroster relay. Battery charge relay. |
| 94 | 30A** | Body control module run/start. |
| 95 | 5A* | Front passenger window switch. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | Relay | A/C clutch relay. |
| * Mini Fuses ** Cartridge Fuses | ||
2017
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2017)
| № | A | Protected Components |
|---|---|---|
| 1 | 30A | Passenger side rear window. |
| 2 | 15A | Memory seat. Second row seats. |
| 3 | 30A | Passenger side front window. |
| 4 | 10A | Demand lamps battery saver relay. |
| 5 | 20A | Audio amplifier Active noise control module. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5A | Driver seat module logic. Left front door zone module. Keypad. |
| 8 | 10A | Power liftgate. |
| 9 | 10A | SYNC module. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. Front wiper motor relay. |
| 11 | 10A | Intelligent access module logic. Heads-up display. |
| 12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
| 13 | 15A | Right-hand direction indicators. |
| 14 | 15A | Left-hand direction indicators. |
| 15 | 15A | Center high mounted stop lamp. Backup lamp. |
| 16 | 10A | Right low beam headlamp. |
| 17 | 10A | Left low beam headlamp. |
| 18 | 10A | Third row power seats. Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Anti-theft system. |
| 19 | 20A | Not used (spare). |
| 20 | 20A | Locks. |
| 21 | 10A | Extended power module. |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic. Instrument cluster. |
| 24 | 15A | Steering wheel control module. Datalink. |
| 25 | 15A | Liftgate release. |
| 26 | 5A | Ignition switch. Push button ignition switch. |
| 27 | 20A | Intelligent access module power. |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. Trailer tow relay for park lamps. Front side markers. |
| 31 | 5A | Trailer tow brake controller. |
| 32 | 15A | Smart window motors. Master window and mirror switch. Lock switch illumination. Moonroof. 110V AC power point. Interior rearview mirror. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Rear heated seat module. Blind spot monitor module. Rear video camera. Interior mirror. |
| 35 | 5A | Climate control humidity sensor. Heads-up display. |
| 35 | 10A | Heated steering wheel. |
| 37 | 10A | Refrigerator. |
| 38 | 10A | Front passenger window switch. |
| 39 | 15A | High beams. |
| 40 | 10A | Rear park lamps. License plate lamps. |
| 41 | 7.5A | Extended power module. |
| 42 | 5A | Not used (spare). |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Fog lamp relay power. Front direction indicators. |
| 48 | 30A Circuit breaker | Front passenger power window. Rear power Windows. |
| 49 | Relay | Delayed accessory relay. Body control module. |
Power Distribution Box
List of fuses in the power distribution box (2017)
| № | A | Protected Components |
|---|---|---|
| 1 | 40A1 | Fan relay 2. |
| 2 | 40A1 | Fan relay 1. |
| 3 | 30A1 | Trailer brake control module. |
| 4 | 30A1 | Wipers. Washer pump. |
| 5 | 50A1 | Anti-lock brake system pump. |
| 6 | 20A1 | Center console power point. |
| 7 | 30A1 | Power liftgate. |
| 8 | 20A1 | Moonroof. |
| 9 | 20A1 | Second row console power point. |
| 10 | Relay | Third row power seats relay. |
| 11 | Relay | Heated rear window relay. |
| 12 | Relay | Trai ler tow battery charge relay. |
| 13 | Relay | Starter motor relay. |
| 14 | Relay | Cooling fan number 2 relay. |
| 15 | Relay | Fuel pump relay. |
| 16 | – | Not used. |
| 17 | 30A1 | 110V AC power point. |
| 18 | 40A1 | Front blower motor relay. |
| 19 | 30A1 | Starter relay. |
| 20 | 20A1 | Storage bin power point. |
| 21 | 20A1 | Instrument panei power point / cigar lighter. |
| 22 | 30A1 | Third row seat module. |
| 23 | 30A1 | Driver power seat. Memory module. |
| 24 | 30A1 | Trai ler tow battery charge. |
| 25 | – | Not used. |
| 26 | 40A1 | Rear window defroster. Heated mirrors. |
| 27 | 20A1 | Cargo power point. |
| 28 | 30A1 | Front climate controlled seats. |
| 29 | 20A1 | Front heated seats. |
| 30 | 20A1 | Rear heated seats. |
| 31 | 25A1 | Electric fan relay 3. |
| 32 | Relay | Auxiliary blower motor relay. |
| 33 | Relay | Cooling fan #1 relay. |
| 34 | Relay | Front blower motor relay. |
| 35 | Relay | Cooling fan (series) relay. |
| 35 | – | Not used. |
| 37 | Relay | Trailer tow right-hand stop/turn lamps relay. |
| 38 | Relay | Trailer tow reverse lamps relay. |
| 39 | 30A1 | Auxiliary blower motor. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 30A1 | Passenger power seat. |
| 43 | 20A1 | Anti-lock brake system valves. |
| 44 | Relay | Windshield washer relay. |
| 45 | 5A2 | Rain sensor. |
| 46 | 5A2 | Canister vent solenoid (EcoBoost engines). |
| 47 | 15A2 | Washer pump. |
| 48 | 10A2 | Front park lamps. |
| 49 | – | Not used. |
| 50 | 10A2 | Heated mirrors. |
| 51 | 5A2 | Powertrain control module – Injector power monitor (non-EcoBoost engines). |
| 52 | – | Not used. |
| 53 | Relay | Trailer tow left-hand stop/turn lamps relay. |
| 54 | – | Not used. |
| 55 | Relay | Wiper relay. |
| 56 | 30A2 | Fuel injectors. Fuel pump relay. |
| 57 | 20A2 | Left-hand high intensity discharge head-lamp. |
| 58 | 10A2 | Alternator sensor. |
| 59 | 10A2 | Brake on/off switch. |
| 60 | 10A2 | Trailer tow back-up lamps. |
| 61 | – | Not used. |
| 62 | 10A2 | A/C clutch relay. |
| 63 | 15A2 | Trailer tow stop/turn lamps. |
| 64 | 15A2 | Rear wipers. |
| 65 | – | Not used. |
| 66 | Relay | Powertrain control module – vehicle power relay. |
| 67 | 20A2 | Vehicle power #2 – oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A2 | Vehicle power #4 (ignition coils). |
| 69 | 20A2 | Vehicle power 1 (powertrain control module). |
| 70 | 15A2 | Vehicle power #3 (coil) – A/C clutch relay. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | – | Not used. |
| 74 | – | Not used. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | Relay | Trailer tow park lamps relay. |
| 78 | 20A2 | Right high-intensity discharge headlamp. |
| 79 | 10A2 | Adaptive cruise control module. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | 15A2 | Rear washer. |
| 83 | – | Not used. |
| 84 | 20A2 | Trailer tow park lamps. |
| 85 | – | Not used. |
| 86 | 5A2 | Powertrain control module. Keep alive power and relay. Powertrain control module relay. Canister vent solenoid (non-EcoBoost engines). |
| 87 | 5A2 | Run/start relay. |
| 88 | Relay | Run/start relay. |
| 89 | 10A2 | Anti-lock brake system module. |
| 90 | 10A2 | Powertrain control module run/start. |
| 91 | 10A2 | Adaptive cruise control module. |
| 92 | 5A2 | Front blower relay coil. Power steering module. |
| 93 | 5A2 | Auxiliary blower motor. Rear window defroster relay power. Battery charge relay. |
| 94 | 30A1 | Body control module run/start. |
| 95 | 5A2 | Front passenger window switch. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | Relay | A/C clutch relay. |
| 1 J Case Low Profile fuse. 2 Mini fuse. | ||
2018
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2018)
| № | A | Protected Components |
|---|---|---|
| 1 | 30A | Driver front power window. |
| 2 | 15A | Memory seat. Second row seats. |
| 3 | 30A | Passenger side front window. |
| 4 | 10A | Demand lamps battery saver relay. |
| 5 | 20A | Audio amplifier Active noise control module. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5A | Driver seat module logic. Left front door zone module. Keypad. |
| 8 | 10A | Power liftgate. |
| 9 | 10A | SYNC module. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. Front wiper motor relay. |
| 11 | 10A | Intelligent access module logic. Heads-up display. |
| 12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
| 13 | 15A | Right-hand direction indicators. |
| 14 | 15A | Left-hand direction indicators. |
| 15 | 15A | Center high mounted stop lamp. Backup lamp. |
| 15 | 10A | Right low beam headlamp. |
| 17 | 10A | Left low beam headlamp. |
| 18 | 10A | Third row power seats. Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Anti-theft system. |
| 19 | 20A | Not used (spare). |
| 20 | 20A | Locks. |
| 21 | 10A | Extended power module. |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic. Instrument cluster. |
| 24 | 15A | Steering wheel control module. Datalink. |
| 25 | 15A | Liftgate release. |
| 26 | 5A | Ignition switch. Push button ignition switch. |
| 27 | 20A | Intelligent access module power. |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. Trailer tow relay for park lamps. Front side markers. |
| 31 | 5A | Trailer tow brake controller. |
| 32 | 15A | Smart window motors. Master window and mirror switch. Lock switch illumination. Moonroof. 110V AC power point. Interior rearview mirror. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Rear heated seat module. Blind spot monitor module. Rear video camera. Interior mirror. |
| 35 | 5A | Climate control humidity sensor. Heads-up display. |
| 36 | 10A | Heated steering wheel. |
| 37 | 10A | Refrigerator. |
| 38 | 10A | Front passenger window switch. |
| 39 | 15A | High beams. |
| 40 | 10A | Rear park lamps. License plate lamps. |
| 41 | 7.5A | Extended power module. |
| 42 | 5A | Not used (spare). |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Fog lamp relay power. Front direction indicators. |
| 48 | 30A Circuit breaker | Front passenger power window. Rear power Windows. |
| 49 | Relay | Delayed accessory relay. Body control module. |
Power Distribution Box
List of fuses in the power distribution box (2018)
| № | A | Protected Components |
|---|---|---|
| 1 | 40A1 | Fan relay 2. |
| 2 | 40A1 | Fan relay 1. |
| 3 | 30A1 | Trailer brake control module. |
| 4 | 30A1 | Wipers. Washer pump. |
| 5 | 50A1 | Anti-lock brake system pump. |
| 6 | 20A1 | Center console power point (without rear park aid). |
| 7 | 30A1 | Power liftgate. |
| 8 | 20A1 | Moonroof. |
| 9 | 20A1 | Second row console power point. |
| 10 | Relay | Third row power seats relay. |
| 11 | Relay | Heated rear window relay. |
| 12 | Relay | Trailer tow battery charge relay. |
| 13 | Relay | Starter motor relay. |
| 14 | Relay | Cooling fan number 2 relay. |
| 15 | Relay | Fuel pump relay. |
| 15 | – | Not used. |
| 17 | 30A1 | 110V AC power point. |
| 18 | 40A1 | Front blower motor relay. |
| 19 | 30A1 | Starter relay. |
| 20 | 20A1 | Storage bin power point. |
| 21 | 20A1 | Instrument panei power point / cigar lighter. |
| 22 | 30A1 | Third row seat module. |
| 23 | 30A1 | Driver power seat. Memory module. |
| 24 | 30A1 | Trailer tow battery charge. |
| 25 | – | Not used. |
| 26 | 40A1 | Rear window defroster. Heated mirrors. |
| 27 | 20A1 | Cargo power point. |
| 28 | 30A1 | Front heated and cooled seats. |
| 29 | 20A1 | Front heated seats (without cooled seats). |
| 30 | 20A1 | Rear heated seats. |
| 31 | 25A1 | Electric fan relay 3. |
| 32 | Relay | Auxiliary blower motor relay. |
| 33 | Relay | Cooling fan #1 relay. |
| 34 | Relay | Front blower motor relay. |
| 35 | Relay | Cooling fan (series) relay. |
| 36 | – | Not used. |
| 37 | Relay | Trailer tow right-hand stop/turn lamps relay. |
| 38 | Relay | Trailer tow reverse lamps relay. |
| 39 | 30A1 | Auxiliary blower motor. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 30A1 | Passenger power seat. |
| 43 | 20A1 | Anti-lock brake system valves. |
| 44 | Relay | Windshield washer relay. |
| 45 | 5A2 | Rain sensor. |
| 46 | 5A2 | Canister vent solenoid (EcoBoostengines). |
| 47 | 15A2 | Washer pump. |
| 48 | 10A2 | Front park lamps. |
| 49 | – | Not used. |
| 50 | 10A2 | Heated mirrors. |
| 51 | – | Not used. |
| 52 | – | Not used. |
| 53 | Relay | Trailer tow left-hand stop/turn lamps relay. |
| 54 | – | Not used. |
| 55 | Relay | Wiper relay. |
| 56 | 30A2 | Fuel injectors. Fuel pump relay. |
| 57 | 20A2 | Left-hand high intensity discharge head-lamp. |
| 58 | 10A2 | Alternator sensor. |
| 59 | 10A2 | Brake on/off switch. |
| 60 | 10A2 | Trailer tow back-up lamps. |
| 61 | – | Not used. |
| 62 | 10A2 | A/C clutch relay. |
| 63 | 15A2 | Trailer tow stop/turn lamps. |
| 64 | 15A2 | Rear wipers. |
| 65 | – | Not used. |
| 66 | Relay | Powertrain control module – vehicle power relay. |
| 67 | 20A2 | Vehicle power #2 – oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A2 | Vehicle power #4 (ignition coils). |
| 69 | 20A2 | Vehicle power 1 (powertrain control module). |
| 70 | 15A2 | Vehicle power #3 (coil) – A/C clutch relay. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | – | Not used. |
| 74 | – | Not used. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | Relay | Trai ler tow park lamps relay. |
| 78 | 20A2 | Right high-intensity discharge headlamp. |
| 79 | – | Not used. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | 15A2 | Rear washer. |
| 83 | – | Not used. |
| 84 | 20A2 | Trailer tow park lamps. |
| 85 | – | Not used. |
| 86 | 5A2 | Powertrain control module. Keep alive power and relay. Powertrain control module relay. Canister vent solenoid (non-EcoBoost engines). |
| 87 | 5A2 | Run/start relay. |
| 88 | Relay | Run/start relay. |
| 89 | 10A2 | Anti-lock brake system module. |
| 90 | 10A2 | Powertrain control module run/start. |
| 91 | 10A2 | Adaptive cruise control module. |
| 92 | 5A2 | Front blower relay coil. Power steering module. |
| 93 | 5A2 | Auxiliary blower motor. Rear window defroster relay power. Battery charge relay. |
| 94 | 30A1 | Body control module run/start. |
| 95 | 5A2 | Front passenger window switch. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | Relay | A/C clutch relay. |
| 1 J Case Low Profile fuse. 2 Mini fuse. | ||
2019
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2019)
| № | A | Protected Components |
|---|---|---|
| 1 | 30A | Driver front power window. |
| 2 | 15A | Memory seat. Second row seats. |
| 3 | 30A | Passenger side front window. |
| 4 | 10A | Demand lamps battery saver relay. |
| 5 | 20A | Audio amplifier Active noise control module. |
| 6 | 5A | Not used (spare). |
| 7 | 7.5A | Driver seat module logic. Left front door zone module. Keypad. |
| 8 | 10A | Power liftgate. |
| 9 | 10A | SYNC module. Electronic finish panel. Radio frequency transceiver module. |
| 10 | 10A | Run accessory relay. Front wiper motor relay. |
| 11 | 10A | Intelligent access module logic. Heads-up display. |
| 12 | 15A | Puddle lamp. Backlighting LED. Interior lighting. |
| 13 | 15A | Right-hand direction indicators. |
| 14 | 15A | Left-hand direction indicators. |
| 15 | 15A | Center high mounted stop lamp. Backup lamp. |
| 15 | 10A | Right low beam headlamp. |
| 17 | 10A | Left low beam headlamp. |
| 18 | 10A | Third row power seats. Start button. Keypad illumination. Brake-shift interlock. Powertrain control module wake-up. Anti-theft system. |
| 19 | 20A | Not used (spare). |
| 20 | 20A | Locks. |
| 21 | 10A | Extended power module. |
| 22 | 20A | Horn relay. |
| 23 | 15A | Steering wheel control module logic. Instrument cluster. |
| 24 | 15A | Steering wheel control module. Datalink. |
| 25 | 15A | Liftgate release. |
| 26 | 5A | Ignition switch. Push button ignition switch. |
| 27 | 20A | Intelligent access module power. |
| 28 | 15A | Not used (spare). |
| 29 | 20A | Radio. Global positioning system module. |
| 30 | 15A | Front park lamps. Trailer tow relay for park lamps. Front side markers. |
| 31 | 5A | Trailer tow brake controller. |
| 32 | 15A | Smart window motors. Master window and mirror switch. Lock switch illumination. Moonroof. 110V AC power point. Interior rearview mirror. |
| 33 | 10A | Not used (spare). |
| 34 | 10A | Reverse park aid module. Rear heated seat module. Blind spot monitor module. Rear video camera. Interior mirror. |
| 35 | 5A | Climate control humidity sensor. Heads-up display. |
| 36 | 10A | Heated steering wheel. |
| 37 | 10A | Refrigerator. |
| 38 | 10A | Front passenger window switch. |
| 39 | 15A | High beams. |
| 40 | 10A | Rear park lamps. License plate lamps. |
| 41 | 7.5A | Extended power module. |
| 42 | 5A | Not used (spare). |
| 43 | 10A | Not used (spare). |
| 44 | 10A | Not used (spare). |
| 45 | 5A | Not used (spare). |
| 46 | 10A | Climate control module. |
| 47 | 15A | Fog lamp relay power. Front direction indicators. |
| 48 | 30A Circuit breaker | Front passenger power window. Rear power Windows. |
| 49 | Relay | Delayed accessory relay. Body control module. |
Power Distribution Box
List of fuses in the power distribution box (2019)
| № | A | Protected Components |
|---|---|---|
| 1 | 40A1 | Fan relay 2. |
| 2 | 40A1 | Fan relay 1. |
| 3 | 30A1 | Trailer brake control module. |
| 4 | 30A1 | Wipers. Washer pump. |
| 5 | 50A1 | Anti-lock brake system pump. |
| 6 | 20A1 | Center console power point (without rear park aid). |
| 7 | 30A1 | Power liftgate. |
| 8 | 20A1 | Moonroof. |
| 9 | 20A1 | Second row console power point. |
| 10 | Relay | Third row power seats relay. |
| 11 | Relay | Heated rear window relay. |
| 12 | Relay | Trai ler tow battery charge relay. |
| 13 | Relay | Starter motor relay. |
| 14 | Relay | Cooling fan number 2 relay. |
| 15 | Relay | Fuel pump relay. |
| 15 | – | Not used. |
| 17 | 30A1 | 110V AC power point. |
| 18 | 40A1 | Front blower motor relay. |
| 19 | 30A1 | Starter relay. |
| 20 | 20A1 | Storage bin power point. |
| 21 | 20A1 | Instrument panel power point / cigar lighter. |
| 22 | 30A1 | Third row seat module. |
| 23 | 30A1 | Driver power seat. Memory module. |
| 24 | 30A1 | Trai ler tow battery charge. |
| 25 | – | Not used. |
| 26 | 40A1 | Rear window defroster. Heated mirrors. |
| 27 | 20A1 | Cargo power point. |
| 28 | 30A1 | Front heated and cooled seats. |
| 29 | 20A1 | Front heated seats (without cooled seats). |
| 30 | 20A1 | Rear heated seats. |
| 31 | 25A1 | Electric fan relay 3. |
| 32 | Relay | Auxiliary blower motor relay. |
| 33 | Relay | Cooling fan #1 relay. |
| 34 | Relay | Front blower motor relay. |
| 35 | Relay | Cooling fan (series) relay. |
| 36 | – | Not used. |
| 37 | Relay | Trailer tow right-hand stop/turn lamps relay. |
| 38 | Relay | Trailer tow reverse lamps relay. |
| 39 | 30A1 | Auxiliary blower motor. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 30A1 | Passenger power seat. |
| 43 | 20A1 | Anti-lock brake system valves. |
| 44 | Relay | Windshield washer relay. |
| 45 | 5A2 | Rain sensor. |
| 46 | 5A2 | Canister vent solenoid (EcoBoost engines). |
| 47 | 15A2 | Washer pump. |
| 48 | 10A2 | Front park lamps. |
| 49 | – | Not used. |
| 50 | 10A2 | Heated mirrors. |
| 51 | – | Not used. |
| 52 | – | Not used. |
| 53 | Relay | Trailer tow left-hand stop/turn lamps relay. |
| 54 | – | Not used. |
| 55 | Relay | Wiper relay. |
| 56 | 30A2 | Fuel injectors. Fuel pump relay. |
| 57 | 20A2 | Left-hand high intensity discharge head-lamp. |
| 58 | 10A2 | Alternator sensor. |
| 59 | 10A2 | Brake on/off switch. |
| 60 | 10A2 | Trailer tow back-up lamps. |
| 61 | – | Not used. |
| 62 | 10A2 | A/C clutch relay. |
| 63 | 15A2 | Trailer tow stop/turn lamps. |
| 64 | 15A2 | Rear wipers. |
| 65 | – | Not used. |
| 66 | Relay | Powertrain control module – vehicle power relay. |
| 67 | 20A2 | Vehicle power #2 – oxygen sensor heater. Mass airflow sensor. Variable camshaft timing solenoid valve. Canister vent solenoid. Canister purge solenoid. |
| 68 | 20A2 | Vehicle power #4 (ignition coils). |
| 69 | 20A2 | Vehicle power 1 (powertrain control module). |
| 70 | 15A2 | Vehicle power #3 (coil) – A/C clutch relay. Fan control relay coils 1-3. Variable air conditioning compressor. Auxiliary transmission warmup. Turbo charge waste-gate control. Electronic compressor bypass valve. All-wheel drive module. Positive crankcase ventilation heater. |
| 71 | – | Not used. |
| 72 | – | Not used. |
| 73 | – | Not used. |
| 74 | – | Not used. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | Relay | Trailer tow park lamps relay. |
| 78 | 20A2 | Right high-intensity discharge headlamp. |
| 79 | – | Not used. |
| 80 | – | Not used. |
| 81 | – | Not used. |
| 82 | 15A2 | Rear washer. |
| 83 | – | Not used. |
| 84 | 20A2 | Trailer tow park lamps. |
| 85 | – | Not used. |
| 86 | 5A2 | Powertrain control module. Keep alive power and relay. Powertrain control module relay. Canister vent solenoid (non-EcoBoost engines). |
| 87 | 5A2 | Run/start relay. |
| 88 | Relay | Run/start relay. |
| 89 | 10A2 | Anti-lock brake system module. |
| 90 | 10A2 | Powertrain control module run/start. |
| 91 | 10A2 | Adaptive cruise control module. |
| 92 | 5A2 | Front blower relay coil. Power steering module. |
| 93 | 5A2 | Auxiliary blower motor. Rear window defroster relay power. Battery charge relay. |
| 94 | 30A1 | Body control module run/start. |
| 95 | 5A2 | Front passenger window switch. |
| 96 | – | Not used. |
| 97 | – | Not used. |
| 98 | Relay | A/C clutch relay. |
| 1 J Case Low Profile fuse. 2 Mini fuse. | ||
Conclusion
Knowing the fuse box and relay locations on your 2013–2019 Ford Flex makes it much easier to handle minor electrical issues without unnecessary guesswork. With two main fuse box locations; one under the hood and one inside the cabin, plus a possible auxiliary relay panel in the rear cargo area for certain trims, this crossover remains fairly simple to troubleshoot once you’re familiar with its layout.
Always handle fuses and relays with care, confirm amperage ratings before replacing any component, and use the printed diagram to correctly identify each fuse or relay. If an electrical issue persists after replacing a fuse, or if you’re unsure about diagnosing the problem yourself, consulting a qualified mechanic or Ford dealership technician is the safest way to avoid further electrical complications.
