The Ford Expedition 2007-2008 is available in two primary body styles: the standard-length model and the extended-length Expedition EL (or Max in some markets). Both styles offer spacious interiors, making them ideal for families and heavy cargo transport. The SUV’s robust design supports its off-road and towing capabilities.
When discussing the fuse box and relay locations in these models, it is essential to understand their layout. The primary fuse box, also known as the power distribution box, is located under the hood near the battery. It contains critical fuses and relays controlling essential functions such as the engine, cooling system, and headlights.
The second fuse box, or interior fuse panel, is situated beneath the dashboard on the passenger side. It manages cabin-related electronics like the radio, power windows, and interior lighting. Each relay is strategically positioned to ensure easy access for troubleshooting and maintenance.
MUST READ: DYI – How to Check Car Fuses?
(2007-2008) Ford Expedition fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Expedition 2007-2008 fuse assignment
Ford Expedition Year of production: 2007, 2008

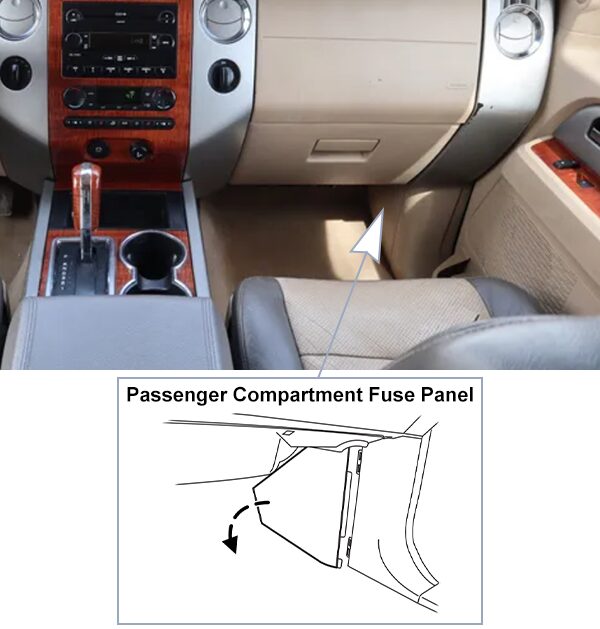

Passenger Compartment Fuse Panel:
The fuse panel is located under the right-hand side of the instrument panel. To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off. To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

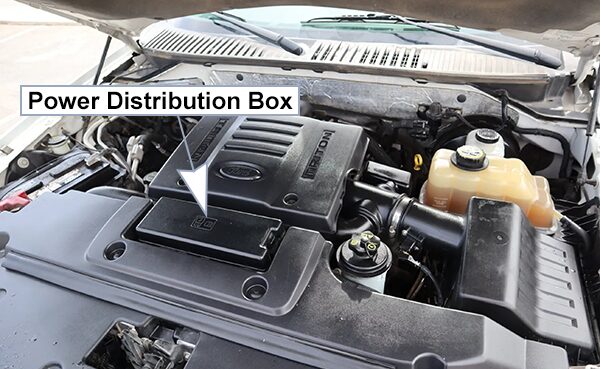

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2007
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2007)
| â„– | A | Description |
|---|---|---|
| 1 | 30A | Smart window #1 |
| 2 | 15A | Driver side memory module |
| 3 | 15A | FES, Audio rear seat Controls, SDARS |
| 4 | 30A | Smart window #2 |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), SPDJB |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | – | Not used |
| 12 | 7.5A | Power mirror switch, Driver seat memory switch |
| 13 | – | Not used |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control |
| 16 | – | Not used |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Not used (Spare) |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps, Cornering lamps |
| 22 | 15A | Park lamps relay |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instmment panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instmment panel cluster |
| 30 | 5A | Not used (Spare) |
| 31 | 10A | Compass, Automatic dimming rear view mirror |
| 32 | 10A | Restraints control module |
| 33 | – | Not used |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Rear park assist, 4×4 |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 10A | Trailer tow battery charge coil |
| 43 | 10A | Rear wiper logic |
| 44 | – | Not used |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |

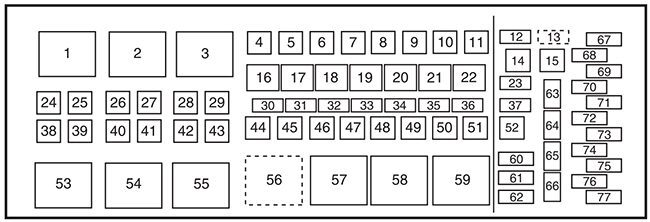

Power Distribution Box
List of fuses in the power distribution box (2007)
| â„– | A | Description |
|---|---|---|
| 1 | – | Blower relay |
| 2 | – | Not used |
| 3 | – | Rear window defroster relay |
| 4 | 30A** | Third row seats (driver side) |
| 5 | 40A** | Trailer tow connector (electric brake) |
| 6 | 60A** | ABS (valves) |
| 7 | – | Not used |
| 8 | 40A** | Heated/cooled seats |
| 9 | 60A** | ABS (pump) |
| 10 | 20A** | Rear console power point |
| 11 | 30A** | Auxiliary blower |
| 12 | 25A* | Trailer tow connector (park lamps) |
| 13 | 30A * | Trailer tow connector (battery charge) |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | A/C clutch relay |
| 17 | – | Not used |
| 18 | – | Fuel pump relay |
| 19 | – | Back-up relay |
| 20 | – | Trailer tow connector relay (left turn signal) |
| 21 | – | Trailer tow connector relay (right turn signal) |
| 22 | – | Not used |
| 23 | 15A* | Heated mirrors |
| 24 | 40A** | Blower motor |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 30A** | Power liftgate |
| 28 | 40A** | Rear window defroster, Heated mirror |
| 29 | 30A** | Passenger seat |
| 30 | 10A* | A/C clutch |
| 31 | 15A* | Brake lamps |
| 32 | 20A* | Fuel pump |
| 33 | 20A* | Back-up lamps |
| 34 | 25A* | Trailer tow connector (stop/turn lamps) |
| 35 | 20A* | 4×4 module |
| 36 | 10A* | Powertrain Control Module (PCM) – Keep alive power, Canister vent |
| 37 | 15A* | Transmission B+ |
| 38 | 30A** | Third row seats (passenger side) |
| 39 | 50A** | Air suspension pump |
| 40 | 30A** | Starter motor |
| 41 | 20A** | IP/Console power point |
| 42 | – | Not used |
| 43 | 20A** | 4×4 module motor |
| 44 | – | Not used |
| 45 | 30A** | Driver seat |
| 46 | 40A** | Run/Start bus bar |
| 47 | 30A** | Air suspension – solenoids |
| 48 | – | Not used |
| 49 | 30A** | Front wipers/washer |
| 50 | 30A** | PCM – bus bar |
| 51 | 20A** | Cargo power point |
| 52 | 20A** | Cigarette lighter |
| 53 | – | Air suspension relay |
| 54 | – | Starter relay |
| 55 | – | Trailer tow connector relay (park lamp) |
| 56 | – | Trailer tow connector relay (battery charge) |
| 57 | – | Run/Start relay |
| 58 | – | Not used |
| 59 | – | PCM relay |
| 60 | – | One-touch Start diode |
| 61 | – | A/C clutch diode |
| 62 | – | Fuel pump diode |
| 63 | 15A* | Trailer tow connector (back-up lamp) |
| 64 | – | Not used |
| 65 | 10A* | Air suspension logic |
| 66 | – | Not used |
| 67 | 10A* | Blower coil |
| 68 | – | Not used |
| 69 | 30A* | Run/Start – passenger compartment fuse panel |
| 70 | 20A* | PCM (sensors) – EFC, A/C clutch coil |
| 71 | 5A* | Fuel coil, ISP-R |
| 72 | 20A* | PCM (ignition coils) |
| 73 | 5A* | Transmission ignition |
| 74 | 20A* | PCM (sensors) – HEGO/CMS, MAFS, EVMV, CMCV, Speed deactivation switch, VCT |
| 75 | 5A* | 4×4 Integrated Wheel Ends (IWE) solenoid |
| 76 | 20A* | PCM – VPWR |
| 77 | 10A* | ABS logic, Heated PCV |
| * Mini Fuses ** Cartridge Fuses | ||
2008
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2008)
| â„– | A | Description |
|---|---|---|
| 1 | 30A | Smart window #1 |
| 2 | 15A | Driver side memory module |
| 3 | 15A | FES, Audio rear seat Controls, SDARS |
| 4 | 30A | Smart window #2 |
| 5 | 10A | Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), SPDJB |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | Not used (Spare) |
| 12 | 7.5A | Power mirror switch, Driver seat memory switch |
| 13 | 7.5A | Not used (Spare) |
| 14 | 10A | Power liftgate module – keep-alive power |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (Spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Not used (Spare) |
| 19 | 25A | Rear wiper |
| 20 | 15A | Adjustable pedais, Datalink |
| 21 | 15A | Fog lamps, Cornering lamps |
| 22 | 15A | Park lamps relay |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps, Glovebox, Visor |
| 26 | 10A | Instmment panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instmment panel cluster |
| 30 | 5A | Not used (Spare) |
| 31 | 10A | Compass, Automatic dimming rear view mirror |
| 32 | 10A | Restraints control module |
| 33 | 10A | Not used (Spare) |
| 34 | 5A | Not used (Spare) |
| 35 | 10A | Rear park assist, 4×4, rear video camera |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Not used (Spare) |
| 41 | 15A | Not used (Spare) |
| 42 | 10A | Trailer tow battery charge coil |
| 43 | 10A | Rear wiper logic |
| 44 | 10A | Not used (Spare) |
| 45 | 5A | Front wiper logic |
| 46 | 7.5A | Climate control, Auxiliary relay control |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2008)
| â„– | A | Description |
|---|---|---|
| 1 | – | Blower relay |
| 2 | – | Not used |
| 3 | – | Rear window defroster relay |
| 4 | 30A** | Third row seats (driver side) |
| 5 | 30A** | Trailer tow connector (electric brake) |
| 6 | 60A** | ABS (valves) |
| 7 | – | Not used |
| 8 | 40A** | Heated/cooled seats |
| 9 | 60A** | ABS (pump) |
| 10 | 20A** | Rear console power point |
| 11 | 30A** | Auxiliary blower |
| 12 | 25A* | Trailer tow connector (park lamps) |
| 13 | 30A* | Trailer tow connector (battery charge) |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | A/C clutch relay |
| 17 | – | Not used |
| 18 | – | Fuel pump relay |
| 19 | – | Back-up relay |
| 20 | – | Trailer tow connector relay (left turn signal) |
| 21 | – | Trailer tow connector relay (right turn signal) |
| 22 | – | Not used |
| 23 | 15A* | Heated mirrors |
| 24 | 40A** | Blower motor |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 30A** | Power liftgate |
| 28 | 40A** | Rear window defroster, Heated mirror |
| 29 | 30A** | Passenger seat |
| 30 | 10A* | A/C clutch |
| 31 | 15A* | Brake lamps |
| 32 | 20A* | Fuel pump |
| 33 | 20A* | Back-up lamps |
| 34 | 25A* | Trailer tow connector (stop/turn lamps) |
| 35 | 20A* | 4×4 module |
| 36 | 10A* | Powertrain Control Module (PCM) – Keep alive power, Canister vent |
| 37 | 15A* | Transmission B+ |
| 38 | 30A** | Third row seats (passenger side) |
| 39 | 60A** | Air suspension pump |
| 40 | 30A** | Starter motor |
| 41 | 20A** | IP/Console power point |
| 42 | – | Not used |
| 43 | 20A** | 4×4 module motor |
| 44 | – | Not used |
| 45 | 30A** | Driver seat |
| 46 | 40A** | Run/Start bus bar |
| 47 | 30A** | Air suspension – solenoids |
| 48 | – | Not used |
| 49 | 30A** | Front wipers/washer |
| 50 | 30A** | PCM – bus bar |
| 51 | 20A** | Cargo power point |
| 52 | 20A** | Cigarette lighter |
| 53 | – | Air suspension relay |
| 54 | – | Starter relay |
| 55 | – | Trailer tow connector relay (park lamp) |
| 56 | – | Trailer tow connector relay (battery charge) |
| 57 | – | Run/Start relay |
| 58 | – | Not used |
| 59 | – | PCM relay |
| 60 | – | One-touch Start diode |
| 61 | – | Not used |
| 62 | – | Fuel pump diode |
| 63 | 15A* | Trailer tow connector (back-up lamp) |
| 64 | – | Not used |
| 65 | 10A* | Air suspension logic |
| 66 | – | Not used |
| 67 | 10A* | Blower coil |
| 68 | – | Not used |
| 69 | 30A* | Run/Start – passenger compartment fuse panel |
| 70 | 20A* | PCM (sensors) – EFC, A/C clutch coil |
| 71 | 5A* | Fuel coil, ISP-R |
| 72 | 20A* | PCM (ignition coils) |
| 73 | 5A* | Transmission ignition |
| 74 | 20A* | PCM (sensors) – HEGO/CMS, MAFS, EVMV, CMCV, Speed deactivation switch, VCT |
| 75 | 5A* | 4×4 Integrated Wheel Ends (IWE) solenoid |
| 76 | 20A* | PCM – VPWR |
| 77 | 10A* | ABS logic, Heated PCY |
| * Mini Fuses ** Cartridge Fuses | ||
Conclusion
Understanding the fuse box and relay locations in the Ford Expedition 2007-2008 enhances vehicle maintenance and ensures seamless functionality of vital components.
