Learn about Citroën DS5 2011-2018 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Citroën DS5 (2011-2018) is a distinctive vehicle that blends elements of a hatchback, station wagon, and crossover into a futuristic and luxurious design. It is available in different trims and configurations, with a focus on comfort, advanced technology, and bold styling. Its striking exterior is matched by an equally impressive interior that boasts a high-tech dashboard and premium materials.

For optimal electrical performance, the DS5 features well-organized fuse boxes and relays, ensuring various electrical components, such as lighting, climate control, and infotainment systems, operate smoothly. Located in both the engine compartment and the cabin, these fuse boxes protect the electrical circuits. Identifying and maintaining the correct fuses and relays is crucial for troubleshooting electrical issues, ensuring that essential systems run efficiently. Proper management of these electrical components can prevent malfunctions, improving the overall driving experience.

MUST READ: DYI – How to Check Car Fuses?

(2011-2018) Citroën DS5 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën DS5 2011-2018 fuse assignment

  • Cigar lighter (power outlet) fuses in the Citroen DS5 are the fuses F13 (Front cigarette lighter, front 12V socket) and F14 (Rear 12V socket) in the Instrument panel fuse box.

Year of production: from 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Dashboard fuse box

Fuse box location

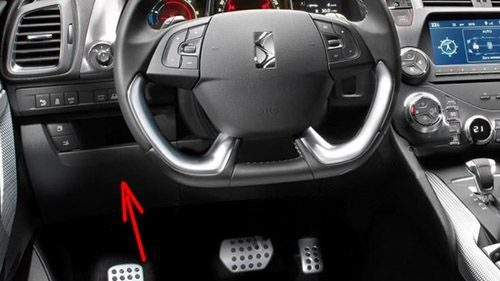

The location of the fuses in the passenger compartment (RHD): Citroen DS5 (2012-2016)

Left-hand drive vehicles:

The fusebox is placed in the lower dashboard (left-hand side).

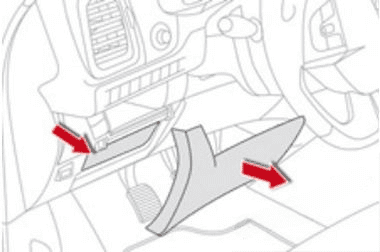

Citroen DS5 2011 2018 20180323040920867

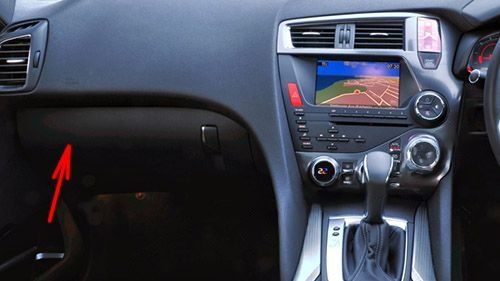

The location of the fuses in the passenger compartment (RHD): Citroen DS5 (2012-2016)

Right-hand drive vehicles:

The fusebox is placed in the lower dashboard (left-hand side).

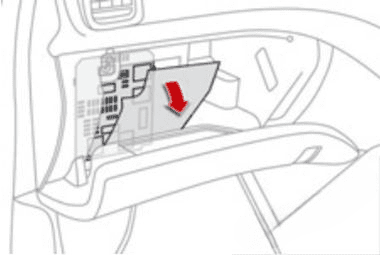

Citroen DS5 2011 2018 20180323040947761

Open the glove box lid, remove the cover.

Fuse box diagram

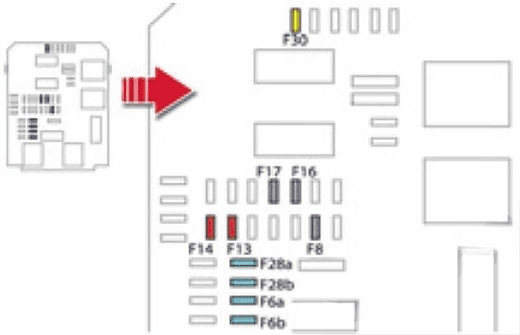

Instrument panel fuse box diagram: Citroen DS5 (2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Dashboard Fuse box (2012)

Rating (A)Functions
F6 A or B15Audio system.
F83Alarm.
F1310Front cigarette lighter, front 12 V socket.
F1410Rear 12 V socket.
F163Courtesy mirror.
F173Rear courtesy lamp, courtesy mirror.
F28 A or B15Audio system.
F3020Rear wiper.
F3210Audio amplifier.

Assignment of the fuses in the Dashboard Fuse box (2013, 2014, 2015, 2016)

Rating (A)Functions
F6 A or B15Audio system.
F83Alarm.
F1310Front cigarette lighter, front 12 V socket.
F1410Rear 12 V socket.
F163Rear map reading lamps.
F173Courtesy mirror.
F28 A or B15Audio system.
F3020Rear wiper.
F3210Audio amplifier.

Engine compartment fuse box

Fuse box location

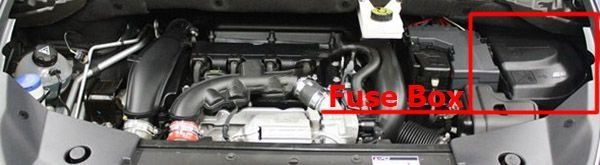

The location of the fuses in the engine compartment: Citroen DS5 (2012-2016)

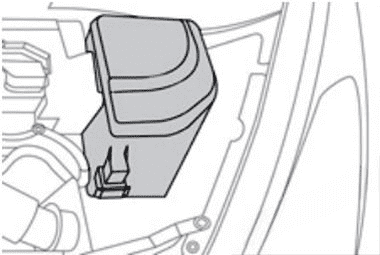

The fusebox is placed in the engine compartment near the battery.

Citroen DS5 2011 2018 20180323040933641

Fuse box diagram

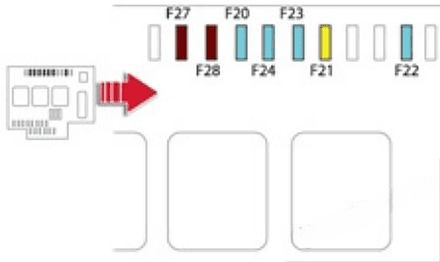

Under-hood fuse box diagram: Citroen DS5 (2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Engine compartment

Rating (A)Functions
F2015Front/rear screenwash pump.
F2120Headlamp wash pump.
F2215Horn.
F2315Right-hand main beam headlamp.
F2415Left-hand main beam headlamp.
F275Left hand lamp mask.
F285Right hand lamp mask.

Conclusion

For owners and enthusiasts of classic Citroën DS5 2011-2018, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
