The Citroën DS3 (2009-2016) comes in various body styles, including the three-door hatchback and convertible. Known for its unique styling and customizable features, the DS3 stands out with sporty lines and a compact, urban-friendly design. Its appeal lies in its blend of practicality and style, aimed at drivers who appreciate both performance and individuality.

In terms of electrical components, the fuse box and relay system are critical for the proper functioning of various electrical features, such as lighting, air conditioning, and infotainment systems. The main fuse box is typically located in the engine compartment, while an interior fuse box is housed near the dashboard. Regular inspection of the fuses and relays is important to prevent electrical issues and ensure reliable performance of the DS3’s systems.

MUST READ: DYI – How to Check Car Fuses?

(2009-2016) Citroën DS3 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën DS3 2009-2016 fuse assignment

  • Cigar lighter (power outlet) fuse in the Citroen DS3 is the fuse F9 in the Instrument panel fuse box.

Year of production: from 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Dashboard fuse box

Fuse box location

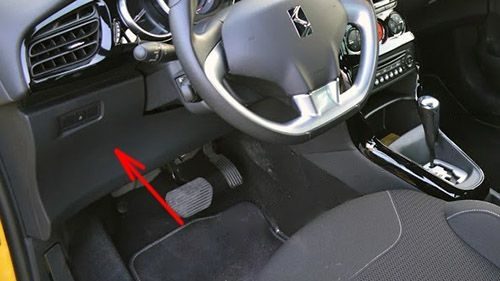

The location of the fuses in the passenger compartment (LHD): Citroen DS3 (2009-2016)

Left-hand drive vehicles:

The fusebox is located in the lower dashboard (left-hand side).

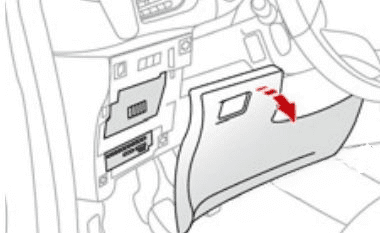

Citroen DS3 2009 2016 20180322120232729

Unclip the cover by pulling on the side, remove the cover completely.

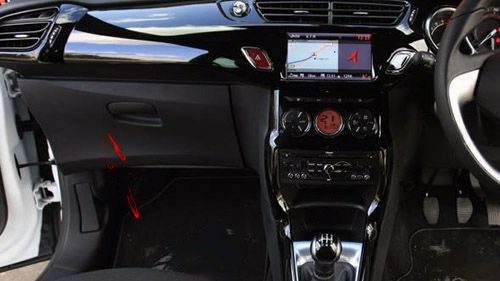

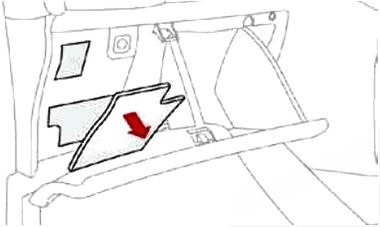

The location of the fuses in the passenger compartment (RHD): Citroen DS3 (2009-2016)

Right-hand drive vehicles:

The fusebox is loacted inside the glove box.

Citroen DS3 2009 2016 20180322120213713

Open the glove box lid, unclip the fusebox cover by pulling on the side, remove the cover completely.

Fuse box diagram

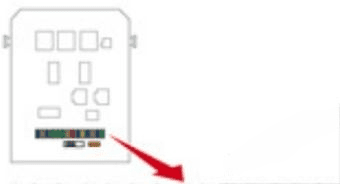

Citroen DS3 2009 2016 2018032212035163

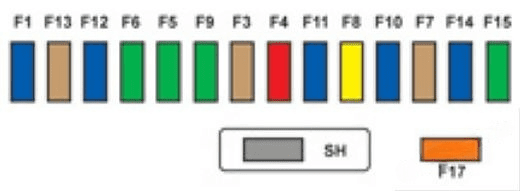

Instrument panel fuse box diagram: Citroen DS3 (2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

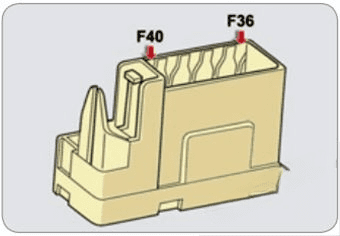

Citroen C4 2011 2017 2018032203123092 2

Assignment of the fuses in the Dashboard Fuse box

RatingFunctions
F115 ARear wiper.
F2Not used.
F35 AAirbags and pretensioners control unit.
F410 AAir conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel).
F530 AElectric windows panel, passenger’s electric window control, front electric window motor.
F630 ADriver’s electric window motor.
F75 ACourtesy lamp, glove box lighting (except RHD)
F820 AMultifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F930 A12 V socket, portable navigation support supply.
F1015 ASteering mounted controls.
F1115 AIgnition, diagnostic socket, automatic gearbox control unit.
F1215 ARain / sunshine sensor, trailer relay unit.
F135 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F1530 ALocking.
F16Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
SHPARC shunt.
FH365 ATrailer relay unit.
FH37Not used.
FH3820 AHi-Fi amplifier.
FH3920 AHeated seats (except RHD)
FH4040 ATrailer relay unit.

Engine compartment fuse box

Fuse box location

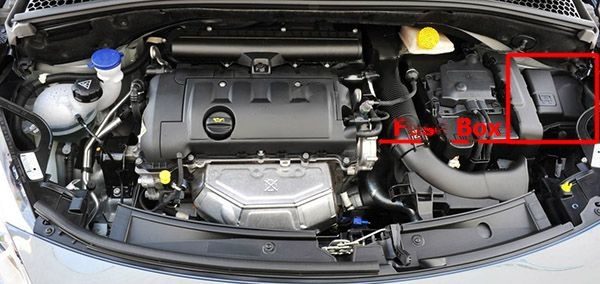

The location of the fuses in the engine compartment: Citroen DS3 (2009-2016)

It is placed in the engine compartment near the battery (left-hand side).

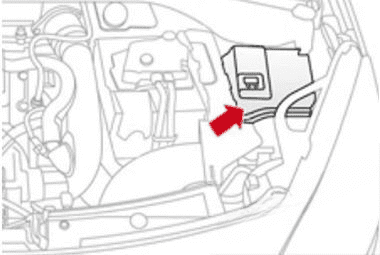

Citroen DS3 2009 2016 2018032212024847

Fuse box diagram

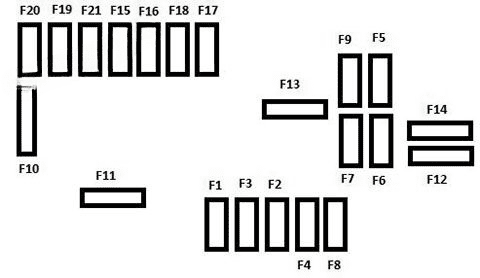

Under-hood fuse box diagram: Citroen DS3 (2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Engine compartment

RatingFunctions
F120 AEngine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F215 AHorn.
F310 AFront / rear screenwash.
F420 ALED lamps.
F515 ADiesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), blow-by heater and electrovalves (VTi).
F610 AABS/DSC control unit, secondary stop switch.
F710 AElectric power steering, automatic gearbox.
F825 AStarter control.
F910 ASwitching and protection unit (Diesel).
F1030 AFuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 AHeater blower.
F1230 AWindscreen wipers slow / fast speed.
F1340 ABuilt-in systems interface supply (ignition positive).
F1430 AValvetronic supply (VTi).
F1510 ARight-hand main beam headlamps.
F1610 ALeft-hand main beam headlamps.
F1715 ALeft-hand dipped beam headlamps.
F1815 ARight-hand dipped beam headlamps.
F1915 AOxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel).
F2010 APumps, electronic thermostat (VTi), timimg electrovalve (THP), water in fuel sensor (Diesel).
F215 AFan assembly control supply, ABS/DSC, turbo pump (THP).
MF1*60 AFan assembly.
MF2*30 AABS / DSC pump.
MF3*30 AABS / DSC electrovalves.
MF4*60 ABuilt-in Systems Interface (BSI) supply.
MF5*60 ABuilt-in Systems Interface (BSI) supply.
MF6*30 AAdditional cooling fan unit (THP).
MF7*80 ADashboard fusebox.
MF8*Not used.
* The maxi-fuses provide additional protection for the electrical systems.
All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.
