The 2012–2014 Ford Focus uses fuses and relays to protect its electrical system from overloads, short circuits, and other faults. Fuses are designed to break the circuit when too much current flows, while relays act like switches for higher-power systems such as lighting, cooling fans, and starter circuits.
If a light stops working, the radio goes dead, or a power accessory suddenly fails, the first thing many owners should check is the fuse box location. Knowing where the fuse boxes and relays are on your Ford Focus (US) (2012–2014) makes troubleshooting much easier and can save time, money, and stress.
This guide explains the main fuse box and relay locations on this model, how to access them, and how to use the relay diagram and fuse chart to identify the right part.
Ford Focus (US) (2012–2014) Fuse Box Locations
How to Identify Fuses and Relays
Each fuse box cover should include a printed fuse chart or relay diagram. If the cover does not have one, check the owner’s manual. The diagram shows the fuse number, amperage rating, and the system it protects.
When troubleshooting:
- Match the broken feature to the correct label on the fuse chart.
- Check the fuse number before removing anything.
- Replace only with the same amperage rating.
- Use the relay diagram to make sure you remove the correct relay slot.
If a fuse looks fine but the problem continues, the relay or another part of the circuit may be the issue. In some cases, the fault may be in wiring or a control module rather than the fuse itself.
Safety Precautions Before Checking Fuses or Relays
Before working on any fuse box location, take a few basic safety steps:
- Turn off the ignition.
- Remove the key or keep the key fob away from the vehicle.
- If you plan to do more than a quick visual check, disconnect the negative battery terminal.
- Use a fuse puller or plastic tool when possible.
- Never replace a fuse with one of a higher amperage rating.
- If a replacement fuse blows again right away, stop and look for the underlying electrical fault.
These precautions help protect both you and the vehicle’s electrical system.
MUST READ: DYI – How to Check Car Fuses?
(2012–2014) Ford Focus (US) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Focus (US) (2012–2014) fuse assignment
Ford Focus (US) Year of production: 2012, 2013, 2014
Checking and Replacing Fuses in Ford Focus (US)
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Location of Fuse Boxes
1. Engine Compartment Fuse Box
The main fuse box location on the Ford Focus (US) (2012–2014) is in the engine compartment. This box is often called the power distribution box and is usually found near the battery and inner fender area under the hood.
How to access it:
- Open the hood and locate the black plastic fuse box cover in the engine bay.
- Release the retaining clips or tabs on the cover.
- Lift the cover off carefully to expose the fuses and relays inside.
This engine bay fuse box handles many of the larger electrical circuits in the car. It commonly protects systems such as the headlights, cooling fan, horn, starter circuit, and other high-current components. Because it is exposed to heat and moisture, always make sure the cover is snapped back into place after inspection.

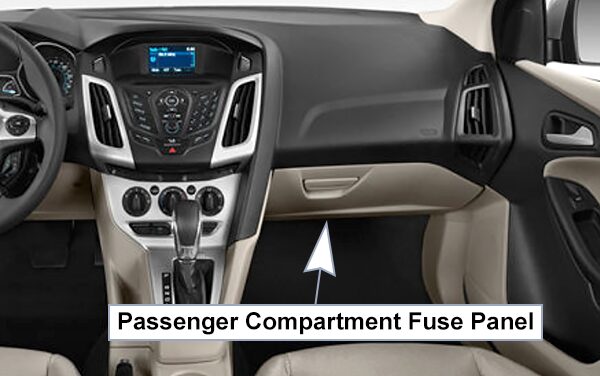

2. Passenger Compartment Fuse Panel
The second major fuse box location is inside the cabin, behind the glove box on the passenger side of the dashboard. On this model, the interior fuse panel is not usually in the trunk. Instead, it is tucked away behind the glove compartment area for easier access from inside the car.
How to access it:
- Open the glove box.
- Release the side stops or tabs that keep the glove box from opening fully.
- Lower the glove box carefully until you can see the fuse panel behind it.
- Remove any small cover or trim piece if needed to reach the fuse block.
This fuse panel protects many interior systems, including the radio, SYNC infotainment system, power windows, interior lighting, accessory outlets, wipers, and central locking. If a cabin feature stops working, this is usually the first place to check.
Relay Locations on the Ford Focus (US) (2012–2014)
On this Ford Focus, most relays are built into the two main fuse boxes rather than being spread across several separate relay boxes. That means the relay diagram printed on the fuse box cover or in the owner’s manual is very important.
The engine compartment box typically contains relays for higher-load systems such as the cooling fan, horn, and starter-related circuits. The cabin fuse panel may also contain smaller relays for interior and convenience features.
If your car has aftermarket accessories, such as added lights or audio equipment, those may have their own inline relays or fuse holders installed by a previous owner. These are not factory relay boxes, so they may be located in different places depending on the installation.

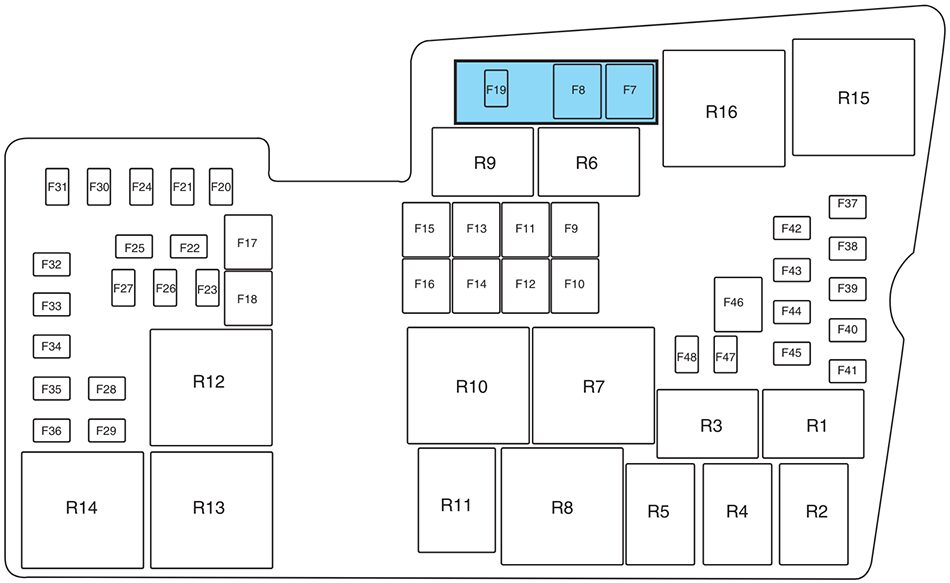

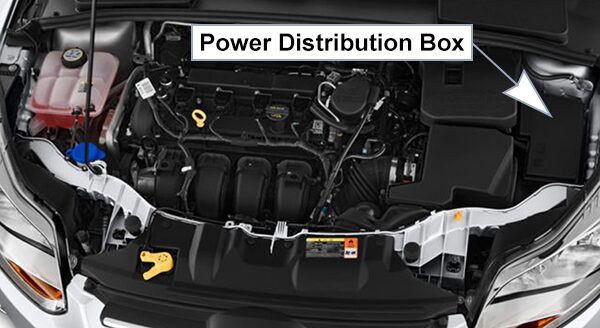

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

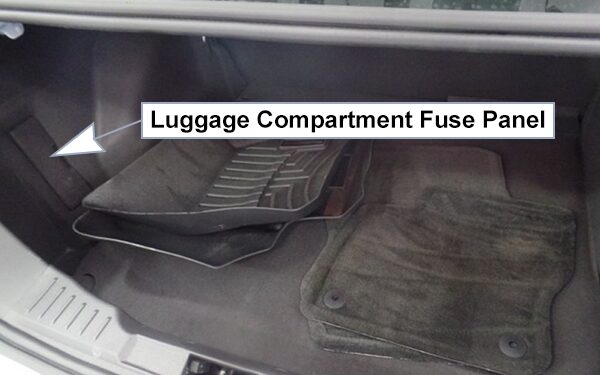

Luggage Compartment Fuse Panel:
The fuse panel is located in the luggage compartment behind the left side wheel well. Remove the fuse panel cover to gain access to the fuses.
Fuse Box Diagrams
2012

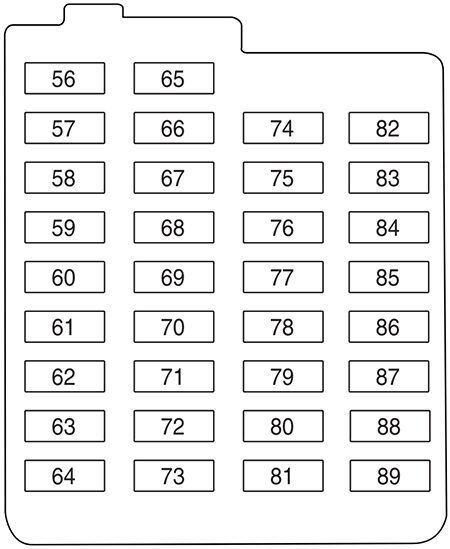

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| № | A | Protected circuits |
|---|---|---|
| 56 | 20A | Fuel pump supply, TMAF |
| 57 | – | Not used |
| 58 | – | Not used |
| 59 | 5A | Passive anti-theft transceiver |
| 60 | 10A | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| 61 | 20A | Cigar lighter, Power point |
| 62 | 5A | Rain sensor module, Humidity sensor, Electrochromatic rear view mirror |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | 10A | Trunk/liftgate release |
| 66 | 20A | DD FF unlock supply, double lock |
| 67 | 7.5A | SYNC, Multifunction Display, Global positioning system (GPS) module, Compass |
| 68 | – | Not used |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central lock and unlock supply |
| 71 | 10A | Heating control head (manual A/C), Duel electronic automatic temperature control |
| 72 | 7.5A | Steering wheel module |
| 73 | 5A | Data link connector |
| 74 | 15A | Low beam headlamp supply |
| 75 | 15A | Fog lamp supply |
| 76 | 10A | Reversing lamp supply |
| 77 | 20A | Windshield washer supply |
| 78 | 5A | Ignition switch, Start button |
| 79 | 15A | Radio, Navigation DVD player, Touch screen, Hazard light switch, Door lock switch |
| 80 | 20A | Sunroof supply |
| 81 | 5A | R F receiver |
| 82 | 20A | Windshield washer relay |
| 83 | 20A | Central locking |
| 84 | 20A | DD FF unlock supply, double lock |
| 85 | 7.5A | Passenger air bag deactivation indicator (PADI ), Front seat heater switch, Heating module (manual A/C), Air quality sensor, Radio, In-car temperature and humidity sensor |
| 86 | 10A | Air bag module, OCS, PADI |
| 87 | – | Not used |
| 88 | – | Not used |
| 89 | – | Not used |
Power Distribution Box
List of fuses in the power distribution box (2012)
| № | A | Protected circuits |
|---|---|---|
| F1 | – | Not used |
| F2 | – | Not used |
| F3 | – | Not used |
| F4 | – | Not used |
| F5 | – | Not used |
| F6 | – | Not used |
| F7 | 40A** | ABS/ESP pump |
| F8 | 30A** | ESP valve |
| F9 | 30A** | Rear window defroster |
| F10 | 40A** | Heater blower motor |
| F11 | – | Not used |
| F12 | 30A** | ECR Relay Fuse |
| F13 | 30A** | Starter relay |
| F14 | 25A** | Rear power window (without DCU) |
| F15 | 25A** | DPS6 |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | 20A** | Front wiper motor |
| F19 | 5A* | ABS/ESP 15 feed |
| F20 | 15A* | Horn |
| F21 | 5A* | Stop light switch |
| F22 | 15A* | Battery monitor system |
| F23 | 5A* | Relay coils, Light switch module |
| F24 | – | Not used |
| F25 | 10A* | Power exterior Mirror (without DCU) |
| F26 | 15A* | TCM 30 feed automatic transmission |
| F27 | 15A* | A/C Clutch |
| F28 | 5A* | TMAF fuel relay feed |
| F29 | – | Not used |
| F30 | – | Not used |
| F31 | – | Not used |
| F32 | 10A* | EGR Valve, Swirl control valves, Heated oxygen sensors |
| F33 | 10A* | Ignition Coils |
| F34 | 10A* | Injectors |
| F35 | 5A* | Active grill shutter |
| F36 | 10A* | ECM |
| F37 | – | Not used |
| F38 | 15A* | ECM / TCM 15 feed |
| F39 | – | Not used |
| F40 | 5A* | EPAS 15 feed |
| F41 | 20A* | BCM 15 feed |
| F42 | 15A* | Rear Wiper |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | 25A* | Power Windows front (without DCU) |
| F47 | 7.5A* | Heated mirror (without DCU) |
| F48 | 5A* | Power exterior mirror (without DCU) |
| R1 | – | Not used |
| R2 | Micro relay | Horn |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | Micro relay | Rear Wiper |
| R6 | – | Not used |
| R7 | – | Not used |
| R8 | – | Not used |
| R9 | – | Not used |
| R10 | Mini relay | Starter Relay |
| R11 | Micro relay | A/C Clutch |
| R12 | Power relay | Cooling fan |
| R13 | Mini relay | Heater Blower |
| R14 | Mini relay | Engine control relay (ECR) |
| R15 | Power relay | Rear Window Defrost |
| R16 | Power relay | Ignition 15 |
| *Mini Fuses **Cartridge Fuses | ||

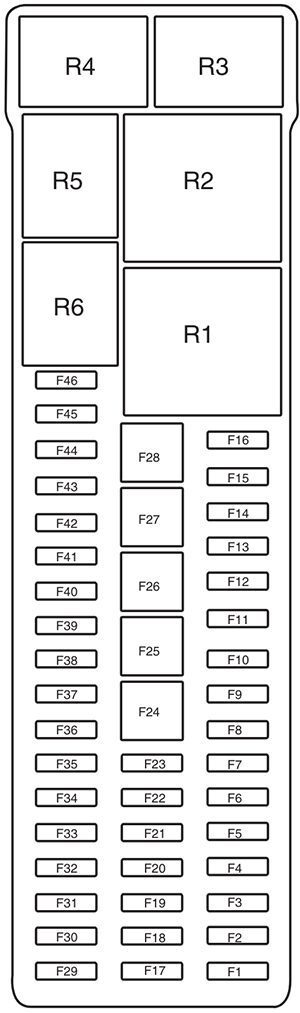

Luggage Compartment Fuse Panel

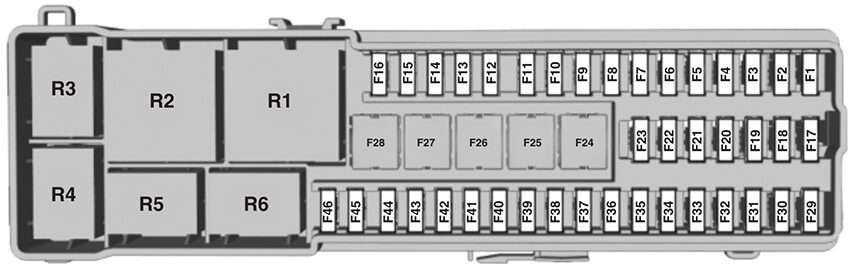

List of fuses in the luggage compartment fuse panel (2012)
| № | A | Protected Components |
|---|---|---|
| F1 | – | Not used |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Door control unit front left |
| F5 | 25A | Door control unit front right |
| F6 | 25A | Door control unit rear left |
| F7 | 25A | Door control unit rear right |
| F8 | – | Not used |
| F9 | 25A | Driver seat motor |
| F10 | – | Not used |
| F11 | – | Not used |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | – | Not used |
| F19 | – | Not used |
| F20 | – | Not used |
| F21 | – | Not used |
| F22 | – | Not used |
| F23 | 25A | Audio amplifier |
| F24 | – | Not used |
| F25 | – | Not used |
| F26 | – | Not used |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | 5A | Park assist camera |
| F30 | 5A | Parking aid module |
| F31 | – | Not used |
| F32 | – | Not used |
| F33 | – | Not used |
| F34 | 15A | Driver seat heater |
| F35 | 15A | Passenger seat heater |
| F36 | – | Not used |
| F37 | 5A | Moonroof |
| F38 | – | Not used |
| F39 | – | Not used |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| R1 | Power relay | Rear 15 relay (2/88) |
| R2 | – | Not used |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | – | Not used |
| R6 | – | Not used |
2013

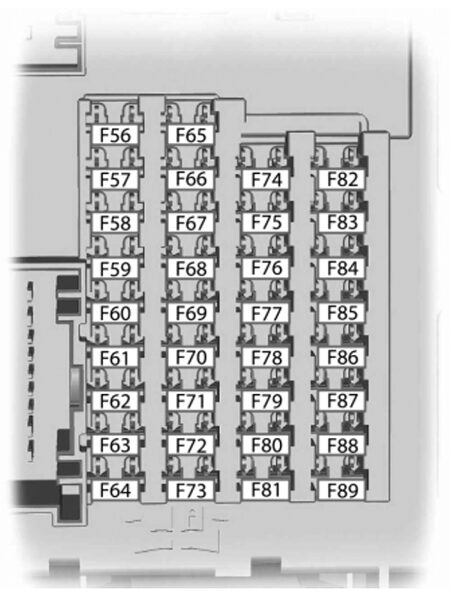

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2013)
| № | A | Protected components |
|---|---|---|
| 56 | 20A | Fuel pump supply, Mass air flow sensor |
| 57 | – | Not used |
| 58 | – | Not used |
| 59 | 5A | Passive anti-theft transceiver |
| 60 | 10A | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| 61 | 20A | Cigar lighter, Power point |
| 62 | 5A | Rain sensor module, Humidity sensor, Auto-dimming rear view mirror |
| 63 | – | Not used |
| 64 | – | Not used |
| 65 | 10A | Luggage compartment release |
| 66 | 20A | Driver door unlock supply, double lock |
| 67 | 7.5A | SYNC, Multifunction display, Global positioning system module, Compass |
| 68 | – | Not used |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central lock and unlock supply |
| 71 | 10A | Heating control head (manual air conditioning), Duel electronic automatic temperature control |
| 72 | 7.5A | Steering wheel module |
| 73 | 5A | Data link connector |
| 74 | 15A | Low beam headlamp supply |
| 75 | 15A | Fog lamp supply |
| 76 | 10A | Reversing lamp supply |
| 77 | 20A | Windshield washer supply |
| 78 | 5A | Ignition switch, Start button |
| 79 | 15A | Radio, Navigation DVD player, Touch screen, Hazard light switch, Door lock switch |
| 80 | 20A | Moonroof supply |
| 81 | 5A | Radio frequency receiver |
| 82 | 20A | Windshield washer relay |
| 83 | 20A | Central locking |
| 84 | 20A | Driver door unlock supply, double lock |
| 85 | 7.5A | Passenger air bag deactivation indicator, Front seat heater switch, Heating module (manual air conditioning), Air quality sensor, Radio, In-car temperature and humidity sensor |
| 86 | 10A | Air bag module, Occupant classification system, Passenger air bag deactivation indicator |
| 87 | – | Not used |
| 88 | – | Not used |
| 89 | – | Not used |
Power Distribution Box
List of fuses in the power distribution box (2013)
| № | A | Protected components |
|---|---|---|
| F7 | 40A** | Anti-lock brake system/Electronic stability program pump |
| F8 | 30A** | Electronic stability program valve |
| F9 | 30A** | Heated rear window |
| F10 | 40A** | Heater blower motor |
| F11 | – | Not used |
| F12 | 30A** | Engine control relay Fuse |
| F13 | 30A** | Starter relay |
| F14 | 25A** | Rear power window (without door control unit) |
| F15 | 25A** | Automatic transmission |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | 20A** | Front wiper motor |
| F19 | 5A* | Anti-lock brake system/Electronic stability program 15 feed |
| F20 | 15A* | Horn |
| F21 | 5A* | Stop light switch |
| F22 | 15A* | Battery monitor system |
| F23 | 5A* | Relay coils, Light switch module |
| F24 | 15A* | Not used (spare) |
| F25 | 10A* | Power exterior mirror (without door control unit) |
| F26 | 15A* | Transmission control module 30 feed automatic transmission |
| F27 | 15A* | Air conditioning clutch |
| F28 | 5A* | Mass air flow fuel relay feed |
| F29 | 20A* | Not used (spare) |
| F30 | 5A* | Electronic control module keep-alive power |
| F31 | – | Not used |
| F32 | 10A* | Exhaust gas recovery valve, Swirl control valves, Heated oxygen sensors |
| F33 | 10A* | Ignition coils |
| 15A* | Ignition coils (Focus ST) | |
| F34 | 10A* | Injectors |
| F35 | 5A* | Active grill shutter |
| F36 | 10A* | Engine control module |
| F37 | – | Not used |
| F38 | 15A* | Engine control module/Transmission control module 15 feed |
| F39 | 5A* | Headlamp control module (Focus ST) |
| F40 | 5A* | Electronic power assist steering 15 feed |
| F41 | 20A* | Body control module 15 feed |
| F42 | 15A* | Rear Wiper |
| F43 | 15A* | HID headlamp leveling (Focus ST) |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | 25A* | Power Windows front (without door control unit) |
| F47 | 7.5A* | Heated mirror (without door control unit) |
| F48 | 5A* | Power exterior mirror (without door control unit) |
| R1 | – | Not used |
| R2 | Micro relay | Horn |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | Micro relay | Rear wiper |
| R6 | – | Not used |
| R7 | – | Not used |
| R8 | – | Not used |
| R9 | – | Not used |
| R10 | Mini relay | Starter relay |
| R11 | Micro relay | Air conditioning clutch |
| R12 | Power relay | Cooling fan |
| R13 | Mini relay | Heater blower |
| R14 | Mini relay | Engine control relay |
| R15 | Power relay | Heated rear window |
| R16 | Power relay | Ignition 15 |
| *Mini Fuses **Cartridge Fuses | ||
Luggage Compartment Fuse Panel
List of fuses in the luggage compartment fuse panel (2013)
| № | A | Protected Components |
|---|---|---|
| F1 | – | Not used |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Door control unit front left |
| F5 | 25A | Door control unit front right |
| F6 | 25A | Door control unit rear left |
| F7 | 25A | Door control unit rear right |
| F8 | – | Not used |
| F9 | 25A | Driver seat motor |
| F10 | – | Not used |
| F11 | – | Not used |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | – | Not used |
| F19 | – | Not used |
| F20 | – | Not used |
| F21 | – | Not used |
| F22 | – | Not used |
| F23 | 25A | Audio amplifier |
| F24 | – | Not used |
| F25 | – | Not used |
| F26 | – | Not used |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | 5A | Park assist camera |
| F30 | 5A | Parking aid module |
| F31 | – | Not used |
| F32 | – | Not used |
| F33 | – | Not used |
| F34 | 15A | Driver seat heater |
| F35 | 15A | Passenger seat heater |
| F36 | – | Not used |
| F37 | 5A | Moonroof |
| F38 | – | Not used |
| F39 | – | Not used |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| R1 | Power relay | Rear 15 relay (2/88) |
| R2 | – | Not used |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | – | Not used |
| R6 | – | Not used |
2014
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2014)
| № | A | Protected components |
|---|---|---|
| F56 | 20A | Fuel pump supply, Mass air flow sensor |
| F57 | – | Not used |
| F58 | – | Not used |
| F59 | 5A | Passive anti-theft transceiver |
| F60 | 10A | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| F61 | 20A | Cigar lighter, Power point |
| F62 | 5A | Not used (spare) |
| F63 | 10A | Not used (spare) |
| F64 | – | Not used |
| F65 | 10A | Luggage compartment release |
| F66 | 20A | Driver door unlock supply |
| F67 | 7.5A | SYNC, Multifunction display, Global positioning system module, Compass |
| F68 | – | Not used |
| F69 | 5A | Instrument cluster, Minor cluster (Focus ST) |
| F70 | 20A | Central lock and unlock supply |
| F71 | 10A | Heating control head (manual air conditioning), Duel electronic automatic temperature control |
| F72 | 7.5A | Steering wheel module |
| F73 | 7.5A | Data link connector |
| F74 | 15A | Low beam headlamp supply |
| F75 | 15A | Fog lamp supply |
| F76 | 10A | Reversing lamp supply |
| F77 | 20A | Washer pump |
| F78 | 5A | Ignition switch, Start button |
| F79 | 15A | Radio, Navigation DVD player, Hazard light switch, Door lock switch |
| F80 | 20A | Moonroof supply |
| F81 | 5A | Radio frequency receiver |
| F82 | 20A | Washer pump ground |
| F83 | 20A | Central locking ground |
| F84 | 20A | Driver door unlock ground |
| F85 | 7.5A | Front seat heater switch, Heating module (manual air conditioning), Air quality sensor, Radio, In-car temperature and humidity sensor, Moonroof |
| F86 | 10A | Air bag module, Occupant classification system, Passenger air bag deactivation indicator |
| F87 | – | Not used |
| F88 | 25A | Supply for F67, F69, F71 and F79 |
| F89 | – | Not used |
Power Distribution Box
List of fuses in the power distribution box (2014)
| № | A | Protected components |
|---|---|---|
| F7 | 40A** | Anti-lock brake system/Electronic stability program pump |
| F8 | 30A** | Electronic stability program valve |
| F9 | 30A** | Heated rear window |
| F10 | 40A** | Heater blower motor |
| F11 | 30A** | Not used (spare) |
| F12 | 30A** | Engine control relay fuse |
| F13 | 30A** | Starter relay |
| F14 | 25A** | Rear power window (without door control unit) |
| F15 | 25A** | Automatic transmission |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | 20A** | Front wiper motor |
| F19 | 5A* | Anti-lock brake system/Electronic stability program 15 feed |
| F20 | 15A* | Horn |
| F21 | 5A* | Stop light switch |
| F22 | 15A* | Battery monitor system |
| F23 | 5A* | Relay coils, Light switch module |
| F24 | – | Not used |
| F25 | 10A* | Power exterior mirror (without door control unit) |
| F26 | 15A* | Transmission control module 30 feed automatic transmission |
| F27 | 15A* | Air conditioning clutch |
| F28 | 5A* | Mass air flow fuel relay feed |
| F29 | – | Not used |
| F30 | 5A* | Electronic control module keep-alive power (Focus ST) |
| F31 | – | Not used |
| F32 | 10A* | Exhaust gas recovery valve, Swirl control valves, Heated oxygen sensors |
| F33 | 15A* | Ignition coils |
| F34 | 10A* | Injectors |
| F35 | 5A* | Active grill shutter |
| F36 | 10A* | Engine control module |
| F37 | – | Not used |
| F38 | 15A* | Engine control module/Transmission control module 15 feed |
| F39 | 5A* | Headlamp control module (Focus ST) |
| F40 | 5A* | Electronic power assist steering 15 feed |
| F41 | 20A* | Body control module 15 feed |
| F42 | 15A* | Rear Wiper |
| F43 | 15A* | High-intensity display headlamp leveling (Focus ST) |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | 25A* | Power Windows front (without door control unit) |
| F47 | 7.5A* | Heated mirror (without door control unit) |
| F48 | – | Not used |
| R1 | – | Not used |
| R2 | Micro relay | Horn |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | Micro relay | Rear wiper |
| R6 | – | Not used |
| R7 | – | Not used |
| R8 | Power relay | Delayed accessory relay KL 15 |
| R9 | – | Not used |
| R10 | Mini relay | Starter relay |
| R11 | Micro relay | Air conditioning clutch |
| R12 | Power relay | Cooling fan |
| R13 | Mini relay | Heater blower |
| R14 | Mini relay | Engine control relay |
| R15 | Power relay | Heated rear window |
| R16 | Power relay | Ignition 15 |
| *Mini Fuses **Cartridge Fuses | ||
Luggage Compartment Fuse Panel
List of fuses in the luggage compartment fuse panel (2014)
| № | A | Protected Components |
|---|---|---|
| F1 | 5A | Not used (spare) |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Door control unit front left |
| F5 | 25A | Door control unit front right |
| F6 | 25A | Door control unit rear left |
| F7 | 25A | Door control unit rear right |
| F8 | – | Not used |
| F9 | 25A | Driver seat motor |
| F10 | 25A | Audio amplifier |
| F11 | – | Not used |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | – | Not used |
| F19 | – | Not used |
| F20 | – | Not used |
| F21 | – | Not used |
| F22 | – | Not used |
| F23 | – | Not used |
| F24 | – | Not used |
| F25 | – | Not used |
| F26 | – | Not used |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | 5A | Park assist camera |
| F30 | 5A | Parking aid module |
| F31 | – | Not used |
| F32 | – | Not used |
| F33 | – | Not used |
| F34 | 15A | Driver seat heater |
| F35 | 15A | Passenger seat heater |
| F36 | – | Not used |
| F37 | – | Not used |
| F38 | – | Not used |
| F39 | – | Not used |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| R1 | Power relay | Rear 15 relay (2/88) |
| R2 | – | Not used |
| R3 | – | Not used |
| R4 | – | Not used |
| R5 | – | Not used |
| R6 | – | Not used |
Conclusion
Understanding the fuse box and relay locations on the Ford Focus (US) (2012–2014) makes basic maintenance and troubleshooting much simpler. With one fuse box in the engine compartment and one inside the cabin behind the glove box, this model has a fairly straightforward layout once you know where to look.
Always use the correct relay diagram and fuse chart, handle parts carefully, and replace blown fuses with the proper amperage only. If the same fuse keeps failing or the electrical issue does not go away, it is a good idea to have the car checked by a qualified technician.
