(2000-2001) Ford Excursion fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Excursion 2000-2001 fuse assignment
Ford Excursion Year of production: 2000, 2001

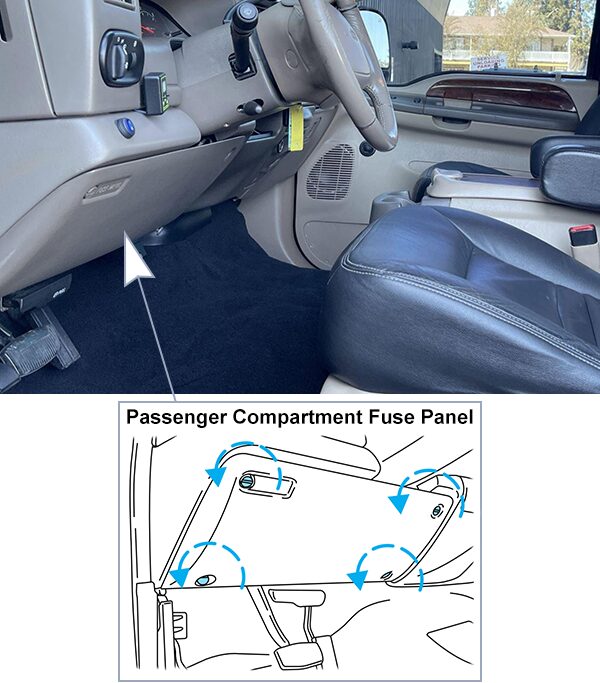

Passenger Compartment Fuse Panel:
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses. To remove the fuse panel cover, turn the panel fasteners counterclockwise.

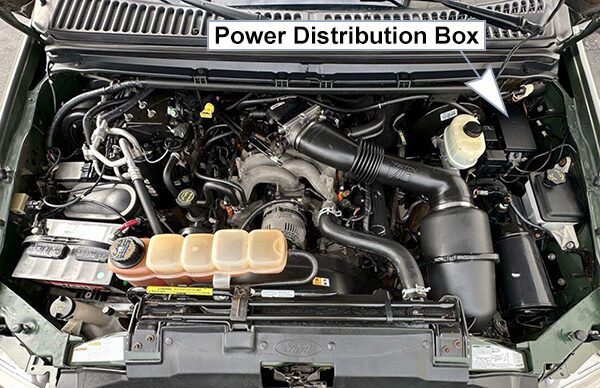

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2000

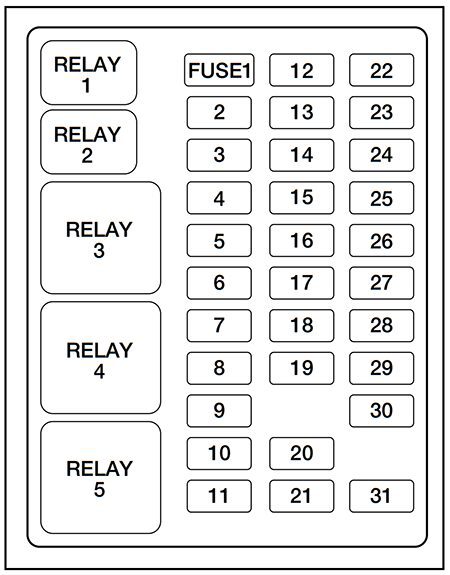

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2000)
| № | A | Description |
|---|---|---|
| 1 | 20A | Radio, Secondary Fusing for Audio Options |
| 2 | 5A | Instmment Cluster, Powertrain Control Module (PCM) Keep Alive Memory, PATS LED |
| 3 | 20A | Cigar Lighter, Data Link Connector |
| 4 | – | Not Used |
| 5 | 10A | Ignition Run Power Feed (Customer Access) |
| 6 | 15A | DRL, Brake Shift Interlock (BSI), ECM, Overhead Trip Computer (OTC), AUX A/C Components, Hazard Flasher, Speed Control, Vacuum Pump, Backup Lamps, Electronic Shift On The Fly Hublock Solenoid, Heated Seat |
| 7 | 5A | Power Window/Lock Switch Illumination |
| 8 | 5A | Headlamp Switch, LED/Radio |
| 9 | – | Not Used |
| 10 | – | Not Used |
| 11 | 30A | Wiper Run/Park Relay Coil, Wiper Hi/LO Relay Coil, Washer Pump Relay Coils, Front Wiper Motor, Rear Wiper Motor Relay Coils |
| 12 | – | Not Used |
| 13 | 20A | Stop Lamps, Center High-mount Stop Lamp/Hazard, Trailer Tow Stop Lamp, Speed Control |
| 14 | 15A | Dome Lamp, Cargo Lamp, Courtesy Lamps, Running Boards, Power Mirrors, Vanity Mirrors, Map Lamps, Underhood Lamps, Glove Box Lamp, Power Windows (Delayed Accessory) |
| 15 | 5A | Stop Lamp Switch (Logic), PATS, GEM |
| 16 | 15A | Hi-beam Headlamps, Instrument Cluster (Hi-beam Indicator) |
| 17 | 15A | Heated Mirrors, Rear Defroster “ON” indicator |
| 18 | 10A | Rear Integrated Control Panel (RICP), CD Changer |
| 19 | 10A | Instmment Cluster, GEM Module, Overdrive Cancel Switch, PATS/PATS Transiever, Idle Validation Switch (Diesel only) |
| 20 | 15A | Starter Motor Relay, GEM, Radio (w/Secondary) |
| 21 | 5A | Radio Start Feed |
| 22 | 10A | Air Bag Module, Blower Motor Relay Coil |
| 23 | – | Not Used |
| 24 | 10A | A/G Clutch, Blend Door Actuator, Trailer Tow Battery Charge Relay Coil |
| 25 | 5A | 4-Wheel Anti-Lock Brake System (4WABS) |
| 26 | – | Not Used |
| 27 | – | Not Used |
| 28 | – | Not Used |
| 29 | 5A | Instrument Cluster (Charge and Airbag Warning Lamps) |
| 30 | 30A | PCM Relay Coil, Ignition Coil (Gasoline only), Fuel Heater (Diesel only), Wastegate Solenoid (Diesel only), Injector Driver Module Relay Coil (Diesel only) |
| 31 | – | Not Used |
| Relay 1 | – | Interior Lamp Relay |
| Relay 2 | – | Battery Saver Relay |
| Relay 3 | – | Rear Defroster |
| Relay 4 | – | Power Window One Touch Down Relay |
| Relay 5 | – | Accessory Delay Relay |

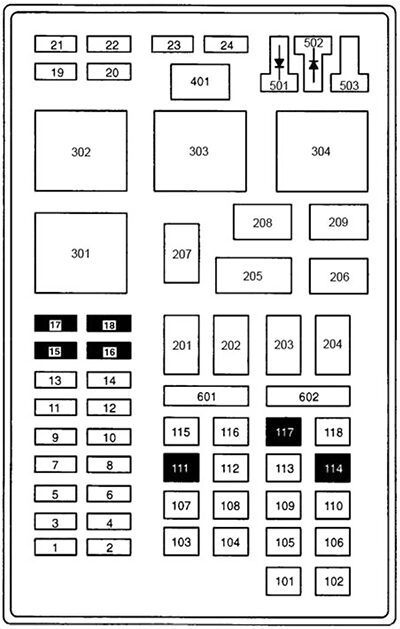

Power Distribution Box
List of fuses in the power distribution box (2000)
| № | A | Description |
|---|---|---|
| 1 | 20A* | Rear Wiper |
| 2 | 10A* | Air Bag |
| 3 | 15A* | Quarter Flip Window Motor |
| 4 | 20A* | Trailer Tow Backup Lamps, Trailer Tow Park Lamps |
| 5 | 20A* | Instmment Panel Auxiliary Power Point |
| 6 | 10A* | Gasoline only – A/C (CASS) Diesel only-Alternator “A” Field |
| 7 | 20A* | Floor Console Auxiliary Power Point |
| 8 | 15A* | Park Lamps |
| 9 | 20A* | Left Rear Quarter Auxiliary Power Point |
| 10 | 30A* | Head Lamps |
| 11 | 20A* | Cargo Auxiliary Power Point |
| 12 | 15A* | DRL |
| 13 | 10A* | Washer |
| 14 | 15A* | Horn |
| 15 | – | Not Used |
| 16 | – | Not Used |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 20A* (Gasoline only) – (Diesel only) | Gasoline only-E40D/HEGO Diesel only – Not Used |
| 20 | 7.5A* | Trailer Tow Stop/Turn LH |
| 21 | 10A* | Left Headlamp |
| 22 | 7.5A* | Trailer Tow Stop/Turn RH |
| 23 | 10A* | Right Headlamp |
| 24 | 20A* (Gasoline only) – (Diesel only) | Gasoline only-Engine Control Diesel only-Not Used |
| 101 | 50A** | Ignition Switch (B1 & B3) |
| 102 | 30A** | Power Door Locks |
| 103 | 40A** | Auxiliary Blower |
| 104 | 30A** | Electronic Shift On The Fly (Transfer Case Motor) |
| 105 | 50A** | Junction Box Battery Feed |
| 106 | – (Gasoline only) 30A** (Diesel only) | Gasoline only-Not Used Diesel only-Injector Driver Module |
| 107 | 30A** | Heated Seats |
| 108 | 30A** | Power Seats |
| 109 | 40A** | Front Blower Motor |
| 110 | 30A** | Trailer Tow Electronic Brake |
| 111 | – | Not Used |
| 112 | 20A** | Fuel Pump |
| 113 | 30A** (Gasoline only) 20A** (Diesel only) | PCM Power |
| 114 | – | Not Used |
| 115 | 30A** | Trailer Tow Battery Charge |
| 116 | 50A** | Ignition Switch (B4 & B5) |
| 117 | – | Not Used |
| 118 | 40A** | Rear Defroster |
| 201 | – | Park Lamp |
| 202 | – | Fuel Pump |
| 203 | – | Not Used |
| 204 | – | Quarter Flip Window Motor |
| 205 | – | Rear Wiper |
| 206 | – | Rear Washer |
| 207 | – | Wiper Run/Park |
| 208 | – | Wiper HI/LOW |
| 209 | – | Front Washer |
| 301 | – | Horn Relay |
| 302 | – | Gasoline only – A/C (CASS) Diesel only-Injector Driver Module Power Relay |
| 303 | – | Blower Motor |
| 304 | – | EEC Power |
| 401 | – | Not Used |
| 501 | – | Powertrain Control Module Diode |
| 502 | – | A/C Clutch Diode |
| 503 | – | Not Used |
| 601 | 30A CB | Power Windows |
| 602 | 60A** | Four Wheel Anti-Lock Brake Module |
| *Mini fuses **Maxi fuses | ||
2001
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2001)
| № | A | Description |
|---|---|---|
| 1 | 20A | Radio, Secondary Fusing for Audio Options |
| 2 | 5A | Instmment Cluster, Powertrain Control Module (PCM) Keep Alive Memory, PATS LED |
| 3 | 20A | Cigar Lighter, Data Link Connector |
| 4 | – | Not Used |
| 5 | – | Not Used |
| 6 | – | Not Used |
| 7 | 5A | Power Window/Lock Switch Illumination |
| 8 | 5A | Headlamp Switch, LED/Radio |
| 9 | – | Not Used |
| 10 | – | Not Used |
| 11 | 30A | Wiper Run/Park Relay Coil, Wiper Hi/LO Relay Coil, Washer Pump Relay Coils, Front Wiper Motor, Rear Wiper Motor Relay Coils |
| 12 | – | Not Used |
| 13 | 20A | Stop Lamps, Center High-mount Stop Lamp/Hazard, Trailer Tow Stop Lamp, Speed Control |
| 14 | 15A | Dome Lamp, Cargo Lamp, Courtesy Lamps, Running Boards, Power Mirrors, Vanity Mirrors, Map Lamps, Underhood Lamps, Glove Box Lamp, Power Windows (Delayed Accessory) |
| 15 | 5A | Stop Lamp Switch (Logic), PATS, GEM |
| 16 | 15A | Hi-beam Headlamps, Instrument Cluster (Hi-beam Indicator) |
| 17 | – | Not Used |
| 18 | 10A | Rear Integrated Control Panel (RICP), CD Changer |
| 19 | 10A | Instrument Cluster, GEM Module, Overdrive Cancel Switch, PATS/PATS Transiever, Idle Validation Switch (Diesel only) |
| 20 | 15A | Starter Motor Relay, GEM |
| 21 | 5A | Radio Start Feed |
| 22 | 10A | Blower Motor Relay Coil |
| 23 | 10A | Air Bag Module |
| 24 | 10A | A/G Clutch, Blend Door Actuator, Trailer Tow Battery Charge Relay Coil, Rear Defroster |
| 25 | 5A | 4-Wheel Anti-Lock Brake System (4WABS) |
| 26 | – | Not Used |
| 27 | 10A | Ignition Run Power Feed (Customer Access) |
| 28 | 15A | DRL, Brake Shift Interlock (BSI), ECM, Overhead Trip Computer (OTC), AUX A/C Components, Hazard Flasher, Speed Control, Vacuum Pump, Backup Lamps, Electronic Shift On The Fly Hublock Solenoid, Heated Seat |
| 29 | 5A | Instrument Cluster (Charge and Airbag Warning Lamps) |
| 30 | 30A | PCM Relay Coil, Ignition Coil (Gasoline only), Fuel Heater (Diesel only), Wastegate Solenoid (Diesel only), Injector Driver Module Relay Coil (Diesel only) |
| 31 | 15A | Heated Mirrors, Rear Defroster “ON” indicator |
| Relay 1 | – | Interior Lamp Relay |
| Relay 2 | – | Battery Saver Relay |
| Relay 3 | – | Horn Relay |
| Relay 4 | – | Power Window One Touch Down Relay |
| Relay 5 | Accessory Delay Relay |
Power Distribution Box
List of fuses in the power distribution box (2001)
| № | A | Description |
|---|---|---|
| 1 | 20A* | Rear Wiper |
| 2 | – | Not Used |
| 3 | 15A* | Quarter Flip Window Motor |
| 4 | 20A* | Trailer Tow Backup Lamps, Trailer Tow Park Lamps |
| 5 | 20A* | Instrument Panel Auxiliary Power Point |
| 6 | 10A* | Gasoline only – A/C (CASS) Diesel only-Alternator “A” Field |
| 7 | 20A* | Floor Console Auxiliary Power Point |
| 8 | 15A* | Park Lamps |
| 9 | 20A* | Left Rear Quarter Auxiliary Power Point |
| 10 | 30A* | Head Lamps |
| 11 | 20A* | Cargo Auxiliary Power Point |
| 12 | 15A* | DRL, Fog Lamp Relay |
| 13 | 10A* | Washer |
| 14 | 15A* | Horn |
| 15 | 5A* | Fog Lamps |
| 16 | – | Not Used |
| 17 | – | Not Used |
| 18 | – | Not Used |
| 19 | 20A* (Gasoline only) – (Diesel only) | Gasoline only-E40D/HEGO Diesel only-Not Used |
| 20 | 7.5A* | Trailer Tow Stop /Turn LH |
| 21 | 10A* | Left Headlamp |
| 22 | 7.5A* | Trailer Tow Stop /Turn RH |
| 23 | 10A* | Right Headlamp |
| 24 | 20A* (Gasoline only) – (Diesel only) | Gasoline only-Engine Control Diesel only-Not Used |
| 101 | 50A** | Ignition Switch (BI & B3) |
| 102 | 30A** | Power Door Locks |
| 103 | 40A** | Auxiliary Blower |
| 104 | 30A** | Electronic Shift On The Fly (Transfer Case Motor) |
| 105 | 50A** | Junction Box Battery Feed |
| 106 | – (Gasoline only) 30A** (Diesel only) | Gasoline only-Not Used Diesel only-Injector Driver Module |
| 107 | 30A** | Heated Seats |
| 108 | 30A** | Power Seats, Adjustable Pedais |
| 109 | 40A** | Front Blower Motor |
| 110 | 30A** | Trailer Tow Electronic Brake |
| 111 | – | Not Used |
| 112 | 20A** | Fuel Pump |
| 113 | 30A** (Gasoline only) 20A** (Diesel only) | PCM Power |
| 114 | – | Not Used |
| 115 | 30A** | Trailer Tow Battery Charge |
| 116 | 50A** | Ignition Switch (B4 & B5) |
| 117 | – | Not Used |
| 118 | 40A** | Rear Defroster |
| 201 | – | Park Lamp |
| 202 | – | Fuel Pump |
| 203 | – | Fog Lamps |
| 204 | – | Quarter Flip Window Motor |
| 205 | – | Rear Wiper |
| 206 | – | Rear Washer |
| 207 | – | Wiper Run/Park |
| 208 | – | Wiper HI/LOW |
| 209 | – | Front Washer |
| 301 | – | Rear Defroster |
| 302 | Gasoline only – A/C (CASS) Diesel only-Injector Driver Module Power Relay | |
| 303 | – | Blower Motor |
| 304 | – | EEC Power |
| 401 | – | Not Used |
| 501 | – | Powertrain Control Module Diode |
| 502 | – | A/C Clutch Diode |
| 503 | – | Not Used |
| 601 | 30A CB | Power Windows |
| 602 | 60A** | Four Wheel Anti-Lock Brake Module |
| *Mini fuses **Maxi fuses | ||
Conclusion
The Ford Excursion (2000-2001) excels in size, power, and functionality. Maintaining its fuse box and relays is essential to keeping its advanced electrical systems running smoothly.
