(2011-2020) Dodge Grand Caravan fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Grand Caravan 2011-2020 fuse assignment
Year of production: from 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

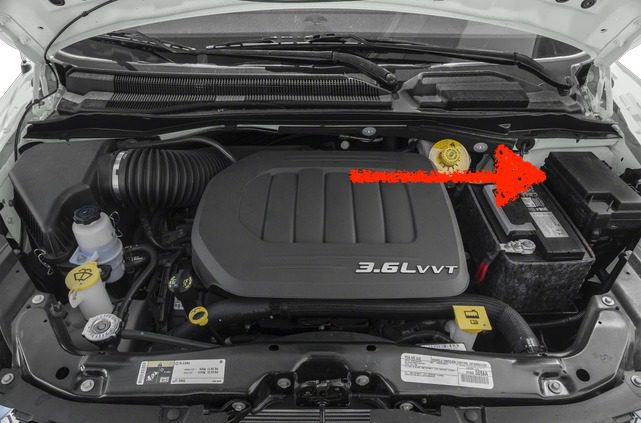

Location of the Fuse Box
The Totally Integrated Power Module is located in the engine compartment near the battery. This center contains cartridge fuses and mini-fuses. A label that identifies each component may be printed or embossed on the inside of the cover.

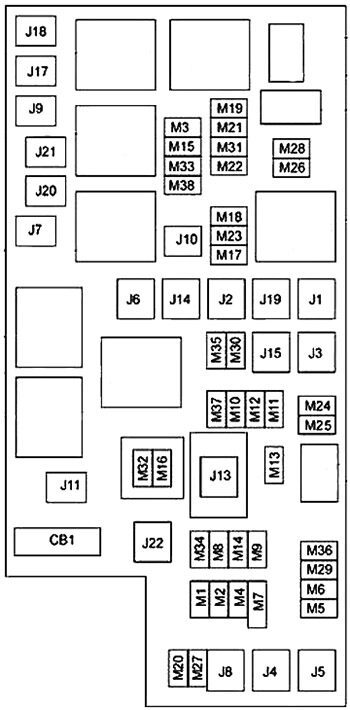

Fuse Box Diagrams
2011
List of fuses in the TIPM (2011)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module (RR Door Node) |
| J4 | 25A Natural | – | Driver Door Node |
| J5 | 25A Natural | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel |
| J10 | 30A Pink | – | Headlamp Wash Relay / Manifold Tuning Valve |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module Relay Lock Feed |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defoftger |
| J15 | 30A Pink | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Natural | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | – | – |
| M3 | – | 20A Yellow | Spare Fuse |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Natural | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | – | 20A Yellow | Front Heated Seat -If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module |
| M11 | – | 10A Red | Ignition Off Draw – Climate Control System |
| M12 | – | 30A Green | Amplifier (AMP) / Radio |
| M13 | – | 20A Yellow | Ignition Off Draw – Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch/ITM |
| M14 | – | 20A Yellow | Spare Fuse |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module -Export Diesel Only, Assy-Shifter (Hall Effect), Acoustic Noise Cancellation |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail / License / Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail / Park / Run Lamp |
| M19 | – | 25A Natural | Automatic Shutdown #1 and #2 |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Automatic Shutdown #3 |
| M22 | – | 10A Red | Right Horn (HI/ LOW) |
| M23 | – | 10A Red | Left Horn (HI/ LOW) |
| M24 | – | 25A Natural | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – Export Only |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Ignition Switch, Wireless Control Module, Keyless Entry Module, Steering Column Lock |
| M28 | – | 10A Red | Powertrain Control Module, Transmission Feed, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, TT EUROPE |
| M33 | – | 10A Red | Powertrain Control Module, Transmission Control Module |
| M34 | – | 10A Red | Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass, IR Sensor, Rear Camera, Lamp Door FT Drv/Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 |
| M37 | – | 10A Red | Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control |
| M38 | – | 25A Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
- The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2012
List of fuses in the TIPM (2012)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Natural | – | Driver Door Node |
| J5 | 25A Natural | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor/ Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Natural | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Trailer Lighting, Front Fog Lamps, Intelligent Battery Sensor (IBS) |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Natural | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Natural | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Natural | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
- The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2013
List of fuses in the TIPM (2013)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Natural | – | Driver Door Node |
| J5 | 25A Natural | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Natural | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Natural | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Natural | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Natural | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2014
List of fuses in the TIPM (2014)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Natural | – | Driver Door Node |
| J5 | 25A Natural | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module/Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Natural | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Natural | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Natural | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Natural | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2015
List of fuses in the TIPM (2015)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) -Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2016
List of fuses in the TIPM (2016)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve -If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) -Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2017
List of the fuses in the TIPM (2017)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | – | – | Not Used |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve -If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Vacuum Pump Motor |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | – | 10A Red | Airbag Module/Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Diagnostic Feed |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2018
List of fuses in the TIPM (2018)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | – | – | Not Used |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module /Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Vacuum Pump Motor |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) -Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Diagnostic Feed |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel Or With Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2019
List of fuses in the TIPM (2019)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | – | – | Not Used |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Vacuum Pump Motor |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) -Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | – | 10A Red | Airbag Module/Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Diagnostic Feed |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel Or With Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
2020
List of fuses in the TIPM (2020)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | – | – | Not Used |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (I0D) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | Front Fog Lamps |
| M3 | – | 20A Yellow | Vacuum Pump Motor |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier/Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multifunction Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | RearView Mirror, Instrument Cluster, Multifunction Control Switch, Tire Pressure Monitor |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Diagnostic Feed |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel Or With Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | Power Windows | |
Conclusion
The Dodge Grand Caravan (2011-2020) remains a practical, family-focused vehicle. Understanding the importance of the fuse box and relay systems is essential for maintaining the functionality of the van’s electrical features.
