Learn about Citroën Jumpy 2007-2016 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Citroën Jumpy (2007-2016) comes in multiple body styles, including a panel van, minibus, and combi, offering flexibility for both cargo transport and passenger carrying. It is known for its practicality, spacious interior, and efficient engines, making it ideal for business and commercial use. The Jumpy is equipped with features like power steering, air conditioning, and a range of safety options such as ABS and airbags.

The fuse box, typically located in the engine bay and cabin, protects key electrical components like the lighting, air conditioning, and entertainment systems from electrical overloads. If a fuse blows, it prevents damage by cutting off the power to the affected system.

The relays control critical functions such as the starter motor, fuel pump, and cooling fans. These relays serve as switches, allowing smaller electrical signals to control larger circuits. A failed relay can lead to issues like the engine not starting or the cooling fans not functioning, which can cause overheating.

Regular maintenance of the fuse box and relays is crucial for ensuring the electrical systems of the Citroën Jumpy remain operational, keeping both the vehicle’s features and performance in check.

MUST READ: DYI – How to Check Car Fuses?

(2007-2016) Citroën Jumpy fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën Jumpy 2007-2016 fuse assignment

Year of production: from 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Fuse box location

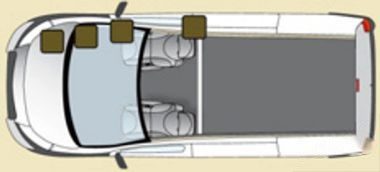

CitroeÌ n Jumpy 2007 2016 demo

The three fuse boxes are placed:

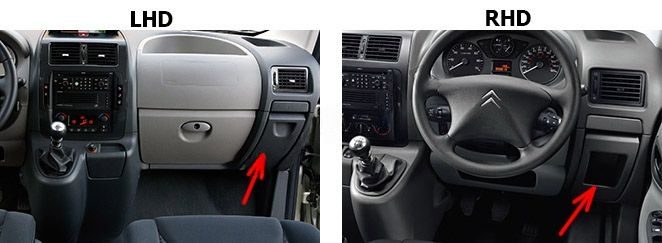

The location of the fuses in the passenger compartment: Citroen Jumpy (2008-2016)
The location of the fuses in the passenger compartment: Citroen Jumpy (2008-2016)

in the fascia panel on the right-hand side (behind the storage compartment, retractable).

Tilt the storage compartment then pull it firmly to access.

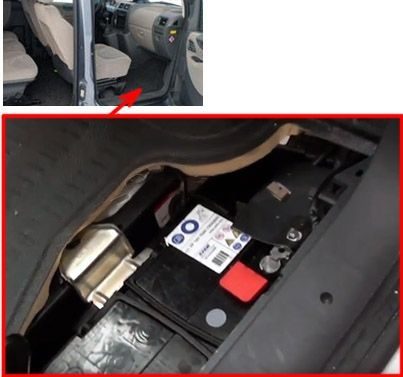

Fuses in the battery compartment: Citroen Jumpy (2008-2016)
Fuses in the battery compartment: Citroen Jumpy (2008-2016)

in the passenger compartment (battery compartment).

Unclip the battery compartment cover, remove the red battery terminal (+).

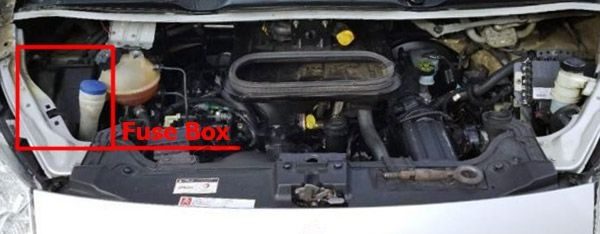

The location of the fuses in the engine compartment: Citroen Jumpy (2008-2016)
The location of the fuses in the engine compartment: Citroen Jumpy (2008-2016)

under the bonnet:

After opening the bonnet, slide the screenwash support to make access easier; unclip and tilt the box to access.

Fuse box diagrams

Dashboard Fuse box

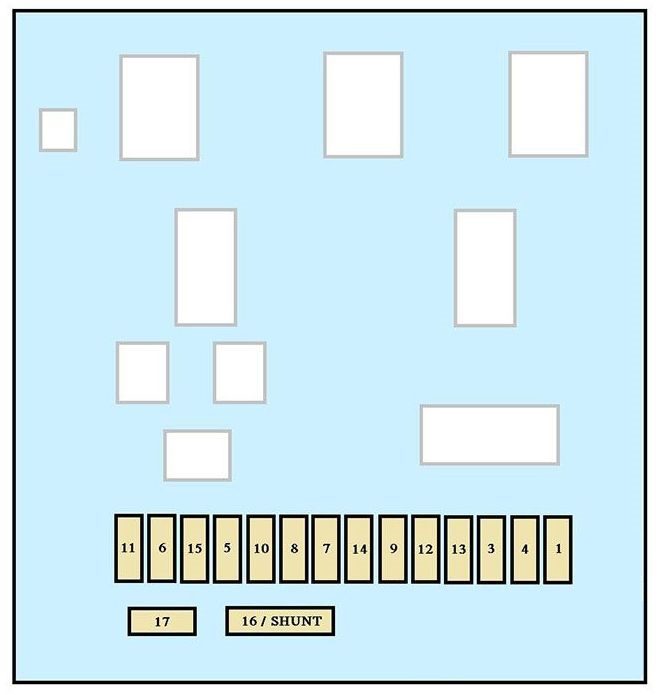

Instrument panel fuse box diagram: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)
Instrument panel fuse box diagram: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Dashboard Fuse box

A (amps)Allocation
115Rear wiper
2Free
35Airbag control unit
410Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual ventilation, Clutch switch, Headlamp beam height, Particle emission filter pump
530Electric mirrors, Passenger electric window motor
630Front electric windows supply
75Courtesy lamps and glove box lamp
820Multifunction screen, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/telephone, Trailer fusebox (accessory), Coachbuilder/vehicle converter unit (platform cab)
910Load space accessory socket
1030Rear ride height corrector, Steering wheel switching, Instrument panel
1115Diagnostic socket, Ignition switch
1215Hands-free kit, Airbag control unit, Parking sensors control unit
135Engine fusebox, Trailer fusebox
1415Rain sensor, Digital air conditioning, Instrument panel
1530Locking/unlocking/deadlocking
16Free
1740Heated rear screen, Heated mirrors
1710Heated mirrors only

Battery compartment fuses

Battery compartment fuses: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)
Battery compartment fuses: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Passenger compartment

AmperesAllocation
130Heated seats
220 /-Battery state of charge unit/Free
340/50Trailer fuse box (accessory) / Coachbuilder/vehicle modifier unit (platform cab)
4Free
3615Hinged door locks
3710Hinged door locks
3820Hinged door rear wiper
39Free
405Folding door mirrors

Towing/towbar/coachbuilders/platform CAB fuses

Towing/towbar/coachbuilders/platform CAB fuses: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)
Towing/towbar/coachbuilders/platform CAB fuses: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

Assignment of the Platform CAB fuses

AmperesAllocation
115Free
215Ignition relay and optional generator
315Trailer 12V supply
415Permanent supply for vehicle converters
510Hazard warning lamps

Engine compartment fuse box

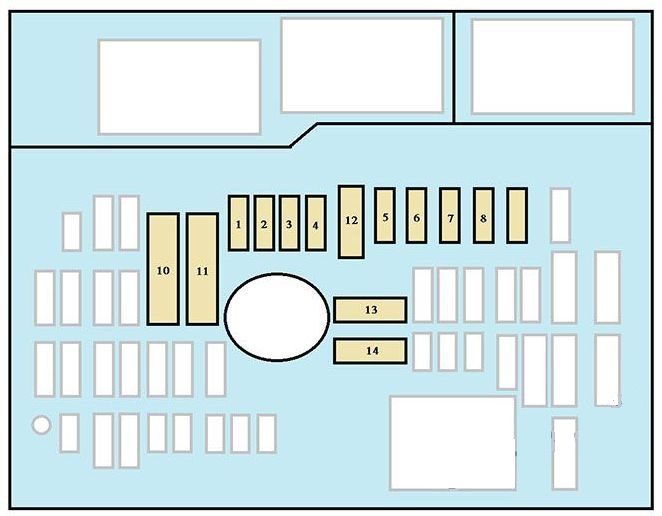

Under-hood fuse box diagram: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)
Under-hood fuse box diagram: Citroen Jumpy (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)

Assignment of the fuses in the Engine compartment

AmperesAllocation
120Engine control unit, Fuel supply and air supply systems, Fan assembly
215Horn
310Front and rear screenwash pump
420Headlamp wash pump
515Fuel supply system
610Power steering, Secondary brake pedal switch
710Braking system (ABS/DSC)
820Starter motor control
910Main brake pedal switch
1030Fuel supply and air supply systems, Emissions control systems
1140Front ventilation
1230Windscreen wipers
1340Built-in systems interface
1430Free

Conclusion

For owners and enthusiasts of classic Citroën Jumpy 2007-2016, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
