Learn about Daewoo Tico 1992 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Daewoo Tico, introduced in 1992, is a compact city car known for its practicality and fuel efficiency. It is offered as a five-door hatchback, which makes it ideal for urban environments due to its small size and ease of maneuverability. The Tico’s simple, lightweight design focuses on delivering an economical driving experience, and while it may lack the advanced features of modern cars, it is reliable for basic transportation.
The electrical system, like any car, is crucial to the Daewoo Tico’s functionality. The fuse box and relays control vital electrical components, such as the lighting system, windshield wipers, and ignition. The fuse box is typically located under the dashboard or in the engine bay, depending on the specific model year. The relays, which are responsible for managing higher electrical loads like the fuel pump and starter, are situated near the fuse box. Regular inspection and maintenance of the fuses and relays are essential to prevent common electrical issues, ensuring that the car’s systems, including lights and ignition, operate properly.
MUST READ: DYI – How to Check Car Fuses?
(1992) Daewoo Tico fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

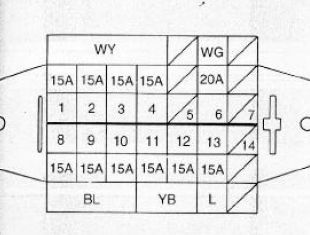

Daewoo Tico 1992 fuse assignment
Year of production: 1992
Fuse box
| № | A | Component |
|---|---|---|
| 1 | 15 | Upward/downward headlight right |
| 2 | 15 | Upward headlight indicator, upward/downward headlight left |
| 3 | 15 | Brake switch room light, radio and clock |
| 4 | 15 | Horn, emergency warning light switch |
| 5 | — | — |
| 6 | 20 | Radiator motor fan relay |
| 7 | — | — |
| 8 | 15 | IG coil carburetor solenoid B.V.V, N.S, instrument panel, radiator fan relay |
| 9 | 15 | Wiper switch, motor |
| 10 | 15 | Backup light switch, emergency light switch, A/C V.S.V |
| 11 | 15 | Blower motor |
| 12 | 15 | Hot wire switch |
| 13 | 15 | Cigar lighter, cassette radio |
| 14 | — | — |
Conclusion
For owners and enthusiasts of classic Daewoo Tico 1992, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Daewoo’s craftsmanship and innovation in the automotive industry during that era.
