Learn about Citroën C4 2011-2017 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Citroën C4 (2011-2017) comes in several body styles, including a 5-door hatchback and a compact MPV, offering versatility for various driving needs. These models boast features such as advanced infotainment systems, high levels of safety, and efficient engines, designed to cater to both urban driving and long-distance travel.

When addressing electrical components like the fuse box and relays, these cars are equipped with fuse boxes located in the engine compartment and inside the cabin. They control key systems such as lighting, climate control, and power windows. Proper maintenance of the fuses and relays is essential for preventing electrical issues, ensuring that critical systems function smoothly. Diagrams and a clear understanding of the fuse box layout can help troubleshoot electrical malfunctions effectively.

MUST READ: DYI – How to Check Car Fuses?

(2011-2017) Citroën C4 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën C4 2011-2017 fuse assignment

  • Cigar lighter (power outlet) fuses in the Citroen C4 are the fuses F13 (Cigarette lighter), F14 (12 V socket in boot) in the Dashboard Fuse box 1, and fuses F36 (Rear 12 V socket) and F40 (230 V/50 Hz socket) in the Dashboard Fuse box 2.

Year of production: from 2011, 2012, 2013, 2014, 2015, 2016, 2017

Fuse box location

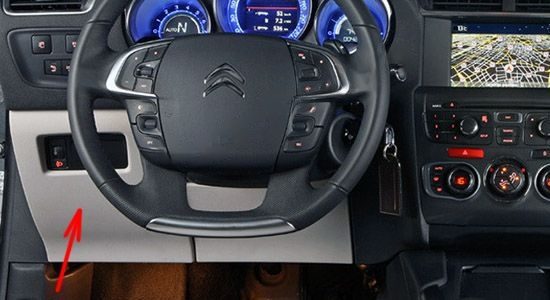

The location of the fuses in the passenger compartment (LHD): Citroen C4 (2011-2017)

Left-hand drive vehicles:
The 2 fuseboxes are located in the lower dashboard (left-hand side).

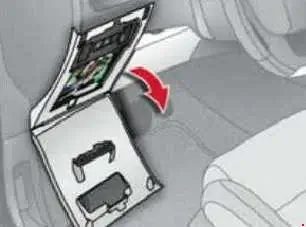

Citroen C4 2011 2017 20180322031141554

Unclip the cover by pulling at the top right, then left; disengage the cover completely and turn it over.

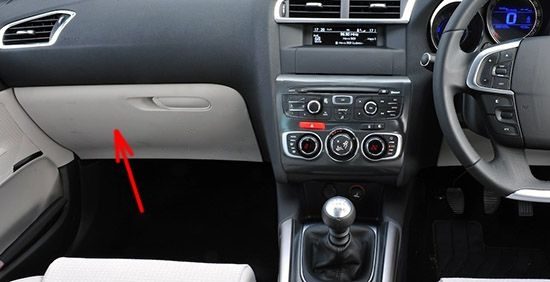

The location of the fuses in the passenger compartment (RHD): Citroen C4 (2011-2017)

Right-hand drive vehicles:
The 2 fuseboxes are placed in the lower dashboard, in the glove box.

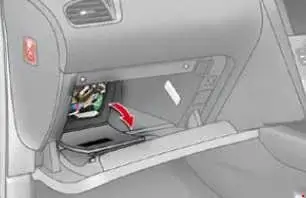

Citroen C4 2011 2017 20180322031205727

Open the glovebox lid, unclip the carrier fitted to the fusebox cover by pulling on the right, open the fusebox cover by pulling at top right, then left, fold down the fusebox cover completely.

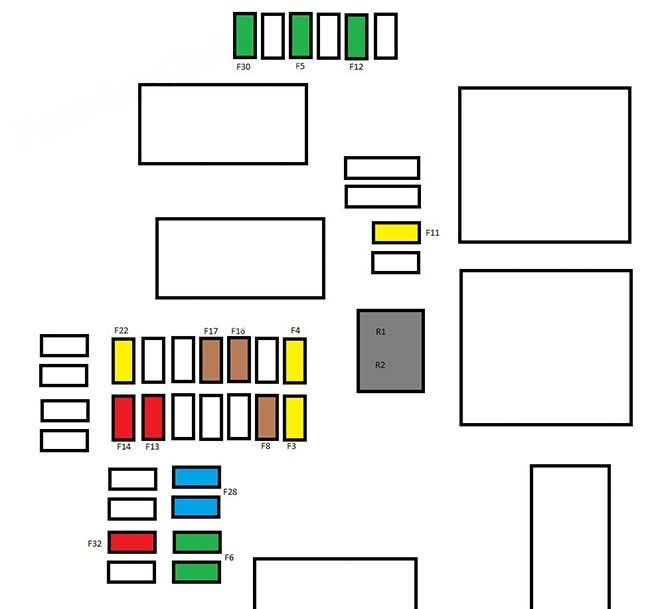

Fuse box diagram (Dashboard fuse box 1)

Instrument panel fuse box diagram: Citroen C4 (2011, 2012, 2013, 2014, 2015, 2016, 2017)

Assignment of the fuses in the Dashboard Fuse box 1

RatingFunctions
F320 AParking lamps, trailer hazard warning lamps.
F420 AInterior lighting, trailer interface.
F530 AFront one-touch electric windows.
F630 ARear one-touch electric windows.
F1120 A12 V trailer socket.
F1230 APanoramic sunroof blind.
F1330 AHi-Fi amplifier.
F2220 ATrailer signalling.
F83 AAlarm siren, alarm ECU.
F1310 ACigarette lighter.
F1410 A12 V socket in boot.
F163 ALighting for the large multifunctional storage unit (until 2015), rear map reading lamps, glove box illumination.
F173 ASun visor illumination, front map reading lamps.
F2815 AAudio system, radio (after-market).
F3020 ARear wiper.
F3210 AHi-Fi amplifier.
Removable relay №:
R1230 V/50 Hz socket (except RHD)
R212 V socket in boot.

Fuse box diagram (Dashboard fuse box 2)

Citroen C4 2011 2017 2018032203123092

Assignment of the fuses in the Dashboard Fuse box 2

RatingFunctions
F3615 ARear 12 V socket.
F37Not used.
F38Not used.
F39Not used.
F4025 A230 V/50 Hz socket (Except RHD)

Engine compartment fuse box

Fuse box location

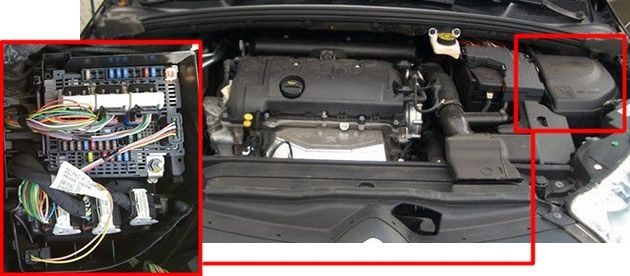

The location of the fuses in the engine compartment: Citroen C4 (2011, 2012, 2013, 2014, 2015, 2016, 2017)

Itx is placed in the engine compartment near the battery (left-hand side).

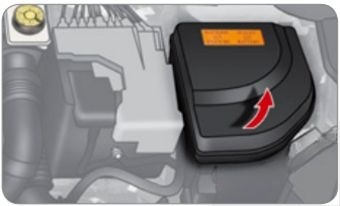

Citroen C4 2011 2017 20180322031558281

Fuse box diagram

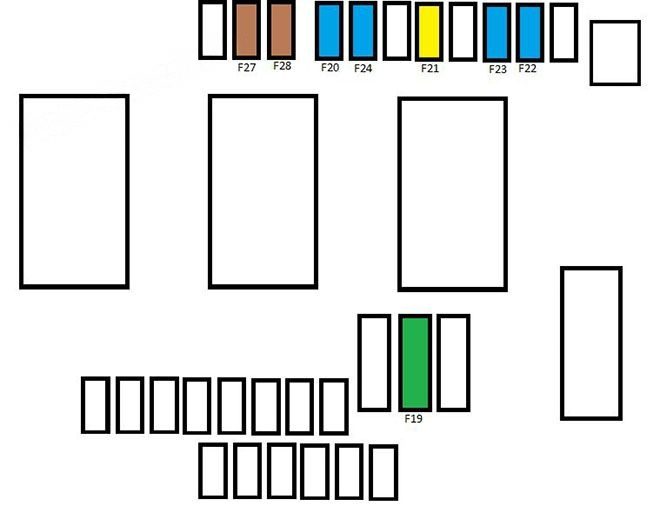

Under-hood fuse box diagram: Citroen C4 (2011, 2012, 2013, 2014, 2015, 2016, 2017)

Assignment of the fuses in the Engine compartment

RatingFunctions
F1930 AWindscreen wipers slow/fast speed.
F2015 AFront and rear screenwash pump.
F2120 AHeadlamp wash pump.
F2215 AHorn.
F2315 ARight-hand main beam headlamp.
F2415 ALeft-hand main beam headlamp.
F275 ALeft-hand dipped headlamp.
F285 ARight-hand dipped headlamp.

Fuses on the battery

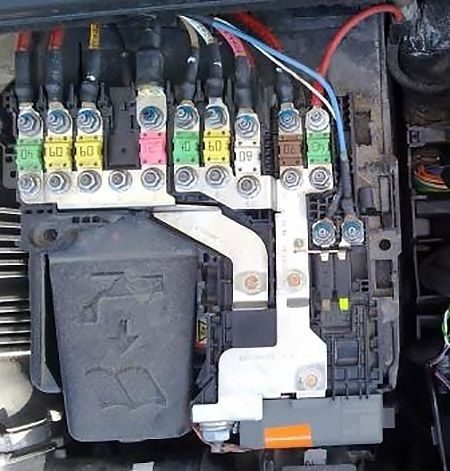

Fuses on the battery: Citroen C4 (2011, 2012, 2013, 2014, 2015, 2016, 2017)

Conclusion

For owners and enthusiasts of classic Citroën C4 2011-2017, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
