Learn about Daewoo Espero fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Daewoo Espero, produced from 1990 to 1997, is a midsize sedan that combines European design with Korean engineering. Its body style is a traditional four-door sedan, offering ample space for passengers and a comfortable ride. Designed by Bertone, the Espero features smooth, rounded lines and a practical, aerodynamic shape.

The electrical system of the Daewoo Espero plays a key role in powering its modern features for the time, such as power windows, central locking, and an electronic climate control system. The car’s fuse box, located under the dashboard on the driver’s side, protects various electrical circuits from overload. Relays, situated in both the engine bay and near the fuse box, manage higher-power functions like the fuel pump, headlights, and starter motor. Understanding the layout of the fuse box and relay system is essential for troubleshooting electrical issues and maintaining the reliability of the vehicle’s critical systems.

MUST READ: DYI – How to Check Car Fuses?

(…) Daewoo Espero fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Daewoo Espero fuse assignment

Year of production: from …

Fuse box

The box is located to the right of the steering column under a cover.

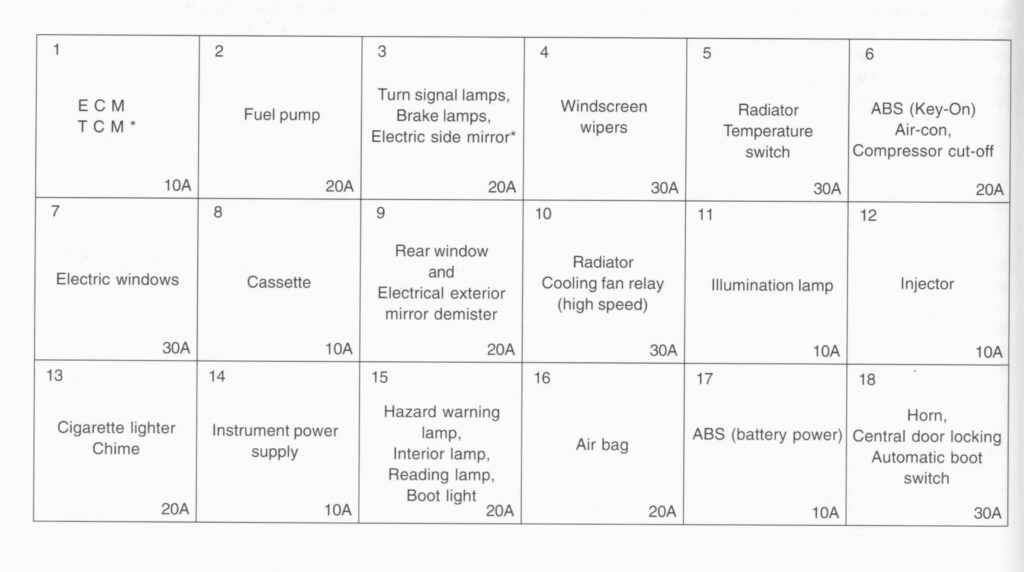

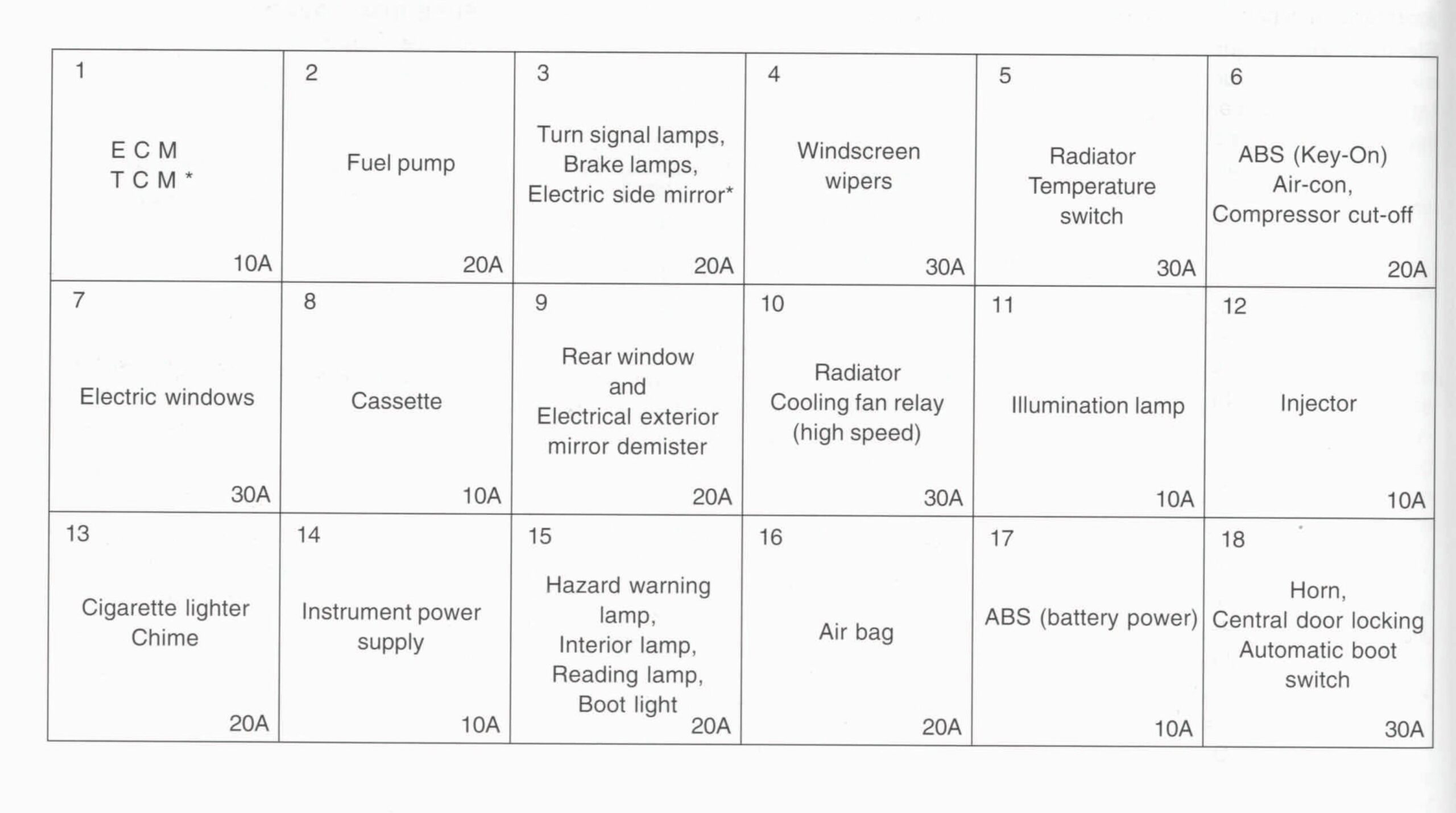

daewoo espero fuse box diagram passenger compartment
Daewoo Espero – fuse box diagram – passenger compartment
AComponent
110ECM, TCM*
220Fuel pump
320Turn signal lamps, brake lamps, electric side mirror*
430Windscreen wipers
530Radiator Temperature switch
620ABS (Key-On), Air-com, Compressor cut-off
730Electric windows
810Cassette
920Rear window and Electric exterior mirror dernister
1030Radiator Cooling fan relay (high speed)
1110Illumination lamp
1210Injector
1320Cigarette lighter  Chime
1410Instrument power supply
1520Hazard warning lamp, Interior lamp, Reading lamp, Boot lamp
1620Air bag
1710ABS (battery power)
1830Horn, Central door locking, Automatic boot switch

Engine compartment

The main relay box is located on the front wheel housing next to the battery in the engine compartment.

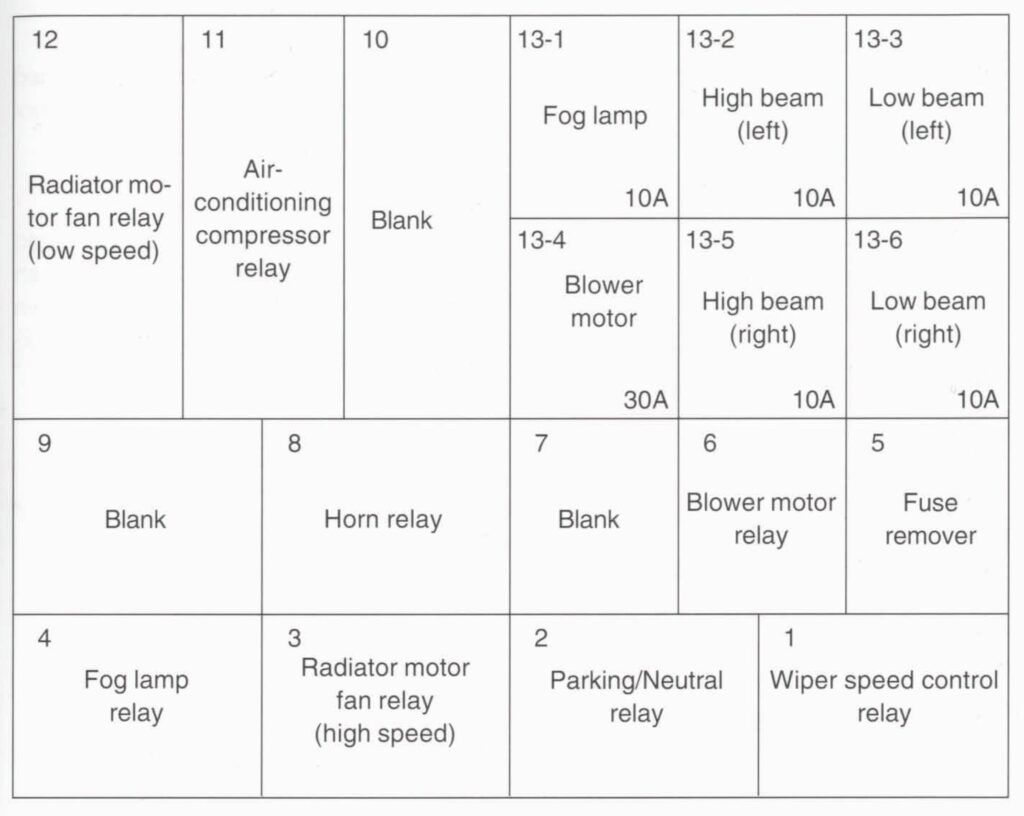

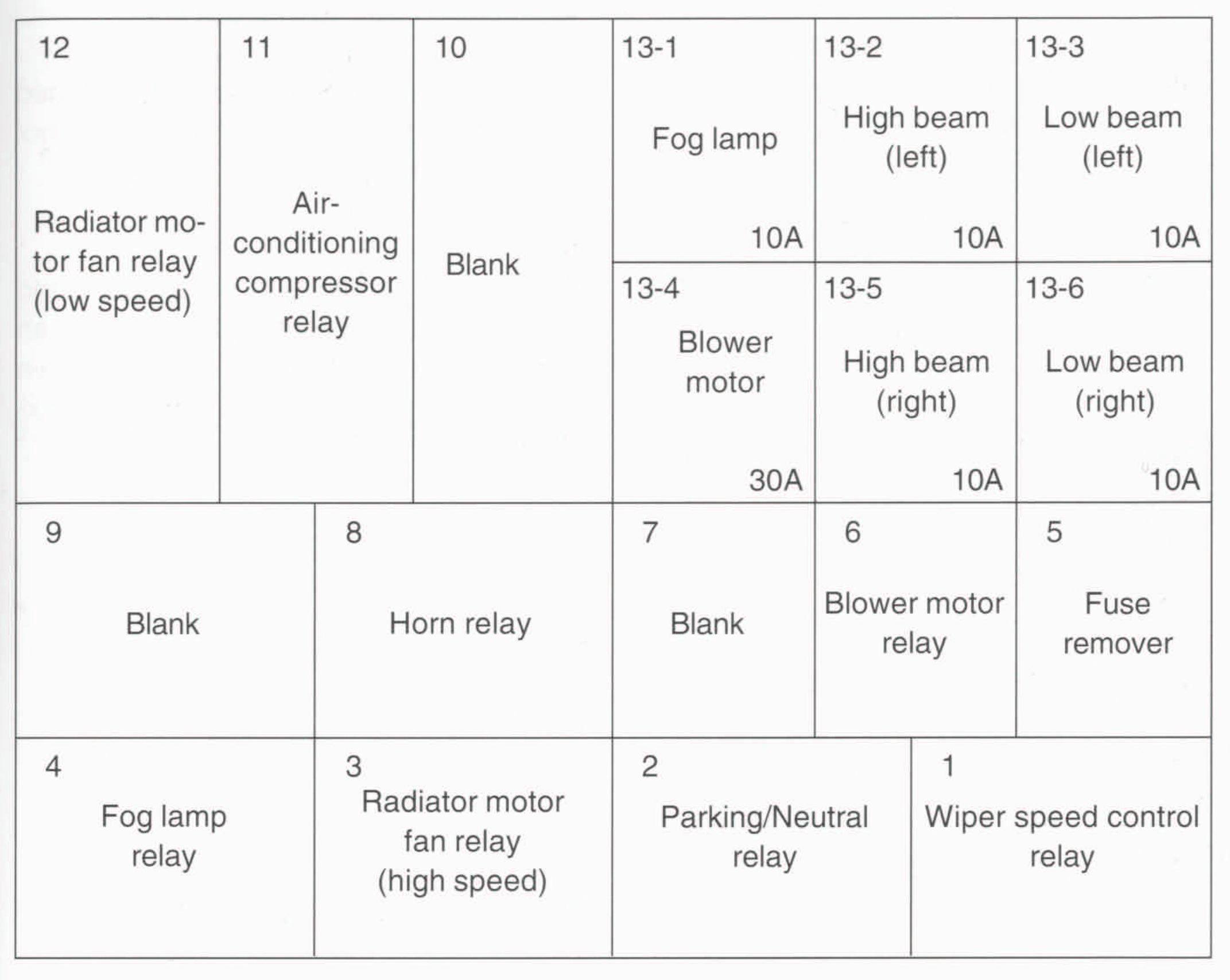

daewoo espero fuse box diagram engine compartment
Daewoo Espero – fuse box diagram – engine compartment
AComponent
1Wiper speed control relay
2Parking/Neutral relay
3Radiator motor fan relay (high speed)
4Fog lamp relay
5Fuse remover
6Blower motor relay
7
8Horn relay
9
10
11Air-conditioning compressor relay
12Radiator motor fan relay (low speed)
13-110Fog lamo
13-210High beam (left)
13-310Low beam (left)
13-430Blower motor
13-510High beam (right)
13-610Low beam (right)

Auxiliary relay box

Auxiliary relay box is located in the lefthand footwell.

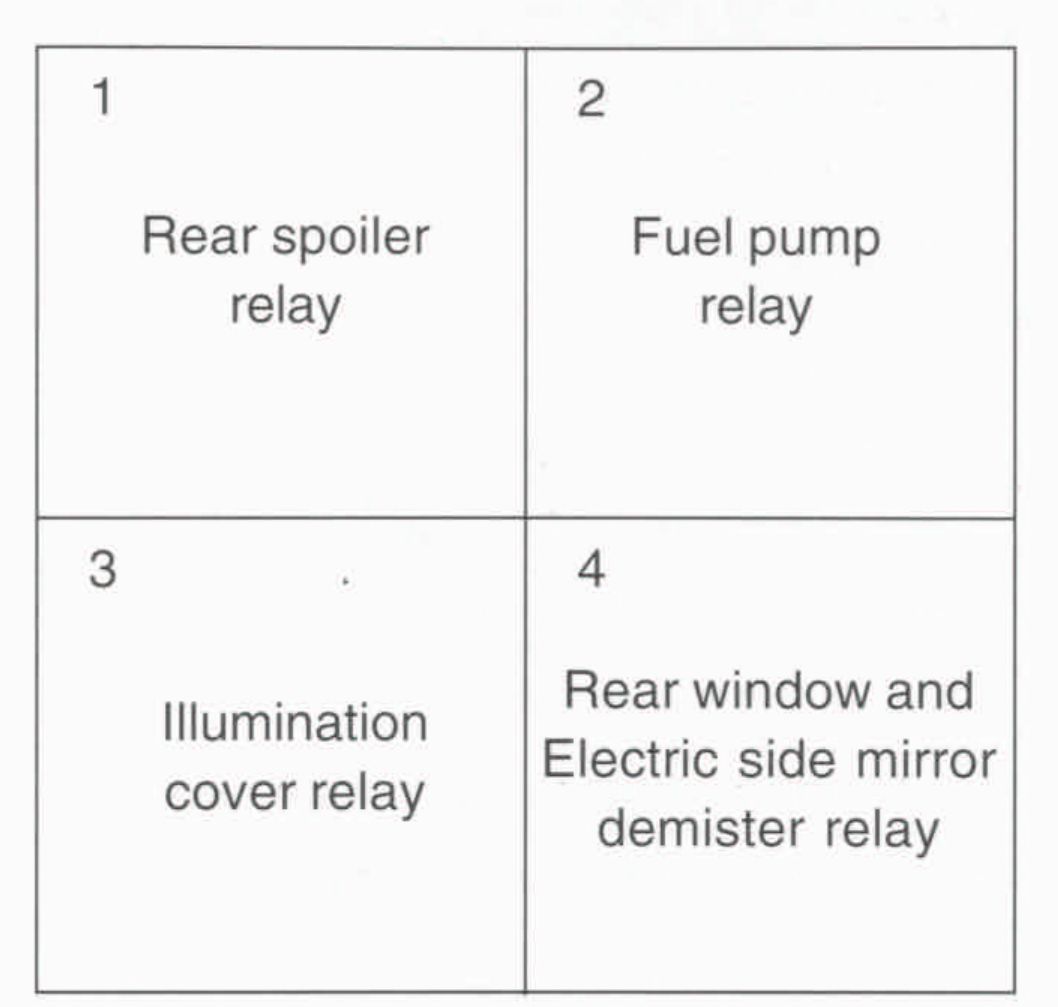

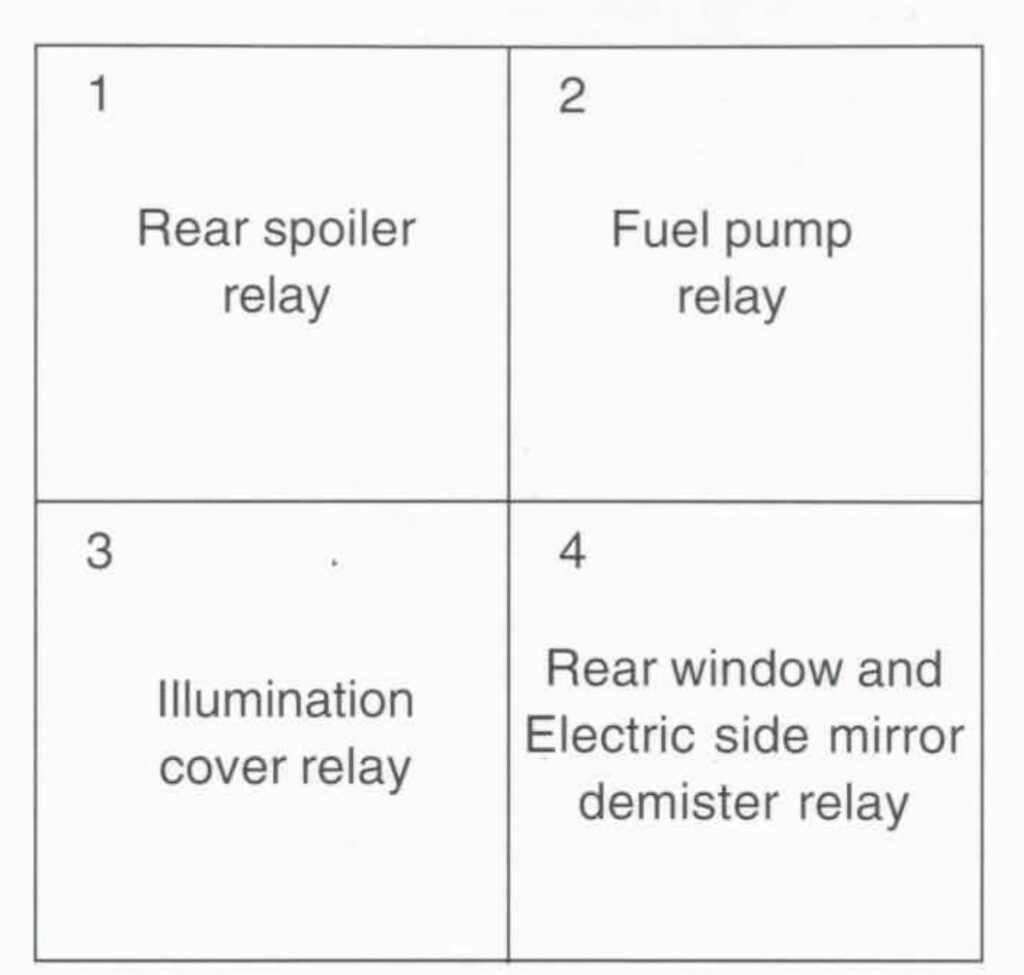

daewoo espero fuse box diagram auxiliary relay box
Daewoo Espero – fuse box diagram – auxiliary relay box

Conclusion

For owners and enthusiasts of classic Daewoo Espero, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Daewoo’s craftsmanship and innovation in the automotive industry during that era.
