The Dacia SuperNova (2000-2001) is a compact car that features a practical and straightforward design, available primarily as a five-door hatchback. This body style emphasizes versatility and ease of access, making it a popular choice for urban drivers and families alike. The SuperNova is characterized by its simple lines, functional interior, and ample cargo space, which cater to the needs of everyday users.
Integral to the vehicle’s functionality is its electrical system, which includes the fuse box and relays. The fuse box is typically located under the dashboard and houses fuses that protect electrical circuits for components such as lights, wipers, and the audio system. The relays, usually found adjacent to the fuse box, control larger electrical loads, including the fuel pump and cooling fans. Maintaining these components is essential for ensuring the reliability of the Dacia SuperNova’s electrical systems. Regularly checking the fuse box and relays helps prevent potential failures, ensuring that the vehicle continues to operate smoothly and efficiently for its users.
MUST READ: DYI – How to Check Car Fuses?
(2000-2001) Dacia SuperNova fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

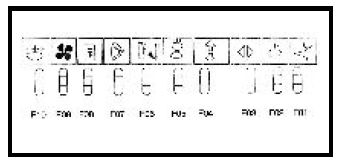

Dacia SuperNova 2000-2001 fuse assignment
Year of production: from 2000, 2001
Fuses
| № | A | Component |
|---|---|---|
| F01 | 15 | Clock, radio, STOP contact, climate blower relay control |
| F02 | 5 | Reverse driving contact |
| F03 | 15 | UCE decoder, speed transducer, instrument panel supply, diagnostic socket, AC starting button, UCE anti intrusion |
| F04 | 7,5 | Turning and hazard lights |
| F05 | 5 | Front/rear parking lights, lighting: switches, instrument panel, climate control, documents compartment, cigarette lighter, ashtray, radio |
| F06 | 15 | Cigarette lighter, instrument panel (anti-starting indicator), front right ceiling lamp, UCE anti intrusion, anti intrusion indic ator, diagnostic socket |
| F07 | 15 | Windscreen wiper-washing switch, windscreen wiper timer |
| F08 | 20 | Rear window defrosting |
| F09 | 15 | Climate blower |
| F10 | 5 | Left fog lamp |

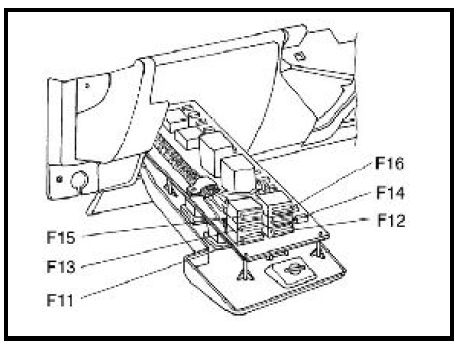

On the fuse box, 6 fuses modules are attached, protecting the following consumers:
| № | A | Component |
| F11 | 10 | Left high beam |
| F12 | 10 | Right high beam, high beam indicator |
| F13 | 10 | Left low beam |
| F14 | 10 | Right low beam, low beam indicator |
| F15 | 15 | UCE decoder, FLASH relay, anti starting bushing |
| F16 | 10 | Radio, windscreen wiper motor. |
