The Citroën C3 (2002-2008) comes in two major body styles: a 5-door hatchback and a convertible (C3 Pluriel). Known for its quirky design and practical dimensions, the C3 is popular for urban driving, offering compact size and ample interior space. Both body styles are equipped with essential electrical components such as power windows, central locking, and lighting systems, which rely heavily on the car’s fuse box and relays to function properly. The fuse box, typically located under the dashboard and in the engine compartment, houses the fuses and relays responsible for protecting and managing the car’s electrical circuits. Ensuring the fuse box and relays are well-maintained is crucial to prevent electrical malfunctions.

MUST READ: DYI – How to Check Car Fuses?

(2002-2008) Citroën C3 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën C3 2002-2008 fuse assignment

  • Cigar lighter (power outlet) fuse in the Citroen C3 is the fuse №9 in the Instrument panel fuse box.

Year of production: from 2002, 2003, 2004, 2005, 2006, 2007, 2008

Dashboard fuse box

Fuse box location

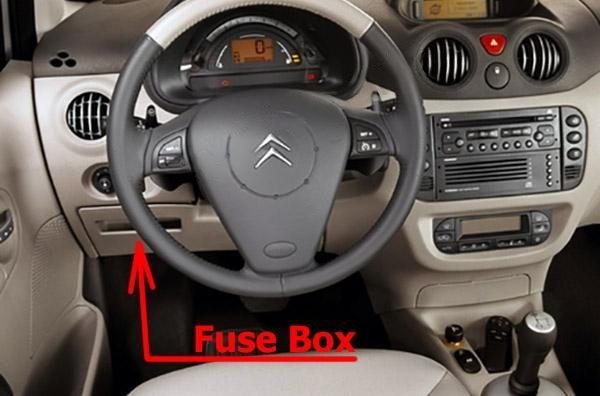

The location of the fuses in the passenger compartment: Citroën C3 (2002-2008)

Left-hand drive vehicles:

It is located below the dashboard behind the cover.

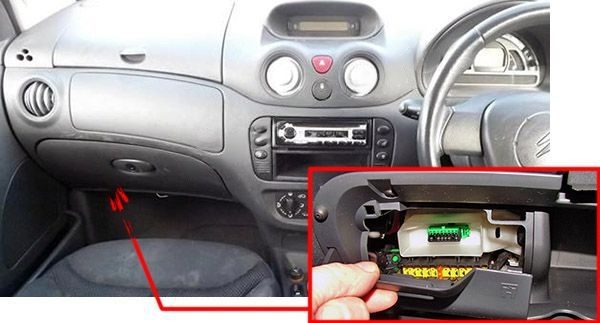

The location of the fuses in the passenger compartment (RHD): Citroen C3 (2007, 2008)

Right-hand drive vehicles:

It is located in the lower glovebox compartment.

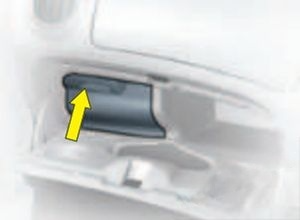

Citroen C2 2003 2009 20180321084814124

To access, open the glove box, pull the handle on the fuse box cover.

Fuse box diagram

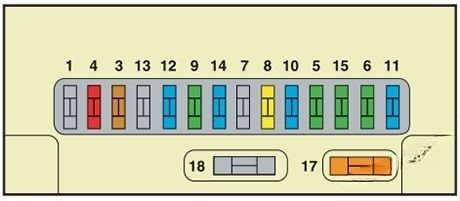

Instrument panel fuse box diagram: Citroen C3 (2007, 2008)

Assignment of the fuses in the Dashboard Fuse box

RatingFunction
35AAirbags
410 ADiagnostic socket – Particle filter additive – Clutch switch – Steering angle sensor
530 ARear window – Sun roof
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 ACigar-lighter – Digital dock – Interior lamps – Vanity mirror
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Bluetooth® telephone
1530 ACentral locking – Deadlocking
1740 AHeated rear screen
18SHUNTCUSTOMER PARK SHUNT

Engine compartment fuse box

Fuse box location

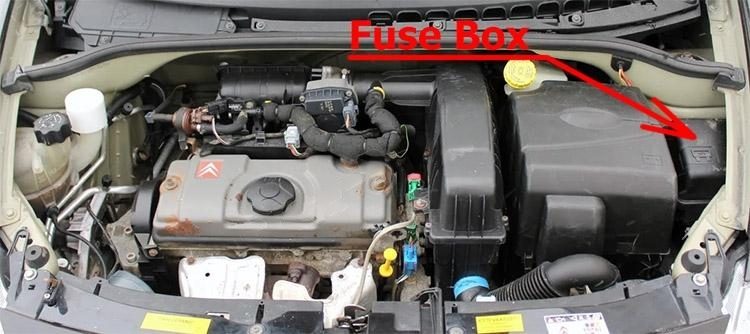

The location of the fuses in the engine compartment: Citroën C3 (2002-2008)

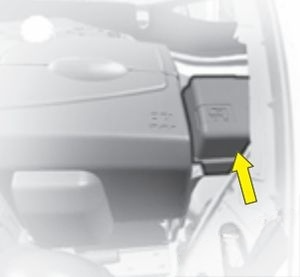

Citroen C2 2003 2009 20180321084822594

To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.

Fuse box diagram

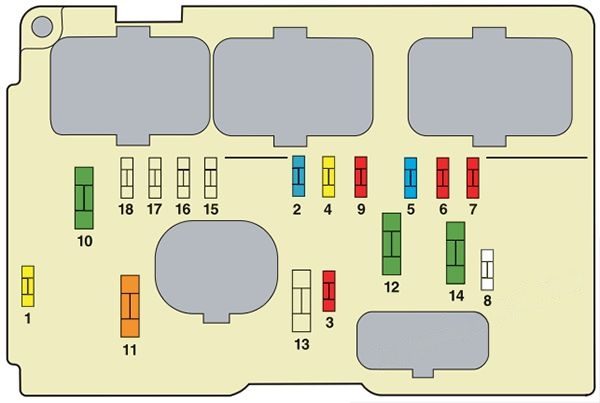

Under-hood fuse box diagram: Citroen C3 (2007, 2008)

Assignment of the fuses in the Engine compartment

RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS. ESP)
1030 AEngine control actuators (Ignition coil. Electrovalve. Oxygen sensor. Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater

Conclusion

For owners and enthusiasts of classic Citroën C3 2002-2008, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
