The Chevrolet Aveo (2007-2011) is a compact car known for its fuel efficiency, simple design, and affordability. It features a 4-cylinder engine, spacious interior for its class, and practical conveniences like power windows and air conditioning. The Aveo is a popular choice for daily commuting and city driving.

The fuse box, located under the dashboard and in the engine compartment, safeguards critical systems such as the headlights, audio system, and power windows. If a fuse blows, it cuts off power to the respective component to prevent electrical damage, requiring a replacement fuse to restore functionality.

The relays in the Aveo manage important operations like the fuel pump, air conditioning, and engine cooling fan. These relays act as electrical switches that control the flow of power to high-demand components. A malfunctioning relay can cause issues such as engine overheating or failure to start.

Proper maintenance of the fuse box and relays is essential to ensure the Chevrolet Aveo’s electrical components operate efficiently, keeping the vehicle running smoothly.

MUST READ: DYI – How to Check Car Fuses?

(2007-2011) Chevrolet Aveo fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Aveo 2007-2011 fuse assignment

  • Cigar lighter (power outlet) fuses in the Chevrolet Aveo are located in the Instrument panel fuse box. 2007, 2008 (Hatchback) – see fuses “LTR” (Cigarette Lighter) and “AUX LTR” (Auxiliary Cigarette Lighter)). 2007, 2008 (Sedan) – see fuse “CIGAR” (Cigarette Lighter, Auxiliary Power Outlet). 2009, 2010, 2011 – see fuses “CIGAR” (Cigar Lighter) and “SOKET” (Power Jack).

Year of production: from 2007, 2008, 2009, 2010, 2011

Fuse box location

Instrument Panel

The fuse box is located on the driver’s side of the instrument panel, behind the cover.

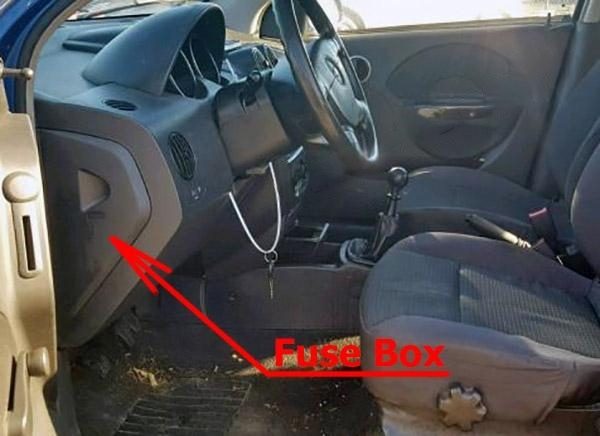

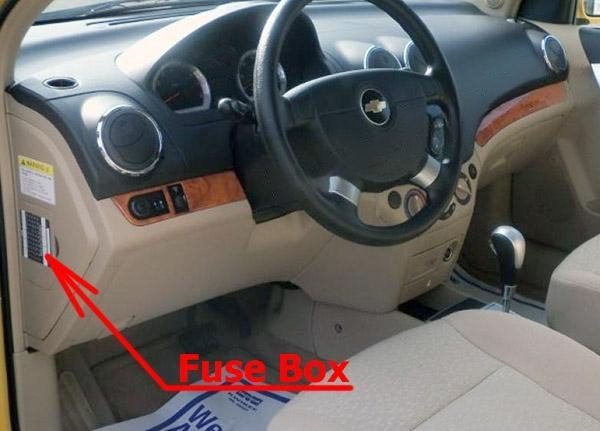

The location of the fuses in the passenger compartment: Chevrolet Aveo (2007-2011)
The location of the fuses in the passenger compartment: Chevrolet Aveo (2007-2011)

Hatchback (2007, 2008)

The location of the fuses in the passenger compartment: Chevrolet Aveo (2007-2011)
The location of the fuses in the passenger compartment: Chevrolet Aveo (2007-2011)

Sedan

Engine Compartment

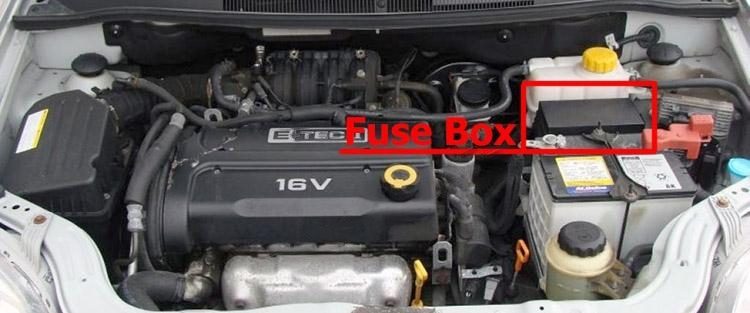

The location of the fuses in the engine compartment: Chevrolet Aveo (2007-2011)
The location of the fuses in the engine compartment: Chevrolet Aveo (2007-2011)

Fuse Box Diagrams

2007, 2008 (Hatchback)

Instrument Panel

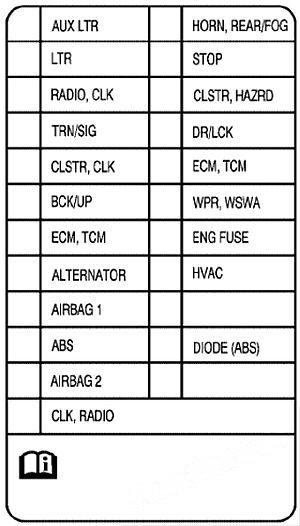

Instrument panel fuse box diagram: Chevrolet Aveo (Hatchback) (2007, 2008)
Instrument panel fuse box diagram: Chevrolet Aveo (Hatchback) (2007, 2008)

Assignment of the fuses in the instrument panel (2007, 2008 (Hatchback))

NameUsage
AUX LTRAuxiliary Cigarette Lighter
HORN, REAR/FOGHorn, Rear Fog Lamps
LTRCigarette Lighter
STOPStop Lamp
RADIO, CLKAudio, Clock
CLSTR, HAZRDInstrument Panel Cluster, Hazard Flasher
TRN/SIGTurn Signal
DR/LCKDoor Lock, Remote Keyless Entry
CLSTR, CLKInstrument Panel Cluster, Clock
ECM, TOMEngine Control Module (ECM), Transmission Control Module (TCM)
BCK/UPBack-Up Lamp
WPR, WSWAWiper, Washer
ECM, TOMEngine Control Module (ECM), Transmission Control Module (TCM)
ENG FUSEEngine Fuse
ALTERNATORAlternator
HVACHVAC Blower
AIRBAG 1Airbag 1
BLANKNot Used
ABSAntilock Brake System
DIODE (ABS)Antilock Brake System Diode
AIRBAG 2Airbag 2
BLANKNot Used
CLK, RADIOClock, Audio
Engine Compartment

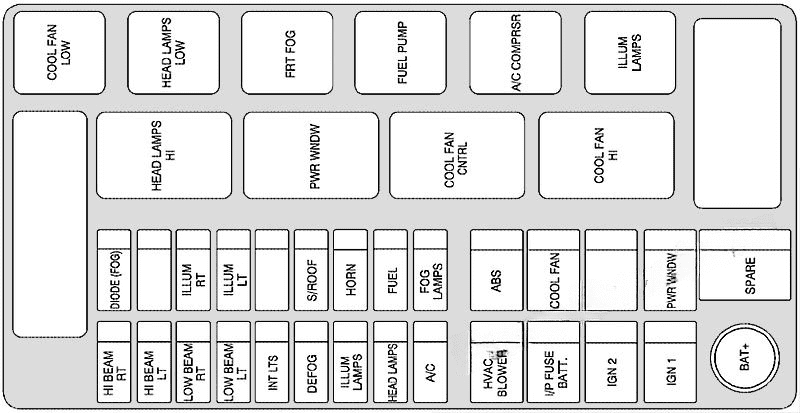

Under-hood fuse box diagram: Chevrolet Aveo (Hatchback) (2007, 2008)
Under-hood fuse box diagram: Chevrolet Aveo (Hatchback) (2007, 2008)

Assignment of the fuses and relay in the engine compartment (2007, 2008 (Hatchback))

NameUsage
HI BEAM RTPassenger Side High Beam Headlamp
DISDirect Ignition System
HI BEAM LTDriver Side High Beam Headlamp
DIODE (FOG)Fog Lamp Diode
LOW BEAM RTPassenger Side Low Beam Headlamp
ILLUM RTParking Lamp Right Side, Illumination Circuit
LOW BEAM LTDriver Side Low Beam Headlamp
ILLUM LTDriver Side Parking Lamp, License Plate Lamp
INT LTSRoom Lamp
INJECTORInjector
DEFOGDefogger
S/ROOFSunroof
ILLUM LAMPSIllumination Relay
HORNHorn
HEAD LAMPSHeadlamps
FUELFuel Pump
A/CAir Conditioning Compressor
FOG LAMPSFront Fog Lamp
HVAC BLOWERHeating : Ventilation, Air Conditioning Blower
ABSAnti lock Brake System
I/P FUSE BATTInstrument Panel Fuse Box
COOL FANRadiator Fan
IGN 2Ignition 2
BLANKBlank
IGN 1Ignition 1
PWR WNDWPower Windows
SPARESpare
Relays
BLANKNot Used
COOL FAN LOWCooling Fan Low
HEAD LAMPS HIHigh Beam Headlamp
HEAD LAMPS LOWLow Beam Headlamp
PWR WNDWPower Window
FRT FOGFog Lamp
MAIN POWERMain Power
FUEL PUMPFuel Pump
A/C COMPRSRAir Conditioning Compressor
COOL FAN HICooling Fan High
ILLUM LAMPSIllumination Lamps
BLANKNot Used

2007, 2008 (Sedan)

Instrument Panel

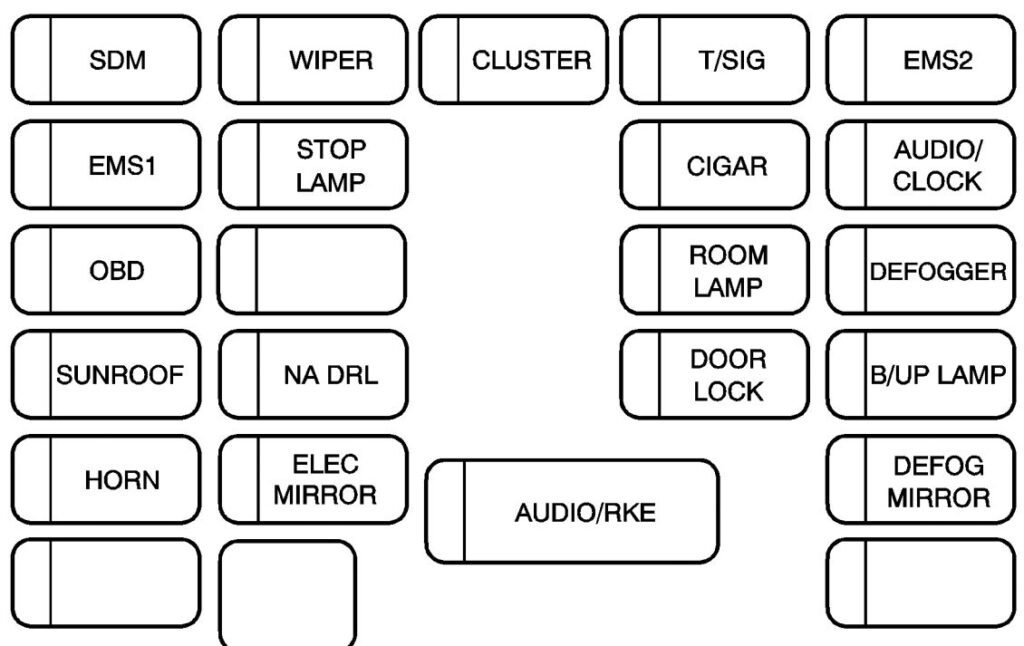

Instrument panel fuse box diagram: Chevrolet Aveo (Sedan) (2007, 2008)
Instrument panel fuse box diagram: Chevrolet Aveo (Sedan) (2007, 2008)

Assignment of the fuses in the instrument panel (2007, 2008 (Sedan))

NameUsage
SDMSensing and Diagnostic Module
WIPERWindshield Wiper Switch, Windshield Wiper Motor
CLUSTERInstrument Panel Cluster, Brake Switch, Anti-theft Mode
T/SIGTurn Signal, Hazard Switch
EMS2Stoplamp Switch
EMS1Engine Room Fuse Block, Rear H02S, Transaxle Control Module, VSS, Fuel Pump
STOP LAMPBrake Switch
CIGARCigarette Lighter, Auxiliary Power Outlet
AUDIO/CLOCKRadio, Clock
OBDOn-Board Diagnostics, Immobilizer
ROOM LAMPTrunk Lamp, Trunk Open Switch, Cluster, Dome Lamp
DEFOGGERRear Defogger
SUNROOFSunroof Module (Option)
DRLDaytime Running Lamps
DOOR LOCKDoor Lock/Unlock
B/UP LAMPBack-up Lamps
HORNHorn
ELEC MIRRORMirror Control Switch, Dome Lamp, Air Conditioning Switch
AUDIO/RKERadio, Remote Keyless Entry, Clock, Power Mirror Unit, Anti-Theft Module
DEFOG MIRRORPower Mirror Unit, Air Conditioning Switch
BLANKNot Used
BLANKNot Used
BLANKNot Used
Engine Compartment

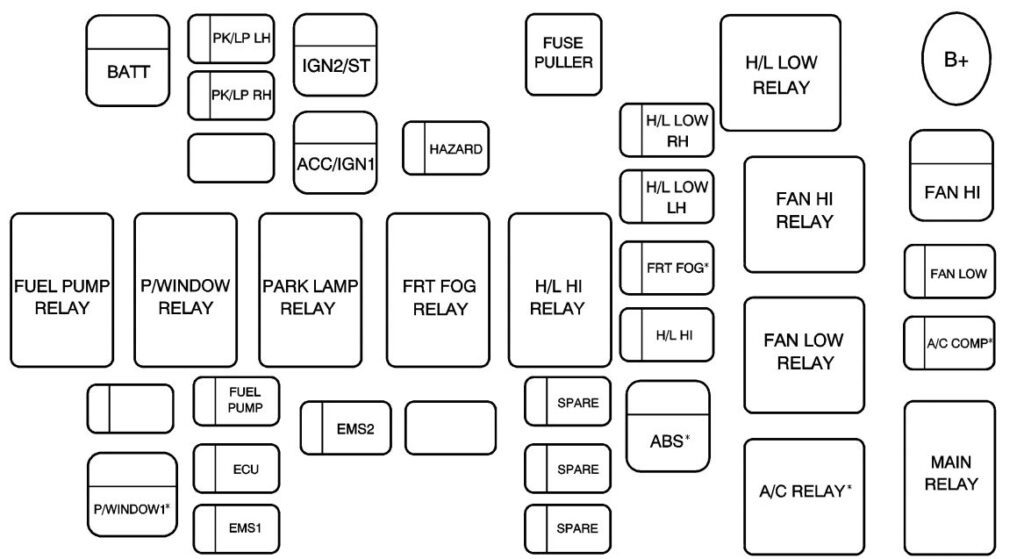

Under-hood fuse box diagram: Chevrolet Aveo (Sedan) (2007, 2008)
Under-hood fuse box diagram: Chevrolet Aveo (Sedan) (2007, 2008)

Assignment of the fuses and relay in the engine compartment (2007, 2008 (Sedan))

NameUsage
BATTInstrument Panel Fuse Block
PK/LP LHDriver Side Parking Lamp : Taillamp
PK/LP RHPassenger Side Parking Lamp ; Taillamp
IGN2/STIgnition Switch
ACC/IGN1Ignition Switch
HAZARDHazard Lamps. Theft-Deterrent System
H/L LOW RHPassenger Side Low-Beam Headlamp
FAN HICooling Fan High Speed
H/L LOW LHDriver Side Low-Beam Headlamp
FRT FOGFront Fog Lamps (Option)
FAN LOWCooling Fan Low Speed
H/L HIHigh-Beam Headlamps
A/C COMPAir Conditioning Compressor (Option)
FUEL PUMPFuel Pump
SPARESpare
ABSAntilock Brake System (Option)
EMS2LEGR Valve, HO2S, EVAP Canister Purge Solenoid, CMP Sensor
P/WINDOW1Power Window Switch (Option)
ECUEngine Control Module, Transmission Control Module
SPARESpare
EMS1Engine Control Module, Injector, Cooling Fan. Air Conditioning Compressor
SPARESpare
Relays
H/L LOW RELAYLow-Beam Headlamp Relay
FAN HI RELAYCooling Fan High Speed Relay
FUEL PUMP RELAYFuel Pump Relay
P/WINDOW RELAYPower Window Relay
PARK LAMP RELAYParking Lamp Relay
FRT FOG RELAYFront Fog Lamps Relay
H/L HI RELAYHigh-Beam Headlamp Relay
FAN LOW RELAYCooling Fan Low Speed Relay
A/C RELAYAir Conditioning Relay (Option)
MAIN RELAYMain Relay

2009, 2010, 2011

Instrument Panel

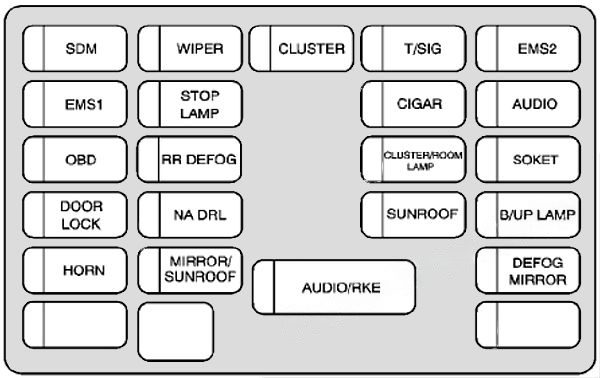

Instrument panel fuse box diagram: Chevrolet Aveo (2009, 2010, 2011)
Instrument panel fuse box diagram: Chevrolet Aveo (2009, 2010, 2011)

Assignment of the fuses in the instrument panel (2009, 2010, 2011)

NameUsage
AUDIOAudio, Clock, Immobilizer
AUDIO/RKEA/C Switch, Clock, Power Mirror Unit, Audio, Anti-Theft Module, TPMS
B/UP LAMPPNP Switch, Reverse Lamp Switch
BLANKNot Used
BLANKNot Used
BLANKNotUsed
BLANKNotUsed
CIGARCigar Lighter
CLUSTERBrake Switch, TPMS, Anti-Theft Module
DEFOG MIRRORPower Mirror Unit, A/C Switch
RR DEFOGRear Defog
DOOR LOCKDoor Lock
NA DRLNA DRL Circuit
MIRROR/ SUNROOFMirror Control Switch, Room Lamp, A/ C Switch
EMS 1Engine Room Fuse Block, TCM, VSS, Fuel Pump
EMS 2Stop lamp Switch
HORNHorn
OBDDLC, Immobilizer
CLUSTER/ ROOM LAMPTrunk Room Lamp, Trunk Open Switch, IPC, Room Lamp
SDMSensing and Diagnostic Module
SOKETPower Jack
STOP LAMPBrake Switch
SUNROOFSunroof Module (Option)
T/SIGHazard Switch
WIPERWiper Switch, Wiper Motor
Engine Compartment

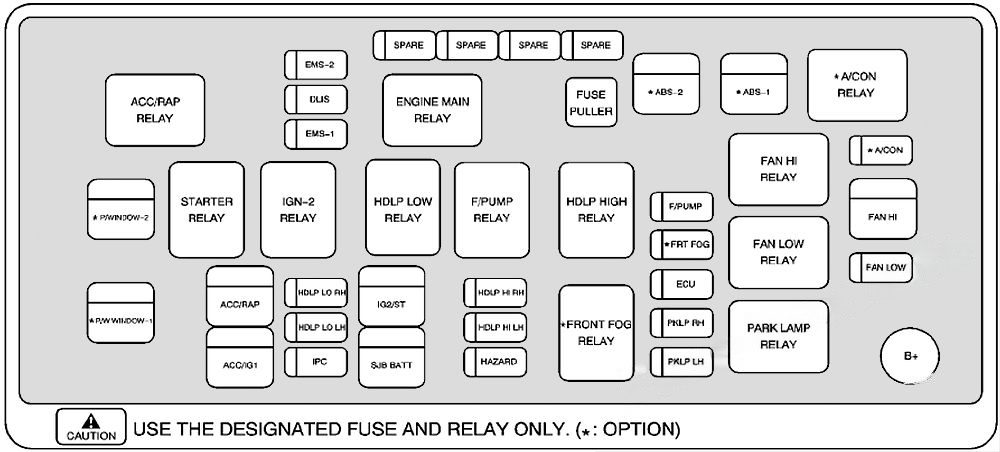

Under-hood fuse box diagram: Chevrolet Aveo (2009, 2010, 2011)
Under-hood fuse box diagram: Chevrolet Aveo (2009, 2010, 2011)

Assignment of the fuses and relay in the engine compartment (2009, 2010, 2011)

NameUsage
FAN HICooling Fan HI Relay
ABS-1EBCM
ABS-2EBCM
SJB BATTInstrument Panel Fuse Block
ACC/IG1IGN1 Relay
IG2/STIGN2 Relay, Starter Relay
ACC/RAPInstrument Panel Fuse Block
P/WINDOW-2Power Window Switch
P/W WINDOW-1Power Window Switch
FAN LOWCooling Fan LOW Relay
A/CONA/C Compressor Relay
PKLP LHTail Lamp (LH), Side Marker (LH), Turn Signal & Parking Lamp (LH), License Lamp
PKLP RHTail Lamp (RH), Side Marker (RH), Turn Signal & Parking Lamp (RH), License Lamp, I/P Fuse Block
ECUECM, TCM
FRT FOGFront Fog Lamp Relay
F/PUMPFuel Pump Relay
HAZARDHazard Switch, Hood Contact Switch
HDLP HI LHHead Lamp (LH), IPC
HDLP HI RHHead Lamp (RH)
IPCIPC
HDLP LO LHHead Lamp (LH), I/P Fuse Block
HDLP LO RHHead Lamp (RH)
EMS-1ECM, Injector
DLISIgnition Switch
EMS-2EVAP Canister Purge Solenoid, Thermostat Heater, H02S, MAF Sensor
SPARENot Used
Relays
F/PUMP RELAYFuel Pump
STARTER RELAYStarter
PARK LAMP RELAYPark Lamp
FRONT FOG RELAYFog Lamp
HDLP HIGH RELAYHead Lamp High
HDLP LOW RELAYHead Lamp Low
FAN HIGH RELAYCooling Fan High
FAN LOW RELAYCooling Fan Low
A/CON RELAYAir Conditioner
ENGINE MAIN RELAYMain Power
ACC/RAP RELAYI/P Fuse Block
IGN-2 RELAYIgnition

Conclusion

For owners and enthusiasts of classic Chevrolet Aveo 2007-2011, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
