The Citroën C3 Picasso (2009-2016) is a compact MPV known for its distinctive boxy shape and spacious interior, designed to maximize practicality in urban settings. This model comes with a high roofline, large windows, and a versatile seating arrangement, which makes it ideal for both city driving and long trips. A notable feature of the C3 Picasso is its robust electrical system, which powers various comfort and safety features like the infotainment system, climate control, and lighting.
The car’s electrical components are managed by the fuse box and relay, located in the engine compartment and the cabin. These components ensure that systems operate efficiently, and in case of electrical malfunctions, checking the fuses and relays is essential to troubleshoot and resolve any issues.
MUST READ: DYI – How to Check Car Fuses?
(2009-2016) Citroën C3 Picasso fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C3 Picasso 2009-2016 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C3 Picasso is the fuse F9 in the Instrument panel fuse box.
Year of production: from 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Dashboard fuse box

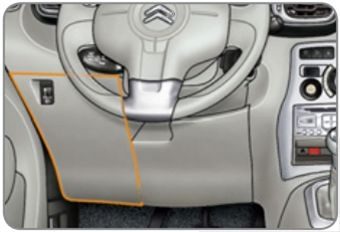

Fuse box location

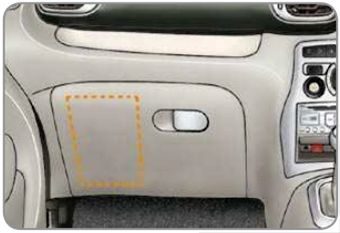

Left-hand drive vehicles: the fusebox is placed in the lower dashboard (left-hand side).

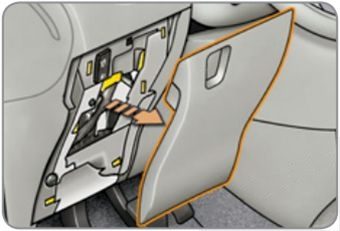

Unclip the cover by pulling on the side, remove the cover completely.

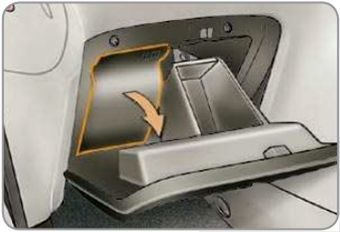

Right-hand drive vehicles: the fusebox is located in the glove box.
Open the glove box, unclip the cover by pulling on the side, remove the cover completely.

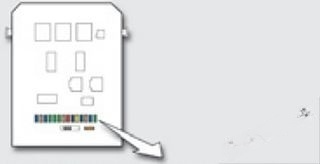

Fuse box diagram
Assignment of the fuses in the Dashboard Fuse box
| N° | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Steering wheel angle sensor, air conditioning, clutch switch, particle filter pump, diagnostic socket, airflow meter. |
| F5 | 30 A | Electric window switch panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric window motor and driver’s electric window motor. |
| F7 | 5 A | Courtesy and front map reading lamps, glove box lighting, torch, rear reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation radio. |
| F9 | 30 A | Audio system (aftermarket), 12 V socket. |
| F10 | 15 A | Steering wheel controls. |
| F11 | 15 A | Ignition, diagnostic socket. |
| F12 | 15 A | Rain / sunshine sensor, trailer relay unit. |
| F13 | 5 A | Main stop switch, engine relay unit. |
| F14 | 15 A | Parking assistance control unit, seat belt unfastened warning lamp, airbag control unit, instrument panel, air conditioning, USB Box. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and door mirrors demist/defrost. |
| SH | – | PARC shunt. |

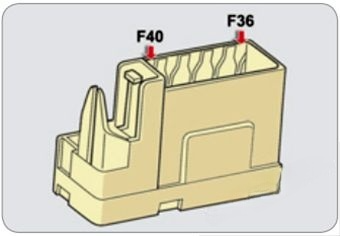

| FH36 | 5 A | Trailer relay unit. |
| FH37 | 15 A | Trailer accessories socket supply. |
| FH38 | 20 A | Aftermarket navigation. |
| FH39 | 20 A | Heated seats (except RHD) |
| FH40 | 30 A | Trailer relay unit. |
Engine compartment fuse box

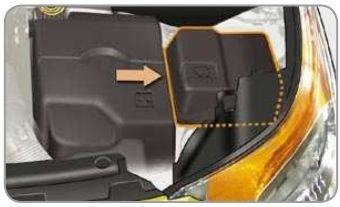

Fuse box location
It is located in the engine compartment near the battery (left-hand side).

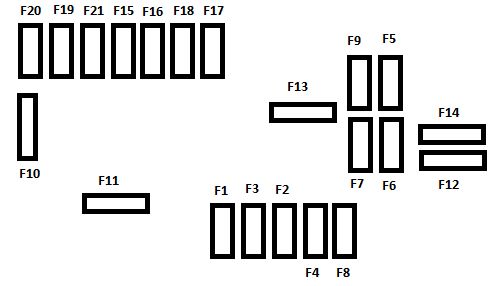

Fuse box diagram
Assignment of the fuses in the Engine compartment
| N° | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, cooling fan unit control, multifunction engine control main relay. |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front / rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel engine), fuel pump (petrol engine) |
| F6 | 10 A | ABS/ESP control unit, ABS/ESP cut-off relay, secondary stop switch. |
| F7 | 10 A | Electric power steering. |
| F8 | 25 A | Starter motor control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Diesel engine injection pump valve, injectors and ignition coils (petrol engine). |
| F11 | 40 A | Air conditioning fan. |
| F12 | 30 A | Windscreen wipers slow / fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (petrol). |
| F15 | 10 A | Right-hand main beam headlamp. |
| F16 | 10 A | Left-hand main beam headlamp. |
| F17 | 15 A | Left-hand dipped beam headlamp. |
| F18 | 15 A | Right-hand dipped beam headlamp. |
| F19 | 15 A | Multifunction engine management supply (petrol engine), air cooling electrovalves (Diesel). |
| F20 | 10 A | Multifunction engine management supply (petrol engine), Turbo pressure regulation electrovalve (Diesel), engine coolant level sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, APC, ABS ESP relays. |
| MF1* | 60 A | Cooling fan assembly. |
| MF2* | 30 A | ABS / ESP control unit. |
| MF3* | 30 A | ABS / ESP control unit. |
| MF4* | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5* | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6* | – | Not used. |
| MF7* | – | Passenger compartment fusebox. |
| MF8* | – | Not used. |
| * The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop. |
Conclusion
For owners and enthusiasts of classic Citroën C3 Picasso 2009-2016, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
