The Citroën DS4 (2011-2018) offers a distinct blend of sporty hatchback and compact crossover body styles, with bold styling and elevated features. Notable body styles include the 5-door hatchback and the crossover-inspired DS4 Crossback. Both variations feature a high driving position, sleek lines, and premium materials.

The electrical system in the DS4 plays a key role in powering its range of tech features, from advanced infotainment to safety systems. Central to this system are the fuse box and relays, which manage and protect critical components. The fuse box is typically located in the engine bay and interior, safeguarding circuits for features like lights, wipers, and HVAC controls. Regular inspection of these components ensures consistent performance of all electrical features.

MUST READ: DYI – How to Check Car Fuses?

(2011-2018) Citroën DS4 fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Citroën DS4 2011-2018 fuse assignment

  • Cigar lighter (power outlet) fuses in the Citroen DS4 are the fuses F13 (Cigarette lighter), F14 (12 V socket in boot), F36 (Rear 12 V socket) and F40 (230V/50Hz socket) in the Instrument panel fuse box.

Year of production: from 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Dashboard fuse box

Fuse box location

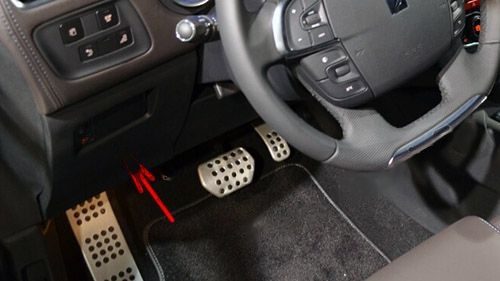

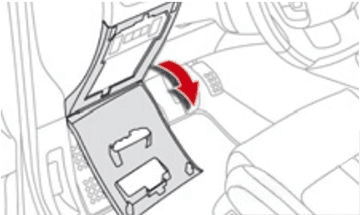

The location of the fuses in the passenger compartment (LHD): Citroen DS4 (2011-2018)

Left-hand drive vehicles:

The fuse boxes are located in the lower dashboard (left-hand side).

Citroen DS4 2011 2018 2018032214094814

Unclip the cover by pulling at the top right, then left, disengage the cover completely and turn it over.

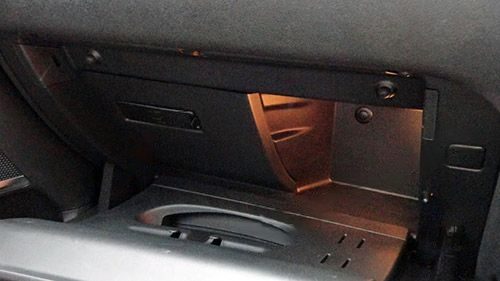

The location of the fuses in the passenger compartment (RHD): Citroen DS4 (2011-2018)

Right-hand drive vehicles:

The fuseboxes are located in the lower dashboard (left-hand side).

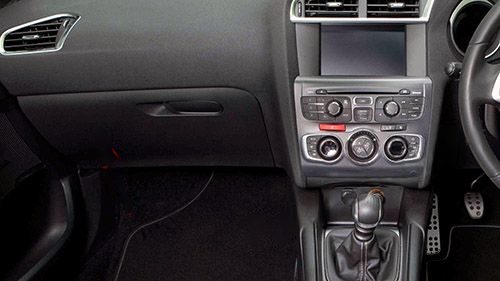

The location of the fuses in the passenger compartment (RHD): Citroen DS4 (2011-2018)
Citroen DS4 2011 2018 20180322141017946

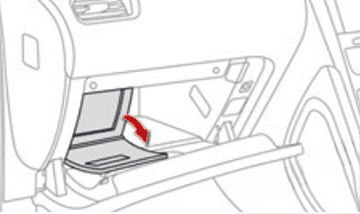

Open the glove box lid, unclip the carrier on the fusebox cover by pulling on the right, open the fusebox cover by pulling at top right, fold down completely the fusebox cover.

Fuse box diagram

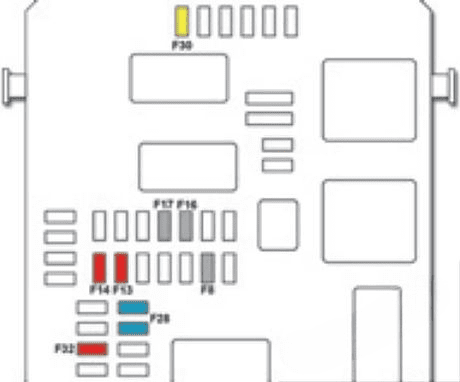

Instrument panel fuse box diagram: Citroen DS4 (2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)
Citroen DS4 2011 2018 20180322140957720

Assignment of the fuses in the Dashboard Fuse box

RatingFunctions
Fusebox 1:
F83 AAlarm siren, alarm ECU.
F1310 ACigarette lighter.
F1410 A12 V socket in boot.
F163 ALighting for the large multifunctional storage unit, rear map reading lamps, glove box illumination.
F173 ASun visor illumination, front map reading lamps.
F2815 AAudio system, radio (after-market).
F3020 ARear wiper.
F3210 AHi-Fi amplifier.
Fusebox 2:
F3615 ARear 12 V socket.
F37Not used.
F38Not used.
F39Not used.
F4025 A230 V/50 Hz socket (except RHD)

Engine compartment fuse box

Fuse box location

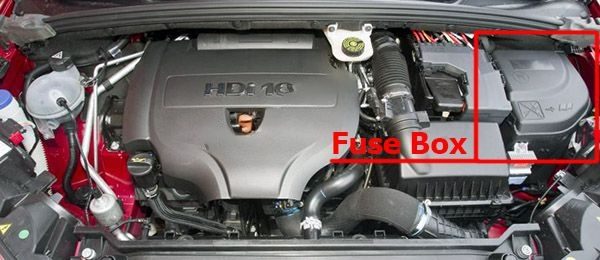

The location of the fuses in the engine compartment: Citroen DS4 (2011-2018)

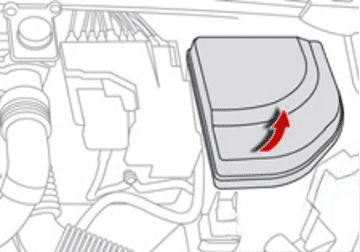

It is placed in the engine compartment near the battery (left-hand side).

Citroen DS4 2011 2018 20180322141004745

Fuse box diagram

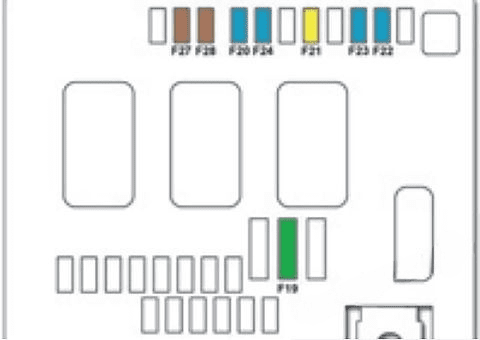

Under-hood fuse box diagram: Citroen DS4 (2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)

Assignment of the fuses in the Engine compartment

RatingFunctions
F1930 AWindscreen wipers slow/fast speed.
F2015 AFront and rear screenwash pump.
F2120 AHeadlamp wash pump.
F2215 AHorn.
F2315 ARight-hand main beam headlamp.
F2415 ALeft-hand main beam headlamp.
F275 ALeft-hand dipped headlamp.
F285 ARight-hand dipped headlamp.

Conclusion

For owners and enthusiasts of classic Citroën DS4 2011-2018, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
