(1999-2004) Chevrolet Tracker fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Tracker 1999-2004 fuse assignment

  • Cigar lighter (power outlet) fuses in the Chevrolet Tracker are located in the Instrument panel fuse box (see fuse “CIG”) and in the Engine Compartment Fuse Box (see fuses №. 1 and №7).

Year of production: from 1999, 2000, 2001, 2002, 2003, 2004

Instrument Panel Fuse Box

Fuse box location

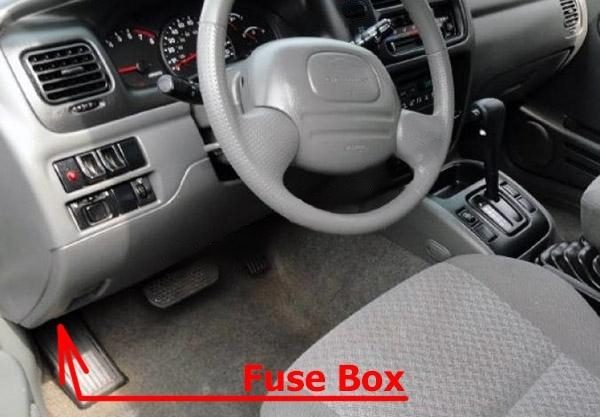

The location of the fuses in the passenger compartment: Chevrolet Tracker (1999-2004)
The location of the fuses in the passenger compartment: Chevrolet Tracker (1999-2004)

It is located under the left side of the instrument panel.

Fuse box diagram

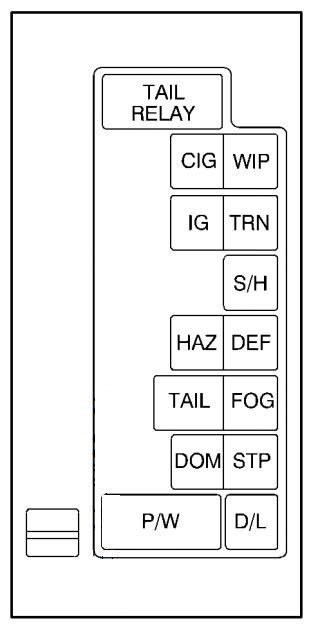

Instrument panel fuse box diagram: Chevrolet Tracker (1999, 2000, 2001, 2002, 2003, 2004)
Instrument panel fuse box diagram: Chevrolet Tracker (1999, 2000, 2001, 2002, 2003, 2004)

Assignment of the fuses in the Instrument Panel

NameUsage
P/WPower Windows
DOM1999-2001: Dome Light
2002-2004: Dome Light, Radio Memory
TAILLicense Plate Light, Clearance/Marker Lights, Instrument Panel Illumination, Warning Tone
HAZ1999-2001: Hazard Lights
2002-2004: Hazard Lights, Turn Signal
IGOxygen Sensor Heater, Cruise Control, Ignition Coil, Meter, G Sensor
CIGCigar/Cigarette Lighter, Radio, Power Mirror
D/LDoor Locks
STPBrake Light, Horn, Center High-Mounted Stop Lamp, Cruise Control
FOGNot Used
DEF1999-2001: Rear Window Defogger, DRL
2002-2004: Rear Window Defogger, DRL, Heater, Air Conditioning
S/HNot Used
TRN1999-2001: Turn Signal, Back-Up Light
2002-2004: Turn Signal, Back-Up Light, Hazard Lights
WIPWindshield Wiper/Washer, Rear Window Wiper/Washer
* Fuses for the air bags and the heater/air conditioning system are located next to the instrument panel fuse block

Engine Compartment Fuse Box

Fuse box location

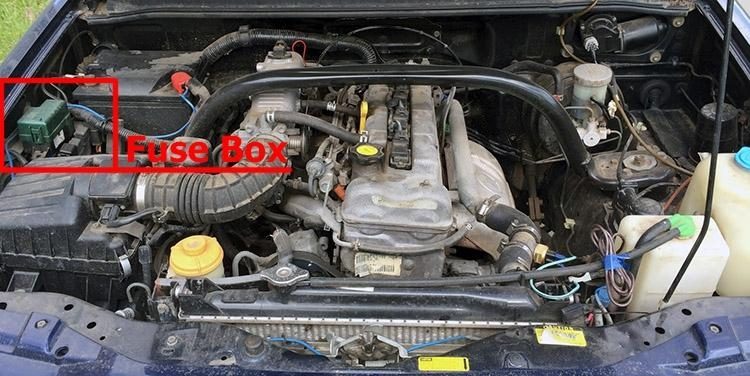

The location of the fuses in the engine compartment: Chevrolet Tracker (1999-2004)
The location of the fuses in the engine compartment: Chevrolet Tracker (1999-2004)

It is located in the engine compartment on the passenger side (relays are located next to the fuse box).

Fuse box diagram

Under-hood fuse box diagram: Chevrolet Tracker (1999, 2000, 2001, 2002, 2003, 2004)
Under-hood fuse box diagram: Chevrolet Tracker (1999, 2000, 2001, 2002, 2003, 2004)

Assignment of the fuses and relays in the Engine Compartment

Usage
1Accessory Power Outlet
2Electronic Fuel Injection System
3Right Headlamp
4Left Headlamp, High-Beam Indicator
5Heater
6Hazard Lamps, Rear Combination Lamps, Dome Light, Horn
7Cigar Lighter, Radio, I.G., Meter, Wiper, Washer, Rear Defroster, Turn Signals, Back-Up Lamps
8Anti-Lock Brake System
9All Electrical Loads
14Air Conditioning
Relays
10Shift Lock
11Horn (2.5L Engine Only)
12Air Conditioning Compressor
13Air Conditioning Condenser Fan

Conclusion

For owners and enthusiasts of classic Chevrolet Tracker 1999-2004, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
