The Chery Tiggo, produced between 2011 and 2014, is a compact SUV that gained recognition for its affordability, practicality, and range of features. The electrical system of the Chery Tiggo, including the fuse box and relay components, is integral to the vehicle’s operation and reliability.
Fuse Box in the Chery Tiggo (2011-2014)
The fuse box in the Chery Tiggo from 2011 to 2014 houses various fuses that are designed to protect the vehicle’s electrical circuits. These circuits power essential components such as the engine control module, lighting systems, climate control, infotainment features, and other electrical accessories. Each fuse is intended to interrupt the electrical flow in the event of an overload or short circuit, thus preventing damage to sensitive components.
Typically located under the dashboard or in the engine compartment, the fuse box includes a diagram that helps identify the function of each fuse. This diagram makes it easier for owners and technicians to replace fuses as needed. Regular inspection of the fuse box ensures that all electrical components function correctly and helps prevent potential electrical issues.
Relays in the Chery Tiggo (2011-2014)
Relays in the Chery Tiggo act as electrically operated switches that control high-current circuits. These relays are crucial for the precise operation of various vehicle functions, such as the starter motor, fuel pump, air conditioning compressor, power windows, and other high-power electrical accessories. By managing the power flow to these components, relays help ensure efficient and reliable operation.
Relays are generally located near the fuse box, either in the engine compartment or under the dashboard. They are designed to handle higher current loads than regular fuses, making them essential for high-power applications. Ensuring that relays are functioning correctly is critical for maintaining the overall electrical health of the vehicle.
Maintenance and Troubleshooting
Regular maintenance and inspection of the fuse box and relays are necessary to ensure the smooth operation of the Chery Tiggo from 2011 to 2014. This includes checking for blown fuses, inspecting relays for signs of wear or failure, and replacing any damaged components promptly. Proper maintenance helps prevent electrical issues that could affect the vehicle’s performance and safety.
Common Electrical Issues
Owners of the Chery Tiggo should be vigilant about common electrical issues that may arise, such as blown fuses, faulty relays, and corroded connections. Addressing these issues early can prevent more significant problems and ensure the vehicle remains reliable.
MUST READ: DYI – How to Check Car Fuses?
(2011-2014) Chery Tiggo fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chery Tiggo 2011-2014 fuse assignment
Year of production: 2011, 2012, 2013, 2014
Passenger Compartment Fuse Box

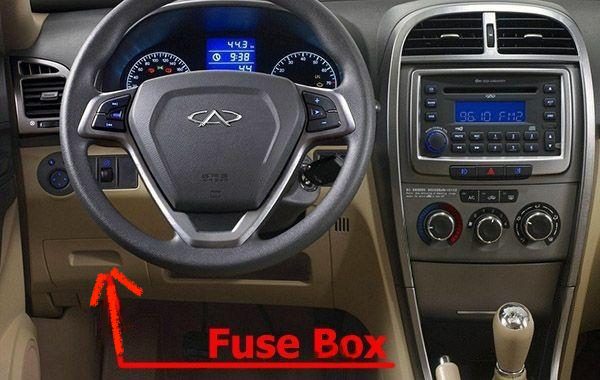

Fuse Box Location
The fuse box is located at left front part of driver cab, under the instrument and fixed onto cross beam of instrument panel.
- Turn off all electric devices.
- Disconnect the battery negative wiring harness from the negative pole.
- Open the instrument panel left lower panel and you can see fuses and relays. There are 8 spare fuses on the fuse box cover (2*15A; 2*5A; 3*10A and one 30A).

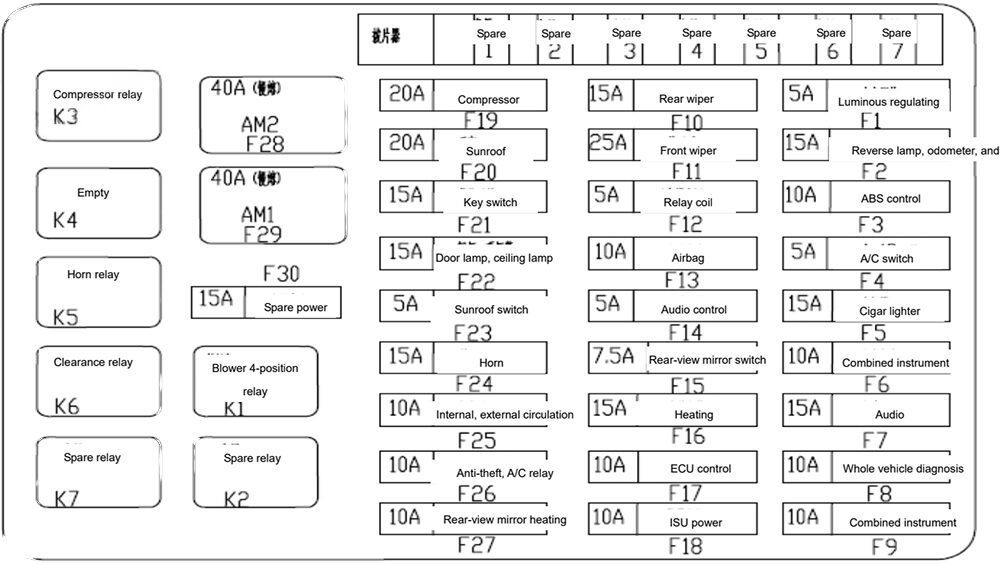

Fuse Box Diagram
Engine Compartment Fuse Box

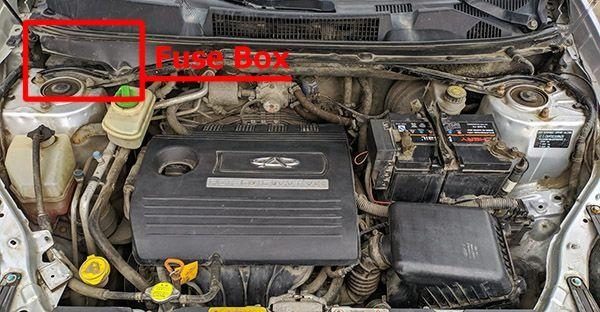

Fuse Box Location
The fuse box is located at right rear part in engine compartment; below the windshield trim panel.
- Turn off all electric devices.
- Disconnect the battery negative wiring harness from the negative pole.
- Use screwdriver to remove the fixing plastic clip of right front windshield trim plate (5 units)
- Remove the upper cover of engine compartment fuse box (both ends have metal clip), and then you can see fuses and relays.

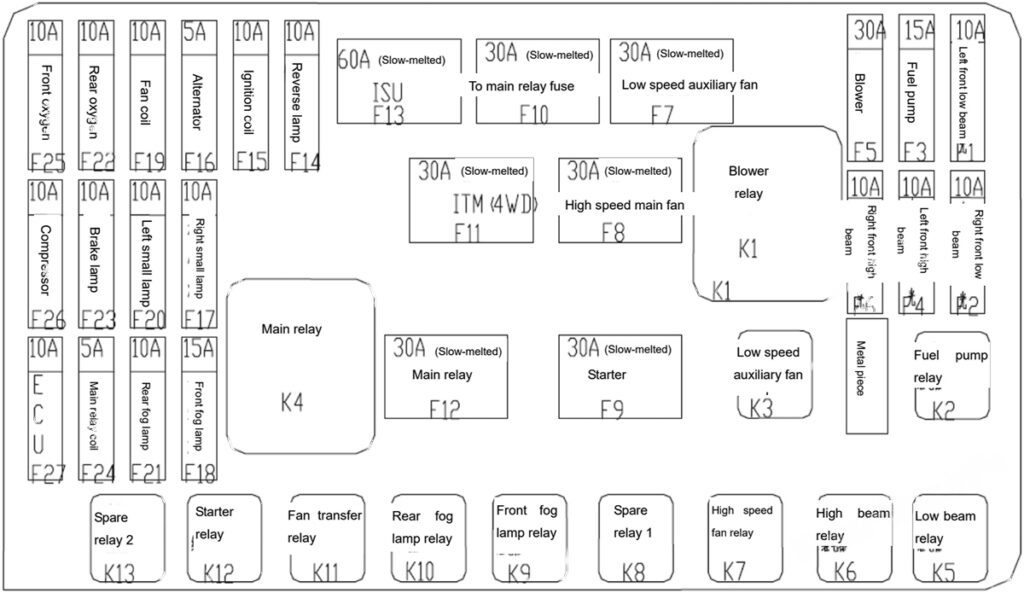

Fuse Box Diagram
Conclusion
The fuse box and relay components of the Chery Tiggo from 2011 to 2014 play a vital role in the vehicle’s electrical system. Proper maintenance and regular inspection of these components are essential for ensuring reliable operation and preventing electrical issues. By understanding the importance of the fuse box and relays, owners can maintain their vehicle’s performance and safety, enhancing the overall driving experience of the Chery Tiggo.
