Find the fuse box and relay locations for the GMC Envoy XL 2003-2006, with diagrams for easy reference. Ensure reliable performance of key electrical systems.

The GMC Envoy XL (2003-2006) is an extended-body version of the popular GMC Envoy, designed to offer increased interior space and seating for up to seven passengers. This extended body style makes it a practical choice for families or those needing extra cargo space. The Envoy XL is equipped with a range of electrical features that enhance convenience and safety, such as power windows, headlights, and climate control.

The fuse box and relays are crucial in maintaining these electrical systems. The primary fuse box is located under the hood on the driver’s side, while another may be found inside the cabin near the driver’s door. Relays, which control larger electrical loads like the starter and fuel pump, are housed in the same area. Regular inspection of the fuse box and relays is essential for reliable operation of the vehicle’s electronic functions.

MUST READ: DYI – How to Check Car Fuses?

(2003-2006) GMC Envoy XL fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Envoy XL 2003-2006 fuse assignment

GMC Envoy XL Year of production: 2003, 2004, 2005, 2006

Location of Fuse Boxes

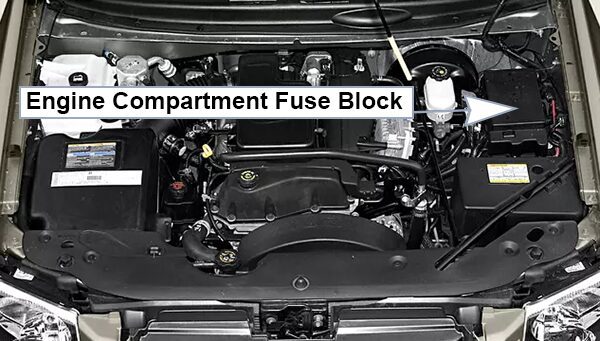

GMC Envoy XL (2003-2006): Engine compartment fuse box location

Engine Compartment Fuse Block:

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

To Access:

  1. Remove the primary cover by pressing the two locking tabs.
  2. Remove the secondary cover by snapping off while lifting.
  3. To reinstall the fuse panel cover, reverse the sequence.

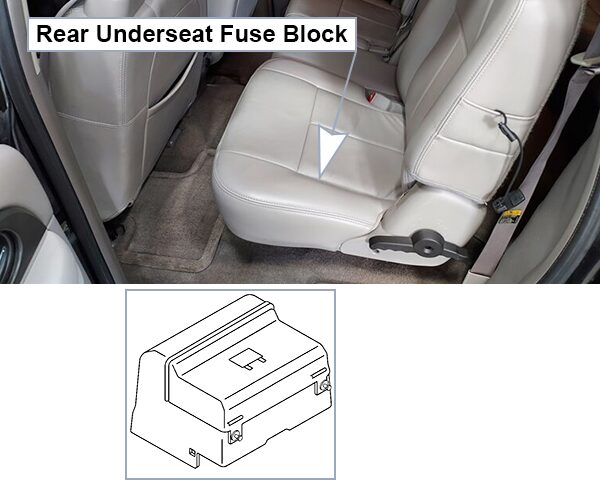

GMC Envoy XL (2003-2006): Passenger compartment fuse panel location

Rear Underseat Fuse Block:

The rear underseat fuse block is located under the rear seat on the driver’s side of the vehicle.


Fuse Box Diagrams

2003

Engine Compartment Fuse Block

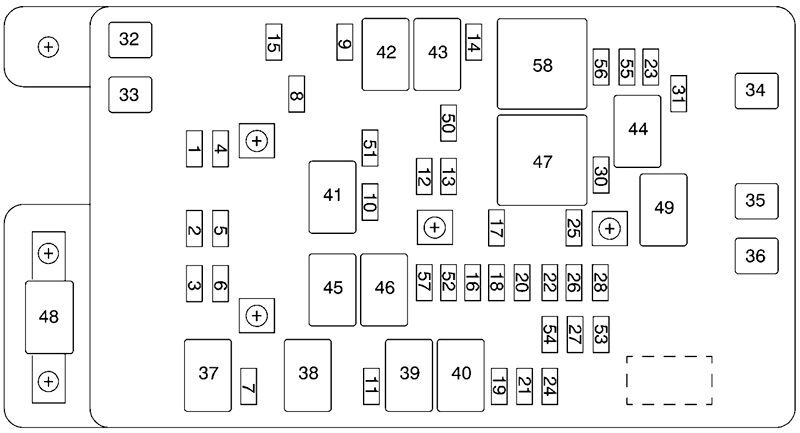

GMC Envoy XL (2003): Engine compartment fuse box diagram

List of fuses in the Engine Compartment Fuse Block (2003)

Usage
1Electrically-Controlled Air Suspension
2Passenger’s Side High-Beam Headlamp
3Passenger’s Side Low-Beam Headlamp
4Back-Up-Trailer Lamps
5Driver’s Side High-Beam Headlamp
6Driver’s Side Low-Beam Headlamp
7Wash
8Automatic Transfer Case
9Windshield Wipers
10Powertrain Control Module B
11Fog Lamps
12Stop Lamp
13Cigarette Lighter
14Ignition Coils
15Cannister Vent
16TBD-Ignition 1
17Crank
18Air Bag
19Electric Brake
20Cooling Fan
21Horn
22Ignition E
23Electronic Throttle Control
24Instrument Panel Cluster, Driver Information Center
25Automatic Shift Lock Control System
26Engine 1
27Back-Up
28Powertrain Control Module 1
30Air Conditioning
31Truck Body Controller 1
32Trailer
33Anti-Lock Brakes (ABS)
34Ignition A
35Blower Motor
36Ignition B
50Passenger’s Side Trailer Turn
51Driver’s Side Trailer Turn
52Hazard Flashers
53Oxygen Sensor Bank A
54Oxygen Sensor Bank B
55Injector Bank A
56Injector Bank B
Relays
37Headlamp Washer
38Rear Window Washer
39Fog Lamps
40Horn
41Fuel Pump
42Windshield Wipers/Washer
43High-Beam Headlamp
44Air Conditioning
45Cooling Fan
46Headlamp Driver Module
47Starter
58Ignition 1
Miscellaneous
48Instrument Panel Battery
Rear Underseat Fuse Block

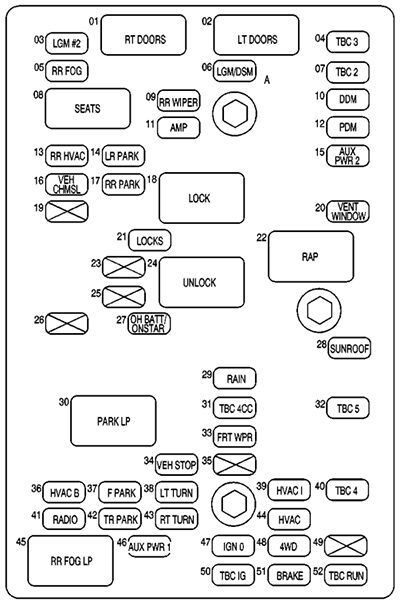

GMC Envoy XL (2003): Passenger compartment fuse panel diagram

List of fuses in the Rear Underseat Fuse Block (2003)

Usage
01Right Door Control Module
02Left Door Control Module
03Liftgate Module 2
04Truck Body Controller 3
05Rear Fog Lamps
06Liftgate Module / Driver Seat Module
07Truck Body Controller 2
08Power Seats
09Rear Wiper
10Driver Door Module
11Amplifier
12Passenger Door Module
13Rear Climate Controls
14Left Rear Parking Lamps
15Auxiliary Power 2
16Vehicle Center High-Mounted Stop Lamp
17Right Rear Parking Lamps
18Locks
19Blank
20Vent Window
21Lock
22Retained Accessory Power
23Blank
24Unlock
25Blank
26Blank
27OH Battery / OnStar System
28Sunroof
29Rainsense Wipers
30Parking Lamps
31Truck Body Controller 4 Cruise Control
32Truck Body Controller 5
33Front Wipers
34Vehicle Stop
35Blank
36Heat Ventilation Air Conditioning B
37Front Parking Lamps
38Left Turn Signal
39Heat Ventilation Air Conditioning 1
40Truck Body Controller 4
41Radio
42Trailer Park
43Right Turn Signal
44Heat Ventilation Air Conditioning
45Rear Fog Lamps
46Auxiliary Power 1
47Ignition 0
48Four-Wheel Drive
49Blank
50Truck Body Controller Ignition
51Brakes
52Truck Body Controller Run

2004

Engine Compartment Fuse Block
GMC Envoy XL (2004): Engine compartment fuse box diagram

List of fuses in the Engine Compartment Fuse Block (2004)

Usage
1Electrically-Controlled Air Suspension
2Passenger’s Side High-Beam Headlamp
3Passenger’s Side Low-Beam Headlamp
4Back-Up-Trailer Lamps
5Driver’s Side High-Beam Headlamp
6Driver’s Side Low-Beam Headlamp
7Rear Window Washer, Headlamp Washer
8Active Transfer Case
9Windshield Washer
10Powertrain Control Module B
11Fog Lamps
12Stop Lamp
13Cigarette Lighter
14Ignition Coils
15Canister Vent
16TBC-Ignition 1
17Crank
18Air Bag
19Trailer Electric Brake
20Cooling Fan
21Horn
22Ignition E
23Electronic Throttle Control
24Instrument Panel Cluster, Driver Information Center
25Automatic Shift Lock Control System
26Backup
27Engine 1
28Powertrain Control Module 1
30Air Conditioning
31Truck Body Controller 1
32Trailer
33Anti-Lock Brakes (ABS)
34Ignition A
35Blower Motor
36Ignition B
50Passenger’s Side Trailer Turn
51Driver’s Side Trailer Turn
52Hazard Flashers
53Oxygen Sensor Bank B
54Oxygen Sensor Bank A
55Injector Bank A
56Injector Bank B
57Electric Adjustable Pedal
Relays
37Headlamp Washer
38Rear Window Washer
39Fog Lamps
40Horn
41Fuel Pump
42Windshield Washer
43High-Beam Headlamp
44Air Conditioning
45Cooling Fan
46Headlamp Driver Module
47Starter
49Electric Adjustable Pedal
58Ignition 1
Miscellaneous
48Instrument Panel Battery
Rear Underseat Fuse Block
GMC Envoy XL (2004): Passenger compartment fuse panel diagram

List of fuses in the Rear Underseat Fuse Block (2004)

Usage
01Right Door Control Module
02Left Door Control Module
03Liftgate Module 2
04Truck Body Controller 3
05Rear Fog Lamps
06Blank
07Truck Body Controller 2
08Power Seats
09Rear Wiper
10Driver Door Module
11Amplifier
12Passenger Door Module
13Rear Climate Controls
14Left Rear Parking Lamps
15Blank
16Vehicle Center High-Mounted Stop Lamp
17Right Rear Parking Lamps
18Locks
19Liftgate Module / Driver Seat Module
20Vent Window
21Lock
22Retained Accessory Power
23Blank
24Unlock
25Blank
26Blank
27OH Battery / OnStar System
28Sunroof
29Rainsense Wipers
30Parking Lamps
31Truck Body Controller Accessory
32Truck Body Controller 5
33Front Wipers
34Vehicle Stop
35Blank
36Heat Ventilation Air Conditioning B
37Front Parking Lamps
38Left Turn Signal
39Heat Ventilation Air Conditioning 1
40Truck Body Controller 4
41Radio
42Trailer Park
43Right Turn Signal
44Heat Ventilation Air Conditioning
45Rear Fog Lamps
46Auxiliary Power 1
47Ignition 0
48Four-Wheel Drive
49Blank
50Truck Body Controller Ignition
51Brakes
52Truck Body Controller Run

2005

Engine Compartment Fuse Block

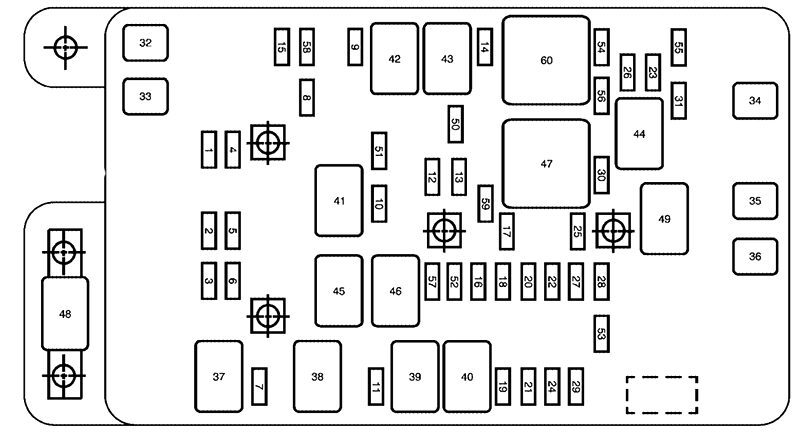

GMC Envoy XL (2005): Engine compartment fuse box diagram

List of fuses in the Engine Compartment Fuse Block (2005)

Usage
1Electrically-Controlled Air Suspension
2Passenger’s Side High-Beam Headlamp
3Passenger’s Side Low-Beam Headlamp
4Back-Up Trailer Lamps
5Driver’s Side High-Beam Headlamp
6Driver’s Side Low-Beam Headlamp
7Rear Window Washer, Headlamp Washer
8Active Transfer Case
9Windshield Washer
10Powertrain Control Module B
11Fog Lamps
12Stoplamp
13Cigarette Lighter
14Ignition Coils
15Canister Vent
16Truck Body Controller, Ignition 1
17Crank
18Airbag
19Trailer Electric Brake
20Cooling Fan
21Horn
22Ignition E
23Electronic Throttle Control
24Instrument Panel Cluster, Driver Information Center
25Automatic Shift Lock Control System
26Engine 1
27Backup
28Powertrain Control Module 1
29Powertrain Control Module
30Air Conditioning
31Injector Bank A
32Trailer
33Anti-Lock Brakes (ABS)
34Ignition A
35Blower Motor
36Ignition B
50Passenger’s Side Trailer Turn
51Driver’s Side Trailer Turn
52Hazard Flashers
53Transmission
54Oxygen Sensor Bank B
55Oxygen Sensor Bank A
56Injector Bank B
57Headlamp Driver Module
58Truck Body Controller 1
59Electric Adjustable Pedal
Relays
37Headlamp Washer
38Rear Window Washer
39Fog Lamps
40Horn
41Fuel Pump
42Windshield Washer
43High-Beam Headlamp
44Air Conditioning
45Cooling Fan
46Headlamp Driver Module
47Starter
49Electric Adjustable Pedal
60Powertrain
Miscellaneous
48Instrument Panel Battery
Rear Underseat Fuse Block

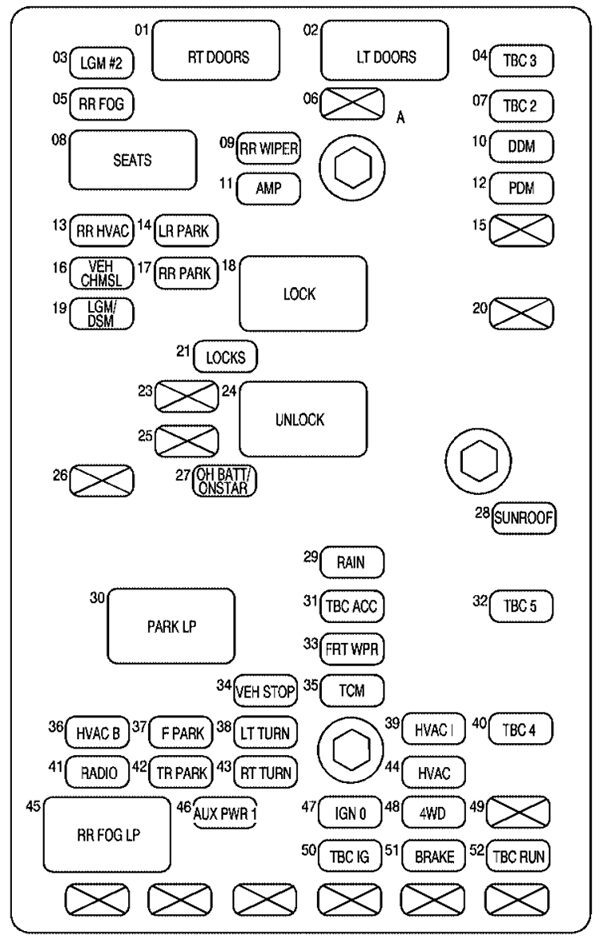

GMC Envoy XL (2005): Passenger compartment fuse panel diagram

List of fuses in the Rear Underseat Fuse Block (2005)

Usage
01Right Door Control Module
02Left Door Control Module
03Liftgate Module 2
04Truck Body Controllers
05Rear Fog Lamps
06Blank
07Truck Body Controller 2
08Power Seats
09Rear Wiper
10Driver Door Module
11Amplifier
12Passenger Door Module
13Rear Climate Controls
14Left Rear Parking Lamps
15Blank
16Vehicle Center High-Mounted Stop Lamp
17Right Rear Parking Lamps
18Locks
19Liftgate Module / Driver Seat Module
20Vent Window
21Lock
22Retained Accessory Power
23Blank
24Unlock
25Blank
26Blank
27OnStar Overhead Battery / OnStar System
28Sunroof
29Rainsense Wipers
30Parking Lamps
31Truck Body Controller Accessory
32Truck Body Controller 5
33Front Wipers
34Vehicle Stop
35Transmission Control Module
36Heat Ventilation Air Conditioning B
37Front Parking Lamps
38Left Turn Signal
39Heat Ventilation Air Conditioning 1
40Truck Body Controller 4
41Radio
42Trailer Park
43Right Turn Signal
44Heat Ventilation Air Conditioning
45Rear Fog Lamps
46Auxiliary Power 1
47Ignition 0
48Four-Wheel Drive
49Blank
50Truck Body Controller Ignition
51Brakes
52Truck Body Controller Run

2006

Engine Compartment Fuse Block
GMC Envoy XL (2006): Engine compartment fuse box diagram

List of fuses in the Engine Compartment Fuse Block (2006)

Usage
1Electrically-Controlled Air Suspension
2Passenger’s Side High-Beam Headlamp
3Passenger’s Side Low-Beam Headlamp
4Back-Up Trailer Lamps
5Driver’s Side High-Beam Headlamp
6Driver’s Side Low-Beam Headlamp
7Rear Window Washer, Headlamp Washer
8Active Transfer Case
9Windshield Washer
10Powertrain Control Module B
11Fog Lamps
12Stoplamp
13Cigarette Lighter
14Ignition Coils
15Canister Vent
16Truck Body Controller, Ignition 1
17Crank
18Airbag
19Trailer Electric Brake
20Cooling Fan
21Horn
22Ignition E
23Electronic Throttle Control
24Instrument Panel Cluster, Driver Information Center
25Automatic Shift Lock Control System
26Engine 1
27Backup
28Powertrain Control Module 1
29Powertrain Control Module
30Air Conditioning
31Injector Bank A
32Trailer
33Anti-Lock Brakes (ABS)
34Ignition A
35Blower Motor
36Ignition B
50Passenger’s Side Trailer Turn
51Driver’s Side Trailer Turn
52Hazard Flashers
53Transmission
54Oxygen Sensor Bank B
55Oxygen Sensor Bank A
56Injector Bank B
57Headlamp Driver Module
58Truck Body Controller 1
59Electric Adjustable Pedal
Relays
37Headlamp Washer
38Rear Window Washer
39Fog Lamps
40Horn
41Fuel Pump
42Windshield Washer
43High-Beam Headlamp
44Air Conditioning
45Cooling Fan
46Headlamp Driver Module
47Starter
49Electric Adjustable Pedal
60Powertrain
61Vehicle Stability Enhancement System (StabiliTrak)
Miscellaneous
48Instrument Panel Battery
Rear Underseat Fuse Block
GMC Envoy XL (2006): Passenger compartment fuse panel diagram

List of fuses in the Rear Underseat Fuse Block (2006)

Usage
01Right Door Control Module
02Left Door Control Module
03Liftgate Module 2
04Truck Body Controllers
05Rear Fog Lamps
06Blank
07Truck Body Controller 2
08Power Seats
09Rear Wiper
10Driver Door Module
11Amplifier
12Passenger Door Module
13Rear Climate Controls
14Left Rear Parking Lamps
15Blank
16Vehicle Center High-Mounted Stop Lamp
17Right Rear Parking Lamps
18Locks
19Liftgate Module / Driver Seat Module
20Vent Window
21Lock
22Retained Accessory Power
23Blank
24Unlock
25Blank
26Blank
27OnStar Overhead Battery / OnStar System
28Sunroof
29Rainsense Wipers
30Parking Lamps
31Truck Body Controller Accessory
32Truck Body Controller 5
33Front Wipers
34Vehicle Stop
35Transmission Control Module
36Heat Ventilation Air Conditioning B
37Front Parking Lamps
38Left Turn Signal
39Heat Ventilation Air Conditioning 1
40Truck Body Controller 4
41Radio
42Trailer Park
43Right Turn Signal
44Heat Ventilation Air Conditioning
45Rear Fog Lamps
46Auxiliary Power 1
47Ignition 0
48Four-Wheel Drive
49Blank
50Truck Body Controller Ignition
51Brakes
52Truck Body Controller Run

Conclusion

The GMC Envoy XL 2003-2006 offers both comfort and functionality, supported by a robust electrical system. Maintaining the fuse box and relays is key to ensuring reliable performance of its features.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
