Learn about Dodge Durango (WD) 2014-2019 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Dodge Durango (WD) is a popular SUV known for its spaciousness, comfortable interior, and high towing capacity. The model is available in a number of body styles, including 2-door, 4-door, and 3-row seating.

Presently, the Dodge Durango (WD) 2014-2019 is also known for its array of features that revolve around performance, convenience, and safety. Some popular features include a towing package, sunroof, leather seats, navigation, and remote start. The power train consists of a 3.6L V6 engine with rear-wheel or all-wheel drive.

Among the list of electronic features is the fuse box and relay system, which serve to manage the electrical components of the vehicle. Whether its turning on the interior lights, operating air-conditioning, or running the infotainment system, the fuse box and relay system play a crucial part in these processes. A fuse box is a distribution panel that contains fuses that protect the electrical components of your vehicle.

The Dodge Durango (WD) 2014-2019 is equipped with a number of fuses and relays that manage the vehicle’s electrical system depending on its configuration. These localized components contribute to the vehicle’s seamless operation and efficient performance.

For instance, the main fuse box, which is located beneath the driver’s side dashboard, typically manages power-related systems such as ignition, radio, and seats. The relay box is to the right of the washer reservoir and generally controls the vehicle’s high-power electrical components like AC compressor, heater fan or fuel pump. The second fuse box, located in the driver’s coupe, operates the power seat and door lock.

MUST READ: DYI – How to Check Car Fuses?

(2014-2019) Dodge Durango (WD) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Durango (WD) 2014-2019 fuse assignment

Dodge Durango (WD) Year of production: 2014, 2015, 2016, 2017, 2018, 2019

Location of the Fuse Box

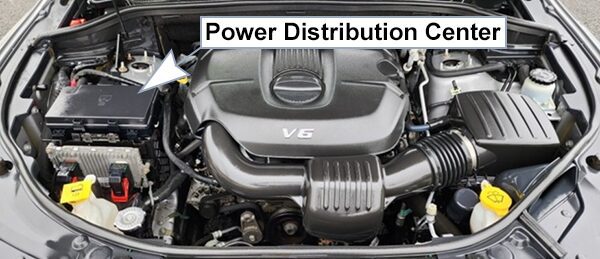

Dodge Durango (WD; 2014-2019): Engine compartment fuse box location

The Power Distribution Center (PDC) is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover.


Fuse Box Diagrams

2014

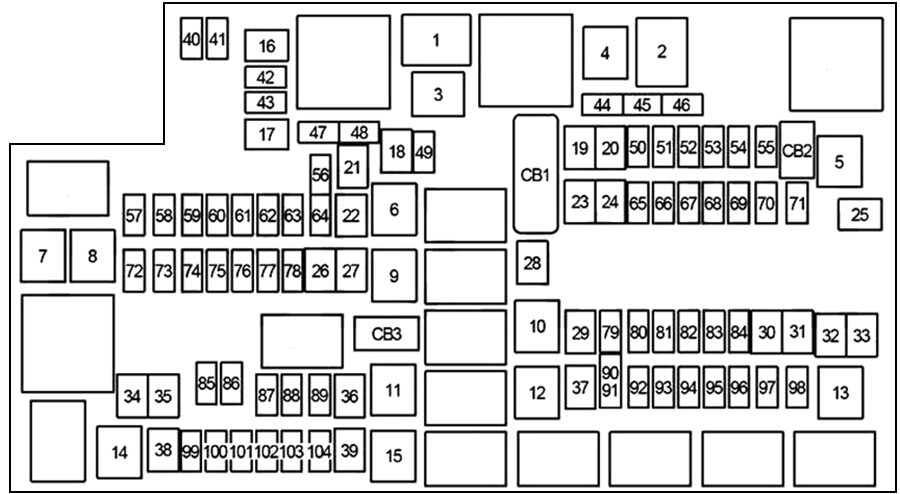

Dodge Durango (2014): Engine compartment fuse box diagram

List of fuses in the PDC (2014)

Cartridge FuseMicro FuseDescription
F0360A Yellow Rad Fan
F0540A Green Compressor for Air Suspension – If Equipped
F0640A Green Antilock Brakes / Electronic Stability Control Pump
F0740A Green Starter Solenoid
F0840A Green Emission Sensors (Diesel engine only)
F0940A Green Diesel Fuel Heater (Diesel engine only)
F1040A Green Body Controller / Exterior Lighting #2
F1130A Pink Trailer Tow Electric Brake – If Equipped
F1240A Green Body Controller #3 / Interior Lights
F1340A Green Blower Motor Front
F1440A Green Body Controller #4 / Power Locks
F1730A Pink Headrest Release – If Equipped
F2030A Pink Passenger Door Module
F2220A Blue Engine Control Module
F2330A Pink Body Controller #1
F2430A Pink Driver Door Module
F2530A Pink Front Wipers
F2630A Pink Antilock Brakes / Stability Control Module / Valves
F2820A Blue Trailer Tow Backup Lights – If Equipped
F2920A Blue Trailer Tow Parking Lights – If Equipped
F3030A Pink Trailer Tow Receptacle – If Equipped
F3230A Pink Drive Train Control Module
F3430A Pink Slip Differential Control
F3530A Pink Sunroof – If Equipped
F3630A Pink Rear Defroster
F3730A Pink Rear Blower – If Equipped
F3830A Pink Power Inverter 115V AC – If Equipped
F3930A Pink Power Liftgate – If Equipped
F40 10A RedDaytime Running Lights
F42 20A YellowHorn
F44 10A RedDiagnostic Port
F46 10A RedTire Pressure Monitor – If Equipped
F49 10A RedIntegrated Central Stack / Climate Control
F50 20A YellowAir Suspension Module / Electronic Limited Slip Differentials – If Equipped
F51 10A RedIgnition Node Module / Keyless Ignition / Steering Column Lock
F52 5A TanBattery Sensor
F53 20A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F56 15A BlueAdditional Content (Diesel engine only)
F57 15A BlueTransmission
F59 10A RedPurging Pump (Diesel engine only)
F60 15A BlueTransmission Control Module
F62 10A RedAir Conditioning Clutch
F63 20A YellowIgnition Coils (Gas), Urea Heater (Diesel)
F64 25A NaturalFuel Injectors / Powertrain
F66 10A RedSunroof / Passenger Window Switches / Rain Sensor
F67 15A BlueCD / DVD / Bluetooth Hands-free Module – If Equipped
F68 20A YellowRear Wiper Motor
F70 20A YellowFuel Pump Motor
F71 30A GreenAudio Amplifier
F73 15A BlueHID Headlamps Right
F74 20A YellowBrake Vacuum Pump – If Equipped
F76 10A RedAntilock Brakes / Electronic Stability Control
F77 10A RedDrivetrain Control Module/Front Axle Disconnect Module
F78 10A RedEngine Control Module / Electric Power Steering – If Equipped
F80 10A RedUniversal Garage Door Opener / Compass / Anti-Intrusion Module
F81 20A YellowTrailer Tow Right Turn/Stop Lights
F82 10A RedSteering Column Control Module / Cruise Control
F83 10A RedFuel Door
F84 15A BlueSwitch Bank/Instrument Cluster
F85 10A RedAirbag Module
F86 10A RedAirbag Module
F87 10A RedAir Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F88 15A BlueInstrument Panel Cluster
F90/F91 20A YellowPower Outlet (Rear seats) Selectable
F92 10A RedRear Console Lamp – If Equipped
F93 20A YellowCigar Lighter
F94 10A RedShifter / Transfer Case Module
F95 10A RedRear Camera / Park Assist
F96 10A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F97 25A NaturalRear Heated Seats & Heated Steering Wheel – If Equipped
F98 25A NaturalFront Heated Seats / Ventilated Seats – If Equipped
F99 10A RedClimate Control / Driver Assistance Systems Module
F100 10A RedActive Damping – If Equipped
F101 15A BlueElectrochromatic Mirror / Smart High Beams – If Equipped
F103 10A RedCabin Heater (Diesel engine only)
F104 20A YellowPower Outlets (Instrument Panel / Center Console)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

2015

Dodge Durango (2015): Engine compartment fuse box diagram

List of fuses in the PDC (2015)

Cartridge FuseMicro FuseDescription
F0360A YellowRadiator Fan
F0540A GreenCompressor for Air Suspension – If Equipped
F0640A GreenAnti-lock Brakes / Electronic Stability Control Pump
F0740A GreenStarter Solenoid
F0820A BlueEmission Sensors (Diesel engine only)
F0930A PinkDiesel Fuel Heater (Diesel engine only)
F1040A GreenBody Controller / Exterior Lighting #2
F1130A PinkTrailer Tow Electric Brake – If Equipped
F1240A GreenBody Controller #3 / Power Locks
F1340A GreenBlower Motor Front
F1440A GreenBody Controller #4 / Interior Lights #2
F1730A PinkHeadlamp Washer – If Equipped
F1920A BlueHeadrest Solenoid – If Equipped
F2030A PinkPassenger Door Module
F2220A BlueEngine Control Module
F2330A PinkInterior Lights #1
F2430A PinkDriver Door Module
F2530A PinkFront Wipers
F2630A PinkAnti-lock Brakes / Stability Control Module/Valves
F2820A BlueTrailer Tow Backup Lights – If Equipped
F2920A BlueTrailer Tow Parking Lights – If Equipped
F3030A PinkTrailer Tow Receptacle – If Equipped
F3230A PinkDrive Train Control Module
F3430A PinkSlip Differential Control
F3530A PinkSunroof – If Equipped
F3630A PinkRear Defroster
F3725A ClearRear Blower Motor – If Equipped
F3830A PinkPower Inverter 115V AC – If Equipped
F3930A PinkPower Liftgate – If Equipped
F4010A RedDaytime Running Lights / Headlamp Leveling
F4220A YellowHorn
F4410A RedDiagnostic Port
F4610A RedTire Pressure Monitor – If Equipped
F4910A RedIntegrated Central Stack / Climate Control
F5020A YellowAir Suspension Module / Electronic Limited Slip Differentials – If Equipped
F5115A BlueIgnition Node Module / Keyless Ignition / Steering Column Lock
F525A TanBattery Sensor
F5320A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F5510A RedDTV / DSRC
F5615A BlueAdditional Content (Diesel engine only)
F 5715A BlueHID Headlamps LH – If Equipped
F5910A RedPurging Pump (Diesel engine only)
F6015A BlueTransmission Control Module
F6110A RedTransmission Control Module /PM Sensor (Diesel engine only)
F6210A RedAir Conditioning Clutch
F6320A YellowIgnition Coils (Gas), Urea Heater (Diesel)
F6425A ClearFuel Injectors / Powertrain
F6610A RedSunroof / Passenger Window Switches / Rain Sensor
F6715A BlueCD / DVD / Bluetooth Hands-free Module – If Equipped
F6820A YellowRear Wiper Motor
F6915A BlueSpotlight Feed – If Equipped
F7020A YellowFuel Pump Motor
F7130A GreenAudio Amplifier
F7315A BlueHID Headlamp RH – If Equipped
F7420A YellowBrake Vacuum Pump – If Equipped
F7610A RedAnti-lock Brakes / Electronic Stability Control
F7710A RedDrivetrain Control Module / Front Axle Disconnect Module
F7810A RedEngine Control Module / Electric Power Steering – If Equipped
F8010A RedUniversal Garage Door Opener / Compass / Anti-Intrusion Module
F8120A YellowTrailer Tow Right Turn/Stop Lights
F8210A RedSteering Column Control Module/ Cruise Control
F8310A RedFuel Door
F8415A BlueSwitch Bank / Instrument Cluster
F8510A RedAirbag Module
F8610A RedAirbag Module
F8710A RedAir Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F8815A BlueInstrument Panel Cluster
F90/F9120A YellowPower Outlet (Rear seats) Selectable
F9210A RedRear Console Lamp – If Equipped
F9320A YellowCigar Lighter
F9410A RedShifter / Transfer Case Module
F9510A RedRear Camera / ParkSense
F9610A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F9720A YellowRear Heated Seats & Heated Steering Wheel – If Equipped
F9820A YellowFront Heated Seats / Ventilated Seats – If Equipped
F9910A RedClimate Control / Driver Assistance Systems Module
F10010A RedActive Damping – If Equipped
F10115A BlueElectrochromatic Mirror / Smart High Beams – If Equipped
F10310A RedCabin Heater (Diesel Engine Only) / Rear HVAC
F10420A YellowPower Outlets (Instrument Panel / Center Console)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

2016

Dodge Durango (2016): Engine compartment fuse box diagram

List of fuses in the PDC (2016)

CavityCartridge FuseMicro FuseDescription
F0360A YellowRadiator Fan
F0540A GreenCompressor for Air Suspension – If Equipped
F0640A GreenAnti-lock Brakes / Electronic Stability Control Pump
F0730A PinkStarter Solenoid
F0930A PinkDiesel Fuel Heater (Diesel engine only) / Brake Vacuum Pump
F1040A GreenBody Controller / Exterior Lighting #2
F1130A PinkTrailer Tow Electric Brake – If Equipped
F1240A GreenBody Controller #3 / Power Locks
F1340A GreenBlower Motor Front
F1440A GreenBody Controller #4 / Exterior Lighting #1
F1730A PinkHeadlamp Washer – If Equipped
F1920A BlueHeadrest Solenoid – If Equipped
F2030A PinkPassenger Door Module
F2220A BlueEngine Control Module
F2330A PinkInterior Lights #1
F2430A PinkDriver Door Module
F2530A PinkFront Wipers
F2630A PinkAnti-lock Brakes / Stability Control Module/Valves
F2820A BlueTrailer Tow Backup Lights – If Equipped
F2920A BlueTrailer Tow Parking Lights – If Equipped
F3030A PinkTrailer Tow Receptacle – If Equipped
F3230A PinkDrive Train Control Module
F3430A PinkSlip Differential Control
F3530A PinkSunroof – If Equipped
F3630A PinkRear Defroster
F3725A ClearRear Blower Motor – If Equipped
F3830A PinkPower Inverter 115V AC – If Equipped
F3930A PinkPower Liftgate – If Equipped
F4010A RedDaytime Running Lights / Headlamp Leveling
F4220A YellowHorn
F4410A RedDiagnostic Port
F4910A RedIntegrated Central Stack / Climate Control
F5020A YellowAir Suspension Module / Electronic Limited Slip Differentials – If Equipped
F5115A BlueIgnition Node Module / Keyless Ignition / Steering Column Lock
F525A TanBattery Sensor
F5320A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F5615A BlueAdditional Content (Diesel engine only)
F5720A YellowNOX Sensor
F5815A BlueHID Headlamps LH – If Equipped
F5910A RedPurging Pump (Diesel engine only)
F6015A BlueTransmission Control Module
F6110A RedTransmission Control Module / PM Sensor (Diesel engine only)
F6210A RedAir Conditioning Clutch
F6320A YellowIgnition Coils (Gas), Urea Heater (Diesel)
F6425A ClearFuel Injectors / Powertrain
F6610A RedSunroof / Passenger Window Switches / Rain Sensor
F6715A BlueCD/DVD / Bluetooth Hands-free Module – If Equipped
F6820A YellowRear Wiper Motor
F6915A BlueSpotlight Feed – If Equipped
F7020A YellowFuel Pump Motor
F7130A GreenAudio Amplifier
F7210A RedPCM – If Equipped
F7315A BlueHID Headlamp RH – If Equipped
F7510A RedDual Batt Control – If Equipped
F7610A RedAnti-lock Brakes / Electronic Stability Control
F7710A RedDrivetrain Control Module / Front Axle Disconnect Module
F7810A RedEngine Control Module / Electric Power Steering
F8010A RedUniversal Garage Door Opener / Compass / Anti-Intrusion Module
F8120A YellowTrailer Tow Right Turn/Stop Lights
F8210A RedSteering Column Control Module / Cruise Control / DTV
F8310A RedFuel Door
F8415A BlueSwitch Bank / Instrument Cluster
F8510A RedAirbag Module
F8610A RedAirbag Module
F8710A RedAir Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F8815A BlueInstrument Panel Cluster
F90/F9120A YellowPower Outlet (Rear seats) Selectable
F9210A RedRear Console Lamp – If Equipped
F9320A YellowCigar Lighter
F9410A RedShifter / Transfer Case Module
F9510A RedRear Camera / ParkSense
F9610A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F9720A YellowRear Heated Seats & Heated Steering Wheel – If Equipped
F9820A YellowFront Heated Seats / Ventilated Seats – If Equipped
F9910A RedClimate Control / Driver Assistance Systems Module / DSRC
F10010A RedActive Damping – If Equipped
F10115A BlueElectrochromatic Mirror / Smart High Beams – If Equipped
F10310A RedCabin Heater (Diesel Engine Only) / Rear HVAC
F10420A YellowPower Outlets (Instrument Panel / Center Console)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

2017

Dodge Durango (2017): Engine compartment fuse box diagram

List of fuses in the PDC (2017)

Cartridge FuseMicro FuseDescription
F0360A YellowRadiator Fan
F0540A GreenCompressor for Air Suspension – If Equipped
F0640A GreenAnti-lock Brakes / Electronic Stability Control Pump
F0730A PinkStarter Solenoid
F0930A PinkDiesel Fuel Heater (Diesel engine only) / Brake Vacuum Pump
F1040A GreenBody Controller / Exterior Lighting #2
F1130A PinkTrailer Tow Electric Brake – If Equipped
F1240A GreenBody Controller #3 / Power Locks
F1340A GreenBlower Motor Front
F1440A GreenBody Controller #4 / Exterior Lighting #1
F1730A PinkHeadlamp Washer – If Equipped
F1920A BlueHeadrest Solenoid – If Equipped
F2030A PinkPassenger Door Module
F2220A BlueEngine Control Module
F2330A PinkInterior Lights #1
F2430A PinkDriver Door Module
F2530A PinkFront Wipers
F2630A PinkAnti-lock Brakes / Stability Control Module/Valves
F2820A BlueTrailer Tow Backup Lights – If Equipped
F2920A BlueTrailer Tow Parking Lights – If Equipped
F3030A PinkTrailer Tow Receptacle – If Equipped
F3230A PinkDrive Train Control Module
F3430A PinkSlip Differential Control
F3530A PinkSunroof – If Equipped
F3630A PinkRear Defroster
F3725A ClearRear Blower Motor – If Equipped
F3830A PinkPower Inverter 115V AC – If Equipped
F3930A PinkVISM #1/Power Liftgate – If Equipped
F4010A RedDaytime Running Lights / Headlamp Leveling
F4220A YellowHorn
F4410A RedDiagnostic Port
F4910A RedIntegrated Central Stack / Climate Control
F5020A YellowAir Suspension Module / Electronic Limited Slip Differentials – If Equipped
F5115A BlueIgnition Node Module / Keyless Ignition / Steering Column Lock
F525A TanBattery Sensor
F5320A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F5615A BlueAdditional Content (Diesel engine only)
F5720A YellowNOX Sensor
F5815A BlueHID Headlamps LH – If Equipped
F5910A RedPurging Pump (Diesel engine only)
F6015A BlueTransmission Control Module
F6110A RedTransmission Control Module / PM Sensor (Diesel engine only)
F6210A RedAir Conditioning Clutch
F6320A YellowIgnition Coils (Gas), Urea Heater (Diesel)
F6425A ClearFuel Injectors / Powertrain
F6610A RedSunroof/Passenger Window Switches/Rain Sensor
F6715A BlueCD / DVD / Bluetooth Hands-free Module – If Equipped
F6820A YellowRear Wiper Motor
F6915A BlueSpotlight Feed – If Equipped
F7020A YellowFuel Pump Motor
F7130A GreenAudio Amplifier
F7210A RedPCM – If Equipped
F7315A BlueHID Headlamp RH – If Equipped
F7510A RedDual Batt Control – If Equipped
F7610A RedAnti-lock Brakes / Electronic Stability Control
F7710A RedDrivetrain Control Module / Front Axle Disconnect Module
F7810A RedEngine Control Module / Electric Power Steering
F8010A RedUniversal Garage Door Opener / Compass / Anti-Intrusion Module
F8120A YellowTrailer Tow Right Turn/Stop Lights
F8210A RedSteering Column Control Module / Cruise Control / DTV
F8310A RedFuel Door
F8415A BlueSwitch Bank / Instrument Cluster
F8510A RedAirbag Module
F8610A RedAirbag Module
F8710A RedAir Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F8815A BlueInstrument Panel Cluster
F90/F9120A YellowPower Outlet (Rear seats) Selectable
F9210A RedRear Console Lamp – If Equipped
F9320A YellowCigar Lighter
F9410A RedShifter / Transfer Case Module
F9510A RedRear Camera / ParkSense
F9610A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F9720A YellowRear Heated Seats & Heated Steering Wheel – If Equipped
F9820A YellowFront Heated Seats / Ventilated Seats – If Equipped
F9910A RedClimate Control / Driver Assistance Systems Module / DSRC
F10010A RedActive Damping – If Equipped
F10115A BlueElectrochromatic Mirror / Smart High Beams – If Equipped
F10310A RedCabin Heater (Diesel Engine Only) / Rear HVAC
F10420A YellowPower Outlets (Instrument Panel / Center Console)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

2018

Dodge Durango (2018): Engine compartment fuse box diagram

List of fuses in the PDC (2018)

Cartridge FuseMicro FuseDescription
F0360A YellowRadiator Fan
F0540A GreenCompressor for Air Suspension – If Equipped
F0640A GreenAnti-lock Brakes / Electronic Stability Control Pump
F0730A PinkStarter Solenoid
F0930A PinkDiesel Fuel Heater (Diesel Engine Only) / Brake Vacuum Pump
F1040A GreenBody Controller / Exterior Lighting #2
F1130A PinkTrailer Tow Electric Brake – If Equipped
F1240A GreenBody Controller #3 / Power Locks
F1340A GreenBlower Motor Front
F1440A GreenBody Controller #4 / Exterior Lighting #1
F1540A GreenLTR (Low Temperature Radiator) Engine Cooling Pump
F1730A PinkHeadlamp Washer – If Equipped
F1920A BlueHeadrest Solenoid – If Equipped
F2030A PinkPassenger Door Module
F2220A BlueEngine Control Module
F2330A PinkInterior Lights #1
F2430A PinkDriver Door Module
F2530A PinkFront Wipers
F2630A PinkAnti-lock Brakes / Stability Control Module/Valves
F2820A BlueTrailer Tow Backup Lights – If Equipped
F2920A BlueTrailer Tow Parking Lights – If Equipped
F3030A PinkTrailer Tow Receptacle – If Equipped
F3230A PinkDrive Train Control Module
F3430A PinkSlip Differential Control
F3530A PinkSunroof – If Equipped
F3630A PinkRear Defroster
F3725A ClearRear Blower Motor – If Equipped
F3830A PinkPower Inverter 115V AC – If Equipped
F3930A PinkPower Liftgate – If Equipped
F4010A RedDaytime Running Lights / Headlamp Leveling
F4220A YellowHorn
F4410A RedDiagnostic Port
F455A TanCyber Security Gateway
F4910A RedIntegrated Central Stack / Climate Control
F5020A YellowAir Suspension Control Module/Slip Differential – If Equipped
F5115A BlueIgnition Node Module / Keyless Ignition / Steering Column Lock
F5320A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F5615A BlueAdditional Content (Diesel engine only)
F5720A YellowNOX Sensor
F5815A BlueHID Headlamps LH – If Equipped
F5910A RedPurging Pump (Diesel engine only)
F6015A BlueTransmission Control Module
F6110A RedTransmission Control Module / PM Sensor (Diesel engine only)
F6210A RedAir Conditioning Clutch
F6320A YellowIgnition Coils (Gas), Urea Heater (Diesel)
F6425A ClearFuel Injectors / Powertrain
F6610A RedSunroof / Passenger Window Switches / Rain Sensor
F6715A BlueCD/DVD/Bluetooth Hands-free Module – If Equipped
F6820A YellowRear Wiper Motor
F6915A BlueSpotlight Feed – If Equipped
F7020A YellowFuel Pump Motor
F7130A GreenAudio Amplifier
F7210A RedPCM – If Equipped
F7315A BlueHID Headlamp RH – If Equipped
F7510A RedDual Batt Control – If Equipped
F7610A RedAnti-lock Brakes / Electronic Stability Control
F7710A RedDrivetrain Control Module / Front Axle Disconnect Module
F7810A RedEngine Control Module / Electric Power Steering
F8010A RedUniversal Garage Door Opener / Anti-Intrusion Module
F8120A YellowTrailer Tow Right Turn/Stop Lights
F8210A RedSteering Column Control Module / Cruise Control / DTV
F8310A RedFuel Door
F8415A BlueSwitch Bank / Instrument Cluster
F8510A RedAirbag Module
F8610A RedAirbag Module
F8710A RedAir Suspension – If Equipped
F8815A BlueInstrument Panel Cluster / SGW
F90/F9120A YellowPower Outlet (Rear seats) Selectable
F9210A RedRear Console Lamp – If Equipped
F9320A YellowCigar Lighter
F9410A RedShifter / Transfer Case Module
F9510A RedRear Camera / ParkSense
F9610A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F9720A YellowRear Heated Seats & Heated Steering Wheel – If Equipped
F9820A YellowVentilated Seats / Front Heated Seats – If Equipped
F9910A RedClimate Control / Driver Assistance Systems Module / DSRC
F10010A RedActive Damping – If Equipped
F10115A BlueElectrochromatic Mirror / Smart High Beams – If Equipped
F10215A BlueSpare
F10310A RedCabin Heater (Diesel Engine Only) / Rear HVAC
F10420A YellowPower Outlets (Instrument Panel / Center Console)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

2019

Dodge Durango (2019): Engine compartment fuse box diagram

List of fuses in the PDC (2019)

Cartridge FuseMicro FuseDescription
F0360A YellowRadiator Fan – If Equipped
F0540A GreenCompressor for Air Suspension – If Equipped
F0640A GreenAnti-lock Brakes / Electronic Stability Control Pump
F0730A PinkStarter Solenoid
F0930A PinkDiesel Fuel Heater (Diesel Engine Only) / Brake Vacuum Pump
F1040A GreenBody Controller / Exterior Lighting #2
F1130A PinkTrailer Tow Electric Brake – If Equipped
F1240A GreenBody Controller #3 / Power Locks
F1340A GreenBlower Motor Front
F1440A GreenBody Controller #4 / Exterior Lighting #1
F1540A GreenLTR (Low Temperature Radiator) Engine Cooling Pump – If Equipped
F1730A PinkHeadlamp Washer – If Equipped
F1920A BlueHeadrest Solenoid – If Equipped
F2030A PinkPassenger Door Module
F2220A BlueEngine Control Module
F2330A PinkInterior Lights #1
F2430A PinkDriver Door Module
F2530A PinkFront Wipers
F2630A PinkAnti-lock Brakes / Stability Control Module, ECU and Valves
F2820A BlueTrailer Tow Backup Lights – If Equipped
F2920A BlueTrailer Tow Parking Lights – If Equipped
F3030A PinkTrailer Tow (Receptacle) / Trailer Tow (Separate E-Brake) / Trailer Tow (BUX) – If Equipped
F3230A PinkDrive Train Control Module
F3430A PinkSlip Differential Control – If Equipped
F3530A PinkSunroof – If Equipped
F3630A PinkRear Defroster
F3725A ClearRear Blower Motor – If Equipped
F3830A PinkPower Inverter 115V AC – If Equipped
F3930A PinkPower Liftgate – If Equipped
F4010A RedDaytime Running Lights/Headlamp Leveling
F4220A YellowHorn
F4410A RedDiagnostic Port
F455A TanCyber Security Gateway
F4910A RedIntegrated Central Stack / Climate Control
F5020A YellowAir Suspension Control Module / Slip Differential – If Equipped
F5115A BlueKIN / RF HUB / Steering Column Lock – If Equipped
F5320A YellowTrailer Tow – Left Turn/Stop Lights – If Equipped
F5615A BlueAdditional Content (Diesel Engine Only)
F5720A YellowNOX Sensor – If Equipped
F5815A BlueHID Headlamps LH – If Equipped
F5910A RedPurging Pump (Diesel Engine Only)
F6015A BlueTransmission Control Module
F6110A RedTransmission Control Module / PM Sensor (Diesel Engine Only)
F6210A RedAir Conditioning Clutch
F6320A YellowIgnition Coils / Ignition Coil Capacitors / Short Runner Valve Actuator – If Equipped (Gas) Urea Heater (Diesel)
F6425A ClearFuel Injectors / Powertrain
F6610A RedSunroof / Rain Sensor / Inside Rear View Mirror / USB Port / DSCR / DTV – If Equipped
F6715A BlueCD / DVD / UCI Port / USB Charging Port
F6820A YellowRear Wiper Motor
F6915A BlueSpotlight Feed – If Equipped
F7020A YellowFuel Pump Motor
F7130A GreenAmplifier / ANCM – If Equipped
F7210A RedECM
F7315A BlueHID Headlamp RH – If Equipped
F7510A RedDual Batt Control – If Equipped
F7610A RedAnti-lock Brakes / Electronic Stability Control
F7710A RedDrivetrain Control Module/Front Axle Disconnect Module – If Equipped
F7810A RedEngine Control Module / Electric Power Steering
F8010A RedUniversal Garage Door Opener / Anti-Intrusion Module – If Equipped / Siren – If Equipped
F8120A YellowTrailer Tow Right Turn/Stop Lights – If Equipped
F8210A RedSteering Column Control Module / Cruise Control / DTV – If Equipped
F8310A RedFuel Door
F8415A BlueInstrument Cluster
F8510A RedAirbag Module
F8610A RedAirbag Module
F8710A RedAir Suspension – If Equipped
F8815A BlueInstrument Panel Cluster / SGW / ITBM – If Equipped
F90/F9120A YellowPower Outlet (Rear Seats) Selectable
F9210A RedRear Console Lamp – If Equipped
F9320A YellowCigar Lighter
F9410A RedShifter / Transfer Case Module
F9510A RedRear Camera / Blind Spot Sensor – If Equipped
F9610A RedRear Seat Heater Switch / Flashlamp Charger – If Equipped
F9720A YellowRear Heated Seats & Heated Steering Wheel – If Equipped
F9820A YellowVentilated Seats / Front Heated Seats – If Equipped
F9910A RedClimate Control / Driver Assistance Systems Module / HALF / Park Assist
F10010A RedActive Damping – If Equipped
F10115A BlueIn Car Temperature Sensor / Humidity Sensor
F10215A BlueSpare
F10310A RedCabin Heater (Diesel Engine Only) / Rear HVAC – If Equipped
F10420A YellowPower Outlets (Instrument Panel / Center Console / Rear Cargo – If Equipped)
CB125A Circuit BreakerPower Window / Power Door Lock / Power Sliding Backlite Switch
CB225A Circuit BreakerDriver Power Seat / Memory Seat Module
CB325A Circuit BreakerPassenger Power Seat

Conclusion

In conclusion, the Dodge Durango (WD) 2014-2019 encompasses diverse body styles such as 2-door, 4-door, and 3-row seating and delivers various comfort features. Its fuse box and relay system are important parts of the car’s electrical system, ensuring safety and optimized performance with easy management of the vehicle’s electrical components. More information about these systems can be found in the vehicle’s manual, or by consulting with a technician or Dodge representative.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
