Learn about Ford Focus Electric (EU) (2013-2017) fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Ford Focus Electric brought fully electric power to the popular Focus platform, offering European drivers a zero-emission alternative without sacrificing the practicality of a familiar hatchback design. While this EV shares much of its body and interior with the conventional Focus, its electrical system includes some unique elements related to battery management and electric drive components, alongside the standard fuses and relays found in any modern vehicle.
Fuses and relays protect your Focus Electric’s wiring from power surges and short circuits, whether it’s managing interior accessories, exterior lighting, or components tied to the high-voltage drive system. If you’re experiencing issues like non-working interior lights, a malfunctioning infotainment screen, or problems with charging system indicators, checking the fuse box is a sensible first step, though extra caution is needed given the presence of high-voltage components.
This guide covers the fuse box and relay locations for the 2013–2017 Ford Focus Electric (EU), along with important safety considerations specific to electric vehicles.
MUST READ: DYI – How to Check Car Fuses?
(2013-2017) Ford Focus Electric (EU) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Focus Electric (EU) (2013-2017) fuse assignment
Ford Focus Electric (EU) Year of production: 2013, 2014, 2015, 2016, 2017
Where Are the Fuse Boxes Located on the Ford Focus Electric?
The Focus Electric uses two main fuse box locations: one in the front compartment (where a traditional engine would be) and one inside the cabin. Because this is an EV, the front compartment houses electric drive components alongside the low-voltage fuse box, rather than a combustion engine.
1. Front Compartment Fuse Box (Power Distribution Box)
The primary low-voltage fuse box is located in the front compartment, positioned near the battery on the driver’s side, similar in placement to where you’d find it on a conventional Focus.
How to access it:
- Open the front hood and locate the black plastic cover near the 12-volt auxiliary battery.
- Unclip or unscrew the retaining tabs securing the cover.
- Lift the cover straight up to expose the fuses and relays inside.
This fuse box handles the vehicle’s low-voltage (12V) circuits, including headlights, horn, wipers, and the cooling fans used for the battery thermal management system. It’s important to note this box does not contain high-voltage fuses related to the main drive battery, those are handled by a separate, sealed high-voltage system not intended for owner access.
2. Interior Fuse Panel (Instrument Panel Fuse Box)
The cabin fuse box is located inside the vehicle, typically under the dashboard on the driver’s side, near the left kick panel area.
How to access it:
- Sit in the driver’s seat and locate the small access panel to the left of the steering column, near the door.
- Gently pull or unclip the cover, it’s usually secured with simple plastic retaining clips.
- Once removed, you’ll see the fuse layout along with several compact relays.
This panel controls circuits such as interior lighting, the infotainment system, power windows, wipers, and dashboard displays, including the EV-specific battery charge and range indicators.
3. High-Voltage System Components (Not User-Serviceable)
Unlike the low-voltage fuses and relays covered in this guide, the Focus Electric’s high-voltage battery pack and associated components are protected by a sealed high-voltage fuse and disconnect system, located within the battery pack enclosure itself. This system is designed to be serviced only by trained technicians using specialized equipment and safety gear.
Important: Never attempt to open, inspect, or service any high-voltage orange-colored cabling, connectors, or components. These carry extremely dangerous voltage levels and require professional handling.
How to Identify the Right Fuse or Relay
Both the front compartment and interior fuse boxes include a printed diagram, usually located on the inside of the fuse box cover, detailing each fuse and relay by number, amperage rating, and function.
When troubleshooting:
- Identify the malfunctioning component (e.g., “wipers” or “infotainment system”) and match it to its corresponding number on the diagram.
- Confirm the amperage rating on the old fuse matches the replacement before installing a new one.
- For relays, use the diagram to confirm the correct slot, since several relays may look similar despite controlling different systems.
If the printed diagram is missing or difficult to read, refer to your owner’s manual for a detailed fuse box diagram specific to your Focus Electric, since EV-specific circuits differ from the standard petrol or diesel Focus models.
Safety Precautions Before Checking Fuses or Relays
Working on an electric vehicle requires extra caution beyond standard fuse-checking procedures:
- Turn off the vehicle completely and remove the key (or ensure the key fob is out of range) before accessing any fuse or relay.
- Only work on the low-voltage fuse boxes described in this guide, never attempt to access high-voltage components, which are colored orange and sealed for safety.
- If you need to disconnect the 12-volt auxiliary battery for electrical work, follow the disconnection procedure outlined in your owner’s manual, as EVs can have specific shutdown sequences.
- Use the fuse puller tool, often built into the fuse box cover, rather than metal tools that could cause sparking.
- Never replace a low-voltage fuse with one of a higher amperage rating than specified, as this can damage wiring or create a fire hazard.
- If you suspect an issue with the high-voltage system, charging components, or battery management system, do not attempt DIY repairs, these require a qualified EV technician with proper safety training and equipment.
Checking and Replacing Fuses in Ford Focus Electric (EU)
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Location of Fuse Boxes

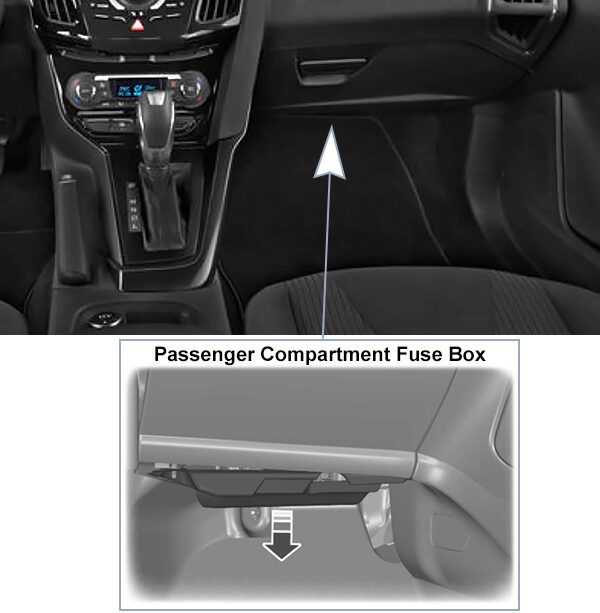

Passenger Compartment Fuse Box:
- Pinch the retaining clips to release the cover.
- Lower the fuse box cover and pull it toward you.

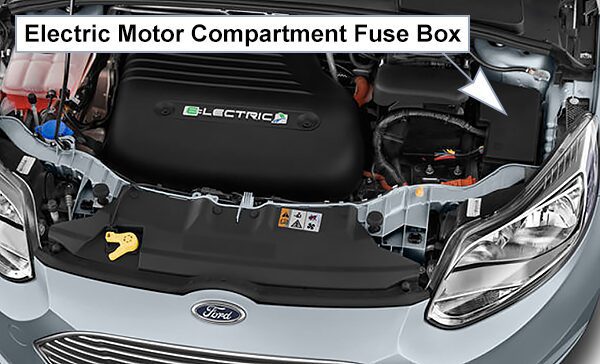

Electric Motor Compartment Fuse Box:
This fuse box is located in the engine compartment. Lift the release lever at the rear of the cover to remove it.
This fuse box contains several high current fuses that protect your vehicle’s main electrical systems from overloads. If the 12 volt battery is disconnected and reconnected, some features need to be reset.
Pre-Fuse Box
Your vehicle has a pre-fuse box located in the electric motor compartment on the front of the 12 volt battery box. It is connected to the 12 volt battery positive terminal. This fuse box contains several high current fuses. If replacement of these high current fuses is required, contact an authorized dealer.

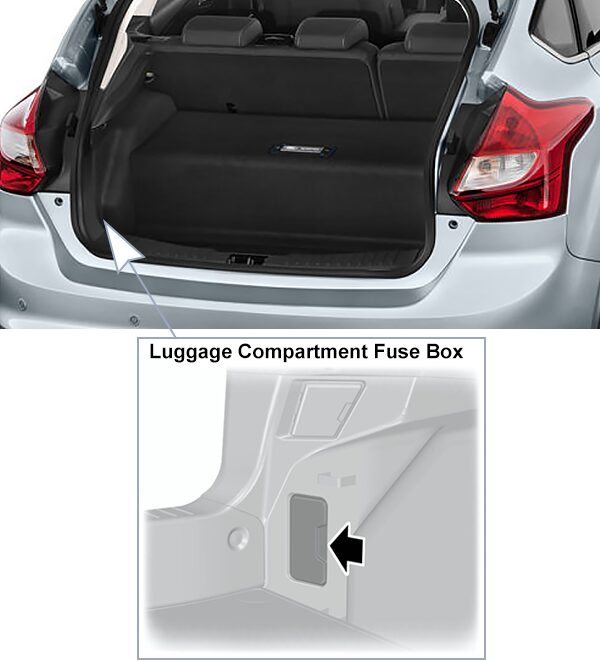

Luggage Compartment Fuse Box:
Fuse Box Diagrams
2013-2014

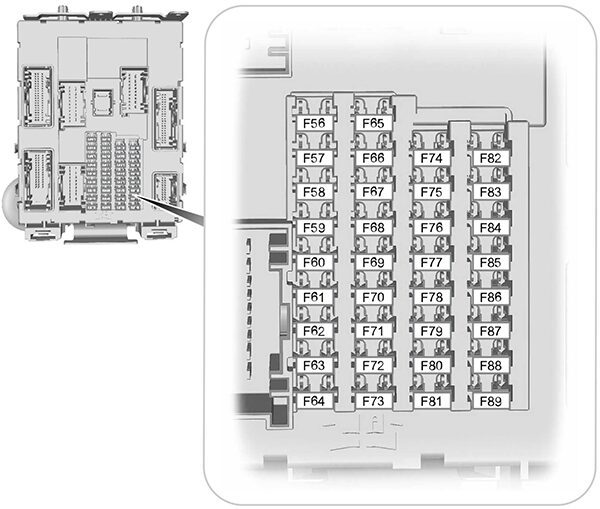

Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2013-2014)
| № | A | Circuits protected |
|---|---|---|
| F56 | – | Not used |
| F57 | – | Not used |
| F58 | – | Not used |
| F59 | 5A | Passive anti-theft system (supply) |
| F60 | 10A | Interior lamp, Driver door switch pack, Glove compartment lamp, Ambient lighting lamp Moonroof |
| F61 | 20A | Front cigar lighter Socket, Rear auxiliary power points |
| F62 | 5A | Rain sensor, Humidity sensor, Auto-dimming mirror |
| F63 | – | Not used |
| F64 | – | Not used |
| F65 | 10A | Luggage compartment lid release |
| F66 | 20A | Driver door lock, Double locking |
| F67 | 7.5A | Front display interface module, Global positioning sensor, Bluetooth phone and voice control connectivity, SYNC |
| F68 | 15A | Electrical steering column lock |
| F69 | 5A | Instrument panei cluster |
| F70 | 20A | Central locking |
| F71 | 10A | Air conditioning |
| F72 | 7.5A | Steering wheel control module |
| F73 | 5A | Battery back-up sounder (alarm system), Onboard diagnostics system |
| F74 | 15A | High beam headlamp |
| F75 | 15A | Front fog lamp |
| F76 | 10A | Reversing lamp |
| F77 | 20A | Washer pump |
| F78 | 5A | Ignition switch, Push button ignition switch |
| F79 | 15A | Audio unit, Hazard flasher switch, Door lock buttons |
| F80 | 20A | Moonroof |
| F81 | 5A | Interior motion sensor, Radio frequency receiver |
| F82 | 20A | Washer pump (ground) |
| F83 | 20A | Central locking (ground) |
| F84 | 20A | Driver door unlock (ground), Double locking ground (ground) |
| F85 | 7.5A | Climate control heater, Passenger airbag deactivation switch, Heated seats switch, Auxiliary heater, Manual air conditioning heater module |
| F86 | 10A | Restraint system, Passenger airbag deactivation system |
| F87 | – | Not used |
| F88 | – | Not used |
| F89 | – | Not used |

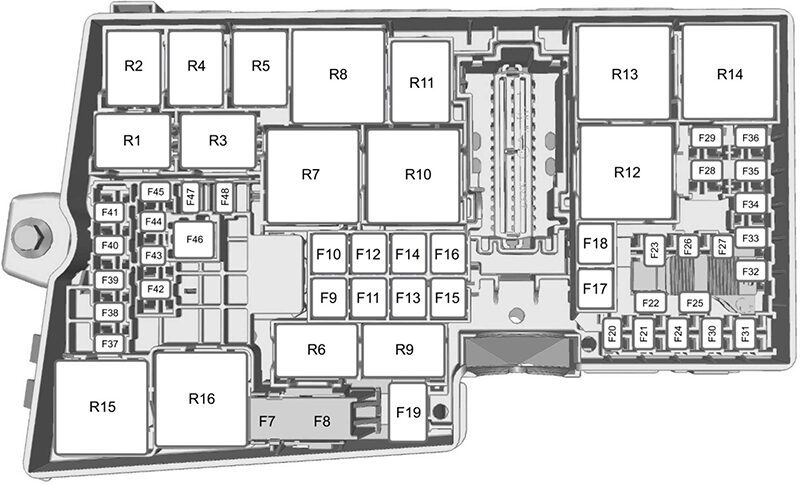

Electric Motor Compartment Fuse Box
List of fuses in the electric motor compartment fuse box (2013-2014)
| № | A | Circuits protected |
|---|---|---|
| F7 | 40A | Anti-lock brake system, Stability control |
| F8 | 30A | Stability control |
| F9 | – | Not used |
| F10 | 40A | Blower motor |
| F11 | 40A | Vacuum pump |
| F12 | 40A | Electric motor control relay |
| F13 | 40A | Battery charging control module |
| F14 | 40A | Coolant heater one |
| F15 | 30A | Body control module |
| F16 | 40A | Coolant heater two |
| F17 | – | Not used |
| F18 | 20A | Windshield wiper |
| F19 | 5A | Anti-lock brake system, Stability control |
| F20 | 15A | Horn. |
| F21 | 5A | Stop lamp switch |
| F22 | 15A | Battery monitoring system |
| F23 | 5A | Relay coils |
| F24 | 5A | Lighting control switch module |
| F25 | – | Not used |
| F26 | 10A | Powertrain control module |
| F27 | 15A | Charge port light ring |
| F28 | 5A | Vacuum pump monitor |
| F29 | – | Not used |
| F30 | 15A | Torque control module |
| F31 | 10A | Data link connector |
| F32 | 10A | Coolant valve, Air conditioning solenoid, Chiller solenoid |
| F33 | 10A | Powertrain control module |
| F34 | 15A | High voltage battery |
| F35 | – | Not used |
| F35 | – | Not used |
| F36 | 20A | Coolant pump |
| F37 | 5A | Vehicle audible sound for pedestrians |
| F38 | 15A | Powertrain control module |
| F39 | 5A | Headlamp leveling (halogen lamps) |
| F40 | 5A | Electronic power assist steering |
| F41 | 20A | Body control module |
| F42 | 15A | Rear window wiper |
| F43 | 15A | Headlamp leveling (high intensity discharge lamps), Adaptive front lighting |
| F44 | – | Not used |
| F45 | 10A | Heated washer jets |
| F46 | – | Not used |
| F47 | 5A | In-vehicle temperature sensor |
| F48 | 5A | Mechanical relay coil fuse |
| Relay | ||
| R1 | Not used | |
| R2 | Horn | |
| R3 | Not used | |
| R4 | High voltage battery | |
| R5 | Not used | |
| R6 | Not used | |
| R7 | Coolant heater | |
| R8 | Coolant heater | |
| R9 | Not used | |
| R10 | Vacuum pump | |
| R11 | Not used | |
| R12 | Electronic fan control module | |
| R13 | Blower motor | |
| R14 | Electric motor control | |
| R15 | Vacuum pump | |
| R16 | Ignition | |
Pre-Fuse Box
List of fuses in the pre-fuse box (2013-2014)
| № | A | Circuits protected |
|---|---|---|
| F1 | 80A | Electronic power assist steering |
| F2 | 150A | 12 volt battery charge |
| F3 | 100A | Power distribution box |
| F4 | 50A | Body control module (KL30A supply) |
| F5 | 70A | High voltage battery coolant element one and two |
| F6 | 70A | Load compartment fuse box |
| F7 | – | Not used |
| F8 | 50A | Electric motor cooling fan |
| F9 | 50A | Body control module (supply) |
| F10 | 40A | High voltage battery coolant element three |

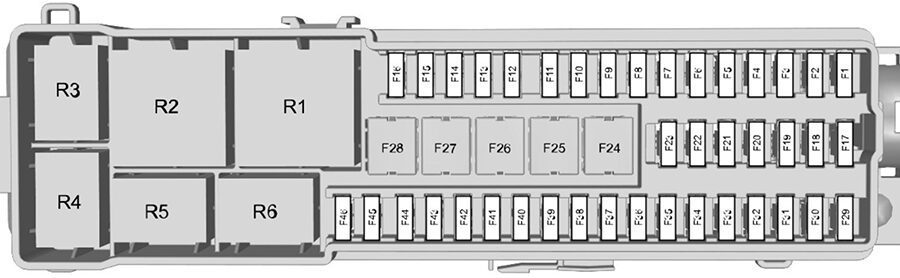

Luggage Compartment Fuse Box
List of fuses in the luggage compartment fuse box (2013-2014)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5A | Telematics control unit |
| F2 | 10A | Keyless vehicle module |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Front power window (left), Central locking (front left), Power folding mirror (left), Heated exterior mirror (left) |
| F5 | 25A | Front power window (right), Central locking (front right), Power folding mirror (right), Heated exterior mirror (right) |
| F6 | 25A | Rear power window (left) |
| F7 | 25A | Rear power window (right) |
| F8 | 10A | Anti-theft alarm system |
| F9 | 25A | Driver power seat |
| F10 | 25A | Heated rear window |
| F11 | 5A | Battery electronic control module |
| F12 | – | Not used |
| F13 | – | Not used |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | – | Not used |
| F19 | – | Not used |
| F20 | – | Not used |
| F21 | – | Not used |
| F22 | – | Not used |
| F23 | – | Not used |
| F24 | – | Not used |
| F25 | – | Not used |
| F26 | – | Not used |
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | 5A | Parking aid camera |
| F30 | 5A | Parking aid module |
| F31 | – | Not used |
| F32 | – | Not used |
| F33 | – | Not used |
| F34 | 15A | Heated seat (driver) |
| F35 | 15A | Heated seat (front passenger) |
| F36 | – | Not used |
| F37 | – | Not used |
| F38 | – | Not used |
| F39 | – | Not used |
| F40 | – | Not used |
| F41 | – | Not used |
| F42 | – | Not used |
| F43 | – | Not used |
| F44 | – | Not used |
| F45 | – | Not used |
| F46 | – | Not used |
| Relay | ||
| R1 | Rear 15 | |
| R2 | Heated rear window | |
| R3 | Rear window wiper | |
| R4 | Not used | |
| R5 | Anti-theft alarm horn | |
| R6 | Not used | |
2015-2016
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2015-2016)
| № | A | Circuits protected |
|---|---|---|
| F56 | – | Not used. |
| F57 | – | Not used. |
| F58 | – | Not used. |
| F59 | 5A | Passive anti-theft transceiver. |
| F60 | 10A | Interior lighting. Driver door switch pack. Glove box lamp. Ambient lighting. |
| F61 | 20A | Cigar lighter. Rear auxiliary power points. |
| F62 | 5A | Rain sensor. Humidity sensor. Auto-dimming interior mirror. |
| F63 | – | Not used. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release. |
| F66 | 20A | Driver door lock. Double locking. |
| F67 | 7.5A | Front display interface module. Global positioning system module. Bluetooth phone and voice control connectivity. SYNC module. |
| F68 | 15A | Electrical steering column lock. |
| F69 | 5A | Instrument cluster. |
| F70 | 20A | Central locking system. |
| F71 | 10A | Air conditioning. |
| F72 | 7.5A | Steering wheel module. |
| F73 | 7.5A | Battery back-up sounder (alarm system). Onboard diagnostics system. |
| F74 | 15A | High beam. |
| F75 | – | Not used. |
| F76 | 10A | Reversing lamps. |
| F77 | 20A | Windshield washer pump. |
| F78 | 5A | Ignition switch. Push button ignition switch. |
| F79 | 15A | Audio unit. Hazard flasher switch. Door lock switch. |
| F80 | – | Not used. |
| F81 | 5A | Interior motion sensor. Radio frequency receiver. |
| F82 | 20A | Windshield washer pump. |
| F83 | 20A | Central locking system. |
| F84 | 20A | Driver door unlock. Double locking ground. |
| F85 | 7.5A | Air conditioning. Passenger airbag deactivation switch. Heated seat switches. Auxiliary heater. |
| F86 | 10A | Restraints control module. Passenger airbag deactivation switch. |
| F87 | – | Not used. |
| F88 | – | Not used. |
| F89 | – | Not used. |
Electric Motor Compartment Fuse Box
List of fuses in the electric motor compartment fuse box (2015-2016)
| № | A | Circuits protected |
|---|---|---|
| F7 | 40A** | Anti-lock brake system. Electronic stability program. |
| F8 | 30A** | Electronic stability program. |
| F9 | – | Not used. |
| F10 | 40A** | Blower motor. |
| F11 | 40A** | Vacuum pump. |
| F12 | 40A** | Electric motor control relay. |
| F13 | 40A** | Battery charging control module. |
| F14 | 40A** | Coolant heater one. |
| F15 | 30A** | Body control module. |
| F16 | 40A** | Coolant heater two. |
| F17 | – | Not used. |
| F18 | 20A** | Windshield wipers. |
| F19 | 5A* | Anti-lock brake system. Electronic stability program. |
| F20 | 15A* | Horn. |
| F21 | 5A* | Stop lamp switch. |
| F22 | 15A* | Battery monitoring system. |
| F23 | 5A* | Relay coils. |
| F24 | 5A* | Lighting control. |
| F25 | – | Not used. |
| F26 | 10A* | Powertrain control module. |
| F27 | 15A* | Charge port light ring. |
| F28 | 5A* | Vacuum pump monitor. |
| F29 | – | Not used. |
| F30 | 5A* | Transmission control module. |
| F31 | 10A* | Data link connector. |
| F32 | 10A* | Coolant valve. Air conditioning solenoid. Chiller solenoid. |
| F33 | 10A* | Powertrain control module. |
| F34 | 15A* | High voltage battery. |
| F35 | – | Not used. |
| F36 | 20A* | Coolant pump. |
| F37 | 5A* | Vehicie audible sound for pedestrians. |
| F38 | 15A* | Powertrain control module. |
| F39 | 5A* | Headlamp leveling. |
| F40 | 5A* | Electronic power assist steering. |
| F41 | 20A* | Body control module. |
| F42 | – | Not used. |
| F43 | 15A* | Headlamp leveling. Adaptive front lighting. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
| F47 | – | Not used. |
| F48 | 5A* | Mechanical relay coil fuse. |
| Relay | ||
| R1 | – | Not used. |
| R2 | Micro relay | Horn. |
| R3 | – | Not used. |
| R4 | Micro relay | High voltage battery. |
| R5 | – | Not used. |
| R6 | – | Not used. |
| R7 | Power relay | Coolant heater. |
| R8 | Power relay | Coolant heater. |
| R9 | – | Not used. |
| R10 | Mini relay | Vacuum pump. |
| R11 | – | Not used. |
| R12 | Power relay | Electronic fan control module. |
| R13 | Mini relay | Blower motor. |
| R14 | Mini relay | Electric motor control. |
| R15 | Power relay | Vacuum pump. |
| R16 | Power relay | Ignition. |
| *Mini fuses **Cartridge fuses | ||
Pre-Fuse Box
List of fuses in the pre-fuse box (2015-2016)
| № | A | Circuits protected |
|---|---|---|
| F1 | 80A | Electronic power assist steering. |
| F2 | 150A | 12 volt battery charge. |
| F3 | 100A | Power distribution box. |
| F4 | 50A | Body control module (supply). |
| F5 | 70A | High voitage battery cooiant element one and two. |
| F6 | 70A | Load compartment fuse box. |
| F7 | – | Not used. |
| F8 | 50A | Electric motor cooling fan. |
| F9 | 50A | Body control module (supply). |
| F10 | 40A | High voitage battery cooiant element three. |
Luggage Compartment Fuse Box
List of fuses in the luggage compartment fuse box (2015-2016)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5A* | Telematics control unit. |
| F2 | – | Not used. |
| F3 | 5A* | Keyless vehicle door handles. |
| F4 | 25A* | Front left door control unit. |
| F5 | 25A* | Front right door control unit. |
| F6 | 25A* | Rear left door control unit. |
| F7 | 25A* | Rear right door control unit. |
| F8 | 10A* | Anti-theft alarm. |
| F9 | 25A* | Driver seat. |
| F10 | 25A* | Heated rear window. |
| F11 | 5A* | Battery electronic control module. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | – | Not used. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | – | Not used. |
| F24 | – | Not used. |
| F25 | – | Not used. |
| F26 | – | Not used. |
| F27 | – | Not used. |
| F28 | – | Not used. |
| F29 | 5A* | Rear view camera. |
| F30 | 5A* | Parking aid module. |
| F31 | – | Not used. |
| F32 | – | Not used. |
| F33 | 15A | Rear window wiper relay. |
| F34 | 15A* | Driver heated seat. |
| F35 | 15A* | Passenger heated seat. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
| Relay | ||
| R1 | Power relay | Rear 15. |
| R2 | Mini relay | Heated rear window. |
| R3 | Micro relay | Rear window wiper. |
| R4 | – | Not used. |
| R5 | Micro relay | Anti-theft alarm horn. |
| R6 | – | Not used. |
2017
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2017)
| № | A | Protected Component |
|---|---|---|
| F56 | – | Not used. |
| F57 | – | Not used. |
| F58 | – | Not used. |
| F59 | – | Not used. |
| F60 | 10A | Interior Lighting. Driver door switch pack. Glove compartment lamp. Ambient üghting module. |
| F61 | 20A | Cigar lighter. Rear auxiliary power points. |
| F62 | 5A | Rain sensor. Auto-dimming interior mirror. |
| F63 | – | Not used. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release switch. |
| F66 | – | Not used. |
| F67 | 7.5A | Front control/display interface module. Global positioning system module. Cellular phone with bluetooth and voice control. SYNC module. |
| F68 | 15A | Steering wheel and column electrical components. |
| F69 | 5A | Instrument cluster. |
| F70 | – | Not used. |
| F71 | 10A | Air conditioning. |
| F72 | 7.5A | Steering wheel module. |
| F73 | 7.5A | Battery back-up sounder. On-board diagnostics system. |
| F74 | 15A | High beam. |
| F75 | – | Not used. |
| F76 | 10A | Reversing lamps. |
| F77 | 20A | Windshield washer pump. |
| F78 | 5A | Ignition switch. Push button ignition switch. |
| F79 | 15A | Audio unit. Hazard flasher switch. |
| F80 | – | Not used. |
| F81 | 5A | Interior motion sensor. Radio frequency receiver. |
| F82 | 20A | Windshield washer pump. |
| F83 | – | Not used. |
| F84 | – | Not used. |
| F85 | 7.5A | Rear window wiper. |
| F86 | 10A | Restraints control module. Passenger airbag deactivation indicator. |
| F87 | – | Not used. |
| F88 | – | Not used. |
| F89 | – | Not used. |
Electric Motor Compartment Fuse Box
List of fuses in the electric motor compartment fuse box (2017)
| № | A | Protected Component |
|---|---|---|
| F7 | 40A | Anti-lock brake system with electronic stability control. |
| F8 | 30A | Anti-lock brake system with electronic stability control. |
| F9 | – | Not used. |
| F10 | 40A | Blower motor. |
| F11 | 40A | Brake vacuum pump. |
| F12 | 40A | Electric motor control relay. |
| F13 | 40A | High voltage battery charging system. |
| F14 | 40A | Coolant heater. |
| F15 | 30A | Body control module. |
| F16 | 40A | Coolant heater. |
| F17 | – | Not used. |
| F18 | 20A | Windshield wipers. |
| F19 | 5A | Anti-lock brake system with electronic stability control. |
| F20 | 15A | Horn. |
| F21 | 5A | Stoplamp switch. |
| F22 | 15A | Battery monitoring sensor. |
| F23 | 5A | Relay coils. |
| F24 | 5A | Lighting control. |
| F25 | – | Not used. |
| F26 | 10A | Powertrain control module. |
| F27 | 15A | Charge port light ring. |
| F28 | 5A | Brake vacuum pump. |
| F29 | – | Not used. |
| F30 | 5A | Transmission control module. |
| F31 | 10A | Data link connector. |
| F32 | 10A | Coolant bypass solenoid valve. Air conditioning compressor control solenoid. Chiller solenoid. |
| F33 | 10A | Powertrain control module. |
| F34 | 15A | High voltage battery. |
| F35 | 5A | Electric vehicle Communications controller. |
| F36 | 20A | Coolant pump. |
| F37 | 5A | Vehicle audible sound for pedestrians. |
| F38 | 15A | Powertrain control module. |
| F39 | 5A | Headlamp leveling. |
| F40 | 5A | Electronic power assist steering. |
| F41 | 20A | Body control module. |
| F42 | – | Not used. |
| F43 | 15A | Headlamp leveling. Adaptive front lighting. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
| F47 | – | Not used. |
| F48 | 5A | Mechanical relay coil fuse. |
| Relay | ||
| R1 | Not used. | |
| R2 | Horn. | |
| R3 | Not used. | |
| R4 | High voltage battery. | |
| R5 | Not used. | |
| R6 | Not used. | |
| R7 | Coolant heater. | |
| R8 | Coolant heater. | |
| R9 | Not used. | |
| R10 | Brake vacuum pump. | |
| R11 | Not used. | |
| R12 | Electronic fan control module. | |
| R13 | Blower motor control module. | |
| R14 | Electric motor control. | |
| R15 | Brake vacuum pump. | |
| R16 | Ignition. | |
Pre-Fuse Box
List of fuses in the pre-fuse box pre-fuse box (2017)
| № | A | Protected Component |
|---|---|---|
| F1 | 80A | Electronic power assist steering. |
| F2 | 150A | 12 volt battery charge. |
| F3 | 100A | Power distribution box. |
| F4 | 50A | Body control module. |
| F5 | 70A | High voltage battery coolant. |
| F6 | 70A | Load compartment fuse box. |
| F7 | – | Not used. |
| F8 | 50A | Cooling fan motor. |
| F9 | 50A | Body control module. |
| F10 | 40A | High voltage battery coolant. |
Luggage Compartment Fuse Box
List of fuses in the luggage compartment fuse box (2017)
| № | A | Protected Component |
|---|---|---|
| F1 | 5A | Cellphone passport module. |
| F2 | – | Not used. |
| F3 | 5A | Keyless vehicle door handles. |
| F4 | 25A | Front left door control unit. |
| F5 | 25A | Front right door control unit. |
| F6 | 25A | Rear left door control unit. |
| F7 | 25A | Rear right door control unit. |
| F8 | 10A | Anti-theft alarm. |
| F9 | 25A | Driver seat. |
| F10 | 25A | Heated rearwindow. |
| F11 | 5A | Battery electronic control module. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | – | Not used. |
| F15 | – | Not used. |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | – | Not used. |
| F21 | – | Not used. |
| F22 | – | Not used. |
| F23 | – | Not used. |
| F24 | – | Not used. |
| F25 | – | Not used. |
| F26 | – | Not used. |
| F27 | – | Not used. |
| F28 | – | Not used. |
| F29 | 5A | Rear view camera. |
| F30 | 5A | Parking assist control module. |
| F31 | – | Not used. |
| F32 | – | Not used. |
| F33 | 15A | Rear window wiper relay. |
| F34 | 15A | Driver heated seat. |
| F35 | 15A | Passenger heated seat. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | – | Not used. |
| Relay | ||
| R1 | Rear 15. | |
| R2 | Heated rearwindow. | |
| R3 | Rear window wiper. | |
| R4 | Not used. | |
| R5 | Anti-theft alarm horn. | |
| R6 | Not used. | |
Conclusion
Understanding the fuse box and relay locations on your 2013–2017 Ford Focus Electric helps you handle routine low-voltage electrical issues, such as interior lighting or wiper problems, with confidence. However, because this is an electric vehicle, it’s crucial to recognize the boundary between standard fuse maintenance and the sealed high-voltage system that powers the drivetrain.
Always handle low-voltage fuses and relays with care, confirm amperage ratings before replacing any component, and use the printed diagram to correctly identify each part. For anything related to the high-voltage battery, charging system, or drive components, always consult a qualified Ford EV technician to ensure your safety and avoid damaging critical systems.
