Learn about Ford F-150 2015-2017 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The 2015-2017 Ford F-150 is a versatile full-size pickup truck available in several body styles, including Regular Cab, SuperCab, and SuperCrew, each catering to different needs for passenger space and cargo capacity. These models are also available in various trims, such as the XL, XLT, Lariat, King Ranch, Platinum, and Limited, allowing for a wide range of features and amenities. Key features include advanced infotainment systems, modern safety technology, and strong towing capabilities thanks to options like the 2.7L EcoBoost, 3.5L V6, and 5.0L V8 engines.
The F-150’s electrical system is essential for powering its extensive range of functions, including lighting, climate control, and infotainment. The fuse box and relay center, typically located under the hood and in the cabin, play a critical role in ensuring these systems work effectively. Fuses protect electrical components from overload, while relays help manage the flow of power to high-demand features like the headlights and starter motor.
MUST READ: DYI – How to Check Car Fuses?
(2015-2017) Ford F-150 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford F-150 2015-2017 fuse assignment
Ford F-150 Year of production: from 2015, 2016, 2017
Passenger Compartment Fuse Panel:
The fuse panel is in the right-hand side of the passenger footwell behind a trim panel.
To remove the trim panel, pull it toward you and swing it away from the side. To reinstall it, line up the tabs with the grooves on the panel, and then push it shut.
To remove the fuse panel cover, press in the tabs on both sides of the cover, and then pull it off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel and push the bottom part until it latches. Gently pull on the cover to make sure it has latched properly.
Power Distribution Box:
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2015

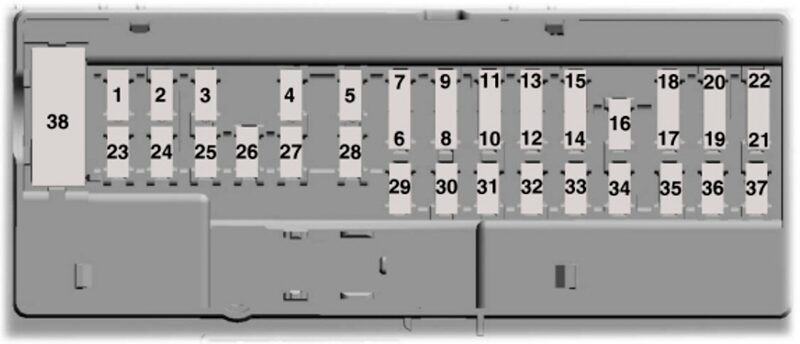

Passenger Compartment Fuses
List of fuses in the Passenger Compartment Fuse Panel (2015)
| № | A | Protected components |
|---|---|---|
| 1 | 10A | Demand lamp relay. Power seats relay. Glove box. Vanity lamps. Overhead console. Dome. Courtesy. Map lamps. |
| 2 | 7.5A | Memory module logic. Memory seat switches. Lumbar motor. |
| 3 | 20A | Driver door lock motor. |
| 4 | 5A | Trailer brake control. |
| 5 | 20A | Not used. |
| 6 | 10A | Not used. |
| 7 | 10A | Not used. |
| 8 | 10A | Not used. |
| 9 | 10A | Not used. |
| 10 | 5A | Not used (spare). |
| 11 | 5A | Combined sensor module. |
| 12 | 7.5A | Climate head module. Smart datalink converter. |
| 13 | 7.5A | Cluster. SCCM. |
| 14 | 10A | Brake. |
| 15 | 10A | Smart datalink converter. |
| 16 | 15A | Tailgate release. |
| 17 | 5A | HUD. |
| 18 | 5A | Ignition switch and passive-entry passive-start start stop switch. Key inhibit solenoid. |
| 19 | 7.5A | Tow haul (O/D) cancel for floor or column shifter. |
| 20 | 7.5A | Not used. |
| 21 | 5A | HUD. In car temperature with humidity sensor. |
| 22 | 5A | EPB. Power seat. |
| 23 | 10A | PDRG switch. Inverter. Driver side window. Moonroof. |
| 24 | 20A | Central lock/unlock. |
| 25 | 30A | Driver door control module. |
| 26 | 30A | Passenger door control module. |
| 27 | 30A | Vista roof. Moonroof. |
| 28 | 20A | Not used. |
| 29 | 30A | Not used. |
| 30 | 30A | Not used. |
| 31 | 15A | Adjustable pedal switch and motor. |
| 32 | 10A | Multi-function display. Global position system. Sync 1. Sync 2. Radio frequency receiver. |
| 33 | 20A | Radio. |
| 34 | 30A | Run-start relay. |
| 35 | 5A | Restraints module. |
| 36 | 15A | 360 camera module. Heated steering wheel module. Rear-view mirror. Rear heated seats. |
| 37 | 15A | Power distribution box run-start relay. |
| 38 | 30A Circuit breaker. | Rear window switches and motors. |

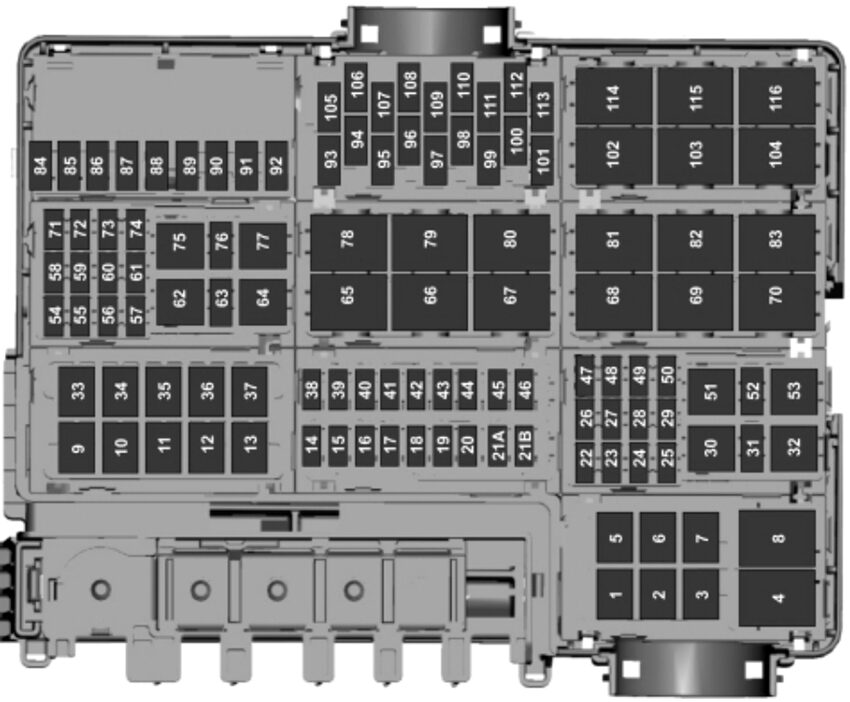

Under-Hood Compartment Fuses
List of fuses in the Power Distribution Box (2015)
| № | A | Protected components |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | – | Telescoping side-view mirror. |
| 5 | 40A | Rear window defroster. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | – | Telescoping side-view mirror. |
| 9 | – | Not used. |
| 10 | – | Not used. |
| 11 | 60A | Automatic brake system motor. |
| 12 | 50A | Body control module 1. |
| 13 | 60A | Body control module 2. |
| 14 | 20A | Amplifier. |
| 15 | 25A | 4×4. |
| 16 | 10A | Spot light module. |
| 17 | 15A | Heated seat. |
| 18 | 10A | Steering-column lock. |
| 19 | 10A | Power seats. |
| 20 | 15A | Snow plow. Rear heated seats. |
| 21A | – | Not used. |
| 21B | – | Not used. |
| 22 | 30A | Windshield wiper motor. |
| 23 | 15A | Rain sensor. |
| 24 | 25A | Series fan feed. |
| 25 | – | Not used. |
| 26 | 30A | Driver seat motors. |
| 27 | 30A | Passenger power seat. |
| 28 | 30A | Climate controlled seat. |
| 29 | – | Not used. |
| 30 | – | Air conditioner clutch relay. |
| 31 | – | Not used. |
| 32 | – | Not used. |
| 33 | 50A | Electric fan 3. |
| 34 | 25A | Trailer tow park lamps. |
| 35 | 20A | Trailer tow stop-turn relay fuse. |
| 36 | 25A | Trailer tow lamps module. |
| 37 | 50A | Electric fan 1. |
| 38 | 10A | Alt A sensor. |
| 39 | 10A | Integrated wheel end solenoid. |
| 40 | 15A | E-locker. |
| 41 | 10A | Telescoping mirror. |
| 42 | 30A | Transmission fluid pump. |
| 43 | 25A | Horn. |
| 44 | 10A | Air conditioner clutch. |
| 45 | 10A | Powertrain control module relay coil. |
| 46 | 10A | Wiper relay coil. |
| 47 | – | Not used. |
| 48 | – | Not used. |
| 49 | 30A | Trailer brake control module. |
| 50 | 30A | Power running boards. |
| 51 | – | Fuel pump relay. |
| 52 | – | Not used. |
| 53 | – | Not used. |
| 54 | 30A | Voltage quality module. Body-control-module voltage-quality-module feed. |
| 55 | 40A | Body control module RP2 feed. |
| 56 | 20A | Fuel pump. |
| 57 | 30A | Right-hand EPB actuator. |
| 58 | 30A | Left-hand EPB actuator. |
| 59 | 30A | Starter. |
| 60 | 40A | Blower motor. |
| 61 | 30A | Brake control module. Automatic brake system valves. |
| 62 | – | Power seat relay. |
| 63 | 15A | Heated mirrors. |
| 64 | – | Not used. |
| 65 | – | Starter relay. |
| 66 | – | Powertrain control module relay. |
| 67 | – | Windshield wiper relay. |
| 68 | – | Blower motor relay. |
| 69 | – | Power sliding back window relay. |
| 70 | – | Electric fan 1 relay. |
| 71 | – | Not used. |
| 72 | 25A | 4×4. |
| 73 | – | Not used. |
| 74 | 30A | PDRG motor. |
| 75 | – | Horn relay. |
| 76 | – | Not used. |
| 77 | – | Steering column lock relay. |
| 78 | – | Not used. |
| 79 | – | Trailer tow parking lamp relay. |
| 80 | – | Rear window defroster relay. |
| 81 | – | Not used. |
| 82 | – | PDRG close relay. |
| 83 | – | Not used. |
| 84 | – | Not used. |
| 85 | – | Not used. |
| 86 | – | Not used. |
| 87 | 10A | Trailer tow backup lamps. |
| 88 | – | Not used. |
| 89 | 20A | Cigar lighter power point 1. |
| 90 | 20A | Power point 2. |
| 91 | 20A | Power point 3. |
| 92 | 20A | Power point 4. |
| 93 | 25A | GTDI vehicle power 1. |
| 10A | PFI vehicle power 1. | |
| 94 | – | Not used. |
| 95 | 25A | Vehicle power 2. |
| 96 | – | Not used. |
| 97 | 10A | Vehicle power 3. |
| 98 | – | Not used. |
| 99 | 20A | Vehicle power 4 (PFI). |
| 15A | Vehicle power 4 (GTDI). | |
| 100 | – | Not used. |
| 101 | – | Not used. |
| 102 | – | Snow plow relay. |
| 103 | – | Not used. |
| 104 | – | Electic fan 3 relay. |
| 105 | 10A | Power steering. |
| 106 | – | Not used. |
| 107 | 10A | Anti-lock brakes. |
| 108 | – | Not used. |
| 109 | 10A | Powertrain control module. |
| 110 | 10A | 4×4 run/start. Adaptive cruise control. |
| 111 | 10A | Transmission pump run-start. |
| 112 | – | Not used. |
| 113 | 7.5A | Blind spot information system. Rear view camera. Front view camera. Voltage quality module. |
| 114 | – | Electric fan 2 relay. |
| 115 | – | Not used. |
| 116 | – | Not used. |
2016
Passenger Compartment Fuses
List of fuses in the Passenger Compartment Fuse Panel (2016)
| № | A | Protected components |
|---|---|---|
| 1 | 10A | Demand lamp relay. Power seats relay. Glove box. Vanity lamps. Overhead console. Dome. Courtesy. Map lamps. |
| 2 | 7.5A | Memory module logic. Memory seat switches. Lumbar motor. |
| 3 | 20A | Driver door lock motor. |
| 4 | 5A | Trailer brake control. |
| 5 | 20A | Not used. |
| 6 | 10A | Not used. |
| 7 | 10A | Not used. |
| 8 | 10A | Not used. |
| 9 | 10A | Not used. |
| 10 | 5A | Not used (spare). |
| 11 | 5A | Combined sensor module. |
| 12 | 7.5A | Climate head module. Smart datalink converter. |
| 13 | 7.5A | Cluster. SCCM. |
| 14 | 10A | Brake. |
| 15 | 10A | Smart datalink converter. |
| 16 | 15A | Tailgate release. |
| 17 | 5A | HUD. |
| 18 | 5A | Ignition switch and passive-entry passive-start start stop switch. Key inhibit solenoid. |
| 19 | 7.5A | Tow haul (O/D) cancel for floor or column shifter. |
| 20 | 7.5A | Not used. |
| 21 | 5A | HUD. In car temperature with humidity sensor. |
| 22 | 5A | EPB. Power seat. |
| 23 | 10A | PDRG switch. Inverter. Driver side window. Moonroof. Vista roof. |
| 24 | 20A | Central lock/unlock. |
| 25 | 30A | Driver door control module. |
| 26 | 30A | Passenger door control module. |
| 27 | 30A | Vista roof. Moonroof. |
| 28 | 20A | Not used. |
| 29 | 30A | Not used. |
| 30 | 30A | Not used. |
| 31 | 15A | Adjustable pedal switch and motor. |
| 32 | 10A | Multi-function display. Global position system. Sync 1. Sync 2. Radio frequency receiver. |
| 33 | 20A | Radio. |
| 34 | 30A | Run-start relay. |
| 35 | 5A | Restraints module. |
| 36 | 15A | 360 camera module. Heated steering wheel module. Rear-view mirror. Rear heated seats. |
| 37 | 20A | Power distribution box run-start fuses. |
| 38 | 30A Circuit breaker. | Rear window switches and motors. |
Under-Hood Compartment Fuses
List of fuses in the Power Distribution Box (2016)
| № | A | Protected components |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | – | Telescoping side-view mirror. |
| 5 | 40A | Rear window defroster. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | – | Telescoping side-view mirror. |
| 9 | – | Not used. |
| 10 | – | Not used. |
| 11 | 60A | Automatic brake system motor. |
| 12 | 50A | Body control module 1. |
| 13 | 60A | Body control module 2. |
| 14 | 20A | Amplifier. |
| 15 | 25A | 4×4. |
| 16 | 10A | Spot light module. |
| 17 | 15A | Heated seat. |
| 18 | 10A | Steering-column lock. |
| 19 | 10A | Power seats. |
| 20 | 15A | Snow plow. Rear heated seats. |
| 21A | – | Not used. |
| 21B | – | Not used. |
| 22 | 30A | Windshield wiper motor. |
| 23 | 15A | Rain sensor. |
| 24 | 25A | Series fan feed. |
| 25 | – | Not used. |
| 26 | 30A | Driver seat motors. |
| 27 | 30A | Passenger power seat. |
| 28 | 30A | Climate controlled seat. |
| 29 | – | Not used. |
| 30 | – | Air conditioner clutch relay. |
| 31 | – | Not used. |
| 32 | – | Not used. |
| 33 | 50A | Electric fan 3. |
| 34 | 25A | Trailer tow park lamps. |
| 35 | 20A | Trailer tow stop-turn relay fuse. |
| 36 | 25A | Trailer tow lamps module. |
| 37 | 50A | Electric fan 1. |
| 38 | 10A | Alt A sensor. |
| 39 | 10A | Integrated wheel end solenoid. |
| 40 | 15A | E-locker. |
| 41 | 10A | Telescoping mirror. |
| 42 | 30A | Transmission fluid pump. |
| 43 | 25A | Horn. |
| 44 | 10A | Air conditioner clutch. |
| 45 | 10A | Powertrain control module relay coil. |
| 46 | 10A | Wiper relay coil. |
| 47 | – | Not used. |
| 48 | – | Not used. |
| 49 | 30A | Trailer brake control module. |
| 50 | 30A | Power running boards. |
| 51 | – | Fuel pump relay. |
| 52 | – | Not used. |
| 53 | – | Not used. |
| 54 | 30A | Voltage quality module. Body control module voltage quality module feed. |
| 55 | 40A | Body control module RP2 feed. |
| 56 | 20A | Fuel pump. |
| 57 | 30A | Right-hand EPB actuator. |
| 58 | 30A | Left-hand EPB actuator. |
| 59 | 30A | Starter. |
| 60 | 40A | Blower motor. |
| 61 | 30A | Brake control module. Automatic brake system valves. |
| 62 | – | Power seat relay. |
| 63 | 15A | Heated mirrors. |
| 64 | – | Not used. |
| 65 | – | Starter relay. |
| 66 | – | Powertrain control module relay. |
| 67 | – | Windshield wiper relay. |
| 68 | – | Blower motor relay. |
| 69 | – | Power sliding back window relay. |
| 70 | – | Electric fan 1 relay. |
| 71 | – | Not used. |
| 72 | 25A | 4×4. |
| 73 | – | Not used. |
| 74 | 30A | PDRG motor. |
| 75 | – | Horn relay. |
| 76 | – | Not used. |
| 77 | – | Steering column lock relay. |
| 78 | – | Not used. |
| 79 | – | Trailer tow parking lamp relay. |
| 80 | – | Rear window defroster relay. |
| 81 | – | Not used. |
| 82 | – | PDRG close relay. |
| 83 | – | Not used. |
| 84 | – | Not used. |
| 85 | – | Not used. |
| 86 | – | Not used. |
| 87 | 10A | Trailer tow backup lamps. |
| 88 | – | Not used. |
| 89 | 20A | Cigar lighter power point 1. |
| 90 | 20A | Power point 2. |
| 91 | 20A | Power point 3. |
| 92 | 20A | Power point 4. |
| 93 | 25A | GTDI vehicle power 1. |
| 10A | PFI vehicle power 1. | |
| 94 | – | Not used. |
| 95 | 25A | Vehicle power 2. |
| 96 | – | Not used. |
| 97 | 10A | Vehicle power 3. |
| 98 | – | Not used. |
| 99 | 20A | Vehicle power 4 (PFI). |
| 15A | Vehicle power 4 (GTDI). | |
| 100 | – | Not used. |
| 101 | – | Not used. |
| 102 | – | Snow plow relay. |
| 103 | – | Not used. |
| 104 | – | Electic fan 3 relay. |
| 105 | 10A | Power steering. |
| 106 | – | Not used. |
| 107 | 10A | Anti-lock brakes. |
| 108 | – | Not used. |
| 109 | 10A | Powertrain control module. |
| 110 | 10A | 4×4 run/start. Adaptive cruise control. |
| 111 | 10A | Transmission pump run-start. |
| 112 | – | Not used. |
| 113 | 7.5A | Blind spot information system. Rear view camera. Front view camera. Voltage quality module. |
| 114 | – | Electric fan 2 relay. |
| 115 | – | Not used. |
| 116 | – | Not used. |
2017
Passenger Compartment Fuses
List of fuses in the Passenger Compartment Fuse Panel (2017)
| № | A | Protected components |
|---|---|---|
| 1 | 10A | Demand lamp relay. Power seats relay. Glove box. Vanity lamps. Overhead console. Dome. Courtesy. Map lamps. |
| 2 | 7.5A | Memory module logic. Memory seat switches. Lumbar motor. |
| 3 | 20A | Driver door lock motor. |
| 4 | 5A | Trailer brake control. |
| 5 | 20A | Not used. |
| 6 | 10A | Not used. |
| 7 | 10A | Not used. |
| 8 | 10A | Not used. |
| 9 | 10A | Not used (spare). |
| 10 | 5A | Embedded modem module. |
| 11 | 5A | Combined sensor module. |
| 12 | 7.5A | Climate head module. Smart datalink converter. |
| 13 | 7.5A | Cluster. SCCM. |
| 14 | 10A | Brake. |
| 15 | 10A | Smart datalink converter. |
| 16 | 15A | Tailgate release. |
| 17 | 5A | HUD. Terrain switch. |
| 18 | 5A | Ignition switch and passive-entry passive-start start stop switch. Key inhibit solenoid. |
| 19 | 7.5A | Tow haul (O/D) cancel for floor or column shifter. |
| 20 | – | Not used. |
| 21 | 5A | HUD. In car temperature with humidity sensor. |
| 22 | 5A | EPB. Power seat. |
| 23 | 10A | PDRG switch. Inverter. Driver side window. Moonroof. Vista roof. |
| 24 | 20A | Central lock/unlock. |
| 25 | 30A | Driver door control module. |
| 26 | 30A | Passenger door control module. |
| 27 | 30A | Vista roof. Moonroof. |
| 28 | 20A | Not used. |
| 29 | 30A | Not used. |
| 30 | 30A | Not used. |
| 31 | 15A | Adjustable pedal switch and motor. |
| 32 | 10A | Multi-function display. Global position system. SYNC. Radio frequency receiver. |
| 33 | 20A | Radio. |
| 34 | 30A | Run-start relay. |
| 35 | 5A | Restraints module. |
| 36 | 15A | 360 camera module. Heated steering wheel module. Rear-view mirror. Rear heated seats. |
| 37 | 20A | Power distribution box run-start fuses. |
| 38 | 30A Circuit breaker | Rear window switches and motors. |
Under-Hood Compartment Fuses
List of fuses in the Power Distribution Box (2017)
| № | A | Protected components |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | – | Telescoping side-view mirror. |
| 5 | 40A | Rear window defroster. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | – | Telescoping side-view mirror. |
| 9 | 30A | Fuel pump. |
| 10 | 40A | Charge air cooler fans (Raptor only). |
| 11 | 60A | Automatic brake system motor. |
| 12 | 50A | Body control module 1. |
| 13 | 60A | Body control module 2. |
| 14 | 20A | Amplifier. |
| 15 | 25A | 4×4. |
| 16 | 10A | Spot light module. |
| 17 | 15A | Heated seat. |
| 18 | 10A | Steering-column lock. |
| 19 | 10A | Power seats. |
| 20 | 15A | Snow plow. Rear heated seats. |
| 21A | 15A | Transmission control module. |
| 21B | – | Not used. |
| 22 | 30A | Windshield wiper motor. |
| 23 | 15A | Rain sensor. |
| 24 | 25A | Series fan feed. |
| 25 | – | Not used. |
| 26 | 30A | Driver seat motors. |
| 27 | 30A | Passenger power seat. |
| 28 | 30A | Climate controlled seat. |
| 29 | 25A | Upfitter fuses 94, 96, 98 and 100 (Raptor only). |
| 30 | – | Air conditioner clutch relay. |
| 31 | – | Not used. |
| 32 | – | Not used. |
| 33 | 50A | Electric fan 3. |
| 34 | 25A | Trailer tow park lamps. |
| 35 | 20A | Trailer tow stop-turn relay fuse. |
| 36 | 25A | Trailer tow lamps module. |
| 37 | 50A | Electric fan 1. |
| 38 | 10A | Alt A sensor. |
| 39 | 10A | Integrated wheel end solenoid. |
| 40 | 15A | E-locker. |
| 41 | 10A | Telescoping mirror. |
| 42 | 30A | Transmission fluid pump. |
| 43 | 25A | Horn. |
| 44 | 10A | Air conditioner clutch. |
| 45 | 10A | Powertrain control module relay coil. |
| 46 | 10A | Wiper relay coil. |
| 47 | 15A | Upfitter 1 (Raptor only). |
| 48 | 15A | Upfitter 2 (Raptor only). |
| 49 | 30A | Trailer brake control module. |
| 50 | 30A | Power running boards. |
| 51 | – | Fuel pump relay. |
| 52 | – | Not used. |
| 53 | – | Upfitter 5 relay (Raptor only). |
| 54 | 30A | Voltage quality module. Body-control-module voltage-quality-module feed. |
| 55 | 40A | Body control module RP2 feed. |
| 56 | 20A | Fuel pump. |
| 57 | 30A | Right-hand electric parking brake actuator. |
| 58 | 30A | Left-hand electric parking brake actuator. |
| 59 | 30A | Starter. |
| 60 | 40A | Blower motor. |
| 61 | 30A | Brake control module. Automatic brake system valves. |
| 62 | – | Power seat relay. |
| 63 | 15A | Heated mirrors. |
| 64 | – | Upfitter 6 relay (Raptor only). |
| 65 | – | Starter relay. |
| 66 | – | Powertrain control module relay. |
| 67 | – | Windshield wiper relay. |
| 68 | – | Blower motor relay. |
| 69 | – | Power sliding back window relay. |
| 70 | – | Electric fan 1 relay. |
| 71 | – | Not used. |
| 72 | 25A | 4×4. |
| 73 | – | Not used. |
| 74 | 30A | PDRG motor. |
| 75 | – | Horn relay. |
| 76 | – | Not used. |
| 77 | – | Steering column lock relay. |
| 78 | – | Not used. |
| 79 | – | Trailer tow parking lamp relay. |
| 80 | – | Rear window defroster relay. |
| 81 | – | Upfitter 1 relay (Raptor only). |
| 82 | – | PDRG close relay. |
| 83 | – | Upfitter 2 relay (Raptor only). |
| 84 | – | Not used. |
| 85 | – | Not used. |
| 86 | – | Not used. |
| 87 | 10A | Trailer tow backup lamps. |
| 88 | – | Not used. |
| 89 | 20A | Cigar lighter power point 1. |
| 90 | 20A | Power point 2. |
| 91 | 20A | Power point 3. |
| 92 | 20A | Power point 4. |
| 93 | 25A | GTDI vehicle power 1. |
| 10A | PFI vehicle power 1. | |
| 94 | 10A | Upfitter 3 (Raptor only). |
| 95 | 25A | Vehicle power 2. |
| 96 | 10A | Upfitter 4 (Raptor only). |
| 97 | 10A | Vehicle power 3. |
| 98 | 5A | Upfitter 5 (Raptor only). |
| 99 | 20A | Vehicle power 4 (PFI). |
| 15A | Vehicle power 4 (GTDI). | |
| 100 | 5A | Upfitter 6 (Raptor only). |
| 101 | – | Not used. |
| 102 | – | Snow plow relay. |
| 103 | – | Charge air cooler fan (Raptor only). |
| 104 | – | Electronic fan 3 relay. |
| 105 | 10A | Power steering. |
| 106 | – | Not used. |
| 107 | 10A | Anti-lock brakes. |
| 108 | – | Not used. |
| 109 | 10A | Powertrain control module. Transmission control module run-start power. |
| 110 | 10A | 4×4 run/start. Adaptive cruise control. |
| 111 | 15A | Transmission pump run-start. |
| 112 | 10A | Charge air cooler relay coil run-start (Raptor only). |
| 113 | 7.5A | Blind spot information system. Rear view camera. Front view camera. Voltage quality module. |
| 114 | – | Electric fan 2 relay. |
| 115 | – | Upfitter 3 relay (Raptor only). |
| 116 | – | Upfitter 4 relay (Raptor only). |
Conclusion
Regular inspection of the F-150’s fuse box and relays helps maintain reliability and prevents unexpected electrical issues. Keeping these components in good condition ensures the truck continues to deliver performance and convenience for years.
