Learn about Ford F-150 2004-2008 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

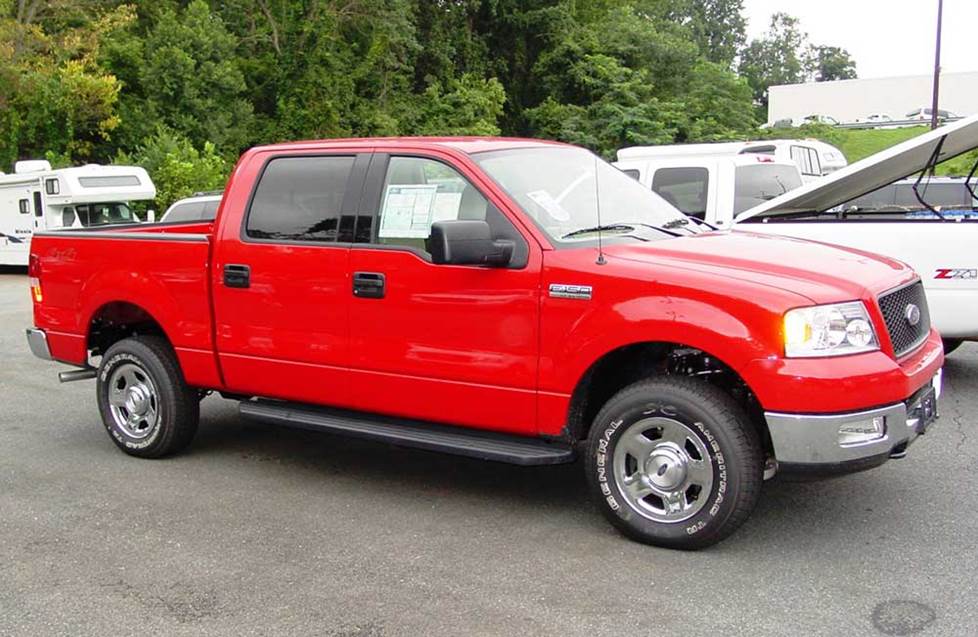

The 2004-2008 Ford F-150 offers various body styles, including Regular Cab, SuperCab, and SuperCrew. Each style caters to different needs, with the Regular Cab focusing on utility, the SuperCab adding rear space with half doors, and the SuperCrew providing full-size rear seating for greater passenger comfort. These models are built with durability in mind, ideal for both work and personal use.
The F-150’s electrical components, managed by fuse boxes and relays, are critical for reliable performance across different trims and configurations. The main fuse box is typically located under the hood on the driver’s side, while a secondary fuse box can be found inside the cabin under the dashboard. The relays, located near the fuse boxes, control essential systems such as the starter motor, fuel pump, and lighting. Proper maintenance and replacement of fuses and relays ensure that these electrical systems run smoothly, preventing issues with ignition, lights, and other essential functions.
MUST READ: DYI – How to Check Car Fuses?
(2004-2008) Ford F-150 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford F-150 2004-2008 fuse assignment
Ford F-150 Year of production: 2004, 2005, 2006, 2007, 2008
Location of Fuse Boxes
Passenger compartment fuse panel:
The fuse panel can be found beneath the right side of the instrument panel. To access the fuses, first remove the trim panel and the cover of the fuse box.
To take off the fuse box cover, position a finger behind the PULL tab and place your thumb on top of the tab as illustrated. Then, gently pull the cover off.
When reattaching the fuse box cover, align the top part of the cover with the fuse panel and press the bottom part until it clicks into place. Give the cover a gentle tug to ensure it is securely fastened.
Auxiliary relay box:
The relay box is located in the engine compartment on the left fender.
Fuse Box Diagrams
2004
Passenger Compartment Fuses
List of fuses in the Passenger compartment fuse panel (2004)
| № | A | Description |
|---|---|---|
| 1 | 10A | Run/Accessory – Wipers, Instrument cluster |
| 2 | 20A | Stop/Turn lamps, Speed control deactivate switch |
| 3 | 5A | Power mirrors, Memory logic power, Memory seats and pedals |
| 4 | 10A | DVD battery power |
| 5 | 7.5A | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A | Radio (start signal) |
| 8 | 10A | Heated mirrors, Switch indicator |
| 9 | – | Not used |
| 10 | 20A | Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201) |
| 11 | 10A | A/C clutch, 4×4 solenoid |
| 12 | – | Not used |
| 13 | 10A | Climate control module power |
| 14 | 10A | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Brake-shift interlock solenoid, Heated PCV |
| 15 | 5A | Overdrive cancel, Cluster, Brake-Shift Interlock (BSI) |
| 16 | 10A | ABS module (Run/Start power) |
| 17 | 15A | Fog lamp relay (R202) |
| 18 | 10A | Run/Start feed – Flasher relay, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A | Restraints (Air bag module) |
| 20 | 15A | PCM 4×4 power |
| 21 | 15A | Cluster keep alive power |
| 22 | 10A | Delayed accessory power for audio, power door lock switch and moonroof switch illumination |
| 23 | 10A | RH low beam headlamp |
| 24 | 15A | Battery saver power for demand lamps |
| 25 | 10A | LH low beam headlamp |
| 26 | 20A | Horn relay (PCB3), Horn power |
| 27 | 5A | Passenger Air bag Deactivation (PAD) warning lamp, Cluster air bag warning lamp, Cluster RUN /START power |
| 28 | 5A | SecuriLock transceiver (PATS) |
| 29 | 15A | PCM 4×4 power |
| 30 | – | Not used |
| 31 | 20A | Radio power |
| 32 | 15A | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT |
| 33 | 15A | Shift solenoid, CMS #12 and #22 |
| 34 | 20A | Fuel injectors and PCM power |
| 35 | 20A | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A | Trailer tow right turn/stop lamps |
| 37 | 20A | Rear power point |
| 38 | 25A | Subwoofer power |
| 39 | 20A | Instrument panel power point |
| 40 | 20A | Low beam headlamps, DRL |
| 41 | 20A | Cigar lighter, Diagnostic connector power |
| 42 | 10A | Trailer tow left turn/stop lamps |
| 101 | 30A | Starter solenoid |
| 102 | 20A | Ignition switch feed |
| 103 | 20A | ABS valves |
| 104 | – | Not used |
| 105 | 30A | Electric trailer brakes |
| 106 | 30A | Trailer tow battery charge |
| 107 | 30A | Power door locks (BSM) |
| 108 | 30A | Passenger power seat |
| 109 | 30A | Driver power seat, Adjustable pedals |
| 110 | – | Not used |
| 111 | 30A | 4×4 relays |
| 112 | 40A | ABS pump power |
| 113 | 30A | Wipers and washer pump |
| 114 | 40A | Heated backlite, Heated mirror power |
| 115 | – | Not used |
| 116 | 30A | Blower motor |
| 117 | – | Not used |
| 118 | 30A | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
Auxiliary relay box
| № | A | Description |
|---|---|---|
| F01 | 5A | Clockspring illumination |
| R01 | – | 4×4 CCW |
| R02 | – | 4×4 CW |
| R03 | – | Daytime Running Lamps (DRL) (if equipped, otherwise not used) |
| R201 | – | DRL |
| R202 | – | A/C clutch |
| D01 | – | A/C clutch diode |
2005
Passenger Compartment Fuses
List of fuses in the Passenger compartment fuse panel (2005)
| № | A | Description |
|---|---|---|
| 1 | 10A | Rim/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A | Stop/Turn lamps, Brake on/off switch |
| 3 | 5A | Power mirrors, Memory seats and pedals |
| 4 | 10A | DVD battery power, Power fold mirror |
| 5 | 7.5A | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A | Radio (start signal) |
| 8 | 10A | Heated mirrors, Switch indicator |
| 9 | – | Not used |
| 10 | 20A | Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201) |
| 11 | 10A | A/C clutch, 4×4 solenoid |
| 12 | – | Not used |
| 13 | 10A | Climate control module power, Flasher relay |
| 14 | 10A | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror |
| 15 | 5A | Overdrive cancel, Cluster |
| 16 | 10A | Brake-shift interlock solenoid |
| 17 | 15A | Fog lamp relay (R202) |
| 18 | 10A | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A | Restraints (Air bag module) |
| 20 | 10A | Battery feed for overhead power point |
| 21 | 15A | Cluster keep alive power |
| 22 | 10A | Delayed accessory power for audio, power door lock switch and moonroof switch illumination |
| 23 | 10A | RH low beam headlamp |
| 24 | 15A | Battery saver power for demand lamps |
| 25 | 10A | LH low beam headlamp |
| 26 | 20A | Horn relay (PCB3), Horn power |
| 27 | 5A | Passenger Air bag Deactivation (PAD) warning lamp, Cluster air bag warning lamp, Cluster RUN /START power |
| 28 | 5A | SecuriLock transceiver (PATS) |
| 29 | 15A | PCM 4×4 power |
| 30 | 15A | PCM 4×4 power |
| 31 | 20A | Radio power |
| 32 | 15A | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine) |
| 33 | 15A | Shift solenoid, CMS #12 and #22, 4.6L/4.2L EGR |
| 34 | 20A | Fuel injectors and PCM power, Intake Manifold Runner Control (4.2L engine) |
| 35 | 20A | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A | Trailer tow right turn/stop lamps |
| 37 | 20A | Rear power point |
| 38 | 25A | Subwoofer power |
| 39 | 20A | Instrument panel power point |
| 40 | 20A | Low beam headlamps, DRL |
| 41 | 20A | Cigar lighter, Diagnostic connector power |
| 42 | 10A | Trailer tow left turn/stop lamps |
| 101 | 30A | Starter solenoid |
| 102 | 20A | Ignition switch feed |
| 103 | 20A | ABS valves |
| 104 | – | Not used |
| 105 | 30A | Electric trailer brakes |
| 106 | 30A | Trailer tow battery charge |
| 107 | 30A | Power door locks (BSM) |
| 108 | 30A | Passenger power seat |
| 109 | 30A | Driver power seat, Adjustable pedals |
| 110 | – | Not used |
| 111 | 30A | 4×4 relays |
| 112 | 40A | ABS pump power |
| 113 | 30A | Wipers and washer pump |
| 114 | 40A | Heated backlite, Heated mirror power |
| 115 | – | Not used |
| 116 | 30A | Blower motor |
| 117 | – | Not used |
| 118 | 30A | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
Auxiliary relay box
| № | A | Description |
|---|---|---|
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1/2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
2006
Passenger Compartment Fuses
Designation of the fuses in the Passenger compartment fuse panel (2006)
| № | A | Description |
|---|---|---|
| 1 | 10A | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A | Stop/Turn lamps, Brake on/off switch |
| 3 | 7.5A | Power mirrors, Memory seats and pedals |
| 4 | 10A | DVD battery power, Power fold mirror |
| 5 | 7.5A | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A | Radio (start signal) |
| 8 | 10A | Heated mirrors, Switch indicator |
| 9 | 20A | Fuel pump relay, Fuel injectors, Intake manifold runner control (4.2L) |
| 10 | 20A | Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201) |
| 11 | 10A | A/C clutch, 4×4 solenoid |
| 12 | 5A | PCM relay coil |
| 13 | 10A | Climate control module power, Flasher relay |
| 14 | 10A | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror |
| 15 | 5A | Overdrive cancel, Cluster |
| 16 | 10A | Brake-shift interlock solenoid |
| 17 | 15A | Fog lamp relay (R202) |
| 18 | 10A | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A | Restraints (Air bag module) |
| 20 | 10A | Battery feed for overhead power point |
| 21 | 15A | Cluster keep alive power |
| 22 | 10A | Delayed accessory power for audio, power door lock switch and moonroof switch illumination |
| 23 | 10A | RH low beam headlamp |
| 24 | 15A | Battery saver power for demand lamps |
| 25 | 10A | LH low beam headlamp |
| 26 | 20A | Horn relay (PCB3), Horn power |
| 27 | 5A | Passenger Air bag Deactivation (PAD) warning lamp, Cluster air bag warning lamp, Cluster RUN /START power |
| 28 | 5A | SecuriLock transceiver (PATS), PCM IGN monitor |
| 29 | 15A | PCM 4×4 power |
| 30 | 15A | PCM 4×4 power |
| 31 | 20A | Radio power |
| 32 | 15A | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR |
| 33 | 15A | Shift solenoid, CMS #12 and #22, Ignition coils |
| 34 | 15A | PCM power |
| 35 | 20A | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A | Trailer tow right turn/stop lamps |
| 37 | 20A | Rear power point |
| 38 | 25A | Subwoofer power |
| 39 | 20A | Instrument panel power point |
| 40 | 20A | Low beam headlamps, DRL |
| 41 | 20A | Cigar lighter, Diagnostic connector power |
| 42 | 10A | Trailer tow left turn/stop lamps |
| 101 | 30A | Starter solenoid |
| 102 | 20A | Ignition switch feed |
| 103 | 20A | ABS valves |
| 104 | – | Not used |
| 105 | 30A | Electric trailer brakes |
| 106 | 30A | Trailer tow battery charge |
| 107 | 30A | Power door locks (BSM) |
| 108 | 30A | Passenger power seat |
| 109 | 30A | Driver power seat, Adjustable pedals |
| 110 | – | Not used |
| 111 | 30A | 4×4 relays |
| 112 | 40A | ABS pump power |
| 113 | 30A | Wipers and washer pump |
| 114 | 40A | Heated backlite, Heated mirror power |
| 115 | – | Not used |
| 116 | 30A | Blower motor |
| 117 | – | Not used |
| 118 | 30A | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
Auxiliary relay box
| № | A | Description |
|---|---|---|
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1/2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
2007
Passenger Compartment Fuses
List of fuses in the Passenger compartment fuse panel (2007)
| № | A | Description |
|---|---|---|
| 1 | 10A | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A | Stop/Turn lamps, Brake on/off switch, Hazard flashers |
| 3 | 7.5A | Power mirrors, Memory seats and pedals, Driver power seat |
| 4 | 10A | DVD battery power, Power fold mirror |
| 5 | 7.5A | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A | Radio (start signal) |
| 8 | 10A | Heated mirrors, Switch indicator |
| 9 | 20A | Fuel pump relay, Fuel injectors, Intake manifold runner control (4.2L) |
| 10 | 20A | Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201) |
| 11 | 10A | A/C clutch, 4×4 solenoid |
| 12 | 5A | PCM relay coil |
| 13 | 10A | Climate control module power, Flasher relay |
| 14 | 10A | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror, Navigation radio (reverse input) |
| 15 | 5A | Overdrive cancel, Cluster, Traction control switch |
| 16 | 10A | Brake-shift interlock solenoid |
| 17 | 15A | Fog lamp relay (R202) |
| 18 | 10A | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A | Restraints (Air bag module), OCS |
| 20 | 10A | Battery feed for overhead power point |
| 21 | 15A | Cluster keep alive power |
| 22 | 10A | Delayed accessory power for audio, power door lock switch and moon roof switch illumination |
| 23 | 10A | RH low beam headlamp |
| 24 | 15A | Battery saver power for demand lamps |
| 25 | 10A | LH low beam headlamp |
| 26 | 20A | Horn relay (PCB3), Horn power |
| 27 | 5A | Passenger Air bag Deactivation (PAD) warning lamp, Cluster RUN /START power |
| 28 | 5A | SecuriLock transceiver (PATS), PCM IGN monitor |
| 29 | 15A | PCM 4×4 power |
| 30 | 15A | PCM 4×4 power |
| 31 | 20A | Radio power, Satellite radio module |
| 32 | 15A | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR , Electronic fan clutch (4.6L/5.4L engines) |
| 33 | 15A | Shift solenoid, CMS #12 and #22, Ignition coils |
| 34 | 15A | PCM power |
| 35 | 20A | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A | Trailer tow right turn/stop lamps |
| 37 | 20A | Rear power point, Center console power point |
| 38 | 25A | Subwoofer power |
| 39 | – | Not used |
| 40 | 20A | Low beam headlamps, DRL |
| 41 | – | Not used |
| 42 | 10A | Trailer tow left turn/stop lamps |
| 101 | 30A | Starter solenoid |
| 102 | 20A | Ignition switch feed |
| 103 | 20A | ABS valves |
| 104 | – | Not used |
| 105 | 30A | Electric trailer brakes |
| 106 | 30A | Trailer tow battery charge |
| 107 | 30A | Power door locks (BSM) |
| 108 | 30A | Passenger power seat |
| 109 | 30A | Driver power seat, Adjustable pedals, Memory module (pedals, seat, mirror) |
| 110 | 20A | Cigar lighter, Diagnostic connector power |
| 111 | 30A | 4×4 relays |
| 112 | 40A | ABS pump power |
| 113 | 30A | Wipers and washer pump |
| 114 | 40A | Heated backlite, Heated mirror power |
| 115 | 20A | Not used (Spare) |
| 116 | 30A | Blower motor |
| 117 | 20A | Instrument panel power point |
| 118 | 30A | Heated seats |
| 401 | 30A Circuit breaker | Delayed accessory power: Power windows, Moon roof, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
Auxiliary relay box
| № | A | Description |
|---|---|---|
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1/2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
| D02 | Diode | One Touch Integrated Start (OTIS) |
2008
Passenger Compartment Fuses
List of fuses in the Passenger compartment fuse panel (2008)
| № | A | Description |
|---|---|---|
| F01 | 10A | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| F02 | 20A | Stop/Turn lamps, ABS, T/T electric brake module, PCM (BOO signal), turn signal mirrors, CHMSL |
| F03 | 7.5A | Power mirrors, Memory seats and pedals |
| F04 | 10A | DVD battery power, Power fold mirror |
| F05 | 7.5A | Keep alive memory for Powertrain Control Module (PCM) and Climate control module |
| F06 | 15A | Parklamps, Body Security Module (BSM), Instrument panel illumination |
| F07 | 5A | Radio (start signal) |
| F08 | 10A | Heated mirrors, Switch indicator |
| F09 | 20A | Fuel pump relay, Fuel injectors, Injector sense |
| F10 | 20A | Trailer tow back-up lamps relay, Trailer tow parklamp relay |
| F11 | 10A | A/C clutch, 4×4 solenoid |
| F12 | 5A | PCM relay coil |
| F13 | 10A | Climate control module power, Flasher relay |
| F14 | 10A | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), ABS |
| F15 | 5A | Overdrive cancel, Cluster |
| F16 | 10A | Brake-shift interlock solenoid |
| F17 | 15A | Fog lamp relay |
| F18 | 10A | Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System), Power rail |
| F19 | 10A | Restraints (Airbag module) |
| F20 | 10A | Power rail |
| F21 | 15A | Cluster keep alive power |
| F22 | 10A | Delayed accessory power for audio, power door lock switch and moon roof switch illumination |
| F23 | 10A | RH low beam headlamp |
| F24 | 15A | Battery saver power for demand lamps, Flex fuel |
| F25 | 10A | LH low beam headlamp |
| F26 | 20A | Horn |
| F27 | 5A | Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp |
| F28 | 5A | SecuriLock transceiver (PATS), PCM IGN monitor |
| F29 | 15A | PCM 4×4 power |
| F30 | 15A | PCM 4×4 power |
| F31 | 20A | Radio power, Satellite radio module |
| F32 | 15A | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, Variable Cam Timing (VCT), Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR |
| F33 | 15A | Shift solenoid, CMS #12 and #22, Ignition coils |
| F34 | 15A | PCM power, IMRC (4.2L) |
| F35 | 20A | Instrument cluster high beam indicator, High beam headlamps, DRL disable relay |
| F36 | 10A | Trailer tow right turn/stop lamps |
| F37 | 20A | Rear power point |
| F38 | 25A | Subwoofer power |
| F39 | – | Not used |
| F40 | 20A | Low beam headlamps, DRL |
| F41 | – | Not used |
| F42 | 10A | Trailer tow left turn/stop lamps |
| F101 | 30A | Starter solenoid |
| F102 | 20A | Ignition switch feed |
| F103 | 20A | ABS valves |
| F104 | – | Not used |
| F105 | 30A | Electric trailer brakes |
| F106 | 30A | Trailer tow battery charge |
| F107 | 30A | Power door locks (BSM) |
| F108 | 30A | Passenger power seat |
| F109 | 30A | Driver power seat, Adjustable pedals, Memory module (pedals, seats) |
| F110 | 20A | Cigar lighter, Diagnostic connector power |
| F111 | 30A | 4×4 motor relays |
| F112 | 40A | ABS pump power |
| F113 | 30A | Wipers and washer pump |
| F114 | 40A | Heated backlite, Heated mirror power |
| F115 | 20A | Moonroof |
| F116 | 30A | Blower motor |
| F117 | 20A | Instrument panel power point |
| F118 | 30A | Heated seats |
| 401 | 30A Circuit breaker | Delayed accessory power: Power windows, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
| R301 | Printed circuit board | Trailer tow backup lamps |
| R302 | – | Not used |
| R303 | Printed circuit board | Fuel pump |
| R304 | Printed circuit board | Battery saver |
| R305 | Printed circuit board | Horn |
Auxiliary relay box
| № | A | Description |
|---|---|---|
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1/2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
| D02 | Diode | One Touch Integrated Start (OTIS) |
Conclusion
The 2004-2008 Ford F-150, with its range of body styles and rugged features, is designed for versatility. By maintaining the fuse box and relays, owners can ensure dependable performance, whether using the truck for work, towing, or daily driving.
