(2015-2017) Ford Expedition fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford Expedition 2015-2017 fuse assignment

Ford Expedition Year of production: 2015, 2016, 2017

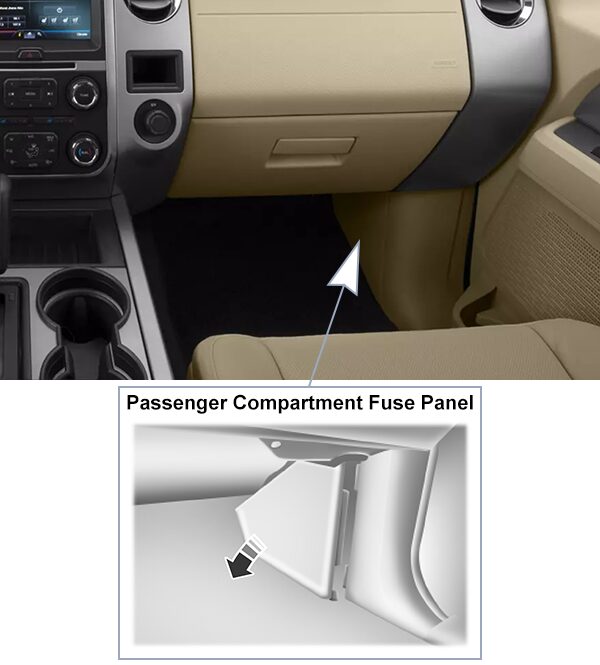

Ford Expedition (2015-2017): Passenger compartment fuse panel location

Passenger Compartment Fuse Panel:

The fuse panel is located under the right-hand side of the instrument panel. To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.

To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off. To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

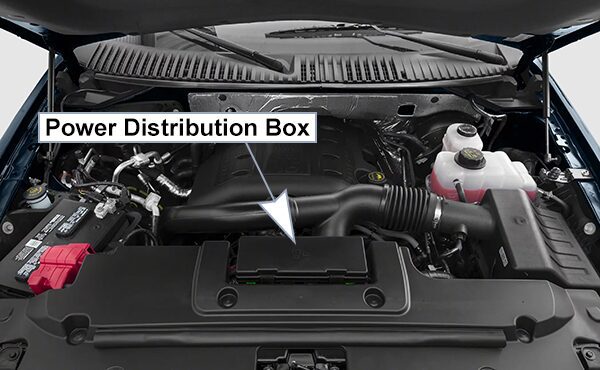

Ford Expedition (2015-2017): Engine compartment fuse box location

Power Distribution Box:

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

Fuse Box Diagrams

2015

Passenger Compartment Fuse Panel

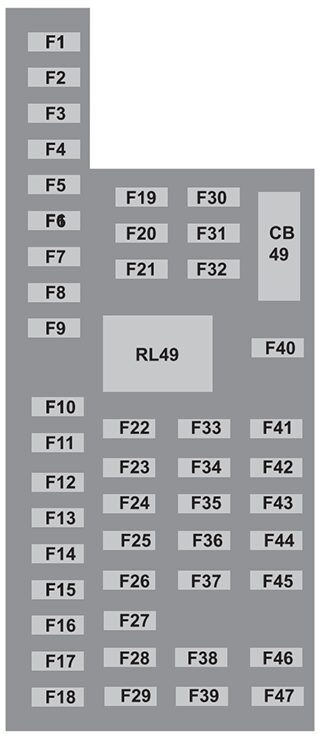

Ford Expedition (2015): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2015)

№AProtected circuits
130ADriver window
215ARear seat control, multimedia gateway module
330APassenger window
410ADemand lamps
520AAmplifier
65ARear electronic automatic temperature control
77.5APower mirror, driver seat memory switch
8–Not used
910ASYNC, power lift gate, electric finish panei, display
1010ARun accessory relay
1110APassive entry/start module
1215AInterior lighting, puddle lamps
1315ARight turn and stop/turn signals
1415ALeft turn and stop/turn signals
1515AReverse lamp, center high mount stop lamp, EC mirror
1610ARight front low beam
1710ALeft front low beam
1810ABrake shift interlock/start button LED/keypad illumination, third row power folding seat, passive entry touch start
19–Not used
2020ALock/unlock relays
21–Not used
2220AHorn
2315ASWCM, cluster
2415AAdjustable pedals/power adjustable column, Datalink
2515ALiftgate release decklid, liftglass release motor
265APush to start switch
2720APassive entry/start module
2815AIgnition switch, key inhibit switch
2920ARadio, GPS
3015AFront park lamps
315ATrailer brake on/off
3215APower vent, rear Windows, power inverter
3310ACCD suspension module
3410ARear park assist, rear camera, BLIS, heated seat
355AClimate module, O/D switch
36–Not used
3710A4X4 module
3810AEC mirror, moonroof, DVD, AM/FM radio
3915ALeft and right front high beams
4010ARear park/tail lamps
417.5ARestraints control module
42–Not used
43–Not used
44–Not used
455ANot used (spare)
4610AClimate control
4715AFog lamps
48–Not used
49–Not used
Power Distribution Box

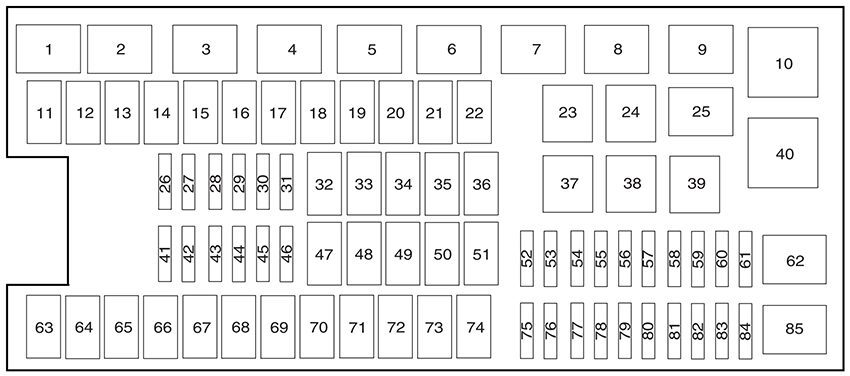

Ford Expedition (2015): Engine compartment fuse box diagram

List of fuses in the power distribution box (2015)

№AProtected circuits
1–Rear washer relay
2–Starter relay
3–Blower motor relay
4–Rear wiper relay
5–Fuel pump relay
6–Electronic cooling fan
7–Rear window defroster, heated mirror relay
8–Electronic cooling fan
9–Run/start relay
10–Power distribution box relay
1140A**Power running boards, heated seats
1240A**Run/start relay
1330A **Starter relay
1450A**Electronic cooling fan
15–Not used
1650A**Electronic fan
17–Not used
1830A**Trailer brake
1920A**Power point (console)
2020A**4×4 module relay
2130A**Trailer tow module
2230A**Passenger power seat
23–Air conditioner clutch relay
24–Trailer tow park lamp relay
25–Not used
2610A*ALT sensor
2720A*4×4 all wheel drive module
2825A*Trailer tow park lamp relay
2910A*Integrated wheel end solenoid
3010A*Air conditioner clutch relay
3115A*Trailer tow back up lamp
3240A**Blower motor relay
3340A**110-volt AC power point
3430A**Auxiliary blower motor
3550A**Powertrain control module relay
3630A**Power liftgate
37–Not used
38–Not used
39–Trailer tow backup lamps relay
40–Electronic fan 2 relay
4110A*Powertrain control module keep-alive power
425A*Run/start relay
4310A*Brake on/off switch
4420A*Fuel pump relay
4510A*Not used (spare)
4615A*Front/rear washer pump
4730A**Rear wiper motor
4840A**Trailer tow module
49–Not used
5030A**Front wiper motor relay
5140A**Rear window defroster and heated mirror relay
5210A*Anti-lock brake system run/start feed
535A*Powertrain control module ISP
545A*Power steering
55–Not used
5630A*Passenger compartment fuse panei run/start feed
575A*Blower motor run/start
58–Not used
5915A*Heated mirrors
60–Not used
61–Not used
62–Not used
6325A**Electronic fan
6430A**Moonroof
65–Not used
6620A**Auxiliary power point (rear of center console)
6740A**Front row climate controlled seats
6830A**Anti-lock brake system valves
6960A**Anti-lock brake system pump
7030A**Third row power fold seat
7120A**Auxiliary power point/cigar lighter
7220A**Auxiliary power point (right rear quarter panei)
7330A**Rear seat climate module
7430A**Driver power seat
7525A*Vehicle power 1 – powertrain control module
7620A*Vehicle power 2 – powertrain control module
7720A*Vehicle power 4 – ignition coils
78–Not used
7915A*Vehicle power 3 – powertrain control module
805A*Rain sensor
81–Not used
82–Not used
83–Not used
84–Not used
85–Not used
* Mini Fuses
** Cartridge Fuses

2016

Passenger Compartment Fuse Panel

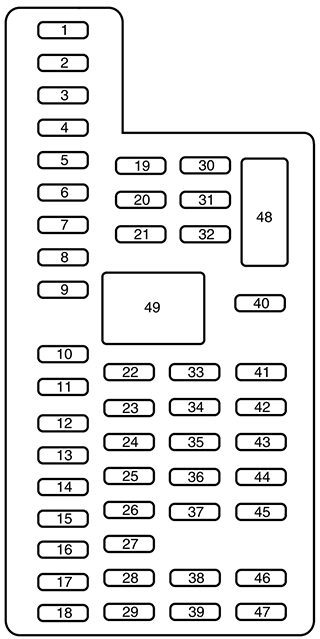

Ford Expedition (2016): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2016)

№AProtected components
130ADriver window.
215ARear seat control. Multimedia gateway module.
330APassenger window.
410ADemand lamps.
520AAmplifier.
65ARear electronic automatic temperature control.
77.5APower mirror. Driver seat memory switch.
8–Not used.
910ASYNC. Power lift gate. Electric finish panel. Display.
1010ARun accessory relay.
1110APassive entry/start module.
1215AInterior lighting. Puddle lamps.
1315ARight turn and stop/turn signals.
1415ALeft turn and stop/turn signals.
1515AReverse lamp. Center high mount stop lamp. EC mirror.
1610ARight front low beam.
1710ALeft front low beam.
1810ABrake shift interlock/start button LED/ keypad illumination. Third row power folding seat. Passive entry touch start.
19–Not used.
2020ALock/unlock relays.
21–Not used.
2220AHorn.
2315ASteering wheel control module. Cluster.
2415AAdjustable pedals/power adjustable column. Datalink.
2515ALiftgate release decklid. Liftglass release motor.
265APush to start switch.
2720APassive entry/start module.
2815AIgnition switch. Key inhibit switch.
2920ARadio. GPS.
3015AFront park lamps.
315ATrai ler brake on/off.
3215APower vent. Driver’s window motor. Power inverter.
3310ACCD suspension module.
3410ARear park assist. Rear camera. BLIS. Heated seat.
355AClimate module. O/D switch.
35–Not used.
3710A4X4 module.
3810AEC mirror. Moonroof. DVD. AM/FM radio.
3915ALeft and right front high beams.
4010ARear park/tail lamps.
417.5ARestraints control module.
42–Not used.
43–Not used.
44–Not used.
455ANot used (spare).
4610AClimate control.
4715AFog lamps.
4830AFront passenger and rear Windows Circuit breaker.
49–Accessory delay window and vents relay.
Power Distribution Box
Ford Expedition (2016): Engine compartment fuse box diagram

List of fuses in the power distribution box (2016)

№AProtected components
1RelayRear washer relay.
2RelayStarter relay.
3RelayBlower motor relay.
4RelayRear wiper relay.
5RelayFuel pump relay.
6RelayElectronic cooling fan.
7RelayRear window defroster. Heated mirror relay.
8RelayElectronic cooling fan.
9RelayRun/start relay.
10RelayPower distribution box relay.
1140A*Power running boards. Heated seats.
1240A*Run/start relay.
1330A*Starter relay.
1450A*Electronic cooling fan.
15–Not used.
1550A*Electronic fan.
17–Not used.
1830A*Trailer brake.
1920A*Power point (console).
2020A*4×4 module HAT 2.
2130A*Trailer tow module.
2230A*Passenger power seat.
23RelayAir conditioner clutch relay.
24RelayTrailer tow park lamp relay.
25–Not used.
2610A**ALT sensor.
2720A**4×4 module HAT 1.
2825A**Trailer tow park lamp relay.
2910A**Integrated wheel end solenoid.
3010A**Air conditioner clutch relay.
3115A**Trailer tow back up lamp.
3240A*Blower motor relay.
3340A*110-volt AC power point.
3430A*Auxiliary blower motor.
3550A*Powertrain control module relay.
3630A*Power liftgate.
37–Not used.
38–Not used.
39RelayTrai ler tow backup lamps relay.
40RelayElectronic fan 2 relay.
4110A**Powertrain control module keep-alive power.
425A**Run/start relay.
4310A**Brake on/off switch.
4420A**Fuel pump relay.
4510A**Not used (spare).
4615A**Front/rear washer pump.
4730A*Rear wiper motor.
4840A*Trailer tow module.
49–Not used.
5030A*Front wiper motor relay.
5140A*Rear window defroster and heated mirror relay.
5210A**Anti-lock brake system run/start feed.
535A**Powertrain control module ISP.
545A**Power steering.
55–Not used.
5630A**Passenger compartment fuse panei run/ start feed.
575A**Blower motor run/start.
58–Not used.
5915A**Heated mirrors.
50–Not used.
61–Not used.
52–Not used.
6325A*Electronic fan.
6430A*Moonroof.
6520A*Auxiliary power point (instrument panei valance panei).
6620A*Auxiliary power point (rear of center console).
6740A*Front row climate controlled seats.
6830A*Anti-lock brake system valves.
6960A*Anti-lock brake system pump.
7030A*Third row power fold seat.
7120A*Auxiliary power point/cigar lighter.
7220A*Auxiliary power point (right rear quarter panei).
7320A*Rear seat climate module.
7430A*Driver power seat.
7525A**Vehicle power 1 – powertrain control module.
7620A**Vehicle power 2 – powertrain control module.
7720A**Vehicle power 4 – ignition coils.
78–Not used.
7915A**Vehicle power 3 – powertrain control module.
80–Not used.
81–Not used.
825A**Rain sensor.
83–Not used.
84–Not used.
85RelayWiper motor relay.
*Cartridge fuses.
**Mini fuses.

2017

Passenger Compartment Fuse Panel
Ford Expedition (2017): Passenger compartment fuse panel diagram

List of fuses in the passenger compartment fuse panel (2017)

№AProtected Components
130ADriver window.
215ARear seat control. Multimedia gateway module.
330APassenger window.
410ADemand lamps.
520AAmplifier.
65ARear electronic automatic temperature control.
77.5APower mirror. Driver seat memory switch.
8–Not used.
910ASYNC. Power lift gate. Electric finish panel. Display.
1010ARun accessory relay.
1110APassive entry/start module.
1215AInterior lighting. Puddle lamps.
1315ARight turn and stop/turn signals.
1415ALeft turn and stop/turn signals.
1515AReverse lamp. Center high mount stop lamp. EC mirror.
1610ARight front low beam.
1710ALeft front low beam.
1810ABrake shift interlock/start button LED/ keypad illumination. Third row power folding seat. Passive entry touch start.
19–Not used.
2020ALock/unlock relays.
21–Not used.
2220AHorn.
2315ASteering wheel control module. Cluster.
2415AAdjustable pedals/power adjustable column. Datalink.
2515ALiftgate release decklid. Liftglass release motor.
265APush to start switch.
2720APassive entry/start module.
2815AIgnition switch. Key inhibit switch.
2920ARadio. GPS.
3015AFront park lamps.
315ATrailer brake on/off.
3215APower vent. Driver’s window motor. Power inverter.
3310ACCD suspension module.
3410ARear park assist. Rear camera. BLIS. Heated seat.
355AClimate module. O/D switch.
36–Not used.
3710A4X4 module.
3810AEC mirror. Moonroof. DVD. AM/FM radio.
3915ALeft and right front high beams.
4010ARear park/tail lamps.
417.5ARestraints control module.
42–Not used.
43–Not used.
44–Not used.
455ANot used (spare).
4610AClimate control.
4715AFog lamps.
4830AFront passenger and rear Windows Circuit breaker.
49RelayWindows and vents relay.
Power Distribution Box
Ford Expedition (2017): Engine compartment fuse box diagram

List of fuses in the power distribution box (2017)

№AProtected Components
1RelayRear washer relay.
2RelayStarter relay.
3RelayBlower motor relay.
4RelayRear wiper relay.
5RelayFuel pump relay.
6RelayElectronic cooling fan.
7RelayRear window defroster. Heated mirror relay.
8RelayElectronic cooling fan.
9RelayRun/start relay.
10RelayPower distribution box relay.
1140A1Power running boards. Heated seats.
1240A1Run/start relay.
1330A1Starter relay.
1450A1Electronic cooling fan.
15–Not used.
1550A1Electronic fan.
17–Not used.
1830A1Trailer brake.
1920A1Power point (console).
2020A14×4 module HAT 2.
2130A1Trailer tow module.
2230A1Passenger power seat.
23RelayAir conditioner clutch relay.
24RelayTrailer tow park lamp relay.
25–Not used.
2610A2ALT sensor.
2720A24×4 module HAT1.
2825A2Trailer tow park lamp relay.
2910A2Integrated wheel end solenoid.
3010A2Air conditioner clutch relay.
3115A2Trailer tow back up lamp.
3240A1Blower motor relay.
3340A1110-volt AC power point.
3430A1Auxiliary blower motor.
3550A1Powertrain control module relay.
3630A1Power liftgate.
37–Not used.
38–Not used.
39RelayTrai ler tow backup lamps relay.
40RelayElectronic fan 2 relay.
4110A2Powertrain control module keep-alive power.
425A2Run/start relay.
4310A2Brake on/off switch.
4420A2Fuel pump relay.
4510A2Not used (spare).
4615A2Front/rear washer pump.
4730A1Rear wiper motor.
4840A1Trailer tow module.
49–Not used.
5030A1Front wiper motor relay.
5140A1Rear window defroster and heated mirror relay.
5210A1Anti-lock brake system run/start feed.
535A1Powertrain control module ISP.
545A1Power steering.
55–Not used.
5630A1Passenger compartment fuse panei run/ start feed.
575A2Blower motor run/start.
58–Not used.
5915A2Heated mirrors.
60–Not used.
61–Not used.
62–Not used.
6325A1Electronic fan.
6430A1Moonroof.
6520A1Not used (spare).
6620A1Auxiliary power point (rear of center console).
6740A1Front row climate controlled seats.
6830A1Anti-lock brake system valves.
6960A1Anti-lock brake system pump.
7030A1Third row power fold seat.
7120A1Auxiliary power point/cigar lighter.
7220A1Auxiliary power point (right rear quarter panei).
7320A1Rear seat climate module.
7430A1Driver power seat.
7525A2Vehicle power 1 – powertrain control module.
7620A2Vehicle power 2 – powertrain control module.
7720A2Vehicle power 4 – ignition coils.
78–Not used.
7915A2Vehicle power 3 – powertrain control module.
80–Not used.
81–Not used.
825A2Rain sensor.
83–Not used.
84–Not used.
85RelayWiper motor relay.
1 J Case Low Profile.
2 Mini Fuse.

Conclusion

Understanding the fuse box and relay locations in the Ford Expedition (2015-2017) helps with efficient troubleshooting and maintenance, enhancing vehicle reliability.

Similar

Leave a Reply

Your email address will not be published. Required fields are marked *
