Locate fuse box and relay positions for the 2008-2012 Ford Escape Hybrid with detailed diagrams. Maintain its electrical systems for optimal hybrid performance.
The Ford Escape Hybrid (2008-2012) is a fuel-efficient compact SUV that combines practicality with eco-friendly performance. Featuring a five-door body style, it offers seating for five passengers and a spacious cargo area, making it ideal for families and environmentally conscious drivers. The hybrid system pairs a gasoline engine with an electric motor, providing excellent fuel economy without compromising on utility or capability. Available in front-wheel and all-wheel drive configurations, the Escape Hybrid is versatile for both urban commutes and light off-road adventures.
The electrical system of the Escape Hybrid is vital to its operation, relying on a sophisticated fuse box and relay system. The primary fuse box is located under the hood near the battery, protecting critical components such as the hybrid powertrain, cooling fans, and headlights. A secondary fuse panel inside the cabin, located on the passenger side, manages interior features like power windows, infotainment, and cabin lighting. Relays, positioned near the fuse boxes, control high-power systems such as the air conditioning, electric motor, and fuel pump. Routine inspection of these components ensures smooth hybrid operation.
MUST READ: DYI – How to Check Car Fuses?
(2008-2012) Ford Escape Hybrid fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape Hybrid 2008-2012 fuse assignment
Ford Escape Hybrid Year of production: 2008, 2009, 2010, 2011, 2012

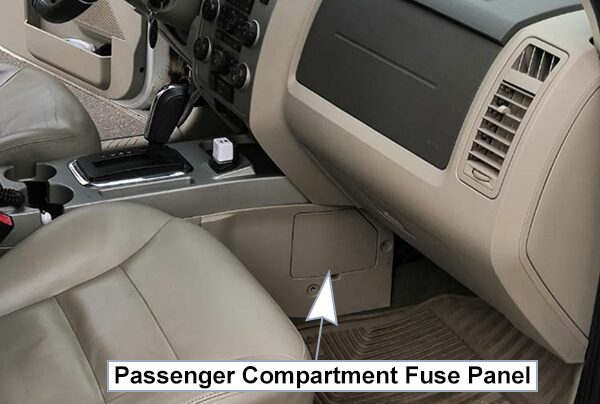

Passenger Compartment Fuse Panel:
The fuse panel is located on the right-hand side of the center console, by the instrument panel. Remove the panel cover to access the fuse cover. Press the tabs on the top and bottom of the fuse cover to remove.

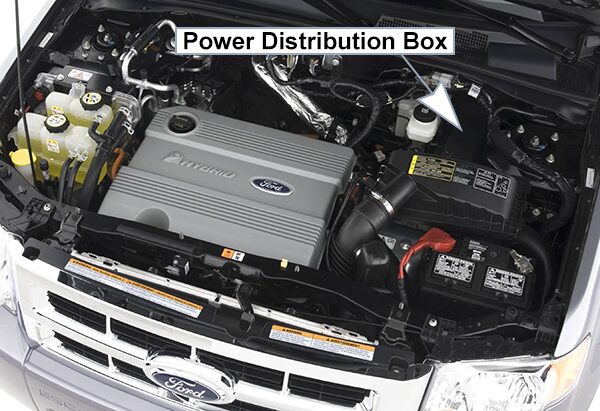

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Auxiliary Relay Box (2009-2012):
The relay box is located in the engine compartment on the radiator support bracket.
Fuse Box Diagrams
2008
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2008)
| â„– | A | Description |
|---|---|---|
| 1 | 30A | 110V inverter |
| 2 | 15A | Brake On/Off switch |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Brake Shift Interlock (BSI), SPDJB, Keypad illumination |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 7.5A | Canister vent |
| 14 | 10A | FCIM (radio buttons), Satellite radio, Front display module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instmment panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instmment panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Restraints control module |
| 32 | 10A | Not used (spare) |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Speed control deactivate switch, ABS |
| 35 | 10A | Four wheel drive, EPAS (steering), 110V inverter module, Park aid module |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Auto dimming mirror, Compass, Ambient lighting |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | OCS (restraints), PADI (restraints) |
| 47 | 30A Circuit Breaker | Power Windows, Moon roof |
| 48 | – | Delayed accessory relay |

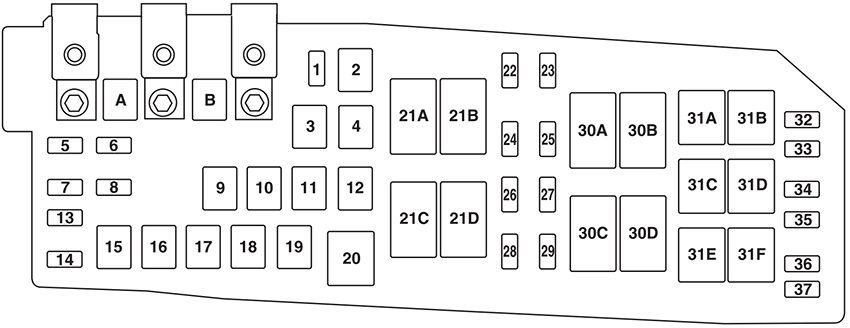

Power Distribution Box
List of fuses in the power distribution box (2008)
| â„– | A | Description |
|---|---|---|
| A | 80A Midi | Power steering control module |
| B | 125A Midi | PDB |
| 1 | 15A* | Heated mirror |
| 2 | 30A** | Rear defroster |
| 3 | 20A** | Rear power point |
| 4 | 20A** | Fuel injector |
| 5 | 10A* | Powertrain Control Module (PCM) Keep Alive power, TBCM |
| 6 | 5A* | Anti-lock Brake System (ABS) |
| 7 | 10A* | Reverse lamps |
| 8 | 5A* | Transaxle Control Module (TCM) |
| 9 | 50A** | ABS |
| 10 | 30A** | Front wipers |
| 11 | 30A** | PCM/Power sustain |
| 12 | 40A** | Blower motor |
| 13 | 10A* | A/C clutch |
| 14 | 10A* | Heater/Coolant pump |
| 15 | 50A** | Traction Battery Control Module (TBCM) |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 50A** | ABS solenoid |
| 19 | 30A** | Power seats |
| 20 | – | A/C clutch relay |
| 21A | – | Rear defroster relay |
| 21B | – | Not used |
| 21C | – | Blower relay |
| 21D | – | PCM relay |
| 22 | – | Not used |
| 23 | 5A* | TBCM |
| 24 | 20A* | Fuel pump |
| 25 | 15A* | Ignition coils |
| 26 | 5A* | TBCM |
| 27 | 10A* | Cooling fan/TCM |
| 28 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensor |
| 29 | 15A* | PCM power |
| 30A | – | Cooling fan 1 relay |
| 30B | – | Power sustain relay |
| 30C | – | Cooling fan main relay |
| 30D | – | Cooling fan 2 relay |
| 31A | – | Reverse lamp relay |
| 31B | – | Injector relay |
| 31C | – | Heater pump relay |
| 31D | – | Coolant pump relay |
| 31E | – | Not used |
| 31F | – | Not used |
| 32 | – | A/C clutch diode |
| 33 | – | PCM diode |
| 34 | – | Not used |
| 35 | 5A* | RUN/START |
| 36 | – | Not used |
| 37 | – | Not used |
| * Mini fuse ** Cartridge fuse | ||
2009
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2009)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | 110V inverter |
| 2 | 15A | Brake On/Off switch |
| 3 | 15A | Sync module |
| 4 | 30A | Moon roof |
| 5 | 10A | Brake Shift Interlock (BSI), SPDJB, Keypad illumination |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | FCIM (radio buttons), Satellite radio, Front display module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panelcluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panelcluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Restraints control module |
| 32 | 10A | Not used (spare) |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Four wheel drive, EPAS (steering), 110V inverter module, Park aid module |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (Audiophile radio) |
| 39 | 20A | Radio, Radio amplifier (navigation) |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Auto dimming mirror, Compass, Ambient lighting, Moon roof |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | OCS (restraints), PADI (restraints) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2009)
| â„– | A | Protected Circuits |
|---|---|---|
| A | 80A Midi | Power steering control module |
| B | 125A Midi | SPDJB |
| 1 | 15A* | Heated mirror |
| 2 | 30A** | Rear defroster |
| 3 | 20A** | Rear power point |
| 4 | 40A** | Electric vacuum pump |
| 5 | 10A* | Powertrain Control Module (PCM) Keep Alive power, PCM relay, Transmission control module, Canister vent |
| 6 | – | Not used |
| 7 | 15A* | Liftgate latch |
| 8 | 5A* | Traction battery control module |
| 9 | 50A** | Brake control module |
| 10 | 30A** | Front wipers |
| 11 | – | Not used |
| 12 | 40A** | Blower motor |
| 13 | 10A* | A/C clutch |
| 14 | 10A* | Heater/Coolant pump |
| 15 | 50A** | Traction Battery Control Module (TBCM) |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 50A** | Brake control module solenoid |
| 19 | 30A** | Power seats |
| 20 | – | A/C clutch relay |
| 21A | – | Rear defroster relay |
| 21B | – | Ignition relay |
| 21C | – | Blower relay |
| 21D | – | PCM relay |
| 22 | 15A* | Ignition coils |
| 23 | 15A* | Fuel injectors |
| 24 | 10A* | Transmission control module |
| 25 | 5A* | Traction battery control module, Thermal expansion valve |
| 26 | 20A* | Fuel pump, Traction battery control module |
| 27 | 10A* | PCM (non-mil-malfunction indicator lamp) |
| 28 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensor, PCM (mil-on – malfunction indicator lamp) |
| 29 | 15A* | PCM power |
| 30A | – | Cooling fan 1 relay |
| 30B | – | Electric vacuum pump mechanical relay |
| 30C | – | Cooling fan main relay |
| 30D | – | Cooling fan 2 relay |
| 31A | – | Reverse lamp relay |
| 31B | – | Not used |
| 31C | – | Heater pump relay |
| 31D | – | Coolant pump relay |
| 31E | – | Not used |
| 31F | – | Liftgate latch relay |
| 32 | – | A/C clutch diode |
| 33 | – | PCM diode |
| 34 | – | Not used |
| 35 | 10A* | Run/start, Reverse lamps |
| 36 | – | Not used |
| 37 | – | Not used |
| * Mini fuse ** Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2009)
| â„– | A | Description |
|---|---|---|
| Relay | – | Electric vacuum pump (solid State) |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 5A* | Vacuum pump monitor |
| 5 | – | Not used |
| 6 | – | Not used |
| * Mini fuses **Cartridge fuse | ||
2010
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2010)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | 110V inverter |
| 2 | 15A | Brake on/off switch |
| 3 | 15A | SYNC module |
| 4 | 30A | Moon roof |
| 5 | 10A | Brake-shift i nterlock (BSI), Passenger compartment fuse panel, Keypad illumination |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | FCIM (radio buttons), Front display module, GPS module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Restraints control module |
| 32 | 10A | Rear video camera module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Four wheel drive, Electronic power assist steering (EPAS), 110V inverter module, Park aid module, Active park assist module |
| 36 | 5A | Passive anti-theft system (PATS) transceiver |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Subwoofer/Amp (premium radio) |
| 39 | 20A | Radio, Radio amplifier (navigation) |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Auto dimming mirror, Compass, Ambient lighting, Moon roof, Camera display in mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2010)
| â„– | A | Protected Circuits |
|---|---|---|
| A | 80A Midi | Power steering control module |
| B | 125A Midi | Passenger compartment fuse panel |
| 1 | 15A* | Heated mirror |
| 2 | 30A** | Rear defroster |
| 3 | 20A** | Rear power point |
| 4 | 40A** | Electric vacuum pump |
| 5 | 10A* | Powertrain control module (PCM) – keep alive power, PCM relay, Transmission control module, Canister vent |
| 6 | – | Not used |
| 7 | 15A* | Liftgate latch |
| 8 | 5A* | Traction battery control module |
| 9 | 50A** | Brake control module |
| 10 | 30A** | Front wipers |
| 11 | – | Not used |
| 12 | 40A** | Blower motor |
| 13 | – | Not used |
| 14 | 10A* | Heater/Coolant pump |
| 15 | 50A** | Traction battery control module (TBCM) |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 50A** | Brake control module solenoid |
| 19 | 30A** | Power seats |
| 20 | – | Not used |
| 21A | – | Rear defroster relay |
| 21B | – | Ignition relay |
| 21C | – | Blower relay |
| 21D | – | PCM relay |
| 22 | 15A* | Ignition coils |
| 23 | 15A* | Fuel injectors |
| 24 | 10A* | Transmission control module |
| 25 | 5A* | TBCM |
| 26 | 20A* | Fuel pump, TBCM |
| 27 | 10A* | PCM (general powertrain components malfunction indicator lamp), Heater pump relay, Motor electronics coolant pump relay, Electronic A/C compressor |
| 28 | 15A* | Universal exhaust gas oxygen (UEGO) sensor, PCM – emission related powertrain components malfunction indicator lamp |
| 29 | 15A* | PCM power |
| 30A | – | Cooling fan 1 relay |
| 30B | – | Electric vacuum pump mechanical relay |
| 30C | – | Cooling fan main relay |
| 30D | – | Cooling fan 2 relay |
| 31A | – | Reverse lamp relay |
| 31B | – | Not used |
| 31C | – | Heater pump relay |
| 31D | – | Coolant pump relay |
| 31E | – | Not used |
| 31F | – | Liftgate latch relay |
| 32 | – | Not used |
| 33 | – | PCM diode |
| 34 | – | Not used |
| 35 | 10A* | Run/start, Reverse lamps, Rear defrost relay |
| 36 | – | Not used |
| * Mini fuse ** Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2010)
| â„– | A | Description |
|---|---|---|
| Relay | – | Electric vacuum pump (solid State) |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 5A* | Vacuum pump monitor |
| 5 | – | Not used |
| 6 | – | Not used |
| * Mini fuses **Cartridge fuse | ||
2011
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2011)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | 110V inverter |
| 2 | 15A | Brake on/off switch |
| 3 | 15A | SYNC module |
| 4 | 30A | Moon roof |
| 5 | 10A | Brake-shift i nterlock (BSI), Passenger compartment fuse panel, Keypad illumination |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | FCIM (radio buttons), Front display module, GPS module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Restraints control module |
| 32 | 10A | Rear video camera module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Four wheel drive, Electronic power assist steering (EPAS), 110V inverter module, Park aid module, Active park assist module |
| 36 | 5A | Passive anti-theft system (PATS) transceiver |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Subwoofer/Amp (premium radio) |
| 39 | 20A | Radio, Radio amplifier (navigation) |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Auto dimming mirror, Compass, Ambient lighting, Moon roof, Camera display in mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2011)
| â„– | A | Protected Circuits |
|---|---|---|
| A | 80A Midi | Power steering control module |
| B | 125A Midi | Passenger compartment fuse panel |
| 1 | 15A* | Heated mirror |
| 2 | 30A** | Rear defroster |
| 3 | 20A** | Rear power point |
| 4 | 40A** | Electric vacuum pump |
| 5 | 10A* | Powertrain control module (PCM) – keep alive power, PCM relay, Transmission control module, Canister vent |
| 6 | – | Not used |
| 7 | 15A* | Liftgate latch |
| 8 | 5A* | Traction battery control module |
| 9 | 50A** | Brake control module |
| 10 | 30A** | Front wipers |
| 11 | – | Not used |
| 12 | 40A** | Blower motor |
| 13 | – | Not used |
| 14 | 10A* | Heater/Coolant pump |
| 15 | 50A** | Traction battery control module (TBCM) |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 50A** | Brake control module solenoid |
| 19 | 30A** | Power seats |
| 20 | – | Not used |
| 21A | – | Rear defroster relay |
| 21B | – | Ignition relay |
| 21C | – | Blower relay |
| 21D | – | PCM relay |
| 22 | 15A* | Ignition coils |
| 23 | 15A* | Fuel injectors |
| 24 | 10A* | Transmission control module |
| 25 | 5A* | TBCM |
| 26 | 20A* | Fuel pump, TBCM |
| 27 | 10A* | PCM (general powertrain components malfunction indicator lamp), Heater pump relay, Motor electronics coolant pump relay, Electronic A/C compressor |
| 28 | 15A* | Universal exhaust gas oxygen (UEGO) sensor, PCM – emission related powertrain components malfunction indicator lamp |
| 29 | 15A* | PCM power |
| 30A | – | Cooling fan 1 relay |
| 30B | – | Electric vacuum pump mechanical relay |
| 30C | – | Cooling fan main relay |
| 30D | – | Cooling fan 2 relay |
| 31A | – | Reverse lamp relay |
| 31B | – | Not used |
| 31C | – | Heater pump relay |
| 31D | – | Coolant pump relay |
| 31E | – | Not used |
| 31F | – | Liftgate latch relay |
| 32 | – | Not used |
| 33 | – | PCM diode |
| 34 | – | Not used |
| 35 | 10A* | Run/start, Reverse lamps, Rear defrost relay |
| 36 | – | Not used |
| * Mini fuse ** Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2011)
| â„– | A | Description |
|---|---|---|
| Relay | – | Electric vacuum pump (solid State) |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 5A* | Vacuum pump monitor |
| 5 | – | Not used |
| 6 | – | Not used |
| * Mini fuses **Cartridge fuse | ||
2012
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2012)
| â„– | A | Protected Circuits |
|---|---|---|
| 1 | 30A | 110V inverter |
| 2 | 15A | Brake on/off switch |
| 3 | 15A | SYNC module |
| 4 | 30A | Moon roof |
| 5 | 10A | Brake-shift interlock (BSI), Passenger compartment fuse panel, Keypad illumination |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 5A | Not used (spare) |
| 14 | 10A | FCIM (radio buttons), Front display module, GPS module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Restraints control module |
| 32 | 10A | Rear video camera module |
| 33 | 10A | Not used (spare) |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Four wheel drive, Electronic power assist steering (EPAS), 110V inverter module, Park aid module, Active park assist module |
| 36 | 5A | Passive anti-theft system (PATS) transceiver |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Subwoofer/Amp (premium radio) |
| 39 | 20A | Radio, Radio amplifier (navigation) |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Auto dimming mirror, Compass, Ambient lighting, Moon roof, Camera display in mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI) |
| 47 | 30A Circuit Breaker | Power Windows |
| 48 | – | Delayed accessory relay |
Power Distribution Box
List of fuses in the power distribution box (2012)
| â„– | A | Protected Circuits |
|---|---|---|
| A | 80A Midi | Power steering control module |
| B | 125A Midi | Passenger compartment fuse panel |
| 1 | 15A* | Heated mirror |
| 2 | 30A** | Rear defroster |
| 3 | 20A** | Rear power point |
| 4 | 40A** | Electric vacuum pump |
| 5 | 10A* | Powertrain control module (PCM) – keep alive power, PCM relay, Transmission control module, Canister vent |
| 6 | – | Not used |
| 7 | 15A* | Liftgate latch |
| 8 | 5A* | Traction battery control module |
| 9 | 50A** | Brake control module |
| 10 | 30A** | Front wipers |
| 11 | – | Not used |
| 12 | 40A** | Blower motor |
| 13 | – | Not used |
| 14 | 10A* | Heater/Coolant pump |
| 15 | 50A** | Traction battery control module (TBCM) |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 50A** | Brake control module solenoid |
| 19 | 30A** | Power seats |
| 20 | – | Not used |
| 21A | – | Rear defroster relay |
| 21B | – | Ignition relay |
| 21C | – | Blower relay |
| 21D | – | PCM relay |
| 22 | 15A* | Ignition coils |
| 23 | 15A* | Fuel injectors |
| 24 | 10A* | Transmission control module |
| 25 | 5A* | TBCM |
| 26 | 20A* | Fuel pump, TBCM |
| 27 | 10A* | PCM (general powertrain components malfunction indicator lamp), Heater pump relay, Motor electronics coolant pump relay, Electronic A/C compressor |
| 28 | 15A* | Universal exhaust gas oxygen (UEGO) sensor, PCM – emission related powertrain components malfunction indicator lamp |
| 29 | 15A* | PCM power |
| 30A | – | Cooling fan 1 relay |
| 30B | – | Electric vacuum pump mechanical relay |
| 30C | – | Cooling fan main relay |
| 30D | – | Cooling fan 2 relay |
| 31A | – | Reverse lamp relay |
| 31B | – | Not used |
| 31C | – | Heater pump relay |
| 31D | – | Coolant pump relay |
| 31E | – | Not used |
| 31F | – | Liftgate latch relay |
| 32 | – | Not used |
| 33 | – | PCM diode |
| 34 | – | Not used |
| 35 | 10A* | Run/start, Reverse lamps, Rear defrost relay |
| 36 | – | Not used |
| * Mini fuse ** Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2012)
| â„– | A | Description |
|---|---|---|
| Relay | – | Electric vacuum pump (solid state) |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 5A* | Vacuum pump monitor |
| 5 | – | Not used |
| 6 | – | Not used |
| * Mini fuses **Cartridge fuse | ||
Conclusion
The Ford Escape Hybrid (2008-2012) delivers efficiency and versatility, supported by a robust electrical system. Proper maintenance of its fuse box and relays is essential for reliable performance.
