(2023-2024) Ford Escape fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape 2023-2024 fuse assignment
Ford Escape Year of production: 2023, 2024
Body Control Module Fuse Box:

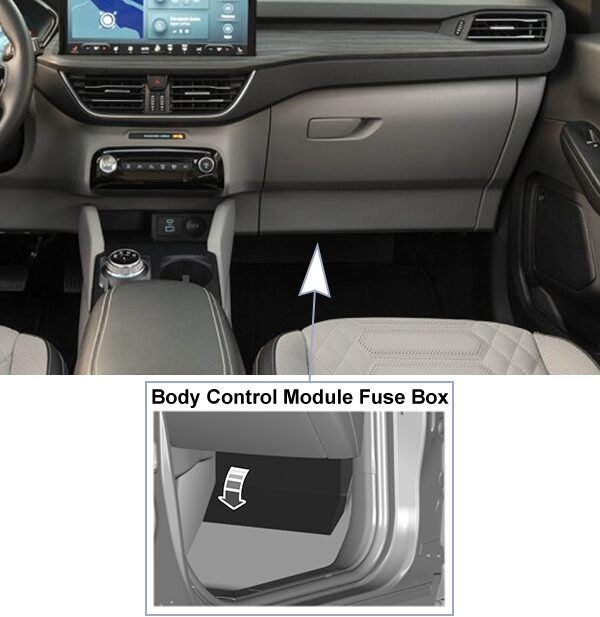

The fuse box is below the glove compartment.

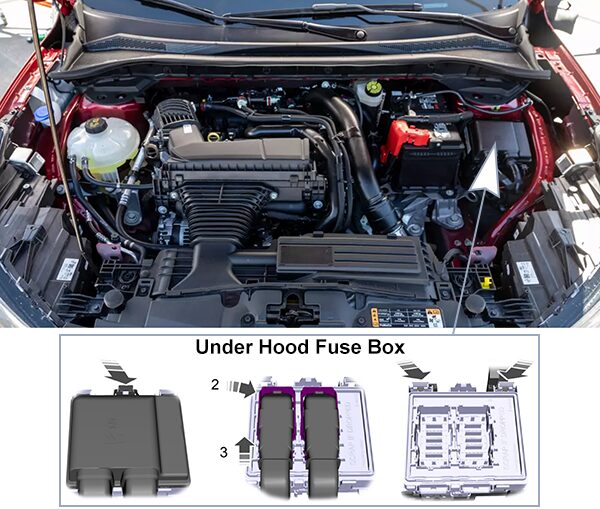

Under Hood Fuse Box:
- Pull the latch toward you and remove the top cover.
- Pull the connector lever upward.
- Pull the connector upward to remove it.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.
Fuse Box Diagrams
2023

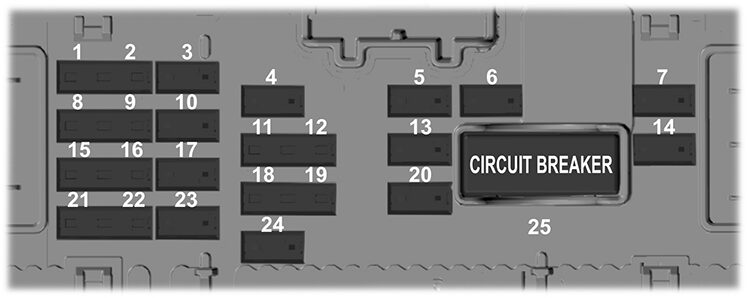

Body Control Module Fuse Box
List of fuses in the body control module fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Integrated control panel. Gateway module. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | Moonroof. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | All-Wheel Drive module. |
| 9 | 5A | Electrochromatic mirror. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Power liftgate. Telematics control unit module. |
| 12 | 5A | Keyless keypad switch. |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Extended power module. |
| 16 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Radio transceiver module. |
| 18 | 7.5A | Wireless accessory charging module. |
| 19 | 7.5A | Headlamp switch pack. |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Climate control. E-shifter module. Ignition switch. |
| 22 | 7.5A | Instrument cluster. Steering column control module. |
| 23 | 20A | Audio unit. |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Power Windows. Exterior mirrors. |

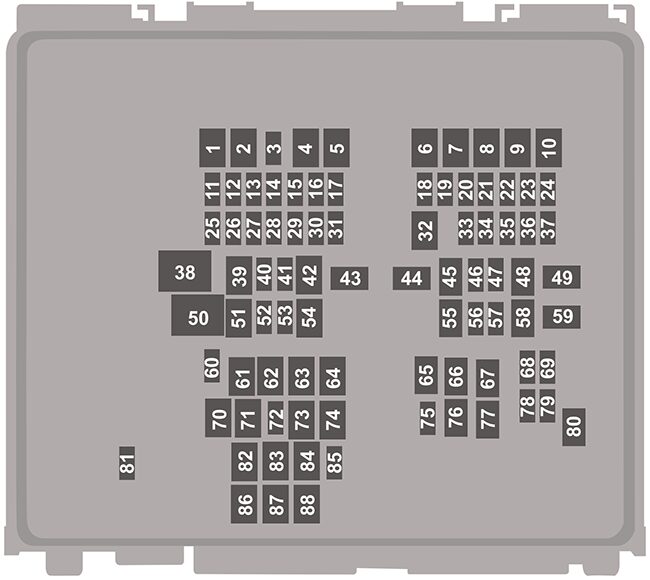

Under Hood Fuse Box
List of fuses in the under hood fuse box (2023)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater (gas). |
| 5 | 40A | Supplemental heater (gas). |
| 6 | 40A | Supplemental heater (gas). |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | – | Not used. |
| 21 | 5A | Not used (spare). |
| 22 | 5A | Battery electronic control module (hybrid electric vehicle). |
| 23 | 5A | Charge port light ring (plug-in hybrid electric vehicle). |
| 24 | 20A | Amplifier. |
| 25 | – | Not used. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Brake on-off switch. |
| 29 | 5A | Powertrain control module (hybrid electric vehicle). |
| 30 | 10A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10A | Not used (spare). |
| 35 | 15A | Heated steering wheel. |
| 36 | 10A | Powertrain control module (hybrid electric vehicle). |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 50A | Electric water pump (hybrid electric vehicle). |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | 20A | Not used (spare). |
| 47 | 20A | Heated seats. |
| 48 | 40A | Anti-lock brake control valves. |
| 49 | 60A | Anti-lock brake control pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | DC/DC converter (hybrid electric vehicle). |
| 53 | 10A | Battery charge control module (hybrid electric vehicle). |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 10A | Data link connector. |
| 58 | 40A | Auxiliary power distribution box (hybrid electric vehicle). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Rear cargo power point. |
| 62 | – | Not used. |
| 63 | 30A | Not used (spare). |
| 64 | 30A | Power liftgate. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Rear console power point. |
| 71 | 20A | Media bin power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated backlight. |
| 77 | – | Not used. |
| 78 | 10A | Air conditioning clutch. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 20A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
2024
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Integrated control panel. Gateway module. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | Moonroof. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | All-Wheel Drive module. |
| 9 | 5A | Electrochromatic mirror. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Power liftgate. Telematics control unit module. |
| 12 | 5A | Keyless keypad switch. |
| 13 | 15A | Driver door unlock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Extended power module. |
| 16 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Radio transceiver module. |
| 18 | 7.5A | Wireless accessory charging module. |
| 19 | 7.5A | Headlamp switch pack. |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Climate control. E-shifter module. Ignition switch. |
| 22 | 7.5A | Instrument cluster. Steering column control module. |
| 23 | 20A | Audio unit |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Power Windows. Exterior mirrors. |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2024)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater (gas). |
| 5 | 40A | Supplemental heater (gas). |
| 6 | 40A | Supplemental heater (gas). |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 15 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | – | Not used. |
| 21 | 5A | Not used (spare). |
| 22 | 5A | Battery electronic control module (hybrid electric vehicle). |
| 23 | 5A | Charge port light ring (plug-in hybrid electric vehicle). |
| 24 | 20A | Amplifier. |
| 25 | – | Not used. |
| 25 | – | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Brake on-off switch. |
| 29 | 5A | Powertrain control module (hybrid electric vehicle). |
| 30 | 10A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 20A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10A | Not used (spare). |
| 35 | 15A | Heated steering wheel. |
| 36 | 10A | Powertrain control module (hybrid electric vehicle). |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 50A | Electric water pump (hybrid electric vehicle). |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | 20A | Not used (spare). |
| 47 | 20A | Heated seats. |
| 48 | 40A | Anti-lock brake control valves. |
| 49 | 60A | Anti-lock brake control pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | DC/DC converter (hybrid electric vehicle). |
| 53 | 10A | Battery charge control module (hybrid electric vehicle). |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 10A | Data link connector. |
| 58 | 40A | Auxiliary power distribution box (hybrid electric vehicle). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Rear cargo power point. |
| 62 | – | Not used. |
| 63 | 30A | Not used (spare). |
| 64 | 30A | Power liftgate. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Rear console power point. |
| 71 | 20A | Media bin power point. |
| 72 | 20A | Rear window wiper. Rear window washer pump. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated backlight. |
| 77 | – | Not used. |
| 78 | 10A | Air conditioning clutch. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | – | Not used. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
