The Ford Escape (2020-2022) is a sleek, modern compact SUV offering advanced technology, efficient engine options, and a spacious, versatile interior. It features a five-door body style with seating for five passengers, along with a flexible cargo area, making it an excellent choice for families and individuals alike. The aerodynamic exterior design complements its fuel-efficient performance, while available trims, including hybrid and plug-in hybrid models, enhance its appeal to eco-conscious drivers. Its combination of comfort, safety, and innovative features makes it a standout in the SUV market.
The electrical system of the 2020-2022 Ford Escape is managed by its well-organized fuse box and relay configuration. The primary fuse box is located in the engine compartment near the battery, ensuring protection for essential systems such as the ignition, cooling fans, and headlights. A secondary fuse box is housed in the interior cabin, near the passenger side, handling systems like power windows, infotainment, and cabin lighting. Relays, located alongside the fuse boxes, control high-power components such as the fuel pump and air conditioning. Regular maintenance of these components ensures dependable operation.
MUST READ: DYI – How to Check Car Fuses?
(2020-2022) Ford Escape fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape 2020-2022 fuse assignment
Ford Escape Year of production: 2020, 2021, 2022

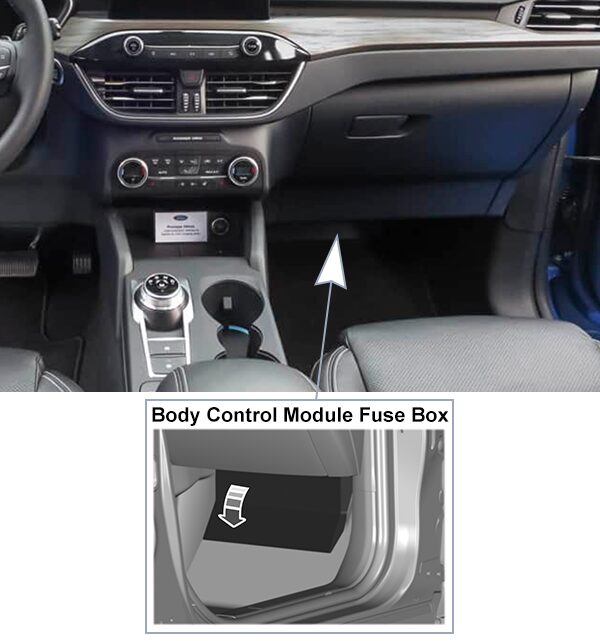

Body Control Module Fuse Box:
The fuse box is below the glove compartment.

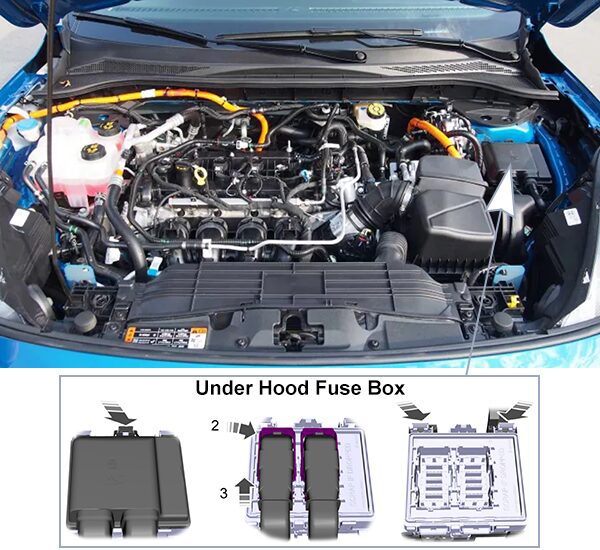

Under Hood Fuse Box:
- Pull the latch toward you and remove the top cover.
- Pull the connector lever upward.
- Pull the connector upward to remove it.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.
Fuse Box Diagrams
2020

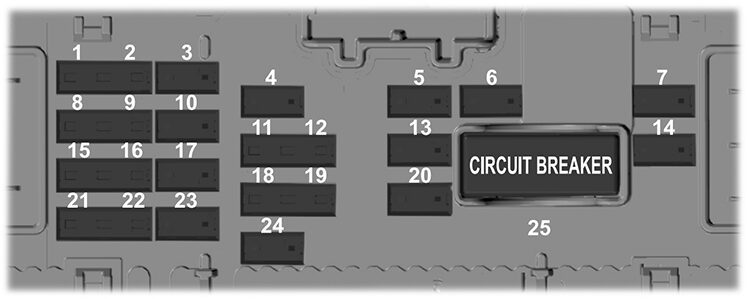

Body Control Module Fuse Box
List of fuses in the body control module fuse box (2020)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Ignition switch. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | Moonroof. DC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Electrochromatic mirror. image Processing module A. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Power liftgate. Hands-free liftgate actuation module. Telematics control unit module. |
| 12 | 5A | Head up display module. Keyless keypad switch. |
| 13 | 15A | Driver door lock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Extended power module. |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5A | Wireless accessory charging module. |
| 19 | 7.5A | Headlamp switch pack. |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Climate control. E-shifter module. |
| 22 | 7.5A | Instrument cluster. Gateway module. Steering column control module. |
| 23 | 20A | Audio unit. |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Power Windows. Exterior mirrors. |
| Note: Spare fuse amperage may vary. | ||
Under Hood Fuse Box
List of fuses in the under hood fuse box (2020)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater (gas). |
| 5 | 40A | Supplemental heater (gas). |
| 6 | 40A | Supplemental heater (gas). |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 15 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | – | Not used. |
| 21 | 5A | Not used (spare). |
| 22 | 5A | Battery electronic control module (hybrid). |
| 23 | 5A | Charge port light ring (hybrid). |
| 24 | 20A | Amplifier. |
| 25 | – | Not used. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Brake on-off switch. |
| 29 | 5A | Powertrain control module (hybrid). |
| 30 | 10A | Electronic stability control (gas). Transmission oil pump (hybrid). |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10A | Not used (spare). |
| 35 | 15A | Heated steering wheel. |
| 36 | 10A | Powertrain control module (hybrid). |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 15A | Heated wiper park. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 50A | Electric water pump (hybrid). |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | 20A | Not used (spare). |
| 47 | 20A | Heated seats. |
| 48 | 40A | Anti-lock brake control valves. |
| 49 | 60A | Anti-lock brake control pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | DC/DC converter (hybrid). |
| 53 | 10A | Battery charge control module (hybrid). |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 10A | Data link connector. |
| 58 | 40A | Auxiliary power distribution box (hybrid). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Rear cargo power point. |
| 62 | – | Not used. |
| 63 | 30A | Not used (spare). |
| 64 | 30A | Power liftgate. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Rear console power point. |
| 71 | 20A | Media bin power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated backlight. |
| 77 | – | Not used. |
| 78 | 10A | Air conditioning clutch. |
| 79 | 10A | Not used (spare). |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 85 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
| Note: Spare fuse amperage may vary. | ||
2021
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2021)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Ignition switch. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | Moonroof. DC inverter. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Electrochromatic mirror. image Processing module A. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Power liftgate. Hands-free liftgate actuation module. Telematics control unit module. |
| 12 | 5A | Head up display module. Keyless keypad switch. |
| 13 | 15A | Driver door lock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Extended power module. |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5A | Wireless accessory charging module. |
| 19 | 7.5A | Headlamp switch pack. |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Climate control. E-shifter module. |
| 22 | 7.5A | Instrument cluster. Gateway module. Steering column control module. |
| 23 | 20A | Audio unit |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Power Windows. Exterior mirrors. |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2021)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater (gas). |
| 5 | 40A | Supplemental heater (gas). |
| 6 | 40A | Supplemental heater (gas). |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | – | Not used. |
| 21 | 5A | Not used (spare). |
| 22 | 5A | Battery electronic control module (hybrid electric vehicle). |
| 23 | 5A | Charge port light ring (plug-in hybrid electric vehicle). |
| 24 | 20A | Amplifier. |
| 25 | – | Not used. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Brake on-off switch. |
| 29 | 5A | Powertrain control module (hybrid electric vehicle). |
| 30 | 10A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10A | Not used (spare). |
| 35 | 15A | Heated steering wheel. |
| 36 | 10A | Powertrain control module (hybrid electric vehicle). |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | 15A | Heated wiper park. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 50A | Electric water pump (hybrid electric vehicle). |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | 20A | Not used (spare). |
| 47 | 20A | Heated seats. |
| 48 | 40A | Anti-lock brake control valves. |
| 49 | 60A | Anti-lock brake control pump. |
| 50 | 60A | Cooling fan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | DC/DC converter (hybrid electric vehicle). |
| 53 | 10A | Battery charge control module (hybrid electric vehicle). |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 10A | Data link connector. |
| 58 | 40A | Auxiliary power distribution box (hybrid electric vehicle). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Rear cargo power point. |
| 62 | – | Not used. |
| 63 | 30A | Not used (spare). |
| 64 | 30A | Power liftgate. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Rear console power point. |
| 71 | 20A | Media bin power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated backlight. |
| 77 | – | Not used. |
| 78 | 10A | Air conditioning clutch. |
| 79 | 10A | Not used (spare). |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | 40A | Power inverter. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
2022
Body Control Module Fuse Box
List of fuses in the body control module fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | 5A | Not used (spare). |
| 2 | 5A | Not used (spare). |
| 3 | 10A | Not used (spare). |
| 4 | 10A | Ignition switch. |
| 5 | 20A | Lock. Unlock. |
| 6 | 10A | Moonroof. |
| 7 | 30A | Passenger door module. |
| 8 | 5A | Parking assist control module. |
| 9 | 5A | Electrochromatic mirror. Image Processing module A. |
| 10 | 10A | Extended power module. |
| 11 | 5A | Power liftgate. Hands-free liftgate actuation module. Telematics control unit module. |
| 12 | 5A | Head up display module. Keyless keypad switch. |
| 13 | 15A | Driver door lock. |
| 14 | 30A | Driver door module. |
| 15 | 15A | Extended power module. |
| 15 | 15A | Not used (spare). |
| 17 | 15A | SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5A | Wireless accessory charging module. |
| 19 | 7.5A | Headlamp switch pack. |
| 20 | 10A | Not used (spare). |
| 21 | 7.5A | Climate control. E-shifter module. |
| 22 | 7.5A | Instrument cluster. Gateway module Steering column control module. |
| 23 | 20A | Audio unit. |
| 24 | 20A | Not used (spare). |
| 25 | 30A | Power Windows. Exterior mirrors. |
Under Hood Fuse Box
List of fuses in the under hood fuse box (2022)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Not used. |
| 2 | – | Not used. |
| 3 | – | Not used. |
| 4 | 60A | Supplemental heater (gas). |
| 5 | 40A | Supplemental heater (gas). |
| 6 | 40A | Supplemental heater (gas). |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | – | Not used. |
| 10 | 30A | Starter motor. |
| 11 | 15A | Powertrain control module. |
| 12 | 15A | Powertrain control module. |
| 13 | 15A | Powertrain control module. |
| 14 | 15A | Powertrain control module. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | – | Not used. |
| 18 | 10A | Powertrain control module. |
| 19 | 10A | Anti-lock brake system module. |
| 20 | – | Not used. |
| 21 | 5A | Not used (spare). |
| 22 | 5A | Battery electronic control module (hybrid electric vehicle). |
| 23 | 5A | Charge port light ring (plug-in hybrid electric vehicle). |
| 24 | 20A | Amplifier. |
| 25 | – | Not used. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Brake on-off switch. |
| 29 | 5A | Powertrain control module (hybrid electric vehicle). |
| 30 | 10A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
| 31 | 5A | Electronic power assist steering. |
| 32 | 30A | Body control module. |
| 33 | 10A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10A | Not used (spare). |
| 35 | 15A | Heated steering wheel. |
| 36 | 10A | Powertrain control module (hybrid electric vehicle). |
| 37 | 20A | Horn. |
| 38 | 40A | Blower motor. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 20A | Amplifier. |
| 42 | 30A | Driver power seat. |
| 43 | 50A | Electric water pump (hybrid electric vehicle). |
| 44 | 40A | Trailer tow module. |
| 45 | 30A | Passenger power seat. |
| 46 | 20A | Not used (spare). |
| 47 | 20A | Heated seats. |
| 48 | 40A | Anti-lock brake control valves. |
| 49 | 60A | Anti-lock brake control pump. |
| 50 | 60A | Coolingfan. |
| 51 | 30A | Moonroof. |
| 52 | 5A | DC/DC converter (hybrid electric vehicle). |
| 53 | 10A | Battery charge control module (hybrid electric vehicle). |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 10A | Data link connector. |
| 58 | 40A | Auxiliary power distribution box (hybrid electric vehicle). |
| 59 | 40A | Body control module. |
| 60 | 5A | USB smart charger. |
| 61 | 20A | Rear cargo power point. |
| 62 | – | Not used. |
| 63 | 30A | Not used (spare). |
| 64 | 30A | Power liftgate. |
| 65 | – | Not used. |
| 66 | – | Not used. |
| 67 | – | Not used. |
| 68 | 5A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15A | Port fuel injectors. |
| 70 | 20A | Rear console power point. |
| 71 | 20A | Media bin power point. |
| 72 | 20A | Rear window wiper. |
| 73 | – | Not used. |
| 74 | 30A | Windshield wiper motor. |
| 75 | 10A | Heated exterior mirrors. |
| 76 | 30A | Heated backlight. |
| 77 | – | Not used. |
| 78 | 10A | Air conditioning clutch. |
| 79 | – | Not used. |
| 80 | 20A | Fuel pump. |
| 81 | 10A | Rear window washer pump. |
| 82 | – | Not used. |
| 83 | – | Not used. |
| 84 | 40A | Driveline control module. |
| 85 | 5A | Rain sensor. |
| 86 | – | Not used. |
| 87 | – | Not used. |
| 88 | – | Not used. |
Conclusion
The 2020-2022 Ford Escape combines style and performance, supported by a reliable electrical system. Maintaining its fuse box and relays is key to optimal functionality.
