The Ford Escape (2017-2019) is a compact SUV designed for modern versatility, offering a sleek, aerodynamic design paired with advanced technology. It features a five-door body style with seating for five passengers, combining comfort and practicality for families and commuters. With multiple trim levels, including both front-wheel drive and all-wheel drive options, the Escape caters to various driving needs, from urban travel to outdoor exploration. Its refined interior and spacious cargo area make it a popular choice in its class.
The electrical system of the Escape relies on its fuse box and relay setup to power and protect essential components. The primary fuse box, located under the hood near the battery, manages key systems like the ignition, cooling fans, and exterior lights. A secondary fuse box is situated in the cabin, beneath the dashboard on the passenger side, controlling interior features such as the infotainment system, power windows, and climate controls. Relays, housed alongside the fuses, handle high-power systems like the air conditioning and fuel pump. Regular checks of the fuses and relays are crucial for dependable functionality.
MUST READ: DYI – How to Check Car Fuses?
(2017-2019) Ford Escape fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape 2017-2019 fuse assignment
Ford Escape Year of production: 2017, 2018, 2019

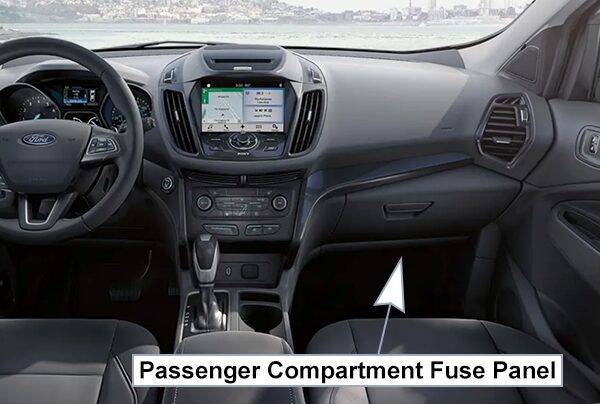

Passenger Compartment Fuse Panel:
The fuse panel is on the right side below the glove box.

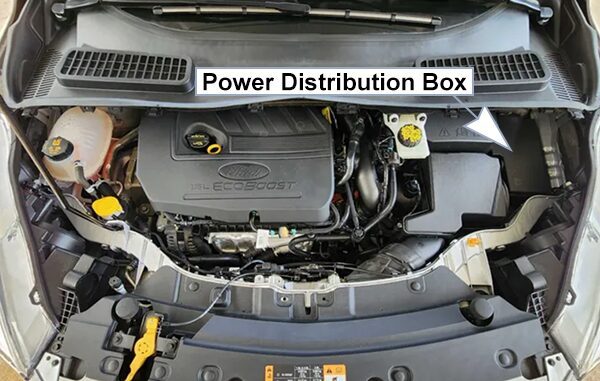

Power Distribution Box:
The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. Lift the release lever at the rear of the cover to remove it.
Pre-Fuse Box:
The pre-fuse box is in the engine compartment attached to the positive battery post. This box contains several high current fuses. If you need to replace one of these high current fuses, see an authorized dealer.

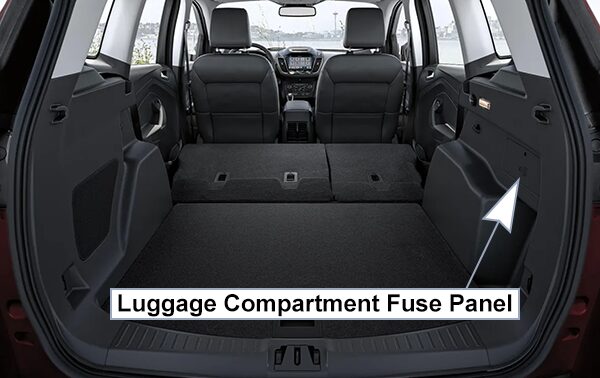

Luggage Compartment Fuse Panel:
The fuse panel is in the luggage compartment behind the passenger side wheel well. Remove the fuse panel cover to gain access to the fuses.
Fuse Box Diagrams
2017

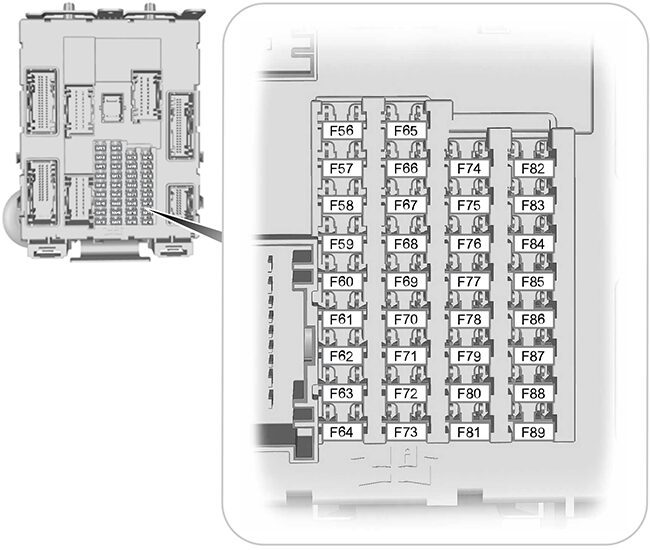

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2017)
| № | A | Protected components |
|---|---|---|
| F56 | 20A | Fuel pump supply. |
| F57 | – | Not used. |
| F58 | 5A | Interior lights retay. |
| F59 | 5A | Passive anti-theft transceiver. |
| F60 | 10A | Interior light. Driver door switch pack. Glove box tight. Overhead console switch bank. |
| F61 | 20A | Cigar lighter. Power point. |
| F62 | 5A | Rain sensor module. Light sensor module. |
| F63 | 10A | Front sensing module. Forward looking radar. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release. |
| F66 | 20A | Driver door unlock. |
| F67 | 7.5A | SYNC. Multifunction display. Global positioning system module. |
| F68 | 15A | Electronic steering column lock. |
| F69 | 5A | Instrument cluster. |
| F70 | 20A | Central lock and unlock supply. |
| F71 | 7.5A | Heating control head (manual air condi-tioner). Dual electronic automatic temperature control. |
| F72 | 7.5A | Data link connector. |
| F73 | 7.5A | Steering wheel module. |
| F74 | 15A | Headlamp supply. |
| F75 | 15A | Fog lamp. |
| F76 | 10A | Reversing lamp. |
| F77 | 20A | Washer pump. |
| F78 | 5A | Ignition switch. Start button. Keyless vehicle module. |
| F79 | 15A | Radio. Electronic finish panel. Hazard light switch. Door lock switch. |
| F80 | 20A | Moonroof supply. |
| F81 | Interior motion sensor supply. Radio frequency receiver supply. Panorama roof power/open. | |
| F82 | 20A | Washer pump. |
| F83 | 20A | Central locking. |
| F84 | 20A | Lock/unlock relay. Liftgate relay. |
| F85 | 7.5A | Electronic 15 feed. |
| F86 | 10A | Air bag module. Occupant classification system. Passenger air bag deactivation indicator. |
| F87 | 15A | Heated steering wheel. |
| F88 | 25A | KL30 feed. |
| F89 | – | Not used. |

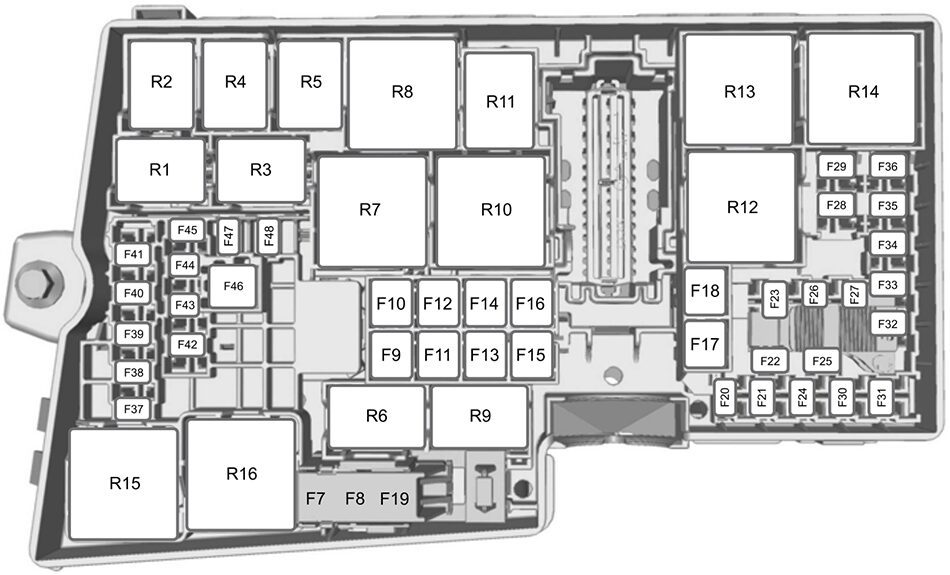

Power Distribution Box
List of fuses in the power distribution box (2017)
| № | A | Protected components |
|---|---|---|
| F7 | 50A** | Anti-lock brake system and electronic stability program pump. |
| F8 | 30A** | Electronic stability program valve. |
| F9 | 40A** | Cooling fan (600W) |
| 50A** | Cooling fan (390W and 750W). | |
| F10 | 40A** | Heater blower motor. |
| F11 | 30A** | Body control module power feed. Voltage quality module. |
| F12 | 30A** | Powertrain control module relay. |
| F13 | 30A** | Starter relay. |
| F14 | 25A** | Cooling fan (600W and 750W). |
| F15 | 20A** | Front cigar lighter or power outlet. |
| F16 | – | Not used. |
| F17 | 40A** | Cooling fan (600W). |
| 50A** | Cooling fan (750W). | |
| F18 | 20A** | Center power outlet. |
| F19 | 5A* | Anti-lock brake system and electronic stability program 15 feed. |
| F20 | 15A* | Horn. |
| F21 | 5A* | Stop light switch. |
| F22 | 15A* | Battery monitor system. |
| F23 | 5A* | Relay coils. |
| F24 | 5A* | Light switch module. |
| F25 | 10A* | Occupant classification system. |
| F26 | 2 5A* | Oil pump. |
| F27 | 15A* | Air conditioner clutch. |
| F28 | 10A* | Vehicle power – fuel injector (2.5L engine). Blind spot information system and rear view camera (stop/start equipped vehicles). |
| F29 | – | Not used. |
| F30 | 10A* | Partially heated windshield. |
| F31 | 5A* | Powertrain control relay coil. |
| F32 | 15A* | Vehicle power (2.0L and 2.5L engine). |
| 10A* | Vehicle power (1.5L engine). | |
| F33 | 10A* | Vehicle power 2 (2.0L and 2.5L engine). |
| 15A* | Vehicle power 2 (1.5L engine). | |
| F34 | 10A* | Vehicle power 3. |
| F35 | 15A* | Vehicle power 4 (2.0L and 2.5L engine). |
| 10A* | Vehicle power 4 (1.5L engine). | |
| F36 | 5A* | Active grill shutters. |
| F37 | 10A* | Passenger airbag deactivation indicator. |
| F38 | 5A* | Engine control module and transmission control module ignition feed. |
| F39 | 20A* | Heated driver seat. |
| F40 | 5A* | Electronic power assist steering 15 feed. |
| F41 | 20A* | Body control module 15 feed. |
| F42 | 15A* | Rear wiper. |
| F43 | 15A* | Headlamp control module supply. |
| F44 | 5A* | Forward looking radar. |
| F45 | 20A* | Heated passenger seat. |
| F46 | 40A** | Smart wiper motor modules. |
| F47 | – | Not used. |
| F48 | 5A* | Keypad. |
| R1 | Micro relay | Cooling fan (750W). |
| R2 | Micro relay | Horn. |
| R3 | – | Not used. |
| R4 | – | Not used. |
| R5 | Micro relay | Cooling fan (750W). |
| R6 | Micro relay | Cooling fan (600W and 750W). |
| R7 | Power relay | Partially heated windshield. |
| R8 | – | Not used. |
| R9 | – | Not used. |
| R10 | Mini relay | Starter relay. |
| R11 | Micro relay | Air conditioner clutch. |
| R12 | Power relay | Cooling fan. |
| R13 | Mini relay | Heater blower. |
| R14 | Mini relay | Engine control relay. |
| R15 | Power relay | Cooling fan (600W and 750W). |
| R16 | Power relay | Ignition 15. |
| *Mini fuses **Cartridge fuses | ||

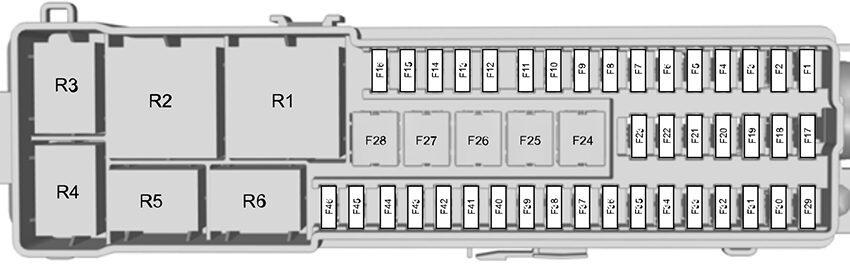

Luggage Compartment Fuse Panel
List of fuses in the luggage compartment fuse panel (2017)
| № | A | Protected components |
|---|---|---|
| F1 | 5A | Flands-free liftgate entry module. |
| F2 | 15A | Heated outside mirror (without door control unit). Heated wiper park. |
| F3 | 5A | Keyless vehicle door handles. |
| F4 | 25A | Door control unit front left. |
| F5 | 25A | Door control unit front right. |
| F6 | 25A | Door control unit rear left. |
| F7 | 25A | Door control unit rear right. |
| F8 | 25A | Passenger seat. |
| F9 | 25A | Driver seat. |
| F10 | 5A | Driver seat memory module logic feed. |
| F11 | 5A | Rear ignition coil feed. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | 25A | High current power Windows (driver). |
| F15 | 25A | High current power Windows (driver and passenger). |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | 5A | Embedded modem. |
| F21 | – | Not used. |
| F22 | 25A | Heated rearwindow. |
| F23 | 25A | Audio amplifier. |
| F24 | 30A | DC/AC power converter. |
| F25 | 25A | Power liftgate. |
| F26 | 20A | Rear power outlet. |
| F27 | 20A | Luggage compartment power outlet. |
| F28 | 40A | Trailer tow. |
| F29 | 5A | Blind spot detection system. Rear view camera with park assist. |
| F30 | 5A | Parking aid module. |
| F31 | – | Not used. |
| F32 | 5A | DC/AC power converter. |
| F33 | 10A | High current power window switch. |
| F34 | – | Not used. |
| F35 | – | Not used. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | 5A | Heated outside mirror relay coil. |
| R1 | Power relay | Delay accessory relay. |
| R2 | Mini relay | Rear 15 relay. |
| R3 | Micro relay | Heated rear window relay. |
| R4 | – | Not used. |
| R5 | – | Not used. |
| R6 | Micro relay | Heated outside mirror relay. |
2018
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2018)
| № | A | Protected Component |
|---|---|---|
| F56 | 20A | Fuel pump supply. |
| F57 | – | Not used. |
| F58 | 5A | Interior lights retay. |
| F59 | 5A | Passive anti-theft transceiver. |
| F60 | 10A | Interior light. Driver door switch pack. Glove box light. Overhead console switch bank. |
| F61 | 20A | Cigar lighter. Power point. |
| F62 | 5A | Rain sensor module. Light sensor module. |
| F63 | 10A | Front sensing module. Forward looking radar. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release. |
| F66 | 20A | Driver door unlock. |
| F67 | 7.5A | SYNC. Multifunction display. Global positioning system module. |
| F68 | 15A | Not used (spare). |
| F69 | 5A | Instrument cluster. |
| F70 | 20A | Central lock and unlock supply. |
| F71 | 7.5A | Heating control head (manual air condi-tioner). Dual electronic automatic temperature control. |
| F72 | 7.5A | Data link connector. |
| F73 | 7.5A | Steering wheel module. |
| F74 | 15A | Headlamp supply. |
| F75 | 15A | Fog lamp. |
| F76 | 10A | Reversing lamp. |
| F77 | 20A | Washer pump. |
| F78 | 5A | Ignition switch. Start button. Keyiess vehicle module. |
| F79 | 15A | Radio. Electronic finish panel. Hazard light switch. Door lock switch. |
| F80 | 20A | Moonroof supply. |
| F81 | 5A | Radio frequency receiver supply. Panorama roof power/open. |
| F82 | 20A | Washer pump. |
| F83 | 20A | Central locking. |
| F84 | 20A | Lock/unlock relay. Liftgate relay. |
| F85 | 7.5A | Electronic 15 feed. |
| F86 | 10A | Airbag module. Occupant classification system. Passenger airbag deactivation indicator. |
| F87 | 15A | Heated steering wheel. |
| F88 | – | Not used. |
| F89 | – | Not used. |
Power Distribution Box
List of fuses in the power distribution box (2018)
| № | A | Protected Component |
|---|---|---|
| F7 | 50A1 | Anti-lock brake system and electronic stability program pump. |
| F8 | 30A1 | Electronic stability program valve. |
| F9 | 40A1 | Cooling fan (600 Watt) |
| 50A1 | Cooling fan (390 Watt and 750 Watt). | |
| F10 | 40A1 | Heater blower motor. |
| F11 | 30A1 | Body control module power feed. Voltage quality module. |
| F12 | 30A1 | Powertrain control module relay. |
| F13 | 30A1 | Starter relay. |
| F14 | 25A1 | Cooling fan (600 Watt and 750 Watt). |
| F15 | 20A1 | Front cigar lighter or power outlet. |
| F16 | 25A1 | Front power window (without door control unit). |
| F17 | 40A1 | Cooling fan (600 Watt). |
| 50A1 | Cooling fan (750 Watt). | |
| F18 | 20A1 | Center power outlet. |
| F19 | 5A2 | Anti-lock brake system and electronic stability program 15 feed. |
| F20 | 15A2 | Horn. |
| F21 | 5A2 | Stop light switch. |
| F22 | 15A2 | Battery monitor system. |
| F23 | 5A2 | Relay coils. |
| F24 | 5A2 | Light switch module. |
| F25 | 10A2 | Occupant classification system. |
| F26 | 25A2 | Oil pump. |
| F27 | 15A2 | Air conditioner clutch. |
| F28 | 10A2 | Vehicle power – fuel injector (2.5L engine). Blind spot information system and rear view camera (stop/start equipped vehicles). |
| F29 | – | Not used. |
| F30 | 10A2 | Partially heated windshield. |
| F31 | 5A2 | Powertrain control relay coil. |
| F32 | 15A2 | Vehicle power (2.0L and 2.5L engine). |
| 10A2 | Vehicle power (1.5L engine). | |
| F33 | 10A2 | Vehicle power 2 (2.0L and 2.5L engine). |
| 15A2 | Vehicle power 2 (1.5L engine). | |
| F34 | 10A2 | Vehicle power 3. |
| F35 | 15A2 | Vehicle power 4 (2.0L and 2.5L engine). |
| 10A2 | Vehicle power 4 (1.5L engine). | |
| F36 | 5A2 | Active grille shutters. |
| F37 | 10A2 | Passenger airbag deactivation indicator. |
| F38 | 5A2 | Engine control module and transmission control module ignition feed. |
| F39 | 20A2 | Heated driver seat. |
| F40 | 5A2 | Electronic power assist steering 15 feed. |
| F41 | 20A2 | Body control module 15 feed. |
| F42 | 15A2 | Rear wiper. |
| F43 | 15A2 | Headlamp control module supply. |
| F44 | 5A2 | Forward looking radar. |
| F45 | 20A2 | Heated passenger seat. |
| F46 | 40A1 | Smart wiper motor modules. |
| F47 | – | Not used. |
| F48 | 5A2 | Keypad. |
| R1 | Micro relay | Cooling fan (750 Watt). |
| R2 | Micro relay | Horn. |
| R3 | – | Not used. |
| R4 | – | Not used. |
| R5 | Micro relay | Cooling fan (750 Watt). |
| R6 | Micro relay | Cooling fan (600 Watt and 750 Watt). |
| R7 | Power relay | Partially heated windshield. |
| R8 | Mini Relay | High current power Windows front. |
| R9 | – | Not used. |
| R10 | Mini relay | Starter relay. |
| R11 | Micro relay | Air conditioner clutch. |
| R12 | Power relay | Cooling fan. |
| R13 | Mini relay | Heater blower. |
| R14 | Mini relay | Engine control relay. |
| R15 | Power relay | Cooling fan (600 Watt and 750 Watt). |
| R16 | Power relay | Ignition 15. |
| 1 Cartridge Fuse 2 Mini Fuse | ||
Luggage Compartment Fuse Panel
List of fuses in the luggage compartment fuse panel (2018)
| № | A | Protected Component |
|---|---|---|
| F1 | 5A | Flands-free liftgate entry module. |
| F2 | 15A | Heated outside mirror (without door control unit). Heated wiper park. |
| F3 | 5A | Keyless vehicle door handles. |
| F4 | 25A | Door control unit front left. |
| F5 | 25A | Door control unit front right. |
| F6 | 25A | Door control unit rear left. |
| F7 | 25A | Door control unit rear right. |
| F8 | 25A | Passenger seat. |
| F9 | 25A | Driver seat. |
| F10 | 5A | Driver seat memory module logic feed. |
| F11 | 5A | Rearignitioncoilfeed. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | 25A | High current power Windows (front relay). |
| F15 | – | Not used (vehicles with one-touch up power Windows). |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | 5A | Embedded modem. |
| F21 | – | Not used. |
| F22 | 25A | Heated rear window. |
| F23 | 25A | Audio amplifier. |
| F24 | 30A | DC/AC power converter. |
| 40A | Trailertow (vehicles without one-touch up power Windows). | |
| F25 | 25A | Power liftgate. |
| F26 | 20A | Rear power outlet. |
| F27 | 20A | Luggage compartment power outlet. |
| F28 | 40A | Trailer tow (vehicles with one-touch up power Windows). |
| 30A | Driver and passenger high current power Windows (vehicles without one-touch up power Windows). | |
| F29 | 5A | Blind spot detection system. Rear view camera with park assist. |
| F30 | 5A | Parking aid module. |
| F31 | – | Not used. |
| F32 | 5A | DC/AC power converter. |
| F33 | 10A | High current power window switch. |
| F34 | – | Not used. |
| F35 | – | Not used. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | 5A | Heated outside mirror relay coil. |
| R1 | Power relay | Delay accessory relay. |
| R2 | Mini relay | Rear 15 relay. |
| R3 | Micro relay | Heated rear window relay. |
| R4 | – | Not used. |
| R5 | – | Not used. |
| R6 | Micro relay | Heated outside mirror relay. |
2019
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2019)
| № | A | Circuits protected |
|---|---|---|
| F56 | 20A | Fuel pump supply. |
| F57 | – | Not used. |
| F58 | 5A | Interior lights retay. |
| F59 | 5A | Passive anti-theft transceiver. |
| F60 | 10A | Interior light. Driver door switch pack. Glove box light. Overhead console switch bank. |
| F61 | 20A | Cigar lighter. Power point. |
| F62 | 5A | Rain sensor module. Light sensor module. |
| F63 | 10A | Front sensing module. Forward looking radar. |
| F64 | – | Not used. |
| F65 | 10A | Liftgate release. |
| F66 | 20A | Driver door unlock. |
| F67 | 7.5A | SYNC. Multifunction display. Global positioning system module. |
| F68 | 15A | Not used (spare). |
| F69 | 5A | Instrument cluster. |
| F70 | 20A | Central lock and unlock supply. |
| F71 | 7.5A | Heating control head (manual air conditioner). Dual electronic automatic temperature control. |
| F72 | 7.5A | Data link connector. |
| F73 | 7.5A | Steering wheel module. |
| F74 | 15A | Headlamp supply. |
| F75 | 15A | Fog lamp. |
| F76 | 10A | Reversing lamp. |
| F77 | 20A | Washer pump. |
| F78 | 5A | Ignition switch. Start button. Keyless vehicle module. |
| F79 | 15A | Radio. Electronic finish panel. Hazard light switch. Door lock switch. |
| F80 | 20A | Moonroof supply. |
| F81 | 5A | Radio frequency receiver supply. Panorama roof power/open. |
| F82 | 20A | Washer pump. |
| F83 | 20A | Central locking. |
| F84 | 20A | Lock/unlock relay. Liftgate relay. |
| F85 | 7.5A | Electronic 15 feed. |
| F86 | 10A | Airbag module. Occupant classification system. Passenger airbag deactivation indicator. |
| F87 | 15A | Heated steering wheel. |
| F88 | – | Not used. |
| F89 | – | Not used. |
Power Distribution Box
List of fuses in the power distribution box (2019)
| № | A | Circuits protected |
|---|---|---|
| F7 | 50A1 | Anti-lock brake system and electronic stability program pump. |
| F8 | 30A1 | Electronic stability program valve. |
| F9 | 40A1 | Cooling fan (600 Watt) |
| 50A1 | Cooling fan (390 Watt). | |
| F10 | 40A1 | Heater blower motor. |
| F11 | 30A1 | Body control module power feed. Voltage quality module. |
| F12 | 30A1 | Powertrain control module relay. |
| F13 | 30A1 | Starter relay. |
| F14 | 25A1 | Cooling fan (600 Watt). |
| F15 | 20A1 | Front cigar lighter or power outlet. |
| F16 | 25A1 | Front power window (without door control unit). |
| F17 | 40A1 | Cooling fan (600 Watt). |
| F18 | 20A1 | Center power outlet. |
| F19 | 5A2 | Anti-lock brake system and electronic stability program 15 feed. |
| F20 | 15A2 | Horn. |
| F21 | 5A2 | Stop light switch. |
| F22 | 15A2 | Battery monitor system. |
| F23 | 5A2 | Relay coils. |
| F24 | 5A2 | Light switch module. |
| F25 | 10A2 | Occupant classification system. |
| F26 | 25A2 | Oil pump. |
| F27 | 15A2 | Air conditioner clutch. |
| F28 | 10 A2 | Vehicle power – fuel injector (2.5L engine). Blind spot Information system and rear view camera (stop/start equipped vehicles). |
| F29 | – | Not used. |
| F30 | 10A2 | Partially heated windshield. |
| F31 | 5A2 | Powertrain control relay coil. |
| F32 | 15A2 | Vehicle power (2.0L and 2.5L engine). |
| 10A2 | Vehicle power (1.5L engine). | |
| F33 | 10A2 | Vehicle power 2 (2.0L and 2.5L engine). |
| 15A2 | Vehicle power 2 (1.5L engine). | |
| F34 | 10 A2 | Vehicle power 3. |
| F35 | 15A2 | Vehicle power 4 (2.0L and 2.5L engine). |
| 10A2 | Vehicle power 4 (1.5L engine). | |
| F36 | 5A2 | Active grille shutters. |
| F37 | 10A2 | Passenger airbag deactivation indicator. |
| F38 | 5A2 | Engine control module and transmission control module ignition feed. |
| F39 | 20A2 | Heated driver seat. |
| F40 | 5A2 | Electronic power assist steering 15 feed. |
| F41 | 20A2 | Body control module 15 feed. |
| F42 | 15A2 | Rear wiper. |
| F43 | 15A2 | Headlamp control module supply. |
| F44 | 5A2 | Forward looking radar. |
| F45 | 20A2 | Heated passenger seat. |
| F46 | 40A1 | Smart wiper motor modules. |
| F47 | – | Not used. |
| F48 | 5A2 | Keypad. |
| Relay | ||
| R1 | Not used. | |
| R2 | Horn. | |
| R3 | Not used. | |
| R4 | Not used. | |
| R5 | Not used. | |
| R6 | Cooling fan (600 Watt). | |
| R7 | Partially heated windshield. | |
| R8 | Not used. | |
| R9 | Not used. | |
| R10 | Starter relay. | |
| R11 | Air conditioner clutch. | |
| R12 | Cooling fan. | |
| R13 | Heater blower. | |
| R14 | Engine control relay. | |
| R15 | Cooling fan (600 Watt). | |
| R16 | Ignition 15. | |
| 1 Cartridge Fuse 2 Mini Fuse | ||
Luggage Compartment Fuse Panel
List of fuses in the luggage compartment fuse panel (2019)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5A | Hands-free liftgate entry module. |
| F2 | 15A | Heated outside mirror (without door control unit). Heated wiper park. |
| F3 | 5A | Keyless vehicle door handles. |
| F4 | 25A | Door control unit front left. |
| F5 | 25A | Door control unit front right. |
| F6 | 25A | Door control unit rear left. |
| F7 | 25A | Door control unit rear right. |
| F8 | 25A | Passenger seat. |
| F9 | 25A | Driver seat. |
| F10 | 5A | Driver seat memory module logic feed. |
| F11 | 5A | Rear ignition coil feed. |
| F12 | – | Not used. |
| F13 | – | Not used. |
| F14 | 25A | High current power Windows (front relay). |
| F15 | – | Not used (vehicles with one-touch up power Windows). |
| F16 | – | Not used. |
| F17 | – | Not used. |
| F18 | – | Not used. |
| F19 | – | Not used. |
| F20 | 5A | Embedded modem. |
| F21 | – | Not used. |
| F22 | 25A | Heated rear window. |
| F23 | 25A | Audio amplifier. |
| F24 | 30A | DC/AC power converter. |
| 40A | Trailer tow (vehicles without one-touch up power Windows). | |
| F25 | 25A | Power liftgate. |
| F26 | 20A | Rear power outlet. |
| F27 | 20A | Luggage compartment power outlet. |
| F28 | 40A | Trailer tow (vehicles with one-touch up power Windows). |
| 30A | Driver and passenger high current power Windows (vehicles without one-touch up power Windows). | |
| F29 | 5A | Blind spot detection system. Rear view camera with park assist. |
| F30 | 5A | Parking aid module. |
| F31 | – | Not used. |
| F32 | 5A | DC/AC power converter. |
| F33 | 10A | High current power window switch. |
| F34 | – | Not used. |
| F35 | – | Not used. |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |
| F41 | – | Not used. |
| F42 | – | Not used. |
| F43 | – | Not used. |
| F44 | – | Not used. |
| F45 | – | Not used. |
| F46 | 5A | Heated outside mirror relay coil. |
| Relay | ||
| R1 | Delay accessory relay. | |
| R2 | Rear 15 relay. | |
| R3 | Heated rear window relay. | |
| R4 | Not used. | |
| R5 | Not used. | |
| R6 | Heated outside mirror relay. | |
Conclusion
The 2017-2019 Ford Escape balances modern design with practicality, supported by a reliable electrical system. Proper care of the fuse box and relays ensures consistent performance.
