The Ford Escape (2005-2007) is a compact SUV designed to combine practicality and performance. It features a five-door body style, with seating for up to five passengers and a spacious cargo area, making it suitable for families and individuals alike. The Escape maintains a sporty yet rugged design, offering both front-wheel drive and all-wheel drive options for urban commutes and light off-road adventures. Enhanced with updated trims and features during this period, it delivers comfort, convenience, and reliable handling.
The vehicle’s electrical system depends on its well-organized fuse box and relay setup. The main fuse box, located in the engine compartment near the battery, protects vital systems such as the ignition, cooling fans, and headlights. A secondary fuse box is placed under the dashboard on the driver’s side, managing interior components like power windows, cabin lights, and the audio system. Relays, housed near the fuse boxes, control high-power functions such as the air conditioning and fuel pump. Regular inspection of these components ensures smooth operation of all systems.
MUST READ: DYI – How to Check Car Fuses?
(2005-2007) Ford Escape fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape 2005-2007 fuse assignment
Ford Escape Year of production: 2005, 2006, 2007

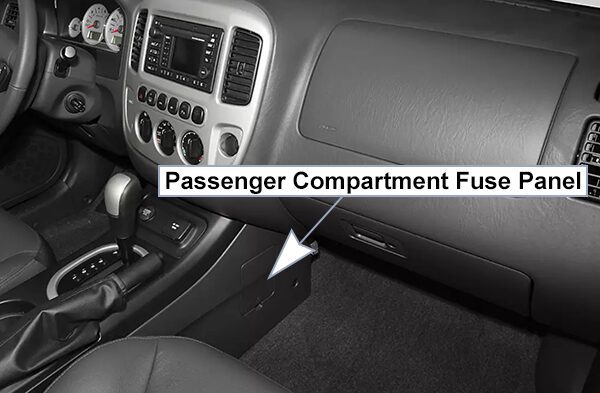

Passenger Compartment Fuse Panel:
The fuse panel is located on the right-hand side of the center console, by the instrument panel. Remove the panel cover to access the fuses.

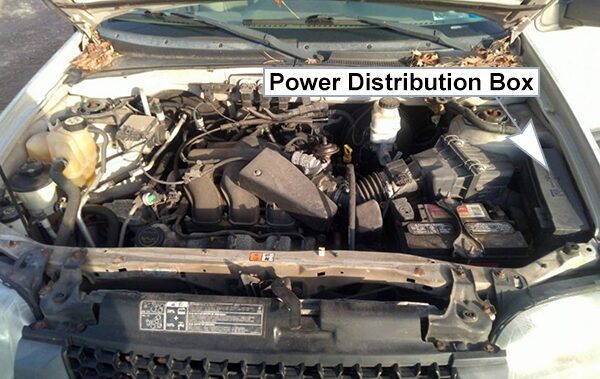

Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagrams
2005

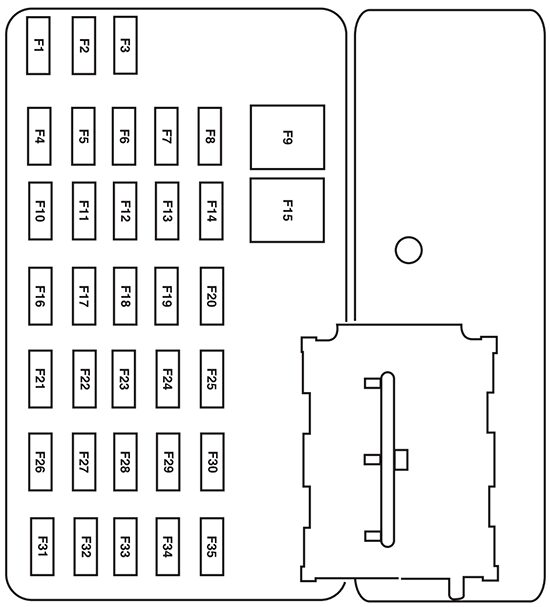

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2005)
| № | A | Description |
|---|---|---|
| 1 | 15A* | Trailer tow park lamps |
| 2 | – | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay, High/Low speed fan relay 2, PATS module |
| 6 | 15A* | Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch |
| 7 | 10A* | Instrument cluster, Diagnostic connector, Power mirror switch, Radio |
| 8 | – | Not used |
| 9 | 30A** | Power door locks, Power seats |
| 10 | 15A* | Heated mirrors |
| 11 | 15A* | Sunroof, Electrochromatic mirror |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4WD |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | – | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Canister vent, Speed control cancel switch |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Reverse park aid |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | 10A* | Brake-Transmission shift lock |
| 33 | 15A* | Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS) |
| 34 | 5A* | ABS module, Evac and Fill, Speed control |
| 35 | 5A* | Heated seats module, 4WD |
| * Mini fuse ** Cartridge fuse | ||

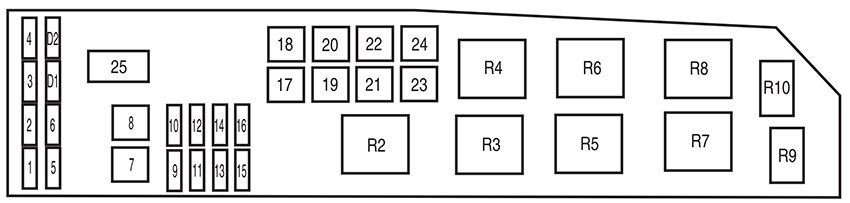

Power Distribution Box
List of fuses in the power distribution box (2005)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | 25A* | Headlamp power |
| 3 | 25A* | High beams, Turn signals, Interior lamps, Headlamp power |
| 4 | 5A* | Keep Alive Power (KA PWR) |
| 5 | 15 A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 6 | 20A* | Fuel pump |
| 7 | 40A** | RUN/ACC relay – Electrochromatic mirror, Cigar lighter, Front and rear wipers |
| 8 | 30A** | Powertrain Control Module (PCM), Injectors and coil |
| 9 | 15 A* | Alternator |
| 10 | 30A* | Heated seats |
| 11 | 10A* | PCM |
| 12 | 20A* | Power point |
| 13 | 20A* | Fog lamps |
| 14 | 15 A* | A/C clutch, A/C relay |
| 15 | 30A* | Anti-lock Brake System (ABS) solenoid |
| 16 | 25A* | PP fuse panel (RUN/START) |
| 17 | 50A** | Ignition (main) |
| 18 | 40A** | Blower motor |
| 19 | 40A** | Accessory delay relay – Subwoofer and 4WD, Low beam |
| 20 | 60A** | ABS |
| 21 | 40A** | Horn, CHMSL, Cluster, Power locks and power seats |
| 22 | 40A** (I4) | Cooling fan |
| 50A** (V6) | ||
| 23 | 40A** | Rear defroster, Park lamps relay |
| 24 | 40A** (I4) | High/Low speed fan |
| 50A** (V6) | ||
| 25 | – | Shunt |
| R2 | – | PCM relay |
| R3 | – | Fuel pump relay |
| R4 | – | Cooling fan relay |
| R5 | – | High/Low speed fan relay 1 |
| R6 | – | Blower motor relay |
| R7 | – | Starter relay |
| R8 | – | High/Low speed fan relay 2 |
| R9 | – | Fog lamps relay |
| R10 | – | A/C relay |
| D1 | – | Not used |
| D2 | – | A/C diode |
| * Mini fuse ** Cartridge fuse | ||
2006
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2006)
| № | A | Description |
|---|---|---|
| 1 | 15A* | Trailer tow park lamps |
| 2 | – | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay High/Low speed fan relay 2, PATS module |
| 6 | 15A* | Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch |
| 7 | 10A* | Instrument cluster, Diagnostic connector, Power mirror switch, Radio |
| 8 | – | Not used |
| 9 | 30A** | Power door locks, Power seats |
| 10 | 15A* | Heated mirrors |
| 11 | 15A* | Sunroof, Electrochromatic mirror |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4WD |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | – | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Canister vent, Speed control cancel switch |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Reverse park aid |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | 10A* | Brake-Transmission shift lock |
| 33 | 15A* | Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS) |
| 34 | 5A* | ABS module, Evac and Fill, Speed control |
| 35 | 5A* | Heated seats module, 4WD |
| * Mini fuse ** Cartridge fuse | ||
Power Distribution Box
List of fuses in the power distribution box (2006)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | 25A* | Headlamp power |
| 3 | 25A* | High beams, Turn signals, Interior lamps, Headlamp power |
| 4 | 5A* | Keep Alive Power (KA PWR) |
| 5 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 6 | 20A* | Fuel pump |
| 7 | 40A** | RUN/ACC relay – Electrochromatic mirror, Cigar lighter, Front and rear wipers |
| 8 | 30A** | Powertrain Control Module (PCM), Injectors and coil |
| 9 | 15A* | Alternator |
| 10 | 30A* | Heated seats |
| 11 | 10A* | PCM |
| 12 | 20A* | Power point |
| 13 | 20A* | Fog lamps |
| 14 | 15A* | A/C clutch, A/C relay |
| 15 | 30A* | Anti-lock Brake System (ABS) solenoid |
| 16 | 25A* | I/P fuse panel (RUN/START) |
| 17 | 50A** | Ignition (main) |
| 18 | 40A** | Blower motor |
| 19 | 40A** | Accessory delay relay – Subwoofer and 4WD, Low beam |
| 20 | 60A** | ABS |
| 21 | 40A** | Horn, CHMSL, Cluster, Power locks and power seats |
| 22 | 40A** (I4) | Cooling fan |
| 50A** (V6) | ||
| 23 | 40A** | Rear defroster, Park lamps relay |
| 24 | 40A** (I4) | High/Low speed fan |
| 50A** (V6) | ||
| 25 | – | Shunt |
| R2 | – | PCM relay |
| R3 | – | Fuel pump relay |
| R4 | – | Cooling fan relay |
| R5 | – | High/Low speed fan relay 1 |
| R6 | – | Blower motor relay |
| R7 | – | Starter relay |
| R8 | – | High/Low speed fan relay 2 |
| R9 | – | Fog lamps relay |
| R10 | – | A/C relay |
| D1 | – | Not used |
| D2 | – | A/C diode |
| * Mini fuse ** Cartridge fuse | ||
2007
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2007)
| № | A | Description |
|---|---|---|
| 1 | 15A* | Trailer tow park lamps |
| 2 | – | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay, High/Low speed fan relay 2, PATS module |
| 6 | 15A* | Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch |
| 7 | 10A* | Instmment cluster, Diagnostic connector, Power mirror switch, Radio |
| 8 | 5A* | Canister vent |
| 9 | 30A** | Power door locks, Power seats |
| 10 | 15A* | Heated mirrors |
| 11 | 15A* | Sunroof, Electrochromatic mirror |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4WD |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 15A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | – | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Speed control cancel switch |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Reverse park aid |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | 10A* | Brake-Transmission shift lock |
| 33 | 15A* | Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS) |
| 34 | 5A* | ABS module, Evac and Fill, Speed control |
| 35 | 5A* | Heated seats module, 4WD |
| * Mini fuse ** Cartridge fuse | ||
Power Distribution Box
List of fuses in the power distribution box (2007)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | 25A* | Headlamp power |
| 3 | 25A* | High beams, Turn signals, Interior lamps, Headlamp power |
| 4 | 5A* | Keep Alive Power (KA PWR) |
| 5 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 6 | 20A* | Fuel pump |
| 7 | 40A** | RUN/ACC relay – Electrochromatic mirror, Cigar lighter, Front and rear wipers |
| 8 | 30A** | Powertrain Control Module (PCM), Injectors and coil |
| 9 | 15A* | Alternator |
| 10 | 30A* | Heated seats |
| 11 | 10A* | PCM |
| 12 | 20A* | Power point |
| 13 | 20A* | Fog lamps |
| 14 | 15A* | A/C clutch, A/C relay |
| 15 | 30A* | Anti-lock Brake System (ABS) solenoid |
| 16 | 25A* | I/P fuse panel (RUN/START) |
| 17 | 50A** | Ignition (main) |
| 18 | 40A** | Blower motor |
| 19 | 40A** | Accessory delay relay – Subwoofer and 4WD, Low beam |
| 20 | 60A** | ABS |
| 21 | 40A** | Horn, CHMSL, Cluster, Power locks and power seats |
| 22 | 40A** (I4) | Cooling fan |
| 50A** (V6) | ||
| 23 | 40A** | Rear defroster, Park lamps relay |
| 24 | 40A** (I4) | High/Low speed fan |
| 50A** (V6) | ||
| 25 | – | Shunt |
| R2 | – | PCM relay |
| R3 | – | Fuel pump relay |
| R4 | – | Cooling fan relay |
| R5 | – | High/Low speed fan relay 1 |
| R6 | – | Blower motor relay |
| R7 | – | Starter relay |
| R8 | – | High/Low speed fan relay 2 |
| R9 | – | Fog lamps relay |
| R10 | – | A/C relay |
| D1 | – | Not used |
| D2 | – | A/C diode |
| * Mini fuse ** Cartridge fuse | ||
