Locate fuse box and relay positions in the Ford EcoSport (2018-2022) with clear diagrams. Maintain electrical reliability with professional guidance.
The Ford EcoSport (2018-2022) is a compact crossover SUV designed for urban and suburban driving, combining efficiency, style, and practicality. It features a five-door body style with a sporty, high-riding stance, offering a spacious interior and flexible cargo space. The EcoSport is available in multiple trims, providing options for both comfort-focused and sportier drivers. With its advanced infotainment system and modern safety features, the EcoSport appeals to small families and individuals seeking versatility in a compact size.
The electrical system in the EcoSport is managed by its fuse box and relay system, which ensures the reliable operation of various components. The main fuse box is located under the hood, near the battery, protecting critical systems like the headlights, ignition, and cooling fans. A secondary fuse panel is inside the cabin, near the passenger side, controlling interior electronics such as the infotainment system and power windows. Relays are housed alongside the fuses and handle high-power components like the fuel pump and air conditioning. Routine maintenance of the fuses and relays ensures smooth operation of the car’s electrical features.
MUST READ: DYI – How to Check Car Fuses?
(2018-2022) Ford EcoSport fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford EcoSport 2018-2022 fuse assignment
Ford EcoSport Year of production: 2018, 2019, 2020, 2021, 2022

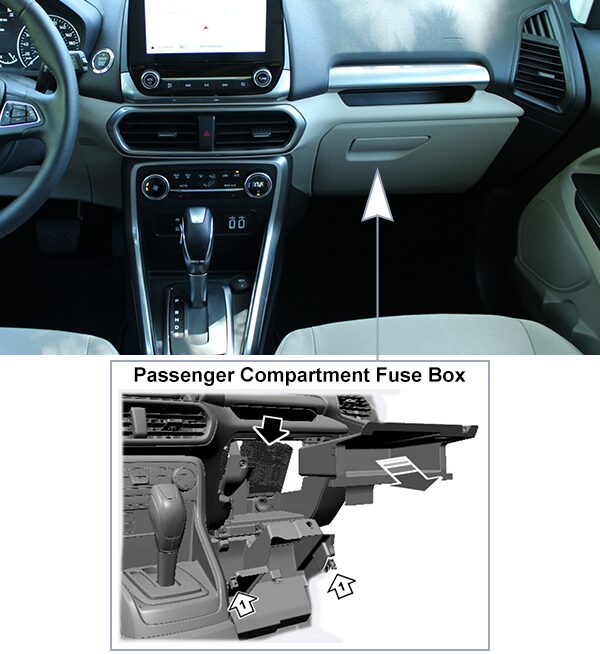

Passenger Compartment Fuse Box:
This fuse box is located behind the glove box. To access the fuse box, do the following:
- Open the glove box and release the clips.
- Remove the storage compartment.

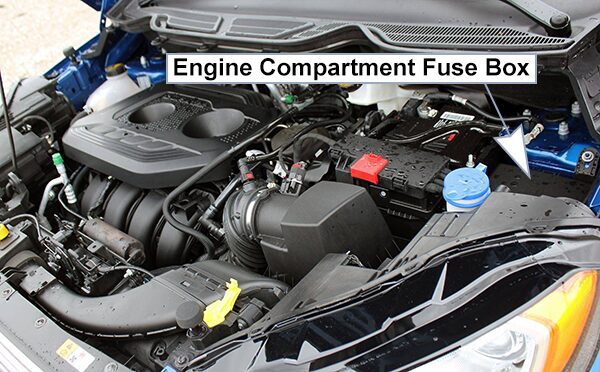

Engine Compartment Fuse Box:
This fuse box is located in the engine compartment.

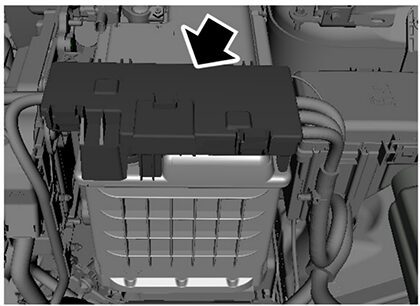

Battery Fuse Box:
This fuse box in attached to the battery positive terminal.
Fuse Box Diagrams
2018

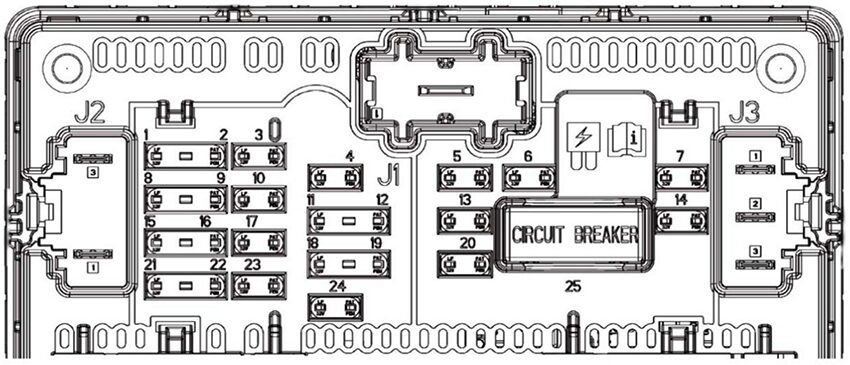

Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2018)
| № | A | Protected components |
|---|---|---|
| F01 | 5A | Not used. |
| F02 | 5A | Humidity and incar temperature sensor. |
| F03 | 10A | Reverse parking aid module. |
| F04 | 10A | Ignition switch. Key in switch & solenoid. Start-Stop switch. |
| F05 | 20A | Central lock relay. Central unlock relay internai. |
| F06 | 10A | Power Windows switches. Power sunroof switch & module inverter. |
| F07 | 30A | Not used. |
| F08 | 5A | Not used. |
| F09 | 5A | Electrochromic inside mirror. Overdrive off switch. Passenger Airbag detection ON / OFF. |
| F10 | 10A | Smart data link connector. |
| F11 | 5A | Telematic control unit (embedded modem). |
| F12 | – | Not used. |
| F13 | 15A | Driver unlock relay. |
| F14 | 30A | Not used. |
| F15 | 15A | Extended power module relay starter. |
| F16 | 15A | Not used. |
| F17 | 15A | SYNC. Mini electronic finish panel. |
| F18 | 7.5A | Not used. |
| F19 | 7.5A | Not used. |
| F20 | 10A | Security Horn. |
| F21 | 7.5A | Climate Control Head. |
| F22 | 7.5A | Steering column control module. Smart data link logic. Instrument cluster. |
| F23 | 20A | Audio control module. |
| F24 | 20A | Extended power mode module. |
| F25 | 30A | Not used. |

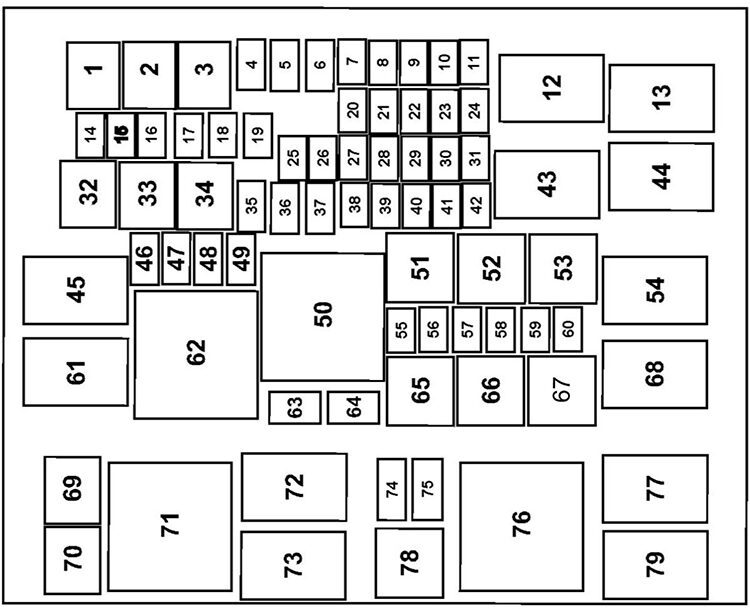

Engine Compartment Fuse Box
List of fuses in the engine compartment fuse box (2018)
| № | A | Protected components |
|---|---|---|
| 1 | 60A | Engine cooling fan relay 2. |
| 2 | 50A | Engine cooling fan relay 1. |
| 3 | 40A | DC/ AC inverter. |
| 4 | 40A | ABS with Eletronic Stability Program (valves). |
| 5 | 30A | Driver power seat. |
| 6 | 40A | Front blower motor. |
| 7 | 10A | Brake on/off Switch. |
| 8 | 20A | Moonroof. |
| 9 | 15A | Rear washer. Wiper. |
| 10 | 7.5A | A/C clutch relay. |
| 11 | 5A | Power point coil. Horn. Fuel pump. |
| 14 | 10A | Heated exterior mirrors. |
| 15 | 5A | Rain sensor. Rear washer. |
| 16 | 10A | Rear window wiper motor. |
| 17 | 20A | Power point 1 (or cigar lighter). |
| 18 | 20A | Power point 2. |
| 19 | – | Not used. |
| 20 | 20A | Powertrain control module. |
| 21 | 15A | Oxygen sensor heater. Catalyst monitor sensor. Canister purge valve. Variable camshaft timing solenoid valves. Vapor blocking valve. |
| 22 | 10A | A/C clutch control. Fan control – on/off. Puller fan coil (1.0 L). Coolant pump control. Run / on water pump. Exhaust gas recirculation baypass solenoid. Variable oil pump control. Variable A/C compressor valve. All-wheel drive relay module (2.0 L). Active grille shutter. |
| 23 | 15A 20A | For ignition coils (2.0 L). For ignition coils (1.0 L). |
| 24 | – | Not used. |
| 25 | 15A | Subwoofer amplifier. |
| 26 | 20A | Provision for trailer tow wiring. |
| 27 | – | Not used. |
| 28 | 10A | Left horn. |
| 29 | 10A | Right horn. |
| 30 | 15A | Heated Steering wheel. |
| 31 | 5A | Temperature mass air flow sensor (2.0L). |
| 32 | 30A | Body control module (battery voltage). |
| 33 | 60A | ABS/eletronic stability program pump. |
| 34 | 50A | Trailer tow module. |
| 35 | 40A | Heated backlite. |
| 36 | 30A | Starter. |
| 37 | 40A | Positive temperature coefficient heater. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | 25A | Heated seats (climate control module). |
| 41 | 15A | Subwoofer amplifier. |
| 42 | 7.5A | Intercooler puller fan (1.0 L). |
| 46 | 30A | Power window switch power switch times. |
| 47 | 20A | Fuel pump. |
| 48 | – | Not used. |
| 49 | 20A | Assisted direct start transmission fluid pump (stop/start) – power. |
| 55 | – | Not used. |
| 56 | 5A | Electrical power assisted system module. Powertrain control module. |
| 57 | 10A | Start / Stop – transmission fluid pump. |
| 58 | 10A | Left hand blind spot monitor module. Right hand blind spot monitor module. Rear video camera. |
| 59 | 5A | ABS module. |
| 50 | 5A | Heated backlite. Heated windshield left (to heated wiper park). |
| 63 | 25A | Front wiper. |
| 64 | 30A | Body control module – run/start bus. |
| 69 | – | Not used. |
| 70 | – | Not used. |
| 74 | 10A | Heated wiper park. |
| 75 | – | Not used. |
| Relay | ||
| 12 | Powertrain control module. | |
| 13 | Starter. | |
| 43 | Auxiliary power point. | |
| 44 | Windshield wiper. | |
| 45 | Front blower motor. | |
| 50 | Run/start. | |
| 51 | Not used. | |
| 52 | Vehicle horn. | |
| 53 | Not used. | |
| 54 | Rear washer. | |
| 61 | Heated backlite / heated mirror. | |
| 62 | Engine cooling fan 2. | |
| 65 | Fuel pump. | |
| 66 | Not used. | |
| 67 | A/C clutch. | |
| 68 | Engine coolingfan 1. | |
| 71 | Not used. | |
| 72 | Not used. | |
| 73 | Heated wiper park. | |
| 76 | Positive temperature coefficient heater. | |
| 77 | Pullerfan (1.0 L Fox). | |
| 78 | Not used. | |
| 79 | Positive temperature coefficient heater. | |
Battery Fuse Box
| № | A | Protected components |
|---|---|---|
| 1 | 250A | Engine compartment fuse box. |
| 2 | 60A | Electric power assist steering. |
| 3 | 100A | Body control module. |
| 4 | 70A | Heating control unit. |
| 5 | 275A | Starter. |
2019
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2019)
| № | A | Protected components |
|---|---|---|
| F01 | 5A | Not used. |
| F02 | 5A | Humidity and incar temperature sensor. |
| F03 | 10A | Reverse parking aid module. |
| F04 | 10A | Ignition switch. Key in switch & solenoid. Start-Stop switch. |
| F05 | 20A | Central lock relay. Central unlock relay internai. |
| F06 | 10A | Power Windows switches. Power sunroof switch & module inverter. |
| F07 | 30A | Not used. |
| F08 | 5A | Not used. |
| F09 | 5A | Electrochromic inside mirror. Overdrive off switch. Passenger Airbag detection ON / OFF. |
| F10 | 10A | Smart data link connector. |
| F11 | 5A | Telematic control unit (embedded modem). |
| F12 | – | Not used. |
| F13 | 15A | Driver unlock relay. |
| F14 | 30A | Not used. |
| F15 | 15A | Extended power module relay starter. |
| F16 | 15A | Not used. |
| F17 | 15A | SYNC. Mini electronic finish panel. |
| F18 | 7.5A | Not used. |
| F19 | 7.5A | Not used. |
| F20 | 10A | Security Horn. |
| F21 | 7.5A | Climate Control Head. |
| F22 | 7.5A | Steering column control module. Smart data link logic. Instrument cluster. |
| F23 | 20A | Audio control module. |
| F24 | 20A | Extended power mode module. |
| F25 | 30A | Not used. |
Engine Compartment Fuse Box
List of fuses in the engine compartment fuse box (2019)
| № | A | Protected components |
|---|---|---|
| 1 | 60A | Engine cooling fan relay 2. |
| 2 | 50A | Engine cooling fan relay 1. |
| 3 | 40A | DC/AC inverter. |
| 4 | 40A | ABS with Eletronic Stability Program (valves). |
| 5 | 30A | Driver power seat. |
| 6 | 40A | Front blower motor. |
| 7 | 10A | Brake on/off Switch. |
| 8 | 20A | Moonroof. |
| 9 | 15A | Rear washer. Wiper. |
| 10 | 7.5A | A/C clutch relay. |
| 11 | 5A | Power point coil. Horn. Fuel pump. |
| 14 | 10A | Heated exterior mirrors. |
| 15 | 5A | Rain sensor. Rear washer. |
| 16 | 10A | Rear window wiper motor. |
| 17 | 20A | Power point 1 (or cigar lighter). |
| 18 | 20A | Power point 2. |
| 19 | – | Not used. |
| 20 | 20A | Powertrain control module. |
| 21 | 15A | Oxygen sensor heater. Catalyst monitor sensor. Canister purge valve. Variable camshaft timing solenoid valves. Vapor blocking valve. |
| 22 | 10A | A/C clutch control. Fan control – on/off. Puller fan coil (1.0 L). Coolant pump control. Run / on water pump. Exhaust gas recirculation baypass solenoid. Variable oil pump control. Variable A/C compressor valve. All-wheel drive relay module (2.0 L). Active grille shutter. |
| 23 | 15A 20A | For ignition coils (2.0 L). For ignition coils (1.0 L). |
| 24 | – | Not used. |
| 25 | 15A | Subwoofer amplifier. |
| 26 | 20A | Provision for trailer tow wiring. |
| 27 | – | Not used. |
| 28 | 10A | Left horn. |
| 29 | 10A | Right horn. |
| 30 | 15A | Heated Steering wheel. |
| 31 | 5A | Temperature mass air flow sensor (2.0L). |
| 32 | 30A | Body control module (battery voltage). |
| 33 | 60A | ABS/eletronic stability program pump. |
| 34 | 50A | Trailer tow module. |
| 35 | 40A | Heated backlite. |
| 36 | 30A | Starter. |
| 37 | 40A | Positive temperature coefficient heater. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | 25A | Heated seats (climate control module). |
| 41 | 15A | Subwoofer amplifier. |
| 42 | 7.5A | Intercooler puller fan (1.0 L). |
| 46 | 30A | Power window switch power switch times. |
| 47 | 20A | Fuel pump. |
| 48 | – | Not used. |
| 49 | 20A | Assisted direct start transmission fluid pump (stop/start) – power. |
| 55 | – | Not used. |
| 56 | 5A | Electrical power assisted system module. Powertrain control module. |
| 57 | 10A | Start / Stop – transmission fluid pump. |
| 58 | 10A | Left hand blind spot monitor module. Right hand blind spot monitor module. Rear video camera. |
| 59 | 5A | ABS module. |
| 60 | 5A | Heated backlite. Heated windshield left (to heated wiper park). |
| 63 | 25A | Front wiper. |
| 64 | 30A | Body control module – run/start bus. |
| 69 | – | Not used. |
| 70 | – | Not used. |
| 74 | 10A | Heated wiper park. |
| 75 | – | Not used. |
| Relay | ||
| 12 | Powertrain control module. | |
| 13 | Starter. | |
| 43 | Auxiliary power point. | |
| 44 | Windshield wiper. | |
| 45 | Front blower motor. | |
| 50 | Run/start. | |
| 51 | Not used. | |
| 52 | Vehicle horn. | |
| 53 | Not used. | |
| 54 | Rear washer. | |
| 51 | Heated backlite / heated mirror. | |
| 62 | Engine coolingfan 2. | |
| 65 | Fuel pump. | |
| 66 | Not used. | |
| 67 | A/C clutch. | |
| 68 | Engine coolingfan 1. | |
| 71 | Not used. | |
| 72 | Not used. | |
| 73 | Heated wiper park. | |
| 76 | Positive temperature coefficient heater. | |
| 77 | Pullerfan (1.0 L Fox). | |
| 78 | Not used. | |
| 79 | Positive temperature coefficient heater. | |
Battery Fuse Box
| № | A | Protected components |
|---|---|---|
| 1 | 250A | Engine compartment fuse box. |
| 2 | 60A | Electric power assist steering. |
| 3 | 100A | Body control module. |
| 4 | 70A | Heating control unit. |
| 5 | 275A | Starter. |
2020
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2020)
| № | A | Protected components |
|---|---|---|
| F01 | 5A | Not used. |
| F02 | 5A | Humidity and incar temperature sensor. |
| F03 | 10A | Reverse parking aid module. |
| F04 | 10A | Ignition switch. Key in switch & solenoid. Start-Stop switch. |
| F05 | 20A | Central lock relay. Central unlock relay internal. |
| F06 | 10A | Power Windows switches. Power sunroof switch & module inverter. |
| F07 | 30A | Not used. |
| F08 | 5A | Not used. |
| F09 | 5A | Brake shift interlock. Electrochromatic inside mirror. |
| F10 | 10A | Smart data link connector. |
| F11 | 5A | Telematic control unit (embedded modem). |
| F12 | – | Not used. |
| F13 | 15A | Driver unlock relay. |
| F14 | 30A | Not used. |
| F15 | 15A | Extended power module relay starter. |
| F16 | 15A | Not used. |
| F17 | 15A | SYNC. Mini electronic finish panel. |
| F18 | 7.5A | Not used. |
| F19 | 7.5A | Not used. |
| F20 | 10A | Not used. |
| F21 | 7.5A | Climate Control Head. |
| F22 | 7.5A | Steering column control module. Smart data link logic. Instrument cluster. |
| F23 | 20A | Audio control module. |
| F24 | 20A | Extended power mode module. |
| F25 | 30A | Not used. |
Engine Compartment Fuse Box
List of fuses in the engine compartment fuse box (2020)
| № | A | Protected components |
|---|---|---|
| 1 | 60A | Engine cooling fan relay 2. |
| 2 | 50A | Engine cooling fan relay 1. |
| 3 | 40A | DC / AC inverter. |
| 4 | 40A | ABS with Eletronic Stability Program (valves). |
| 5 | 30A | Driver power seat. |
| 6 | 40A | Front blower motor. |
| 7 | 10A | Brake on/off Switch. |
| 8 | 20A | Moonroof. |
| 9 | 15A | Rearwasher. Wiper. |
| 10 | 7.5A | A/C clutch relay. |
| 11 | 5A | Power point relay. Horn relay. Fuel pump relay. |
| 14 | 10A | Heated exterior mirrors. |
| 15 | 5A | Rain sensor relay. Rear washer relay. |
| 16 | 10A | Rear window wiper motor. |
| 17 | 20A | Power point 1 (or cigar lighter). |
| 18 | 20A | Power point 2. |
| 19 | – | Not used. |
| 20 | 20A | Powertrain control module. |
| 21 | 15A | Oxygen sensor heater. Catalyst monitor sensor. Canister purge valve. Variable camshaft timing solenoid valves. Vapor blocking valve. |
| 22 | 10A | A/C clutch control. Fan control – on/off. Puller fan coil (1.0 L). Coolant pump control. Run / on water pump. Exhaust gas recirculation baypass solenoid. Variable oil pump control. Variable A/C compressor valve. All-wheel drive relay module (2.0 L). Active grille shutter. |
| 23 | 15A 20A | For ignition coils (2.0 L). For ignition coils (1.0 L). |
| 24 | – | Not used. |
| 25 | 15A | Subwoofer amplifier. |
| 26 | 20A | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Left horn. |
| 29 | 10A | Right horn. |
| 30 | 15A | Heated Steering wheel. |
| 31 | 5A | Temperature mass air flow sensor (2.0L). |
| 32 | 30A | Body control module (battery voltage). |
| 33 | 60A | ABS/eletronic stability program pump. |
| 34 | 50A | Trailer tow module. |
| 35 | 40A | Heated backlite. |
| 35 | 30A | Starter. |
| 37 | 40A | Positive temperature coefficient heater. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | 25A | Heated seats (climate control module). |
| 41 | 15A | Subwoofer amplifier. |
| 42 | 7.5A | Intercooler pullerfan (1.0 L). |
| 46 | 30A | Power window switch power switch times. |
| 47 | 20A | Fuel pump. |
| 48 | – | Not used. |
| 49 | 20A | Assisted direct start transmission fluid pump (stop/start) – power. |
| 55 | – | Not used. |
| 56 | 5A | Electrical power assisted system module. Powertrain control module. |
| 57 | 10A | Start / Stop – transmission fluid pump. |
| 58 | 10A | Left hand blind spot monitor module. Right hand blind spot monitor module. Rear video camera |
| 59 | 5A | ABS module. |
| 60 | 5A | Heated backlite relay. Heated windshield left relay. |
| 63 | 25A | Front wiper. |
| 64 | 30A | Body control module – run/start bus. |
| 69 | – | Not used. |
| 70 | – | Not used. |
| 74 | 10A | Heated wiper park. |
| 75 | – | Not used. |
| Relay | ||
| 12 | Powertrain control module. | |
| 13 | Starter. | |
| 43 | Auxiliary power point. | |
| 44 | Windshield wiper. | |
| 45 | Front blower motor. | |
| 50 | Run/start. | |
| 51 | Not used. | |
| 52 | Vehicle horn. | |
| 53 | Not used. | |
| 54 | Rear washer. | |
| 61 | Heated backlite / heated mirror. | |
| 62 | Engine cooling fan 2. | |
| 65 | Fuel pump. | |
| 66 | Not used. | |
| 67 | A/C clutch. | |
| 68 | Engine cooling fan 1. | |
| 71 | Not used. | |
| 72 | Not used. | |
| 73 | Heated wiper park. | |
| 76 | Positive temperature coefficient heater. | |
| 77 | Puller fan (1.0 L Fox). | |
| 78 | Not used. | |
| 79 | Positive temperature coefficient heater. | |
Battery Fuse Box
| № | A | Protected components |
|---|---|---|
| 1 | 250A | Engine compartment fuse box. |
| 2 | 60A | Electric power assist steering. |
| 3 | 100A | Body control module. |
| 4 | 70A | Heating control unit. |
| 5 | 275A | Starter. |
2021-2022
Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (2021-2022)
| № | A | Protected components |
|---|---|---|
| F01 | 5A | Not used. |
| F02 | 5A | Humidity and incar temperature sensor. |
| F03 | 10A | Reverse parking aid module. |
| F04 | 10A | Ignition switch. Key in switch & solenoid. Start-Stop switch. |
| F05 | 20A | Central lock relay. Central unlock relay internal. |
| F06 | 10A | Power Windows switches. Power sunroof switch & module inverter. |
| F07 | 30A | Not used. |
| F08 | 5A | Not used. |
| F09 | 5A | Brake shift interlock. Electrochromatic inside mirror. |
| F10 | 10A | Smart data link connector. |
| F11 | 5A | Telematic control unit (embedded modem). |
| F12 | – | Not used. |
| F13 | 15A | Driver unlock relay. |
| F14 | 30A | Not used. |
| F15 | 15A | Extended power module relay starter. |
| F16 | 15A | Not used. |
| F17 | 15A | SYNC. Mini electronic finish panel. |
| F18 | 7.5A | Not used. |
| F19 | 7.5A | Not used. |
| F20 | 10A | Not used. |
| F21 | 7.5A | Climate Control Head. |
| F22 | 7.5A | Steering column control module. Smart data link logic. Instrument cluster. |
| F23 | 20A | Audio control module. |
| F24 | 20A | Extended power mode module. |
| F25 | 30A | Not used. |
Engine Compartment Fuse Box
List of fuses in the engine compartment fuse box (2021-2022)
| № | A | Protected components |
|---|---|---|
| 1 | 60A | Engine cooling fan relay 2. |
| 2 | 50A | Engine cooling fan relay 1. |
| 3 | 40A | DC / AC inverter. |
| 4 | 40A | ABS with Eletronic Stability Program (valves). |
| 5 | 30A | Driver power seat. |
| 6 | 40A | Front blower motor. |
| 7 | 10A | Brake on/off Switch. |
| 8 | 20A | Moonroof. |
| 9 | 15A | Rear washer. Wiper. |
| 10 | 7.5A | A/C clutch relay. |
| 11 | 5A | Power point relay. Horn relay. Fuel pump relay. |
| 14 | 10A | Heated exterior mirrors. |
| 15 | 5A | Rain sensor relay. Rear washer relay. |
| 16 | 10A | Rear window wiper motor. |
| 17 | 20A | Power point 1 (or cigar lighter). |
| 18 | 20A | Power point 2. |
| 19 | – | Not used. |
| 20 | 20A | Powertrain control module. |
| 21 | 15A | Oxygen sensor heater. Catalyst monitor sensor. Canister purge valve. Variable camshaft timing solenoid valves. Vapor blocking valve. |
| 22 | 10A | A/C clutch control. Fan control – on/off. Coolant pump control. Run / on water pump. Exhaust gas recirculation baypass solenoid. Variable oil pump control. Variable A/C compressor valve. All-wheel drive relay module (2.0 L). Active grille shutter. |
| 23 | 15A | For ignition coils (2.0 L). |
| 24 | – | Not used. |
| 25 | 15A | Subwoofer amplifier. |
| 26 | 20A | Not used. |
| 27 | – | Not used. |
| 28 | 10A | Left horn. |
| 29 | 10A | Right horn. |
| 30 | 15A | Heated Steering wheel. |
| 31 | 5A | Temperature mass air flow sensor (2.0L). |
| 32 | 30A | Body control module (battery voltage). |
| 33 | 60A | ABS/eletronic stability program pump. |
| 34 | 50A | Trailer tow module. |
| 35 | 40A | Heated backlite. |
| 35 | 30A | Starter. |
| 37 | 40A | Positive temperature coefficient heater. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | 25A | Heated seats (climate control module). |
| 41 | 15A | Subwoofer amplifier. |
| 42 | – | Not used. |
| 46 | 30A | Power window switch power switch times. |
| 47 | 20A | Fuel pump. |
| 48 | – | Not used. |
| 49 | 20A | Assisted direct start transmission fluid pump (stop/start) – power. |
| 55 | – | Not used. |
| 56 | 5A | Electrical power assisted system module. Powertrain control module. |
| 57 | 10A | Start / Stop – transmission fluid pump. |
| 58 | 10A | Left hand blind spot monitor module. Right hand blind spot monitor module. Rear video camera |
| 59 | 5A | ABS module. |
| 60 | 5A | Heated backlite relay. Heated windshield left relay. |
| 63 | 25A | Front wiper. |
| 64 | 30A | Body control module – run/start bus. |
| 69 | – | Not used. |
| 70 | – | Not used. |
| 74 | 10A | Heated wiper park. |
| 75 | – | Not used. |
| Relay | ||
| 12 | Powertrain control module. | |
| 13 | Starter. | |
| 43 | Auxiliary power point. | |
| 44 | Windshield wiper. | |
| 45 | Front blower motor. | |
| 50 | Run/start. | |
| 51 | Not used. | |
| 52 | Vehicle horn. | |
| 53 | Not used. | |
| 54 | Rear washer. | |
| 61 | Heated backlite / heated mirror. | |
| 62 | Engine cooling fan 2. | |
| 65 | Fuel pump. | |
| 66 | Not used. | |
| 67 | A/C clutch. | |
| 68 | Engine cooling fan 1. | |
| 71 | Not used. | |
| 72 | Not used. | |
| 73 | Heated wiper park. | |
| 76 | Positive temperature coefficient heater. | |
| 77 | Not used. | |
| 78 | Not used. | |
| 79 | Positive temperature coefficient heater. | |
Battery Fuse Box
| № | A | Protected components |
|---|---|---|
| 1 | 250A | Engine compartment fuse box. |
| 2 | 60A | Electric power assist steering. |
| 3 | 100A | Body control module. |
| 4 | 70A | Heating control unit. |
| 5 | 275A | Starter. |
Conclusion
The Ford EcoSport (2018-2022) offers a modern, practical design supported by a reliable electrical system. Proper maintenance of the fuse box and relays is vital for dependable performance.
