Find fuse box and relay locations for the Ford E-350 and E-450 (2015-2019) with detailed diagrams. Ensure proper electrical system maintenance and reliability.
The Ford E-350 and E-450 (2015-2019) are part of the versatile E-Series lineup, known for their robust performance and adaptability. These vehicles are typically available as cutaway vans and chassis cabs, designed to serve a variety of commercial purposes such as shuttle buses, ambulances, and delivery vehicles. The spacious design and durable body styles make them ideal for customization, providing flexibility for specific business or utility needs.
The electrical systems in the E-350 and E-450 rely heavily on the fuse box and relays to control critical functions. The main fuse box is located inside the engine compartment, near the battery, and houses the fuses for essential systems like the lights, wipers, and ignition. A secondary fuse panel may also be found inside the cabin for additional components. Relays, positioned in the same areas, manage larger electrical loads such as the fuel pump, cooling fans, and starter motor. Proper inspection and maintenance of these components are essential for ensuring reliable performance.
MUST READ: DYI – How to Check Car Fuses?
(2015-2019) Ford E-350 / E-450 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford E-350 / E-450 (2015-2019) fuse assignment
Ford E-350 / E-450 Year of production: 2015, 2016, 2017, 2018, 2019

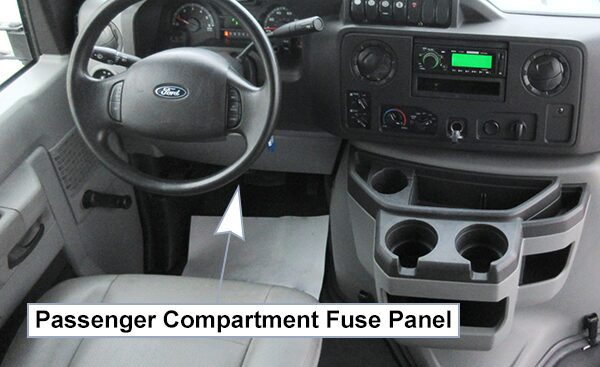

Passenger Compartment Fuse Panel:
The fuse panel is located to the left of the brake pedal and mounted onto the lower left cowl panel. Remove the fuse panel cover to access the fuses.
If your vehicle is equipped with dual batteries, disconnecting the primary under-hood battery does not remove power from all circuits.

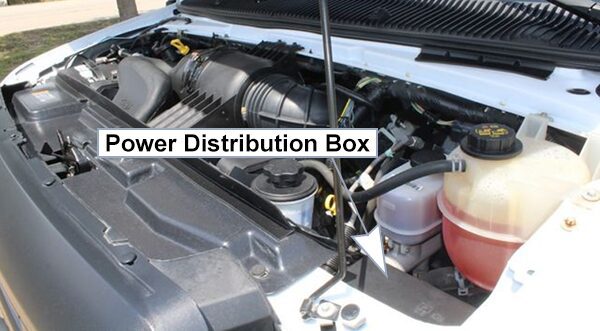

Power Distribution Box:
The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. If the battery has been disconnected and reconnected, you need to reset some features. If your vehicle is equipped with dual batteries, disconnecting the primary under-hood battery does not remove power from all circuits.
Fuse Box Diagrams
2015

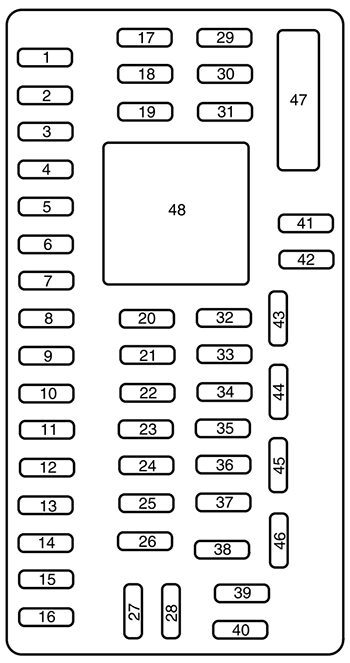

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2015)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Inverter B+ |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Passenger compartment fuse panei, Brake-shift interlock |
| 6 | 20A | Turn signal, Hazard, Stop lamps |
| 7 | 10A | Left low beam |
| 8 | 10A | Right low beam |
| 9 | 15A | Courtesy lamps |
| 10 | 15A | Switch illumination |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Not used (spare) |
| 13 | 5A | Mirrors |
| 14 | 10A | SYNC, Global positioning system module |
| 15 | 10A | Not used (spare) |
| 16 | 15A | Not used (spare) |
| 17 | 20A | Door locks |
| 18 | 20A | Not used (spare) |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Diagnostic cormector (except stripped chassis) |
| 21 | 15A | Not used (spare) |
| 22 | 15A | Park lamps, License plate lamps |
| 23 | 15A | High beams |
| 24 | 20A | Horn (except stripped chassis) |
| 25 | 10A | Demand lighting |
| 26 | 10A | Cluster (except stripped chassis) |
| 27 | 20A | Ignition switch feed |
| 28 | 5A | Audio mute (start) |
| 29 | 5A | Cluster (except stripped chassis) |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Not used (spare) |
| 32 | 10A | Restraints module |
| 33 | 10A | Trailer brake controller |
| 34 | 5A | Not used (spare) |
| 35 | 10A | Cutaway run/start |
| 36 | 5A | Passive anti-theft system radio frequency module |
| 37 | 10A | Climate control, Stripped chassis instrument panei #1 run/start |
| 38 | 20A | Not used (spare) |
| 39 | 20A | Radio |
| 40 | 20A | Not used (spare) |
| 41 | 15A | Radio, Switch illumination, Automatic dimming rear view mirror, Inverter |
| 42 | 10A | Auxiliary switch |
| 43 | 10A | Stripped chassis instrument panei connector #1 |
| 44 | 10A | Trailer tow battery charge relay |
| 45 | 5A | Wipers, Stripped chassis Engine connector 3 |
| 46 | 7.5A | Passenger airbag deactivation indicator |
| 47 | 30A Circuit breaker | Windows accessory delay |
| 48 | Relay | Delayed accessory |

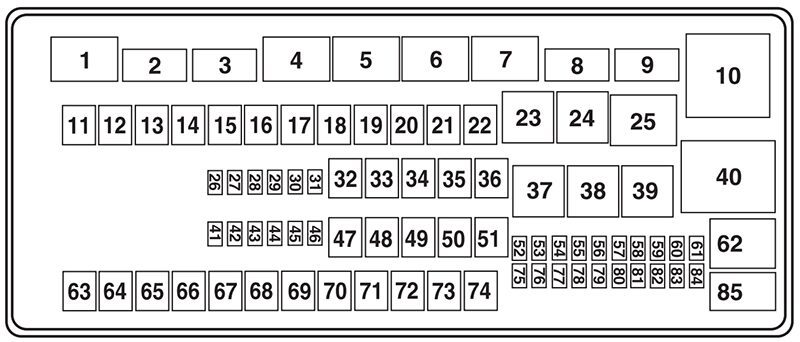

Power Distribution Box
List of fuses in the power distribution box (2015)
| № | A | Protected components |
|---|---|---|
| 1 | HC micro relay | Powertrain control module |
| 2 | HC micro relay | Starter solenoid |
| 3 | HC micro relay | Wiper |
| 4 | HC micro relay | Trailer tow battery charge |
| 5 | HC micro relay | Fuel pump |
| 6 | HC micro relay | Trailer tow park lamp |
| 7 | HC micro relay | Auxiliary switch #4 |
| 8 | HC micro relay | Auxiliary switch #3 |
| 9 | HC micro relay | Modified vehicle and stripped chassis run/start |
| 10 | – | Not used |
| 11 | – | Not used |
| 12 | 40A** | Modified vehicle and stripped chassis run/start |
| 13 | 30A** | Starter solenoid relay |
| 14 | 40A** | Run start relay |
| 15 | 40A** | Modified vehicle and stripped chassis battery |
| 16 | 50A** | Auxiliary air conditioning blower |
| 17 | 50A** | Trailer tow battery charge, Trailer tow park feed |
| 18 | 30A** | Electric trailer brake, Trailer brake controller |
| 19 | 30A** | Auxiliary switch #1 |
| 20 | 30A** | Auxiliary switch #2 |
| 21 | – | Not used |
| 22 | – | Not used |
| 23 | G8VA relay | Air conditioning clutch |
| 24 | G8VA relay | Horn relay (stripped chassis) |
| 25 | HC micro relay | Run/start |
| 26 | – | Not used |
| 27 | – | Not used |
| 28 | 20A* | Back-up lamp |
| 29 | 10A* | Air conditioning clutch |
| 30 | 10A* | Brake on/off switch |
| 31 | 10A* | Cluster battery (stripped chassis) |
| 32 | 50A** | Blower motor |
| 33 | 40A** | Anti-lock brake system pump |
| 34 | 20A** | Stripped chassis horn |
| 35 | 40A** | Powertrain control module relay |
| 36 | 20A** | Ignition switch (stripped chassis) |
| 37 | G8VA relay | Trailer tow stop – left turn signal |
| 38 | G8VA relay | Trailer tow stop – right turn signal |
| 39 | G8VA relay | Back up lamp |
| 40 | ISO relay | Blower motor |
| 41 | – | Not used |
| 42 | 15A* | Diagnostic connector (stripped chassis) |
| 43 | 20A* | Fuel pump |
| 44 | 10A* | Auxiliary switch #3 |
| 45 | 15A* | Auxiliary switch #4 |
| 46 | 10A* | Powertrain control module keep alive power, Canister vent, Powertrain control module relay coil |
| 47 | 40A** | Anti-lock brake system coil |
| 48 | 20A** | Trailer tow stop lamp/turn signal |
| 49 | 30A** | Wiper motor |
| 50 | – | Not used |
| 51 | 20A** | Cutaway |
| 52 | 10A* | Stripped chassis and modified vehicle run/start relay coil |
| 53 | 10A* | Anti-lock brake system run/start feed |
| 54 | 10A* | Fuel pump relay coil |
| 55 | – | Not used |
| 56 | – | Not used |
| 57 | 20A* | Trailer tow park lamp |
| 58 | 15A* | Trailer tow backup lamp |
| 59 | – | Not used |
| 60 | – | One-touch integrated start (diode) |
| 61 | – | Not used |
| 62 | HC micro relay | Auxiliary switch #2 |
| 63 | 30A** | Trailer tow battery charge |
| 64 | – | Not used |
| 65 | 20A** | Power point 2 (glove box) |
| 66 | 20A** | Power point 3 (cutaway B+) |
| 67 | 20A** | Power point 1 (instrument panei) |
| 68 | 50A** | Modified vehicle |
| 69 | – | Not used |
| 70 | 30A** | Stripped chassis |
| 71 | – | Not used |
| 72 | 20A** | Cigar lighter / Power point |
| 73 | – | Not used |
| 74 | 30A** | Power seat |
| 75 | 20A* | Vehicle power 1, Powertrain control module power |
| 76 | 20A* | Vehicle power 2, Powertrain control module – emission related powertrain components |
| 77 | 10A* | Vehicle power 3, Powertrain control module – general powertrain components |
| 78 | 15A* | Vehicle power 4, Fuel pump relay coil |
| 79 | 10A* | Vehicle power 5, Transmission |
| 80 | 10A* | Cluster run/start (stripped chassis) |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | – | Fuel pump (diode) |
| 84 | – | Not used |
| 85 | HC micro relay | Auxiliary switch #1 |
| * Mini fuses ** A1S fuses | ||
2016

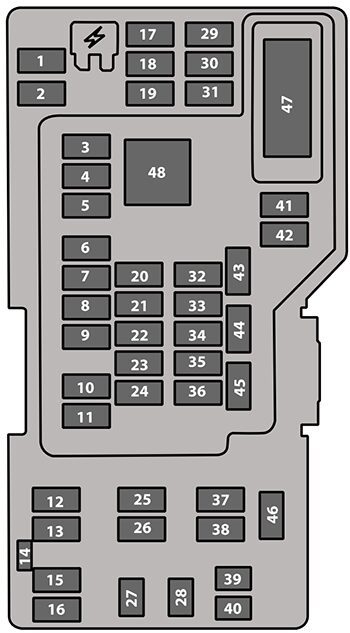

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2016)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Inverter B+. |
| 2 | 15A | Not used (spare). |
| 3 | 15A | Not used (spare). |
| 4 | 30A | Not used (spare). |
| 5 | 10A | Passenger compartment fuse panel. Brake-shift interlock. |
| 6 | 20A | Direction indicators lamps. Hazard lamps. Stop lamps. |
| 7 | 10A | Left-side headlamp low beam. |
| 8 | 10A | Right-side headlamp low beam. |
| 9 | 15A | Courtesy lamps. |
| 10 | 15A | Switch illumination. |
| 11 | 10A | Not used (spare). |
| 12 | 7.5A | Not used (spare). |
| 13 | 5A | Mirrors. |
| 14 | 10A | SYNC. Global positioning system module. |
| 15 | 10A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 20A | Door locks. |
| 18 | 20A | Not used (spare). |
| 19 | 25A | Not used (spare). |
| 20 | 15A | Diagnostic connector (except stripped chassis). |
| 21 | 15A | Not used (spare). |
| 22 | 15A | Parking lamps. License plate lamps. |
| 23 | 15A | Headlamp high beams. |
| 24 | 20A | Horn (except stripped chassis). |
| 25 | 10A | Demand lighting. |
| 26 | 10A | Cluster (except stripped chassis). |
| 27 | 20A | Ignition switch feed. |
| 28 | 5A | Audio mute (start). |
| 29 | 5A | Cluster (except stripped chassis). |
| 30 | 5A | Not used (spare). |
| 31 | 10A | Not used (spare). |
| 32 | 10A | Restraints module. |
| 33 | 10A | Trailer brake controller. |
| 34 | 5A | Not used (spare). |
| 35 | 10A | Cutaway run/start. |
| 36 | 5A | Passive anti-theft system radio frequency module. |
| 37 | 10A | Climate control. Stripped chassis #1 run/start. |
| 38 | 20A | Not used (spare). |
| 39 | 20A | Radio. |
| 40 | 20A | Not used (spare). |
| 41 | 15A | Radio. Switch illumination. Automatic dimming rear view mirror. Power inverter. |
| 42 | 10A | Auxiliary switch. |
| 43 | 10A | Stripped chassis instrument panel connector #1. |
| 44 | 10A | Trai ler tow battery charge relay. |
| 45 | 5A | Wipers. Stripped chassis engine connector 3. |
| 46 | 7.5A | Passenger airbag deactivation indicator. |
| 47 | 30A | Windows accessory delay Circuit breaker. |
| 48 | – | Delayed accessory relay. |
Power Distribution Box
List of fuses in the power distribution box (2016)
| № | A | Protected components |
|---|---|---|
| 1 | – | Powertrain control module relay. |
| 2 | – | Starter solenoid relay. |
| 3 | – | Wiper relay. |
| 4 | – | Trailer tow battery charge. |
| 5 | – | Fuel pump relay. |
| 6 | – | Trailer tow park lamp relay. |
| 7 | – | Auxiliary switch #4 relay. |
| 8 | – | Auxiliary switch #3 relay. |
| 9 | – | Modified vehicle and stripped chassis run/ start relay. |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 40A** | Modified vehicle and stripped chassis run/ start. |
| 13 | 30A** | Starter solenoid relay. |
| 14 | 40A** | Run/start relay. |
| 15 | 40A** | Modified vehicle and stripped chassis battery. |
| 16 | 50A** | Auxiliary air conditioning blower. |
| 17 | 50A** | Trai ler tow battery charge. Trailer tow park feed. |
| 18 | 30A** | Electric trailer brake. Trailer brake controller. |
| 19 | 30A** | Auxiliary switch #1. |
| 20 | 30A** | Auxiliary switch #2. |
| 21 | – | Not used. |
| 22 | – | Not used. |
| 23 | – | Air conditioning clutch relay. |
| 24 | – | Horn relay (stripped chassis). |
| 25 | – | Run/start relay. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 20A* | Back-up lamp. |
| 29 | 10A* | Air conditioning clutch. |
| 30 | 10A* | Brake on/off switch. |
| 31 | 10A* | Cluster battery (stripped chassis). |
| 32 | 50A** | Blower motor. |
| 33 | 40A** | Anti-lock brake system pump. |
| 34 | 20A** | Stripped chassis horn. |
| 35 | 40A** | Powertrain control module relay. |
| 35 | 20A** | Ignition switch (stripped chassis). |
| 37 | – | Trailer tow left-hand side stop lamp and direction indicator lamp relay. |
| 38 | – | Trailer tow right-hand side stop lamp and direction indicator lamp relay. |
| 39 | – | Back-up lamp relay. |
| 40 | – | Blower motor relay. |
| 41 | – | Not used. |
| 42 | 15A* | Diagnostic connector (stripped chassis). |
| 43 | 20A* | Fuel pump. |
| 44 | 10A* | Auxiliary switch #3. |
| 45 | 15A* | Auxiliary switch #4. |
| 45 | 10A* | Powertrain control module keep alive memory power. Canister vent control valve. Powertrain control module relay coil. |
| 47 | 40A** | Anti-lock brake system relay coil. |
| 48 | 20A** | Trailer tow stop lamp and direction indicator lamps. |
| 49 | 30A** | Wiper motor. |
| 50 | – | Not used. |
| 51 | 20A** | Cutaway. |
| 52 | 10A* | Modified vehicle and stripped chassis run/ start relay coil. |
| 53 | 10A* | Anti-lock brake system run/start feed. |
| 54 | 10A* | Fuel pump relay coil. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 20A* | Trailer tow park lamp. |
| 58 | 15A* | Trailer tow back-up lamp. |
| 59 | – | Not used. |
| 60 | – | One-touch integrated start diode. |
| 61 | – | Not used. |
| 62 | – | Auxiliary switch #2 relay. |
| 63 | 30A** | Trailer tow battery charge. |
| 64 | – | Not used. |
| 65 | 20A** | Power point 2 (glove box). |
| 66 | 20A** | Power point 3 (cutaway B+). |
| 67 | 20A** | Power point 1 (instrument panei). |
| 68 | 50A** | Modified vehicle. |
| 69 | – | Not used. |
| 70 | 30A** | Stripped chassis. |
| 71 | – | Not used. |
| 72 | 20A** | Cigarette lighter/power point. |
| 73 | – | Not used. |
| 74 | 30A** | Power seat. |
| 75 | 20A* | Vehicle power 1. Powertrain control module power. |
| 76 | 20A* | Vehicle power 2. Powertrain control module emissions related components. |
| 77 | 10A* | Vehicle power 3. Powertrain control module general components. |
| 78 | 15A* | Vehicle power 4. Engine ignition coil relay coil. |
| 79 | 10A* | Vehicle power 5. Transmission. |
| 80 | 10A* | Cluster run/start (stripped chassis). |
| 81 | – | Not used. |
| 82 | – | Not used. |
| 83 | – | Fuel pump diode. |
| 84 | – | Not used. |
| 85 | – | Auxiliary switch #1 relay. |
| *Mini fuses. **A1S fuses | ||
2017
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2017)
| № | A | Protected components |
|---|---|---|
| 1 | 30A | Inverter B+. |
| 2 | 15A | Not used (spare). |
| 3 | 15A | Not used (spare). |
| 4 | 30A | Not used (spare). |
| 5 | 10A | Passenger compartment fuse panel. Brake-shift interlock. |
| 6 | 20A | Direction indicators lamps. Hazard lamps. Stop lamps. |
| 7 | 10A | Left-side headlamp low beam. |
| 8 | 10A | Right-side headlamp low beam. |
| 9 | 15A | Courtesy lamps. |
| 10 | 15A | Switch illumination. |
| 11 | 10A | Not used (spare). |
| 12 | 7.5 A | Not used (spare). |
| 13 | 5A | Mirrors. |
| 14 | 10A | SYNC. Global positioning system module. |
| 15 | 10A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 20A | Door locks. |
| 18 | 20A | Not used (spare). |
| 19 | 25A | Not used (spare). |
| 20 | 15A | Diagnostic connector (except stripped chassis). |
| 21 | 15A | Not used (spare). |
| 22 | 15A | Parking lamps. License plate lamps. |
| 23 | 15A | Headlamp high beams. |
| 24 | 20A | Horn (except stripped chassis). |
| 25 | 10A | Demand lighting. |
| 26 | 10A | Cluster (except stripped chassis). |
| 27 | 20A | Ignition switch feed. |
| 28 | 5A | Audio mute (start). |
| 29 | 5A | Cluster (except stripped chassis). |
| 30 | 5A | Not used (spare). |
| 31 | 10A | Not used (spare). |
| 32 | 10A | Restraints module. |
| 33 | 10A | Trailer brake controller. |
| 34 | 5A | Not used (spare). |
| 35 | 10A | Cutaway run/start. |
| 35 | 5A | Passive anti-theft system radio frequency module. |
| 37 | 10A | Climate control. Stripped chassis #1 run/start. |
| 38 | 20A | Not used (spare). |
| 39 | 20A | Radio. |
| 40 | 20A | Not used (spare). |
| 41 | 15A | Radio. Switch illumination. Automatic dimming rear view mirror. Power inverter. |
| 42 | 10A | Auxiliary switch. |
| 43 | 10A | Stripped chassis instrument panel connector #1. |
| 44 | 10A | Trailer tow battery charge relay. |
| 45 | 5A | Wipers. Stripped chassis engine connector 3. |
| 46 | 7.5 A | Passenger airbag deactivation indicator. |
| 47 | 30A | Windows accessory delay Circuit breaker. |
| 48 | – | Delayed accessory relay. |
Power Distribution Box
List of fuses in the power distribution box (2017)
| № | A | Protected components |
|---|---|---|
| 1 | – | Powertrain control module relay. |
| 2 | – | Starter solenoid relay. |
| 3 | – | Wiper relay. |
| 4 | – | Trailer tow battery charge. |
| 5 | – | Fuel pump relay. |
| 6 | – | Trailer tow park lamp relay. |
| 7 | – | Auxiliary switch #4 relay. |
| 8 | – | Auxiliary switch #3 relay. |
| 9 | – | Modified vehicle and stripped chassis run/ start relay. |
| 10 | – | Cooling fan relay (6.2L engine). |
| 11 | 50A*** | Cooling fan (6.2L engine). |
| 12 | 40A** | Modified vehicle and stripped chassis run/ start. |
| 13 | 30A** | Starter solenoid relay. |
| 14 | 40A** | Run/start relay. |
| 15 | 40A** | Modified vehicle and stripped chassis battery. |
| 16 | 50A** | Auxiliary air conditioning blower. |
| 17 | 50A** | Trai ler tow battery charge. Trailer tow park feed. |
| 18 | 30A** | Electric trailer brake. Trailer brake controller. |
| 19 | 30A** | Auxiliary switch #1. |
| 20 | 30A** | Auxiliary switch #2. |
| 21 | – | Not used. |
| 22 | – | Not used. |
| 23 | – | Air conditioning clutch relay. |
| 24 | – | Horn relay (stripped chassis). |
| 25 | – | Run/start relay. |
| 26 | 10* | Alternator battery sense (6.2L engine). |
| 27 | – | Not used. |
| 28 | 20A* | Back-up lamp. |
| 29 | 10A* | Air conditioning clutch. |
| 30 | 10A* | Brake on/off switch. |
| 31 | 10A* | Cluster battery (stripped chassis). |
| 32 | 50A** | Blower motor. |
| 33 | 40A** | Anti-lock brake system pump. |
| 34 | 20A** | Stripped chassis horn. |
| 35 | 40A** | Powertrain control module relay. |
| 35 | 20A** | Ignition switch (stripped chassis). |
| 37 | – | Trailer tow left-hand side stop lamp and direction indicator lamp relay. |
| 38 | – | Trailer tow right-hand side stop lamp and direction indicator lamp relay. |
| 39 | – | Back-up lamp relay. |
| 40 | – | Blower motor relay. |
| 41 | – | Not used. |
| 42 | 15A* | Diagnostic connector (stripped chassis). |
| 43 | 20A* | Fuel pump. |
| 44 | 10A* | Auxiliary switch #3. |
| 45 | 15A* | Auxiliary switch #4. |
| 45 | 10A* | Powertrain control module keep alive memory power. Canister vent control valve. Powertrain control module relay coil. |
| 47 | 40A** | Anti-lock brake system relay coil. |
| 48 | 20A** | Trailer tow stop lamp and direction indicator lamps. |
| 49 | 30A** | Wiper motor. |
| 50 | – | Not used. |
| 51 | 20A** | Cutaway. |
| 52 | 10A* | Modified vehicle and stripped chassis run/ start relay coil. |
| 53 | 10A* | Anti-lock brake system run/start feed. |
| 54 | 10A* | Fuel pump relay coil. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 20A* | Trailer tow park lamp. |
| 58 | 15A* | Trailer tow back-up lamp. |
| 59 | – | Not used. |
| 60 | – | One-touch integrated start diode. |
| 61 | – | Not used. |
| 62 | – | Auxiliary switch #2 relay. |
| 63 | 30A** | Trailer tow battery charge. |
| 64 | – | Not used. |
| 65 | 20A** | Power point 2 (glove box). |
| 66 | 20A** | Power point 3 (cutaway B+). |
| 67 | 20A** | Power point 1 (instrument panel). |
| 68 | 50A** | Modified vehicle. |
| 69 | – | Not used. |
| 70 | 30A** | Stripped chassis. |
| 71 | – | Not used. |
| 72 | 20A** | Cigarette lighter/power point. |
| 73 | – | Not used. |
| 74 | 30A** | Power seat. |
| 75 | 20A* | Vehicle power 1. Powertrain control module power. |
| 76 | 20A* | Vehicle power 2. Powertrain control module emissions related components. |
| 77 | 10A* | Vehicle power 3. Powertrain control module general components. |
| 78 | 15A* | Vehicle power 4. Engine ignition coil relay coil. |
| 79 | 10A* | Vehicle power 5. Transmission. |
| 80 | 10A* | Cluster run/start (stripped chassis). |
| 81 | – | Not used. |
| 82 | – | Not used. |
| 83 | – | Fuel pump diode. |
| 84 | – | Not used. |
| 85 | – | Auxiliary switch #1 relay. |
| *Mini fuses. **A1S fuses. ***Cartridge fuses. | ||
2018
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2018)
| № | A | Protected Components |
|---|---|---|
| 1 | 30A | Inverter B+. |
| 2 | 15A | Not used (spare). |
| 3 | 15A | Not used (spare). |
| 4 | 30A | Not used (spare). |
| 5 | 10A | Passenger compartment fuse panel. Brake-shift interlock. |
| 6 | 20A | Direction indicators lamps. Hazard lamps. Stop lamps. |
| 7 | 10A | Left-side headlamp low beam. |
| 8 | 10A | Right-side headlamp low beam. |
| 9 | 15A | Courtesy lamps. |
| 10 | 15A | Switch illumination. |
| 11 | 10A | Not used (spare). |
| 12 | 7.5A | Not used (spare). |
| 13 | 5A | Mirrors. |
| 14 | 10A | SYNC Global positioning system module. |
| 15 | 10A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 20A | Door locks. |
| 18 | 20A | Not used (spare). |
| 19 | 25A | Not used (spare). |
| 20 | 15A | Diagnostic connector (except stripped chassis). |
| 21 | 15A | Not used (spare). |
| 22 | 15A | Parking lamps. License plate lamps. |
| 23 | 15A | Headlamp high beams. |
| 24 | 20A | Horn (except stripped chassis). |
| 25 | 10A | Demand lighting. |
| 25 | 10A | Cluster (except stripped chassis). |
| 27 | 20A | Ignition switch feed. |
| 28 | 5A | Audio mute (start). |
| 29 | 5A | Cluster (except stripped chassis). |
| 30 | 5A | Not used (spare). |
| 31 | 10A | Not used (spare). |
| 32 | 10A | Restraints module. |
| 33 | 10A | Trailer brake controller. |
| 34 | 5A | Not used (spare). |
| 35 | 10A | Cutaway run/start. |
| 36 | 5A | Passive anti-theft system radio frequency module. |
| 37 | 10A | Climate control. Stripped chassis #1 run/start. |
| 38 | 20A | Not used (spare). |
| 39 | 20A | Radio. |
| 40 | 20A | Not used (spare). |
| 41 | 15A | Radio. Switch illumination. Automatic dimming rear view mirror. Power inverter. |
| 42 | 10A | Auxiliary switch. |
| 43 | 10A | Stripped chassis instrument panei connector #1. |
| 44 | 10A | Trailer tow battery charge relay. |
| 45 | 5A | Wipers. Stripped chassis engine connector 3. |
| 46 | 7.5A | Passenger airbag deactivation indicator. |
| 47 | 30A | Windows accessory delay Circuit breaker. |
| 48 | – | Delayed accessory relay. |
Power Distribution Box
List of fuses in the power distribution box (2018)
| № | A | Protected Components |
|---|---|---|
| 1 | – | Powertrain control module relay. |
| 2 | – | Starter solenoid relay. |
| 3 | – | Wiper relay. |
| 4 | – | Trailer tow battery charge relay. |
| 5 | – | Fuel pump relay. |
| 6 | – | Trailer tow park lamp relay. |
| 7 | – | Auxiliary switch #4 relay. |
| 8 | – | Auxiliary switch #3 relay. |
| 9 | – | Modified vehicle and stripped chassis run/ start relay. |
| 10 | – | Cooling fan relay (6.2L engine). |
| 11 | 50a1 | Cooling fan (6.2L engine). |
| 12 | 40A2 | Modified vehicle and stripped chassis run/ start. |
| 13 | 30A2 | Starter solenoid relay. |
| 14 | 40A2 | Run/start relay. |
| 15 | 40A2 | Modified vehicle and stripped chassis battery. |
| 16 | 50A2 | Auxiliary air conditioning blower. |
| 17 | 50A2 | Trai ler tow battery charge. Trailer tow park feed. |
| 18 | 30A2 | Electric trailer brake. Trailer brake controller. |
| 19 | 30A2 | Auxiliary switch #1. |
| 20 | 30A2 | Auxiliary switch #2. |
| 21 | 20A2 | Fuel pump (6.2L). |
| 22 | – | Not used. |
| 23 | – | Air conditioning clutch relay. |
| 24 | – | Horn relay (stripped chassis). |
| 25 | – | Run/start relay. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 20A3 | Back-up lamp. |
| 29 | 10A3 | Air conditioning clutch. |
| 30 | 10A3 | Brake on/off switch. |
| 31 | 10A3 | Cluster battery (stripped chassis). |
| 32 | 50A2 | Blower motor. |
| 33 | 40A2 | Anti-lock brake system pump. |
| 34 | 20A2 | Stripped chassis horn. |
| 35 | 40A2 | Powertrain control module relay. |
| 35 | 20A2 | Ignition switch (stripped chassis). |
| 37 | – | Trailer tow left-hand side stop lamp and direction indicator lamp relay. |
| 38 | – | Trailer tow right-hand side stop lamp and direction indicator lamp relay. |
| 39 | – | Back-up lamp relay. |
| 40 | – | Blower motor relay. |
| 41 | – | Not used. |
| 42 | 15A3 | Diagnostic connector (stripped chassis). |
| 43 | 20A3 | Fuel pump (6.8L). |
| 44 | 10A3 | Auxiliary switch #3. |
| 45 | 15A3 | Auxiliary switch #4. |
| 45 | 10A3 | Powertrain control module keep alive memory power. Canister vent control valve. Powertrain control module relay coil. |
| 47 | 40A2 | Anti-lock brake system relay coil. |
| 48 | 20A2 | Trailer tow stop lamp and direction indicator lamps. |
| 49 | 30A2 | Wiper motor. |
| 50 | – | Not used. |
| 51 | 20A2 | Cutaway. |
| 52 | 10A3 | Modified vehicle and stripped chassis run/start relay coil. |
| 53 | 10A3 | Anti-lock brake system run/start feed. |
| 54 | 10A3 | Fuel pump relay coil. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 20A3 | Trailer tow park lamp. |
| 58 | 15A3 | Trailer tow back-up lamp. |
| 59 | – | Not used. |
| 60 | – | Not used. |
| 61 | – | Not used. |
| 62 | – | Auxiliary switch #2 relay. |
| 63 | 30A2 | Trailer tow battery charge. |
| 64 | – | Not used. |
| 65 | 20A2 | Power point 2 (glove box). |
| 66 | 20A2 | Power point 3 (cutaway B+). |
| 67 | 20A2 | Power point 1 (instrument panei). |
| 68 | 50A2 | Modified vehicle. |
| 69 | – | Not used. |
| 70 | 30A2 | Stripped chassis. |
| 71 | – | Not used. |
| 72 | 20A2 | Cigarette lighter/power point. |
| 73 | – | Not used. |
| 74 | 30A2 | Power seat. |
| 75 | 20A3 | Vehicle power 1. Powertrain control module power. |
| 76 | 20A3 | Vehicle power 2. Powertrain control module emissions related components. |
| 77 | 10A3 | Vehicle power 3. Powertrain control module general components. |
| 78 | 15A3 | Vehicle power 4. Engine ignition coil relay coil. |
| 79 | 10A3 | Vehicle power 5. Transmission. |
| 80 | 10A3 | Cluster run/start (stripped chassis). |
| 81 | – | Not used. |
| 82 | – | Not used. |
| 83 | – | Fuel pump diode. |
| 84 | – | Not used. |
| 85 | – | Auxiliary switch #1 relay. |
| 1 Cartridge fuse 2 A1S fuse 3 Mini fuse | ||
2019
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2019)
| № | A | Protected Component |
|---|---|---|
| 1 | 30A | Inverter B+. |
| 2 | 15A | Not used (spare). |
| 3 | 15A | Not used (spare). |
| 4 | 30A | Not used (spare). |
| 5 | 10A | Passenger compartment fuse panel. Brake-shift interlock. |
| 6 | 20A | Direction indicators lamps. Hazard lamps. Stop lamps. |
| 7 | 10A | Left-side headlamp low beam. |
| 8 | 10A | Right-side headlamp low beam. |
| 9 | 15A | Courtesy lamps. |
| 10 | 15A | Switch illumination. |
| 11 | 10A | Not used (spare). |
| 12 | 7.5A | Not used (spare). |
| 13 | 5A | Mirrors. |
| 14 | 10A | SYNC Global positioning system module. |
| 15 | 10A | Not used (spare). |
| 15 | 15A | Not used (spare). |
| 17 | 20A | Door locks. |
| 18 | 20A | Not used (spare). |
| 19 | 25A | Not used (spare). |
| 20 | 15A | Diagnostic connector, fleet telematics modem, and FordPass Connect (except stripped chassis). |
| 21 | 15A | Not used (spare). |
| 22 | 15A | Parking lamps. License plate lamps. |
| 23 | 15A | Headlamp high beams. |
| 24 | 20A | Horn (except stripped chassis). |
| 25 | 10A | Demand lighting. |
| 26 | 10A | Cluster (except stripped chassis). |
| 27 | 20A | Ignition switch feed. |
| 28 | 5A | Audio mute (start). |
| 29 | 5A | Cluster (except stripped chassis). |
| 30 | 5A | Not used (spare). |
| 31 | 10A | Not used (spare). |
| 32 | 10A | Restraints module. |
| 33 | 10A | Trailer brake controller. |
| 34 | 5A | Not used (spare). |
| 35 | 10A | Cutaway run/start. |
| 36 | 5A | Passive anti-theft system radio frequency module. |
| 37 | 10A | Climate control. Stripped chassis #1 run/start. |
| 38 | 20A | Not used (spare). |
| 39 | 20A | Radio. |
| 40 | 20A | Not used (spare). |
| 41 | 15A | Radio. Switch illumination. Automatic dimming rear view mirror. Power inverter. |
| 42 | 10A | Auxiliary switch. |
| 43 | 10A | Stripped chassis instrument panel connector #1. |
| 44 | 10A | Trailer tow battery charge relay. |
| 45 | 5A | Wipers. Stripped chassis engine connector 3. |
| 46 | 7.5A | Passenger airbag deactivation indicator. |
| 47 | 30A | Windows accessory delay Circuit breaker. |
| 48 | – | Delayed accessory relay. |
Power Distribution Box
List of fuses in the power distribution box (2019)
| № | A | Protected Component |
|---|---|---|
| 1 | – | Powertrain control module relay. |
| 2 | – | Starter solenoid relay. |
| 3 | – | Wiper relay. |
| 4 | – | Trailer tow battery charge relay. |
| 5 | – | Fuel pump relay. |
| 6 | – | Trai ler tow park lamp relay. |
| 7 | – | Auxiliary switch #4 relay. |
| 8 | – | Auxiliary switch #3 relay. |
| 9 | – | Modified vehicle and stripped chassis run/start relay. |
| 10 | – | Cooling fan relay (6.2L engine). |
| 11 | 50A1 | Cooling fan (6.2L engine). |
| 12 | 40A2 | Modified vehicle and stripped chassis run/start. |
| 13 | 30A2 | Starter solenoid relay. |
| 14 | 40A2 | Run start relay. |
| 15 | 40A2 | Modified vehicle and stripped chassis battery. |
| 16 | 50A2 | Auxiliary air conditioning blower. |
| 17 | 50A2 | Trai ler tow battery charge. Trailer tow park feed. |
| 18 | 30A2 | Electric trailer brake. Trailer brake controller. |
| 19 | 30A2 | Auxiliary switch #1. |
| 20 | 30A2 | Auxiliary switch #2. |
| 21 | 20A2 | Fuel pump (6.2L). |
| 22 | – | Not used. |
| 23 | – | Air conditioning clutch relay. |
| 24 | – | Horn relay (stripped chassis). |
| 25 | – | Run start relay. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 20A3 | Back-up lamp. |
| 29 | 10A3 | Air conditioning clutch. |
| 30 | 10A3 | Brake on/off switch. |
| 31 | 10A3 | Cluster battery (stripped chassis). |
| 32 | 50A2 | Blower motor. |
| 33 | 40A2 | Anti-lock brake system pump. |
| 34 | 20A2 | Stripped chassis horn. |
| 35 | 40A2 | Powertrain control module relay. |
| 35 | 20A2 | Ignition switch (stripped chassis). |
| 37 | – | Trailer tow left-hand side stop lamp and direction indicator lamp relay. |
| 38 | – | Trailer tow right-hand side stop lamp and direction indicator lamp relay. |
| 39 | – | Back-up lamp relay. |
| 40 | – | Blower motor relay. |
| 41 | – | Not used. |
| 42 | 15A3 | Diagnostic connector, fleet telematics modem, and FordPass Connect (stripped chassis). |
| 43 | 20A3 | Fuel pump (6.8L). |
| 44 | 10 A3 | Auxiliary switch #3. |
| 45 | 15A3 | Auxiliary switch #4. |
| 46 | 10A3 | Powertrain control module keep alive memory power. |
| Canister vent control valve. Powertrain control module relay coil. | ||
| 47 | 40A2 | Anti-lock brake system relay coil. |
| 48 | 20A2 | Trailer tow stop lamp and direction indicator lamps. |
| 49 | 30A2 | Wiper motor. |
| 50 | – | Not used. |
| 51 | 20A2 | Cutaway. |
| 52 | 10A3 | Modified vehicle and stripped chassis run/start relay coil. |
| 53 | 10A3 | Anti-lock brake system run/start feed. |
| 54 | 10A3 | Fuel pump relay coil. |
| 55 | – | Not used. |
| 56 | – | Not used. |
| 57 | 20A3 | Trailer tow park lamp. |
| 58 | 15A3 | Trailer tow back-up lamp. |
| 59 | – | Not used. |
| 60 | – | Not used. |
| 61 | – | Not used. |
| 62 | – | Auxiliary switch #2 relay. |
| 63 | 30A2 | Trailer tow battery charge. |
| 64 | – | Not used. |
| 65 | 20A2 | Power point 2 (glove box). |
| 66 | 20A2 | Power point 3 (cutaway B+). |
| 67 | 20A2 | Power point 1 (instrument panel). |
| 68 | 50A2 | Modified vehicle. |
| 69 | – | Not used. |
| 70 | 30A2 | Stripped chassis. |
| 71 | – | Not used. |
| 72 | 20A2 | Cigarette lighter/power point. |
| 73 | – | Not used. |
| 74 | 30A2 | Power seat. |
| 75 | 20A3 | Vehicle power 1. Powertrain control module power. |
| 76 | 20A3 | Vehicle power 2. Powertrain control module emissions related components. |
| 77 | 10A3 | Vehicle power 3. Powertrain control module general components. |
| 78 | 15A3 | Vehicle power 4. Engine ignition coil relay coil. |
| 79 | 10A3 | Vehicle power 5. Transmission. |
| 80 | 10A3 | Cluster run/start (stripped chassis). |
| 81 | – | Not used. |
| 82 | – | Not used. |
| 83 | – | Fuel pump diode. |
| 84 | – | Not used. |
| 85 | – | Auxiliary switch #1 relay. |
| 1 Cartridge fuse 2 A1S fuse 3 Mini fuse | ||
Conclusion
The Ford E-350 and E-450 (2015-2019) offer utility and durability, supported by a dependable electrical system. Maintaining the fuse box and relays ensures optimal performance.
