Locate the fuse box and relays for the Ford Crown Victoria (2005-2011) with diagrams. Essential for maintaining its electrical reliability and system functions.
The Ford Crown Victoria (EN114) 2005-2011 is a full-size sedan, renowned for its robust design and spacious interior. It primarily features a four-door sedan body style, making it a popular choice for law enforcement, taxi fleets, and individuals seeking a comfortable, durable vehicle. Its body-on-frame construction ensures durability, while the roomy interior and sizable trunk provide practicality. With a powerful V8 engine and rear-wheel drive, it is both reliable and performance-oriented, ideal for high-mileage usage.
The electrical system of the Crown Victoria is supported by a strategically placed fuse box and relays, ensuring smooth operation of features like lighting, HVAC, and power accessories. The primary fuse box is located under the driver’s dashboard, while the power distribution box, housing essential relays and high-amperage fuses, is situated in the engine compartment. These relays control critical systems such as the starter motor and cooling fan. Regular inspection and replacement of blown fuses or faulty relays are crucial for maintaining electrical reliability.
MUST READ: DYI – How to Check Car Fuses?
(2005-2011) Ford Crown Victoria (EN114) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Crown Victoria (EN114) 2005-2011 fuse assignment
Year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011
Passenger Compartment Fuse Panel:

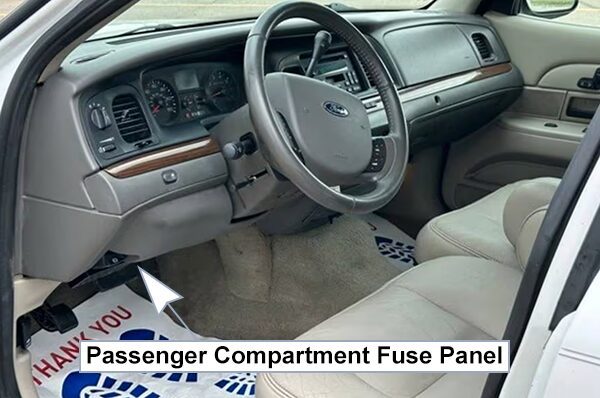

The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
Power Distribution Box:

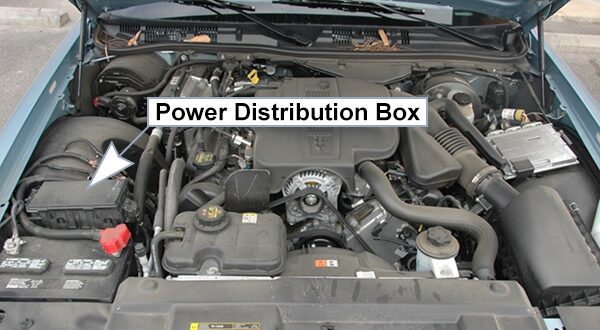

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Relays are located in the power distribution box and should be replaced by an authorized dealer.
Fuse Box Diagrams
2005

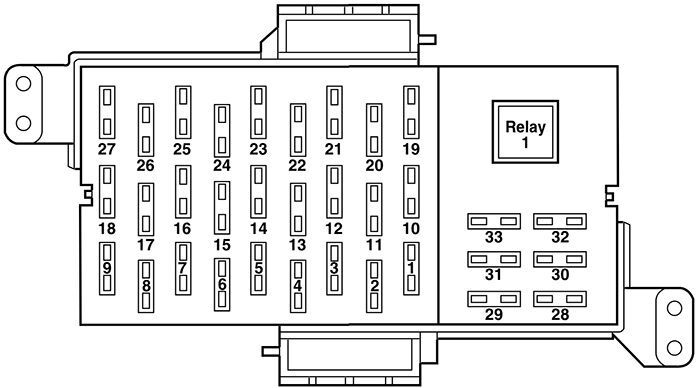

Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2005)
| № | A | Description |
|---|---|---|
| 1 | 15A | Taxi, Cluster, Lighting Control Module (Interior Lighting) |
| 2 | 10A | Ignition (ON) – Electronic Automatic Temperature Control (EATC) module, A/C mode switch (vehicles equipped with EATC only) |
| 3 | 10A | EATC module (vehicles equipped with EATC only) |
| Audio (base audio system on vehicles not equipped with EATC) | ||
| 4 | 10A | Ignition (ON) – Anti-lock Brake System (ABS) module, Positive Crankcase Ventilation (PCV) |
| 5 | 10A | Speed control deactivation switch, Stop signal, Brake-Transmission Shift Interlock (BTSI) (column-shift transmission) |
| 6 | 10A | Ignition (ON) – Cluster |
| 7 | 10A | LCM (Park lamps, Switch illumination) |
| 8 | 10A | Ignition (ON) – Rear Air Suspension Module (RASM), Variable Assist POwer Steering (VAPS) |
| 9 | 20A | LCM (Headlamps, Cornering lamps) |
| 10 | 5A | Ignition (ON/START) – Driver’s Door Module (DDM), Police PDB (Police vehicles only) |
| 11 | 10A | Ignition (START) – ON/ACC (window) relay coil (non-Police vehicles only) |
| Ignition (START) – ON/ACC (window and decklid) relay coil and Police ON/ACC relay coil (Police vehicles only) | ||
| 12 | 10A | Ignition (ON/START) – Starter relay coil, DTRS |
| 13 | 10A | Ignition (START) – Wiper module |
| 14 | 10A | Ignition (ON) – BTSI (Floor-shift transmission) |
| 15 | 7.5A | Ignition (START) – LCM, Door lock switch illumination, Heated seat switch illumination, Moonroof, Overhead console, Electrochromatic mirror |
| 16 | 15A | Ignition (ON) – Turn signals |
| 17 | 10A | Ignition (START) – Audio |
| 18 | 10A | Ignition (ON) – A/C mode switch (manual A/C only), Blend door, DDM, Heated seat modules, Daytime Running Lamps (DRL) module |
| 19 | 10A | Left-hand low beam, DRL |
| 20 | 10A | Ignition (ON/ACC) – Back-up lamps |
| 21 | 10A | Right-hand low beam, DRL |
| 22 | 10A | Ignition (ON/ACC) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Air bag Deactivation Indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass) |
| 24 | 10A | Ignition (ON/ACC) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition coil relay coil |
| 25 | 10A | Autolamp/Sunload sensor, Power mirrors, Door lock switches (DDM), Adjustable pedal switch |
| 26 | 10A | Ignition (ON/ACC) – Analog cluster, Warning lamp module, LCM, Overdrive cancel switch, Rear defroster relay coil |
| 27 | 20A | Cigar lighter, OBD II, Power point |
| 28 | 10A | Center High-Mounted Stop Lamp (CHMSL) |
| 29 | 15A | Audio |
| 30 | 15A | Stop lamps, MFS |
| 31 | 15A | Hazards (non-Police vehicles) |
| 20A | Hazards (Police vehicles) | |
| 32 | 10A | Mirror heaters, Rear defroster switch indicator |
| 33 | 10A | Fire suppression module (if equipped) (Police vehicles only) |
| Relay 1 | Full ISO relay | Rear defroster |

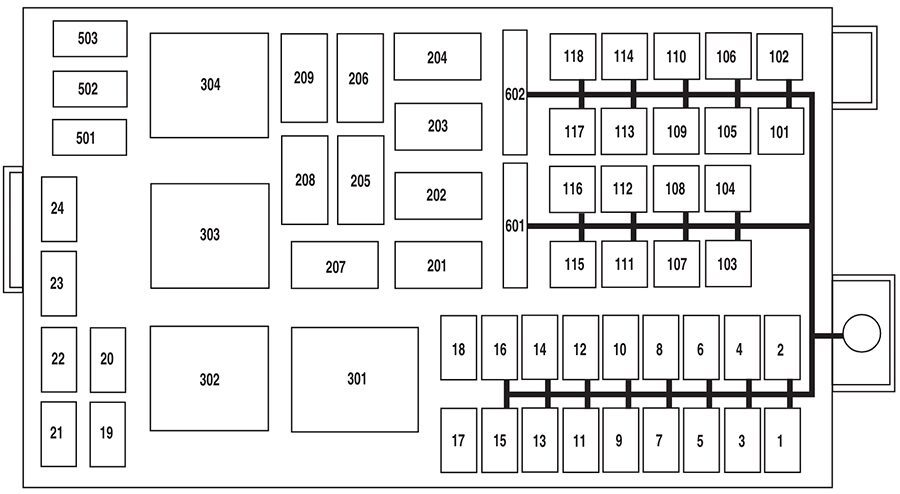

Power Distribution Box
List of fuses in the power distribution box (2005)
| № | A | Description |
|---|---|---|
| 1 | 20A* | Ignition switch (Key in, RUN 1, RUN 2) |
| 2 | 25A* | Ignition switch (RUN/START, RUN/ACC, START) |
| 3 | 10A* | Powertrain Control Module (PCM) keep alive power |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear Air Suspension Module (RASM), VAPS module |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s Door Module (DDM), Door locks |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 25A* | Audio (non-Police vehicles only) |
| Tray lamps (Police vehicles only) | ||
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 20A* | Heated seats |
| 16 | 20A* | Daytime Running Lamps (DRL) module |
| 17 | – | Not used |
| 18 | – | Not used |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM, Mass Air Flow (MAF) sensor |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | – | Not used |
| 23 | – | Not used |
| 24 | 5A* | Radio mute |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1, I/P fuses 23, 25, 27 and 31 |
| 104 | 40A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 1, 3, 5, 7 and 9 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock Brake System (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Moonroof (non-Police vehicles only) |
| Spotlights (available on Police vehicles, Long Wheel Base (LWB) vehicles and commercial vehicles only) | ||
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police Trunk accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police trunk accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police I/P accessory battery feed (Police vehicles only) |
| 117 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 118 | 50A** | Rear power point or Police trunk accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | – | Not used |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only) |
| RUN/ACC relay (Police vehicles only) | ||
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | RUN/ACC relay (Windows) (non-police vehicles only) |
| RUN/ACC relay (Windows and decklid) (police vehicles only) | ||
| 501 | Diode | A/C clutch |
| 502 | Diode | PCM |
| 503 | Diode | Horn, Door latch |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid |
| 602 | 20A Circuit breaker | RUN/ACC relay (Windows) (non-police vehicles only) |
| RUN/ACC relay feed (Windows and decklid) (police vehicles only) | ||
| * Mini fuse ** Cartridge fuse | ||
2006
Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2006)
| № | A | Description |
|---|---|---|
| 1 | 15A | Taxi roof lamp, Cluster, Lighting Control Module (Interior Lighting) |
| 2 | 10A | Ignition (ON) – Electronic Automatic Temperature Control (EATC) module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 3 | 10A | EATC module (vehicles equipped with EATC only) |
| 4 | 10A | Ignition (ON) – Anti-lock Brake System (ABS) module, Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS) |
| 5 | 10A | Speed control deactivation switch, Stop signal |
| 6 | 10A | Ignition (ON) – Cluster |
| 7 | 15A | LCM (Park lamps, Corner lamps) |
| 8 | 10A | LCM |
| 9 | 10A | LCM (Switch illumination) |
| 10 | 5A | Ignition (START) – Audio mute, Police PDB (Police vehicles only) |
| 11 | 10A | Ignition (ON/ACC) – (window) relay coil (non-Police vehicles only) |
| Ignition (ON/ACC) – (window and decklid) relay coil and Police ON/ACC relay coil (Police vehicles only) | ||
| 12 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 13 | 10A | Ignition (ON/ACC) – Wiper module |
| 14 | 10A | Ignition (ON) – BTSI (Floor-shift transmission) |
| 15 | 7.5A | Ignition (ON/ACC) – LCM, Door lock switch illumination, Heated seat switch illumination, Moonroof, Overhead console, Electrochromatic mirror |
| 16 | 15A | Ignition (ON) – Turn signals |
| 17 | 10A | Ignition (ON/ACC) – Audio |
| 18 | 10A | Ignition (ON) – A/C mode switch (manual A/C only), Blend door, Heated seat modules |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Air bag Deactivation Indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition coil relay coil |
| 25 | 10A | Autolamp/Sunload sensor, Power mirrors, Door lock switches, Mirror switch, Keypad switch, Decklid switch, Adjustable pedal switch, DDM |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch, Rear defroster relay coil |
| 27 | 20A | Cigar lighter, OBD II |
| 28 | 7.5A | Center High-Mounted Stop Lamp (CHMSL) |
| 29 | 15A | Audio |
| 30 | 15A | MFS, Stop lamps |
| 31 | 15A | Hazards (non-Police vehicles) |
| 20A | Hazards (Police vehicles) | |
| 32 | 10A | Mirror heaters, Rear defroster switch indicator |
| 33 | 10A | Ignition (ON/START), Fire suppression module (if equipped) (Police vehicles only) |
| Relay 1 | Full ISO relay | Rear defroster |
Power Distribution Box
List of fuses in the power distribution box (2006)
| № | A | Description |
|---|---|---|
| 1 | 25A* | Ignition switch (Key in, RUN 1, RUN 2), Hazards |
| 2 | 25A* | Ignition switch (RUN/START, RUN/ACC, START) |
| 3 | 10A* | Powertrain Control Module (PCM) keep alive power |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear Air Suspension Module (RASM), VAPS module |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s Door Module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 25A* | Audio |
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 20A* | Heated seats |
| 16 | 25A* | Tray lamps (Police vehicles only) |
| 17 | – | Not used |
| 18 | – | Not used |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM, Mass Air Flow (MAF) sensor, IAT |
| 21 | 15A* | Powertrain loads and sensors, A/C clutch relay coil |
| 22 | 20A* | Police PDB outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | – | Not used |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1, I/P fuses 19, 21, 23, 25 and 27 |
| 104 | 40A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 1, 3, 5, 7, 8 and 9 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock Brake System (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Moonroof (non-Police vehicles only) |
| Spotlights (available on Police vehicles, Long Wheel Base (LWB) vehicles and commercial vehicles only) | ||
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police Trunk accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police trunk accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police I/P accessory battery feed (Police vehicles only) |
| 117 | 50A** | Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 118 | 50A** | Rear power point or Police trunk accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | – | Not used |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only) |
| RUN/ACC relay (Police vehicles only) | ||
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | RUN/ACC relay (windows) (non-police vehicles only) |
| RUN/ACC relay (windows and decklid) (police vehicles only) | ||
| 501 | Diode | A/C clutch |
| 502 | Diode | PCM |
| 503 | Diode | Horn, Door latch |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay (windows) (non-police vehicles only) |
| RUN/ACC relay feed (windows and decklid) (police vehicles only) | ||
| * Mini fuse ** Cartridge fuse | ||
2007

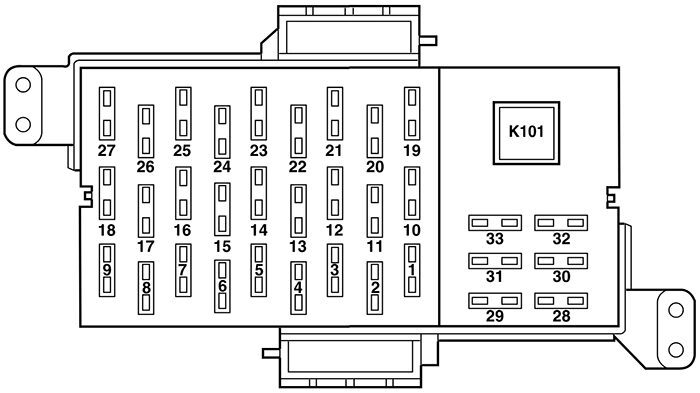

Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2007)
| № | A | Description |
|---|---|---|
| 1 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 2 | 7.5A | Power mirrors, Door lock switches, Mirror switch, Keypad switch, Decklid switch, DDM, Cluster |
| 3 | 5A | Ignition (START) – Audio mute, Police PDB (Police vehicles only) |
| 4 | 10A | LCM (switch illumination), Autolamp sensor |
| 5 | 7.5A | Ignition (ON/ACC) – LCM |
| 6 | 7.5A | LCM |
| 7 | 10A | Ignition (ON/ACC) – Wiper module |
| 8 | 10A | Electronic Automatic Temperature Control (EATC) module (vehicles equipped with EATC only) |
| 9 | 7.5A | Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Moon roof, Overhead console, Radio, Antenna, Electrochromatic mirror, Window relay coil (non-Police vehicles only), Window and decklid relay coil and Police ON/ACC relay coil (Police vehicles only) |
| 10 | 15A | Hazards (non-Police vehicles only) |
| 20A | Hazards (Police vehicles only) | |
| 11 | 15A | Ignition (ON) – Turn signals |
| 12 | 15A | Audio |
| 13 | 10A | Ignition (ON) – Anti-lock Brake System (ABS) module, Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS), Cluster |
| 14 | 15A | Taxi, Adjustable pedais |
| 15 | 10A | Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 16 | 20A | Cigar lighter, OBD II |
| 17 | 10A | Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules, BTSI (Floor-shift transmission) |
| 18 | 15A | Lighting control module (interior lighting) |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition coil relay coil |
| 25 | 15A | LCM (Park lamps, license lamps) |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch |
| 27 | – | Not used |
| 28 | 7.5A | Brake signal, LCM (BTSI), ABS |
| 29 | 2A | Hazard in (Police vehicles only) |
| 30 | 2A | Battery saver (Police vehicles only) |
| 31 | 5A | Key in (LCM) |
| 32 | 2A | Hazard out (Police vehicles only) |
| 33 | 10A | Ignition (ON/START), Fire suppression module (if equipped) (Police vehicles only) |
| Relay 1 | Full ISO relay | Window relay, Decklid (Police vehicles only) |
Power Distribution Box
List of fuses in the power distribution box (2007)
| № | A | Description |
|---|---|---|
| 1 | 30A* | Ignition switch |
| 2 | 20A* | Moon roof, Spot lights (Police vehicles only) |
| 3 | 10A* | Powertrain Control Module (PCM) keep alive power, Canister vent |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear Air Suspension Module (RASM), VAPS module |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | DriverX Door Module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 20A* | Audio (Subwoofer) |
| 25A* | Tray lamps (Police vehicles only) | |
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 15A* | Police accessory battery feed 1 (Police vehicles only) |
| 16 | 20A* | Heated seats, Police accessory battery feed 2 (Police vehicles only) |
| 17 | – | Not used |
| 18 | – | Not used |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | 20A* | Police PDB outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | 10A* | Heated mirrors, Rear defrost indicator |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1,1/P fuses 10, 12, 14, 16 and 18 |
| 104 | 50A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock Brake System (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Police accessory battery feed 3 (Police vehicles only) |
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police accessory battery feed (Police vehicles only) |
| 117 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 118 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | – | Not used |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only) |
| RUN/ACC relay (Police vehicles only) | ||
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | Rear defrost relay |
| 501 | Diode | A/C clutch |
| 502 | Diode | PCM |
| 503 | Diode | Horn, Door latch |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay (windows) (non-Police vehicles only) |
| RUN/ACC relay feed (windows and decklid) (Police vehicles only) | ||
| * Mini fuse ** Cartridge fuse | ||
2008
Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2008)
| № | A | Description |
|---|---|---|
| 1 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 2 | 7.5A | Power mirrors, Door lock switches, Mirror switch, Keypad switch, Decklid switch, DDM, Cluster |
| 3 | 5A | Ignition (START) – Audio mute, Police PDB (Police vehicles only) |
| 4 | 10A | LCM (switch illumination), Autolamp sensor |
| 5 | 7.5A | Ignition (ON/ACC) – LCM |
| 6 | 7.5A | LCM |
| 7 | 10A | Ignition (ON/ACC) – Wiper module |
| 8 | 10A | Electronic Automatic Temperature Control (EATC) module (vehicles equipped with EATC only) |
| 9 | 7.5A | Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Moon roof, Overhead console, Radio, Antenna, Electrochromatic mirror, Window relay coil (non-Police vehicles only), Window and decklid relay coil and Police ON/ACC relay coil (Police vehicles only) |
| 10 | 15A | Hazards (non-Police vehicles only) |
| 20A | Hazards (Police vehicles only) | |
| 11 | 15A | Ignition (ON) – Turn signals |
| 12 | 15A | Audio |
| 13 | 10A | Ignition (ON) – Anti-lock Brake System (ABS) module, Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS), Cluster |
| 14 | 15A | Taxi, Adjustable pedais |
| 15 | 10A | Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 16 | 20A | Cigar lighter, OBD II |
| 17 | 10A | Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules, BTSI (Floor-shift transmission) |
| 18 | 15A | Lighting control module (interior lighting) |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition coil relay coil |
| 25 | 15A | LCM (Park lamps, license lamps) |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch |
| 27 | – | Not used |
| 28 | 7.5A | Brake signal, LCM (BTSI), ABS |
| 29 | 2A | Hazard in (Police vehicles only) |
| 30 | 2A | Battery saver (Police vehicles only) |
| 31 | 5A | Key in (LCM) |
| 32 | 2A | Hazard out (Police vehicles only) |
| 33 | 10A | Ignition (ON/START), Fire suppression module (if equipped) (Police vehicles only) |
| Relay 1 | Full ISO relay | Window relay, Decklid (Police vehicles only) |
Power Distribution Box
List of fuses in the power distribution box (2008)
| № | A | Description |
|---|---|---|
| 1 | 30A* | Ignition switch |
| 2 | 20A* | Moon roof, Spot lights (Police vehicles only) |
| 3 | 10A* | Powertrain Control Module (PCM) keep alive power, Canister vent |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear Air Suspension Module (RASM), VAPS module |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s Door Module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 20A* | Audio (Subwoofer) |
| 25A* | Tray lamps (Police vehicles only) | |
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 15A* | Police accessory battery feed 1 (Police vehicles only) |
| 16 | 20A* | Heated seats, Police accessory battery feed 2 (Police vehicles only) |
| 17 | 10A* | Commercial R/A |
| 18 | 10A* | Commercial R/A |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | 20A* | Police PDB outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | 10A* | Heated mirrors, Rear defrost indicator |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1, I/P fuses 10, 12, 14, 16 and 18 |
| 104 | 50A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock Brake System (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Police accessory battery feed 3 (Police vehicles only) |
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police accessory battery feed (Police vehicles only) |
| 117 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 118 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | – | Not used |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only) |
| RUN/ACC relay (Police vehicles only) | ||
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | Rear defrost relay |
| 501 | Diode | A/C clutch |
| 502 | Diode | PCM |
| 503 | – | Not used |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay (windows) (non-Police vehicles only) |
| RUN/ACC relay feed (windows and decklid) (Police vehicles only) | ||
| * Mini fuse ** Cartridge fuse | ||
2009
Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2009)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 2 | 7.5A | Power mirrors, Mirror switch, Keypad switch, Decklid switch, DDM, Cluster |
| 3 | 5A | Ignition (START) – Audio mute, Police PDB (Police vehicles only) |
| 4 | 10A | LCM (switch illumination), Autolamp sensor |
| 5 | 7.5A | Ignition (ON/ACC) – LCM |
| 6 | 7.5A | LCM |
| 7 | 10A | Ignition (ON/ACC) – Wiper module |
| 8 | 10A | Electronic Automatic Temperature Control (EATC) module (vehicles equipped with EATC only) |
| 9 | 7.5A | Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Radio, Antenna, Electrochromatic mirror, Window relay coil (non-Police vehicles only), Window and decklid relay coil and Police ON/ACC relay coil (Police vehicles only) |
| 10 | 15A | Hazards (non-Police vehicles only) |
| 20A | Hazards (Police vehicles only) | |
| 11 | 15A | Ignition (ON) – Turn signals |
| 12 | 15A | Audio |
| 13 | 10A | Ignition (ON) – Rear Air Suspension Module (RASM), Cluster |
| 14 | 15A | Taxi, Adjustable pedais |
| 15 | 10A | Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 16 | 20A | OBD II |
| 17 | 10A | Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules |
| 18 | 15A | Lighting control module (interior lighting) |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps, Anti-lock Brake system (ABS) |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition relay coil |
| 25 | 15A | LCM (Park lamps, license lamps) |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch, Traction control switch |
| 27 | – | Not used |
| 28 | 7.5A | Brake signal, LCM (BTSI), ABS |
| 29 | 2A | Hazard in (Police vehicles only) |
| 30 | 2A | Battery saver (Police vehicles only) |
| 31 | 5A | Key in (LCM) |
| 32 | 2A | Hazard out (Police vehicles only) |
| 33 | 10A | Fire suppression module (if equipped) (Police vehicles only) |
| Relay 1 | Full ISO relay | Window relay, Decklid (Police vehicles only) |
Power Distribution Box
List of fuses in the power distribution box (2009)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A* | Ignition switch |
| 2 | 20A* | Spot lights (Police vehicles only) |
| 3 | 10A* | Powertrain Control Module (PCM) keep alive power, Canister vent |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear Air Suspension Module (RASM) |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s Door Module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 20A* | Audio (Subwoofer) |
| 25A* | Police tray lamps (Police vehicles only) | |
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 15A* | Police accessory battery feed 1 (Police vehicles only) |
| 16 | 20A* | Police accessory battery feed 2 (Police vehicles only) |
| 17 | 10A* | Commercial R/A |
| 18 | 10A* | Commercial R/A |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | 20A* | Police PDB outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | 10A* | Heated mirrors, Rear defrost indicator |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1,1/P fuses 10, 12, 14, 16 and 18 |
| 104 | 50A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock Brake System (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Police accessory battery feed 3 (Police vehicles only), Cigar lighter (Non-police vehicles only) |
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police accessory battery feed (Police vehicles only) |
| 117 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 118 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | – | Not used |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only) |
| RUN/ACC relay (Police vehicles only) | ||
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | Rear defrost relay |
| 501 | – | Not used |
| 502 | Diode | PCM |
| 503 | – | Not used |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay (windows) (non-Police vehicles only) |
| RUN/ACC relay feed (windows and decklid) (Police vehicles only) | ||
| * Mini fuse ** Cartridge fuse | ||
2010
Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2010)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 2 | 7.5A | Power mirrors, Mirror switch, Keypad switch, Decklid switch, Adjustable pedal switch, Driver’s door module, Cluster |
| 3 | 5A | Ignition (START) – Audio mute, Police power distribution box (PDB) (Police vehicles only) |
| 4 | 10A | Lighting control module (LCM) (switch illumination), Autolamp sensor |
| 5 | 7.5A | Ignition (ON/ACC) – LCM |
| 6 | 7.5A | LCM |
| 7 | 10A | Ignition (ON/ACC) – Wiper module |
| 8 | 10A | Electronic automatic temperature control (EATC) module (vehicles equipped with EATC only) |
| 9 | 7.5A | Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Radio, Antenna, Electrochromatic mirror, Window relay coil, Decklid relay coil and Police ON/ACC relay coil (Police vehicles only) |
| 10 | 15A | Hazards (non-Police vehicles only) |
| 20A | Hazards (Police vehicles only) | |
| 11 | 15A | Ignition (ON) – Turn signals |
| 12 | 15A | Audio |
| 13 | 10A | Ignition (ON) – rear air suspension module (RASM), Cluster |
| 14 | 15A | Taxi, Adjustable pedais |
| 15 | 10A | Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 16 | 20A | On-board diagnostics (OBD II) |
| 17 | 10A | Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules |
| 18 | 15A | LCM (interior lighting) |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps, Anti-lock brake system (ABS) |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint control module (RCM), Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive anti-theft system (PATS) module, Powertrain control module (PCM) relay coil, Fuel relay coil, Ignition relay coil |
| 25 | 15A | LCM (Park lamps, corner lamps, license lamps) |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch, Traction control switch |
| 27 | – | Not used |
| 28 | 7.5A | Brake signal, LCM (brake transmission shift interlock), ABS |
| 29 | 2A | Hazard in (Police vehicles only) |
| 30 | 2A | Battery saver (Police vehicles only) |
| 31 | 5A | Key in (LCM) |
| 32 | 2A | Hazard out (Police vehicles only) |
| 33 | 10A | Fire suppression module (if equipped) (Police vehicles only) |
| K101 | Full ISO relay | Window relay, Decklid (Police vehicles only) |
Power Distribution Box
List of fuses in the power distribution box (2010)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A* | Ignition switch |
| 2 | 20A* | Spot lights (Police vehicles only) |
| 3 | 10A* | Powertrain control module (PCM) – keep alive power, Canister vent |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear air suspension module (RASM) |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s door module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 20A* | Audio (Subwoofer) |
| 25A* | Police tray lamps (Police vehicles only) | |
| 13 | 20A* | Instmment panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 15A* | Foglamps (Grand Marquis only), Police accessory battery feed 1 (Police vehicles only) |
| 16 | 20A* | Heated seats (Grand Marquis only), Police accessory battery feed 2 (Police vehicles only) |
| 17 | 10A* | Commercial R/A (Crown Victoria only) |
| 18 | 10A* | Commercial R/A (Crown Victoria only) |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | 20A* | Police power distribution box (PDB) outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | 10A* | Heated mirrors, Rear defrost indicator |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1, I/P fuses 10, 12, 14, 16 and 18 |
| 104 | 50A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock brake system (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Cigar lighter (Non-police vehicles only), Police accessory battery feed 3 (Police vehicles only) |
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 116 | – | Not used |
| 117 | – | Not used |
| 118 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2 ISO relay | Ignition coil |
| 204 | 1⁄2 ISO relay | PCM |
| 205 | 1⁄2 ISO relay | Foglamps (Graud Marquis only) |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only), RUN/ACC relay (Police vehicles only) |
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | Rear defrost relay |
| 501 | – | Not used |
| 502 | Diode | PCM |
| 503 | – | Not used |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay feed – Windows, Decklid (Police vehicles only) |
| * Mini fuse ** Cartridge fuse | ||
2011
Passenger Compartment Fuse Panel
List of fuses in passenger compartment fuse panel (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 10A | Ignition (START) – Starter relay coil, DTRS |
| 2 | 7.5A | Power mirrors, Mirror switch, Keypad switch, Decklid switch, Adjustable pedal switch, Driver’s door module, Cluster |
| 3 | 5A | Ignition (START) – Audio mute, Police power distribution box (PDB) (Police vehicles only) |
| 4 | 10A | Lighting control module (LCM) (switch illumination), Autolamp sensor |
| 5 | 7.5A | Ignition (ON/ACC) – LCM |
| 6 | 7.5A | LCM |
| 7 | 10A | Ignition (ON/ACC) – Wiper module |
| 8 | 10A | Electronic automatic temperature control (EATC) module (vehicles equipped with EATC only) |
| 9 | 7.5A | Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Radio, Antenna, Electrochromatic mirror, Window relay coil, Decklid relay coil and Police ON/ACC relay coil (Police vehicles only) |
| 10 | 15A | Hazards (non-Police vehicles only) |
| 20A | Hazards (Police vehicles only) | |
| 11 | 15A | Ignition (ON) – Turn signals |
| 12 | 15A | Audio |
| 13 | 10A | Ignition (ON) – rear air suspension module (RASM), Cluster |
| 14 | 15A | Taxi, Adjustable pedais |
| 15 | 10A | Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil |
| 16 | 20A | On-board diagnostics (OBD II) |
| 17 | 10A | Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules |
| 18 | 15A | LCM (interior lighting) |
| 19 | 10A | LCM (Left-hand low beam) |
| 20 | 10A | Ignition (ON/START) – Back-up lamps, Anti-lock brake system (ABS) |
| 21 | 10A | LCM (Right-hand low beam) |
| 22 | 10A | Ignition (ON/START) – Restraint control module (ROM), Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI) |
| 23 | 15A | Multi-function switch (Flash-to-pass), LCM (High beams) |
| 24 | 10A | Ignition (ON/START) – Passive anti-theft system (PATS) module, Powertrain control module (PCM) relay coil, Fuel relay coil, Ignition relay coil |
| 25 | 15A | LCM (Park lamps, corner lamps, license lamps) |
| 26 | 10A | Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch, Traction control switch |
| 27 | – | Not used |
| 28 | 7.5A | Brake signal, LCM (brake transmission shift interlock), ABS |
| 29 | 2A | Hazard in (Police vehicles only) |
| 30 | 2A | Battery saver (Police vehicles only) |
| 31 | 5A | Key in (LCM) |
| 32 | 2A | Hazard out (Police vehicles only) |
| 33 | 10A | Fire suppression module (if equipped) (Police vehicles only) |
| K101 | Full ISO relay | Window relay, Decklid (Police vehicles only) |
Power Distribution Box
List of fuses in the power distribution box (2011)
| № | A | Protected Circuits |
|---|---|---|
| 1 | 30A* | Ignition switch |
| 2 | 20A* | Spot lights (Police vehicles only) |
| 3 | 10A* | Powertrain control module (PCM) – keep alive power, Canister vent |
| 4 | 20A* | Fuel relay feed |
| 5 | 10A* | Rear air suspension module (RASM) |
| 6 | 15A* | Alternator regulator |
| 7 | 30A* | PCM relay feed |
| 8 | 20A* | Driver’s door module (DDM) |
| 9 | 15A* | Ignition coil relay feed |
| 10 | 20A* | Horn relay feed |
| 11 | 15A* | A/C clutch relay feed |
| 12 | 20A* | Audio (Subwoofer) |
| 25A* | Police tray lamps (Police vehicles only) | |
| 13 | 20A* | Instrument panel power point |
| 14 | 20A* | Stop lamp switch |
| 15 | 15A* | Fog lamps (Grand Marquis only), Police accessory battery feed 1 (Police vehicles only) |
| 16 | 20A* | Heated seats (Grand Marquis only), Police accessory battery feed 2 (Police vehicles only) |
| 17 | 10A* | Commercial R/A (Crown Victoria only) |
| 18 | 10A* | Commercial R/A (Crown Victoria only) |
| 19 | 15A* | Injectors |
| 20 | 15A* | PCM |
| 21 | 15A* | Powertrain loads and sensors |
| 22 | 20A* | Police power distribution box (PDB) outputs (Police vehicles only) |
| 23 | 20A* | Police PDB outputs (Police vehicles only) |
| 24 | 10A* | Heated mirrors, Rear defrost indicator |
| 101 | 40A** | Blower relay feed |
| 102 | 50A** | Cooling fan |
| 103 | 50A** | Instrument panel (I/P) fuse box feed #1, I/P fuses 10, 12, 14, 16 and 18 |
| 104 | 50A** | Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 |
| 105 | 30A** | Starter relay feed |
| 106 | 40A** | Anti-lock brake system (ABS) module (Pump) |
| 107 | 40A** | Rear defroster relay feed |
| 108 | 20A** | Cigar lighter (Non-police vehicles only), Police accessory battery feed 3 (Police vehicles only) |
| 109 | 20A** | ABS module (Valves) |
| 110 | 30A** | Wiper module |
| 111 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 112 | 30A** | Air suspension compressor (non-Police vehicles only) |
| 40A** | Police PDB relay feed (Police vehicles only) | |
| 113 | 50A** | Police light bar or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 114 | 50A** | Police PDB or Police accessory battery feed (Police vehicles only) |
| 115 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 116 | 50A** | Police accessory and PDB (Police vehicles only) |
| 117 | 50A** | Police accessory and PDB (Police vehicles only) |
| 118 | 50A** | Rear power point or Police right-hand kick panel accessory battery feed (Police vehicles only) |
| 201 | 1⁄2 ISO relay | A/C clutch |
| 202 | – | Not used |
| 203 | 1⁄2ISO relay | Ignition coil |
| 204 | 1⁄2ISO relay | PCM |
| 205 | 1⁄2ISO relay | Fog lamps (Grand Marquis only) |
| 206 | 1⁄2 ISO relay | Fuel |
| 207 | – | Not used |
| 208 | – | Not used |
| 209 | 1⁄2 ISO relay | Horn |
| 301 | Full ISO relay | Starter |
| 302 | Full ISO relay | Air compressor (non-Police vehicles only), RUN/ACC relay (Police vehicles only) |
| 303 | Full ISO relay | Blower |
| 304 | Full ISO relay | Rear defrost relay |
| 501 | – | Not used |
| 502 | Diode | PCM |
| 503 | – | Not used |
| 601 | 20A Circuit breaker | Power seats, Lumbar, Decklid (Police vehicles only) |
| 602 | 20A Circuit breaker | RUN/ACC relay feed – Windows, Decklid (Police vehicles only) |
| * Mini fuse ** Cartridge fuse | ||
Conclusion
The Ford Crown Victoria (2005-2011) combines durability and comfort, backed by a dependable electrical system. Proper care of the fuse box and relays ensures consistent performance.
