The Ford Crown Victoria (EN114) from 1998-2002 is a full-size sedan with a classic body-on-frame construction. Known for its durability and spacious interior, it is a favorite for law enforcement, taxi fleets, and families seeking comfort. The Crown Victoria features a four-door sedan body style with a large trunk and roomy cabin, offering practicality and comfort for passengers and luggage alike. Its design is complemented by powerful V8 engines and rear-wheel drive, making it reliable for heavy-duty use.
The electrical system of the Crown Victoria relies on its fuse box and relays to power and protect essential components, including headlights, air conditioning, and the ignition system. The primary fuse box is located under the dashboard on the driver’s side, while the power distribution box, which houses additional fuses and relays, is positioned in the engine compartment. These relays control higher-current systems such as the fuel pump, starter motor, and cooling fans, ensuring reliable operation of critical features.
MUST READ: DYI – How to Check Car Fuses?
(1998-2002) Ford Crown Victoria (EN114) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Crown Victoria (EN114) 1998-2002 fuse assignment
Ford Crown Victoria (EN114) Year of production: 1998, 1999, 2000, 2001, 2002
Passenger Compartment Fuse Panel:
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
Power Distribution Box:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Relays are located in the power distribution box and should be replaced by qualified technicians.
Fuse Box Diagrams
1998

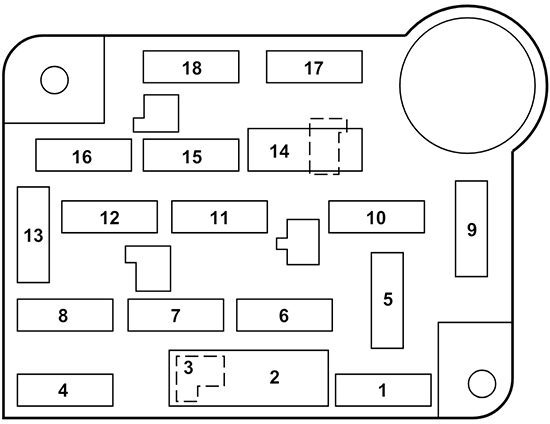

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1998)
| â„– | A | Description |
|---|---|---|
| 1 | 15A | Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control |
| 2 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 3 | – | Not Used |
| 4 | 15A | Lighting Control Module, Main Light Switch |
| 5 | 15A | Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Electronic Day/Night Mirror, Shift Lock, EATC, Speed Chime Warning |
| 6 | 15A | Speed Control, Main Light Switch, Lighting Control Module, Clock, Police Power Relay |
| 7 | 25A | Powertrain Control Module (PCM) Power Diode, Ignition Coils |
| 8 | 15A | Lighting Control Module, Power Mirrors, PATS Module, Keyless Entry, Clock Memory, Electronic Automatic Temperature Control (EATC), Power Windows, Police Spot Light, SecuriLock |
| 9 | 30A | Blower Motor, A/C-Heater Mode Switch |
| 10 | 10A | Air Bag Module |
| 11 | 5A | Radio |
| 12 | 18A CB | Lighting Control Module, Flash-to-Pass, Main Light Switch |
| 13 | 15A | Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module |
| 14 | 20A CB | Window/Door Lock Control, Driver’s Door Module, One Touch Down |
| 15 | 10A | Anti-Lock Brakes, Instrument Cluster, Transmission Control Switch |
| 16 | 20A | Cigar Lighter |
| 17 | 10A | Rear Defrost |
| 18 | 10A | Air Bag Module |
Power Distribution Box
List of fuses in the power distribution box (1998)
| â„– | A | Description |
|---|---|---|
| 1 | 20A* | Electric Fuel Pump Relay |
| 2 | 30A* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A* | Police Power Relay |
| 5 | 15A* | Horn Relay |
| 6 | 20A* | DRL Module |
| 7 | 20A CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A** | Air Suspension System |
| 9 | 50A** | See Fuses 5 and 9 |
| 10 | 50A** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 40A** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A** | High Speed Cooling Fan Relay |
| 14 | 40A** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 50A** | Anti-Lock Brake Module |
| 16 | 50A** | Police Option Fuse Holder |
| 17 | 30A** | Cooling Fan Relay |
| Relay 1 | – | Rear Defrost Relay |
| Relay 2 | – | Horn Relay |
| Relay 3 | – | Cooling Fan Relay |
| Relay 4 | – | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
1999
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1999)
| â„– | A | Description |
|---|---|---|
| 1 | 15A | Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control |
| 2 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 3 | – | Not Used |
| 4 | 15A | Lighting Control Module, Main Light Switch |
| 5 | 15A | Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Electronic Day/Night Mirror, Shift Lock, EATC, Speed Chime Warning |
| 6 | 15A | Speed Control, Main Light Switch, Lighting Control Module, Clock, Police Power Relay |
| 7 | 25A | Powertrain Control Module (PCM) Power Diode, Ignition Coils |
| 8 | 15A | Lighting Control Module, Power Mirrors, PATS Module, Keyless Entry, Clock Memory, Electronic Automatic Temperature Control (EATC), Power Windows, Police Spot Light, SecuriLock |
| 9 | 30A | Blower Motor, A/C-Heater Mode Switch |
| 10 | 10A | Air Bag Module |
| 11 | 5A | Radio |
| 12 | 18A CB | Lighting Control Module, Flash-to-Pass, Main Light Switch |
| 13 | 15A | Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module |
| 14 | 20A CB | Window/Door Lock Control, Driver’s Door Module, One Touch Down |
| 15 | 10A | Anti-Lock Brakes, Instrument Cluster, Transmission Control Switch |
| 16 | 20A | Cigar Lighter |
| 17 | 10A | Rear Defrost |
| 18 | 10A | Air Bag Module |
Power Distribution Box
List of fuses in the power distribution box (1999)
| â„– | A | Description |
|---|---|---|
| 1 | 20A* | Electric Fuel Pump Relay |
| 2 | 30A* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A* | Police Power Relay |
| 5 | 15A* | Horn Relay |
| 6 | 20A* | DRL Module |
| 7 | 20A CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A** | Air Suspension System |
| 9 | 50A** | See Fuses 5 and 9 |
| 10 | 50A** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 40A** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A** | High Speed Cooling Fan Relay |
| 14 | 40A** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 50A** | Anti-Lock Brake Module |
| 16 | 50A** | Police Option Fuse Holder |
| 17 | 30A CB | Cooling Fan Relay |
| Relay 1 | – | Rear Defrost Relay |
| Relay 2 | – | Horn Relay |
| Relay 3 | – | Cooling Fan Relay |
| Relay 4 | – | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
2000
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2000)
| â„– | A | Description |
|---|---|---|
| 1 | 15A | Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control |
| 2 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 3 | – | Not Used |
| 4 | 15A | Lighting Control Module, Main Light Switch |
| 5 | 15A | Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Electronic Day/Night Mirror, Shift Lock, EATC, Speed Chime Warning |
| 6 | 15A | Speed Control, Main Light Switch, Lighting Control Module, Clock, Police Power Relay |
| 7 | 25A | Powertrain Control Module (PCM) Power Diode, Ignition Coils |
| 8 | 15A | Lighting Control Module, Power Mirrors, PATS Module, Keyless Entry, Clock Memory, Electronic Automatic Temperature Control (EATC), Power Windows, Police Spot Light, SecuriLock |
| 9 | 30A | Blower Motor, A/C-Heater Mode Switch |
| 10 | 10A | Air Bag Module |
| 11 | 5A | Radio |
| 12 | 18A CB | Lighting Control Module, Flash-to-Pass, Main Light Switch |
| 13 | 15A | Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module |
| 14 | 20A CB | Window/Door Lock Control, DriveEs Door Module, One Touch Down |
| 15 | 10A | Anti-Lock Brakes, Instrument Cluster, Transmission Control Switch |
| 16 | 20A | Cigar Lighter, Auxiliary Power Point |
| 17 | 10A | Rear Defrost |
| 18 | 10A | Air Bag Module |
Power Distribution Box
List of fuses in the power distribution box (2000)
| â„– | A | Description |
|---|---|---|
| 1 | 20A* | Electric Fuel Pump Relay |
| 2 | 30A* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A* | Police Power Relay |
| 5 | 15A* | Horn Relay |
| 6 | 20A* | DRL Module |
| 7 | 20A CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A** | Air Suspension System |
| 9 | 50A** | See Fuses 5 and 9 |
| 10 | 50A** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 40A** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A** | High Speed Cooling Fan Relay |
| 14 | 40A** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 50A** | Anti-Lock Brake Module |
| 16 | 50A** | Police Option Fuse Holder |
| 17 | 30A CB | Cooling Fan Relay |
| Relay 1 | – | Rear Defrost Relay |
| Relay 2 | – | Horn Relay |
| Relay 3 | – | Cooling Fan Relay |
| Relay 4 | – | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
2001

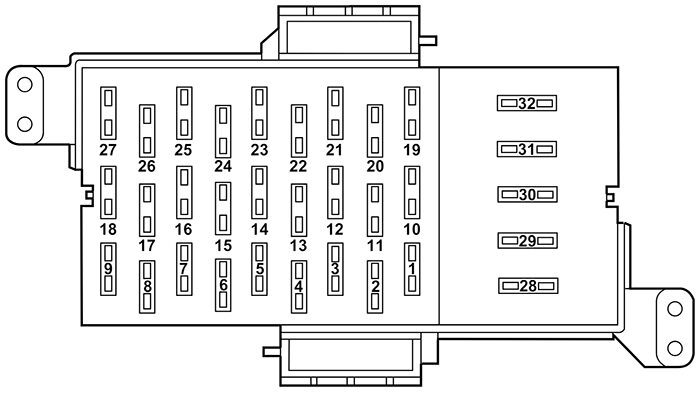

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2001)
| â„– | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A | Air Bags |
| 5 | – | Not Used |
| 6 | 15A | Instrument Cluster, Warning Lamps Module, Transmission Control Switch, Lighting Control Module (LCM) |
| 7 | – | Not Used |
| 8 | 25A | Power Train Control Module (PCM) Power Relay, Coil-on -Plugs, Radio Noise Capacitator, Passive Anti-theft System (PATS) |
| 9 | – | Not Used |
| 10 | 10A | Rear Window Defrost |
| 11 | – | Not Used |
| 12 | – | Not Used |
| 13 | 5A | Radio |
| 14 | 10A | Traction Control Switch, Anti-lock Brakes (ABS), Instmment Cluster |
| 15 | 15A | Speed Control Servo, Main Light Switch Illumination, Lighting Control Module (LCM), Clock, Police Power Relay |
| 16 | 15A | Reversing lamps, Turn Signals, Shift Lock, DRL Module, EVO Steering, Electronic Day/Night Mirror |
| 17 | 30A | Wiper Motor, Wiper Control Module |
| 18 | 30A | Heater Blower Motor |
| 19 | 20A | Auxiliary Power Point |
| 20 | – | Not Used |
| 21 | 15A | Multifunction Switch, Lighting Control Module (LCM), PATS Indicator, Parking Lamps, Instrument Panei Light |
| 22 | 15A | Speed Control Servo, Hazard Lights |
| 23 | 15A | Power Windows/Door Locks, PATS, Exterior Rear View Mirrors, EATC Module, Instrument Cluster, Clock, Lighting Control Module (LCM), Interior Lamps |
| 24 | 10A | Left Hand Low Beam |
| 25 | 20A | Power Point, Cigar Lighter, Emergency Flashers |
| 26 | 10A | Right Hand Low Beam |
| 27 | 25A | Lighting Control Module (LCM), Main Light Switch, Cornering Lamps, Fuel Tank Pressure Sensor |
| 28 | 20 A* | Power Windows |
| 29 | – | Not Used |
| 30 | – | Not Used |
| 31 | – | Not Used |
| 32 | 20A | ABS Values |
| * Maxi Fuse | ||
Power Distribution Box
List of fuses in the power distribution box (2001)
| â„– | A | Description |
|---|---|---|
| 1 | 20A* | Electric Fuel Pump Relay |
| 2 | 30A* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A* | Police Power Relay |
| 5 | 15A* | Horn Relay |
| 6 | 20A* | DRL Module |
| 7 | 20A CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A** | Air Suspension System |
| 9 | 50A** | See Fuses 5 and 9 |
| 10 | 50A** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 50A** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A** | High Speed Cooling Fan Relay |
| 14 | 40A** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 40A** | Anti-Lock Brake Module |
| 16 | 50A** | Police Option Fuse Holder |
| 17 | 30A CB | Cooling Fan Relay |
| Relay 1 | – | Rear Defrost Relay |
| Relay 2 | – | Horn Relay |
| Relay 3 | – | Cooling Fan Relay |
| Relay 4 | – | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
2002
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2002)
| â„– | A | Description |
|---|---|---|
| 1 | – | Not Used |
| 2 | – | Not Used |
| 3 | – | Not Used |
| 4 | 10A | Air Bags |
| 5 | – | Not Used |
| 6 | 15A | Instrument Cluster, Warning Lamps Module, Transmission Control Switch, Lighting Control Module (LCM) |
| 7 | – | Not Used |
| 8 | 25A | Power Train Control Module (PCM) Power Relay, Coil-on-Plugs, Radio Noise Capacitor, Passive Anti-theft System (PATS) |
| 9 | – | Not Used |
| 10 | 10A | Rear Window Defrost |
| 11 | – | Not Used |
| 12 | – | Not Used |
| 13 | 5A | Radio |
| 14 | 10A | Traction Control Switch, Anti-lock Brakes (ABS), Instmment Cluster |
| 15 | 15A | Speed Control Servo, Main Light Switch Illumination, Lighting Control Module (LCM), Clock, Police Power Relay |
| 16 | 15A | Reversing lamps, Turn Signals, Shift Lock, DRL Module, EVO Steering, Electronic Day/Night Mirror |
| 17 | 30A | Wiper Motor, Wiper Control Module |
| 18 | 30A | Heater Blower Motor |
| 19 | 20A | Auxiliary Power Point |
| 20 | – | Not Used |
| 21 | 15A | Multifunction Switch, Lighting Control Module (LCM), PATS Indicator, Parking Lamps, Instrument Panel Light |
| 22 | 15A | Speed Control Servo, Hazard Lights |
| 23 | 15A | Power Windows/Door Locks, PATS, Exterior Rear View Mirrors, EATC Module, Instrument Cluster, Clock, Lighting Control Module (LCM), Interior Lamps |
| 24 | 10A | Left Hand Low Beam |
| 25 | 20A | Power Point, Cigar Lighter, Emergency Flashers |
| 26 | 10A | Right Hand Low Beam |
| 27 | 25A | Lighting Control Module (LCM), Main Light Switch, Cornering Lamps, Fuel Tank Pressure Sensor |
| 28 | 20A* | Power Windows |
| 29 | – | Not Used |
| 30 | – | Not Used |
| 31 | – | Not Used |
| 32 | 20A | ABS Values |
| * Circuit breaker | ||
Power Distribution Box
List of fuses in the power distribution box (2002)
| â„– | A | Description |
|---|---|---|
| 1 | 20A* | Electric Fuel Pump Relay |
| 2 | 30A* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A* | Police Power Relay |
| 5 | 15 A* | Horn Relay |
| 6 | 20A* | DRL Module |
| 7 | 20A CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A** | Air Suspension System |
| 9 | 50A** | See Fuses 5 and 9 |
| 10 | 50A** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 50A** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A** | High Speed Cooling Fan Relay |
| 14 | 40A** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 40A** | Anti-Lock Brake Module |
| 16 | 50A** | Police Option Fuse Holder |
| 17 | 30A CB | Cooling Fan Relay |
| Relay 1 | – | Rear Defrost Relay |
| Relay 2 | – | Horn Relay |
| Relay 3 | – | Cooling Fan Relay |
| Relay 4 | – | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
Conclusion
The 1998-2002 Ford Crown Victoria combines durability with functionality. Regular maintenance of the fuse box and relays is key to sustaining its dependable performance.
