(1998-2000) Ford Contour fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Contour 1998-2000 fuse assignment
Ford Contour Year of production: 1998, 1999, 2000
Passenger Compartment Fuse Panel:

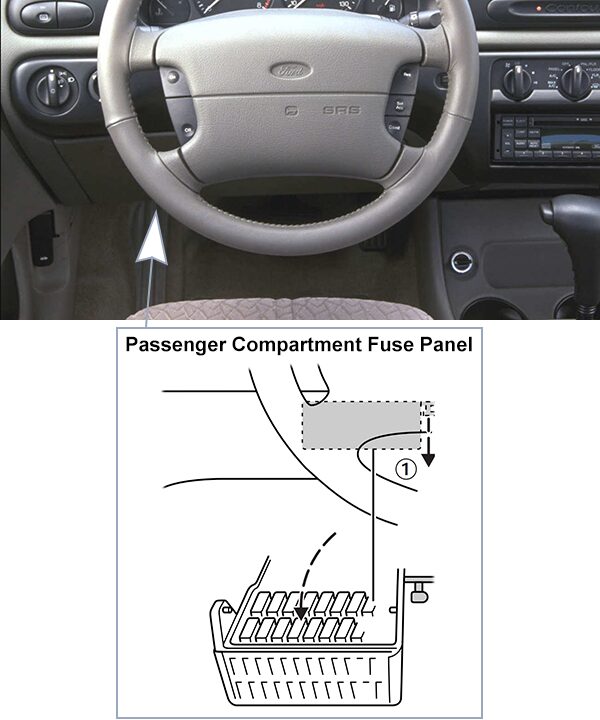

The passenger compartment fuse panel is located on the driver’s side under the instrument panel. To check or change a fuse or a relay, open the fuse box by pulling down the lock release lever (1).
Power Distribution Box:

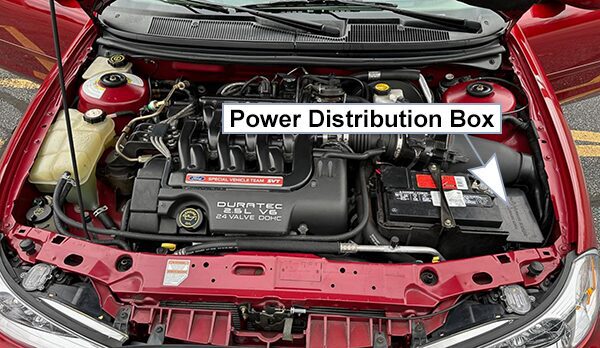

The power distribution box is located on the driver’s side of the engine compartment. To check or replace a fuse or a relay, remove the cover of the fuse box in the engine compartment by releasing the latch and lifting up. All fuses are a push fit.
Fuse Box Diagrams
1998

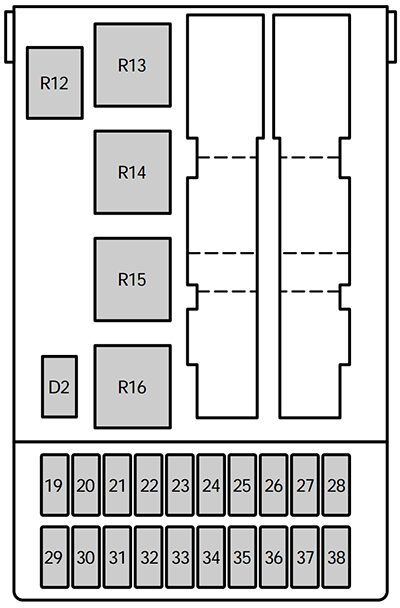

Passenger Compartment Fuse Panel
№ | A | Circuits protected |
---|---|---|
19 | – | Not used |
20 | C10 | Wiper motors (circuit breaker) |
21 | 40A | Power Windows |
22 | 7.5A | ABS module |
23 | 15A | Backup lamps |
24 | 15A | Brake lamps |
25 | 20A | Door locks |
26 | 7.5A | Main light |
27 | 15A | Cigar lighter |
28 | 30A | Electric seats |
29 | 30A | Rear window defrost |
30 | 7.5A | Engine management system |
31 | 7.5A | Instrument panel illumination |
32 | 7.5A | Radio |
33 | 7.5A | Parking lamps – drivers side |
34 | 7.5A | Interior lighting/electric mirror adjustment/clock |
35 | 7.5A | Parking lamps – passengers side |
36 | 10A | Air bag |
37 | 30A | Heater blower motor |
38 | – | Not used |
Relays | ||
R 12 | Interior lighting | |
R 13 | Rear window defrost | |
R 14 | Heater blower motor | |
R 15 | Wiper motor | |
R 16 | Ignition | |
D2 | Reverse voltage protection |

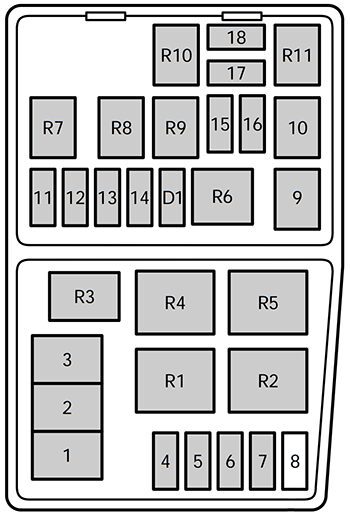

Power Distribution Box
List of fuses in the power distribution box (1998)
№ | A | Circuits protected |
---|---|---|
1* | 80A | Main power supply to vehicle electrical system |
2* | 60A | Engine cooling fan |
3* | 60A | ABS braking system, heater blower |
4 | 20A | Ignition and EEC module |
5 | 15A | Foglamp |
6 | – | Not used |
7 | 20A | ABS system |
8 | – | not used |
9 | 20A | Electronic Engine Control (EEC) |
10 | 20A | Ignition switch |
11 | 3A | EEC ignition module (memory) |
12 | 15A | Horn and hazard flasher warning system |
13 | 20A | HEGO sensor |
14 | 15A | Electrically operated fuel pump |
15 | 10A | Low beam headlamp – (passengers side) |
16 | 10A | Low beam headlamp – (drivers side) |
17 | 10A | High beam headlamp – (passengers side) |
18 | 10A | High beam headlamp – (drivers side) |
Relays | ||
R 1 | Daytime running lights | |
R 2 | Radiator fan relay (high speed) | |
R 3 | Air conditioning | |
R 4 | Air conditioning clutch relay | |
R 5 | Radiator fan relay (low speed) | |
R 6 | Starter solenoid | |
R 7 | Horn | |
R 8 | Electrically operated fuel pump | |
R 9 | Low beam headlamps | |
R 10 | High beam headlamps | |
R 11 | EEC module | |
D1 | Reverse voltage protection | |
* Have these fuses replaced by your dealer or qualified technician. |
Auxiliary relays (outside of fuse boxes)
№ | Circuits switched | Location |
---|---|---|
R 18 | “One touch” switch (drivers window) | Drivers door |
R 20 | Not used | – |
R 21 | Not used | – |
R 22 | Foglamps | Module bracket |
R 23 | Turn signals | Steering column |
R 24 | Panic alarm – drivers side | Door lock module bracket |
R 25 | Panic alarm – right-hand side | Door lock module bracket |
R 26 | Not used | – |
1999
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (1999)
№ | A | Circuits protected |
---|---|---|
19 | – | Not used |
20 | C10A | Wiper motors (circuit breaker) |
21 | 40A | Power Windows |
22 | 7.5A | ABS module |
23 | 15A | Backup lamps |
24 | 15A | Brake lamps |
25 | 20A | Door locks |
26 | 7.5A | Main light |
27 | 15A | Cigar lighter |
28 | 30A | Electric seats |
29 | 30A | Rear window defrost |
30 | 7.5A | Engine management system |
31 | 7.5A | Instrument panel illumination |
32 | 7.5A | Radio |
33 | 7.5A | Parking lamps – drivers side |
34 | 7.5A | Interior lighting/electric mirror adjustment |
35 | 7.5A | Parking lamps – passengers side |
36 | – | Not used |
37 | 30A | Heater blower motor |
38 | – | Not used |
Relays | ||
R 12 | Interior lighting | |
R 13 | Rear window defrost | |
R 14 | Heater blower motor | |
R 15 | Wiper motor | |
R 16 | Ignition | |
D2 | Reverse voltage protection |

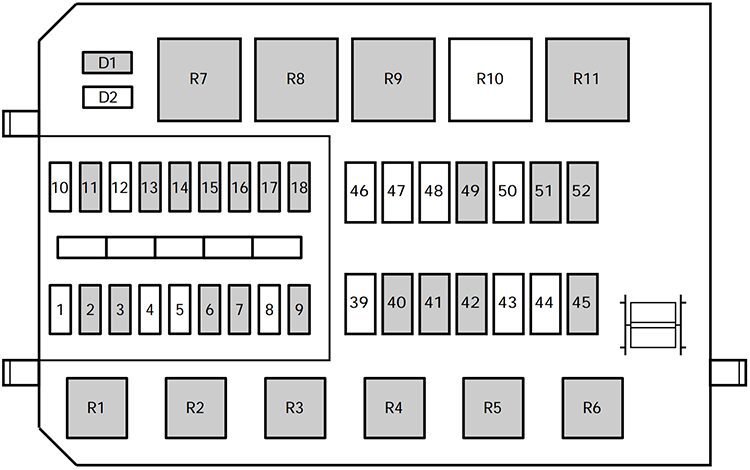

Power Distribution Box
List of fuses in the power distribution box (1999)
№ | A | Circuits protected |
---|---|---|
1 | – | Not used |
2 | 7.5A | Alternator |
3 | 20A | Foglamps |
4 | – | Not used |
5 | – | Not used |
6 | 3 | EEC ignition module (memory) |
7 | 20A | Horn and hazard flasher warning system |
8 | – | Not used |
9 | 15A | Fuel pump |
10 | – | Not used |
11 | 20A | Ignition, Electronic Engine Control |
12 | – | Not used |
13 | 20A | HEGO sensor |
14 | 7.5A | ABS module |
15 | 7.5A | Low beam headlamp (passengers side) |
16 | 7.5A | Low beam headlamp (drivers side) |
17 | 7.5A | High beam headlamp (passengers side) |
18 | 7.5A | High beam headlamp (drivers side) |
39 | – | Not used |
40 | 20A* | Ignition, light switch, central junction box |
41 | 20A* | EEC relay |
42 | 40A* | Central junction box (fuse 37 to blower relay) |
43 | – | Not used |
44 | – | Not used |
45 | 60A* | Ignition |
46 | – | Not used |
47 | – | Not used |
48 | – | Not used |
49 | 60A* | Engine cooling |
50 | – | not used |
51 | 60A* | ABS |
52 | 60A* | Central junction box (central timer module, rear window defrost relay, fuses 24, 25, 27, 28, 34) |
Relays | ||
R 1 | Fuel pump | |
R 2 | EEC module | |
R 3 | Air conditioning | |
R 4 | Low beam | |
R 5 | High beam | |
R 6 | Horn | |
R 7 | Starter solenoid | |
R 8 | Engine cooling fan (high speed) | |
R 9 | Engine cooling fan | |
R 10 | Not used | |
R 11 | Daytime running lights | |
D1 | Reverse voltage protection | |
D2 | Not used | |
* Have these fuses replaced by your dealer or qualified technician. |
Auxiliary relays (outside of fuse boxes)
№ | Circuits switched | Location |
---|---|---|
R 18 | “One touch” switch (drivers window) | Drivers door |
R 20 | Not used | – |
R 21 | Not used | – |
R 22 | Foglamps | Module bracket |
R 23 | Turn signals | Steering column |
R 24 | Panic alarm – drivers side | Door lock module bracket |
R 25 | Panic alarm – right-hand side | Door lock module bracket |
R 26 | Not used | – |
2000
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2000)
№ | A | Circuits protected |
---|---|---|
19 | – | Not used |
20 | C10 | Wiper motors (circuit breaker) |
21 | 40A | Power Windows |
22 | – | Not used |
23 | 15A | Backup lamps |
24 | 15A | Brake lamps |
25 | 20A | Door locks |
26 | 7.5A | Main light |
27 | 15A | Cigar lighter |
28 | 30A | Electric seats |
29 | 30A | Rear window defrost |
30 | 7.5A | Engine management system |
31 | 7.5A | Instrument panel illumination |
32 | 7.5A | Radio |
33 | 7.5A | Parking lamps – drivers side |
34 | 7.5A | Interior lighting/electric mirror adjustment |
35 | 7.5A | Parking lamps – passengers side |
36 | – | Not used |
37 | 30A | Heater blower motor |
38 | – | Not used |
Relay | ||
R 12 | Interior lighting | |
R 13 | Rear window defrost | |
R 14 | Heater blower motor | |
R 15 | Wiper motor | |
R 16 | Ignition | |
D2 | Reverse voltage protection |
Power Distribution Box
List of fuses in the power distribution box (2000)
№ | A | Circuits protected |
---|---|---|
1 | – | Not used |
2 | 7.5A | Alternator |
3 | 20A | Foglamps |
4 | – | Not used |
5 | – | Not used |
6 | 3A | EEC ignition module (memory) |
7 | 20A | Horn and hazard flasher warning system |
8 | – | Not used |
9 | 15A | Fuel pump |
10 | – | Not used |
11 | 20A | Ignition, Electronic Engine Control |
12 | – | Not used |
13 | 20A | HEGO sensor |
14 | 7.5A | ABS module |
15 | 7.5A | Low beam headlamp (passengers side) |
16 | 7.5A | Low beam headlamp (drivers side) |
17 | 7.5A | High beam headlamp (passengers side) |
18 | 7.5A | High beam headlamp (drivers side) |
39 | – | Not used |
40 | 20A* | Ignition, light switch, central junction box |
41 | 20A* | EEC relay |
42 | 40A* | Central junction box (fuse 37 to blower relay) |
43 | – | Not used |
44 | – | Not used |
45 | 60A* | Ignition |
46 | – | Not used |
47 | – | Not used |
48 | – | Not used |
49 | 60A* | Engine cooling |
50 | – | not used |
51 | 60A* | ABS |
52 | 60A* | Central junction box (central timer module, rear window defrost relay, fuses 24, 25, 27, 28, 34) |
Relays | ||
R 1 | Fuel pump | |
R 2 | EEC module | |
R 3 | Air conditioning | |
R 4 | Low beam | |
R 5 | High beam | |
R 6 | Horn | |
R 7 | Starter solenoid | |
R 8 | Engine cooling fan (high speed) | |
R 9 | Engine cooling fan | |
R 10 | Not used | |
R 11 | Daytime running lights | |
D1 | Reverse voltage protection | |
D2 | Not used |
Auxiliary relays (outside of fuse boxes)
№ | Circuits switched | Location |
---|---|---|
R 18 | “One touch” switch (drivers window) | Drivers door |
R 20 | Not used | – |
R 21 | Not used | – |
R 22 | Foglamps | Wire shield on instrument panei |
R 23 | Turn signals | Steering column |
R 24 | Panic alarm – drivers side | Door lock module bracket |
R 25 | Panic alarm – right-hand side | Door lock module bracket |
R 26 | Not used | – |
R 32 | Hego heater control | Near PCM-Module |
