Learn about Ford Contour 1996-1997 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Ford Contour (1996-1997) is a compact sedan designed with a focus on practicality and efficiency. It features a sleek four-door body style, offering a balance of aerodynamic design and interior comfort. With seating for up to five passengers and a modest yet functional trunk space, the Contour is ideal for daily commutes or small families. Its range of trim levels includes base models and sportier variants, each equipped with essential and optional electrical features such as power windows, lights, and air conditioning.
The vehicle’s electrical system depends on a well-organized fuse box and relay system to manage and protect its circuits. The main fuse box is located under the dashboard on the driver’s side, while a secondary fuse and relay box resides in the engine compartment. Relays are critical for controlling components such as the starter motor, fuel pump, and cooling fan. Inspecting and maintaining these components helps avoid electrical malfunctions and ensures reliable operation.
MUST READ: DYI – How to Check Car Fuses?
(1996-1997) Ford Contour fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Contour 1996-1997 fuse assignment
Ford Contour Year of production: 1996, 1997

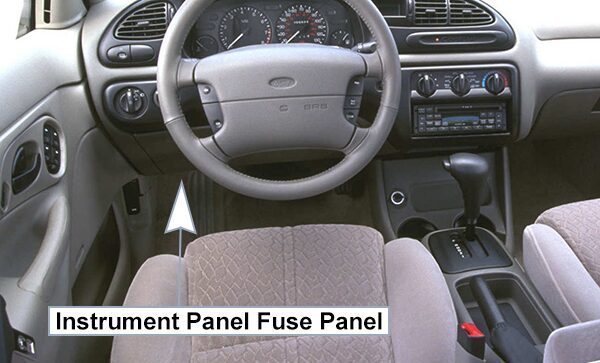

Instrument Panel Fuse Panel:
The instrument panel fuse panel is underneath the instrument panel on the left side. To open it, reach under the instrument panel and push the release button to the right of the fuse panel.

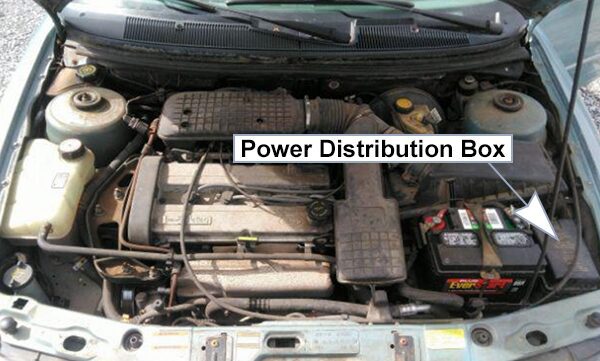

Power Distribution Box:
Spare fuses are located in the power distribution box under the hood.
Fuse Box Diagrams
1996-1997
Instrument Panel Fuses
List of fuses in the instrument panel fuses (1996-1997)
| â„– | A | Description |
|---|---|---|
| 19 | 7.5A | Heated rear view mirrors |
| 20 | 10A CB | Wipers |
| 21 | 40A | Power Windows |
| 22 | 7.5A | ABS module |
| 23 | 15A | Backup lamps |
| 24 | 15A | Brakelamps |
| 25 | 20A | Door locks |
| 26 | 7.5A | Main light |
| 27 | 15A | Cigar lighter |
| 28 | 30A | Power seats |
| 29 | 30A | Rear window defrost |
| 30 | 7.5A | Engine management system |
| 31 | 7.5A | Instrument panel illumination |
| 32 | 7.5A | Radio |
| 33 | 7.5A | Left-hand parking lamps |
| 34 | 7.5A | Courtesy lamps |
| 35 | 7.5A | Right-hand parking lamps |
| 36 | 10A | Air bag |
| 37 | 30A | Blower motor |
| 38 | (not used) | – |
| R12 | white | Courtesy lights |
| R13 | yellow | Rear window defroster |
| R14 | yellow | Heater fan motor |
| R15 | green | Wipers |
| R16 | black | Ignition |
| D2 | black | Reverse voltage protection |
| R17 | (not used) | – |
| R18 | black | Express down Windows |
| R19 | blue | Speed control cut-out |
| R20 | (not used) | – |
| R21 | (not used) | – |
| R22 | white | Fog lamps |
| R23 | black | Turn signal |
| R24 | white | Left panic alarm flasher |
| R25 | white | Right panic alarm flasher |
| R26 | (not used) | – |
| R27 | (not used) | – |
| R28 | (not used) | – |
| R29 | brown | Door lock control |

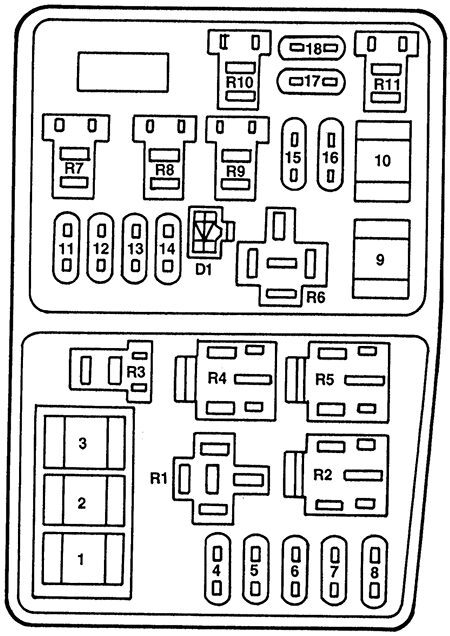

Power Distribution Box
List of fuses in the power distribution box (1996-1997)
| â„– | A | Description |
|---|---|---|
| 1* | 80A | Main power supply |
| 2* | 60A | Engine cooling fan |
| 3* | 60A | ABS braking system |
| 4 | 20A | Daytime running lights Ignition |
| 5 | 15A | Fog lamp |
| 6 | (not used) | – |
| 7 | 30A | ABS braking system |
| 8 | 30A | Air pump |
| 9 | 20A | EEC module |
| 10 | 20A | Ignition switch |
| 11 | 3A | EEC memory |
| 12 | 15A | Hazard flashers Horn |
| 13 | 15A | HEGO sensor |
| 14 | 15A | Fuel pump |
| 15 | 10A | Right low beam |
| 16 | 10A | Left low beam |
| 17 | 10A | Right high beam |
| 18 | 10A | Left high beam |
| R1 | white | Daytime running lights (Canada) |
| R2 | black | High speed engine cooling fan |
| R3 | blue | A/C wide open throttle |
| R4 | yellow | A/C clutch relay |
| R5 | dark green | Engine cooling fan |
| R6 | yellow | Starter |
| R7 | brown | Horn |
| R8 | brown | Fuel pump |
| R9 | white | Low beam |
| R10 | white | High beam |
| R11 | brown | PCM module |
| D1 | black | Reverse voltage protection |
| *Have these fuses replaced by a qualified technician. | ||
Conclusion
The 1996-1997 Ford Contour offers a compact yet efficient design backed by a reliable electrical system. Proper care of the fuse box and relays ensures all features function seamlessly.
