Learn about Ford Aspire 1996-1997 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Ford Aspire (1996-1997) is a subcompact car designed with a focus on efficiency and practicality. Available in two main body styles—a three-door hatchback and a five-door hatchback—it caters to drivers seeking affordability and compact dimensions for urban commuting. Despite its modest size, the Aspire features a surprisingly spacious interior and straightforward mechanical design. Its lightweight build makes it economical on fuel while maintaining adequate performance for daily driving.
The car’s electrical system, including essential components like lights, wipers, and the stereo, is managed by the fuse box and relays. The primary fuse box is located under the dashboard on the driver’s side, while additional relays for high-power components, such as the fuel pump and starter, are located in the engine bay. Regular inspection and replacement of blown fuses or faulty relays are vital for maintaining the Aspire’s functionality and reliability.
MUST READ: DYI – How to Check Car Fuses?
(1996-1997) Ford Aspire fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Aspire 1996-1997 fuse assignment
Ford Aspire Year of production: 1996, 1997

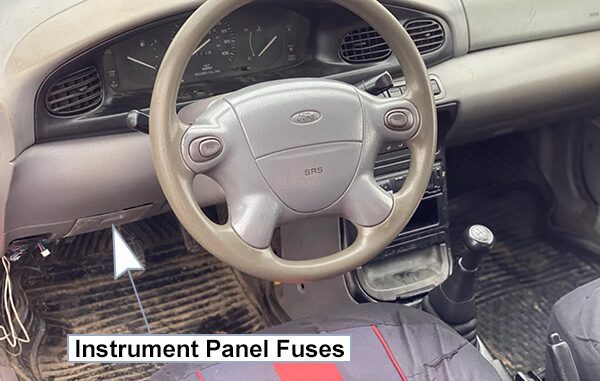

Instrument Panel Fuses:

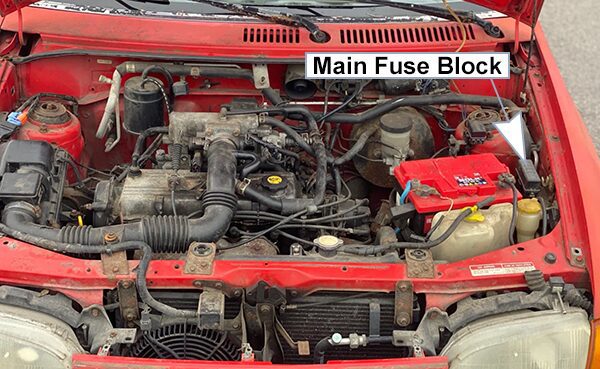

Main Fuse Block:

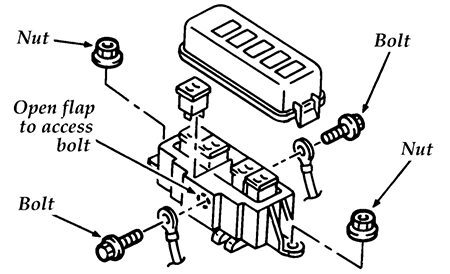

If the 80 Amp. fuse is blown, it must be replaced. To remove the main fuse block and replace the fuse:
- Disconnect the negative battery cable.
- Remove the nuts on either end.
- Lift the fuse block and open the flaps on the side of the fuse block.
- Remove the bolts on either side of the block.
- Replace the fuse with a new one of the same rating.
Fuse Box Diagrams
1996
Instrument Panel Fuses

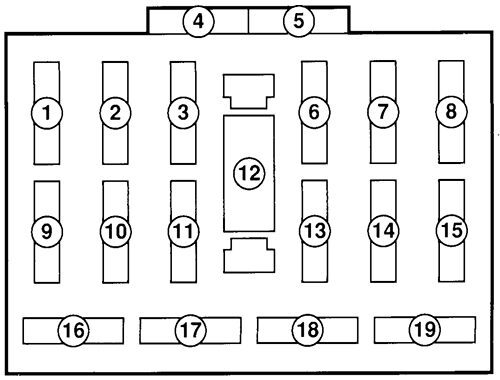

List of fuses in the instrument panel fuses (1996)
| № | Fuse Name | A | Protected Component |
|---|---|---|---|
| 1 | ENGINE | 10A | Air bag system, Anti-lock Brake System, Anti-lock Brake System relay, Blower motor relay, Cooling fan relay, Ignition main relay |
| 2 | METER | 15A | Back-up lamps, Central Processing unit, Flasher unit, Instrument cluster warning lights (Air bag readiness, anti-lock brake, brake system, charging, check engine, oil pressure, safety belt, rear defroster, upshift), Instrument cluster gauges (fuel, shift-lock actuator, tachometer, turn signal indicator), Turn signals lamps, Rear defroster relay |
| 3 | DEFOG | 20A | Rear window defroster |
| 4 | – | 20A | Spare fuse |
| 5 | – | 15A | Spare fuse |
| 6 | – | – | – |
| 7 | F. FOG | 15A | Front fog lamps |
| 8 | – | – | – |
| 9 | – | – | – |
| 10 | WIPER | 20A | A/C switch, A/C relay, Condenser fan motor, Front windshield wipers and washer |
| 11 | R. WIFER | 15A | Blower motor unit, Daytime Running Lamps system, Rear windshield wiper and washer |
| 12 | BLOWER | 30A Circuit Breaker | Climate control blower motor |
| 13 | HAZARD | 15A | Hazard warning flashers |
| 14 | STOP | 15A | Anti-lock Brake System unit, Brakclamps, Cargo lamp, Horn |
| 15 | TAIL | 15A | Front side marker lamps, Instrument panel illumination, License plate lamps, Parking lamps, Tail lamps, Turn signal lamp |
| 16 | CIGAR | 15A | Audio System, Cigarette lighter |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | ROOM | 10A | Audio system, Back-up lamps, Central processing unit, Interior courtesy lamp Powertrain control module |
Main Fuse Block

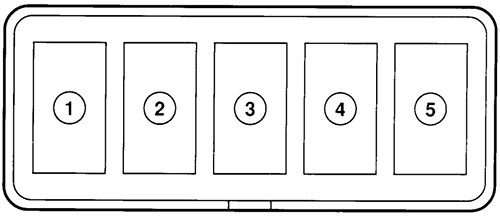

List of fuses in the main fuse block (1996)
| № | Fuse Name | A | Protected Component |
|---|---|---|---|
| 1 | COOLING FAN | 30A | Cooling fan motor, Condenser fan motor, Magnetic clutch |
| 2 | ABS | 60A | Anti-lock Braking System |
| 3 | MAIN | 80A | Air bag diagnostic monitor, Anti-lock Brake System control unit, Anti-lock Brake System relay, Audio system, Backup lamp, Brake system unit, Blower motor relay, Cargo lamp, Central Processing unit, Cigarette lighter, Cooling fan relay, Daytime Running Lamps relay, Flasher unit, Front side marker lamp, Front wiper and washer, Hazard lamp, Horn, Ignition coil, Illumination (A/C switch, Panel, Rear defroster switch, upshift indicator), Instrument cluster waming lights (air bag readiness, anti-lock brake system, brake system, charging, check engine, fuel, oil pressure, rear defroster, safety belt, tachometer), Interior lamp, License plate lamp, Powertrain control module, Rear defroster, Rear defroster relay, Rear wiper and washer, Tail lamp, Tail lamp relay, Turn signal lamp, Stop lamp |
| 4 | EGI INJ | 30A | Air bag diagnostic monitor, Powertrain Control Module |
| 5 | HEAD | 30A | Headlamps |
1997
Instrument Panel Fuses
List of fuses in the instrument panel fuses (1997)
| № | Fuse Name | A | Protected Component |
|---|---|---|---|
| 1 | ENGINE | 10A | Air bag system, Anti-lock Brake System, Anti-lock Brake System relay, Blower motor relay, Cooling fan relay, Ignition main relay |
| 2 | METER | 15A | Back-up lamps, Central Processing unit, Flasher unit, Instrument cluster warning lights (Air bag readiness, anti-lock brake, brake system, charging, check engine, oil pressure, safety belt, rear defroster, upshift), Instrument cluster gauges (fuel, shift-lock actuator, tachometer, turn signal indica tor), Turn signals lamps, Rear defroster relay |
| 3 | DEFOG | 20A | Rear window defroster |
| 4 | – | 20A | Spare fuse |
| 5 | – | 15A | Spare fuse |
| 6 | – | – | – |
| 7 | F.FOG | 15A | Front fog lamps |
| 8 | – | – | – |
| 9 | – | – | – |
| 10 | WIPER | 20A | A/C switch, A/C relay, Blower motor unit relay, Condenser fan motor, Daytime running lamps system, Front windshield wipers and washer |
| 11 | – | – | – |
| 12 | BLOWER | 30A Circuit Breaker | Climate control blower motor |
| 13 | HAZARD | 15A | Hazard warning flashers |
| 14 | STOP | 15A | Anti-lock Brake System unit, Brakelamps, Cargo lamp, Horn |
| 15 | TAIL | 15A | Front side marker lamps, Instrument panei illumination, License plate lamps, Parking lamps, Tail lamps, Turn signal lamp |
| 16 | CIGAR | 15A | Audio System, Cigarette lighter |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | ROOM | 10A | Audio system, Back-up lamps, Central processing unit, Interior courtesy lamp Powertrain control module |
Main Fuse Block
List of fuses in the main fuse block (1997)
| № | Fuse Name | A | Protected Component |
|---|---|---|---|
| 1 | COOLING FAN | 30A | Cooling fan motor, Condenser fan motor, Magnetic clutch |
| 2 | ABS | 60A | Anti-lock Braking System |
| 3 | MAIN | 80A | Air bag diagnostic monitor, Anti-lock Brake System control unit, Anti-lock Brake System relay, Audio system, Backup lamp, Brake system unit, Blower motor relay, Cargo lamp, Central Processing unit, Cigarette lighter, Cooling fan relay, Daytime Running Lamps relay, Flasher unit, Front side marker lamp, Front wiper and washer, Hazard lamp, Horn, Ignition coil, Illumination (A/C switch, Panel, Rear defroster switch, upshift indicator), Instrument cluster waming lights (air bag readiness, anti-lock brake system, brake system, charging, check engine, fuel, oil pressure, rear defroster, safety belt, tachometer), Interior lamp, License plate lamp, Powertrain control module, Rear defroster, Rear defroster relay, Rear wiper and washer, Tail lamp, Tail lamp relay, Turn signal lamp, Stop lamp |
| 4 | EGI INJ | 30A | Air bag diagnostic monitor, Powertrain Control Module |
| 5 | HEAD | 30A | Headlamps |
Conclusion
The Ford Aspire 1996-1997 is a practical subcompact car supported by a simple yet effective electrical system. Maintaining the fuse box and relays ensures optimal vehicle performance.
