The Dodge Viper (ZB II) 2008-2010 is a high-performance sports car that epitomizes American muscle with its aggressive design and raw power. Available in two body styles, coupe and convertible, the Viper ZB II offers a bold and aerodynamic exterior complemented by a race-inspired cockpit. With its 8.4-liter V10 engine producing over 600 horsepower, the Viper delivers thrilling performance both on the track and the road.
The Viper’s advanced electrical system powers key components such as its ignition system, lights, and cooling fans. The primary fuse box is located under the hood, close to the driver’s side firewall, ensuring easy access for maintenance. Relays, essential for controlling high-power electrical components like the fuel pump and starter, are housed in the same compartment. Proper inspection and maintenance of the fuse box and relays are critical to avoid electrical issues and ensure peak performance.
MUST READ: DYI – How to Check Car Fuses?
(2008-2010) Dodge Viper (ZB II) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Viper (ZB II) 2008-2010 fuse assignment
Dodge Viper (ZB II) Year of production: 2008, 2009, 2010
Location of Fuse Boxes
Power Distribution Center:
A power distribution center is located in the engine compartment on the driver’s side of the vehicle. This center contains fuses and relays.

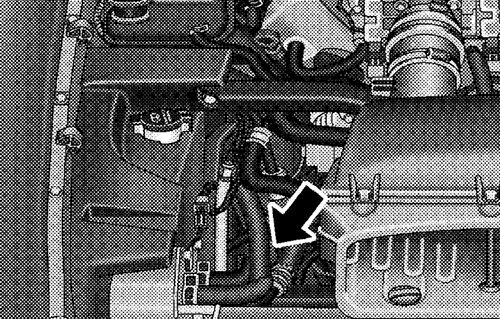

Mini-Power Distribution Center:
A mini-power distribution center is located in the engine compartment on the passenger’s side of the vehicle. This center contains radiator fan control relays and has two externally-mounted 40 Amp fuses for the radiator fans.
Fuse Box Diagrams
2008
Power Distribution Center
List of fuses in the PDC (2008)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | Blower Motor | |
| 2 | 40A Green | Anti-Lock Brakes (ABS) Pump Feed / Starter | |
| 3 | 30A Pink | Body Control Module (BCM) – Battery Feed | |
| 4 | 20A Blue | Amplifier | |
| 5 | 30A Pink | Ignition Switch Run/Accessory Feed – Windows / Adjustable Pedals | |
| 6 | 40A Green | Body Control Module (BCM) – Battery Feed | |
| 7 | 30A Pink | Anti-Lock Brakes (ABS) Module | |
| 8 | 30A Pink | Ignition Switch Run/Accessory Feed | |
| 9 | 40A Green | Headlights | |
| 10 | 30A Pink | Ignition Switch Run Feed | |
| 11 | 20A Yellow | Auto Shutdown Relay (ASD) | |
| 12 | 20A Yellow | Cigar Lighter | |
| 13 | 15A Blue | Hazard Flasher | |
| 14 | 20A Yellow | Auto Shutdown Relay (ASD) | |
| 15 | 20A Yellow | Rear Window Defogger (EBL) | |
| 16-17 | 20A Yellow | Selectable Power Outlet | |
| 18 | 15A Blue | Ignition Off Draw (IOD) | |
| 19 | 15A Blue | Horn | |
| 20 | 15A Blue | Air Conditioning (A/C) Clutch Relay | |
| 21 | 15A Blue | Stop Light Switch | |
| 22 | 25A Clear | Fuel Pump / Powertrain Control Module (PCM) | |
| 23-24 | 10A Red | Airbag | |
| 60-61 | 15A Blue | Ignition Run/Start Relay Feed | |
| 62-63 | 15A Blue | Gauges | |
| 64-65 | 10A Red | Airbag | |
| 66-67 | 20A Yellow | Wiper Switch | |
| 68-69 | 20A Yellow | Left HID Headlight | |
| 70-71 | 20A Yellow | Right HID Headlight |
2010
Power Distribution Center
List of fuses in the PDC (2010)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | Blower Motor | |
| 2 | 40A Green | Anti-Lock Brakes (ABS) Pump Feed / Starter | |
| 3 | 30A Pink | Body Control Module (BCM) – Battery Feed | |
| 4 | 20A Blue | Amplifier | |
| 5 | 30A Pink | Ignition Switch Run/Accessory Feed – Windows | |
| 6 | 40A Green | Body Control Module (BCM) – Battery Feed | |
| 7 | 30A Pink | Anti-Lock Brakes (ABS) Module | |
| 8 | 30A Pink | Ignition Switch Run/Accessory Feed | |
| 9 | 40A Green | Headlights | |
| 10 | 30A Pink | Ignition Switch Run Feed | |
| 11 | 20A Yellow | Auto Shutdown Relay (ASD) | |
| 12 | 20A Yellow | Cigar Lighter | |
| 13 | 15A Blue | Hazard Flasher | |
| 14 | 20A Yellow | Auto Shutdown Relay (ASD) | |
| 15 | 25A Clear | Rear Window Defogger (EBL) | |
| 16-17 | 20A Yellow | Power Outlet | |
| 18 | 15A Blue | Ignition Off Draw (IOD) | |
| 19 | 15A Blue | Horn | |
| 20 | 15A Blue | Air Conditioning (A/C) Clutch Relay | |
| 21 | 15A Blue | Stop Light Switch | |
| 22 | 25A Clear | Fuel Pump / Powertrain Control Module (PCM) | |
| 23-24 | 10A Red | Airbag | |
| 60-61 | 15A Blue | Ignition Run/Start Relay Feed | |
| 62-63 | 15A Blue | Gauges | |
| 64-65 | 10A Red | Airbag | |
| 66-67 | 20A Yellow | Wiper Switch | |
| 68-59 | 20A Yellow | Left HID Headlight | |
| 70-71 | 20A Yellow | Right HID Headlight |
Conclusion
The 2008-2010 Dodge Viper (ZB II) merges iconic design with powerful performance. Regular attention to the fuse box and relays helps maintain its reliability and electrifying capabilities.
