Discover the fuse box and relay locations for the Dodge Viper (VX) 2013-2017 with diagrams. Essential guide for troubleshooting and maintaining electrical systems.
The Dodge Viper (VX) 2013-2017 is an iconic American supercar with a low, aggressive body style and striking aerodynamic design. Available exclusively as a two-door coupe, the Viper features a long hood and short rear deck, emphasizing its powerful V10 engine. Its lightweight frame, sculpted lines, and track-focused features make it a true performance car, delivering unmatched speed and precision on the road or track.
The Viper’s advanced electrical system powers its high-performance features, including ignition systems, lighting, and advanced driver controls. The primary fuse box is located in the engine bay, ensuring easy access for troubleshooting, while additional relays controlling key functions like the fuel pump and cooling fans are housed nearby. These components are critical for managing the Viper’s high-demand electrical systems, ensuring optimal performance. Regular inspection of fuses and relays helps prevent issues with its critical systems.
MUST READ: DYI – How to Check Car Fuses?
(2013-2017) Dodge Viper (VX) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Viper (VX) 2013-2017 fuse assignment
Dodge Viper (VX) Year of production: 2013, 2014, 2015, 2016, 2017

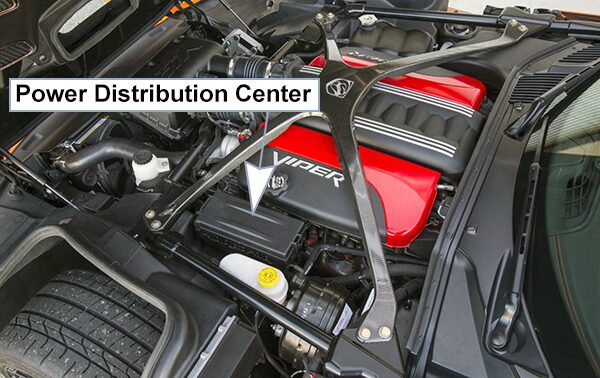

Location of the Fuse Box
The Power Distribution Center is located in the engine compartment on the driver’s side of the vehicle. This center contains fuses and relays.
Fuse Assignment
2013
List of fuses in the PDC (2013)
| â„– | Cartridge Fuse / Relay | Mini-Fuse | Description |
|---|---|---|---|
| 3 | 40A Green | Rad Fan | |
| 4 | 40A Green | Rad Fan Rly High | |
| 5 | 40A Green | ABS/ESP Pump Feed | |
| 6 | 40A Green | Starter | |
| 7 | 40A Green | CBC (Ext. Lighting #1) | |
| 8 | 40A Green | CBC (Ext. Lighting #2) | |
| 9 | 30A Pink | CBC (Int. Lighting, washer) | |
| 10 | 30A Pink | CBC (Power Lock) | |
| 11 | Jumper Black | B+ Jumper | |
| 12 | 25A Natural | ABS/ESP Valve Feed | |
| 13 | 20A Yellow | Horn | |
| 14 | 10A Red | A/C Clutch | |
| 15 | 10A Red | Diagnostic, Mirror, Fuel Door, Stop Switch | |
| 16 | 15A Blue | KIN, RF Hub | |
| 17 | 25A circuit breaker | Power Seats | |
| 18 | 30A Pink | Driver Door Mod | |
| 19 | 30A Pink | Passenger Door Mod | |
| 20 | 30A Pink | EBL | |
| 21 | 20A Blue | Wiper | |
| 22 | B+ Jumper | ||
| 23 | Jumper Black | B+ Jumper | |
| 24 | 25A Natural | PCM – Powertrain Control Module | |
| 25 | 25A Natural | Fuel Pump | |
| 26 | 20A Yellow | ASD #1 | |
| 27 | 20A Yellow | ASD #2 | |
| 28 | Spare | ||
| 29 | 40A Green | HVAC Blower | |
| 30 | 20A Yellow | RR Power Outlet, Adj. Pedals, UCI | |
| 31 | B+ Jumper | ||
| 32 | Jumper Black | B+ Jumper | |
| 33 | 20A Yellow | Spare | |
| 34 | B+ Jumper | ||
| 35 | Jumper Black | Spare | |
| 36 | 10A Red | ORC Mod Run | |
| 37 | 15A Blue | Cluster, Mirror, Camera | |
| 38 | 20A Yellow | Active Damping Suspension | |
| 39 | 10A Red | HVAC Module, In Car Temp | |
| 40 | 15A Blue | Radio | |
| 41 | G8VA | Run/Start | |
| 42 | G8VA | Fuel Door | |
| 43AC (Forward Fuse) | 10A Red | SCCM | |
| 43BE (Rearward Fuse) | 10A Red | Corax | |
| 44BE (Rearward Fuse) | 10A Red | IBS | |
| 45 | 10A Red | PCM – Powertrain Control Module | |
| 46 | 10A Red | ESP Module | |
| 47 | 10A Red | ORC Module | |
| 48 | 10A Red | SCCM | |
| 49 | 25A Natural | Amplifier | |
| 50 | HC Micro | Rad Fan | |
| 51 | HC Micro | Rad Fan Relay SER/PAR | |
| 52 | HC Micro | Starter Relay | |
| 53 | HC Micro | EBL Relay | |
| 54 | HC Relay | Rad Fan Relay High | |
| 55 | HC Micro | Wiper ON/OFF | |
| 56 | HC Micro | Wiper LO/HI | |
| 57 | G8VA | Horn Relay | |
| 58 | G8VA | A/C Clutch Relay | |
| 59 | HC Micro | HVAC Blower | |
| 60 | HC Micro | Fuel Pump | |
| 61 | G8VA | Run Relay #1 | |
| 62 | G8VA | Run Relay #2 | |
| 63 | HC Micro | ASD #1 | |
| 64 | HC Micro | ASD #2 | |
| 65 | G8VA | Run Accy #1, Pop Up |
2014
List of fuses in the PDC (2014)
NOTE: A 15A fuse for the radio system is located in-line at the battery positive terminal.
| â„– | Cartridge Fuse / Relay | Mini-Fuse | Description |
|---|---|---|---|
| 3 | 40A Green | Rad Fan | |
| 4 | 40A Green | Rad Fan Rly High | |
| 5 | 40A Green | ABS/ESP Pump Feed | |
| 6 | 40A Green | Starter | |
| 7 | 40A Green | CBC (Ext. Lighting #1) | |
| 8 | 40A Green | CBC (Ext. Lighting #2) | |
| 9 | 30A Pink | Washer Pump | |
| 10 | 30A Pink | CBC (Power Lock) | |
| 11 | Jumper Black | B+ Jumper | |
| 12 | 25A Natural | ABS/ESP Valve Feed | |
| 13 | 20A Yellow | Horn | |
| 14 | 10A Red | A/C Clutch | |
| 15 | 10A Red | Diagnostic, Fuel Door, Stop Switch | |
| 16 | 15A Blue | KIN, RF Hub | |
| 17 | 25A circuit breaker | Power Seats | |
| 18 | 30A Pink | Driver Door Mod | |
| 19 | 30A Pink | Passenger Door Mod | |
| 20 | 30A Pink | Rear Window Defroster | |
| 21 | 20A Blue | Wiper | |
| 22 | B+ Jumper | ||
| 23 | 15A Blue | HVAC MOD, Cluster, ICS-Switch Bank | |
| 24 | 25A Natural | PCM- Powertrain Control Module | |
| 25 | 25A Natural | Fuel Pump | |
| 26 | 20A Yellow | ASD #1 | |
| 27 | 20A Yellow | ASD #2 | |
| 28 | Spare | ||
| 29 | 40A Green | HVAC Blower | |
| 30 | 20A Yellow | RR Power Outlet, Adj. Pedals, UCI | |
| 31 | B+ Jumper | ||
| 32 | Jumper Black | B+ Jumper | |
| 33 | 20A Yellow | Run Acc relay | |
| 34 | B+ Jumper | ||
| 35 | Spare | ||
| 36 | 10A Red | ORC Mod Run | |
| 37 | 15A Blue | Cluster, Camera | |
| 38 | 20A Yellow | Active Damping Suspension | |
| 39 | 10A Red | HVAC Module, In Car Temp, Blower Relay | |
| 40 | Spare | ||
| 41 | G8VA | Run/Start | |
| 42 | G8VA | Fuel Door | |
| 43AC (Forward Fuse) | 10A Red | SCCM | |
| 43BE (Rearward Fuse) | 10A Red | Corax | |
| 44AC (Forward Fuse) | 10A Red | Rear View Mirror, Aux Port Jumper. | |
| 44BE (Rearward Fuse) | 10A Red | IBS | |
| 45 | 10A Red | PCM – Powertrain Control Module, Fuel Pump Relay. | |
| 46 | 10A Red | ESC Module, Stop Lamp Switch | |
| 47 | 10A Red | ORC Module, Passenger Seat OCM | |
| 48 | 10A Red | SCCM | |
| 49 | 25A Natural | Amplifier | |
| 50 | HC Micro | Rad Fan | |
| 51 | HC Micro | Rad Fan Relay SER/PAR | |
| 52 | HC Micro | Starter Relay | |
| 53 | HC Micro | Rear Window Defroster Relay | |
| 54 | HC Relay | Rad Fan Relay High | |
| 55 | HC Micro | Wiper ON/OFF | |
| 56 | HC Micro | Wiper LO/HI | |
| 57 | G8VA | Horn Relay | |
| 58 | G8VA | A/C Clutch Relay | |
| 59 | HC Micro | HVAC Blower | |
| 60 | HC Micro | Fuel Pump | |
| 61 | G8VA | Run Relay #1 | |
| 62 | G8VA | Run Relay #2 | |
| 63 | HC Micro | ASD #1 | |
| 64 | HC Micro | ASD #2 | |
| 65 | G8VA | Run Accy #1, Pop Up, Driver Door Window Switch |
2015
List of fuses in the PDC (2015)
NOTE: A 15A fuse for the radio system is located in-line at the battery positive terminal.
| â„– | Cartridge Fuse / Relay | Mini-Fuse | Description |
|---|---|---|---|
| 3 | 40A Green | Rad Fan | |
| 4 | 40A Green | Rad Fan Rly High | |
| 5 | 40A Green | ABS/ESP Pump Feed | |
| 6 | 40A Green | Starter | |
| 7 | 40A Green | CBC (Ext. Lighting #1) | |
| 8 | 40A Green | CBC (Ext. Lighting #2) | |
| 9 | 30A Pink | Washer Pump | |
| 10 | 30A Pink | CBC (Power Lock) | |
| 11 | Jumper Black | B+ Jumper | |
| 12 | 25A Clear | ABS/ESP Valve Feed | |
| 13 | 20A Yellow | Horn | |
| 14 | 10A Red | A/C Clutch | |
| 15 | 10A Red | Diagnostic, Fuel Door, Stop Switch | |
| 16 | 15A Blue | KIN, RF Hub | |
| 17 | 25A circuit breaker | Power Seats | |
| 18 | 30A Pink | Driver Door Mod | |
| 19 | 30A Pink | Passenger Door Mod | |
| 20 | 30A Pink | Rear Window Defroster | |
| 21 | 20A Blue | Wiper | |
| 22 | B+ Jumper | ||
| 23 | 15A Blue | HVAC MOD, Cluster, ICS-Switch Bank | |
| 24 | 25A Clear | PCM – Powertrain Control Module | |
| 25 | 25A Clear | Fuel Pump | |
| 26 | 20A Yellow | ASD #1 | |
| 27 | 20A Yellow | ASD #2 | |
| 28 | Spare | ||
| 29 | 40A Green | HVAC Blower | |
| 30 | 20A Yellow | RR Power Outlet, Adj. Pedals, UCI | |
| 31 | B+ Jumper | ||
| 32 | Jumper Black | B+ Jumper | |
| 33 | 20A Yellow | Run Acc relay | |
| 34 | B+ Jumper | ||
| 35 | Spare | ||
| 36 | 10A Red | ORC Mod Run | |
| 37 | 15A Blue | Cluster, Camera | |
| 38 | 20A Yellow | Active Damping Suspension | |
| 39 | 10A Red | HVAC Module, In Car Temp, Blower Relay | |
| 40 | Spare | ||
| 41 | G8VA | Run/Start | |
| 42 | G8VA | Fuel Door | |
| 43AC (Forward Fuse) | 2A Grey | SCCM | |
| 43BE (Rear- ward Fuse) | 10A Red | Corax | |
| 44AC (Forward | 10A Red | Rear View Mirror, Aux Port Jumper. | |
| Fuse) | |||
| 44BE (Rear- ward Fuse) | 10A Red | IBS | |
| 45 | 10A Red | PCM – Powertrain Control Module, Fuel Pump Relay. | |
| 46 | 10A Red | ESC Module, Stop Lamp Switch | |
| 47 | 10A Red | ORC Module, Passenger Seat OCM | |
| 48 | 10A Red | SCCM | |
| 49 | 25A Clear | Amplifier | |
| 50 | HC Micro | Rad Fan | |
| 51 | HC Micro | Rad Fan Relay SER/PAR | |
| 52 | HC Micro | Starter Relay | |
| 53 | HC Micro | Rear Window Defroster Relay | |
| 54 | HC Relay | Rad Fan Relay High | |
| 55 | HC Micro | Wiper ON/OFF | |
| 56 | HC Micro | Wiper LO/HI | |
| 57 | G8VA | Horn Relay | |
| 58 | G8VA | A/C Clutch Relay | |
| 59 | HC Micro | HVAC Blower | |
| 60 | HC Micro | Fuel Pump | |
| 61 | G8VA | Run Relay #1 | |
| 62 | G8VA | Run Relay #2 | |
| 63 | HC Micro | ASD #1 | |
| 64 | HC Micro | ASD #2 | |
| 65 | G8VA | Run Accy #1, Pop Up, Driver Door Window Switch |
2016
List of fuses in the PDC (2016)
NOTE: A 15A fuse for the radio system is located in-line at the battery positive terminal.
| â„– | Cartridge Fuse / Relay | Mini-Fuse | Description |
|---|---|---|---|
| 3 | 40A Green | Rad Fan | |
| 4 | 40A Green | Rad Fan Rly High | |
| 5 | 40A Green | ABS/ESP Pump Feed | |
| 6 | 40A Green | Starter | |
| 7 | 40A Green | CBC (Ext. Lighting #1) | |
| 8 | 40A Green | CBC (Ext. Lighting #2) | |
| 9 | 30A Pink | CBC (Lighting, Washer Pump) | |
| 10 | 30A Pink | CBC (Power Lock) | |
| 11 | Jumper Black | B+ Jumper | |
| 12 | 25A Clear | ABS/ESP Valve Feed | |
| 13 | 20A Yellow | Horn | |
| 14 | 10A Red | A/C Clutch | |
| 15 | 10A Red | Diagnostic, Fuel Door, Stop Switch | |
| 16 | 15A Blue | KIN, RF Hub | |
| 17 | 25A circuit breaker | Power Seats | |
| 18 | 30A Pink | Driver Door Mod | |
| 19 | 30A Pink | Passenger Door Mod | |
| 20 | 30A Pink | Rear Window Defroster | |
| 21 | 20A Blue | Wiper | |
| 22 | Jumper Black | B+ Jumper | |
| 23 | 15A Blue | HVAC MOD, Cluster, ICS-Switch Bank | |
| 24 | 25A Clear | PCM – Powertrain Control Module | |
| 25 | 25A Clear | Fuel Pump | |
| 26 | 20A Yellow | ASD #1 | |
| 27 | 20A Yellow | ASD #2 | |
| 28 | Spare | ||
| 29 | 40A Green | HVAC Blower | |
| 30 | 20A Yellow | RR Power Outlet, Adj. Pedals, UCI | |
| 31 | Jumper Black | B+ Jumper | |
| 32 | Spare | ||
| 33 | 20A Blue | Run Acc relay | |
| 34 | Jumper Black | B+ Jumper | |
| 35 | Spare | ||
| 36 | 10A Red | ORC Mod Run | |
| 37 | 15A Blue | Cluster, Camera | |
| 38 | 20A Yellow | Active Damping Suspension | |
| 39 | 10A Red | HVAC Module, In Vehicle Temp, Blower Relay | |
| 40 | Spare | ||
| 41 | G8VA | Run/Start | |
| 42 | G8VA | Fuel Door | |
| 43AC (Forward Fuse) | 2A Grey | SCCM | |
| 43BE (Rearward Fuse) | 10A Red | Corax | |
| 44AC (Forward Fuse) | 10A Red | Rear View Mirror, Aux Port Jumper. | |
| 44BE (Rearward Fuse) | 10A Red | IBS | |
| 45 | 10A Red | PCM – Powertrain Control Module, Fuel Pump Relay. | |
| 46 | 10A Red | ESC Module, Stop Lamp Switch | |
| 47 | 10A Red | ORC Module, Passenger Seat OCM | |
| 48 | 10A Red | SCCM | |
| 49 | 25A Clear | Amplifier | |
| 50 | HC Micro | Rad Fan | |
| 51 | HC Micro | Rad Fan Relay SER/PAR | |
| 52 | HC Micro | Starter Relay | |
| 53 | HC Micro | Rear Window Defroster Relay | |
| 54 | HC Relay | Rad Fan Relay High | |
| 55 | HC Micro | Wiper ON/OFF | |
| 56 | HC Micro | Wiper LO/HI | |
| 57 | G8VA | Horn Relay | |
| 58 | G8VA | A/C Clutch Relay | |
| 59 | HC Micro | HVAC Blower | |
| 60 | HC Micro | Fuel Pump | |
| 61 | G8VA | Run Relay #1 | |
| 62 | G8VA | Run Relay #2 | |
| 63 | HC Micro | ASD #1 | |
| 64 | HC Micro | ASD #2 | |
| 65 | G8VA | Run Accy #1, Pop Up, Driver Door Window Switch | |
| 66 | Spare |
2017
List of fuses in the PDC (2017)
NOTE: A 15A fuse for the radio system is located in-line at the battery positive terminal.
| â„– | Cartridge Fuse / Relay | Mini-Fuse | Description |
|---|---|---|---|
| 3 | 40A Green | Rad Fan | |
| 4 | 40A Green | Rad Fan Rly High | |
| 5 | 40A Green | ABS/ESP Pump Feed | |
| 6 | 40A Green | Starter | |
| 7 | 40A Green | CBC (Ext. Lighting #1) | |
| 8 | 40A Green | CBC (Ext. Lighting #2) | |
| 9 | 30A Pink | CBC (Lighting, Washer Pump) | |
| 10 | 30A Pink | CBC (Power Lock) | |
| 11 | Jumper Black | B+ Jumper | |
| 12 | 25A Clear | ABS/ESP Valve Feed | |
| 13 | 20A Yellow | Horn | |
| 14 | 10A Red | A/C Clutch | |
| 15 | 10A Red | Diagnostic, Fuel Door, Stop Switch | |
| 16 | 15A Blue | KIN, RF Hub | |
| 17 | 25A circuit breaker | Power Seats | |
| 18 | 30A Pink | Driver Door Mod | |
| 19 | 30A Pink | Passenger Door Mod | |
| 20 | 30A Pink | Rear Window Defroster | |
| 21 | 20A Blue | Wiper | |
| 22 | Jumper Black | B+ Jumper | |
| 23 | 15A Blue | HVAC MOD, Cluster, ICS-Switch Bank | |
| 24 | 25A Clear | PCM – Powertrain Control Module | |
| 25 | 25A Clear | Fuel Pump | |
| 26 | 20A Yellow | ASD #1 | |
| 27 | 20A Yellow | ASD #2 | |
| 28 | Not Used | ||
| 29 | 40A Green | HVAC Blower | |
| 30 | 20A Blue | RR Power Outlet, Adj. Pedals, UCI | |
| 31 | Jumper Black | B+ Jumper | |
| 32 | Not Used | ||
| 33 | 20A Blue | Run Acc Relay | |
| 34 | Jumper Black | B+ Jumper | |
| 35 | Not Used | ||
| 36 | 10A Red | ORC Mod Rim | |
| 37 | 15A Blue | Cluster, Camera | |
| 38 | 20A Yellow | Active Damping Suspension | |
| 39 | 10A Red | HVAC Module, In Vehicle Temp, Blower Relay | |
| 40 | Not Used | ||
| 41 | G8VA | Run/Start | |
| 42 | G8VA | Fuel Door | |
| 43AC (Forward Fuse) | 2A Grey | SCCM | |
| 43BE (Rearward Fuse) | 10A Red | Tire Pressure Module | |
| 44AC (Forward Fuse) | 10A Red | Rear View Mirror, Aux Port Jumper | |
| 44BE (Rearward Fuse) | 10A Red | Intelligent Battery Sensor | |
| 45 | 10A Red | PCM – Powertrain Control Module, Fuel Pump Relay | |
| 46 | 10A Red | ESC Module, Stop Lamp Switch | |
| 47 | 10A Red | ORC Module, Passenger Seat OCM | |
| 48 | 10A Red | SCCM | |
| 49 | 25A Clear | Amplifier | |
| 50 | HC Micro | Rad Fan | |
| 51 | HC Micro | Rad Fan Relay SER/PAR | |
| 52 | HC Micro | Starter Relay | |
| 53 | HC Micro | Rear Window Defroster Relay | |
| 54 | HC Relay | Rad Fan Relay High | |
| 55 | HC Micro | Wiper ON/OFF | |
| 56 | HC Micro | Wiper LO/HI | |
| 57 | G8VA | Horn Relay | |
| 58 | G8VA | A/C Clutch Relay | |
| 59 | HC Micro | HVAC Blower | |
| 60 | HC Micro | Fuel Pump | |
| 61 | G8VA | Rim Relay #1 | |
| 62 | G8VA | Run Relay #2 | |
| 63 | HC Micro | ASD #1 | |
| 64 | HC Micro | ASD #2 | |
| 65 | G8VA | Run Accy #1, Pop Up, Driver Door Window Switch | |
| 66 | Not Used |
Conclusion
The Dodge Viper (VX) 2013-2017 pairs stunning design with cutting-edge engineering. Proper maintenance of the fuse box and relays ensures this supercar’s performance remains uncompromised.
