(2015-2018) Dodge Ram ProMaster City fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Ram ProMaster City 2015-2018 fuse assignment
Year of production: from 2015, 2016, 2017, 2018
Underhood Fuses
Fuse Box Location

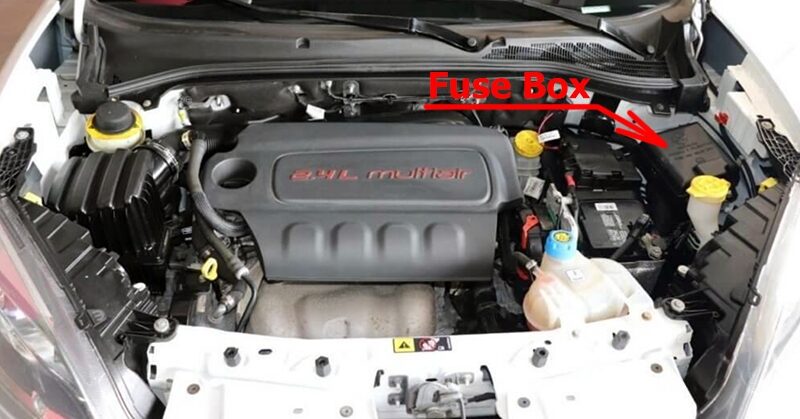

The Front Distribution Unit is located on the right side of the engine compartment, next to the battery. To access the fuses, remove fasteners and remove the cover. The ID number of the electrical component corresponding to each fuse can be found on the back of the cover.
Fuse Box Diagram

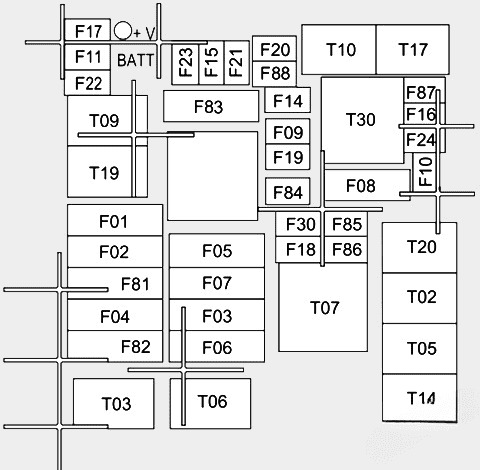

Assignment of the fuses in the Front Distribution Unit
| № | Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| F01 | 60A Blue | Body Controller | |
| F02 | 40A Orange | 2015-2016: Front Heated Seats, Second 12 Volt IP Outlet 2017-2018: Rear Power Windows, Fog Lamps, Front Heated Seats (If Equipped) | |
| F02 | 30A Green | 2015-2016: Rear Power Window Including Front Heated Seats, Second 12 Volt IP Outlet 2017-2018: Rear Power Windows, Front Heated Seats (If Equipped) | |
| F02 | 30A Green | 2017-2018: Fog Lamps, Front Heated Seats (If Equipped) | |
| F02 | 20A Yellow | 2017-2018: Front Heated Seats | |
| F03 | 20A Yellow | Ignition Switch | |
| F04 | 40A Orange | BSM System Module | |
| F06 | 20A Yellow | Radiator Fan – Low Speed | |
| F07 | 50A Red | Radiator Fan – High Speed | |
| F08 | 40A Orange | Blower Motor | |
| F10 | 15A Blue | Horn | |
| F11 | 10A Red | Secondary Loads ECM | |
| F14 | 15A Blue | High Beam | |
| F16 | 5A Tan | ECM and Transmission Shifter | |
| F17 | 25A Clear | ECM Power Loads | |
| F18 | 5A Tan | ECM Load, Main Relay | |
| F19 | 7.5A Brown | Air Conditioning | |
| F20 | 30A Green | Rear Defroster | |
| F21 | 5A Tan | Key Unlock | |
| F22 | 10A Red | Primary ECM Loads | |
| F23 | 20A Yellow | BSM System | |
| F24 | 5A Tan | BSM System, Positive Key and Steering Angle Sensor | |
| F30 | 15A Blue | 2015-2016: Fog Lamp 2017-2018: 2nd Instrument Panel Power Outlet | |
| F83 | 20A Yellow | Fuel Pump | |
| F84 | 15A Blue | AT Module | |
| F85 | 15A Blue | Rear Power Outlet 12V | |
| F86 | 15A Blue | IP Power Outlet 12V | |
| F87 | 5A Tan | IBS | |
| F88 | 7.5A Brown | External Mirror Defrost |
Interior Fuses
Fuse Box Location

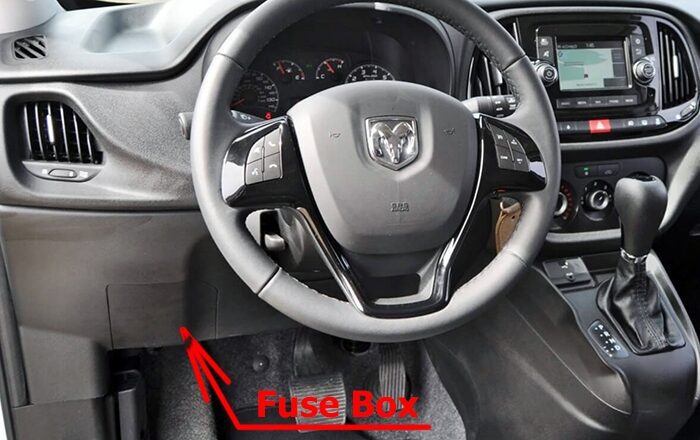

The interior fuses are located on the driver’s side under the instrument panel. Remove the cover to access.
Fuse Box Diagrams
Body Control Module (BCM)

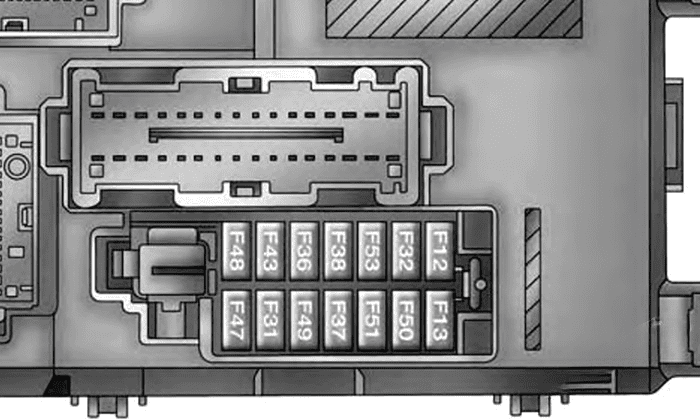

Assignment of the fuses in the Body Control Module
| № | Mini Fuse | Description |
|---|---|---|
| F53 | 5A Beige | KL 30 (+30) – IPC |
| F38 | 20A Yellow | Central Doors Locking |
| F36 | 10A Red / 15A Blue | 2015-2017: KL 30 (+30) – TPMS, EOBD, HVAC, Radio 2018: KL 30 (+30) – TPMS, EOBD, HVAC, Radio, SGW |
| F43 | 15A Blue | Bi-Directional Washer Pump |
| F48 | 20A Yellow | Passenger Power Windows |
| F50 | 7.5A Brown | KL 15 (+15) – Air-Bag |
| F51 | 7.5A Brown | KL 15 (+15) – External Mirror Adjustment Command, HVAC, RVC, HWB Coils |
| F37 | 5A Beige | KL 15 (+15) – Brake Pedal Switch (N.O.), IPC, Brake Pedal Switch (N.C.) |
| F49 | 5A Beige | 2015-2017: KL 15 (+15) – PAM, CSS Lighting, ECM Backlighting, TTM 2018: KL 15 (+15) – PAM, CSS Lighting, TTM, SGW, and Heaters Light |
| F31 | 5A Beige | KL 15a (INT A) – HWB, MCO |
| F47 | 20A Yellow | Driver Power Windows |
Central Unit Fuse Panel

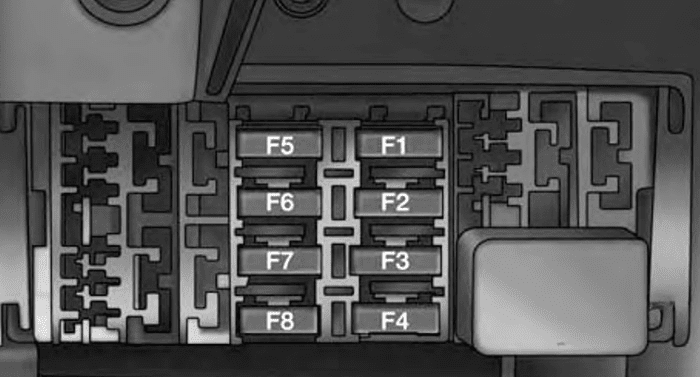

Assignment of the fuses in the Central Unit Fuse Panel
| № | Mini Fuse | Description |
|---|---|---|
| F1 | 10A Red | Front Heated Seat Passenger |
| F2 | 10A Red | Front Heated Seat Driver |
| F3 | 20A Yellow | Rear Power Window Driver side |
| F4 | 20A Yellow | Rear Power Window Passenger side |
| F5 | 15A Blue | 2015-2016: 2nd Instrument Panel Power Outlet 12V 2017-2018: Fog Lamps |
Conclusion
For owners and enthusiasts of classic Dodge Ram ProMaster City 2015-2018, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dodge’s craftsmanship and innovation in the automotive industry during that era.
