The Dodge Neon (2000-2005) comes in several trims, including SE, LX, and R/T models, offering a range of features like power windows, air conditioning, and, in higher trims, a sport-tuned suspension. These features rely on the car’s electrical system, which is managed by fuses and relays.

The fuse box, located in the engine compartment and sometimes within the cabin, protects crucial components like the headlights, power windows, and audio system from electrical surges. If a fuse blows, it cuts off power to prevent damage to these systems.

The relays control larger electrical functions like the starter motor, fuel pump, and air conditioning compressor. These relays act as switches, managing the flow of electricity from low-current control systems to high-current devices. A malfunctioning relay could lead to starting issues or air conditioning failure.

Regular maintenance of the fuse box and relays ensures that the Dodge Neon’s features remain functional and that the car operates smoothly without unexpected electrical failures. Properly functioning relays and fuses are key to maintaining the Neon’s reliability.

MUST READ: DYI – How to Check Car Fuses?

(2000-2005) Dodge Neon fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Neon 2000-2005 fuse assignment

  • Cigar lighter (power outlet) fuse in the Dodge Neon is the fuse №14 in the Power Distribution Center.

Year of production: from 2000, 2001, 2002, 2003, 2004, 2005

Underhood Fuses (Power Distribution Center)

Fuse box location

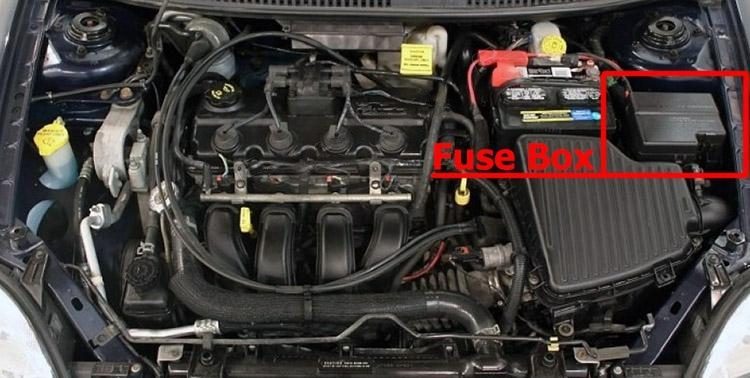

The location of the fuses in the engine compartment: Dodge Neon (2000-2005)
The location of the fuses in the engine compartment: Dodge Neon (2000-2005)

A Power Distribution Center (PDC) is located in the engine compartment, next to the battery.

A label identifying the components and circuits is located on the underside of the cover.

Fuse Box Diagram

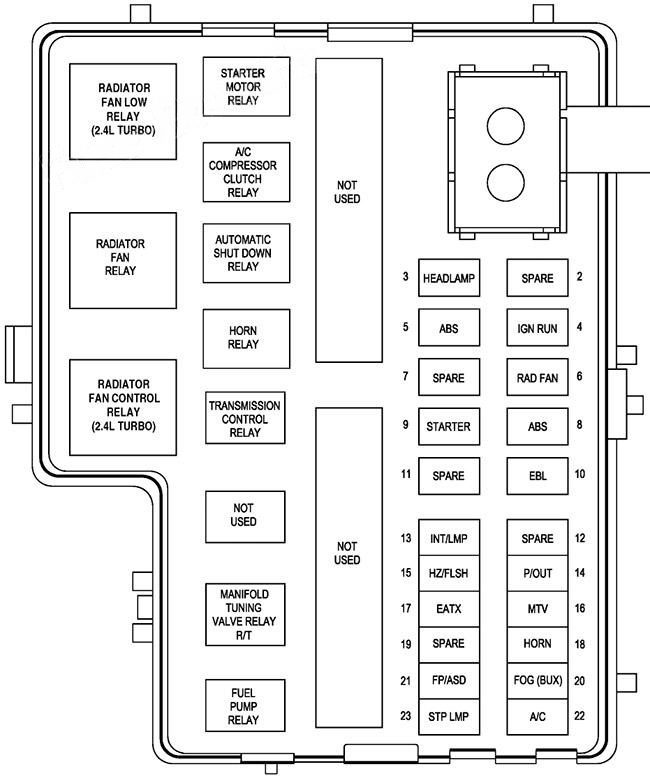

Under-hood fuse box diagram: Dodge Neon (2000, 2001, 2002, 2003, 2004, 2005)
Under-hood fuse box diagram: Dodge Neon (2000, 2001, 2002, 2003, 2004, 2005)

Assignment of fuses in the Power Distribution center (2005)

Amp/ColorItems Fused
MAXI FUSES:
1
2
340 Amp/ GreenHeadlamps
440 Amp/ GreenIgnition Run
530 Amp/PinkABS Solenoid
630 Amp/PinkRadiator Fan
7Spare
840 Amp/ GreenABS Pump
930 Amp/PinkStarter
1040 Amp/ GreenElectric Back Light (EBL)
MINI FUSES:
11Spare
12Spare
1320 Amp/ YellowIOD/Int Lighting/Radio
1420 Amp/ YellowPower Outlet
1515 Amp/BlueHazard Flasher
1615 Amp/BlueMTV
1720 Amp/ YellowElectronic Automatic Transaxle (EATX)
1810 Amp/RedHorn
19Spare
2020 Amp/ YellowFog Lamp (Export Only)
2120 Amp/ YellowASD/Fuel Pump
2210 Amp/RedA/C Clutch
2315 Amp/BlueStop Lamps

Interior Fuses

Fuse box location

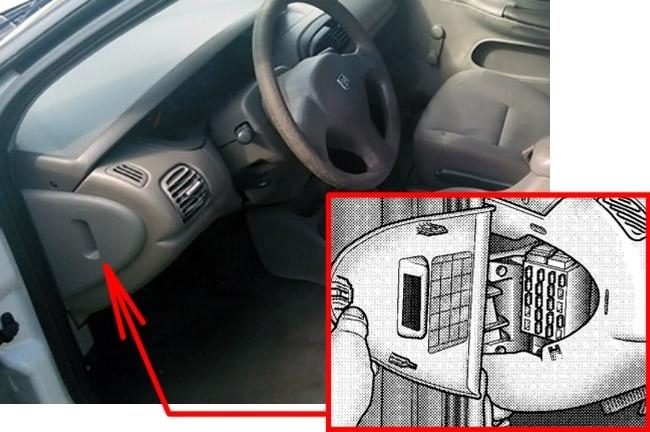

The location of the fuses in the passenger compartment: Dodge Neon (2000-2005)
The location of the fuses in the passenger compartment: Dodge Neon (2000-2005)

The fuse access panel is behind the end cover at the left side of the instrument panel.
To remove the panel, pull it out, as shown. A diagram identifying the components and circuits is located on the inside of the cover.

Fuse Box Diagram

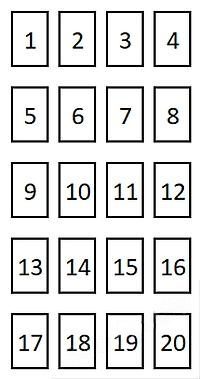

Instrument panel fuse box diagram: Dodge Neon (2000, 2001, 2002, 2003, 2004, 2005)
Instrument panel fuse box diagram: Dodge Neon (2000, 2001, 2002, 2003, 2004, 2005)

Assignment of the interior fuses (2005)

Amp/ColorItems Fused
110 Amp/RedPower Mirror/ Multifunction
220 Amp/ YellowWiper Switch/Motor
320 Amp/ YellowRadio/Power Sunroof
415 Amp/BlueInterior Lighting
510 Amp/RedAirbag Run Only
620 Amp/ YellowHVAC Blower
710 Amp/RedBackup Switch/EBL/ Temp/Comp
815 Amp/BlueHigh Headlamp
910 Amp/RedAirbag Run-Start
1015 Amp/BlueABS Engine Run Start
1110 Amp/RedARKEM Run Start
1210 Amp/RedIgnition Off/Run/ Start
1320 Amp/ YellowPower Seat Height Adjust
1420 Amp/ YellowARKEM Door Locks
1515 Amp/BlueExterior Lighting
1625 Amp/ NaturalHeadlamp
1710 Amp/RedLt Low Beam Headlamp/ Headlamp Level Switch (Bux Only)
1810 Amp/RedRt Low Beam Headlamp/ Headlamp Level Motor
1910 Amp/RedFog lamps
20Spare

Conclusion

For owners and enthusiasts of classic Dodge Neon 2000-2005, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dodge’s craftsmanship and innovation in the automotive industry during that era.
