Learn about Dodge Ram Cargo Van or C/V Tradesman 2012-2015 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Ram Cargo Van, also known as the C/V Tradesman (2012-2015), is designed primarily for commercial use, featuring a spacious cargo area for transporting goods or equipment. It retains the body style of a minivan but removes the rear seats, optimizing space for businesses needing a reliable work vehicle. The vehicle is equipped with sliding side doors and rear cargo doors, making loading and unloading convenient.
The van’s electrical system, which powers various features such as lights, power windows, and climate control, relies heavily on its fuse box and relay system. The fuse box, located under the dashboard or hood, protects the electrical circuits from damage caused by overloads. Relays, housed near the fuse box, control high-power systems such as the fuel pump, starter, and HVAC fan. Proper maintenance of the fuse box and relays is essential to avoid electrical issues and ensure the van runs smoothly, keeping all its work-related features functional.
MUST READ: DYI – How to Check Car Fuses?
(2012-2015) Dodge Ram Cargo Van or C/V Tradesman fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Ram Cargo Van or C/V Tradesman 2012-2015 fuse assignment
Year of production: from 2012, 2013, 2014, 2015
Totally Integrated Power Module

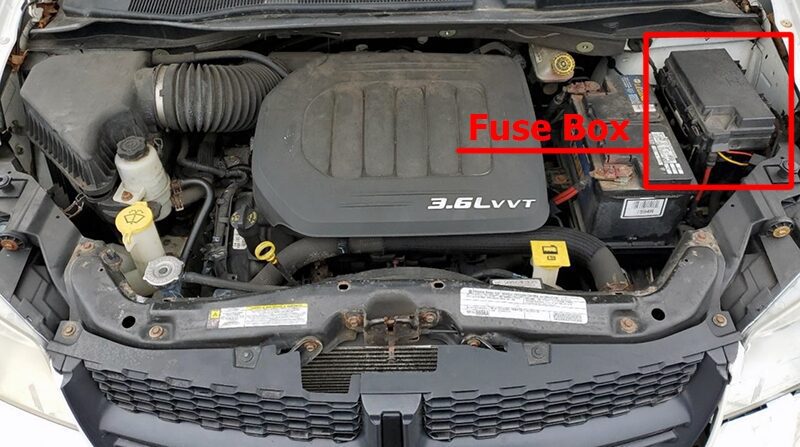

The Totally Integrated Power Module is located in the engine compartment near the battery. This center contains cartridge fuses and mini-fuses. A label that identifies each component may be printed or embossed on the inside of the cover.
Power windows:
- 2012: The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column.
- 2013-2015: The power windows are fused by a 25 Amp circuit breaker located in the Totally Integrated Power Module.
Fuse Box Diagram

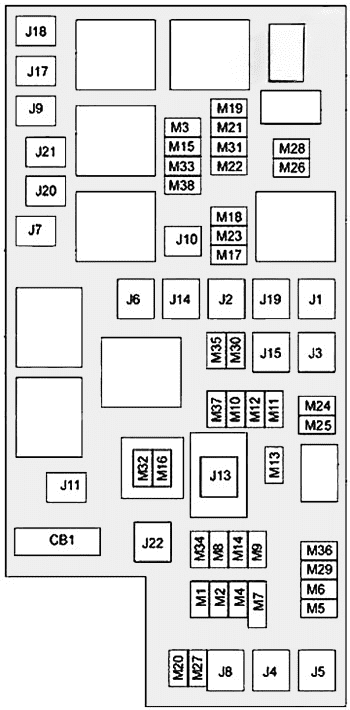

Assignment of the fuses in the engine compartment
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40A Green | – | Power Folding Seat |
| J2 | 30A Pink | – | Power Liftgate Module |
| J3 | 30A Pink | – | Rear Door Module |
| J4 | 25A Clear | – | Driver Door Node |
| J5 | 25A Clear | – | Passenger Door Node |
| J6 | 40A Green | – | Antilock Brakes Pump / Stability Control System |
| J7 | 30A Pink | – | Antilock Brakes Valve / Stability Control System |
| J8 | 40A Green | – | Power Memory Seat – If Equipped |
| J9 | 40A Green | – | Partial Zero Emissions Vehicle Motor / Flex Fuel – If Equipped |
| J10 | 30A Pink | – | Headlamp Wash / Manifold Tuning Valve – If Equipped |
| J11 | 30A Pink | – | Power Sliding Door Module / Anti-Theft Module – If Equipped |
| J12 | 30A Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40A Green | – | Rear Window Defogger |
| J15 | 40A Green | – | Front Blower |
| J17 | 40A Green | – | Starter Solenoid |
| J18 | 20A Blue | – | Powertrain Control Module Trans Range |
| J19 | 60A Yellow | – | Radiator Fan |
| J20 | 30A Pink | – | Front Wiper LO/HI |
| J21 | 20A Blue | – | Front/Rear Washer |
| J22 | 25A Clear | – | Sunroof Module |
| M1 | – | 15A Blue | Rear Center Brake Lamp / Brake Switch |
| M2 | – | 20A Yellow | 2012: Trailer Lighting, Front Fog Lamps, Intelligent Battery Sensor (IBS) 2013-2015: Front Fog Lamps |
| M3 | – | 20A Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | – | 10A Red | Trailer Tow |
| M5 | – | 25A Clear | Inverter |
| M6 | – | 20A Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | – | 20A Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | – | 20A Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20A Yellow | Rear Heated Seat – If Equipped |
| M10 | – | 15A Blue | Ignition Off Draw – Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | – | 10A Red | Climate Control System |
| M12 | – | 30A Green | Amplifier / Radio |
| M13 | – | 20A Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | – | 20A Yellow | Trailer Tow – If Equipped |
| M15 | – | 20A Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | – | 10A Red | Airbag Module / Occupant Classification Module |
| M17 | – | 15A Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15A Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25A Clear | Powertrain |
| M20 | – | 15A Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | – | 20A Yellow | Powertrain |
| M22 | – | 10A Red | Horn |
| M23 | – | 10A Red | Horn |
| M24 | – | 25A Clear | Rear Wiper |
| M25 | – | 20A Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10A Red | Power Mirror Switch, Driver Window Switch |
| M27 | – | 10A Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10A Red | Powertrain, Transmission Control Module |
| M29 | – | 10A Red | Occupant Classification Module |
| M30 | – | 15A Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20A Yellow | Back-Up Lamps |
| M32 | – | 10A Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10A Red | Powertrain |
| M34 | – | 10A Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | – | 10A Red | Heated Mirrors |
| M36 | – | 20A Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | – | 10A Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | – | 25A Clear | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | 25A circuit breaker | – | 2013-2015: Power Windows |
Conclusion
For owners and enthusiasts of classic Dodge Ram Cargo Van or C/V Tradesman 2012-2015, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dodge’s craftsmanship and innovation in the automotive industry during that era.
