(2006-2007) Dodge Charger (LX) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Charger (LX) 2006-2007 fuse assignment
Dodge Charger (LX) Year of production: 2006, 2007
Location of Fuse Boxes
Front Power Distribution Center:

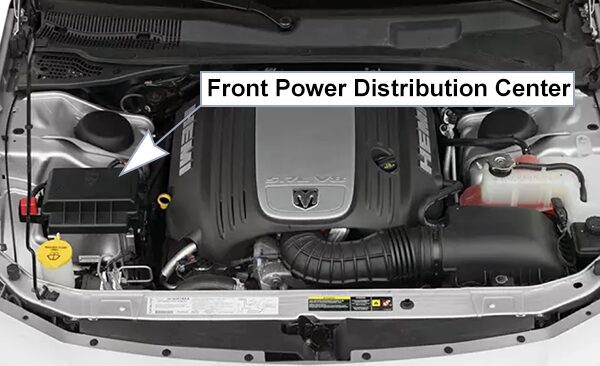

A power distribution center is located in the engine compartment. This center contains fuses and relays.
Rear Power Distribution Center:
There is also a power distribution center located in the rear compartment under the spare tire access panel. This center contains fuses and relays.
Fuse Box Diagrams
2006
Front Power Distribution Center
List of fuses in the Front PDC (2006)
| № | A | Circuits |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | 15A Blue | Adjustable Pedals – if equipped |
| 4 | 20A Yellow | AC Clutch / Horn |
| 5 | – | – |
| 6 | 15A Blue | Front Control Module (FCM) |
| 7 | 20A Yellow | Fog Lights |
| 8 | 15A Blue | Lights – License, Park, Side Marker, Stop, Turn |
| 9 | 15A Blue | Front Control Module (FCM) |
| 10 | 5A Orange | Powertrain Control Module (PCM) / Starter |
| 11 | 20A Yellow | Auto Shutdown / Powertrain Control Module (PCM) |
| 12 | – | – |
| 13 | – | – |
| 14 | 25A Clear | Powertrain Control Module (PCM) |
| 15 | 25A Clear | Injectors, Ignition Coils |
| 16 | – | – |
| 17 | 30A Pink | Antilock Brakes System (ABS) Valves / Powertrain Control Module (PCM) |
| 18 | 30A Pink | Windshield Wiper / Washer |
| 19 | 50A Red | Radiator Fan |
| 20 | 20A Blue | Starter |
| 21 | 50A Red | Antilock Brakes System (ABS) Pump Motor |
| 22 | 40A Green | AC Clutch / Radiator Fan High – Low |
| 23 | – | – |
| 24 | – | – |
| 25 | 30A Pink | Front Control Module (FCM) |
| 26 | 20A Blue | Transmission – RLE |
| 27 | 30A Pink | Front Control Module (FCM) |
Rear Power Distribution Center
List of fuses in the Rear PDC (2006)
| № | A | Circuits |
|---|---|---|
| 1 | 60A Yellow | Ignition Off Draw (IOD) |
| 2 | 40A Green | Battery |
| 3 | – | – |
| 4 | 40A Green | Battery |
| 5 | 30A Pink | Heated Seats – if equipped |
| 6 | 20A Yellow | Fuel Pump |
| 7 | – | – |
| 8 | 15A Blue | Ignition Switch / Occupant Classification Module (OCM) |
| 9 | 20A Yellow | Console Power Outlet |
| 10 | – | – |
| 11 | 25A C/BRKR | Cluster – without power memory seat / Driver Seat Switch – with power memory seat / Memory Module – if equipped |
| 12 | 25A C/BRKR | Passenger Seat Switch |
| 13 | 25A C/BRKR | Door Modules – except base / Driver Door Lock Switch – base / Driver Express Power Window Switch – if equipped / Passenger Door Lock Switch – base |
| 14 | 10A Red | AC Heater Control / Cluster / Sentry Key Remote Keyless Entry |
| 15 | 20A Yellow | Trailer Tow Brake Module – if equipped |
| 16 | – | – |
| 17 | 20A Yellow | Cluster |
| 18 | 20A Yellow | Selectable Power Outlet |
| 19 | 10A Red | Stop Lights |
| 20 | – | – |
| 21 | – | – |
| 22 | – | – |
| 23 | – | – |
| 24 | – | – |
| 25 | – | – |
| 26 | – | – |
| 27 | 10A Red | Airbag / Occupant Classification Module |
| 28 | 10A Red | Curtain Airbag – if equipped |
| 29 | 5A Orange | Antilock Brakes Module / Cluster / Front Control Module (FCM) / Powertrain Control Module (PCM) / Sentry Key Remote Keyless Entry / Stop Lights |
| 30 | 10A Red | Door Modules / Power Mirrors – if equipped / Steering Control Module |
| 31 | – | – |
| 32 | – | – |
| 33 | – | – |
| 34 | – | – |
| 35 | 5A Orange | Amplifier – if equipped / Antenna / Ignition Delay / Overhead Console – if equipped / Passenger Door Lock & Express Power Window Switch – if equipped / Power Mirrors – if equipped / Rear Defrost |
| 36 | 20A Yellow | Hands Free Phone – if equipped / Media System Monitor DVD – if equipped / Radio / Satellite Receiver – if equipped |
| 37 | 15A Blue | Transmission – NAG1 |
| 38 | 5A Orange | Analog Clock / Cargo Light / Overhead Console – if equipped |
| 39 | 10A Red | Heated Mirrors – if equipped |
| 40 | 5A Orange | Heated Seats – if equipped / Inside Rearview Mirror / Manual Temperature Control (early build) – if equipped |
| 41 | 10A Red | AC Heater Control (except early build MTC) / Tire Pressure Monitoring – if equipped |
| 42 | 30A Pink | Front Blower Motor |
| 43 | 30A Pink | Amplifier – if equipped / Antenna / Rear Defrost |
| 44 | 20A Blue | Amplifier – if equipped / Front Control Module (FCM) / Sunroof – if equipped |
2007
Front Power Distribution Center
List of fuses in the Front PDC (2007)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | – | – | – |
| 2 | – | – | – |
| 3 | – | 15A Blue | Adjustable Pedals – if equipped |
| 4 | – | 20A Yellow | AC Clutch / Horn |
| 5 | – | – | – |
| 6 | – | 15A Blue | Front Control Module (FCM) |
| 7 | – | 20A Yellow | Fog Lights – if equipped |
| 8 | – | 15A Blue | Lights – License, Park, Side Marker, Stop, Turn |
| 9 | – | 15A Blue | Front Control Module (FCM) |
| 10 | – | 5A Orange | Powertrain Control Module (PCM) / Starter |
| 11 | – | 25A Clear | Auto Shutdown / Powertrain Control Module (PCM) |
| 12 | – | – | – |
| 13 | – | – | – |
| 14 | – | 25A Clear | Powertrain Control Module (PCM) |
| 15 | – | 20A Yellow | Injectors, Ignition Coils |
| 16 | – | – | – |
| 17 | 30A Pink | – | Anti-lock Brakes System (ABS) Valves – if equipped / Powertrain Control Module (PCM) |
| 18 | 30A Pink | – | Windshield Wiper / Washer |
| 19 | 50A Red | – | Radiator Fan |
| 20 | 20A Blue | – | Starter |
| 21 | 50A Red | – | Anti-lock Brakes System (ABS) Pump Motor – if equipped |
| 22 | 40A Green | – | AC Clutch / Radiator Fan High – Low |
| 23 | – | – | – |
| 24 | 60A Yellow | – | Radiator Fan – AWD |
| 25 | 30A Pink | – | Front Control Module (FCM) |
| 26 | 20A Blue | – | Transmission – RLE |
| 27 | 30A Pink | – | Front Control Module (FCM) |
Rear Power Distribution Center
List of fuses in the Rear PDC (2007)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 60A Yellow | – | Ignition Off Draw (IOD) |
| 2 | 40A Green | – | Battery |
| 3 | – | – | – |
| 4 | 40A Green | – | Battery |
| 5 | 30A Pink | – | Heated Seats – if equipped |
| 6 | – | 20A Yellow | Fuel Pump |
| 7 | – | – | – |
| 8 | – | 15A Blue | Ignition Switch / Airbag Control Module (ACM) |
| 9 | – | 20A Yellow | Console Power Outlet |
| 10 | – | – | – |
| 11 | 25A Circuit breaker | Cluster | |
| 12 | 25A Circuit breaker | Passenger Seat Switch | |
| 13 | 25A Circuit breaker | Door Modules (except base) / Driver Door Lock Switch (base) / Driver Express Power Window Switch (if equipped) / Passenger Door Lock Switch (base) | |
| 14 | – | 10A Red | AC Heater Control / Cluster / Sentry Key Remote Keyless Entry |
| 15 | – | 20A Yellow | Trailer Tow Brake Module – if equipped |
| 16 | – | ||
| 17 | – | 20A Yellow | Cluster |
| 18 | – | 20A Yellow | Selectable Power Outlet |
| 19 | – | 10A Red | Stop Lights |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
| 23 | – | – | – |
| 24 | – | – | – |
| 25 | – | – | – |
| 26 | – | – | – |
| 27 | – | 10A Red | Airbag / Airbag Control Module (ACM) |
| 28 | – | 10A Red | Curtain Airbag – if equipped |
| 29 | – | 5A Orange | Anti-lock Brakes Module – if equipped / Cluster / Front Control Module (FCM) / Powertrain Control Module (PCM) / Sentry Key Remote Keyless Entry / Stop Lights |
| 30 | – | 10A Red | Door Modules/Power Mirrors – if equipped/ Steering Control Module |
| 31 | – | – | – |
| 32 | – | – | – |
| 33 | – | – | – |
| 34 | – | – | – |
| 35 | – | 5A Orange | Amplifier – if equipped / Antenna / Ignition Delay / Overhead Console / Passenger Door Lock & Express Power Window Switch – if equipped / Power Mirrors – if equipped / Rear Defrost |
| 36 | – | 20A Yellow | Hands Free Phone – if equipped / Media System Monitor DVD – if equipped / Radio / Satellite Receiver – if equipped |
| 37 | – | 15A Blue | Transmission – NAG1 |
| 38 | – | 5A Orange | Cargo Light / Overhead Console |
| 39 | – | 10A Red | Heated Mirrors – if equipped |
| 40 | – | 5A Orange | Heated Seats – if equipped / Inside Rearview Mirror |
| 41 | – | 10A Red | AC Heater Control / Tire Pressure Monitoring – if equipped |
| 42 | 30A Pink | – | Front Blower Motor |
| 43 | 30A Pink | – | Amplifier – if equipped / Antenna / Rear Defrost |
| 44 | 20A Blue | – | Amplifier – if equipped / Front Control Module (FCM) / Sunroof – if equipped |
