(2015-2023) Dodge Challenger fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Challenger 2015-2023 fuse assignment
Dodge Challenger Year of production: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Location of Fuse Boxes
Underhood Fuses:

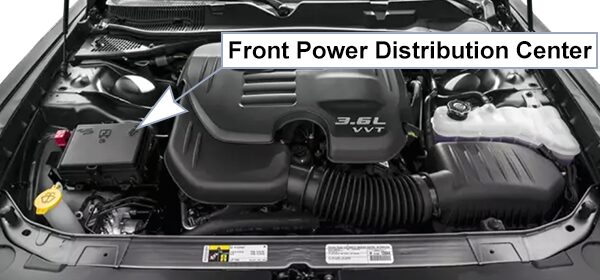

The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.
Rear Fuses:

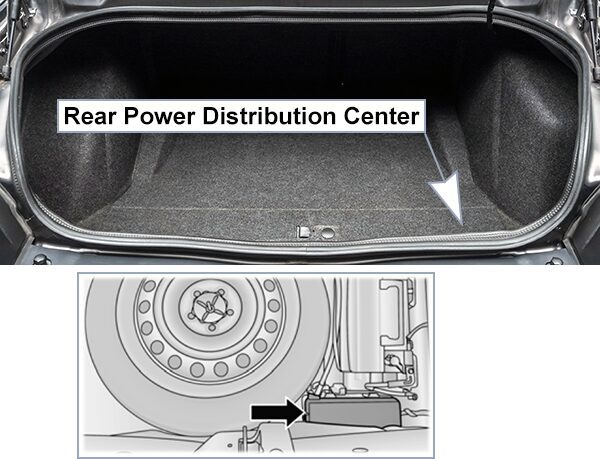

There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.
Fuse Box Diagrams
2015

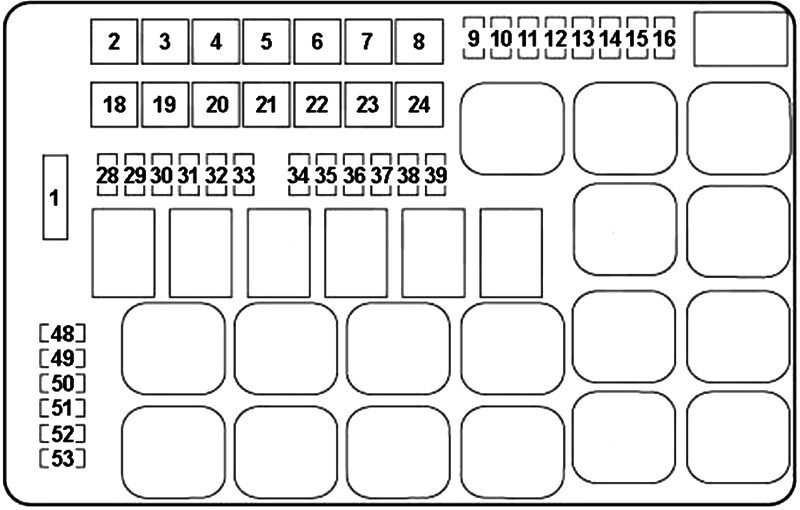

Front Power Distribution Center
List of fuses in the Front PDC (2015)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
1 | – | – | Spare |
2 | 40A Green | – | Radiator Fan #1 – If Equipped |
3 | 50A Red | – | Power Steering #1 / Radiator Fan (6.2L Supercharged) – If Equipped |
4 | 30A Pink | – | Starter |
5 | 40A Green | – | Electronic Stability Control |
6 | 30A Pink | – | Electronic Stability Control |
7 | – | – | Spare |
8 | 20A Blue | – | Police Ignition Rim / ACC # 2 |
9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
10 | – | 10A Red | Security – If Equipped / Under hood Lamp – Police |
11 | – | 20A Yellow | Horns |
12 | – | 10A Red | Air Conditioning Clutch |
13 | – | – | Spare |
14 | – | – | Spare |
15 | – | 20A Yellow | Left HID – If Equipped |
16 | – | 20A Yellow | Right HID – If Equipped |
18 | 50A Red | – | Radiator Fan #2 – If Equipped |
19 | 50A Red | – | Power Steering #2 / Radiator Fan (6.2L Supercharged) |
20 | 30A Pink | – | Wiper Motor |
21 | 30A Pink | – | Headlamp Washers – If Equipped / Police Feed |
22 | 40A Green / 20A Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 – If Equipped |
23 | 20A Blue | – | Police Bat Feed # 1 – If Equipped |
24 | 20A Blue | – | Police Bat Feed # 3 – If Equipped |
28 | – | – | Spare |
29 | – | 15A Blue | Transmission Control Module (LA/LD Police) |
30 | – | – | Spare |
31 | – | 25A Clear | Engine Module |
32 | – | – | Spare |
33 | – | – | Spare |
34 | – | 25A Clear | Powertrain #1 |
35 | – | 20A Yellow | Powertrain #2 |
36 | – | 10A Red | Anti-Lock Brake Module |
37 | – | 10A Red | Engine Controller / Rad Fan Relays – If Equipped |
38 | – | 10A Red | Airbag Module |
39 | – | 10A Red | Power Steering Module /AC Clutch Relay |
48 | – | 10A Red | AWD Module / Front Axle Disconnect (LX) / Adaptive Cruise (LA) – If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Vacuum Pump |
52 | – | 5A Tan | Adaptive Cruise (LD/LX) – If Equipped |
53 | – | – | Spare |

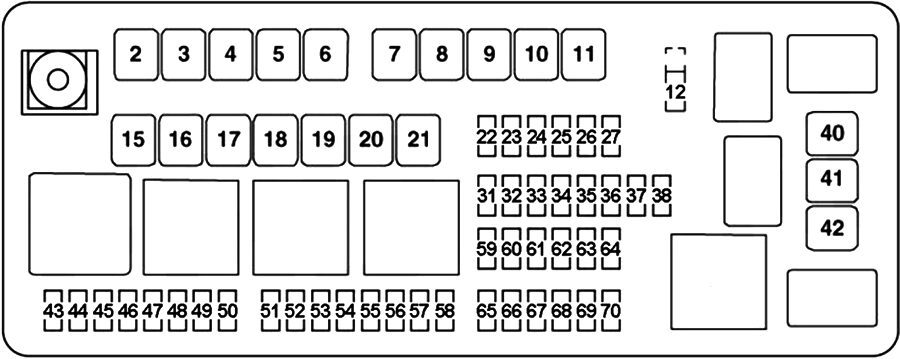

Rear Power Distribution Center
List of fuses in the Rear PDC (2015)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
2 | 60A Yellow | – | Front PDC Feed #1 |
3 | – | – | Spare |
4 | 60A Yellow | – | Front PDC Feed #2 |
5 | 30A Pink | – | Sunroof / Dome Lamp – Police |
6 | 40A Green | – | Exterior Lighting #1 |
7 | 40A Green | – | Exterior Lighting #2 |
8 | 30A Pink | – | Interior Lighting |
9 | 40A Green | – | Power Locks |
10 | 30A Pink | – | Driver Door Control Module |
11 | 30A Pink | – | Passenger Door Control Module |
12 | 20A Yellow | Dual USB Center Console Rear / Cigar Lighter IP – If Equipped | |
15 | 40A Green | – | HVAC Blower |
16 | 20A Blue | – | Left Spot Lamp – Police |
17 | – | – | Fuse – Spare |
18 | 30A Pink | – | Mod Network Interface – Police |
19 | – | – | Spare |
20 | – | – | Spare |
21 | 30A Pink (6.2L Supercharged) 25A Clear (LD STD) | – | Fuel Pump (6.2L Supercharged) Fuel Pump (LD STD) |
22 | – | 20A Yellow – Police 10A Red – LA | Right Spot Lamp – Police Integrated Center Stack – LA |
23 | – | 10A Red | Fuel Door / Diagnostic Port |
24 | – | 15A Blue | Integrated Center Stack – LD/LX |
25 | – | 10A Red | Tire Pressure Monitor |
26 | – | 15A Blue – LD/LX 25A Clear – LA 30A Green – LA 6.2L Supercharged | Transmission / Electronic Shift Module (LD/LX) Fuel Pump (LA) Fuel Pump (LA 6.2L Supercharged) |
27 | – | 25A Clear | Amplifier – If Equipped |
31 | – | 25A Breaker | Power Seats |
32 | – | 15A Blue | HVAC Module / Cluster |
33 | – | 15A Blue | Ignition Switch / RF hub Module / Steering Column Lock – LX If Equipped |
34 | – | 10A Red | Steering Column Module / Clock / Spare – Police |
35 | – | 5A Tan | Battery Sensor |
36 | – | 15A Blue | Electronic Exhaust Valve – If Equipped |
37 | – | 20A Yellow | Radio |
38 | – | 15A Blue – LD/LX 20A Yellow – LA | Console Power Outlet / Console Media Hub (LD/LX) Power Outlet Inside Arm Rest / Console Media Hub (LA) |
40 | – | – | Spare |
41 | – | – | Spare |
42 | 30A Pink | – | Rear Defrost |
43 | – | 20A Yellow | Rear Heated Seats / Steering Wheel Module |
44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (LD/LX) / Humidity Sensor |
46 | – | – | Spare |
47 | – | 10A Red | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps – If Equipped |
48 | – | 20A Yellow | Active Suspension – SRT |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Front Heated Seats – If Equipped |
52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
53 | – | 10A Red | HVAC Module / In Car Temperature Sensor |
54 | – | 10A Red | Airbag Module (LA) |
55 | – | – | Spare |
56 | – | – | Spare |
57 | – | – | Spare |
58 | – | 10A Red | Airbag Module (LD/LX) |
59 | – | 20A Yellow | Adjustable Pedals – Police |
60 | – | 5A Tan | Heated Washer Nozzles (LD) |
61 | – | 20A Yellow | Cigar Lighter (LA) – If Equipped |
62 | – | – | Spare |
63 | – | – | Spare |
64 | – | 25A Breaker | Rear Windows (LD/LX) |
65 | – | 10A Red | Airbag Module |
66 | – | – | Spare |
67 | – | 10A Red | Rain and Light Sensor / Sunroof |
68 | – | 10A Red | Dual USB Power Outlet – R/A Sense (LD/LX) Rear Sunshade (LD/LX) |
69 | – | – | Spare |
70 | – | – | Spare |
2016
Front Power Distribution Center
List of fuses in the Front PDC (2016)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
1 | – | – | Spare |
2 | 40A Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
3 | 50A Red | – | Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped |
4 | 30A Pink | – | Starter |
5 | 40A Green | – | Electronic Stability Control |
6 | 30A Pink | – | Electronic Stability Control |
7 | 20A Blue | – | Police Ignition Run / ACC #1 |
8 | 20A Blue | – | Police Ignition Run / ACC # 2 |
9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
10 | – | 10A Red | Security – If Equipped / Under Hood Lamp – Police |
11 | – | 20A Yellow | Horns |
12 | – | 10A Red | Air Conditioning Clutch |
13 | – | – | Spare |
14 | – | – | Spare |
15 | – | 20A Yellow | Left HID – If Equipped |
16 | – | 20A Yellow | Right HID – If Equipped |
18 | 50A Red | – | Radiator Fan #2 – (Non 6.2L Supercharged) |
19 | 50A Red | – | Electric Power Steering #2 – If Equipped / Radiator Fan (6.2L Supercharged) |
20 | 30A Pink | – | Wiper Motor |
21 | 30A Pink 20A Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
22 | 40A Green 20A Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
23 | 20A Blue | – | Police Bat Feed # 1 |
24 | 20A Blue | – | Police Ignition Rim/ACC Feed # 3 |
28 | – | – | Spare |
29 | – | 15A Blue | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) |
30 | – | – | Spare |
31 | – | 25A Clear | Engine Module |
32 | – | – | Spare |
33 | – | – | Spare |
34 | – | 25A Clear | Powertrain #1 |
35 | – | 20A Yellow | Powertrain #2 |
36 | – | 10A Red | Anti-Lock Brake Module |
37 | – | 10A Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / Fuel Pump Relay (Charger/300) / 5-Speed |
38 | – | 10A Red | Airbag Module |
39 | – | 10A Red | EPS (Challenger) / EHPS (Police)/AC Clutch Relay / Vacuum Pump Relay / Fuel Pump Relay (Challenger) / Rad Fan Relays (Challenger) |
48 | – | 10A Red | AWD Module (Charger/300) / Front Axle Disconnect (Charger/300) / Adaptive Cruise (Challenger) – If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Vacuum Pump |
52 | – | 5A Tan | Adaptive Cruise (Charger/300) – If Equipped |
53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2016)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
2 | 60A Yellow | – | Front PDC Feed #1 |
3 | – | – | Spare |
4 | 60A Yellow | – | Front PDC Feed #2 |
5 | 30A Pink 20A Blue – Police | – | Sunroof / Dome Lamp -Police |
6 | 40A Green | – | Exterior Lighting #1 |
7 | 40A Green | – | Exterior Lighting #2 |
8 | 30A Pink | – | Interior Lighting |
9 | 40A Green | – | Power Locks |
10 | 30A Pink | – | Driver Door Control Module |
11 | 30A Pink | – | Passenger Door Control Module |
12 | – | 20A Yellow | Dual USB Center Console Rear / Cigar Lighter IP – If Equipped |
15 | 40A Green | – | HVAC Blower |
16 | 20A Blue | – | Left Spot Lamp – Police |
17 | – | – | Spare |
18 | 30A Pink | – | Mod Network Interface – Police |
19 | – | – | Spare |
20 | – | – | Spare |
21 | 30A Pink | – | Fuel Pump |
22 | – | 20A Yellow – Police | Right Spot Lamp – Police |
23 | – | 10A Red | Fuel Door / Diagnostic Port |
24 | – | 10A Red | Integrated Center Stack |
25 | – | 10A Red | Tire Pressure Monitor |
26 | – | 15A Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
27 | – | 25A Clear | Amplifier – If Equipped |
31 | – | 25A Breaker | Power Seats – If Equipped |
32 | – | 15A Blue | HVAC Module /Cluster |
33 | – | 15A Blue | Ignition Switch / RF Hub Module / Steering Column Lock (300) – If Equipped |
34 | – | 10A Red | Steering Column Module / Clock (300) |
35 | – | 5A Tan | Battery Sensor |
36 | – | 15A Blue | Electronic Exhaust Valve – If Equipped |
37 | – | 20A Yellow | Radio |
38 | – | 20A Yellow | Power Outlet Inside Arm Rest / Console Media Hub |
40 | – | – | Spare |
41 | – | – | Spare |
42 | 30A Pink | – | Rear Defrost |
43 | – | 20A Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel / RR Heated Seats) |
44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (Charger/ 300) / Humidity Sensor |
46 | – | – | Spare |
47 | – | 10A Red | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps – If Equipped |
48 | – | 20A Yellow | Active Suspension – If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Front Heated Seats – If Equipped |
52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
53 | – | 10A Red | HVAC Module / In Vehicle Temperature Sensor |
54 | – | – | Spare |
55 | – | – | Spare |
56 | – | – | Spare |
57 | – | – | Spare |
58 | – | 10A Red | Airbag Module |
59 | – | 20A Yellow | Adjustable Pedals – Police |
60 | – | 5A Tan | Heated Washer Nozzles (Charger) |
61 | – | – | Spare |
62 | – | – | Spare |
63 | – | – | Spare |
64 | – | 25A Breaker | Rear Windows (Charger/ 300) |
65 | – | 10A Red | Airbag Module |
66 | – | – | Spare |
67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Power Outlet Illumination (Center Console) / Police Run Acc Relay |
68 | – | 10A Red | Dual USB Power Outlet – R/A Sense (Charger/300) Rear Sunshade (Charger/300) |
69 | – | – | Spare |
70 | – | – | Spare |
2017
Front Power Distribution Center
List of fuses in the Front PDC (2017)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
1 | – | – | Spare |
2 | 40A Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
3 | 50A Red | – | Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped |
4 | 30A Pink | – | Starter |
5 | 40A Green | – | Anti Lock Brake |
6 | 30A Pink | – | Anti Lock Brake |
7 | 20A Blue | – | Police Ignition Run / ACC #1 |
8 | 20A Blue | – | Police Ignition Run / ACC # 2 |
9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
10 | – | 10A Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
11 | – | 20A Yellow | Horns |
12 | – | 10A Red | Air Conditioning Clutch |
13 | – | – | Spare |
14 | – | – | Spare |
15 | – | 20A Yellow | Left HID – If Equipped |
16 | – | 20A Yellow | Right HID – If Equipped |
18 | 50A Red | – | Radiator Fan – (Non 6.2L Supercharged) |
19 | 50A Red | – | Electric Power Steering #2 – If Equipped / Radiator Fan #2 (6.2L Supercharged) |
20 | 30A Pink | – | Wiper Motor |
21 | 30A Pink 20A Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
22 | 40A Green 20A Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
23 | 20A Blue | – | Police Bat Feed # 1 |
24 | 20A Blue | – | Police Ignition Rim/ACC Feed # 3 |
28 | – | – | Spare |
29 | – | 15A Blue | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) |
30 | – | – | Spare |
31 | – | 25A Clear | Engine Module |
32 | – | – | Spare |
33 | – | – | Spare |
34 | – | 25A Clear | Powertrain #1 |
35 | – | 20A Yellow | Powertrain #2 |
36 | – | 10A Red | Anti-Lock Brake Module |
37 | – | 10A Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM |
38 | – | 10A Red | Airbag Module |
39 | – | 10A Red | EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger) |
48 | – | 10A Red | AWD Module / Front Axle Disconnect – If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Vacuum Pump |
52 | – | 5A Tan | Adaptive Cruise – If Equipped |
53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2017)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
2 | 60A Yellow | – | Front PDC Feed #1 |
3 | – | – | Spare |
4 | 60A Yellow | – | Front PDC Feed #2 |
5 | 30A Pink 20A Blue – Police | – | Sunroof / Dome Lamp -Police |
6 | 40A Green | – | Exterior Lighting #1 |
7 | 40A Green | – | Exterior Lighting #2 |
8 | 30A Pink | – | Interior Lighting |
9 | 40A Green | – | Power Locks |
10 | 30A Pink | – | Driver Door Control Module |
11 | 30A Pink | – | Passenger Door Control Module |
12 | – | 20A Yellow | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
15 | 40A Green | – | HVAC Blower |
16 | 20A Blue | – | Left Spot Lamp – Police |
17 | – | – | Spare |
18 | 30A Pink | – | Mod Network Interface -Police |
19 | – | – | Spare |
20 | – | – | Spare |
21 | 30A Pink | – | Fuel Pump |
22 | – | 20A Yellow – Police | Right Spot Lamp – Police |
23 | – | 10A Red | Fuel Door / Diagnostic Port |
24 | – | 10A Red | Integrated Center Stack |
25 | – | 10A Red | Tire Pressure Monitor |
26 | – | 15A Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
27 | – | 25A Clear | Amplifier – If Equipped |
31 | – | 25A Breaker | Power Seats – If Equipped |
32 | – | 15A Blue | HVAC Module / Cluster |
33 | – | 15A Blue | Ignition Switch / RF Hub Module / Steering Column Lock (300) – If Equipped |
34 | – | 10A Red | Steering Column Module / Clock (300) |
35 | – | 5A Tan | Battery Sensor |
36 | – | 15A Blue | Electronic Exhaust Valve – If Equipped |
37 | – | 20A Yellow | Radio |
38 | – | 20A Yellow | Power Outlet Inside Arm Rest / Console Media Hub |
40 | – | – | Spare |
41 | – | – | Spare |
42 | 30A Pink | – | Rear Defrost |
43 | – | 20A Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel / RR Heated Seats) |
44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor / Forward Facing Camera (Lane Departure) |
46 | – | – | Spare |
47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
48 | – | 20A Yellow | Active Suspension – (6.4L / 6.2L) |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Front Heated / Vented Seats – If Equipped |
52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
53 | – | 10A Red | HVAC Module / In Vehicle Temperature Sensor |
54 | – | – | Spare |
55 | – | – | Spare |
56 | – | – | Spare |
57 | – | – | Spare |
58 | – | 10A Red | Airbag Module |
59 | – | 20A Yellow | Adjustable Pedals – Police |
60 | – | – | Spare |
61 | – | – | Spare |
62 | – | – | Spare |
63 | – | – | Spare |
64 | – | 25A Breaker | Rear Windows (Charger/300) |
65 | – | 10A Red | Airbag Module |
66 | – | – | Spare |
67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
68 | – | 10A Red | Dual USB Power Outlet – R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) RR USB Timer |
69 | – | – | Spare |
70 | – | – | Spare |
2018
Front Power Distribution Center
List of fuses in the Front PDC (2018)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
1 | – | – | Spare |
2 | 40A Green | – | Radiator Fan #1 (Non 6.2L Supercharged) |
3 | 50A Red | – | Electric Power Steering #1 – If Equipped |
4 | 30A Pink | – | Starter |
5 | 40A Green | – | Anti Lock Brake |
6 | 30A Pink | – | Anti Lock Brake |
7 | 20A Blue | – | Police Ignition Run / ACC #1 |
8 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
10 | – | 10A Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
11 | – | 20A Yellow | Horns |
12 | – | 10A Red | Air Conditioning Clutch |
13 | – | – | Spare |
14 | – | – | Spare |
15 | – | 20A Yellow | Left HID – If Equipped |
16 | – | 20A Yellow | Right HID – If Equipped |
18 | 50A Red | – | Radiator Fan – (Non 6.2L Supercharged) |
19 | 50A Red | – | Electric Power Steering #2 – If Equipped |
20 | 30A Pink | – | Wiper Motor |
21 | 30A Pink 20A Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
22 | 40A Green 20A Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
23 | 20A Blue | – | Police Bat Feed # 1 |
24 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 |
28 | – | – | Spare |
29 | – | 15A Blue | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) |
30 | – | – | Spare |
31 | – | 25A Clear | Engine Module |
32 | – | – | Spare |
33 | – | – | Spare |
34 | – | 25A Clear | Powertrain #1 |
35 | – | 20A Yellow | Powertrain #2 |
36 | – | 10A Red | Anti-Lock Brake Module |
37 | – | 10A Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM |
38 | – | 10A Red | Airbag Module |
39 | – | 10A Red | EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger) |
48 | – | 10A Red | AWD Module/Front Axle Disconnect -If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Vacuum Pump |
52 | – | 5A Tan | Adaptive Cruise – If Equipped |
53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2018)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
2 | 60A Yellow | – | Front PDC Feed #1 |
3 | – | – | Spare |
4 | 60A Yellow | – | Front PDC Feed #2 |
5 | 30A Pink 20A Blue – Police | – | Sunroof / Dome Lamp -Police |
6 | 40A Green | – | Exterior Lighting #1 |
7 | 40A Green | – | Exterior Lighting #2 |
8 | 30A Pink | – | Interior Lighting |
9 | 40A Green | – | Power Locks |
10 | 30A Pink | – | Driver Door Control Module |
11 | 30A Pink | – | Passenger Door Control Module |
12 | – | 20A Yellow | Dual USB Center Console Rear / Cigar Lighter IP – If Equipped |
15 | 40A Green | – | HVAC Blower |
16 | 20A Blue | – | Left Spot Lamp – Police |
17 | 20A Blue | – | Right Spot Lamp – Police |
18 | 30A Pink | – | Mod Network Interface – Police |
19 | – | – | Spare |
20 | – | – | Spare |
21 | 30A Pink | – | Fuel Pump (Non 6.2L SRT Demon) |
22 | – | 5A Tan | Cyber Gateway Mod |
23 | – | 10A Red | Fuel Door / Diagnostic Port |
24 | – | 10A Red | Integrated Center Stack |
25 | – | 10A Red | Tire Pressure Monitor |
26 | – | 15A Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
27 | – | 25A Clear | Amplifier – If Equipped |
31 | – | 25A Breaker | Power Seats – If Equipped |
32 | – | 15A Blue | HVAC Module / Cluster |
33 | – | 15A Blue | Ignition Switch / RF Hub Module / Steering Column Lock (300) – If Equipped |
34 | – | 10A Red | Steering Column Module / Clock (300) |
35 | – | 5A Tan | Battery Sensor |
36 | – | 15A Blue | Electronic Exhaust Valve – If Equipped |
37 | – | 20A Yellow | Radio |
38 | – | 20A Yellow | Power Outlet Inside Arm Rest / Console Media Hub |
40 | 30A Pink | – | Fuel Pump (6.2L SRT Demon – If Equipped) |
41 | 30A Pink | – | Fuel Pump (6.2L SRT Demon – If Equipped) |
42 | 30A Pink | – | Rear Defrost |
43 | – | 20A Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel / RR Heated Seats) |
44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway |
46 | – | – | Spare |
47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
48 | – | 20A Yellow | Active Suspension – (6.4L / 6.2L) |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Front Heated / Vented Seats – If Equipped |
52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
53 | – | 10A Red | HVAC Module / In Vehicle Temperature Sensor |
54 | – | – | Spare |
55 | – | – | Spare |
56 | – | – | Spare |
57 | – | – | Spare |
58 | – | 10A Red | Airbag Module |
59 | – | 20A Yellow | Adjustable Pedals – Police |
60 | – | – | Spare |
61 | – | – | Spare |
62 | – | – | Spare |
63 | – | – | Spare |
64 | – | 25A Breaker | Rear Windows (Charger/300) |
65 | – | 10A Red | Airbag Module |
66 | – | – | Spare |
67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
68 | – | 10A Red | Dual USB Power Outlet – R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) RR USB Timer |
69 | – | – | Spare |
70 | – | – | Spare |
2019
Front Power Distribution Center
List of fuses in the Front PDC (2019)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
1 | – | – | Spare |
2 | 40A Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
3 | 50A Red | – | Electric Power Steering #1 – If Equipped |
4 | 50A Red | – | Starter |
5 | 40A Green | – | Anti Lock Brake |
6 | 30A Pink | – | Anti Lock Brake |
7 | 20A Blue | – | Police Ignition Run / ACC #1 |
8 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
10 | – | 10A Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
11 | – | 20A Yellow | Horns |
12 | – | 10A Red | Air Conditioning Clutch |
13 | – | – | Spare |
14 | – | – | Spare |
15 | – | 20A Yellow | Left HID – If Equipped |
16 | – | 20A Yellow | Right HID – If Equipped |
18 | 50A Red | – | Radiator Fan – (Non 6.2L Supercharged) |
19 | 50A Red | – | Electric Power Steering #2 – If Equipped |
20 | 30A Pink | – | Wiper Motor |
21 | 30A Pink 20A Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
22 | 40A Green 20A Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
23 | 20A Blue | – | Police Bat Feed # 1 |
24 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run /ACC Feed # 3 |
28 | – | – | Spare |
29 | – | 15A Blue | Transmission Control Module (Challenger / Charger Police) / Electronic Shift Module (Challenger) |
30 | – | – | Spare |
31 | – | 25A Clear | Engine Module |
32 | – | – | Spare |
33 | – | – | Spare |
34 | – | 25A Clear | Powertrain #1 |
35 | – | 20A Yellow | Powertrain #2 |
36 | – | 10A Red | Anti-Lock Brake Module / Steering Column Lock Module (300 if equipped) |
37 | – | 10A Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM |
38 | – | 10A Red | Airbag Module |
39 | – | 10A Red | EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger) |
48 | – | 10A Red | AWD Module / Front Axle Disconnect – If Equipped |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Vacuum Pump |
52 | – | 5A Tan | Adaptive Cruise – If Equipped |
53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2019)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
2 | 60A Yellow | – | Front PDC Feed #1 |
3 | – | – | Spare |
4 | 60A Yellow | – | Front PDC Feed #2 |
5 | 30A Pink 20A Blue – Police | – | Sunroof / Dome Lamp – Police |
6 | 40A Green | – | Exterior Lighting #1 |
7 | 40A Green | – | Exterior Lighting #2 |
8 | 30A Pink | – | Interior Lighting |
9 | 40A Green | – | Power Locks |
10 | 30A Pink | – | Driver Door Control Module |
11 | 30A Pink | – | Passenger Door Control Module |
12 | – | 20A Yellow | Dual USB Center Console Rear / Cigar Lighter IP – If Equipped |
15 | 40A Green | – | HVAC Blower |
16 | 20A Blue | – | Left Spot Lamp – Police |
17 | 20A Blue | – | Right Spot Lamp – Police |
18 | 30A Pink | – | Mod Network Interface – Police |
19 | – | – | Spare |
20 | – | – | Spare |
21 | 30A Pink | – | Fuel Pump (Non 6.2L SRT HO) |
22 | – | 5A Tan | Cyber Gateway Mod |
23 | – | 10A Red | Fuel Door – If Equipped / Diagnostic Port |
24 | – | 10A Red | Integrated Center Stack |
25 | – | 10A Red | Tire Pressure Monitor |
26 | – | 15A Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
27 | – | 25A Clear | Amplifier – If Equipped |
31 | – | 25A Breaker | Power Seats – If Equipped |
32 | – | 15A Blue | HVAC Module / Cluster |
33 | – | 15A Blue | Ignition Switch / RF Hub Module / Steering Column Lock (300) – If Equipped |
34 | – | 10A Red | Steering Column Module / Clock (300) |
35 | – | 5A Tan | Battery Sensor |
36 | – | 15A Blue | Electronic Exhaust Valve – If Equipped |
37 | – | 20A Yellow | Radio |
38 | – | 20A Yellow | Power Outlet Inside Arm Rest / Console Media Hub |
40 | 30A Pink | – | Fuel Pump (6.2L SRT HO – If Equipped) |
41 | 30A Pink | – | Fuel Pump (6.2L SRT HO – If Equipped) |
42 | 30A Pink | – | Rear Defrost |
43 | – | 20A Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel / RR Heated Seats) |
44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway |
46 | – | – | Spare |
47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
48 | – | 20A Yellow | Active Suspension – (6.4L / 6.2L) |
49 | – | – | Spare |
50 | – | – | Spare |
51 | – | 20A Yellow | Front Heated / Vented Seats – If Equipped |
52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
53 | – | 10A Red | HVAC Module / In Vehicle Temperature Sensor |
54 | – | – | Spare |
55 | – | – | Spare |
56 | – | – | Spare |
57 | – | – | Spare |
58 | – | 10A Red | Airbag Module |
59 | – | 20A Yellow | Adjustable Pedals – Police |
60 | – | – | Spare |
61 | – | – | Spare |
62 | – | – | Spare |
63 | – | – | Spare |
64 | – | 25A Breaker | Rear Windows (Charger/300) |
65 | – | 10A Red | Airbag Module |
66 | – | – | Spare |
67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
68 | – | 10A Red | Dual USB Power Outlet – R/A Sense (Charger/300) Rear Sunshade (Charger/300) RR USB Timer |
69 | – | – | Spare |
70 | – | – | Spare |
2020
Front Power Distribution Center
List of fuses in the Front PDC (2020)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | 40A Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
F03 | 50A Red | – | Electric Power Steering #1 – If Equipped |
F04 | 30A Pink | – | Starter |
F05 | 40A Green | – | Anti-Lock Brake |
F06 | 30A Pink | – | Anti-Lock Brake |
F07 | 20A Blue | – | Police Ignition Run / ACC #1 |
F08 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
F09 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
F10 | – | 10A Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
F11 | – | 20A Yellow | Horns |
F12 | – | 10A Red | Air Conditioning Clutch |
F13 | – | – | Spare |
F14 | – | – | Spare |
F15 | – | 20A Yellow | Left HID Headlamp – If Equipped |
F16 | – | 20A Yellow | Right HID Headlamp – If Equipped |
F18 | 50A Red | – | Radiator Fan – (Non 6.2L Supercharged) |
F19 | 50A Red | – | Electric Power Steering #2 – If Equipped |
F20 | 30A Pink | – | Wiper Motor |
F21 | 30A Pink 20A Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
F22 | 40A Green 20A Blue -Police | – | LTR Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
F23 | 20A Blue | – | Police Bat Feed # 1 |
F24 | 50A Red 20A Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 |
F28 | – | – | Spare |
F29 | – | 15A Blue | Auto Trans (Challenger / Charger Police) |
F30 | – | – | Spare |
F31 | – | 25A Clear | Engine Module |
F32 | – | – | Spare |
F33 | – | – | Spare |
F34 | – | 25A Clear | ASD Feed #1 |
F35 | – | 20A Yellow | ASD Feed #2 |
F36 | – | 10A Red | Anti-Lock Brake Module / Steering Column Lock Module (300 if equipped) |
F37 | – | 10A Red | Engine Controller |
F38 | – | 10A Red | Airbag Module |
F39 | – | 10A Red | AC Clutch / EPS / Vacuum Pump |
F48 | – | 10A Red | AWD Module / Front Axle Disconnect – If Equipped |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Vacuum Pump – If Equipped |
F52 | – | 5A Tan | Adaptive Cruise Control – If Equipped |
F53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2020)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F02 | 60A Yellow | – | Front PDC Feed #1 |
F03 | – | – | Spare |
F04 | 60A Yellow | – | Front PDC Feed #2 |
F05 | 30A Pink 20A Blue – Police | – | Sunroof / Dome Lamp – Police |
F06 | 40A Green | – | Exterior Lighting #1 |
F07 | 40A Green | – | Exterior Lighting #2 |
F08 | 30A Pink | – | Interior Lighting |
F09 | 40A Green | – | Power Locks |
F10 | 30A Pink | – | Driver Door Control Module |
F11 | 30A Pink | – | Passenger Door Control Module |
F12 | – | 20A Yellow | Cigar Lighter / IP APO / RR USB (Selectable Fuse) – If Equipped |
F15 | 40A Green | – | HVAC Blower |
F16 | 20A Blue | – | Left Spot Lamp – Police |
F17 | 20A Blue | – | Right Spot Lamp – Police |
F18 | 30A Pink | – | VISM MOD (Police) |
F19 | – | – | Spare |
F20 | – | – | Spare |
F21 | 30A Pink | – | Fuel Pump (Non 6.2L ADR) |
F22 | – | 5A Tan | Cyber Gateway Mod |
F23 | – | 10A Red | Fuel Door – If Equipped / Diagnostic Port |
F24 | – | 10A Red | Integrated Center Stack |
F25 | – | 10A Red | Tire Pressure Monitor |
F26 | – | 15A Blue | Transmission Module (300/Charger Non- Police) |
F27 | – | 25A Clear | Amplifier – If Equipped |
F31 | – | 25A Breaker | Power Seats – If Equipped |
F32 | – | 15A Blue | HVAC Module / Cluster |
F33 | – | 15A Blue | IGN SW / Wireless Mod / Steer Clmn Lock Mod / Remote Start – If Equipped |
F34 | – | 10A Red | Steering Column Module / Clock (300) |
F35 | – | 5A Tan | Battery Sensor |
F36 | – | 15A Blue | Active Exhaust Valve – If Equipped |
F37 | – | 20A Yellow | Radio |
F38 | – | 20A Yellow | Media Hub / Console APO |
F40 | 30A Pink | – | Fuel Pump #1(6.2L ADR) |
F41 | 30A Pink | – | Fuel Pump #2 (6.2L ADR) |
F42 | 30A Pink | – | Rear Defrost |
F43 | – | 20A Yellow | RR Heated Seat / Heated Steering Wheel – If Equipped |
F44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera – If Equipped |
F45 | – | 15A Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Lane Departure |
F46 | – | – | Spare |
F47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
F48 | – | 20A Yellow | Active Suspension – (6.4L / 6.2L) |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Front Heated / Vented Seats – If Equipped |
F52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches – If Equipped |
F53 | – | 10A Red | HVAC Module / ln Vehicle Temperature Sensor |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | – | Spare |
F57 | – | – | Spare |
F58 | – | 10A Red | Airbag Module |
F59 | – | 20A Yellow | Adjustable Pedals – Police |
F60 | – | – | Spare |
F61 | – | – | Spare |
F62 | – | – | Spare |
F63 | – | – | Spare |
F64 | – | 25A Breaker | Rear Windows (Charger/300) |
F65 | – | 10A Red | Airbag Module |
F66 | – | – | Spare |
F67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
F68 | – | 10A Red | RR USB Timer / RR Sunshade – If Equipped |
F69 | – | – | Spare |
F70 | – | – | Spare |
2021
Front Power Distribution Center
List of fuses in the Front PDC (2021)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | 40A Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
F03 | 50A Red | – | Electric Power Steering #1 |
F04 | 30A Pink | – | Starter |
F05 | 40A Green | – | Anti Lock Brake |
F06 | 30A Pink | – | Anti Lock Brake |
F07 | 20A Blue | – | Police Ignition Run / ACC #1 |
F08 | 20A Blue | – | Police Ignition Run / ACC # 2 |
F09 | – | 20A Yellow | All-Wheel Drive Module |
F10 | – | 10A Red | Intrusion MOD (300) / Under Hood Lamp – Police |
F11 | – | 20A Yellow | Horns |
F12 | – | 10A Red | Air Conditioning Clutch |
F13 | – | – | Spare |
F14 | – | – | Spare |
F15 | – | 20A Yellow | Left HID Headlamp |
F16 | – | 20A Yellow | Right HID Headlamp |
F18 | 50A Red | – | Radiator Fan – (Non 6.2L Supercharged) |
F19 | 50A Red | – | Electric Power Steering #2 |
F20 | 30A Pink | – | Wiper Motor |
F21 | 30A Pink | – | Headlamp Washers |
20A Blue – Police | Police Bat Feed #2 | ||
F22 | 20A Blue – Police | – | Police Bat Feed # 3 |
F23 | 20A Blue | – | Police Bat Feed # 1 |
F24 | 20A Blue | – | Police Ignition Run / ACC Feed # 3 |
F28 | – | – | Spare |
F29 | – | 15A Blue | Auto Trans (Challenger / Charger Police) |
F30 | – | – | Spare |
F31 | – | 25A Clear | Engine Module |
F32 | – | – | Spare |
F33 | – | – | Spare |
F34 | – | 25A Clear | ASD Feed #1 |
F35 | – | 20A Yellow | ASD Feed #2 |
F36 | – | 10A Red | Anti-Lock Brake Module / Steering Column Lock Module* |
F37 | – | 10A Red | Engine Controller |
F38 | – | 10A Red | Airbag Module |
F39 | – | 10A Red | AC Clutch/ EPS / Vacuum Pump |
F48 | – | 10A Red | AWD Module / Front Axle Disconnect |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Vacuum Pump |
F52 | – | 5A Tan | Adaptive Cruise Control |
F53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2021)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F02 | 60A Yellow | – | Front PDC Feed #1 |
F03 | – | – | Spare |
F04 | 60A Yellow | – | Front PDC Feed #2 |
F05 | 30A Pink | – | Sunroof |
20A Blue – Police | Dome Lamp – Police | ||
F06 | 40A Green | – | Exterior Lighting #1 |
F07 | 40A Green | – | Exterior Lighting #2 |
F08 | 30A Pink | – | Interior Lighting |
F09 | 40A Green | – | Power Locks |
F10 | 30A Pink | – | Driver Door Control Module |
F11 | 30A Pink | – | Passenger Door Control Module |
F12 | – | 20A Yellow | Cigar Lighter / IP APO / RR USB (Selectable Fuse) |
F15 | 40A Green | – | HVAC Blower |
F16 | 20A Blue | – | Left Spot Lamp – Police |
F17 | 20A Blue | – | Right Spot Lamp – Police |
F18 | 30A Pink | – | VISM MOD (Police) |
F19 | – | – | Spare |
F20 | – | – | Spare |
F21 | 30A Pink | – | Fuel Pump (Non 6.2L ADR) |
F22 | – | 5A Tan | Cyber Gateway Mod |
F23 | – | 10A Red | Fuel Door /Diagnostic Port |
F24 | – | 10A Red | Integrated Center Stack |
F25 | – | 10A Red | Tire Pressure Monitor |
F26 | – | 15A Blue | Trans Mod (Charger Non-Police/300) |
F27 | – | 25A Clear | Amplifier |
F31 | – | 25A Breaker | Power Seats |
F32 | – | 15A Blue | HVAC Module / Cluster |
F33 | – | 15A Blue | IGN SW / Wireless Mod / Steer Clmn Lock Mod / Remote Start |
F34 | – | 10A Red | Steering Column Module/Clock (300) |
F35 | – | 5A Tan | Battery Sensor |
F36 | – | 15A Blue | Active Exhaust Valve |
F37 | – | 20A Yellow | Radio |
F38 | – | 20A Yellow | Media Hub / Console APO |
F42 | 30A Pink | – | Rear Defrost |
F43 | – | 20A Yellow | RR Heated Seat / Heated Steering Wheel |
F44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
F45 | – | 15A Blue | Cluster / Rearview Mirror / Lane Departure |
F46 | – | – | Spare |
F47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Front Heated / Vented Seats |
F52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches |
F53 | – | 10A Red | HVAC Module / ln Vehicle Temperature Sensor |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | – | Spare |
F57 | – | – | Spare |
F58 | – | 10A Red | Airbag Module |
F59 | – | 20A Yellow | Adjustable Pedals – Police |
F60 | – | – | Spare |
F61 | – | – | Spare |
F62 | – | – | Spare |
F63 | – | – | Spare |
F64 | – | 25A Breaker | Rear Windows (Charger/300) |
F65 | – | 10A Red | Airbag Module |
F66 | – | – | Spare |
F67 | – | 10A Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
F68 | – | 10A Red | RR USB Timer / RR Sunshade |
F69 | – | – | Spare |
F70 | – | – | Spare |
2022
Front Power Distribution Center
List of fuses in the Front PDC (2022)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | 40A Green | – | Radiator Fan – (Non 6.2L & Non – Police) |
50A Red | Radiator Fan (6.2L & Police) | ||
F03 | 50A Red | – | Power Steering #1 |
F04 | 30A Pink | – | Starter |
F05 | 40A Green | – | Anti-Lock Brakes |
F06 | 30A Pink | – | Anti-Lock Brakes |
F07 | 20A Blue | – | Police Ignition Run / ACC #1 |
F08 | 20A Blue | – | Police Ignition Run / ACC # 2 |
F09 | – | 20A Yellow | All-Wheel Drive Module |
F10 | – | 10A Red | Intrusion MOD (300) / Under Hood Lamp (Police) |
F11 | – | 20A Yellow | Horns |
F12 | – | 10A Red | A/C Clutch |
F13 | – | – | Spare |
F14 | – | – | Spare |
F15 | – | 20A Yellow | LH HID Headlamp |
F16 | – | 20A Yellow | RH HID Headlamp |
F18 | 50A Red | – | Rad Fan #2 |
F19 | 50A Red | – | Power Steering #2 |
F20 | 30A Pink | – | Wiper Motor |
F21 | 20A Blue | – | Police Bat Feed #2 |
30A Pink | HDLP Washers | ||
F22 | 20A Blue | – | Police Bat Feed # 3 |
40A Green | LTR Cooling Pump (6.2L Eng) | ||
F23 | 20A Blue | – | Police Bat Feed # 1 |
F24 | 20A Blue | – | Police Ign Run / ACC Feed # 3 |
F28 | – | – | Spare |
F29 | – | 15A Blue | Auto Trans (Challenger/Police) |
F30 | – | – | Spare |
F31 | – | 25A Clear | Engine Module |
F32 | – | – | Spare |
F33 | – | – | Spare |
F34 | – | 25A Clear | ASD Feed #1 |
F35 | – | 20A Yellow | ASD Feed #2 |
F36 | – | 10A Red | Anti-Lock Brakes Module / Strg Clmn Lock Module |
F37 | – | 10A Red | Engine Controller |
F38 | – | 10A Red | Airbag Module |
F39 | – | 10A Red | AC Clutch / EPS / Vacuum Pump |
F48 | – | 10A Red | AWD Mod / Front Axle Disconnect |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Vacuum Pump |
F52 | – | 5A Tan | Adaptive Cruise Control |
F53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2022)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F02 | 60A Yellow | – | Front PDC Feed #1 |
F03 | – | – | Spare |
F04 | 60A Yellow | – | Front PDC Feed #2 |
F05 | 30A Pink | – | Sunroof |
20A Blue – Police | – | Dome Lamp – Police | |
F06 | 40A Green | – | Exterior Lighting #1 |
F07 | 40A Green | – | Exterior Lighting #2 |
F08 | 30A Pink | – | Interior Lighting |
F09 | 40A Green | – | Power Locks |
F10 | 30A Pink | – | Dr Door Mod |
F11 | 30A Pink | – | Pass Door Mod |
F12 | – | 20A Yellow | Cigar Lighter / IP APO / RR USB (Selectable Fuse) |
F15 | 40A Green | – | HVAC Blower |
F16 | 20A Blue | – | LT Spot Lamp (Police) |
F17 | 20A Blue | – | RT Spot Lamp (Police) |
F18 | 30A Pink | – | VISM Mod (Police) |
F19 | – | – | Spare |
F20 | – | – | Spare |
F21 | 30A Pink | – | Fuel Pump (Non 6.2L ADR) |
F22 | – | 5A Tan | Cyber Gateway Module |
F23 | – | 10A Red | Diagnostic Port / Fuel Door SW |
F24 | – | 10A Red | Integrated Center Stack |
F25 | – | 10A Red | Tire Pressure Monitoring System |
F26 | – | 15A Blue | Trans Mod (300/Charger) |
F27 | – | 25A Clear | Amplifier |
F31 | – | 25A Breaker | Power Seat |
F32 | – | 15A Blue | HVAC Module / Cluster |
F33 | – | 15A Blue | IGN SW / Wireless Mod / Steer Clmn Lock Mod / Remote Start |
F34 | – | 10A Red | Steer Clmn Mod / Clock (300) |
F35 | – | 5A Tan | Battery Sensor |
F36 | – | 15A Blue | Active Exhaust Valve |
F37 | – | 20A Yellow | Radio |
F38 | – | 20A Yellow | Media Hub / Console APO |
F40 | 30A Pink | – | Fuel Pump #1 (6.2L ADR) |
F41 | 30A Pink | – | Fuel Pump #2 (6.2LADR) |
F42 | 30A Pink | – | Rear Defrost |
F43 | – | 20A Yellow | RR Heated Seats / Heated Steering Wheel |
F44 | – | 10A Red | Park Assist / Blind Spot / RR Camera |
F45 | – | 15A Blue | Cluster / RR Mirror / Lane Departure |
F46 | – | – | Spare |
F47 | – | 10A Red | Adapt Front Lighting / DRL |
F48 | – | 20A Yellow | Active Suspension – (6.4L/6.2L) |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Front Heated / Vented Seats |
F52 | – | 10A Red | Heated Cup Holder / RR Heated Seat SW |
F53 | – | 10A Red | HVAC Module / In Car Temp Snsr |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | – | Spare |
F57 | – | – | Spare |
F58 | – | 10A Red | Airbag Module |
F59 | – | 20A Yellow | Adj Pedals (Police) |
F60 | – | – | Spare |
F61 | – | – | Spare |
F62 | – | – | Spare |
F63 | – | – | Spare |
F64 | – | 25A Breaker | RR Windows (300/Charger) (Circuit Breaker) |
F65 | – | 10A Red | Airbag Module |
F66 | – | – | Spare |
F67 | – | 10A Red | Rain & Light Snsr / Sunroof / RR View Mirror / Police Run Acc |
F68 | – | 10A Red | Rear USB Timer / Rear Sunshade |
F69 | – | – | Spare |
F70 | – | – | Spare |
2023
Front Power Distribution Center
List of fuses in the Front PDC (2023)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | 40A Green | – | Radiator Fan #1 – (Non 6.2L & Non – Police) |
50A Red | Radiator Fan (6.2L & Police) | ||
F03 | 50A Red | – | Power Steering #1 |
F04 | 30A Pink | – | Starter |
F05 | 40A Green | – | Anti-Lock Brake |
F06 | 30A Pink | – | Anti-Lock Brake |
F07 | 20A Blue | – | Police Ignition Run / ACC #1 |
F08 | 20A Blue | – | Police Ignition Run / ACC # 2 |
F09 | – | 20A Yellow | All-Wheel Drive Module |
F10 | – | 10A Red | Intrusion MOD (300) / Under Hood Lamp – Police |
F11 | – | 20A Yellow | Horns |
F12 | – | 10A Red | Air Conditioning Clutch |
F13 | – | – | Spare |
F14 | – | – | Spare |
F15 | – | 20A Yellow | Left HID Headlamp |
F16 | – | 20A Yellow | Right HID Headlamp |
F18 | 50A Red | – | Radiator Fan #2 |
F19 | 50A Red | – | Power Steering #2 |
F20 | 30A Pink | – | Wiper Motor |
F21 | 30A Pink | – | Headlamp Washers |
20A Blue – Police | Police Bat Feed #2 | ||
F22 | 40A Green | – | LTR Cooling Pump (6.2L Eng) |
20A Blue – Police | Police Bat Feed # 3 | ||
F23 | 20A Blue | – | Police Bat Feed # 1 |
F24 | 20A Blue | – | Police Ignition Run/ACC Feed # 3 |
F28 | – | – | Spare |
F29 | – | 15A Blue | Auto Trans (Challenger / Police) |
F30 | – | – | Spare |
F31 | – | 25A Clear | Engine Module |
F32 | – | – | Spare |
F33 | – | – | Spare |
F34 | – | 25A Clear | ASD Feed #1 |
F35 | – | 20A Yellow | ASD Feed #2 |
F36 | – | 10A Red | Anti-Lock Brake Module / Steering Column Lock Module * |
F37 | – | 10A Red | Engine Controller |
F38 | – | 10A Red | Airbag Module |
F39 | – | 10A Red | A/C Clutch / EPS / Vacuum Pump |
F48 | – | 10A Red | AWD Module / Front Axle Disconnect |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Vacuum Pump |
F52 | – | 5A Tan | Adaptive Cruise Control |
F53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2023)
â„– | Cartridge Fuse | Mini-Fuse | Description |
---|---|---|---|
F02 | 60A Yellow | – | Front PDC Feed #1 |
F03 | – | – | Spare |
F04 | 60A Yellow | – | Front PDC Feed #2 |
F05 | 30A Pink | – | Sunroof |
20A Blue – Police | – | Dome Lamp – Police | |
F06 | 40A Green | – | Exterior Lighting #1 |
F07 | 40A Green | – | Exterior Lighting #2 |
F08 | 30A Pink | – | Interior Lighting |
F09 | 40A Green | – | Power Locks |
F10 | 30A Pink | – | Driver Door Module |
F11 | 30A Pink | – | Passenger Door Module |
F12 | – | 20A Yellow | Cigar Lighter / IP APO / RR USB (Selectable Fuse) |
F15 | 40A Green | – | HVAC Blower |
F16 | 20A Blue | – | Left Spot Lamp – Police |
F17 | 20A Blue | – | Right Spot Lamp – Police |
F18 | 30A Pink | – | VISM Mod (Police) |
F19 | – | – | Spare |
F20 | – | – | Spare |
F21 | 30A Pink | – | Fuel Pump (Non 6.2L ADR) |
40A Green | Fuel Pump #2 (6.2L XVC) | ||
F22 | – | 5A Tan | Cyber Gateway Module |
F23 | – | 10A Red | Fuel Door SW / Diagnostic Port |
F24 | – | 10A Red | Integrated Center Stack |
F25 | – | 10A Red | Tire Pressure Monitor System |
F26 | – | 15A Blue | Trans Mod (Charger / 300) |
F27 | – | 25A Clear | Amplifier |
F31 | – | 25A Breaker | Power Seats |
F32 | – | 15A Blue | HVAC Module / Cluster |
F33 | – | 15A Blue | IGN SW / Wireless Mod / Steer Clmn Lock Mod / Remote Start |
F34 | – | 10A Red | Steering Column Module / Clock (300) |
F35 | – | 5A Tan | Battery Sensor |
F36 | – | 15A Blue | Active Exhaust Valve |
F37 | – | 20A Yellow | Radio |
F38 | – | 20A Yellow | Media Hub / Console APO |
F40 | 30A Pink | – | Fuel Pump #1 (6.2L ADR) |
F41 | 30A Pink | – | Fuel Pump #2 (6.2L ADR) |
40A Green | Fuel Pump #1 (6.2L XVC) | ||
F42 | 30A Pink | – | Rear Defrost |
F43 | – | 20A Yellow | Rear Heated Seats / Heated Steering Wheel |
F44 | – | 10A Red | Park Assist / Blind Spot / Rear View Camera |
F45 | – | 15A Blue | Cluster / Rearview Mirror / Lane Departure |
F46 | – | – | Spare |
F47 | – | 10A Red | Adaptive Front Lighting / Day Time Running Lamps |
F48 | – | 20A Yellow | Active Suspension – (6.4L/6.2L) |
F49 | – | – | Spare |
F50 | – | – | Spare |
F51 | – | 20A Yellow | Front Heated / Vented Seats |
F52 | – | 10A Red | Heated Cup Holders / Rear Heated Seat Switches |
F53 | – | 10A Red | HVAC Module / In Vehicle Temperature Sensor |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | – | Spare |
F57 | – | – | Spare |
F58 | – | 10A Red | Airbag Module |
F59 | – | 20A Yellow | Adjustable Pedals – Police |
F60 | – | – | Spare |
F61 | – | – | Spare |
F62 | – | – | Spare |
F63 | – | – | Spare |
F64 | – | 25A Breaker | Rear Windows (Charger/300) (Circuit Breakers) |
F65 | – | 10A Red | Airbag Module |
F66 | – | – | Spare |
F67 | – | 10A Red | Rain & Light Sensor / Sunroof / Inside RearView Mirror / Police Run Acc |
F68 | – | 10A Red | Rear USB Timer / Rear Sunshade |
F69 | – | – | Spare |
F70 | – | – | Spare |
Conclusion
The 2015-2023 Dodge Challenger combines iconic style with modern performance, making it essential to ensure that its fuse box and relays are well-maintained. These electrical components play a crucial role in supporting both everyday functions and high-powered systems in this high-performance vehicle.
