Learn about Daewoo Korando 1999-2001 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

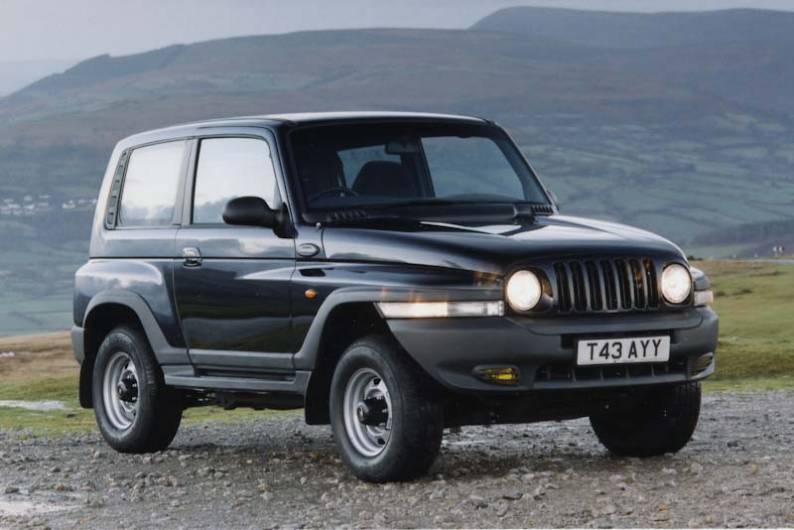

The Daewoo Korando (1999-2001) is a rugged SUV that combines off-road capability with a distinctive, compact design. Available in both three-door and five-door body styles, it offers versatility for different needs. The three-door model is more focused on off-road enthusiasts with its shorter wheelbase, while the five-door version provides additional space and practicality for families or those needing more cargo capacity.
Inside, the Korando features a straightforward and functional layout, with options for air conditioning, power windows, and basic infotainment systems. Its mechanical robustness is complemented by its electrical components, including the fuse box and relays, which are essential for ensuring smooth operation of key systems like lighting, heating, and the engine’s electronic controls.
The fuse box is located under the dashboard or in the engine compartment and helps protect circuits from electrical overloads. The relays, positioned near the fuse box, control high-powered systems such as the fuel pump, starter motor, and air conditioning. Regularly checking these components can prevent electrical issues and ensure the Korando remains dependable in both urban and off-road environments.
MUST READ: DYI – How to Check Car Fuses?
(1999-2001) Daewoo Korando fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Daewoo Korando 1999-2001 fuse assignment
Year of production: from 1999, 2000, 2001

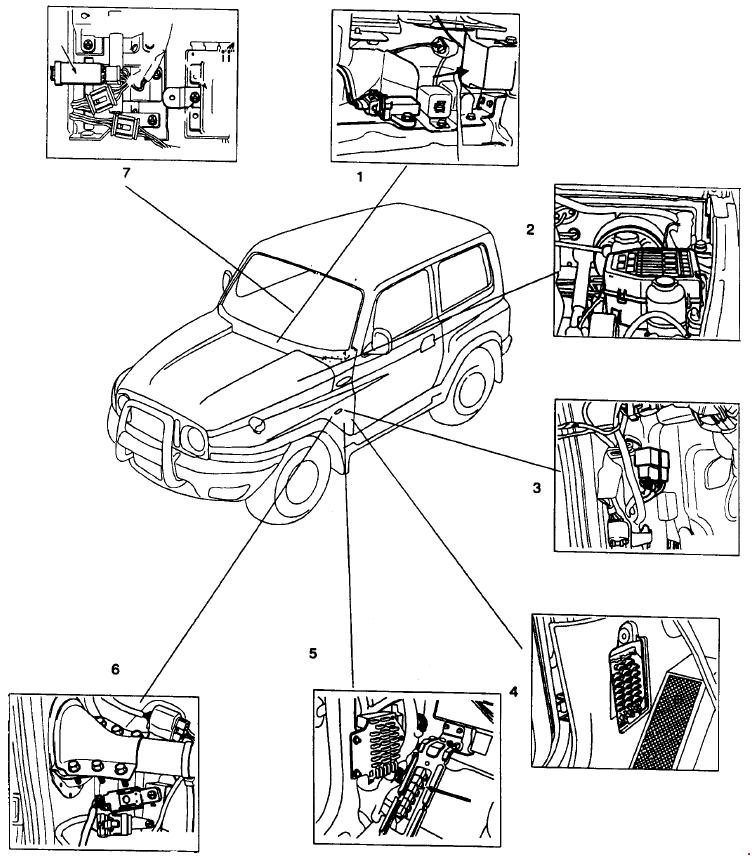

Location
- Automatic Door Lock Relay
- Engine Room Fuse Box
- ABD Motor and Valve Relay
- Interior Fuse Box
- Interior Relay
- Window Auto Down Relay
- Over Voltage Protection Relay: OVPR

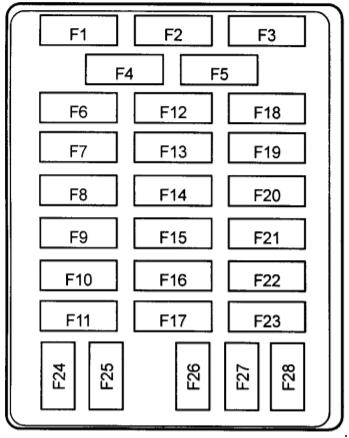

Compartment Fuse Box
| No. | Circuit Protected | A |
| F1 | ABS, Automatic Brake Differential ECU | 15 |
| F2 | Transmission Control Unit, ECS Relay, Seat Warmer Unit | 10 |
| F3 | Immobilizer(Diesel), Stop Switch | 10 |
| F4 | AUDIO Switch, AUDIO | 10 |
| F5 | O/SMIRR, C/LIGHTER | 15 |
| F6 | Room Lamp, Door Lamp, Luggage Room Lamp | 10 |
| F7 | Hazard Switch | 15 |
| F8 | Defogger Relay | 20 |
| F9 | STICS Joint Conn. #1, Audio | 10 |
| F10 | Power Relay | 30 |
| F11 | Automatic Brake Differential ECU | 15 |
| F12 | Sun Roof Relay | 20 |
| F13 | Transfer Case Control Unit, Transfer Case unit | 20 |
| F14 | Blower Motor Relay | 30 |
| F15 | Stop Lamp Switch | 15 |
| F16 | Air Conditioner, Door Lock, Seat Warmer Unit | 15 |
| F17 | Power Window Relay, Diagnosis Connector | 10 |
| F18 | Engine Room Relay, Hazard Switch | 15 |
| F19 | Back up Lamp | 10 |
| F20 | Transfer Case, Transfer Case Control Unit, Sun Roof, Auto Dimming Room Mirror | 10 |
| F21 | Speed Sensor, Diagnosis Connector, Joint Conn. #5 | 10 |
| F22 | Diode, Over Voltage Protection Relay, Preheat Control Unit, Shift Lock Relay | 10 |
| F23 | Air Bag Unit | 10 |
| F24 | ECS Relay | 15 |
| F25 | Antenna Motor | 10 |
| F26 | FRT Wiper Relay, Motor | 15 |
| F27 | RR Washer / Wiper Motor | 10 |
| F28 | A/C Relay, Joint Conn. #3 | 10 |

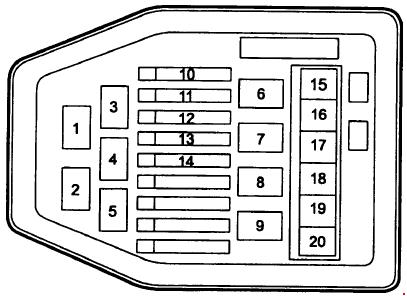

Engine Compartment Fuse Box
| No. | A | Circuit Protected |
| 10 | 10 | Horn |
| 11 | 15 | Tail/Rear Fog Lamp |
| 12 | 15 | Head Lamp (HI) |
| 13 | 15 | Head Lamp (LO) |
| 14 | 15 | Front Fog Lamp |
| 15 | 20 | Over Voltage Protection Relay (Gasoline) |
| 16 | 30 | Tail Lamp |
| 17 | 30 | Head Lamp |
| 18 | 30 | Engine |
| 19 | 30 | Ignition Switch |
| 20 | 50 | Battery |
| Relay | ||
| 1 | Tail Lamp | |
| 2 | Horn | |
| 3 | Register (Gasoline) | |
| 4 | Front Fog Lamp | |
| 5 | Condenser Fan | |
| 6 | Compressor (Diesel) Condenser Fan (Gasoline) | |
| 7 | Condenser Fan | |
| 8 | Head Lamp (HI) | |
| 9 | Head Lamp (LOW) | |

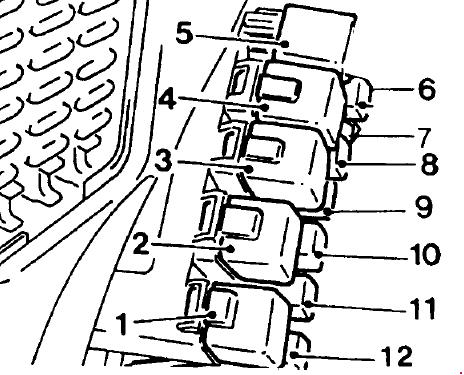

Relay Box
| No. | Relay |
| 1 | Front Wiper Relay |
| 2 | Automatic Brake Differential 5.0 Ground Relay |
| 3 | Hazard Warning Flasher Relay |
| 4 | Fuel Pump Relay |
| 5 | Shift Lock Relay |
| 6 | Defogger Relay |
| 7 | ECS Relay |
| 8 | Rear Fog Lamp Relay |
| 9 | Power Window Relay |
| 10 | Air Conditioner Relay |
| 11 | Sun Roof Relay |
| 12 | Clutch lnterlock Relay (Manual Transmission) Neutral Relay (Automatic Transmission) |

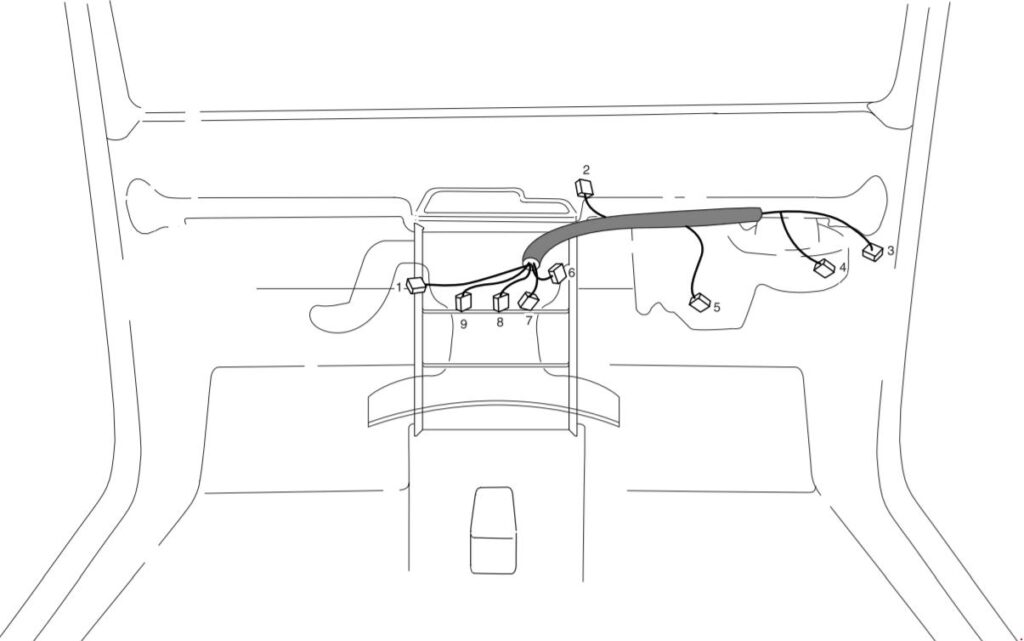

Blower Relay (No. 6)
Conclusion
For owners and enthusiasts of classic Daewoo Korando 1999-2001, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Daewoo’s craftsmanship and innovation in the automotive industry during that era.
