Learn about Daewoo Cielo fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Daewoo Cielo, produced from the mid-1990s, is available in two main body styles: a four-door sedan and a five-door hatchback. Both styles offer spacious interiors and practical design, making them suitable for families and everyday use. The sedan emphasizes a more traditional look, while the hatchback focuses on added versatility for cargo storage.
The electrical system of the Daewoo Cielo plays a crucial role in the car’s functionality, and it is managed through a fuse box and relays. The fuse box, located either in the engine bay or under the dashboard, houses fuses that protect various electrical components such as headlights, power windows, and the air conditioning system. Relays, which are located near the fuse box, help manage high-current electrical functions like the fuel pump and starter motor. Regular checks of the fuses and relays are essential to prevent issues such as blown fuses or faulty electrical components, ensuring the car runs efficiently and safely.
MUST READ: DYI – How to Check Car Fuses?
(…) Daewoo Cielo fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Daewoo Cielo fuse assignment
Year of production: …

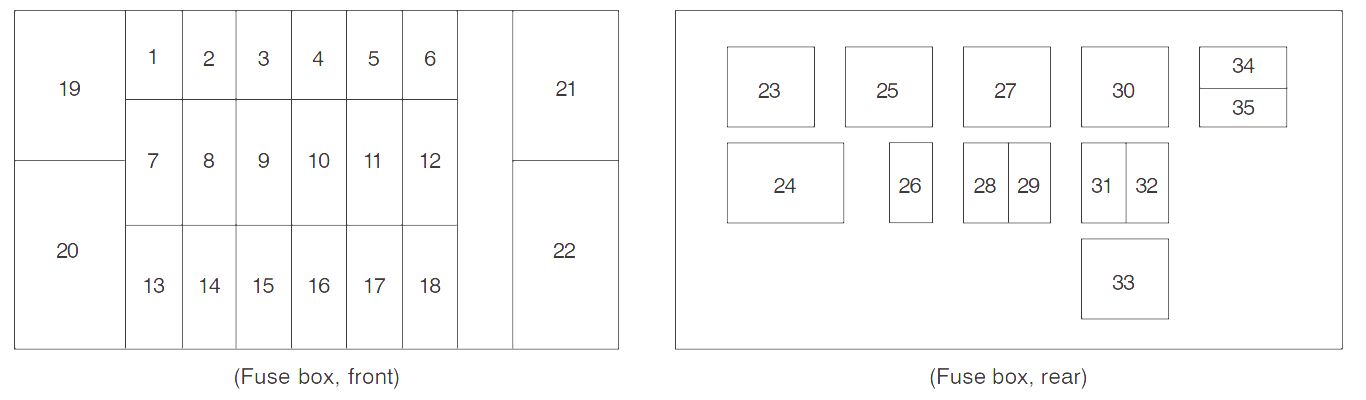

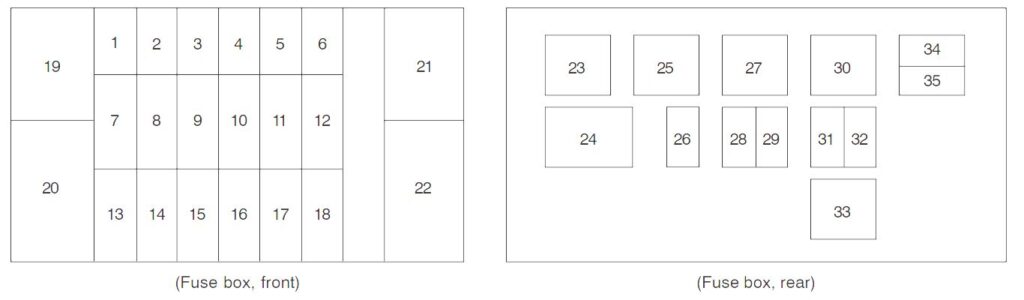

Passenger compartment
The fuse box is located to the right of the steering column under a cover.
| Fuse | [A] | Circuit protected |
| 1 | 10 | ECM(batt) |
| 2 | 10 | Parking and tail lamps, licence plate lamp |
| 3 | 10 | Air bag* |
| 4 | 20 | High beam |
| 5 | 10 | Low beam(left) |
| 6 | 10 | Low beam(right), head lamp leveling device* |
| 7 | 30 | Fuel pump |
| 8 | 20 | Turn signal lamps, hazard, ABS*(ign.) |
| 9 | 30 | Windshield wipers |
| 10 | 10 | ABS(batt.)*, fuel filler door release |
| 11 | 10 | Air conditioning compressor relay fuse* |
| 12 | 30 | Blower motor fan(low) |
| 13 | 20 | I/P cluster, cigarette lighter, warning chime |
| 14 | 30 | Blower motor fan(high), horn |
| 15 | 20 | Room lamp, antenna |
| 16 | 30 | Power window* |
| 17 | 10 | Radio and cassette*(ign.) |
| 18 | 30 | Auto trunk, central door locking* radio and cassette(batt) |
| 19 | — | Turn signal relay |
| 20 | — | Radiator blower motor fan relay-high speed |
| 21 | — | Fuel pump relay |
| 22 | — | Fog lamp relay |
| 23 | — | Blower motor relay |
| 24 | — | Warning chime relay |
| 25 | — | Rear window wiper relay(HB)* |
| 26 | — | Horn relay |
| 27 | — | Wiper speed control relay* |
| 28 | — | Air conditioning compressor relay* |
| 29 | — | Radiator blower motor fan relay-low speed |
| 30 | — | Rear window defroster time relay |
| 31 | — | Head lamp relay |
| 32 | — | Illumination relay* |
| 33 | — | Window washer pump relay(HB)* |
| 34 | 30 | Blower moter relay fuse* |
| 35 | 30 | Front fog lamp* |
Conclusion
For owners and enthusiasts of classic Daewoo Cielo, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Daewoo’s craftsmanship and innovation in the automotive industry during that era.
