Daewoo Aranos fuse assignment

Year of production: …

Fuse box

The box is located to the right of the steering column under a cover.

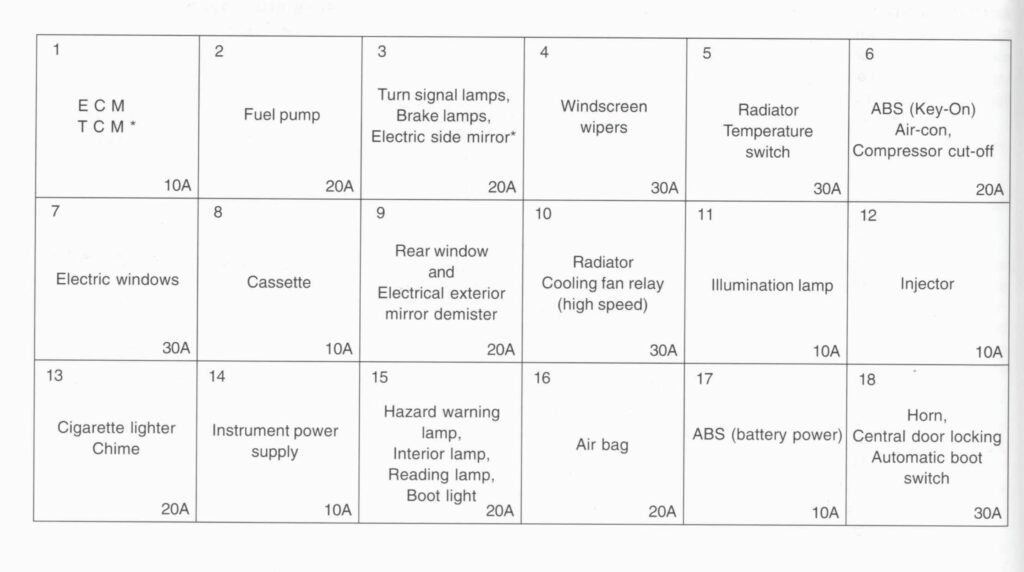

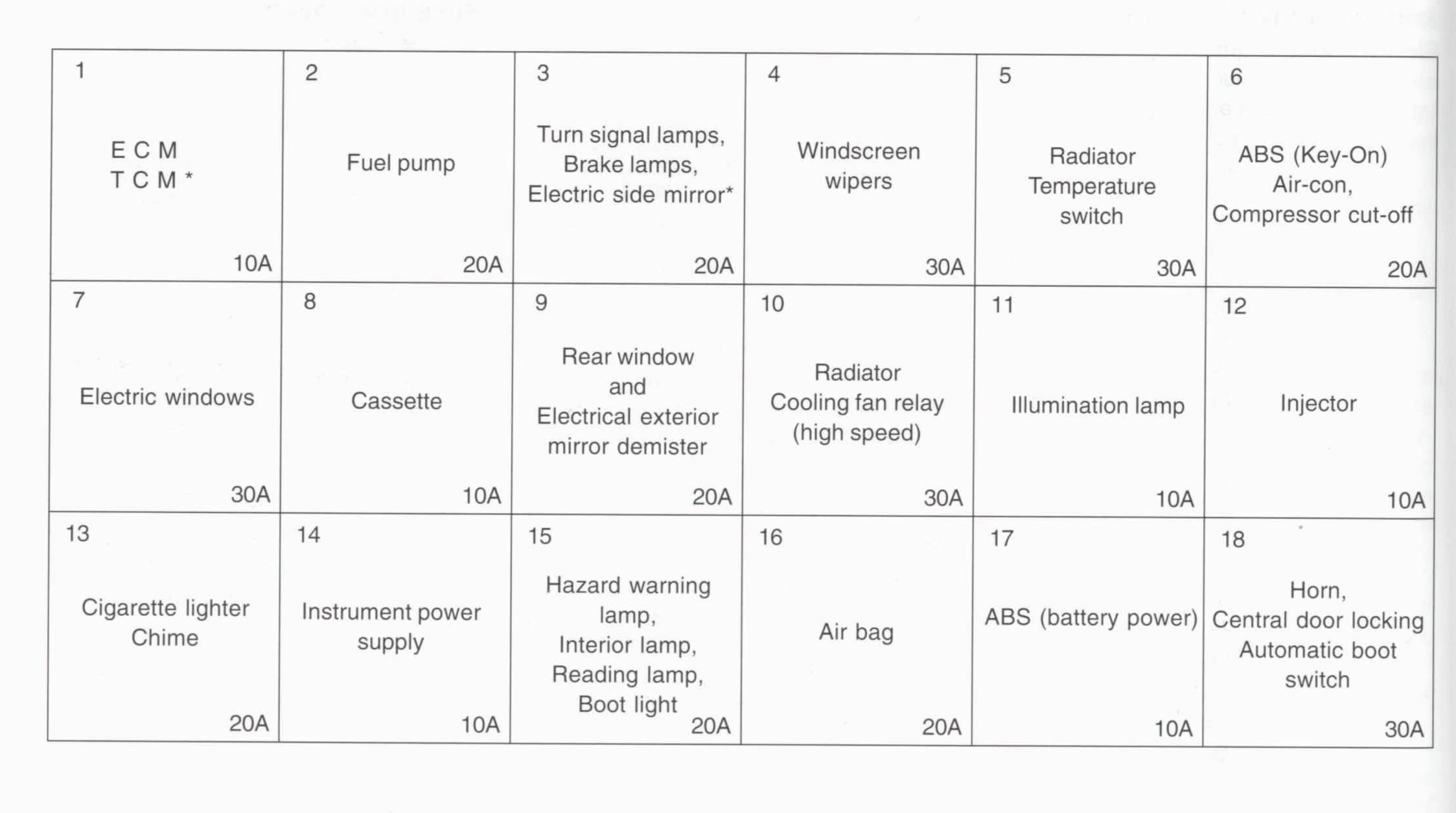

daewoo aranos fuse box diagram passenger compartment
Daewoo Aranos – fuse box diagram – passenger compartment
AComponent
110ECM, TCM*
220Fuel pump
320Turn signal lamps, brake lamps, electric side mirror*
430Windscreen wipers
530Radiator Temperature switch
620ABS (Key-On), Air-com, Compressor cut-off
730Electric windows
810Cassette
920Rear window and Electric exterior mirror dernister
1030Radiator Cooling fan relay (high speed)
1110Illumination lamp
1210Injector
1320Cigarette lighter  Chime
1410Instrument power supply
1520Hazard warning lamp, Interior lamp, Reading lamp, Boot lamp
1620Air bag
1710ABS (battery power)
1830Horn, Central door locking, Automatic boot switch

Engine compartment

The main relay box is located on the front wheel housing next to the battery in the engine compartment.

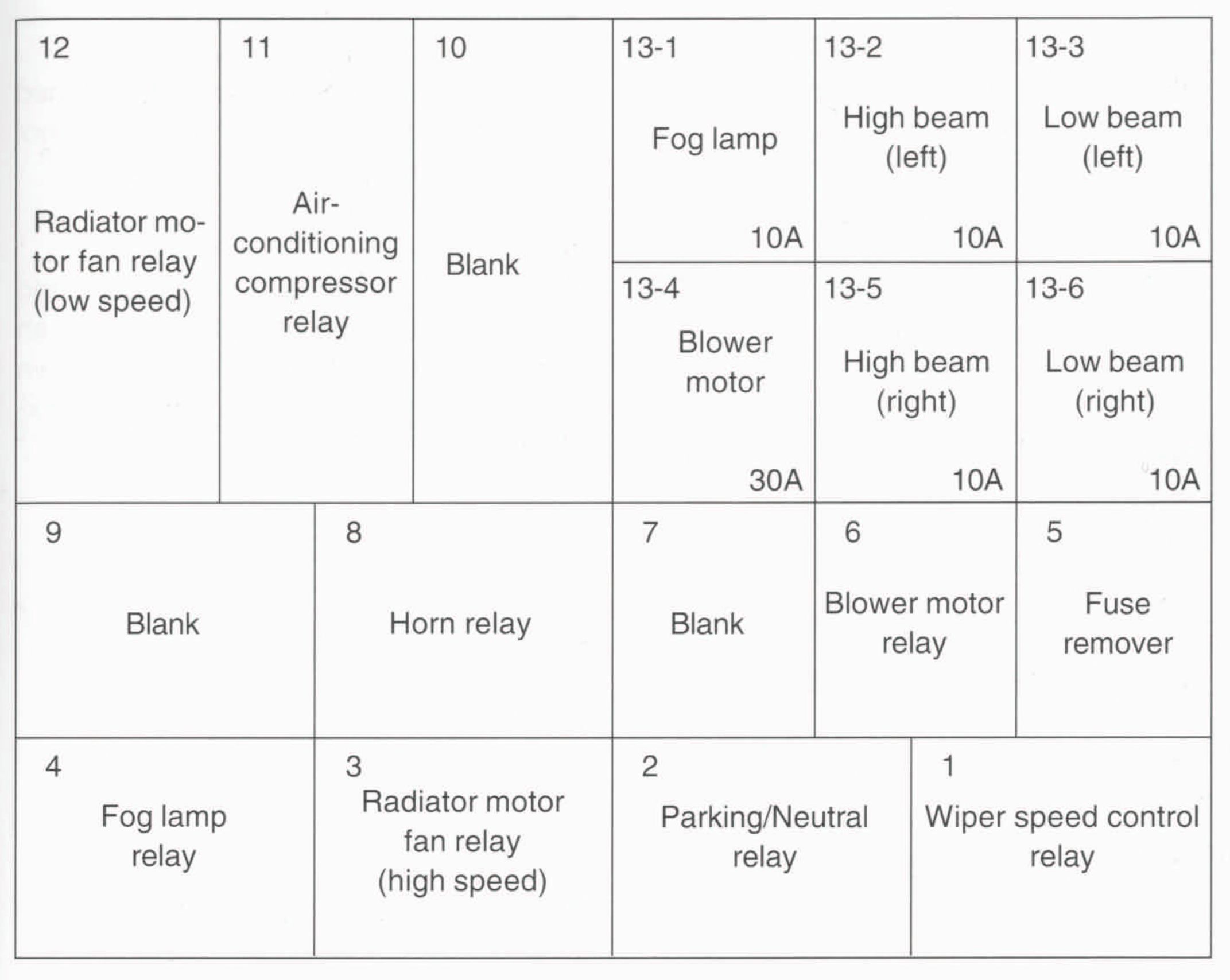

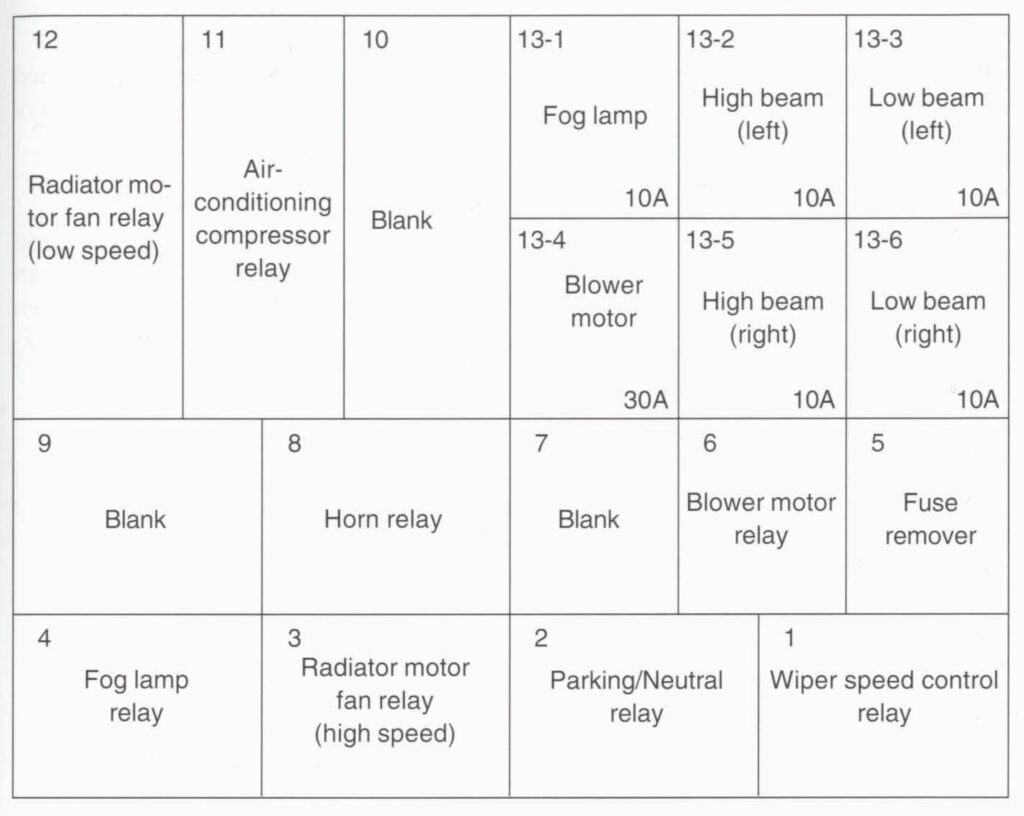

daewoo aranos fuse box diagram engine compartment
Daewoo Aranos – fuse box diagram – engine compartment
AComponent
1Wiper speed control relay
2Parking/Neutral relay
3Radiator motor fan relay (high speed)
4Fog lamp relay
5Fuse remover
6Blower motor relay
7
8Horn relay
9
10
11Air-conditioning compressor relay
12Radiator motor fan relay (low speed)
13-110Fog lamo
13-210High beam (left)
13-310Low beam (left)
13-430Blower motor
13-510High beam (right)
13-610Low beam (right)

Auxiliary relay box

Auxiliary relay box is located in the left hand footwell.

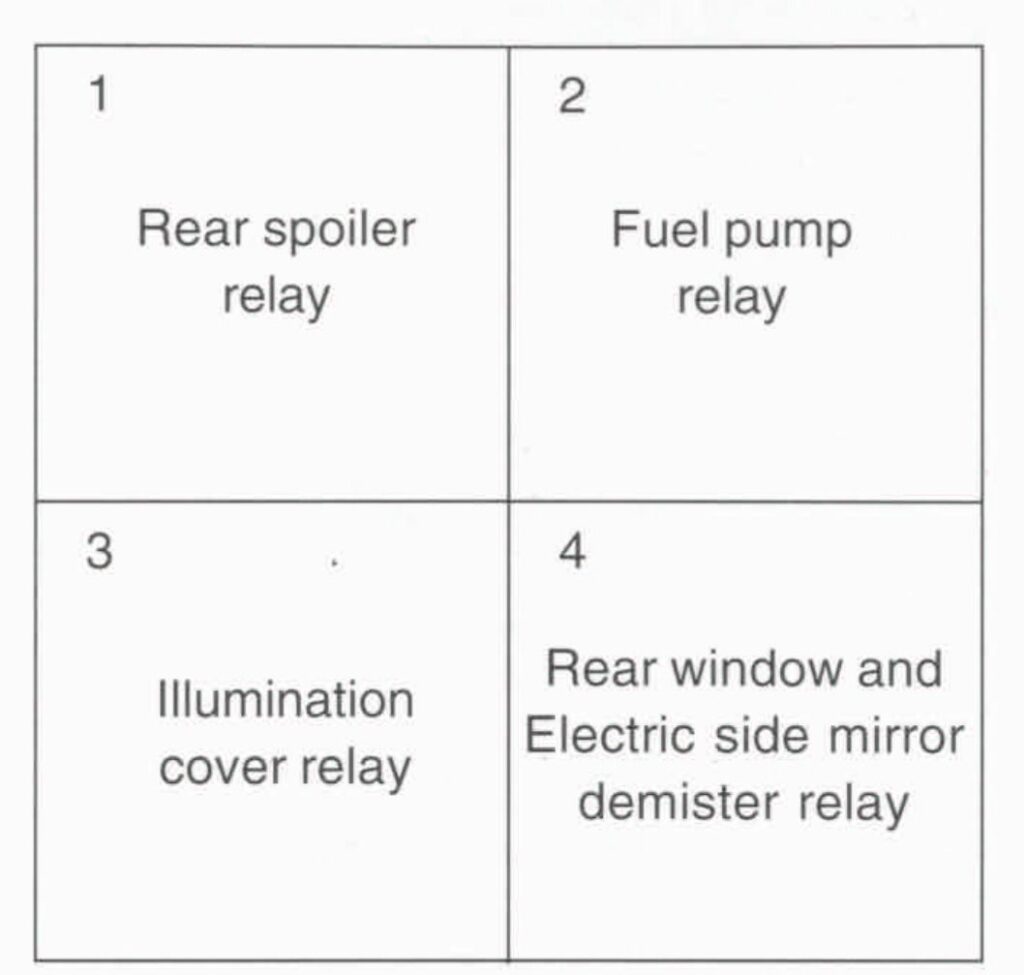

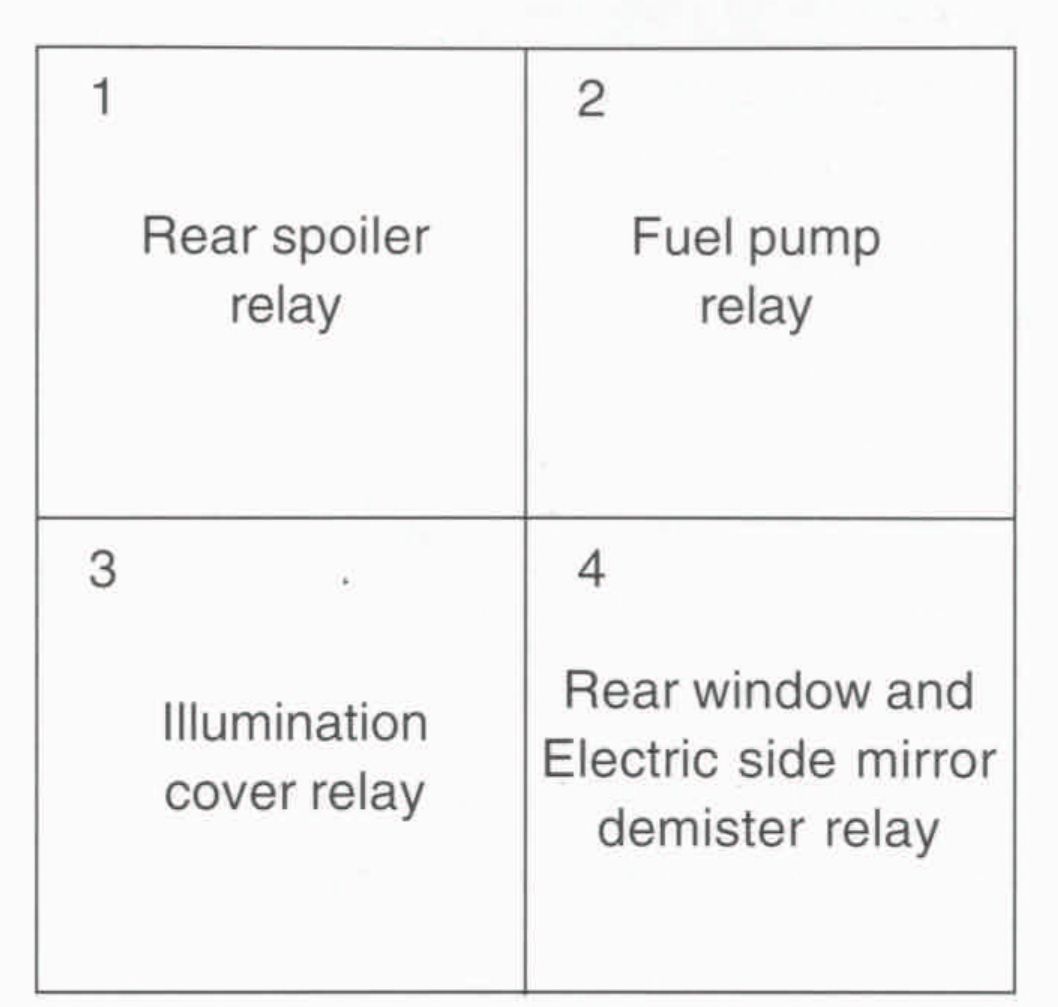

daewoo aranos fuse box diagram auxiliary relay box
Daewoo Aranos – fuse box diagram – auxiliary relay box
