Learn about Dacia Lodgy fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The Dacia Lodgy is a versatile MPV (multi-purpose vehicle) designed for families, offering both five- and seven-seat configurations. Its body style focuses on practicality, featuring a spacious, boxy design that maximizes interior space while maintaining a compact footprint for city driving. The large rear doors and high roofline make it easy to access the third-row seats or load cargo.

In terms of electrical systems, the Dacia Lodgy’s fuse box and relays play a crucial role in controlling essential functions such as the lighting, air conditioning, and wiper systems. The fuse box is typically located beneath the dashboard or in the engine bay. These fuses protect the car’s electrical circuits by breaking the connection if a fault or overload occurs. Relays, often housed near the fuse box, help control higher-powered components like the starter motor and fuel system. Regular checks of the fuse box and relays are important to ensure the electrical systems function correctly, as a blown fuse or faulty relay can lead to malfunctions in key features, such as the car’s lights or heating system.

MUST READ: DYI – How to Check Car Fuses?

(…) Dacia Lodgy fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dacia Lodgy fuse assignment

Year of production: from …

Passenger compartment

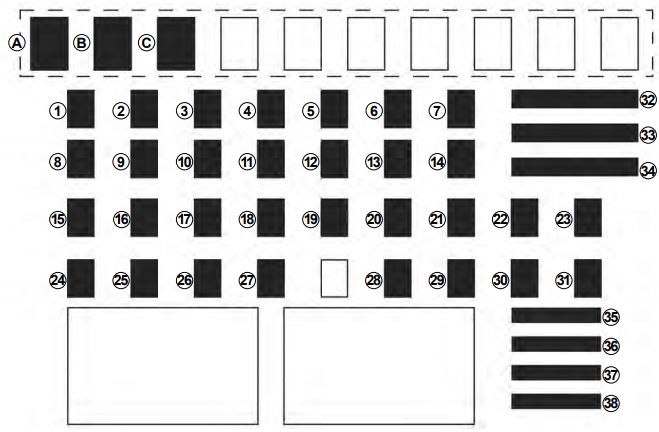

Dacia Lodgy – fuse box diagram – passenger compartment
Dacia Lodgy – fuse box diagram – passenger compartment
Component
AElectric rear window
BElectric door mirrors
CLPG circuit shut-off or LPG circuit and petrol fuel circuit shut-off
1Front electric window
2Left-hand main beam headlight
3Right-hand main beam headlight
4Left-hand dipped beam headlight
5Right-hand dipped beam headlight
6Left-hand side lights
7Right-hand side lights
8Rear accessories socket
9Rear fog lights
10Horn
11Automatic door locking
12ESC
13Courtesy light
14ABS-ESC
15Reverse gear, windscreen wipe
16Cruise control/Speed limiter, rear-view mirror, unfastened seat belt warning, parking distance control
17Daytime running lights
18Fuel pump
19Injection
20Airbag
21Heated seats
22Power-assisted steering
23Location reserved for additional equipment.
24Direction indicator light
25Passenger compartment ECU
26Passenger compartment ECU
27Steering column control
28Steering column control
29Location reserved for additional equipment
30Instrument panel
31Radio
32Starter
33Windscreen wiper
34Passenger compartment ventilation
35Cigar lighter
36Diagnostic socket
37Defrosting rearview mirror
38Front fog lights

Conclusion

For owners and enthusiasts of classic Dacia Lodgy, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dacia’s craftsmanship and innovation in the automotive industry during that era.
